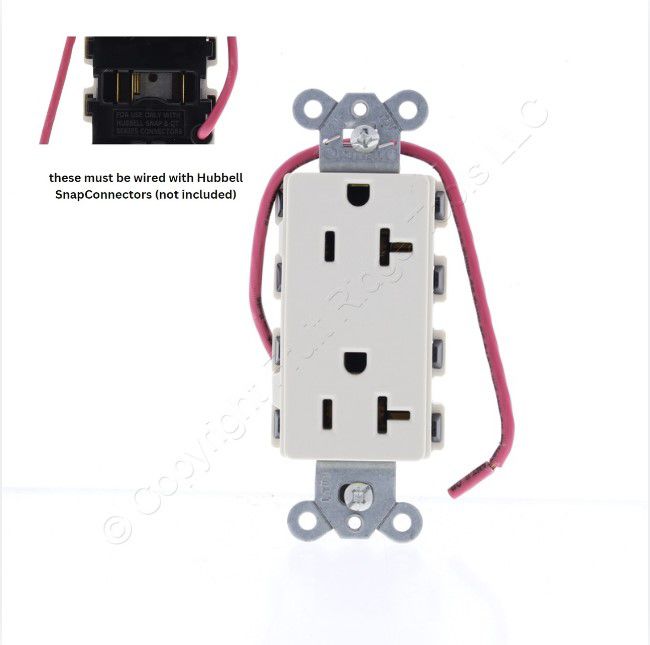

Hubbell SNAP2162LASC Lt Almond SnapConnect Outlet Receptacle Split Circuit 20A

Product Details

Quantity in Lot: 1
Brand: Hubbell
Part Number: SNAP2162LASC
Color: Light Almond
Type: Decorator Outlet
Phase (if applicable) : 1 Phase
Poles: 2
Wires: 3
NEMA Number: 5-20R
Amperage: 20A
Voltage: 125VAC
Grade: Specification Grade
Terminal Type(s): SNAPConnect Pigtail
Ground: Grounding

Hubbell SNAP2162LASC light almond duplex SnapConnect decorator receptacle with preconfigured split circuit design. Please note that these do not have screw terminals; they must be wired with Hubbell SnapConnectors (purchased separately - part numbers listed below). SNAPConnect�s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. Extra heavy duty specification grade, SnapConnect wired, NEMA 5-20R, 2-pole, 3-wire, grounding, rated 20A 125V. Each is individually packaged; packaging may differ from photo. Features include:

  • Preconfigured split circuit design
  • Abuse resistant nylon for extra heavy use applications
  • SNAPConnect eliminates exposed live parts
  • Stainless steel autoground clip
  • 2-pole, 3-wire, rated at 20A 125V

      As was mentioned several times above, these receptacles require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:

      • SNAP1RA: solid wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
      • SNAP2RA: stranded wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material
      • SNAP1RNA (assembled in USA): solid wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material
      • SNAP2RNA (assembled in USA): stranded wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material

      This is New Old Stock and is returnable for any reason. (SKU # HUBSNAP2162LASC-EA; Weight: 0.2500 lbs.)
