This Item Has A Current Calibration!
|
|
|
|

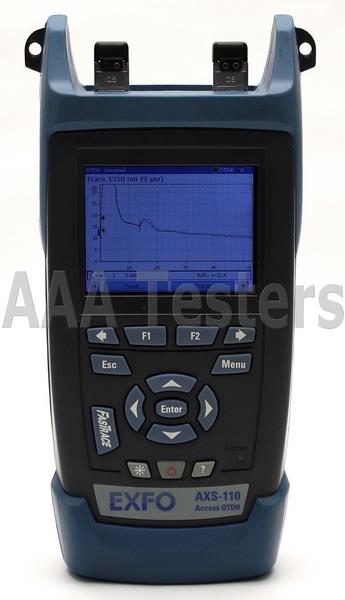

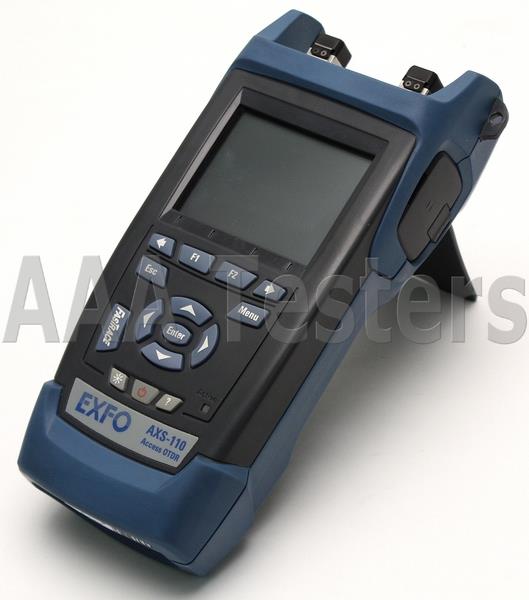

EXFO AXS-110-12CD-23BL-EI-EI Access Singlemode 1310/1550nm Multimode 850/1300nm Fiber OTDR
Dynamic Range:
1310 / 1550 nm : 37 / 35 dB
850 / 1300 nm : 24 / 25 dB

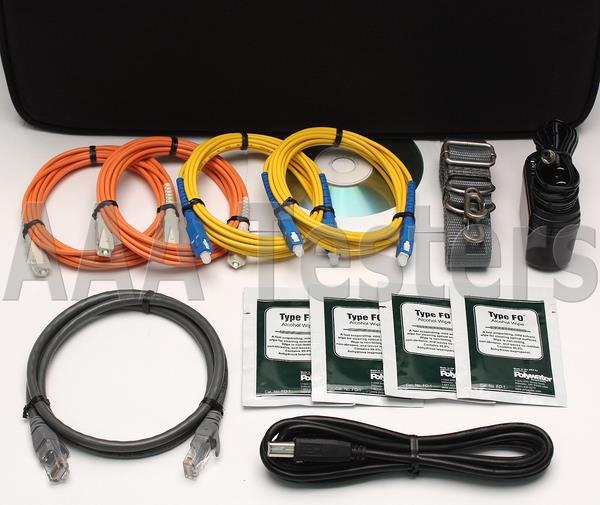

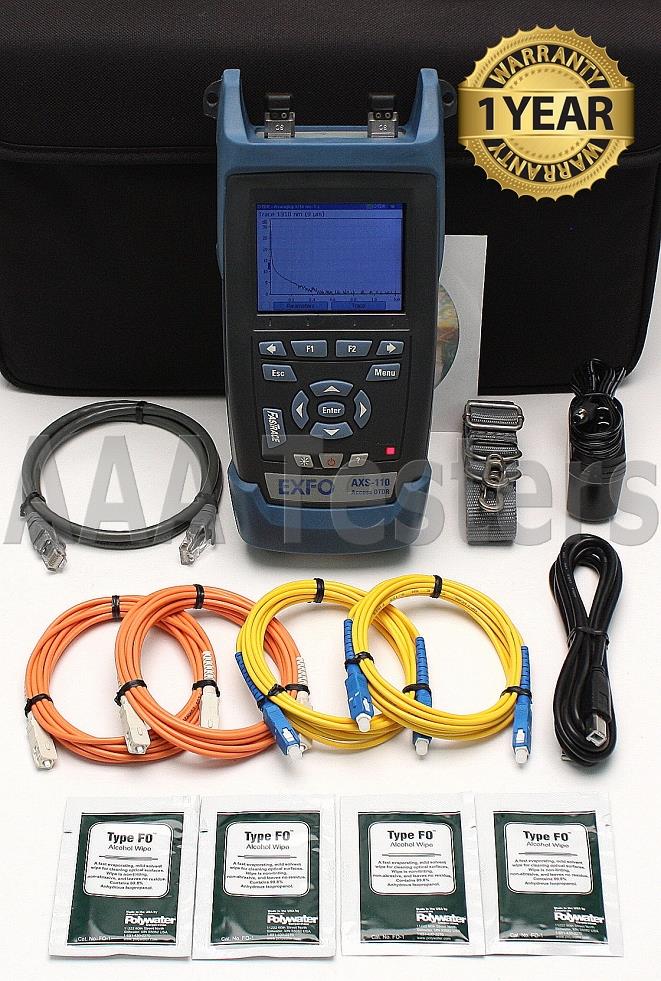

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY
The AXS-110 OTDR: The LAN/WAN Test Solution
AXS-110 Singlemode OTDR
Ideal for FTTx/access and CATV testing, this model is optimized for testing through PON-based splitters; it offers the 1310, and 1550 nm wavelengths, with respective dynamic ranges of 37 and 35 dB.
Key Features
FasTrace function: one-touch testing for top user-friendliness
- 8-hour power autonomy

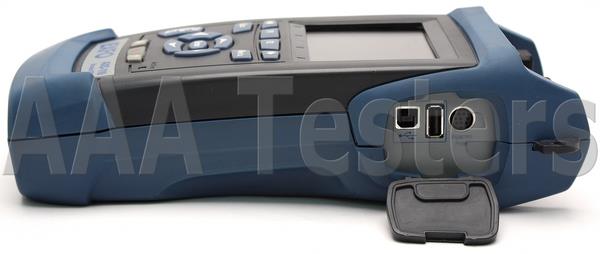

- USB port (memory-stick compatible) for easy data transfer
- Large internal memory (up to 500 results)
- Transflective color display for viewing clear results under bright sunlight
- Superior automated analysis for a better, easier and faster diagnosis
- Automatic pass/fail analysis and macrobend locating
Easy Location and Characterization of Events
EXFO's AXS-110 All-Fiber OTDR helps you boost test productivity for inside-plant applications. Its exceptional 0.8 m event dead zone enables you to easily locate and characterize all events between the transmitter and the central office’s fiber, access and FTTH network applications, where events are usually closely spaced.
Multimode and Singlemode Flexibility
The AXS-110 combines singlemode and multimode functionalities, ideal for premises, private and enterprise network testing. Test multimode fiber within premises, or singlemode fiber between premises—all with a single OTDR unit—and maximize your return on investment.
End-to-End PON Characterization
The AXS-110 lets you test through high-port-count splitters—even 1 x 64 splitters—perfect for passive optical network (PON) testing, delivering these key advantages:
- Perfect tool for FTTx contractors and tier-2 certification of premises networks
- Pass/fail features that comply with industry standards such as TIA 568c and IEEE 802.3ah
- Highest dynamic range of the industry for a handheld OTDR
- Power meter option, for crosschecking the total loss using the built-in OTDR laser in continuous source mode
Specifications
| Wavelength (nm) |
1310/1550 800/1300 |
| Dynamic range (dB) |
37/35 24/25 |
Pulse Width
|
5, 10, 30, 100, 275, 1000, 2500, 10 000 |
| Event dead zone (m) |
0.8
|
| Attenuation dead zone (m) |
4.5/4.5 |
| Linearity (dB/dB) |
±0.01 |
| Loss threshold (dB) |
0.01 |
| Loss resolution (dB) |
0.01 |
| Sampling resolution (m) |
0.08 to 5 |
| Sampling points |
Up to 64, 000 |
| Distance uncertainty (m) |
±(0.75 + 0.0025 % x distance + sampling resolution) |
| Distance range (km) |
0.65 to 260 |
| Typical real-time refresh (Hz) |
4
|
| Memory capacity |
500 traces |
| Measurement time |
User-defined |
| Stable source output power (dBm) |
-7.5 |

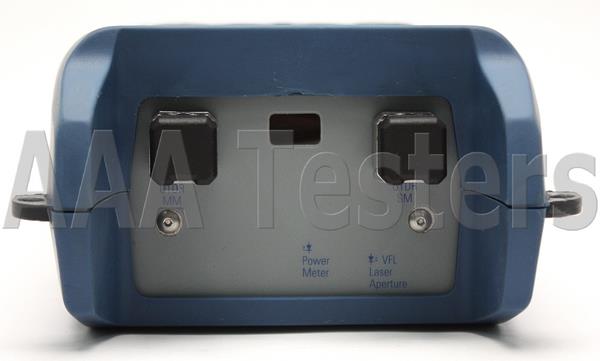

VFL
|
Laser: 650 nm ± 10nm
CW typical P of 1.4 mW open Beam
|
Power Meter
Calibrated wavelengths (nm)
|
850, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410,
1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590,
1610, 1625
|
Power range (dBm)
|
26 to –64 (GeX 2 mm)
|
Uncertainty
|
±5 % ± 0.4 nW (up to 5 dBm)
|
Display resolution (dB)
|
0.01 (–54 dBm to Pmax)
0.1 (–54 dBm to –64 dBm)
1 (–64 dBm to min)
|
Automatic offset nulling range
g
|
Maximum power to —38 dBm
|
Tone detection (Hz)
|
270/1000/2000
|
For full EXFO AXS-110 product specifications, please click here: EXFO AXS-110
|
|
|
|
