This Item Has A Current Calibration!
|
|
|
|

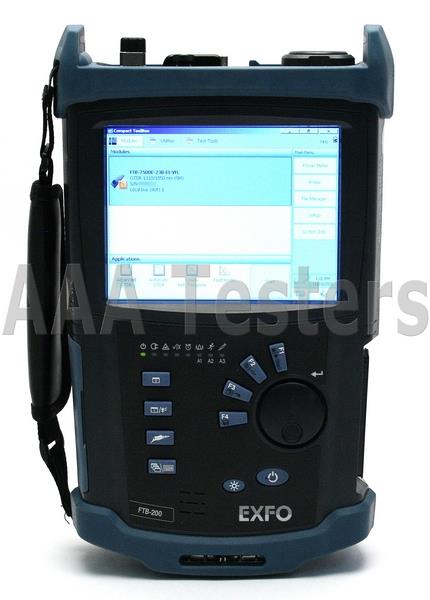

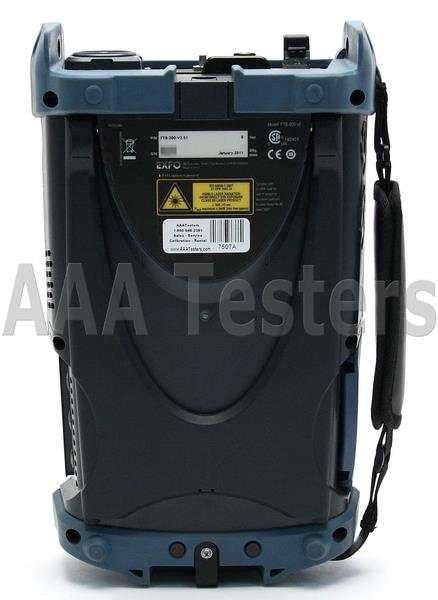

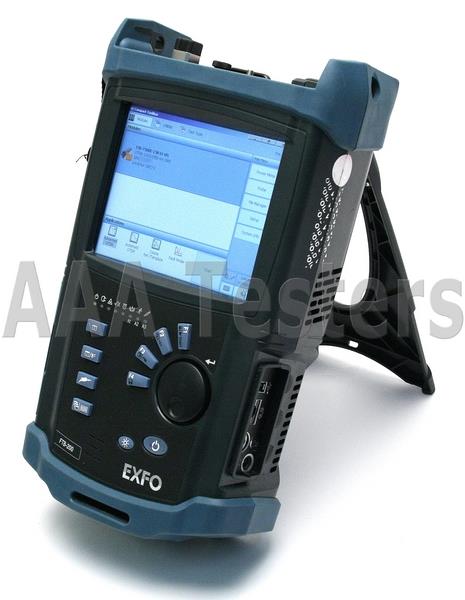

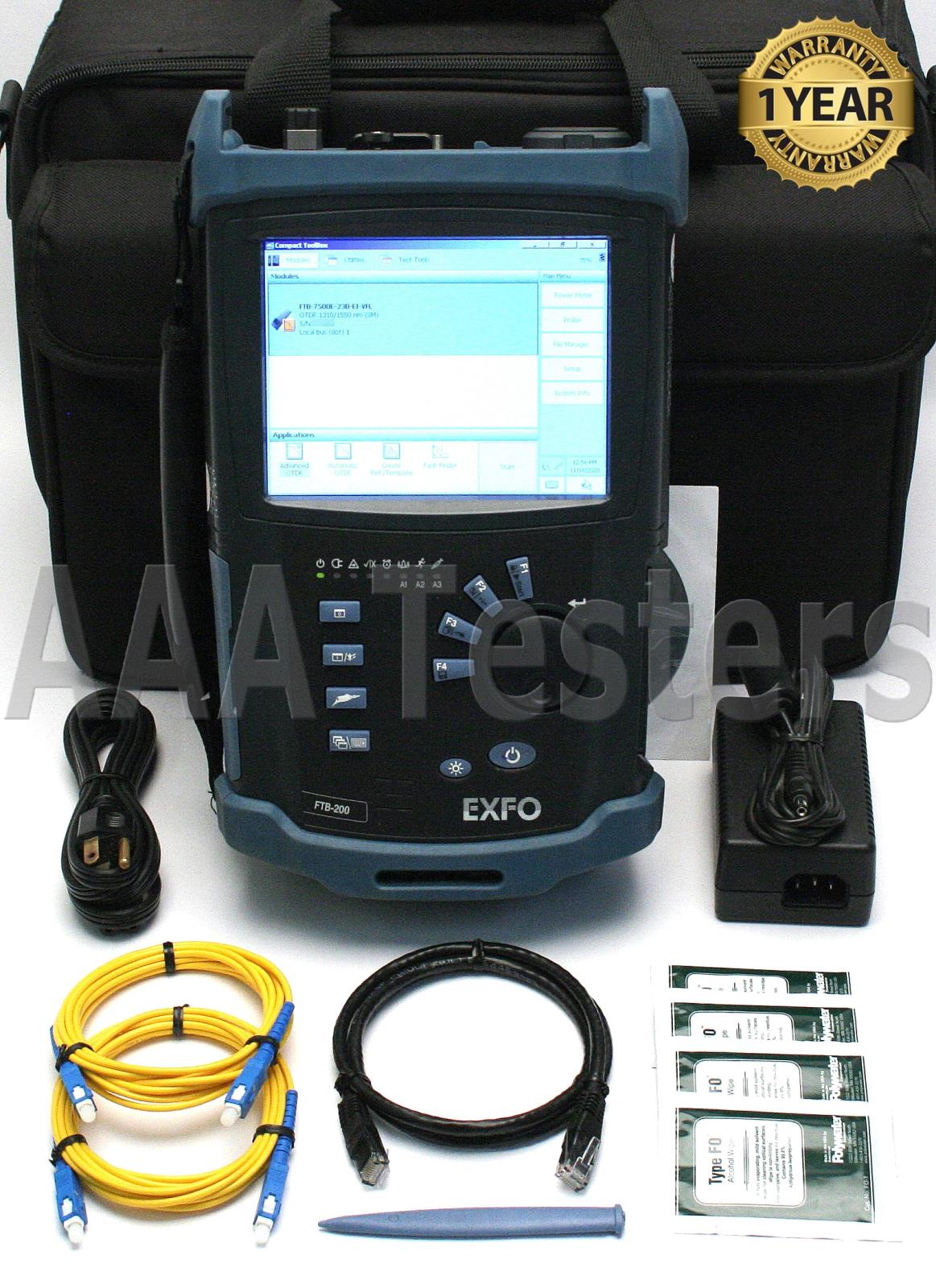

EXFO FTB-200-V2-S1 OTDR Main Frame w/
EXFO FTB-7500E 1310/1550nm SM Long Haul OTDR Module
Dynamic Range:
1310/1550nm : 45/45 dB

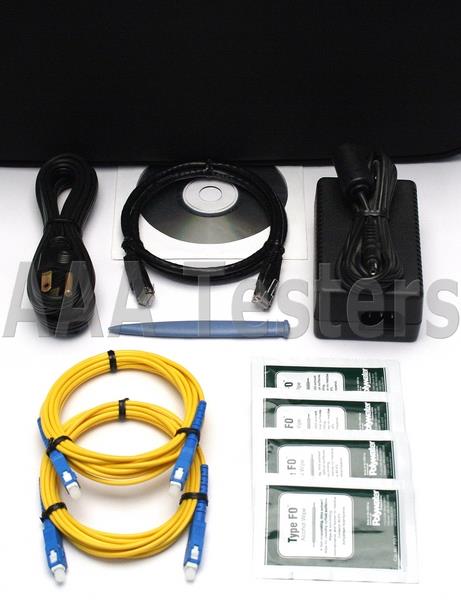

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY
The FTB-200 is a compact, modular platform designed for multilayer and multimedium testing
- Tests physical, transport and datacom
- Accommodates two field-interchangeable modules
- Integrated hardware options such as visual fault locator (VFL), fiber inspection probe and power meter
Designed for metro/access and FTTx networks
- Lightweight construction
- Touchscreen resistant to shock, water, dust and common chemicals
- Dial and shortkeys for easy scrolling and selecting
- Extended battery autonomy of more than eight hours, perfect for OTDR testing
Improved productivity

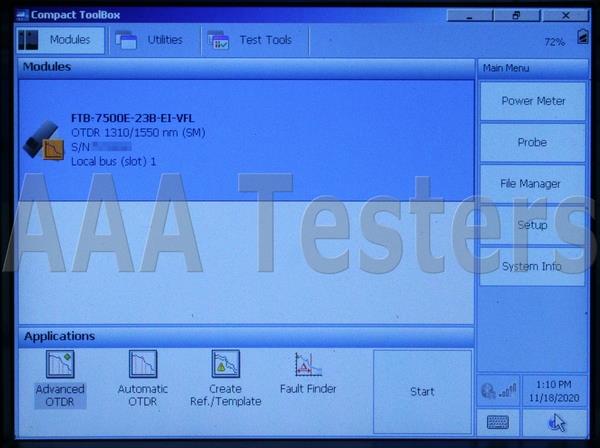

- Four-second power-up time with Windows CE
- Faster acquisition, processing and reporting
A Compact Platform Optimized for Large-Scale Network Deployments
EXFO has created the first true compact platform for the supertech. Whether you are testing triple-wavelength insertion loss at the CO or testing data ntegrity at the core, the FTB-200 has the power, speed and modularity that you need in the field.
Optimized for all phases of the network lifecycle
- Construction/installation
- System provisioning/service activation
- Maintenance/troubleshooting
Lightweight
- 2.5 kg/5.4 lb (platform only)
Fast and powerful
- Four-second power-up time with Windows CE/mobile
Faster acquisition, processing and reporting
- Instantaneous AutoSync USB data transfer
- Faster acquisitions—down to five seconds
- Remote control and virtual applications
Flexible connectivity
- File transfer and software upgrading through USB
- USB A/A-B, RJ-45 and Bluetooth flexibility
- Compact Flash (memory, Wi-Fi and Bluetooth)
Built for the outside plant
- Waterproof outer shell, sealed joints, door panels for extra port protection
- Advanced TFT transflective display, for great visibility under direct sunlight
- Rugged shortkeys and tracking knob
- GR-196-CORE-compliant
- Extended battery autonomy of more than eight hours
Spcifications:
| Display |
Touchscreen, color, 640 x 480 TFT 163 mm (6 7/16 in) |

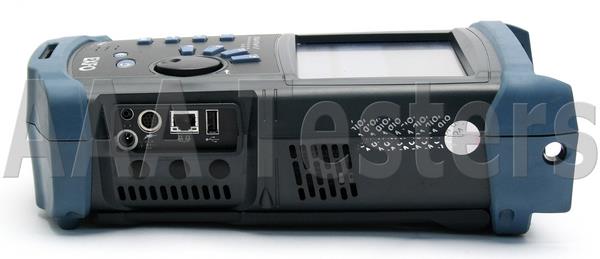

| Interfaces |
USB A main
USB B remote
RJ-45 LAN 10/100 Mbit/s
Compact Flash
Fiber inspection probe connector port (video) |
| Storage |
Internal 80 MB (Flash)
USB sticks 1 GB and 2 GB (optional)
Compact Flash cards (optional) |
| Batteries |
Rechargeable Li-Ion
8 h of operation as per Bellcore TR-NWT-001138 |
| Power Supply |
AC/DC adapter, input 100-240 VAC, 50-60 Hz, 2 A max, output: 24 VDC, 90 W |
| Temperature |
operating |
—5 °C to 50 °C (23 °F to 122 °F) |
| storage |
—40 °C to 70 °C (—40 °F to 158 °F) |
| Relative humidity |
0 % to 95 % non-condensing |
| Size (H x W x D) |
322 mm x 197 mm x 109 mm |
(12 11/16 in x 7 3/4 in x 4 5/16 in) |
| Weight |
2.5 kg |
(5.4 lb) |
| Vibration |
< 1.5 g at 10 Hz to 500 Hz (on three main axes) |
| Mechanical shock |
< 760 mm on six sides and eight main edges (according to GR-196-CORE) |

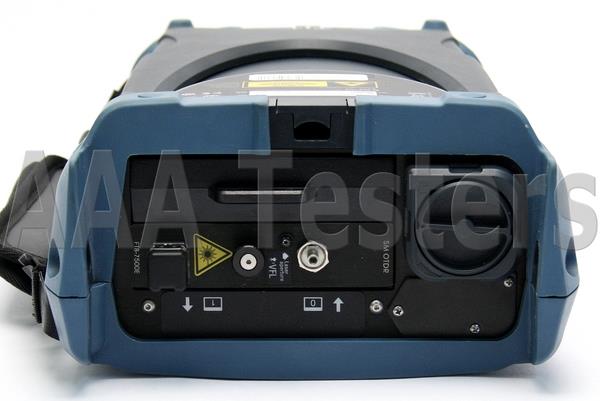

FTB-7500E Metro / Long Haul OTDR Module
Features:
- Dynamic range of up to 45 dB
- Up to 256 000 sampling points
- Event dead zone of 0.8 m and attenuation dead zone of 4 m
- Industry-leading linearity of ±0.03 dB/dB
- EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database
Specifications:
| Wavelengths (nm) |
1310 ± 20/1550 ± 20 |
| Dynamic range at 20 µs (dB) |
45/45 |
| Event dead zone (m) |
0.8 |
| Attenuation dead zone (m) |
4/4.5 |
| Distance range (km) |
1.25, 2.5, 5, 10, 20, 40, 80, 160, 260, 400 |
| Pulse width (ns) |
5, 10, 30, 100, 275, 1000, 2500, 10 000, 20 000 |
| Linearity (dB/dB) |
±0.03 |
| Loss threshold (dB) |
0.01 |
| Loss resolution (dB) |
0.001 |
| Sampling resolution (m) |
0.04 to 5 |
| Sampling points |
Up to 256 000 |
| Distance uncertainty (m) |
±(0.75 + 0.001 % x distance + sampling resolution) |
| Measurement time |
User-defined (5 sec. minimum to 60 min. maximum) |
| Typical real-time refresh (Hz |
4 |
| Stable source output power (dBm) |
-1 |
For full EXfo FTB-7500E product specifications, please click here: EXfo FTB-7500E
|
|
|
|
