Omron H3YN-21 Solid-State Timer DPDT 8-Pin Long-Time Range 0.1min-10h
- In Stock: 2
- Brand: Omron
- Condition: Used
- Notes: Previously used item in good condition. Tested and fully functional. May show normal signs of wear from use. We warranty all items for 30 days.
- Model: H3YN-21
- Type: Time Delay Relay
- Shelf: K-69
- Series: H3YN
- Part Number: H3YN-21
- Manufacturer: Omron
- Material: Plastic housing
- MPN: H3YN-21

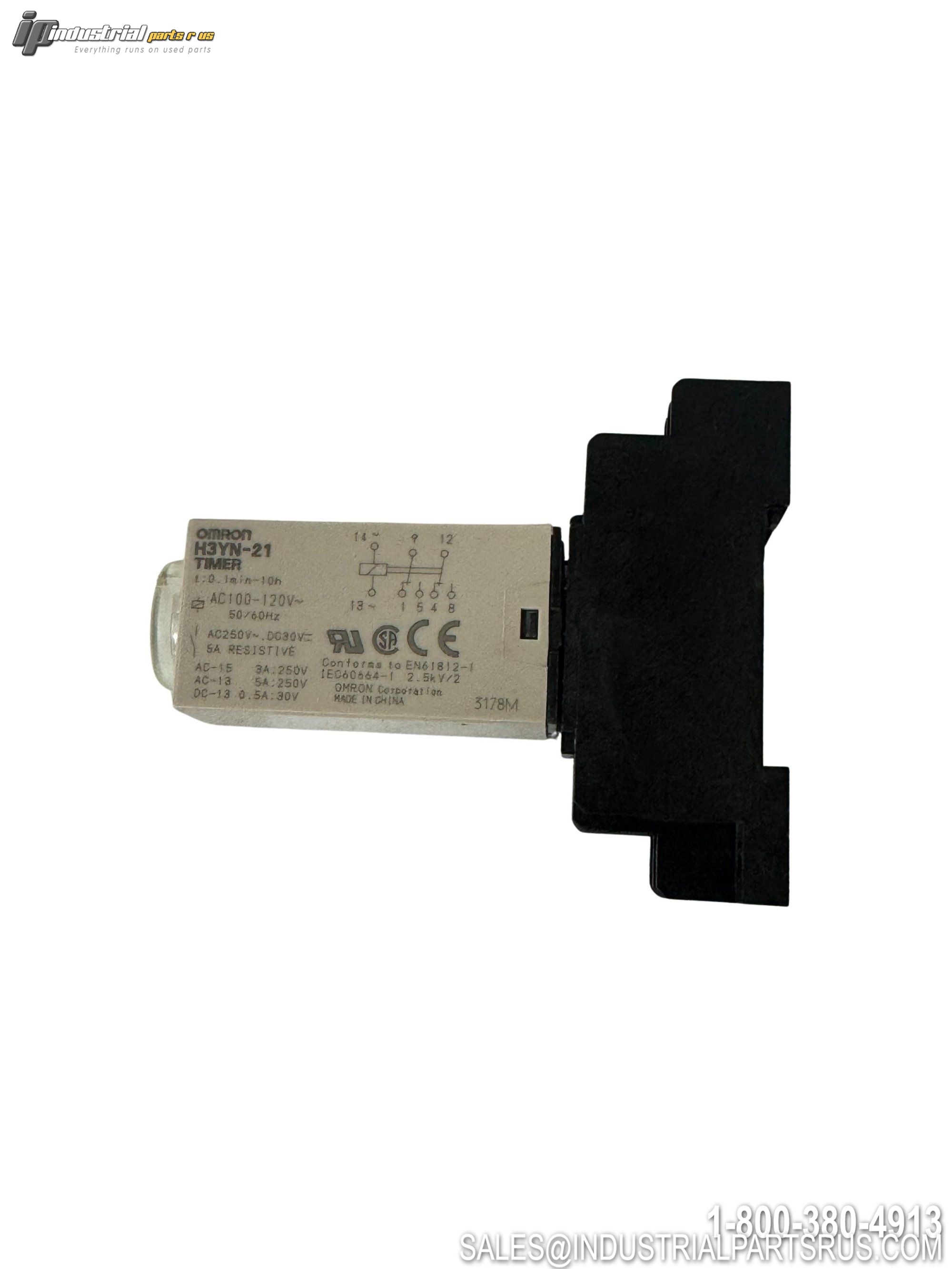

- Media 1 Description: Omron H3YN-21 Time Delay Relay - Photo 1

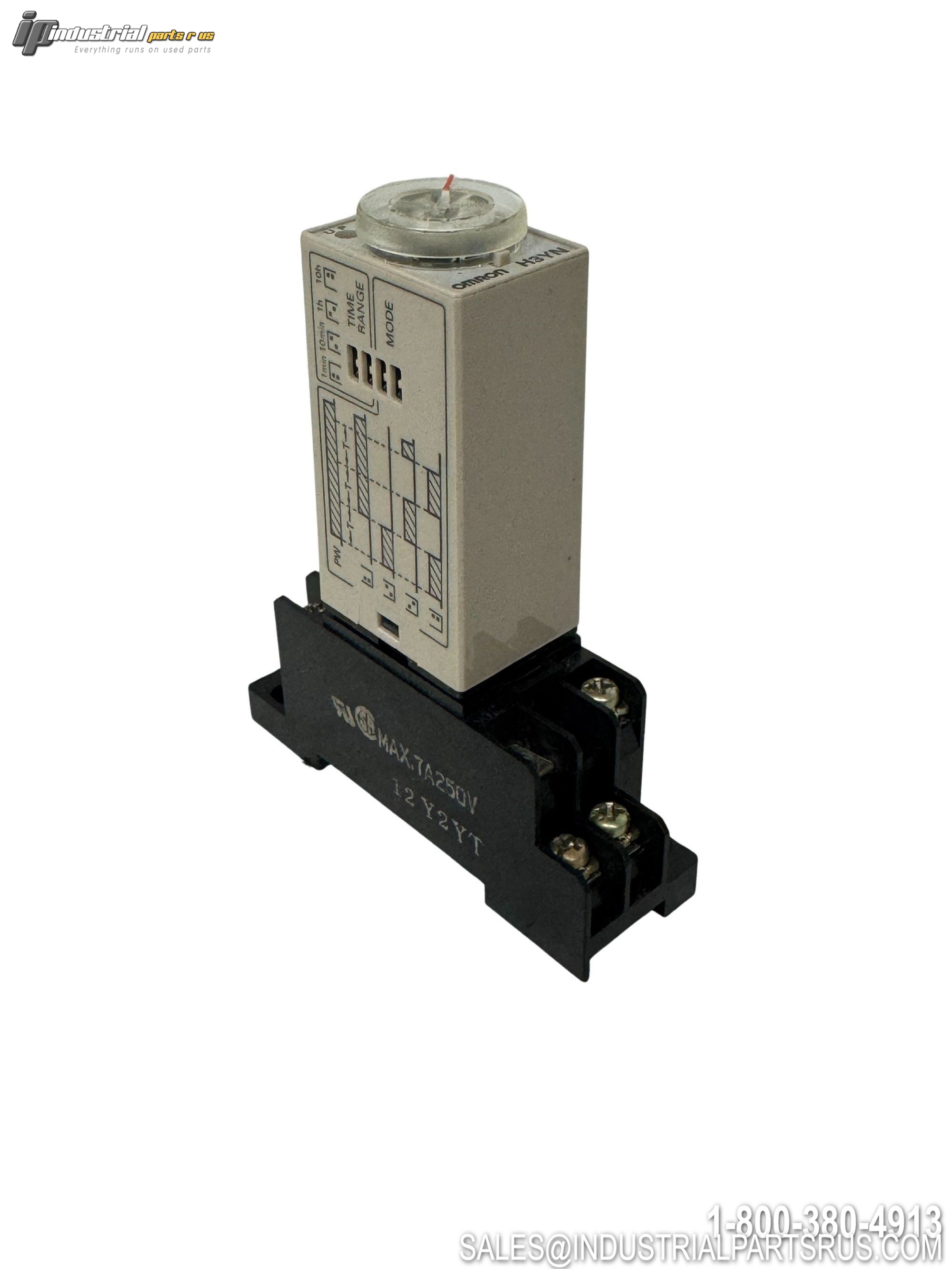

- Media 2 Description: Used - Good Omron H3YN-21 Time Delay Relay Image 2

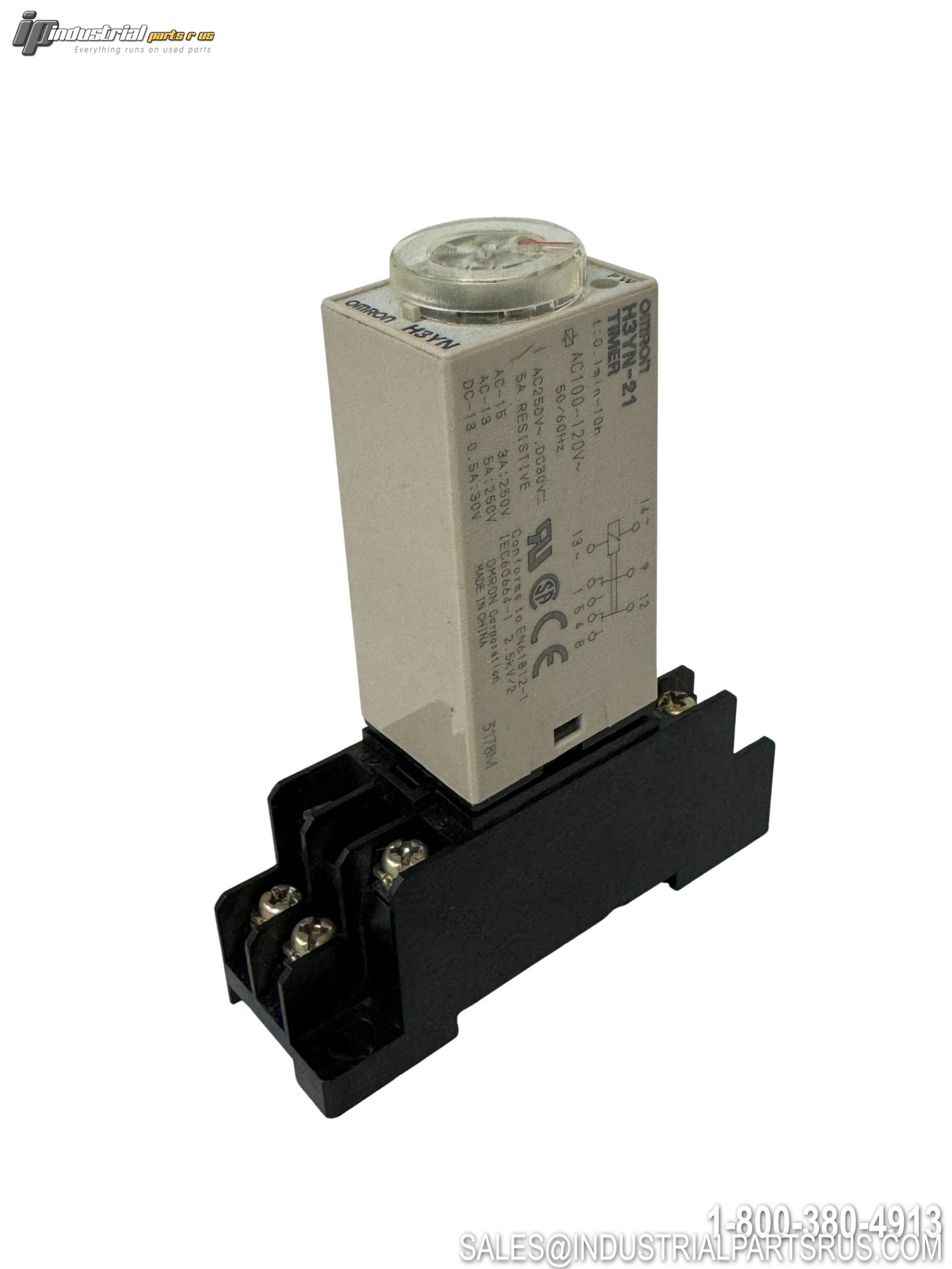

- Media 3 Description: Omron H3YN-21 Time Delay Relay View 3
- Number of Phases: 1
- Mounting Type: DIN rail socket mounting
- Maximum Amperage: 5A
- Country of Origin: Japan
The Omron H3YN-21 is a solid-state timer from the H3YN series featuring four operating modes and DPDT output contacts. This long-time range model offers timing from 0.1 minutes to 10 hours with an 8-pin plug-in terminal configuration. The timer provides DPDT (Double Pole Double Throw) contacts and is designed for industrial automation applications requiring precise timing control.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | H3YN-21 |
| Product Type | Time Delay Relay |
| Timer Type | Solid-State Timer |
| Output Type | DPDT (Double Pole Double Throw) |
| Time Range | Long-time range model (0.1min to 10h) |
| Operating Modes | Four-mode multi (ON-delay, interval, flicker OFF start, flicker ON start) |
| Terminal Type | Plug-in terminal (8-pin) |
| Mounting Type | Plug-in mounting on 8-pin DIN rail socket |
| Body Color | Beige |
| Contact Rating | 5A at 250VAC (resistive load) |
| Supply Voltage Options | 24VAC, 100-120VAC, 200-230VAC, 12VDC, 24VDC, 48VDC, 100-110VDC, 125VDC |
| Series | H3YN |
| Indicators | Output Indicator (Orange), Run/Power Indicator (Green) |
| Configuration | DIP switch selectable time ranges and operating modes |
