Notice: Please double-check the OE number before purchase to ensure fitment. You may provide last 8 digits of your VIN to a local authorized dealer on your own to help confirm OE reference number, if available.

Application:

For Ram 2500 3500 4500 5500 Cummins 6.7L  l6 Diesel HE300VG 2013-2018
for Dodge Ram 2500 3500 4500 5500 6.7L  l6 Diesel HE351VE 2007-2012

For Cummins Holset 6.7 Diesel HE300VG / 6.7L Turbo I6 Diesel
For RAM 2500 2013, 2014, 2015, 2016, 2017, 2018
For RAM 3500 2013, 2014, 2015, 2016, 2017, 2018
For RAM 4500 2013, 2014, 2015, 2016, 2017, 2018
For RAM 5500 2013, 2014, 2015, 2016, 2017, 2018
for Dodge Ram 2500, 3500 Truck with 6.7L ISB, ISB 6.7 ISB5.9, ISB6, ISB 6.7 Blackbird, ISB EPA 07 Diesel Engine 2003-2012
for Dodge Ram Truck with 6.7L Cummins ISM Diesel Engine 2007-2012
for Heavy Duty Truck with 6.7L Cummins ISB6.7, ISB2010 Diesel Engine 2008-2010

Replacement & Part Number:

4034315HX, 403431500, 4034315, 4032772HX,

4032772, 2837675, 2836400, 2837675, 4032772, 4034315,

3787604, 3781632, 5601240NX, 3794756, 3775439,

3787608, 3781633, 3779986, 3798539, 37985, 3794758,

3775427, 3787607, 3781755, 3779987, 5326054, 3781754,

3775426, 3779989, 3784573, 3784574, 68307025AA,

3798575, 5326054, 5326057, 5327046, 532704600,

532704600HX, 5459710RX, 68210648AA, 68212738AA,

68245792AA, 68253983AA, 68295438AA ,68297874AA,

68321377AA, 68445522AA, 5601240NX, 5601240,

5494878RX, 5494878, 5494878H, 4034309H, 4034309RX, 5347703

Specification:

Turbo Model: HE300VG,  HE351VE
Condition: 100% Brand New
Type: Turbocharger Electric Actuator
Package Size: 21.4x15.3x15.1cm
Package Weight: 2.1kg

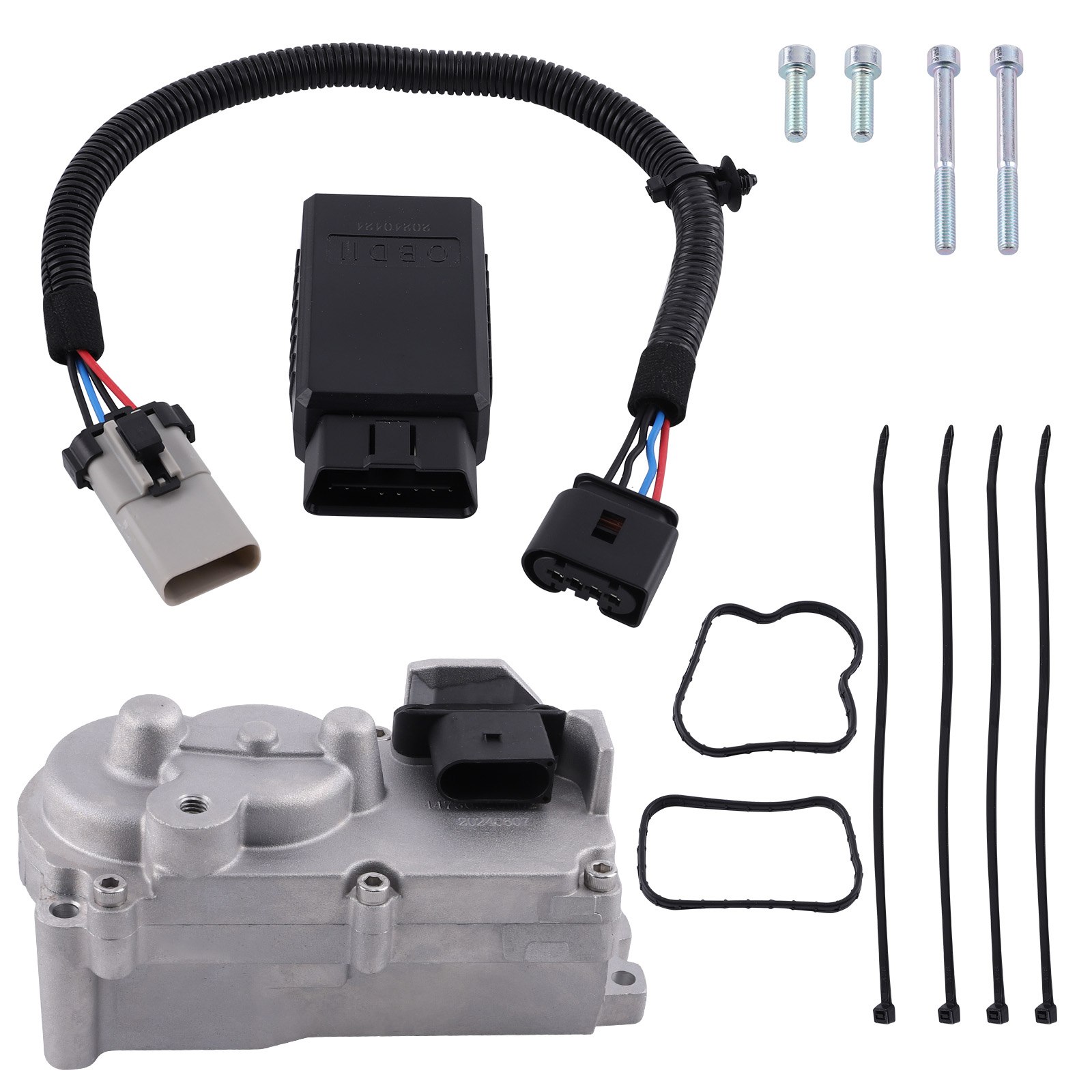

Packet Include:

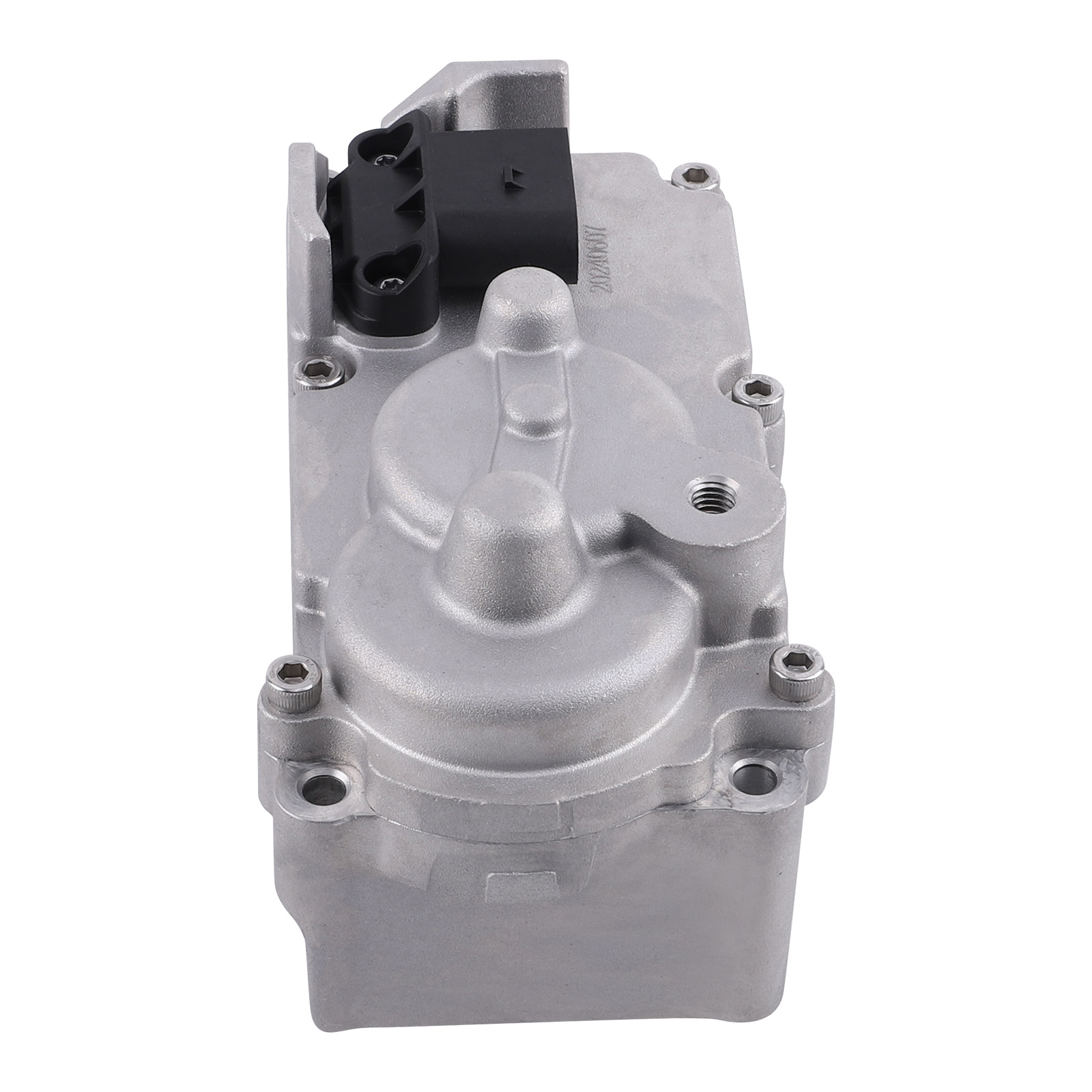

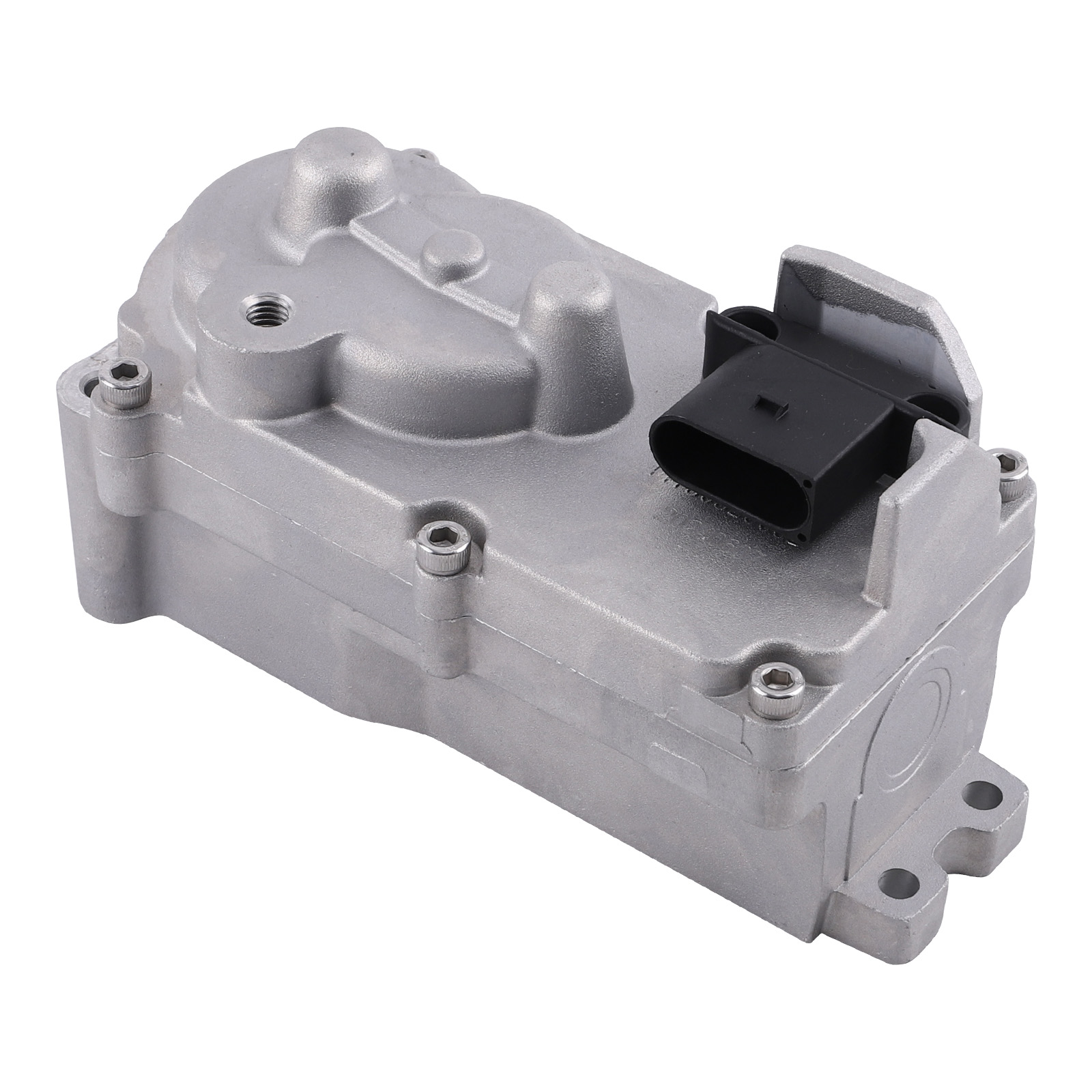

1x Turbo Actuator

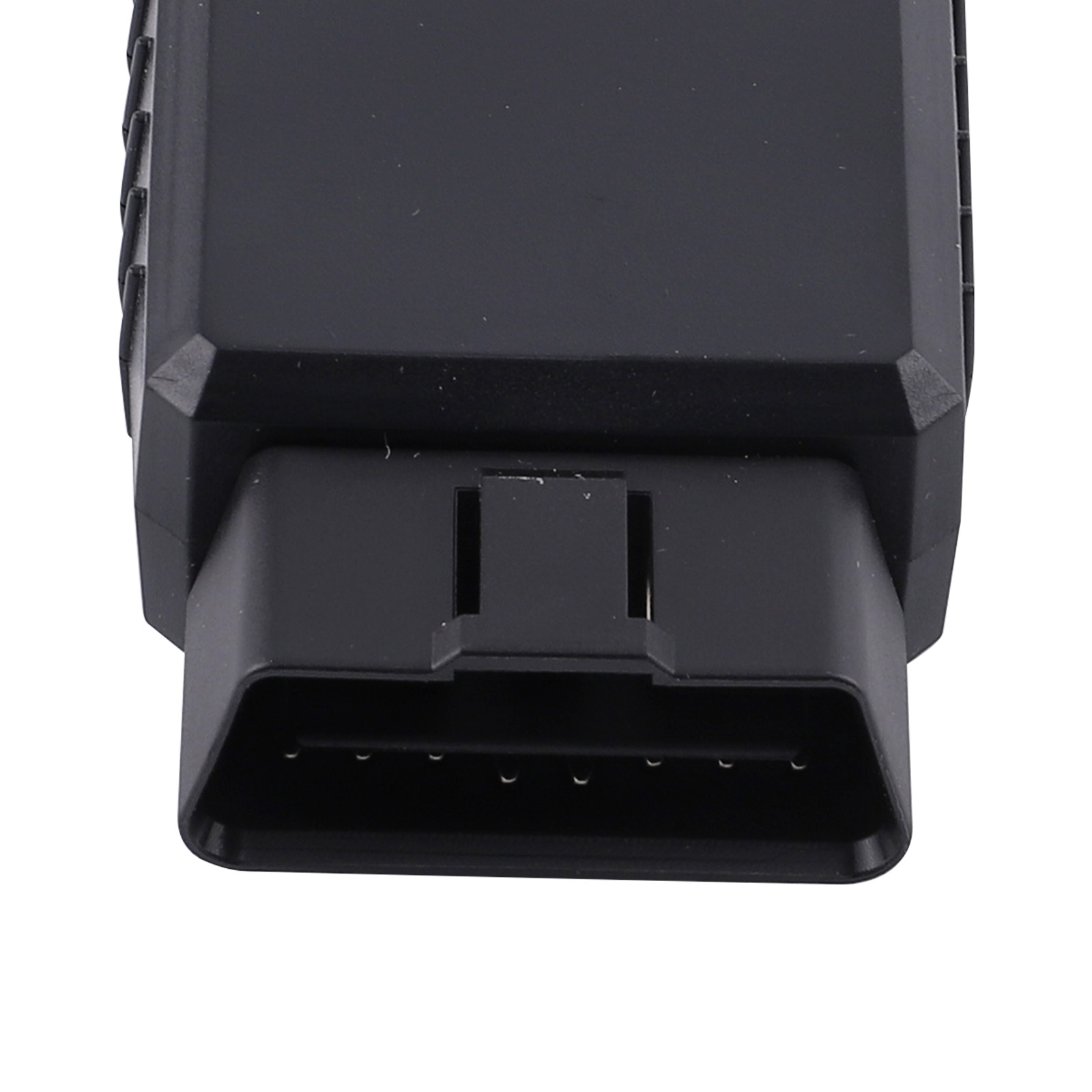

1x OBDII Fault detector

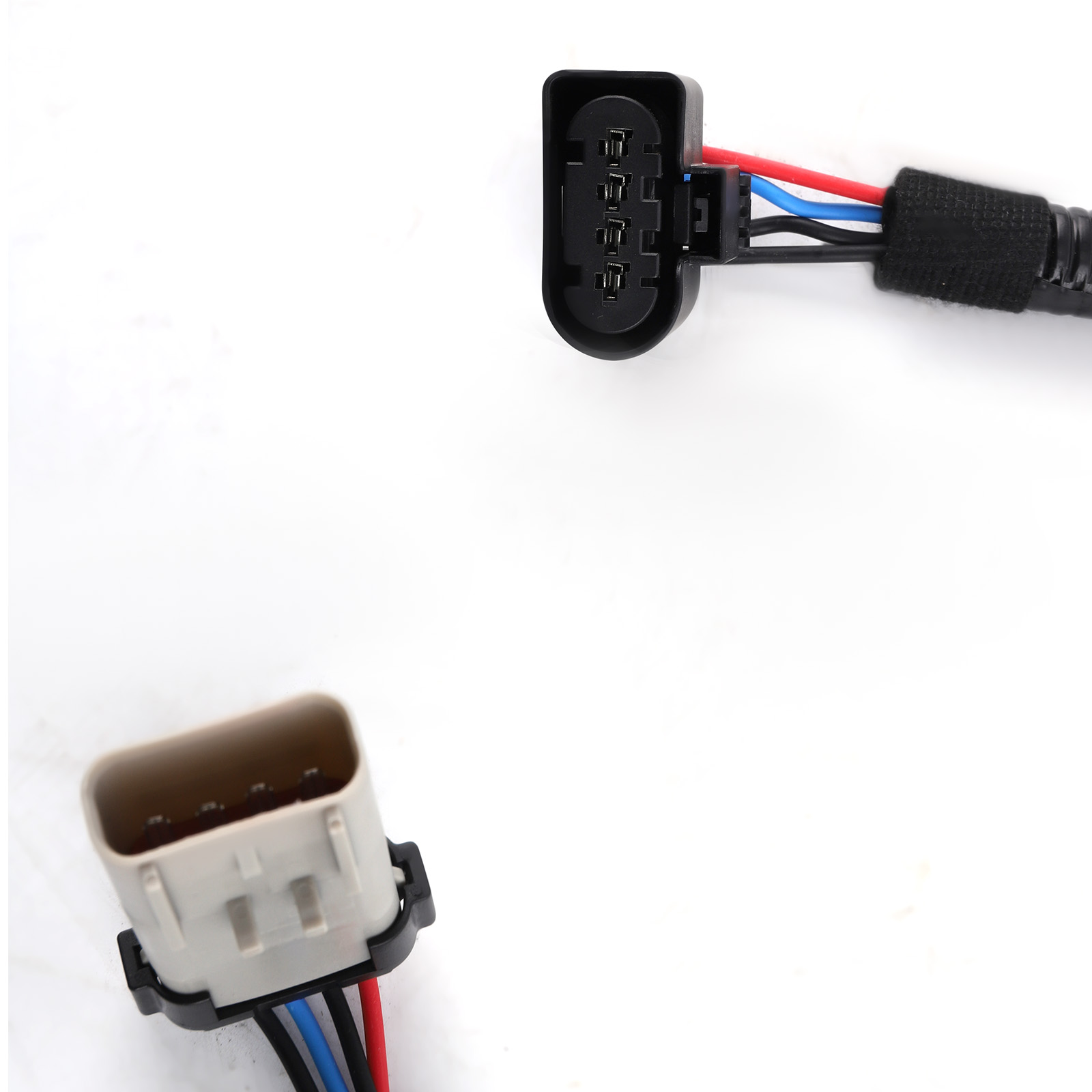

1x Adapter Harness
2x Sealing Adhesive Strip
4x Screws
4x Ties
(Showing as the picture)

Features:

1. High Reliability and Durablity.
2. More stable performance and responsive.
3. Plug and Play.
4. No drilling installation.
5. This product is 100% after current testing.
6. Fast Response.
7. Improve PowerPerformance.
8. Improve Stability.
9. High Quality Steel: Corrosion Resistance, Wear Resistance, High Strength, High Temperature Resistance, Impact Resistance.

Installation instructions

1.Please stop the engine before installation, make sure the turbocharger actuator has cooled down.

2.Release the liquid coolant.

3.Dismantle the right wheel and also the interior lining panel.

4.Dismantle the original turbocharger actuator and clean up the residues.

5.There's no need to reset the sector gear manually, just instal the tubocharger actuator on the turbine. Make sure there is a sealing gasket and no gap between the actuator and the turbine. Fasten the four screws.

6.Plug the power from the vehicle in the actuator.

7.Turn the key to RUN gear (don't press the brake, just tun on the power, don't start the engine).

8.Plug the calibrator into the OBD port.

9.The red indicator light of the calibrator is always on, and the green indicator light keeps flashing;

10.Press the calibration button, the yellow light will turn on briefly, and the turbine will start calibration. You can hear the sound of the turbine actuator moving back and forth. Wait for about 15 seconds, and the calibration will be completed. The red light will remain on and the green light wil flash. Calibration success light is on steadily if the calibration is successful. If the calibration fails, the calibration fail light will be on steadily.

11.If calibration fails,please check if the connecting wire is firm, if the actuator is installed correctly, then do calibration again.

12.After everything is all right, add liquid coolant, then start the engine. Check if it works normally and if there's leakage.

13.Install the interior lining panel and the wheel.

Above is the installation and adjust method of HE300VG.


Note:

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before  installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
