FEATURES
Pit
mode: After entering the PITMODE, the VTX power will be reduced to a minimum. Your video feed is only visible to yourself at close range, so don't worry about disturbing others.

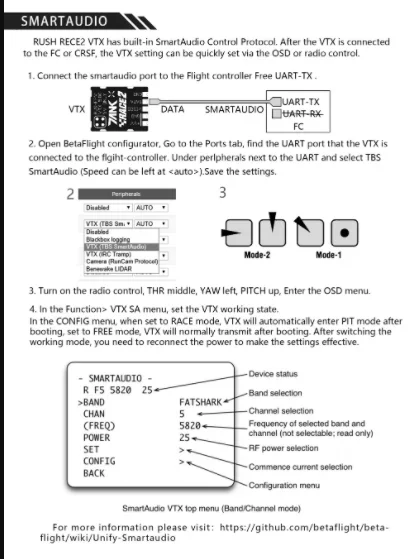

SmartAudio

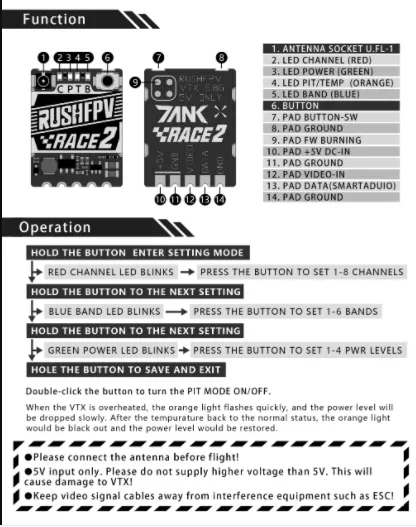

V2.1: Built- in SmartAudio protocol authorized by TBS. Which can be set with RGB LED by conventional double buttons, and also
access the SmartAudio protocol to set up and view the VTX information via the OSD menu
Silent
setting: The intelligent transmit circuit of RACE will not generate any interference signal during the switching and setting of VTX. With
PITMODE, you can set the VTX anytime and anywhere.
Power
LUT: Built- in high precision power lookup table which performs milliwatt power calibration for all channel, full band has it's own
unique power output. In multi pilot flight, all pilots will benefit from this and obtain a fair and consistent signal
Lock-on
The new designed locked frequency circuit coordinates software optimization, enables transmitting frequency of TANK to keep the set
point in any harsh (high interference) environment. Allows 8 drones racing in same band, without interference.

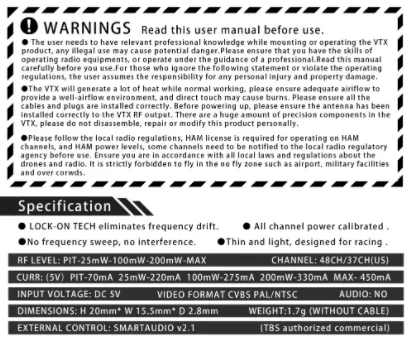

SPECIFICATION

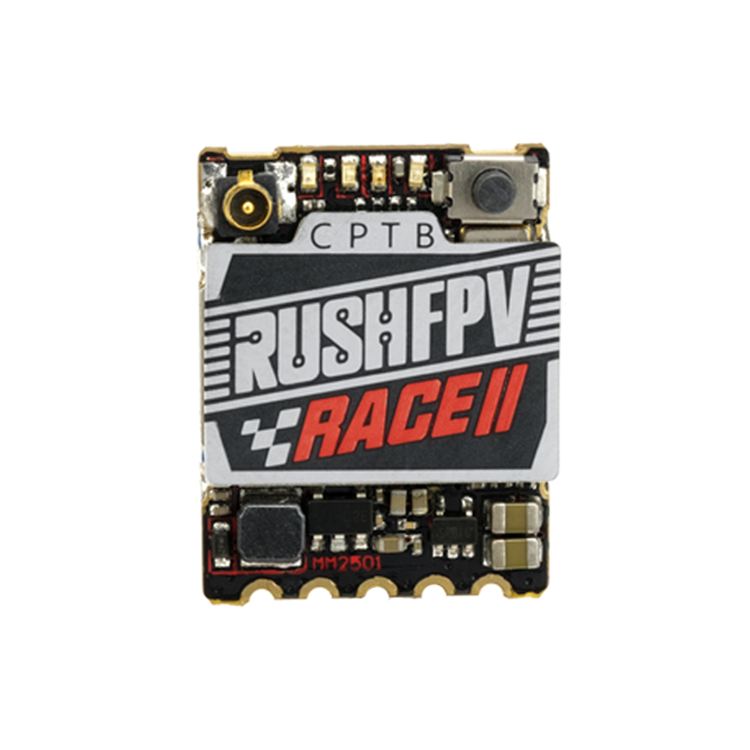

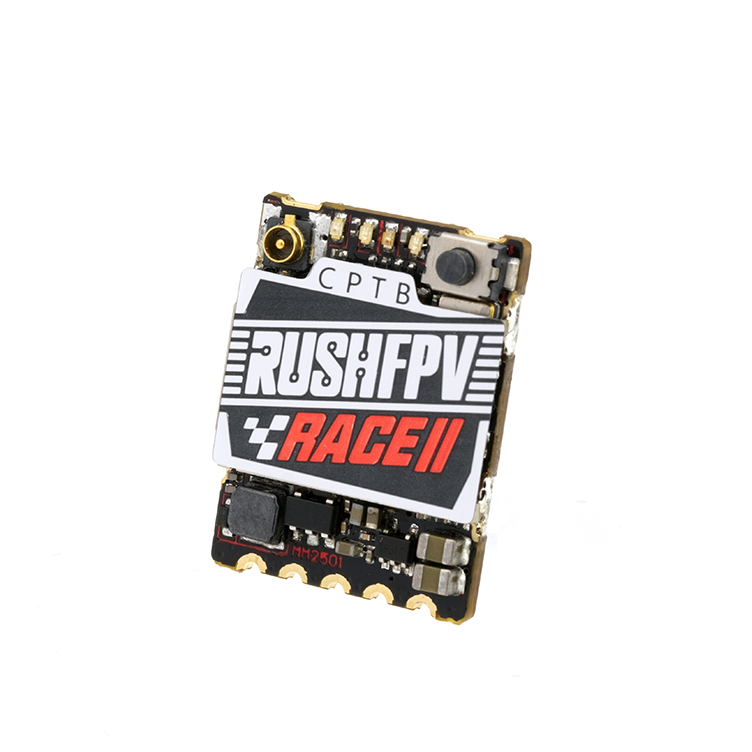

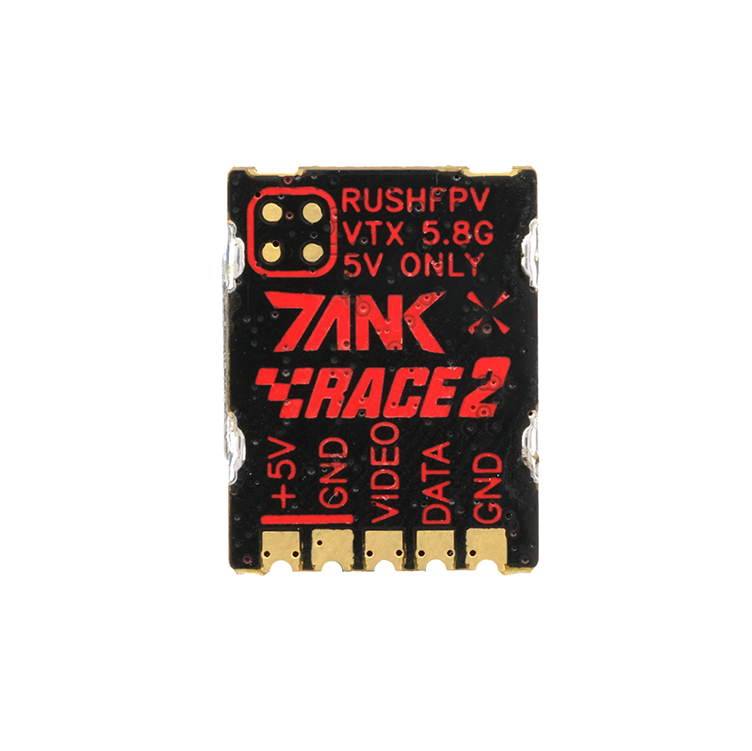

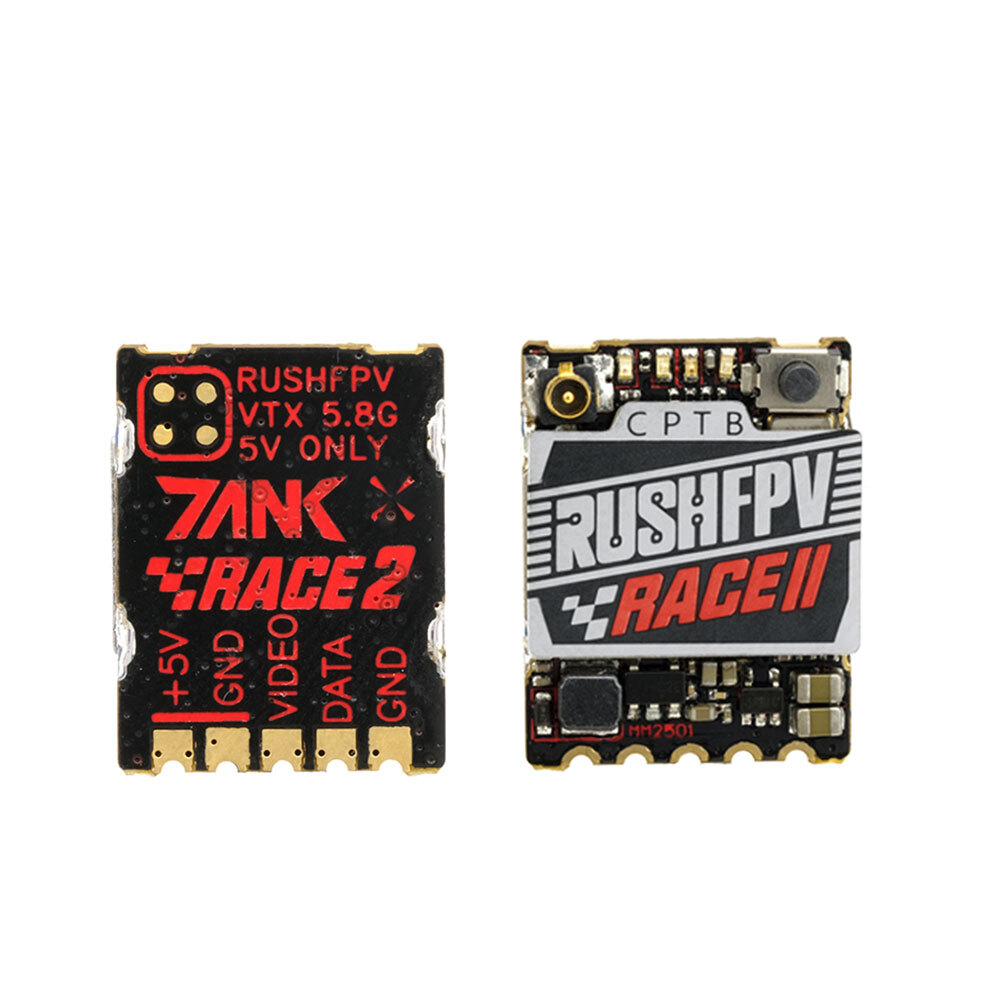

Item name: Rush Race2 VTX
Input Voltage: 5V

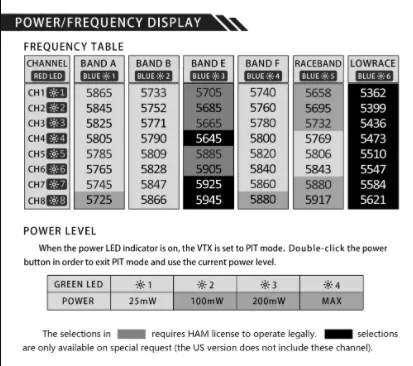

Channels: 48/37CH(US VERSION)
Power: PIT/25/200/MAX

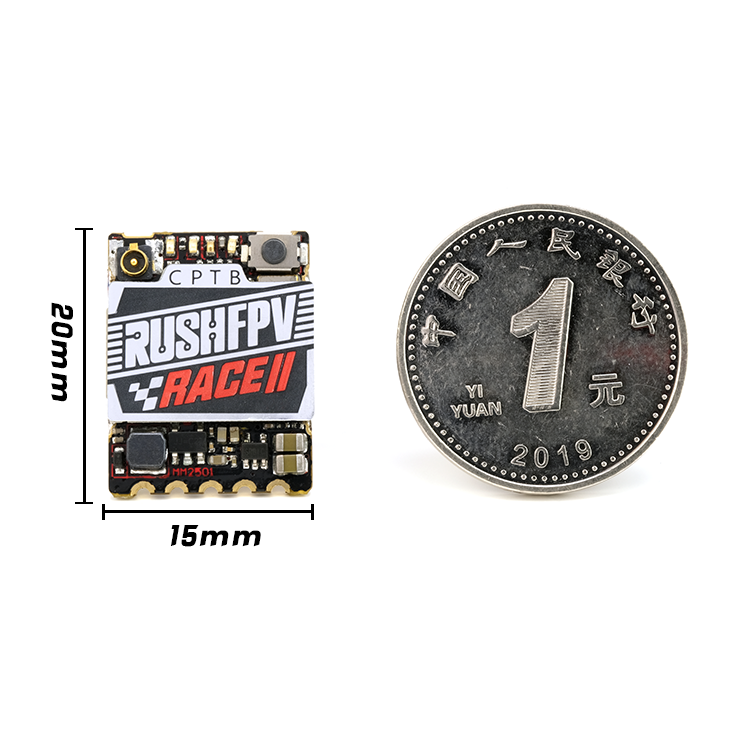

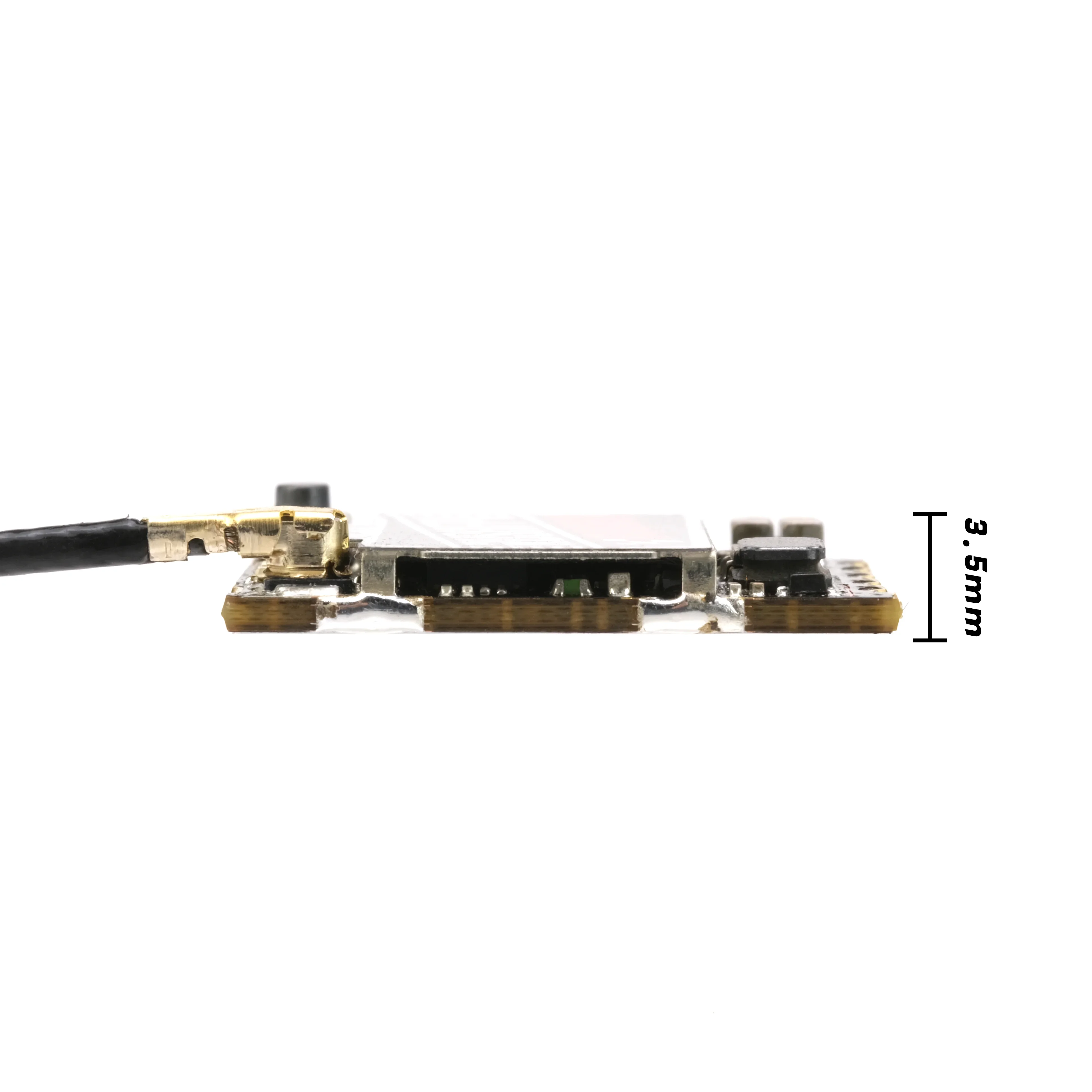

Dimensions: 20*15.5*2.8mm

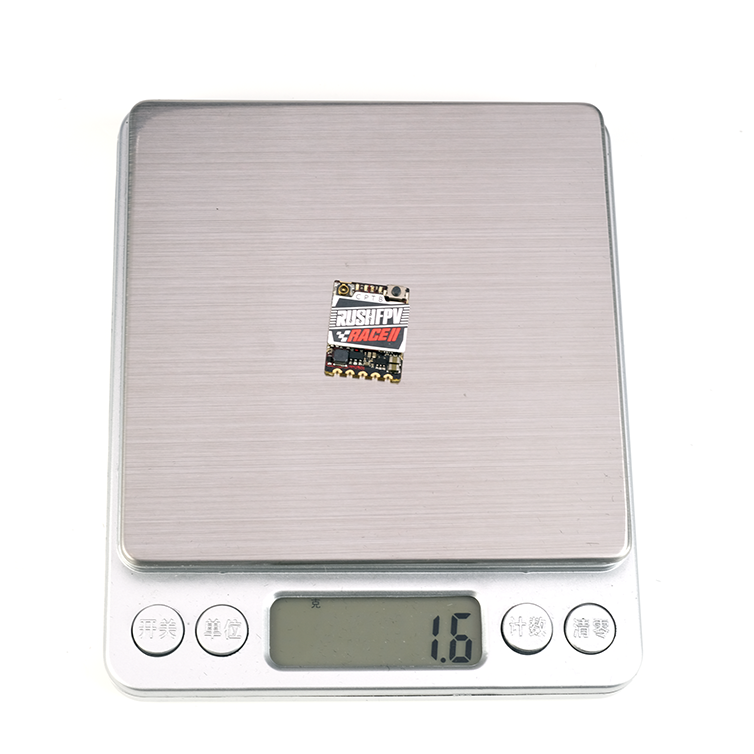

Weight: 1.7g
Connector: SMA
Serial Protocol: TBS SmartAudio V2.1
PACKAGE INCLUDES
1 x RushFPV Race2 VTX
1 x Cable Kit
