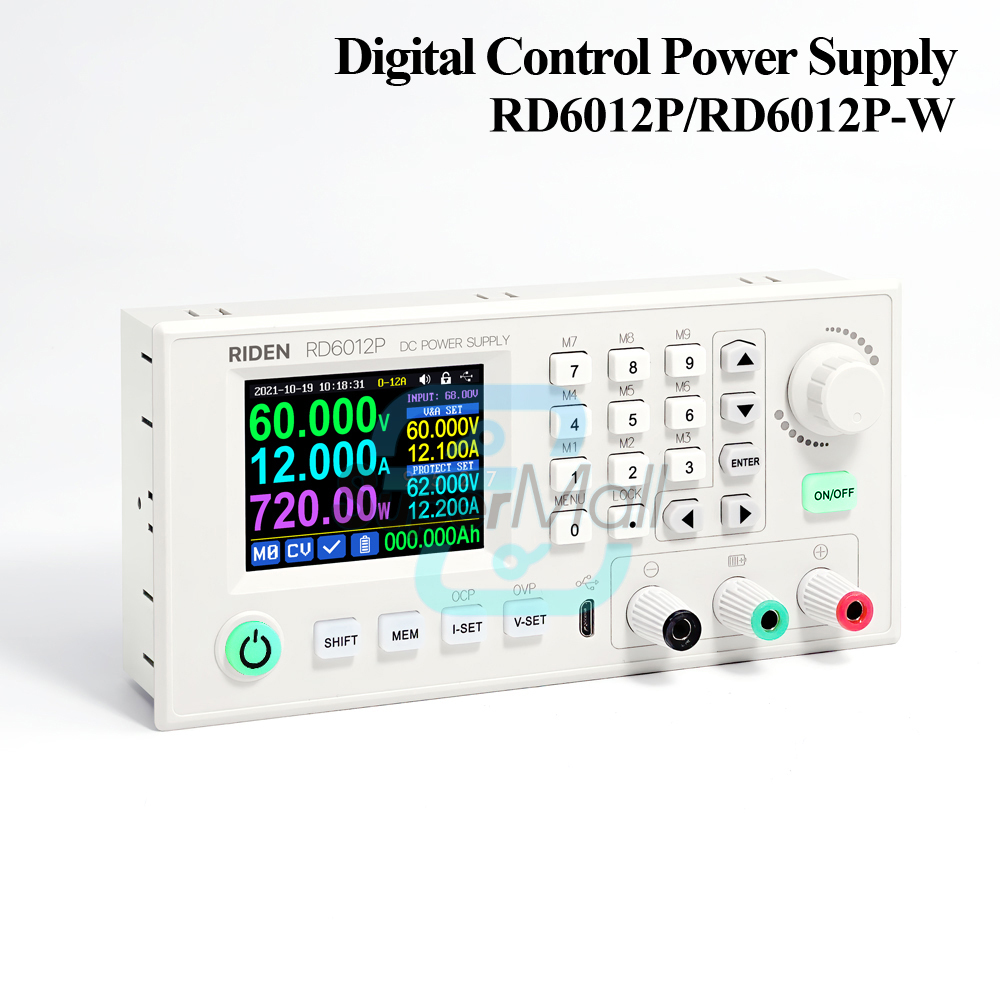

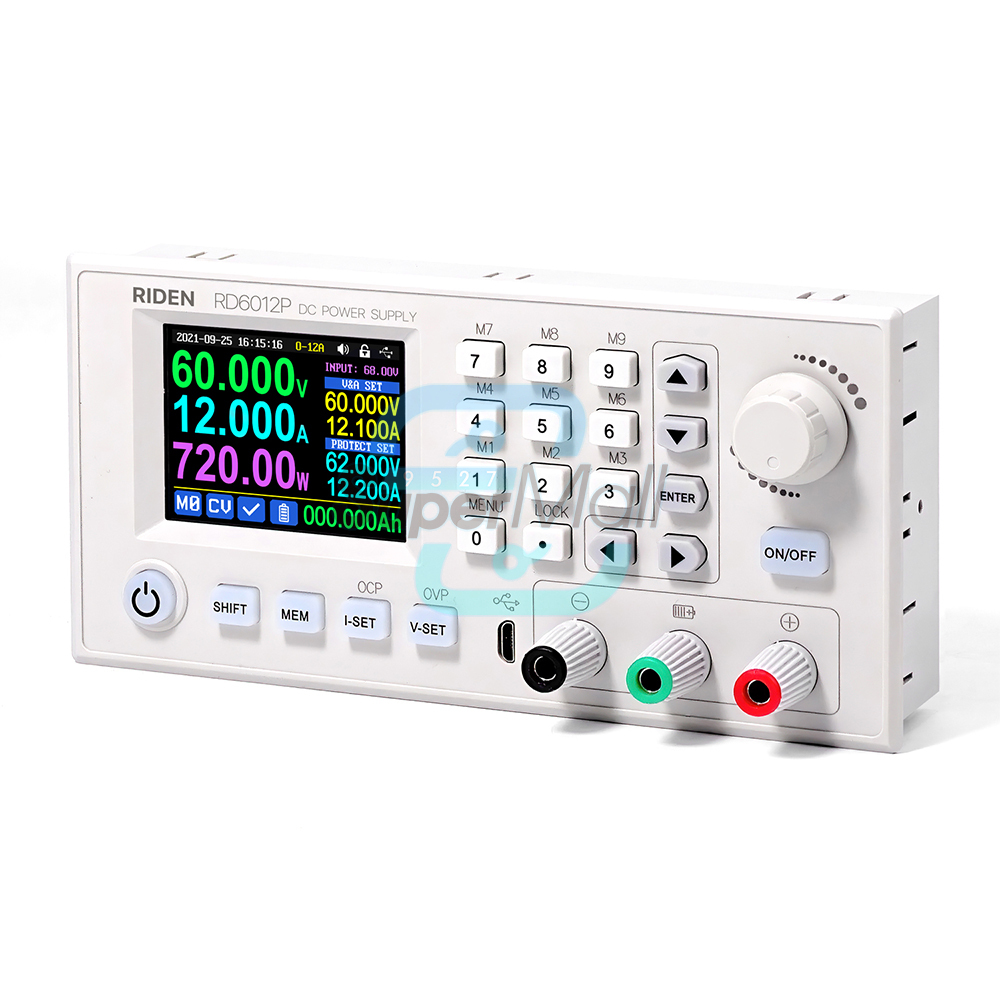

RD6012P RD6012P-W DC Regulated Power Supply Adjustable Linear Power Supply

Product View

Detail

Application:
1: Five-digit resolution for a more accurate measurement experience

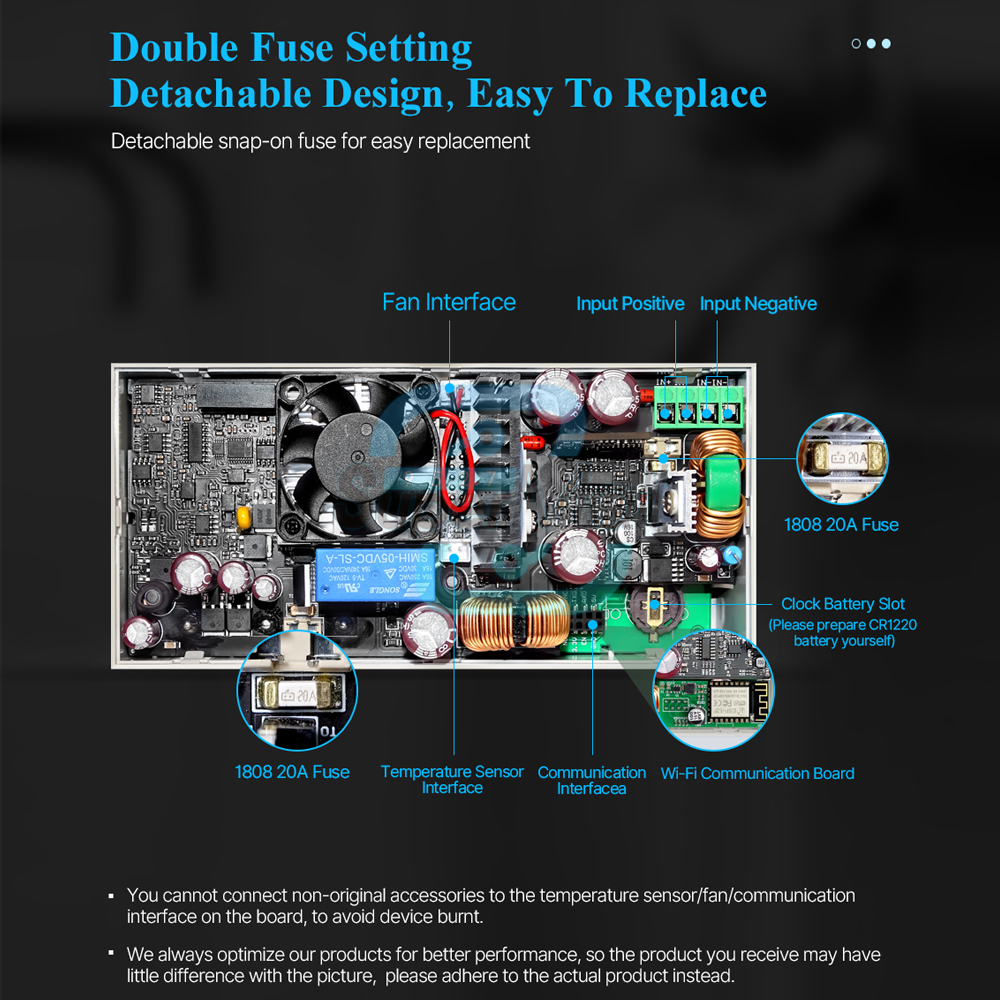

2: Two-stage buck design, switch buck + linear buck
3: More choices of three display styles to switch freely, classic style │ detailed style │ curve style
4: The display color can be matched freely, and 15 colors can be freely matched
5: 2.4-inch high-definition large screen, showing better data and more comprehensive

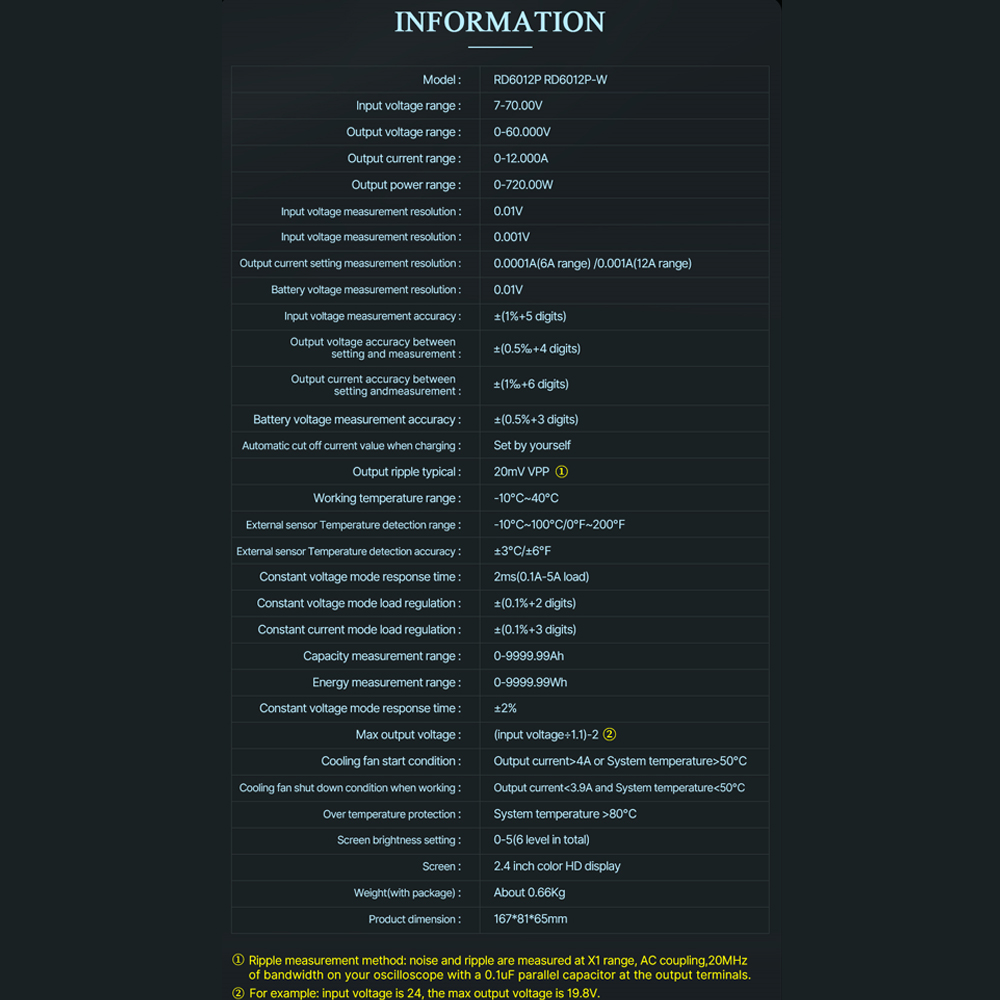

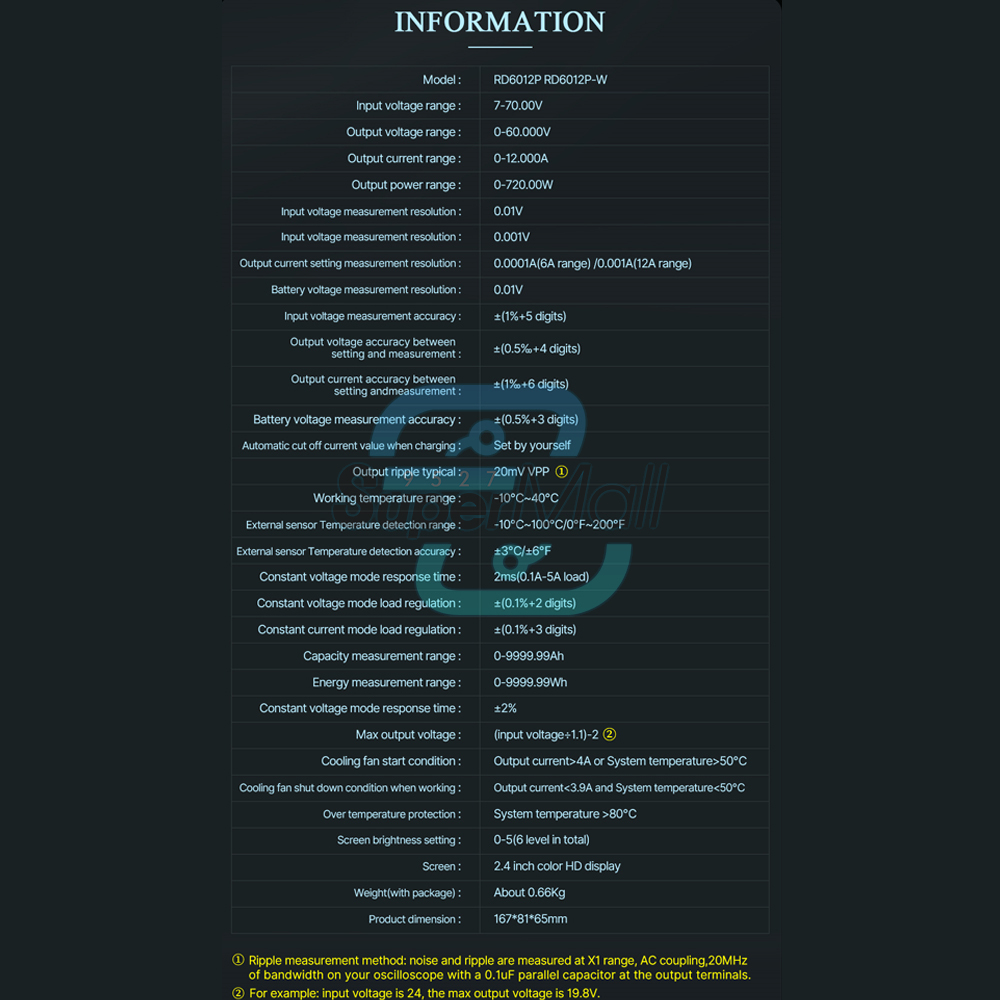

Specification:

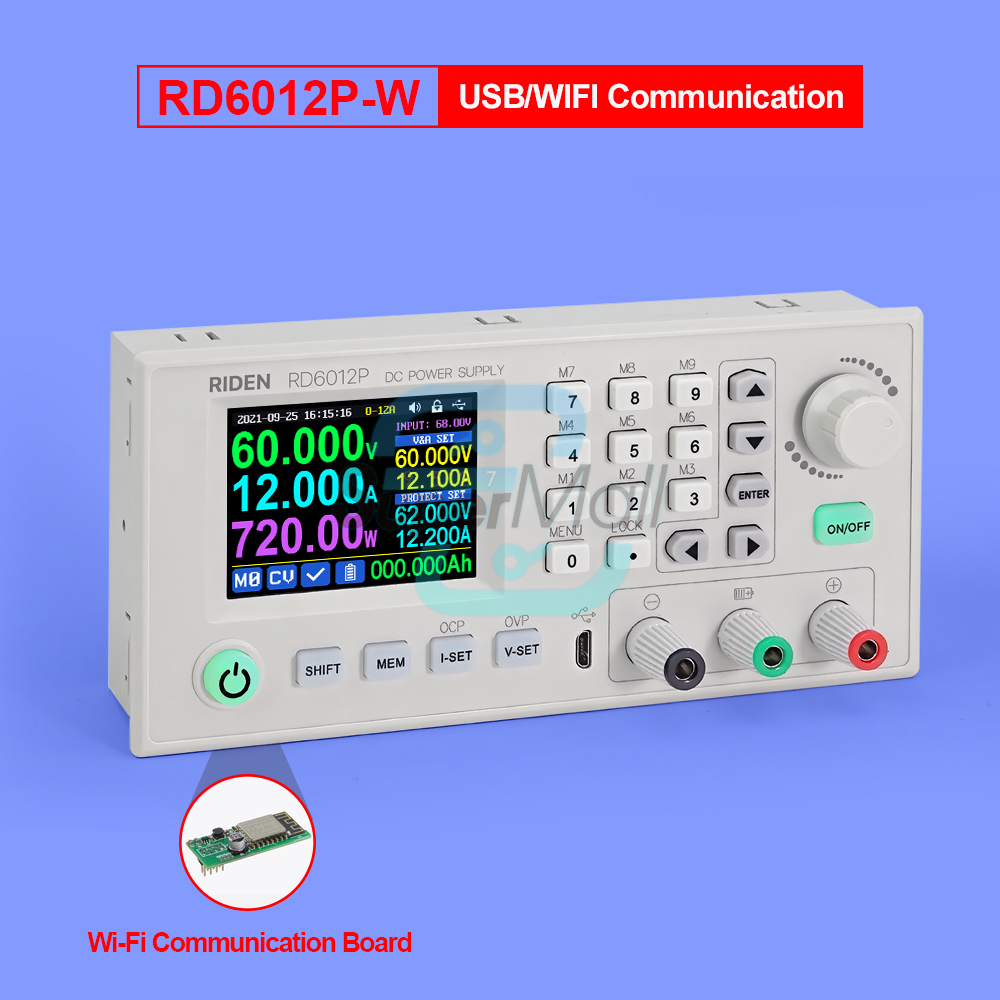

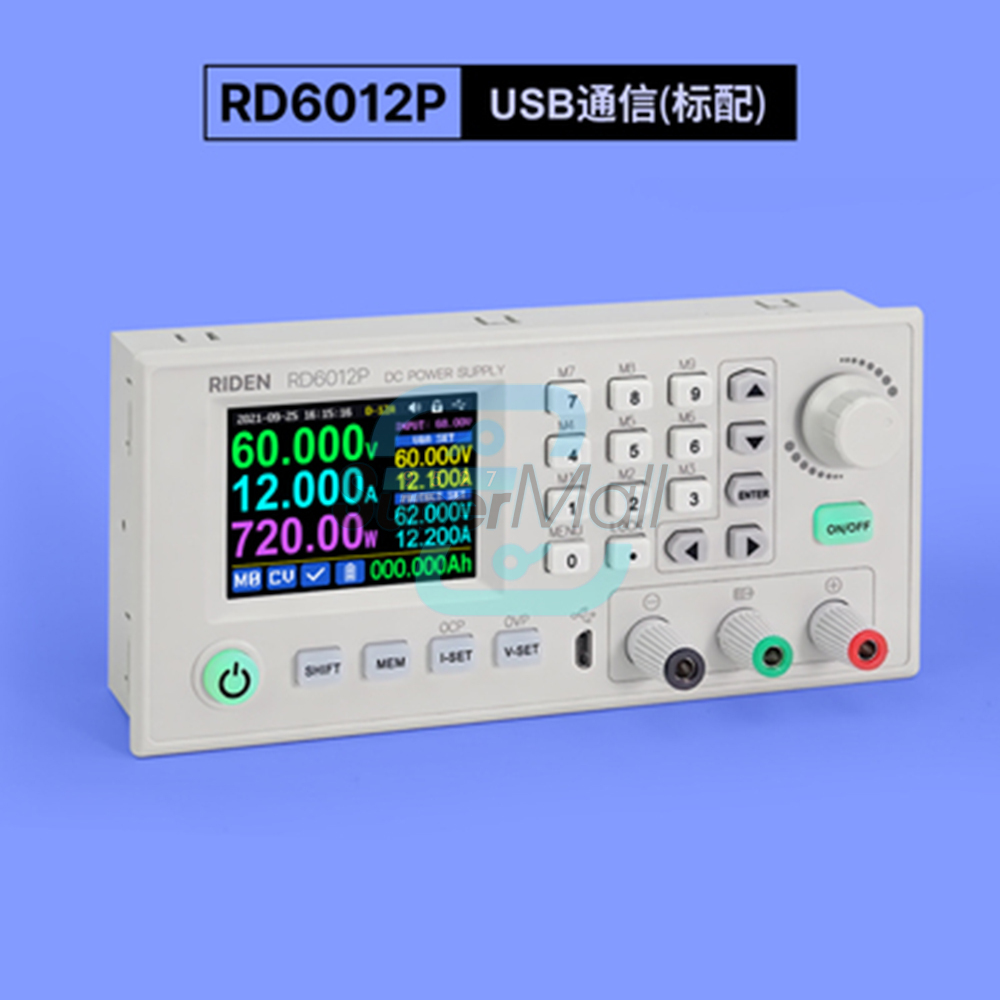

Product Model: RD6012P/RD6012P-W
Input voltage range: 7-70.00V
Output voltage range: 0-60.000V
Output current range: 0-12.000A
Output power range: 0-720.00W
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.001V
Current setting measurement resolution: 0.0001A (6A range)/0.001A (12A range)
Battery voltage measurement resolution: 0.01V
Input voltage measurement accuracy: ±(1%+5 digits)
Output voltage setting and measurement accuracy: ±(0.5‰+4 digits)
Output current setting and measurement accuracy: ±(1‰+6 words)
Battery voltage measurement accuracy: ±(0.5%+3 digits)
Automatically turn off current when charging: can be set
Typical output ripple: 20mv VPP
Product operating temperature range: -10°C~40°c
External temperature sensor measuring range: -10°C-100°C/0°F-200°F
External temperature sensor measurement error: ±3C/±6°F
Constant voltage mode response time: 2ms (0.1A-5A load)
Constant voltage mode load regulation: ±(0.1%+2 words)
Constant current mode load regulation: ±(0.1%+3 words)
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99wh
Capacity and energy statistical error: ±2%
Maximum output voltage: (input voltage÷1.1)-2
Cooling fan on: output current > 4A or system temperature > 50°c
Cooling fan turned on and off: output current <3.9A and system temperature <50°c
Over temperature protection: system temperature>80°c
Screen brightness setting: 0-5 in total of 6 levels
Display screen: 2.4 inch color LCD screen
Weight with packaging: about 0.66Kg

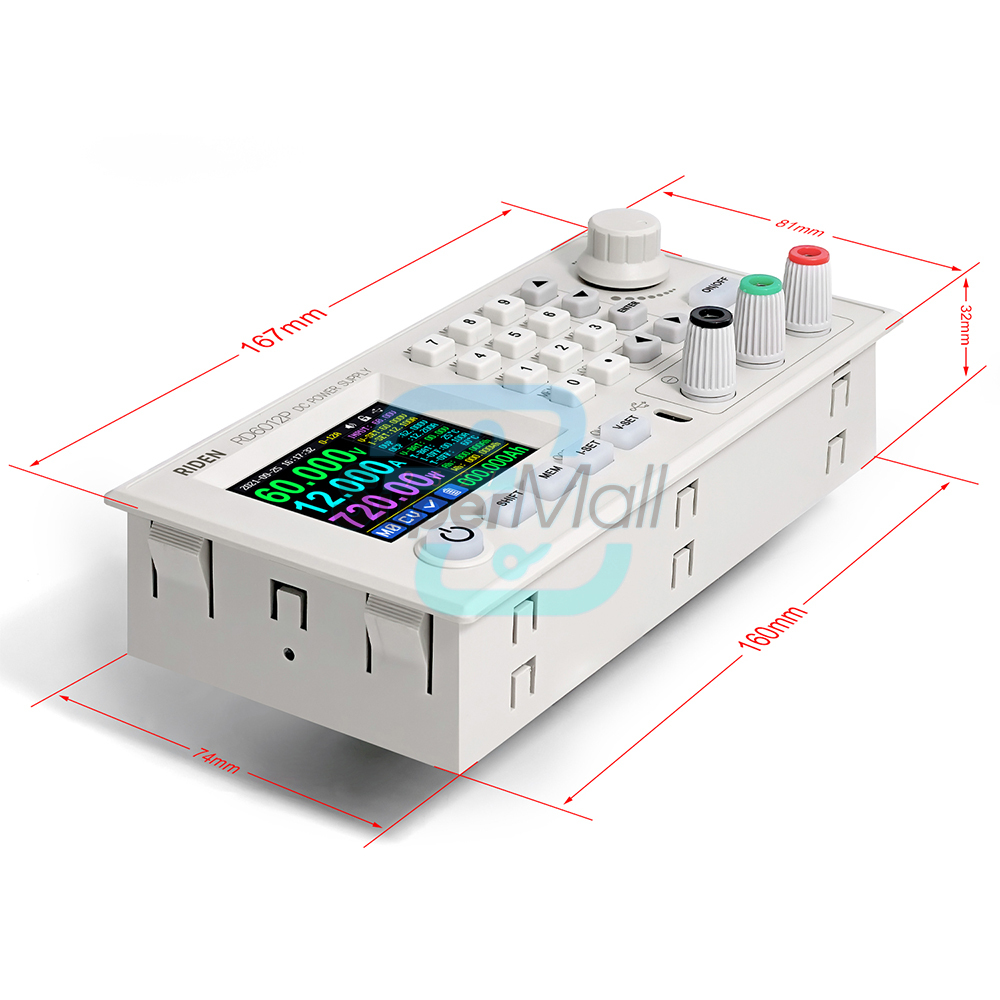

Product size: 167*81*65mm
https://oss-image.cloudebox.cn/product/ag321ckjk/ezk8qb3eo/ezkhz9pfk/2022102242282909913088.jpg

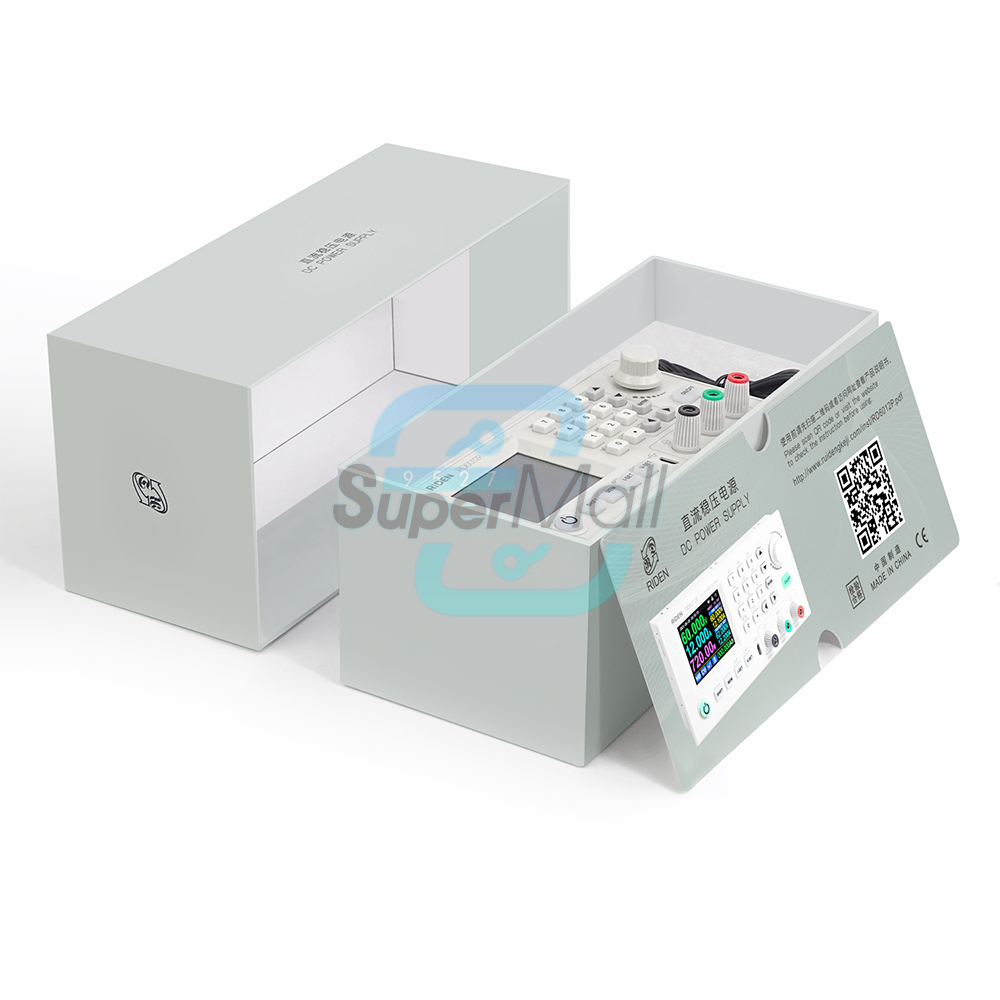

Packing included:
1*DC stabilized power supply module
