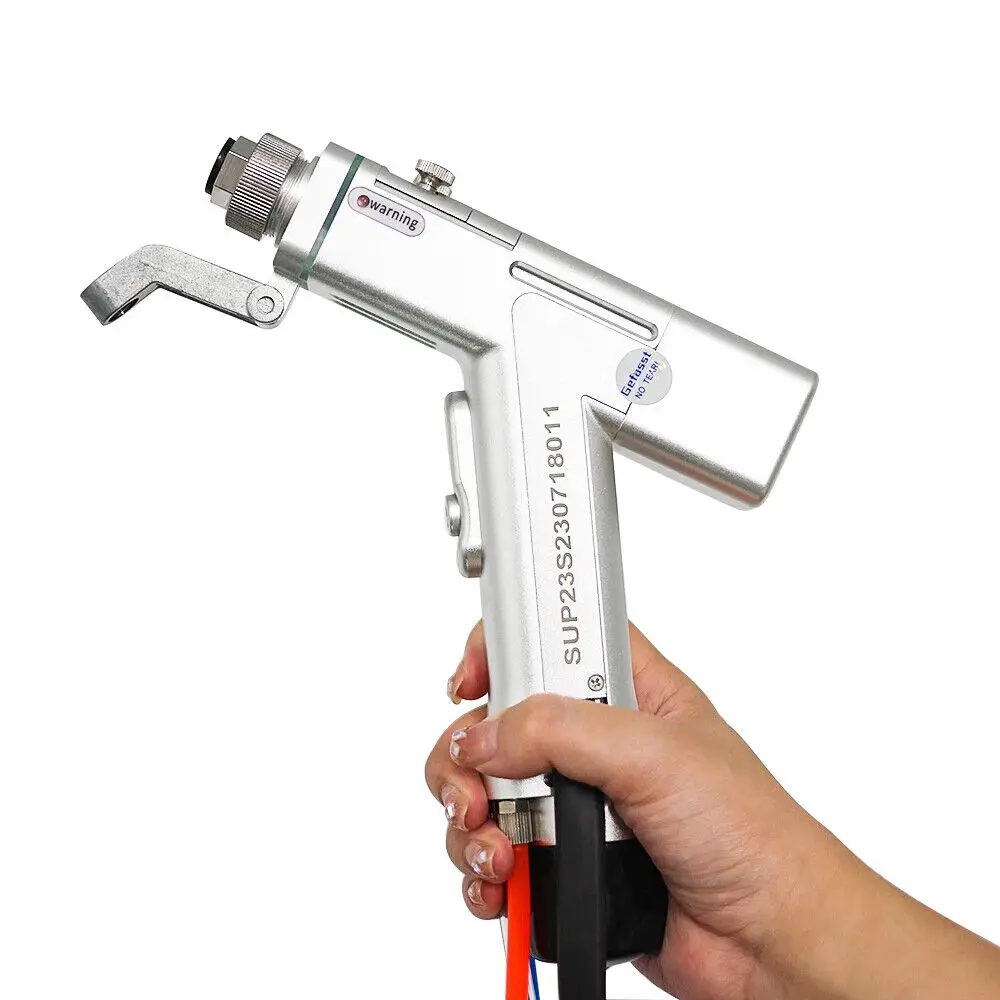

SUP23T Four-in-one hand welding head is a new super great application in handheld laser welding, non-contact welding, welding

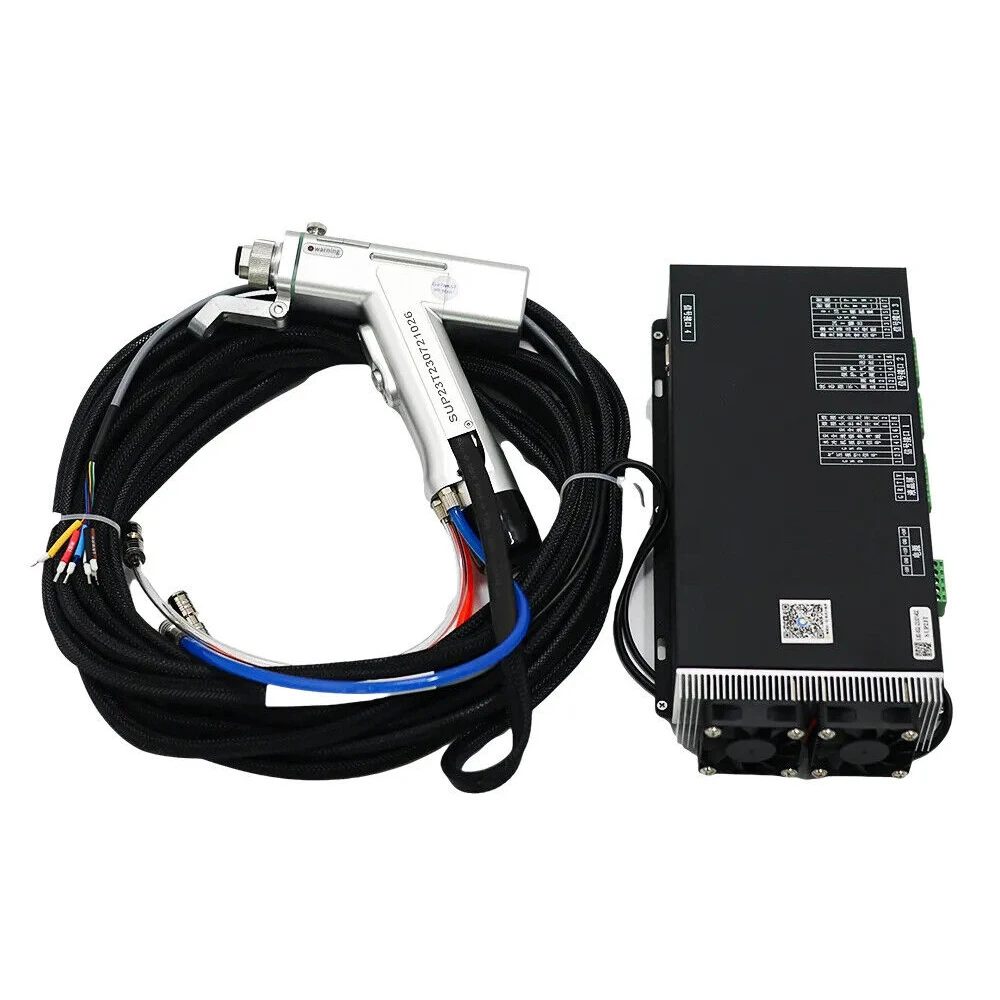

cleaning, cutting field of single motor scanning swing welding head -- hereinafter referred to as SUP23T. The product includes a

handheldlaser head and its control system, and has multiple safety alarms and active safety light break settings.

It is developed on the basis of the SUP20T handheld laser head. Compared with the previous generation, it is further improved in

insulation, stability, maintenance and other aspects, and has the characteristics of more compact, lighter and more reliable.

The product can be adapted to various brands of fiber lasers, optimized optical and water cooling design so that the laser head can

work stably for a long time at 3000W, and the cleaning width of switching cleaning mode is up to 120mm.

Product Features

●Basic features of the product: self-developed control system and structural design, adapt to various welding requirements within

3000W, set multiple safety alarms and state indicator lights, abnormal state instantaneous response. The net weight of 750k is

flexible and easy to use.

● The whole machine is more stable: all parameters can be seen, monitor the state of the whole machine in real time, avoid problems

   in advance, facilitate troubleshooting and troubleshooting, and ensure thestable operation of the hand-held welding head.

●Subversionstructuredesign: the main structure integrated design and processing, greatly reduce the failure rate, and facilitate

   the later maintenance.

●Controlled parameters and high repeatability. Stable nozzle pressure and lens state, only as the laser power is stable, the process

   parameters must be repeated, save the adjustment time, improvethe work efficiency.
