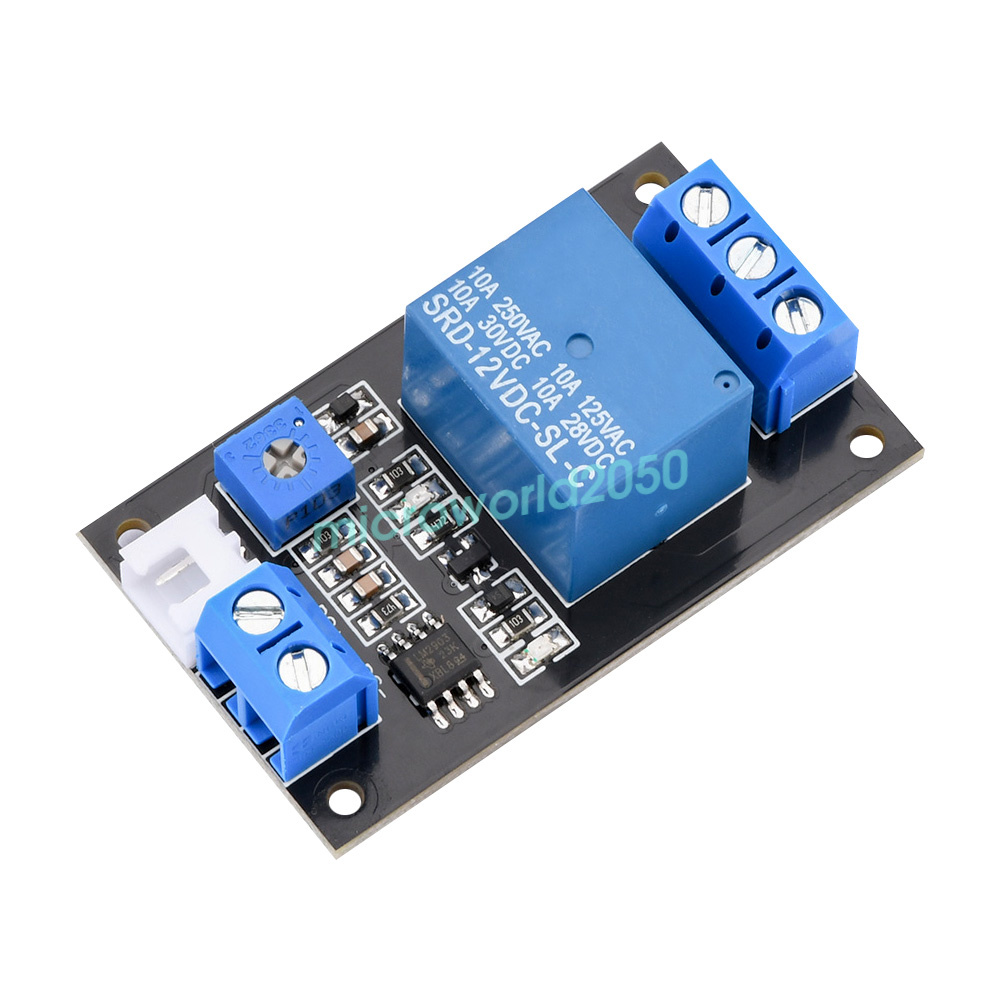

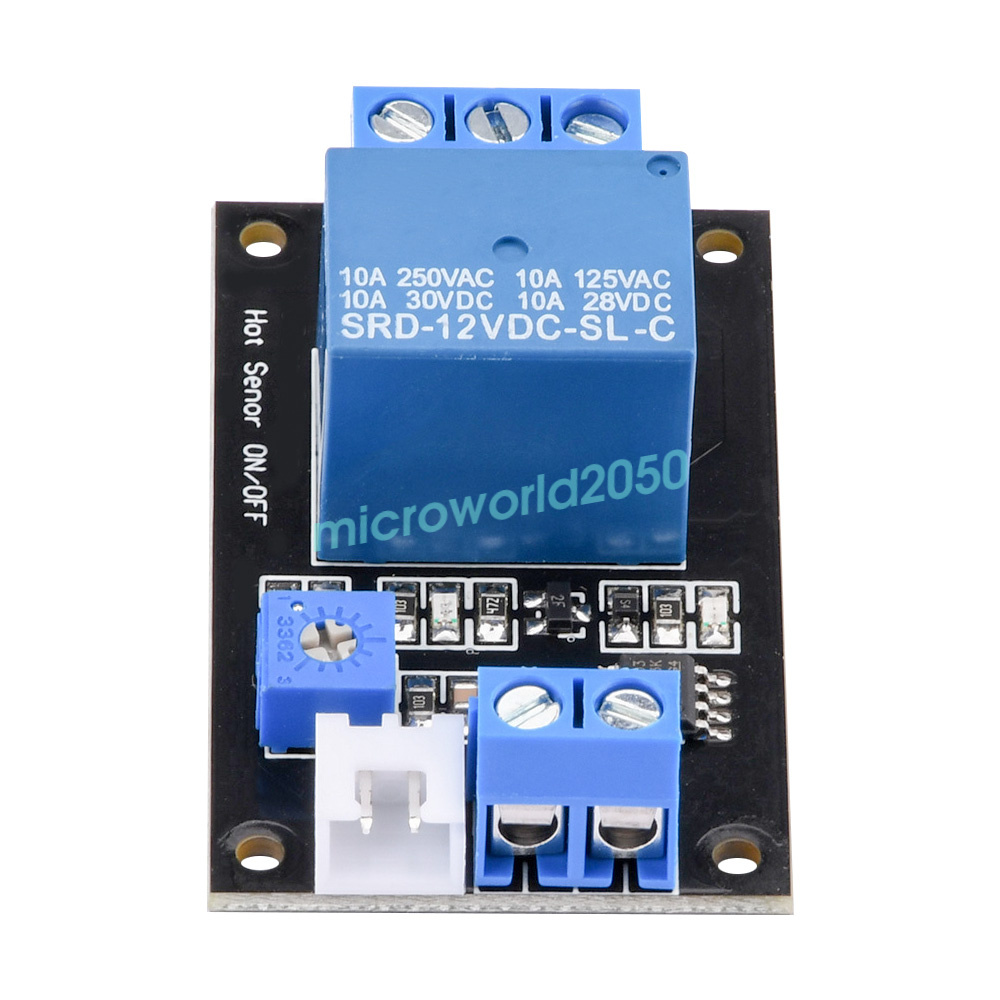

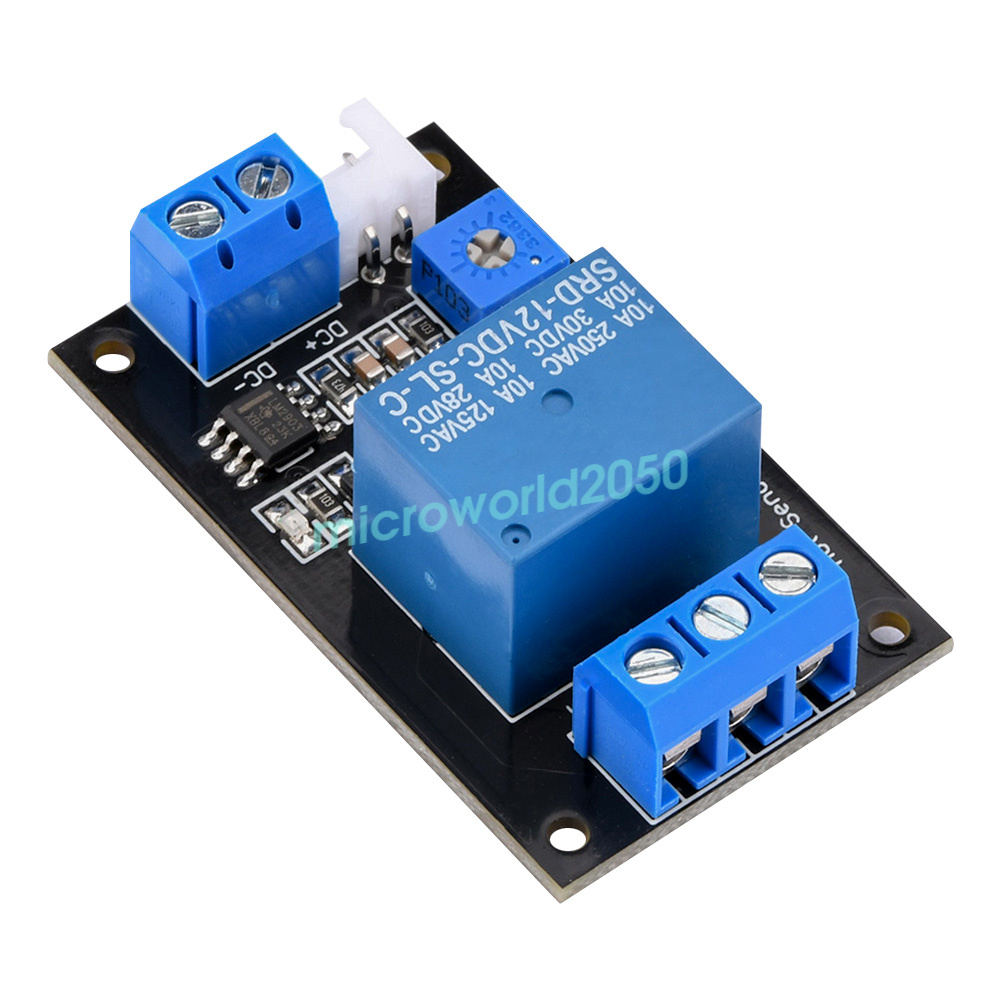

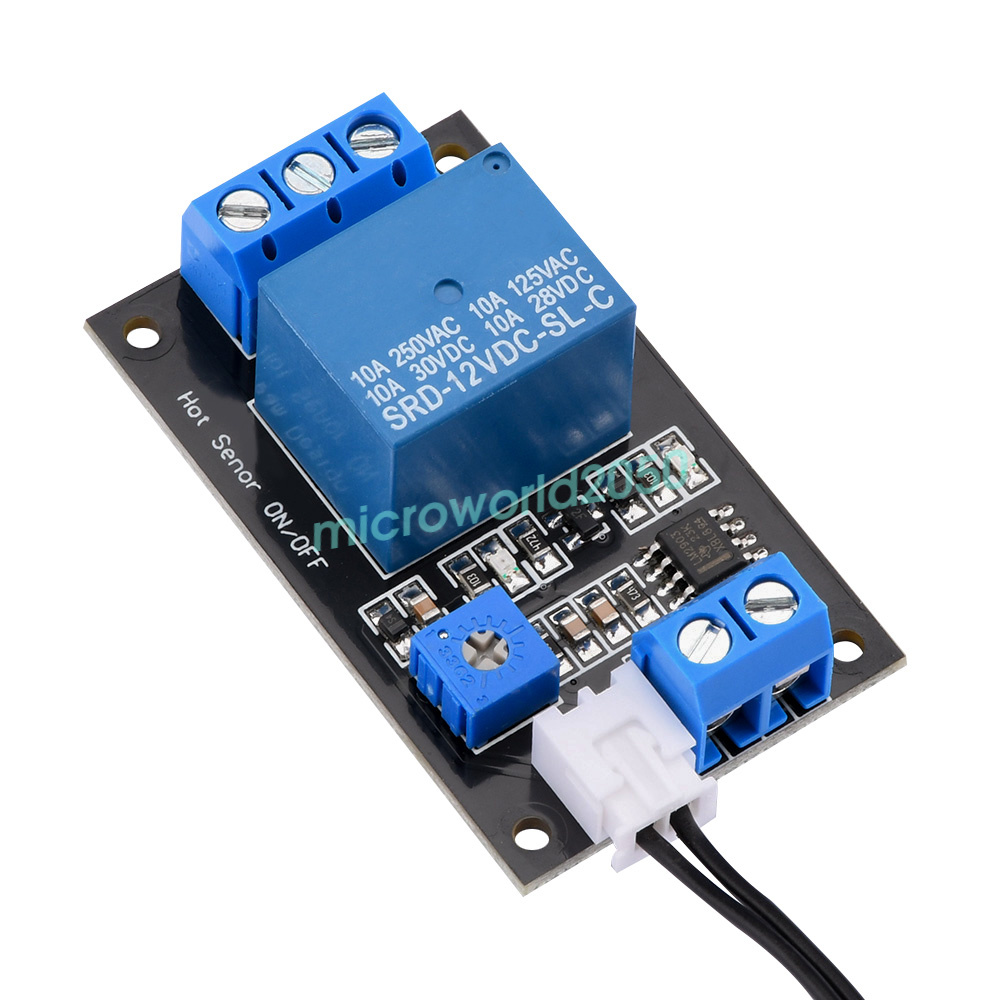

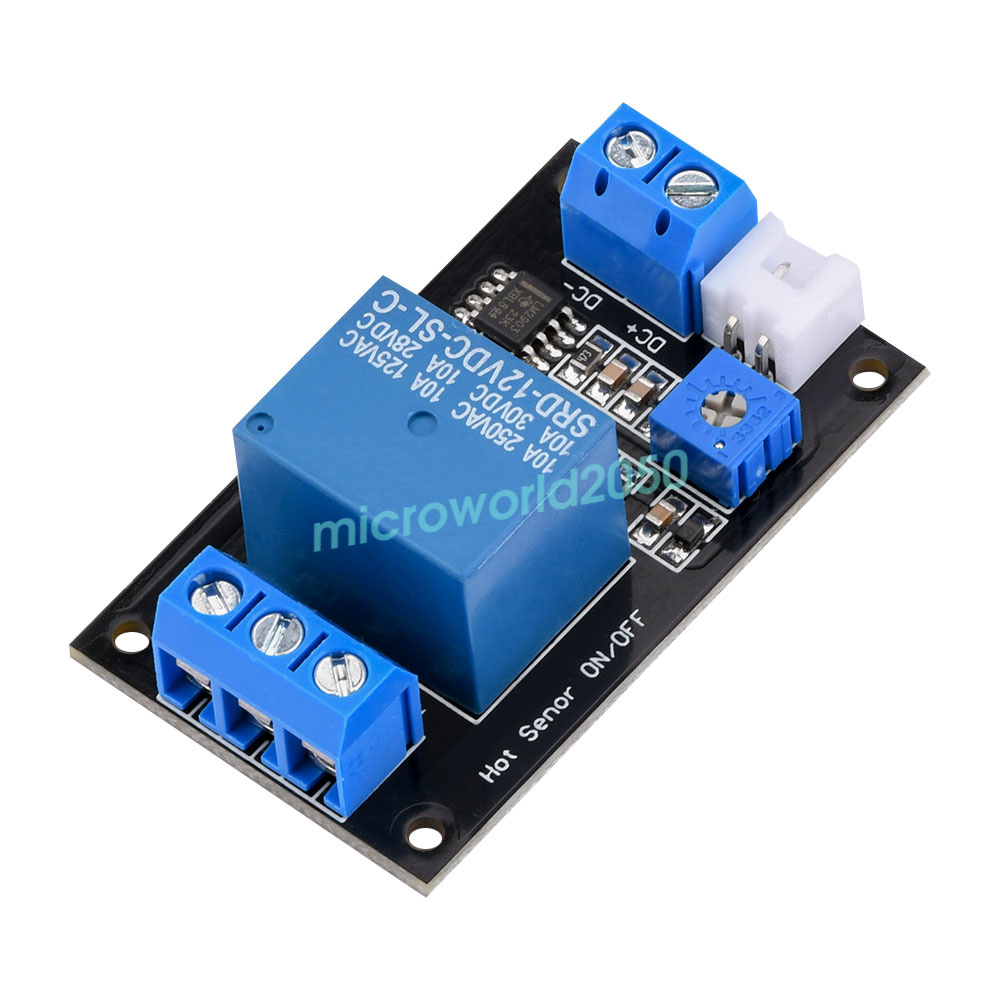

Name: relay temperature controller
Voltage: 12V
Maximum load capacity of normally open interface: AC 0V--250V/10A, DC 0V--30V/10A
Fixed bolt holes: 4
Module size: 5.0cm*3.0cm*1.8cm
12V relay temperature controller *1
1, the use of highly sensitive thermistor detection of ambient temperature, comes with genuine high-quality relays, can directly control AC or DC loads, normally open interface maximum load capacity: AC 0V - 250V/10A, DC 0V - 30V/10A;.
2, the temperature threshold can be adjusted by potentiometer, when the ambient temperature is higher than this threshold, the relay will be absorbed, and when the temperature is lower than this threshold, the relay will be released.
3、Intelligent adjustment design, when the relay action, automatically fine-tune the action threshold, solving the problem of repeated action of the critical value;
4, the module has anti-reverse connection function, reverse power supply will not damage the module;

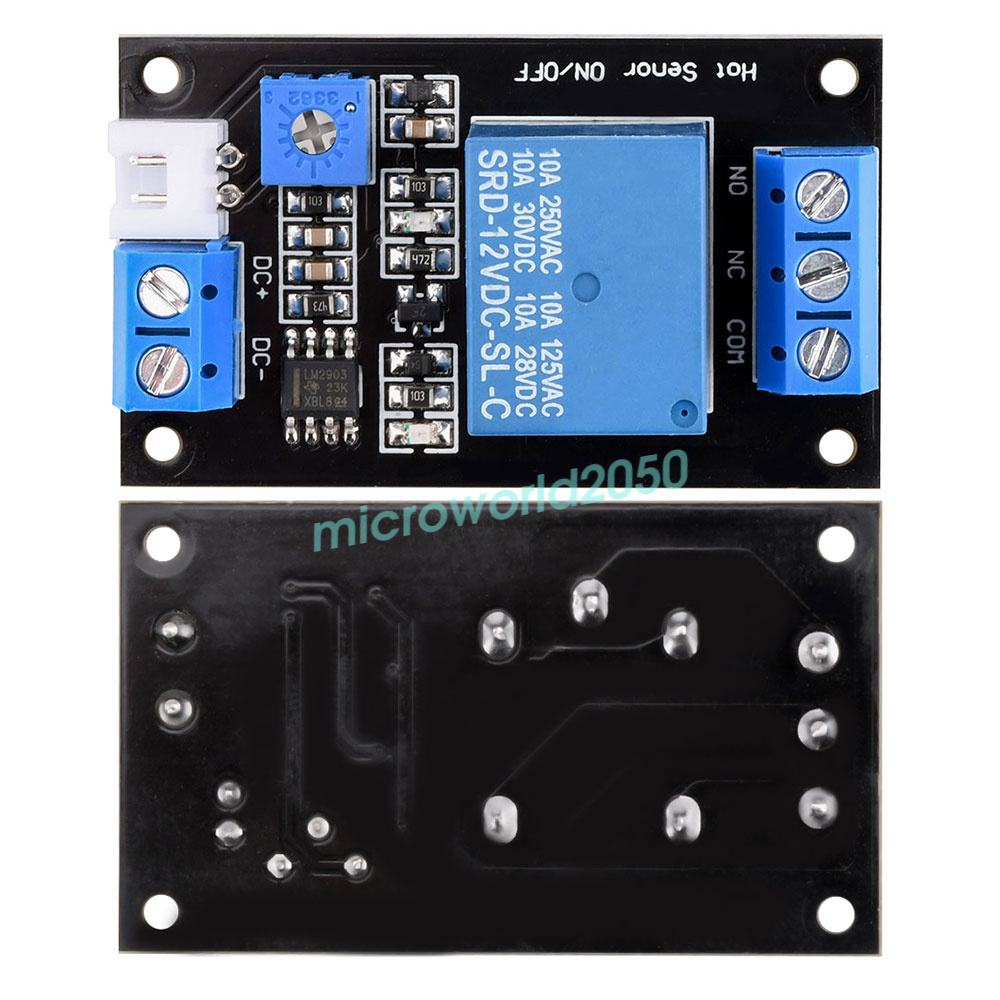

5, equipped with power indicator (red), relay status indicator (red)
6, equipped with 4 fixing bolt holes, easy to install;
7, module size: 5.0cm * 3.0cm * 1.8cm;

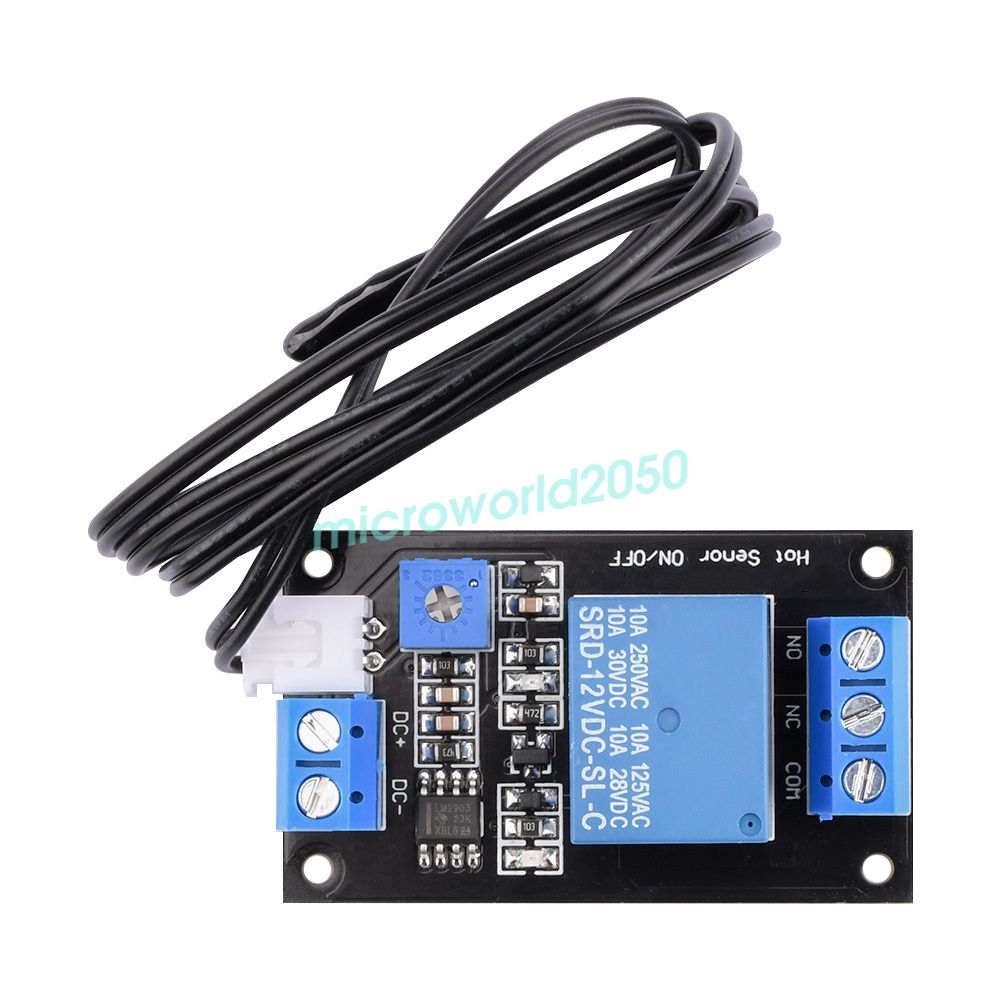

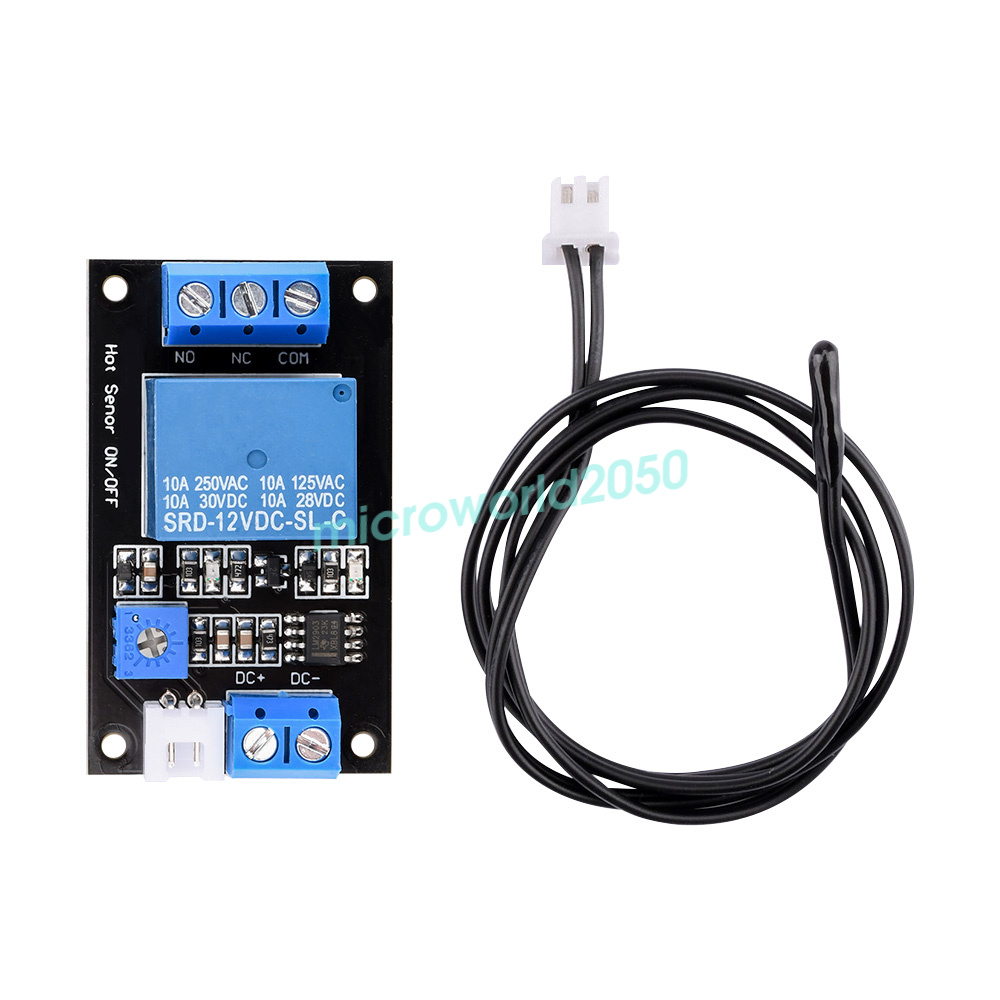

8, the module comes with a free thermal sensor with a 30CM lead;
1, thermistor module is sensitive to ambient temperature, generally used to detect changes in the temperature of the surrounding environment;
2, the module in the ambient temperature is higher than the set threshold, the relay is absorbed, the public end and the normally open end connected (disconnected from the normally closed end), when the outside ambient temperature is lower than the set threshold, the relay is disconnected, the public end and the normally open end disconnected (connected from the normally closed end);

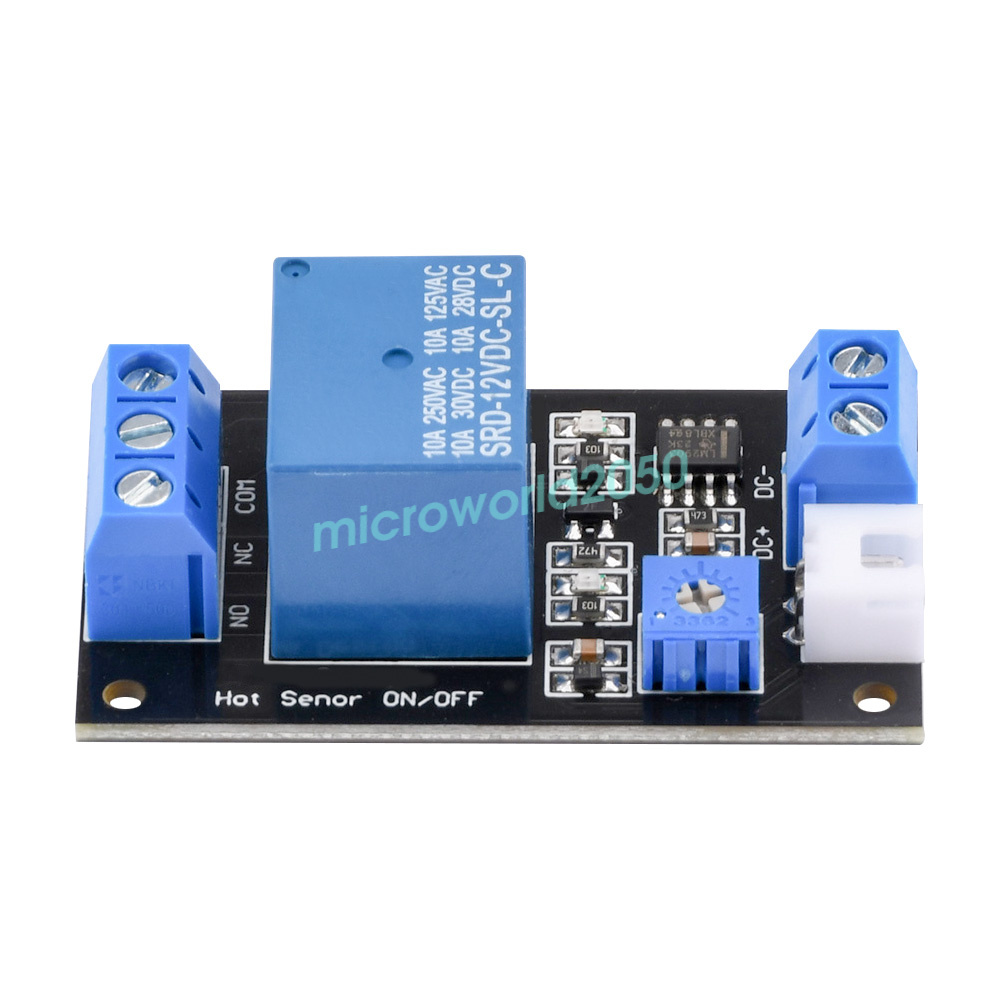

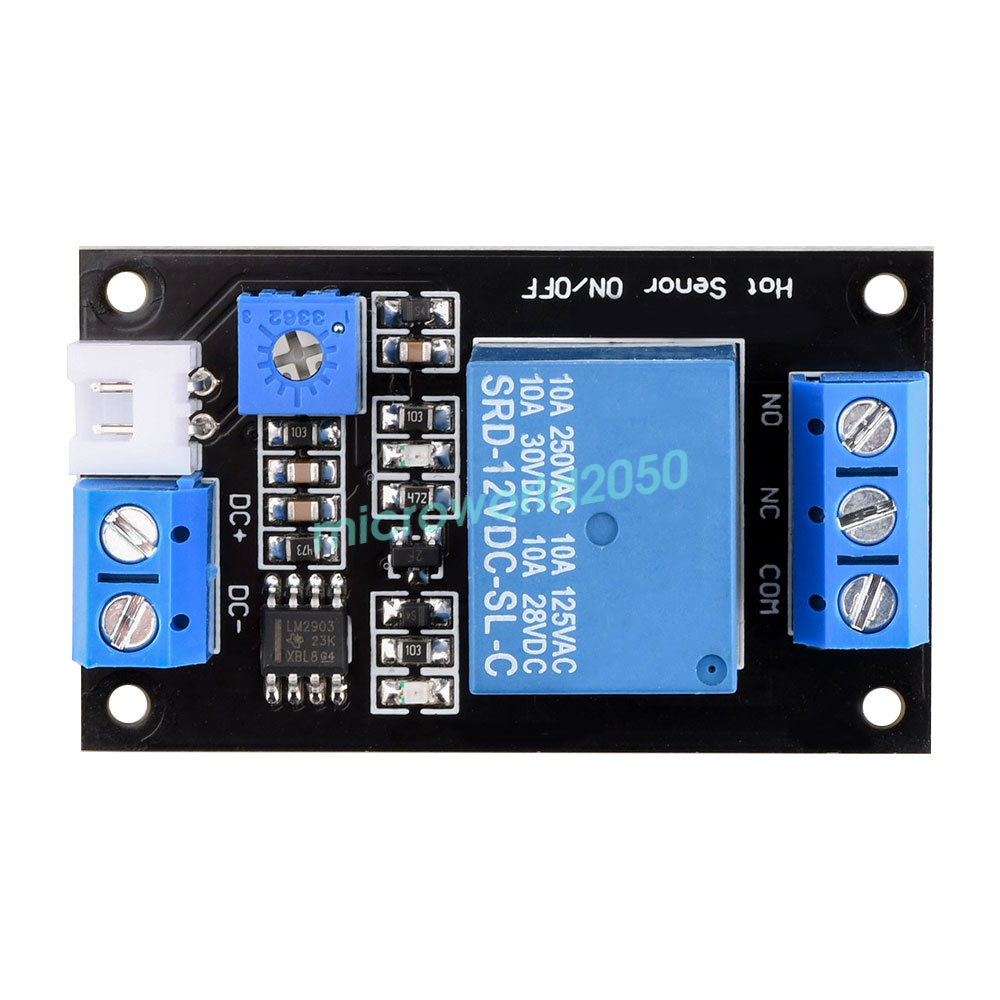

3、The three ports of common terminal, normally open and normally closed are equivalent to a double-control switch. When the relay coil is energized, the common terminal and the normally open terminal are on, and when it is not energized, the common terminal and the normally closed terminal are on;
Working voltage: DC 12V
Working current: after the relay is closed: 12V module less than 50mA
Before the relay is engaged: less than 5mA.
Load capacity: AC 0V--250V/10A, DC 0V--30V/10A.
