ATOM Printer offers the best value in a desktop DIY thermal printer, includes an ESP32-Pico based IoT controller ATOM Lite, and a 58mm thermal printer to meet your multiple printing requirements. Supports text, graphics, barcode, QR code printing. The ATOM Printer has geekery kraft packaging design, built-in firmware boasts two modes of AP Connect Print + MQTT Notifications Print . You can enrich your creation, fun and practical with ATOM Lite IoT controller.

Note

This kit excludes the power adapter. A DC 12V / 2.5A power adapter (5.5mm jack) is recommended.

Product Features

ATOM Lite: ESP32-Pico-D4 4MB Flash IoT controller
Sleek, Geekery kraft packaging design
Supports for text/graphics/BarCode/QRCode

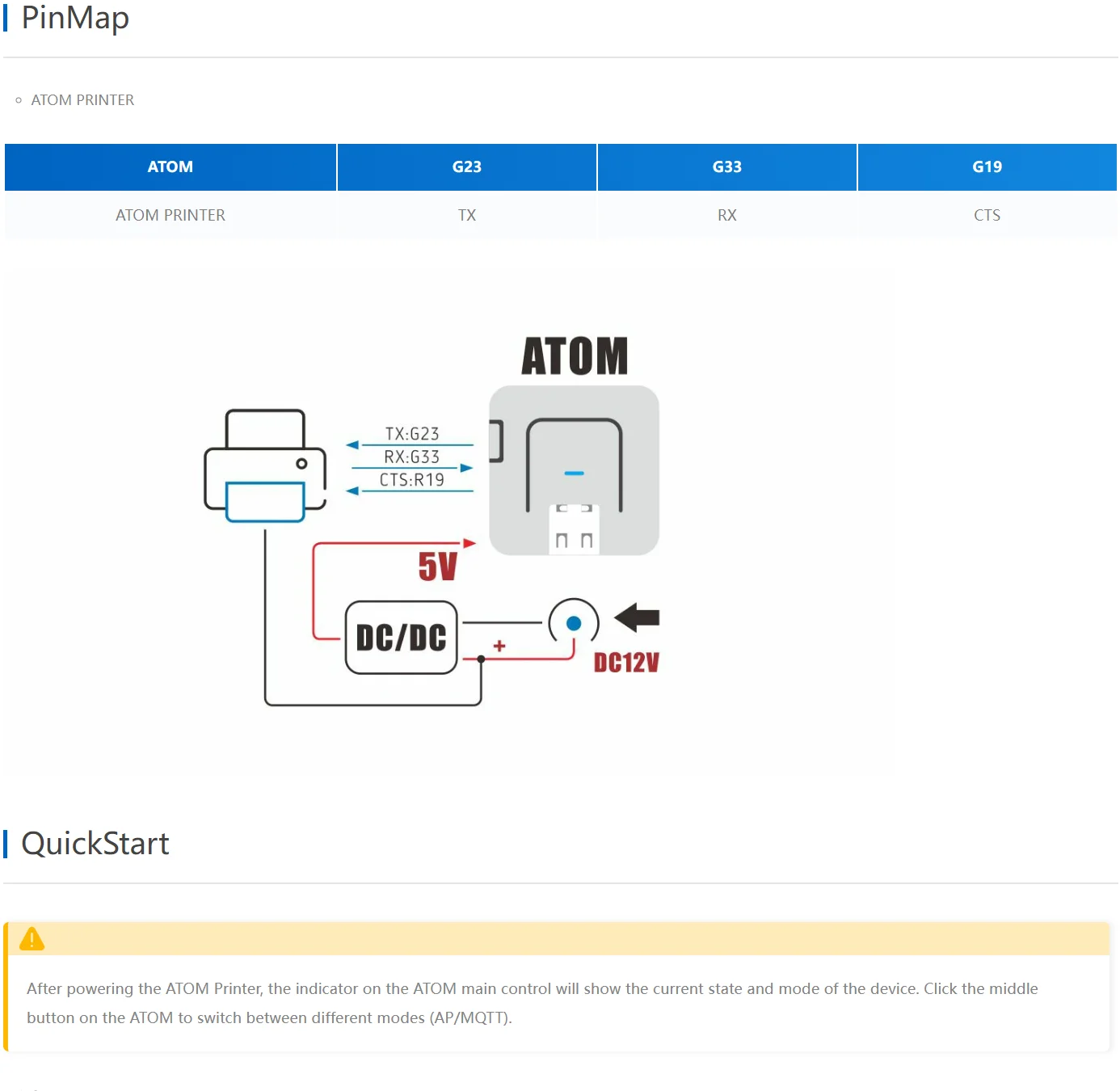

Communication interface: UART
Fast printing, high resolution
How to use:
----AP hotspot connection, web-controlled printing
----Printing content sent via MQTT (Topic is device Mac address)

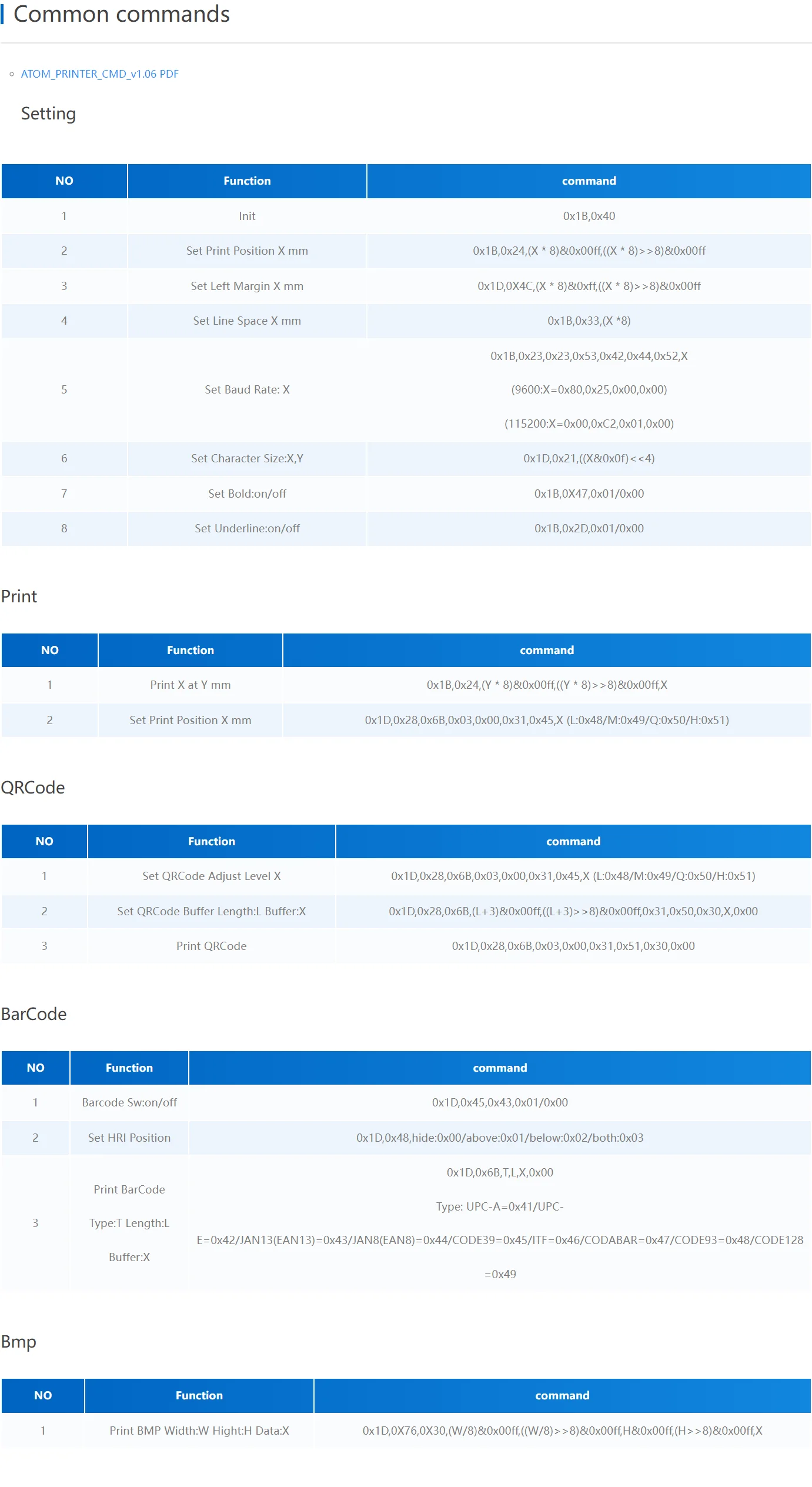

----Serial command control (UART 9600bps 8N1)
----Development platform: Arduino, UIFlow

ATOM Lite

Includes

1x ATOM LITE
1x ATOM Printer
1x thermal paper roll
1x sticky thermal paper roll

Application

Can be widely used in printing taxi bill, parking bill, express delivery invoice, restaurant order and so on.
