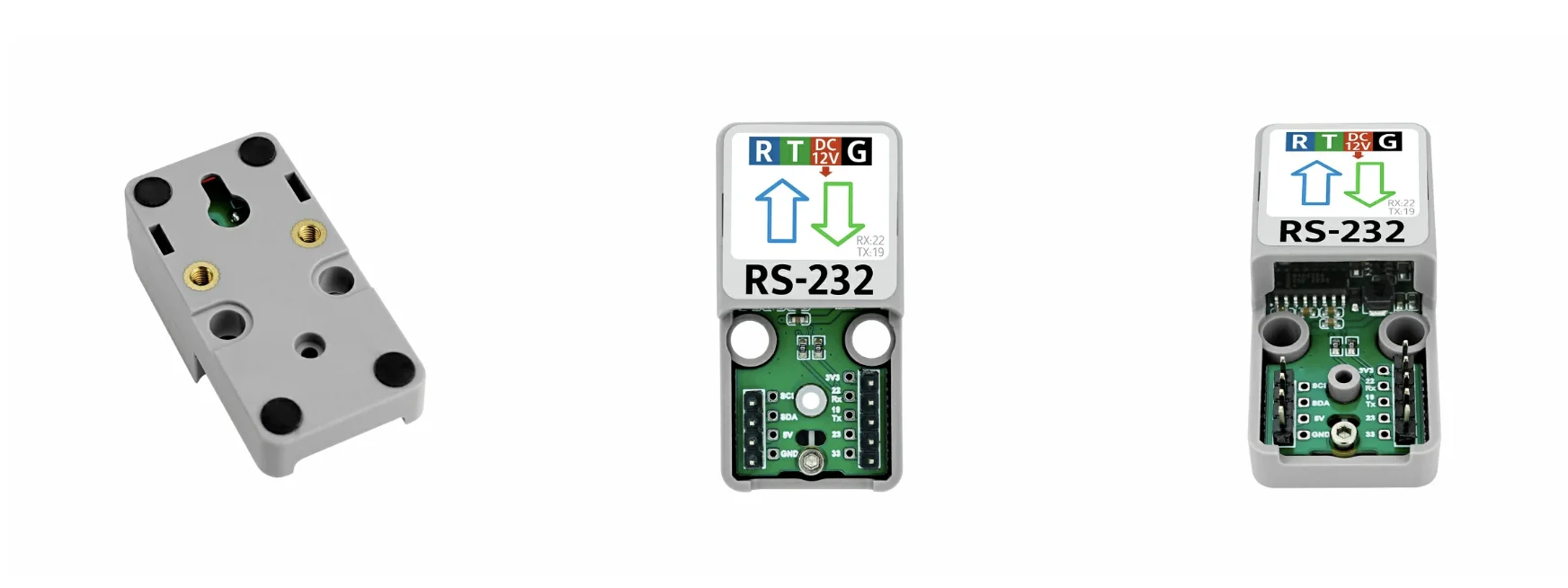

Atomic RS232 Base is a TTL-RS232 level converter designedfor Atom series controllers.** RS-232** is a standard for serial communication between computers and peripheral devices, defining electrical characteristics and data transmission protocols. The module utilizes the MAX232 chip, enabling bidirectional conversion between TTL and RS232 voltage levels. Additionally, it incorporates an internal DC-DC buck voltage regulator chip, allowing support for external 12V voltage level to power the ATOM device.

Features

* Compatible ATOM Matrix/ATOM Lite/ATOMS3 Lite/ATOMS3
* Built-in DC/DC
* Full-duplex communication

Includes

1 × Atomic RS232 Base

Applications

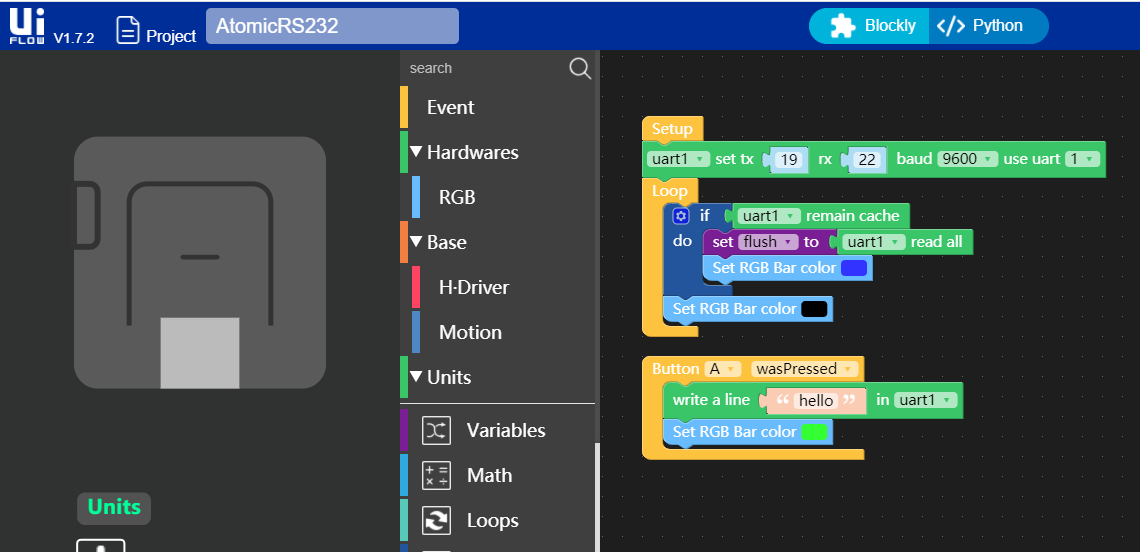

* RS232 Communication
* Industrial control node

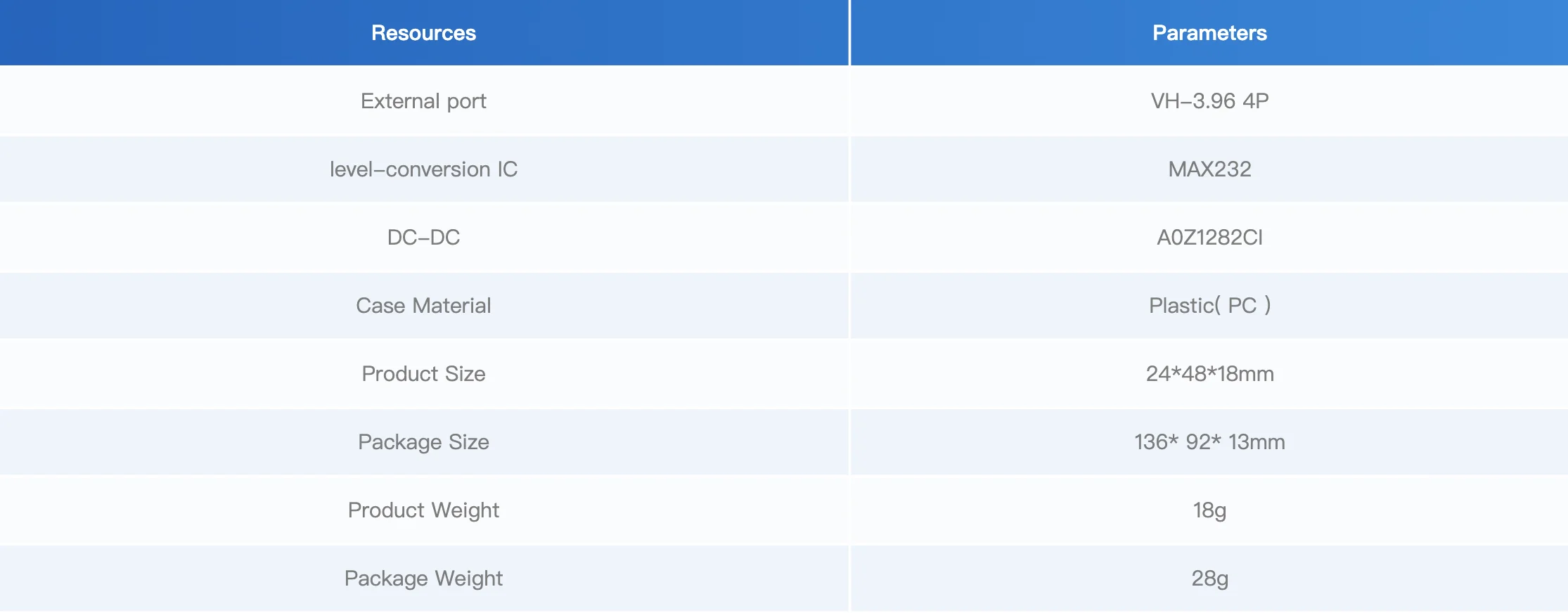

Specification

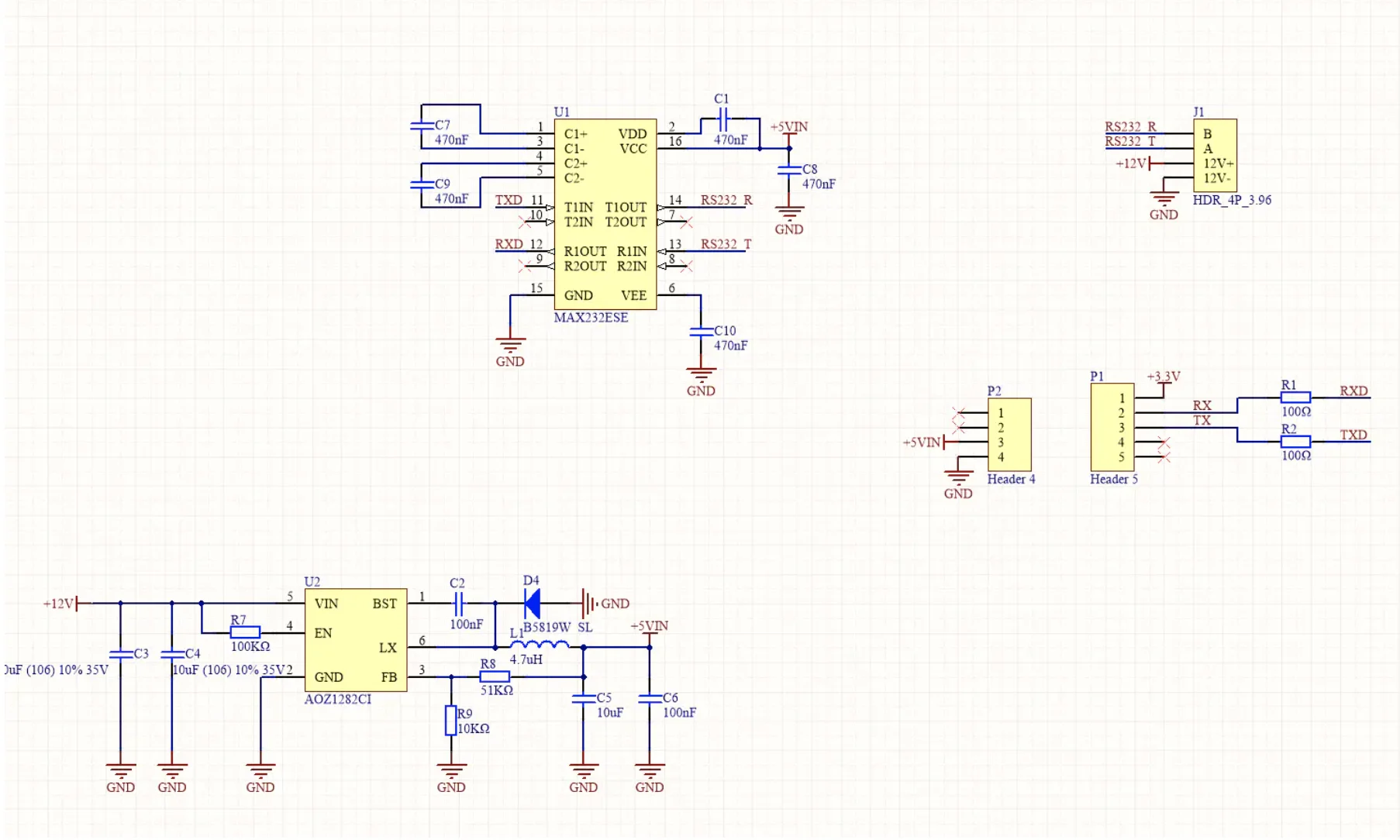

Schematic

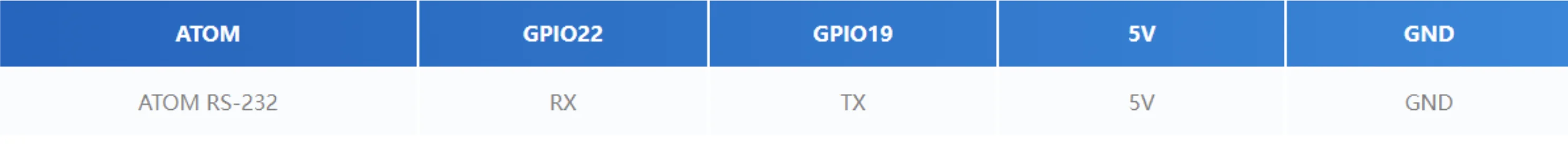

PinMap
