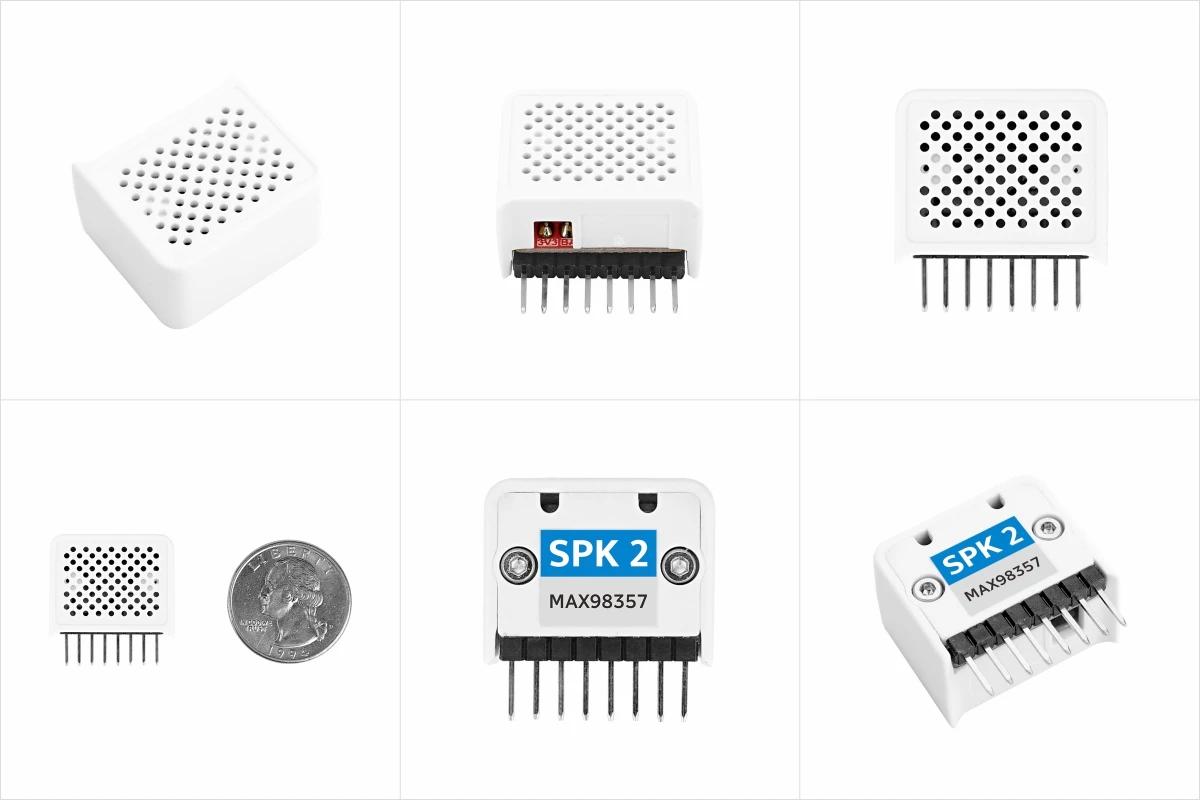

The HAT-SPK2 is a speaker with M5SticKC PLUS, built-in MAX98357 digital audio I2S amplifier IC and 1W speaker, supporting 16-bit, 32kHz to 192kHz sample rate audio input, built-in short circuit protection' and over-temperature protection, suitable for a variety of audio applications.

Features

* HIGH-QUALITY AUDIO OUTPUT: SUPPORTS 16-BIT, 32KHZ TO 192KHZ SAMPLE RATE AUDIO INPUT
* Multiple output modes: including mono and stereo, as well as audio input formats such as I2S, left-justified, and right-justified
* Stability and reliability: Built-in short-circuit protection and over-temperature protection
* Programming platforms: Arduino, uiflow

Includes

1x HAT-SPK2

Applications

* Audio speakers
* television set
* Car audio
* Smart speakers

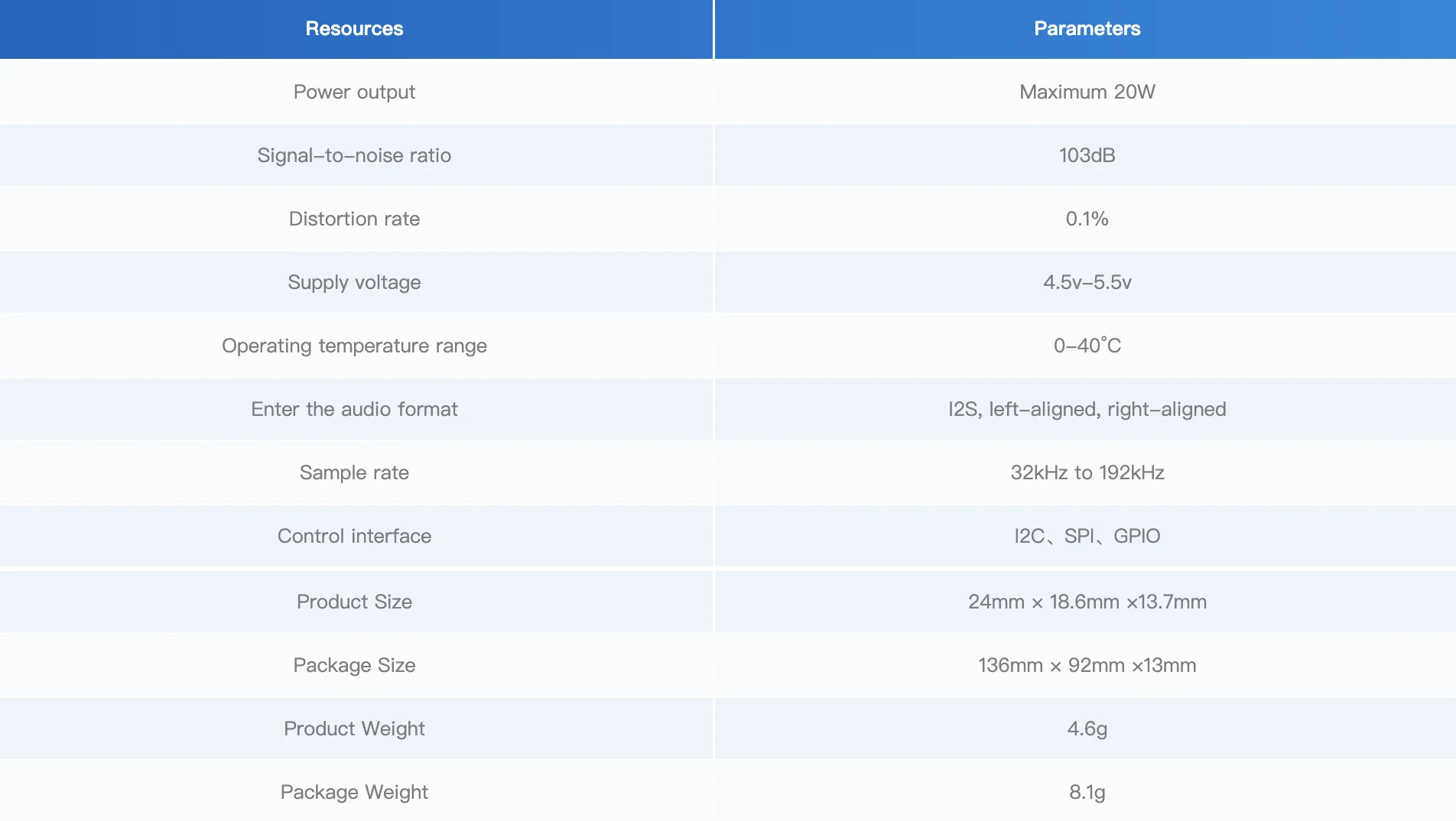

Specification

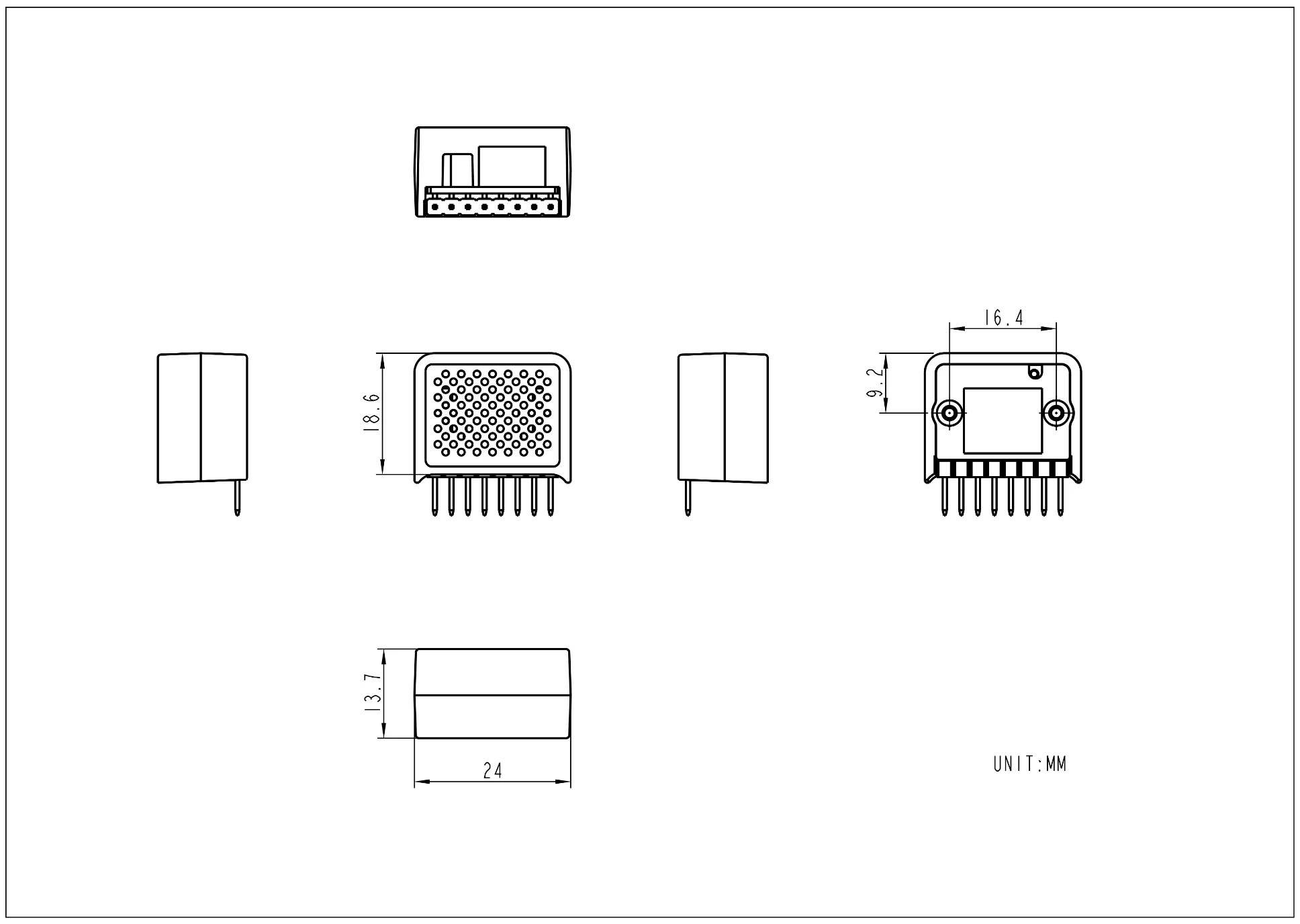

Module Size
