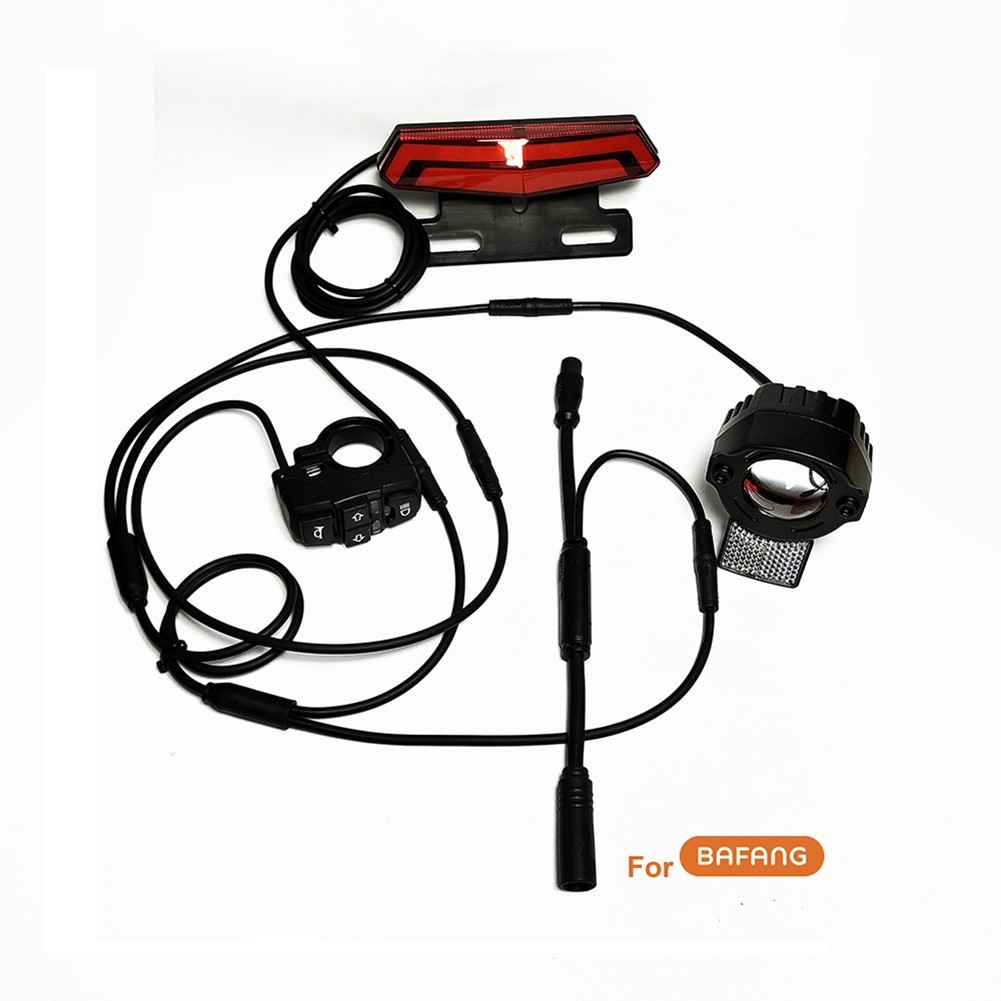

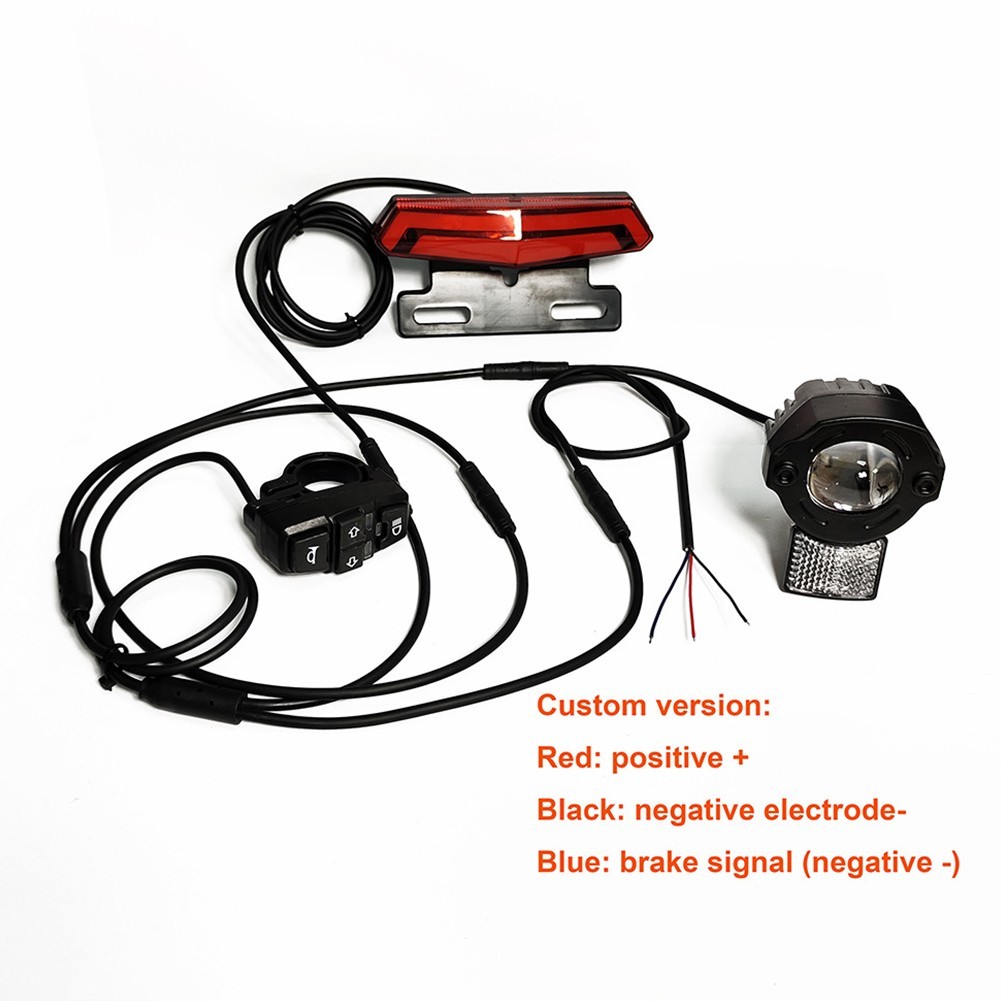

Waterproof Line Headlight Tail Rear Lights Light Set For Bafang BBS01/BBS02 SHD
DESCRIPTION

Features:


* line light set is used in for for 8fun 01 02 SHD full series

*High power and high brightness

*Adopt high-power LED lamp beads, front light emitting mode, uniform light color and no dark areas;

*The outer cover is made of PMMA material, with high transparency and anti-glare;

*It can be switched on and off frequently, without flicker and glare, and has good color rendering performance;

*Using high-efficiency LED flow driver chip, the efficiency can be as high as 90% or more

*The Front Light service life is 35000 hours

*Tested at an ambient temperature of 50℃, the luminous flux maintenance rate for 6000 hours is ≥93%, and the luminous flux maintenance rate for 35000 hours is ≥70%

Electrical parameter


Parameters:

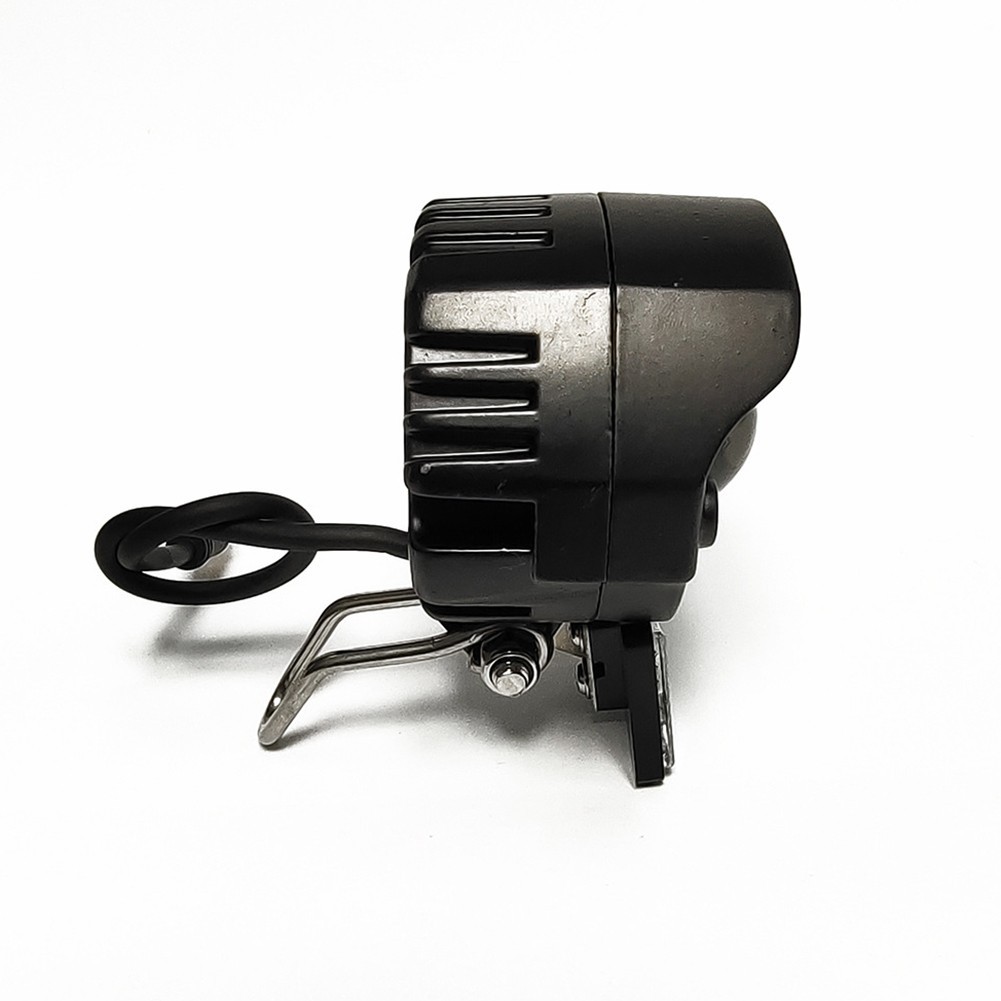

Front Light:


Model: Y-030 (aluminum alloy)

Applicable voltage: 24V/36V/48V/60V

Low beam current: 48V/190mA, 36V/250mA

Power: 9W

Function: low beam,

Light brightness: 650 LM

Speaker volume: 75-100 dB

Outgoing wire: three-core wire

Product appearance (50*62*73)

Cable length: ~15CM

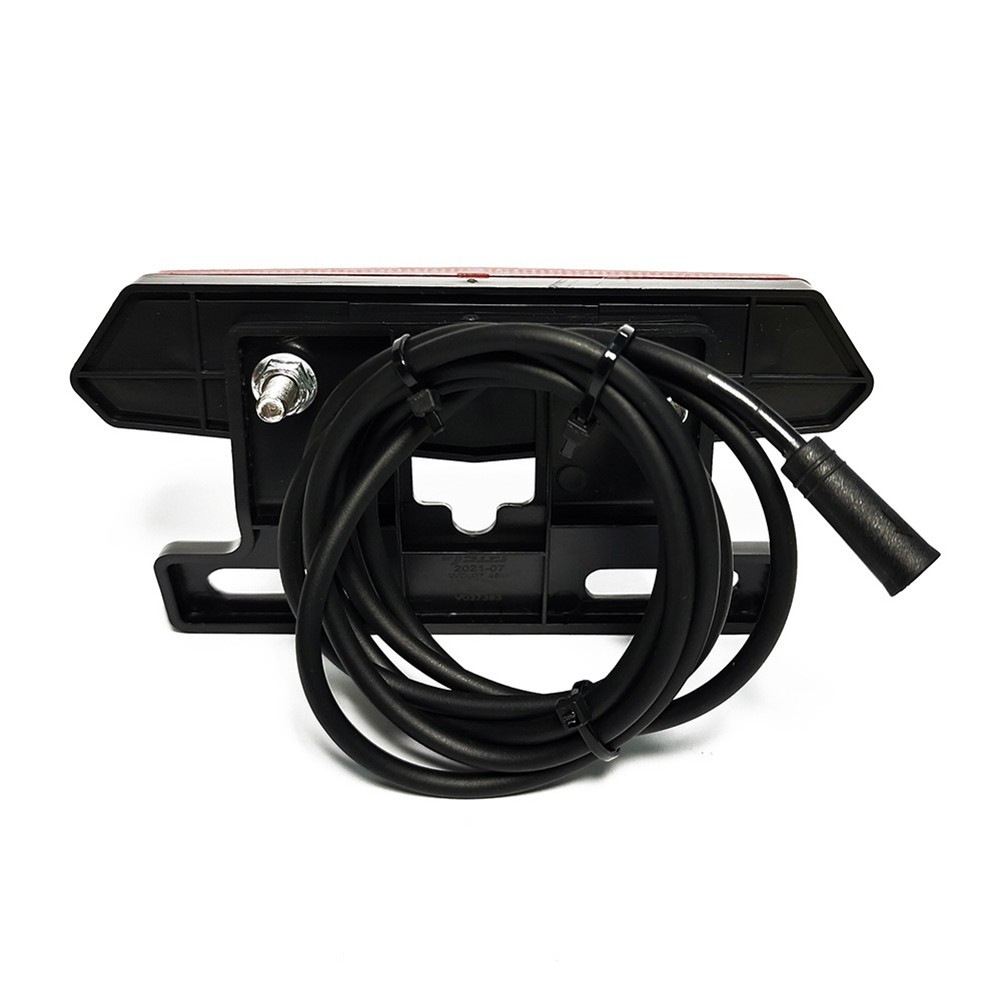

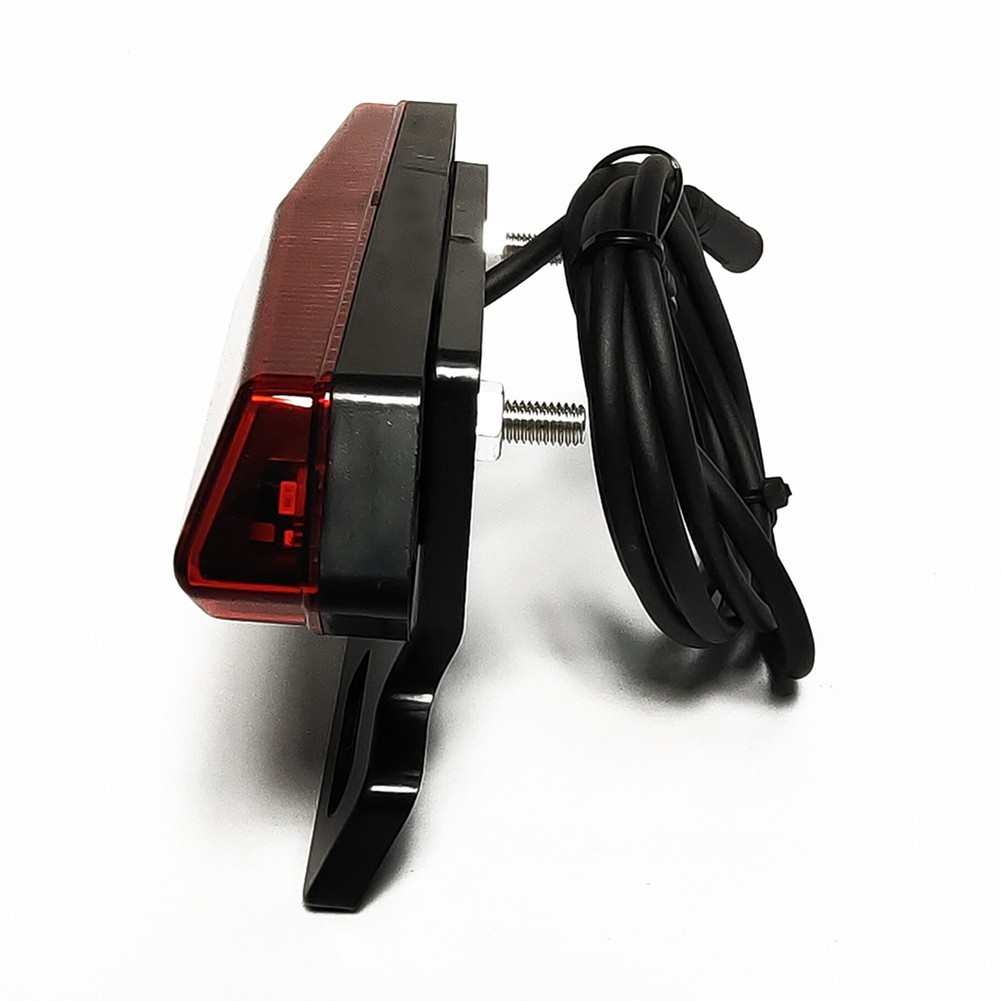

Taillight:


Code: DZ0275-LD07C

Net weight of taillight: 120g

Shell material: plastic

Applicable voltage range: 24-80V

Power: .5W

Number of light sources: 14

Luminous flux: 15LM

Product size: 132*65*40mm

Cable length: ~12CM

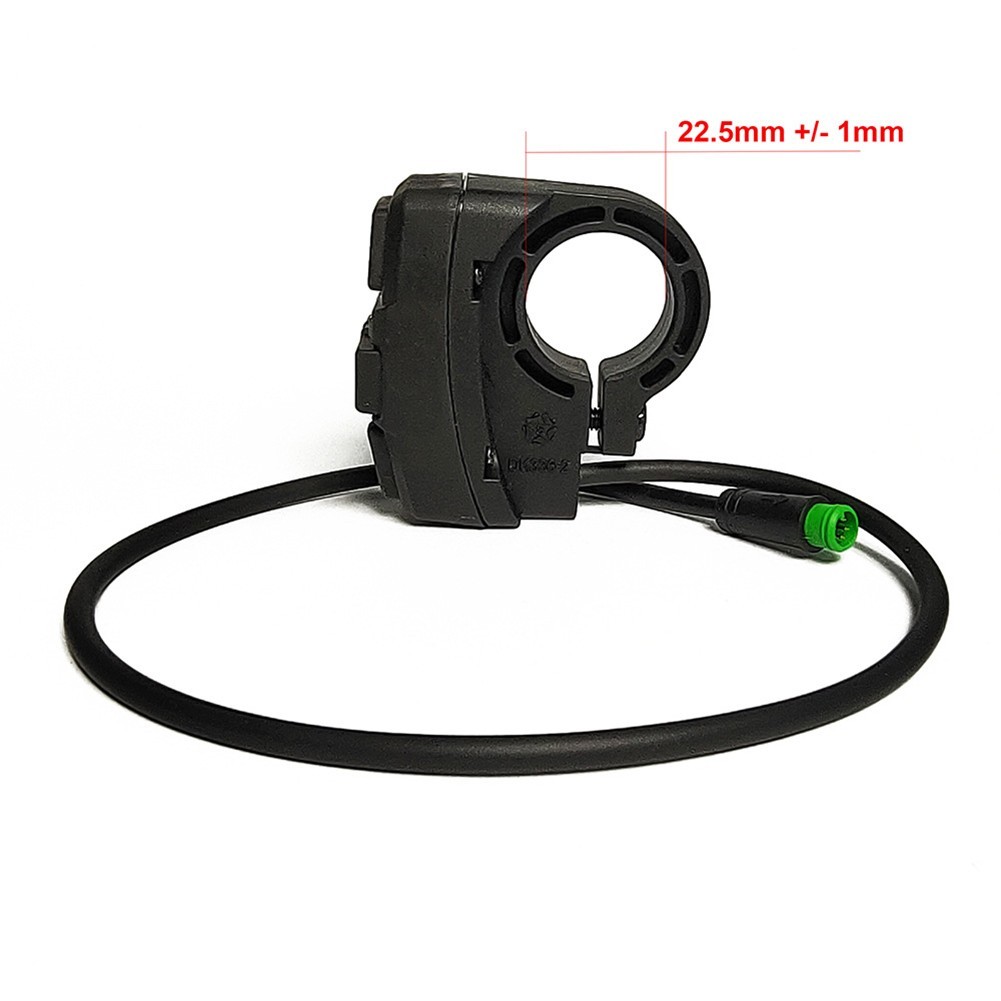

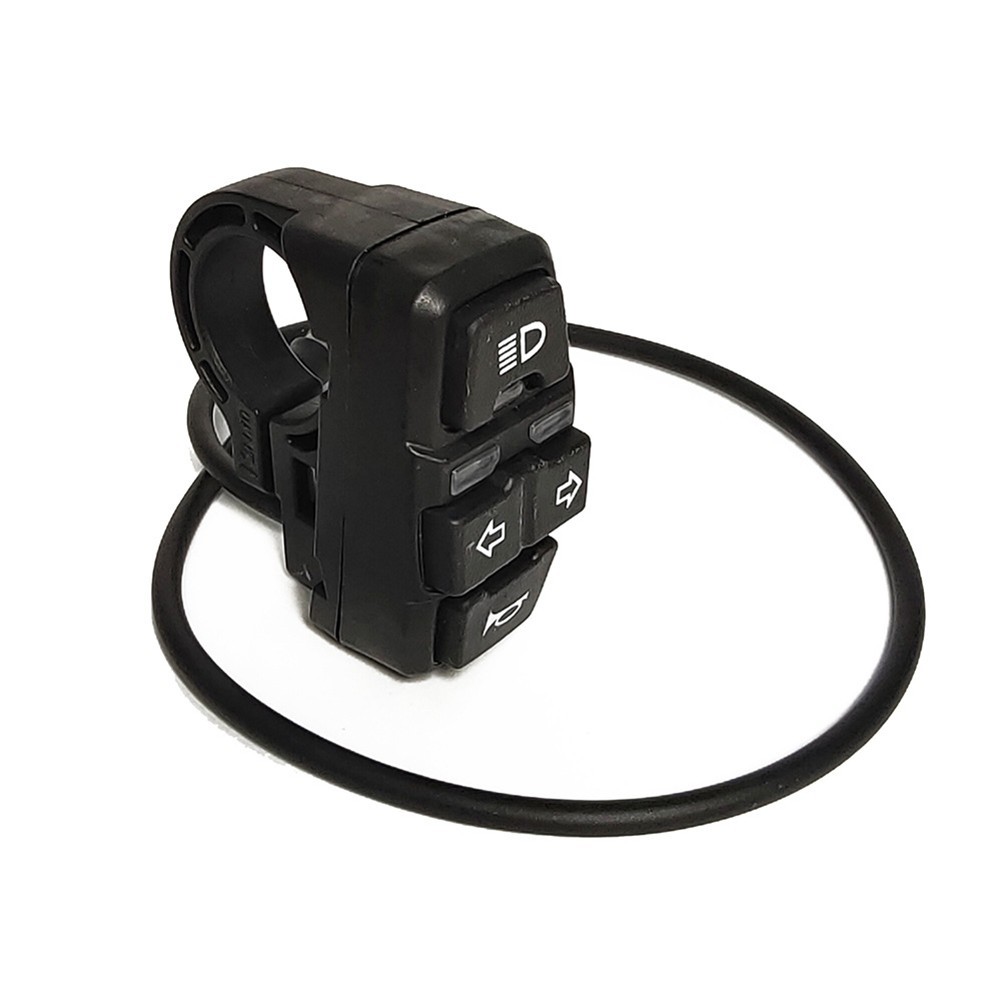

Switch:


Size: L 26mm W 54mm H 54mm

Weight: 41g

: IPX4

Material: PA6+20GF TPR

Wiring: 6/8 Pins

Current: 0.5A/12V DC

Working temperature: -20℃～60℃


Package Includes:


x Ebike Head Light (with built-in )

x Ebike Tail Light

x Switch(Light and )

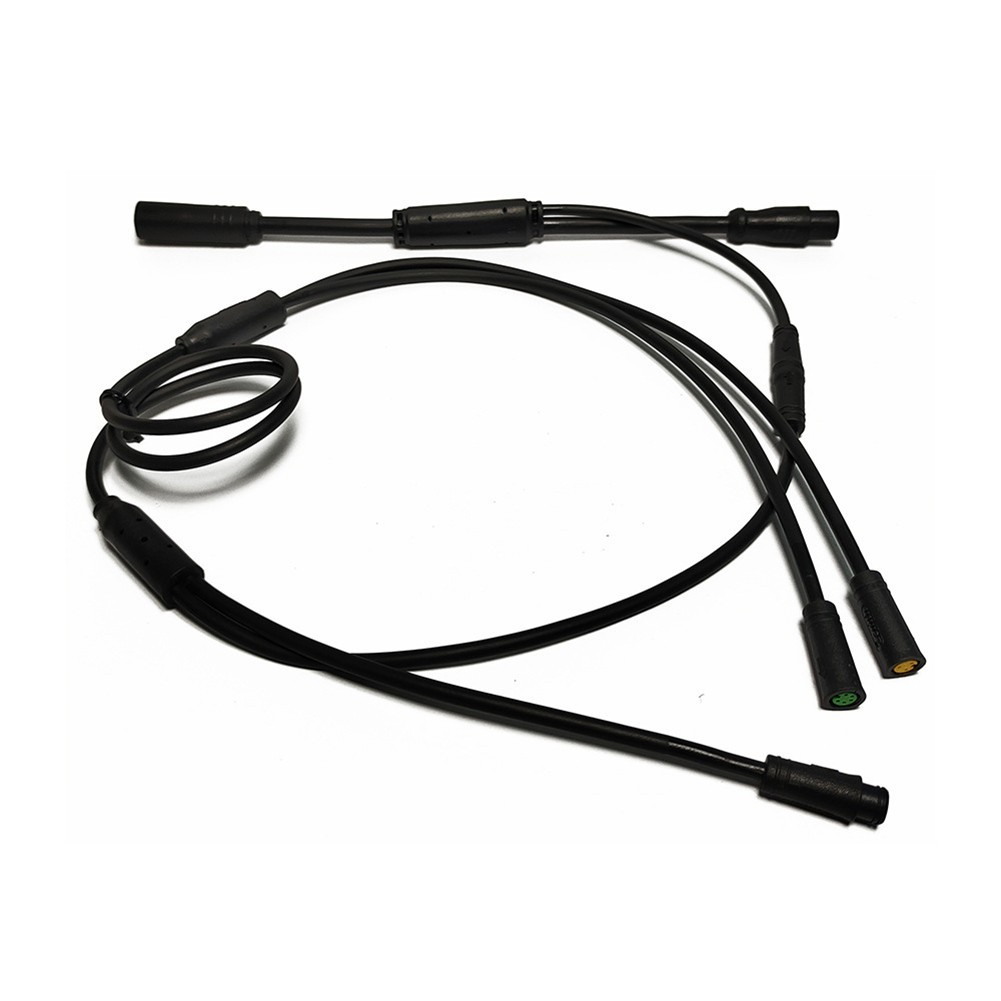

x Connection wires


Note:


. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
