15/20mm Rotary Shaft Encoder EC11 With Push Switch 5 Pin Digital Potentiometer
Specifications:
A rotary encoder is a device used to measure rotational speed and cooperate with PWM technology to achieve fast speed regulation. The photoelectric rotary encoder can convert mechanical quantities such as angular displacement and angular velocity of the output shaft into corresponding electrical pulses for digital output (REP) through photoelectric conversion.
Pulse count: 20
With switch: Yes
Operating life: 50000 times

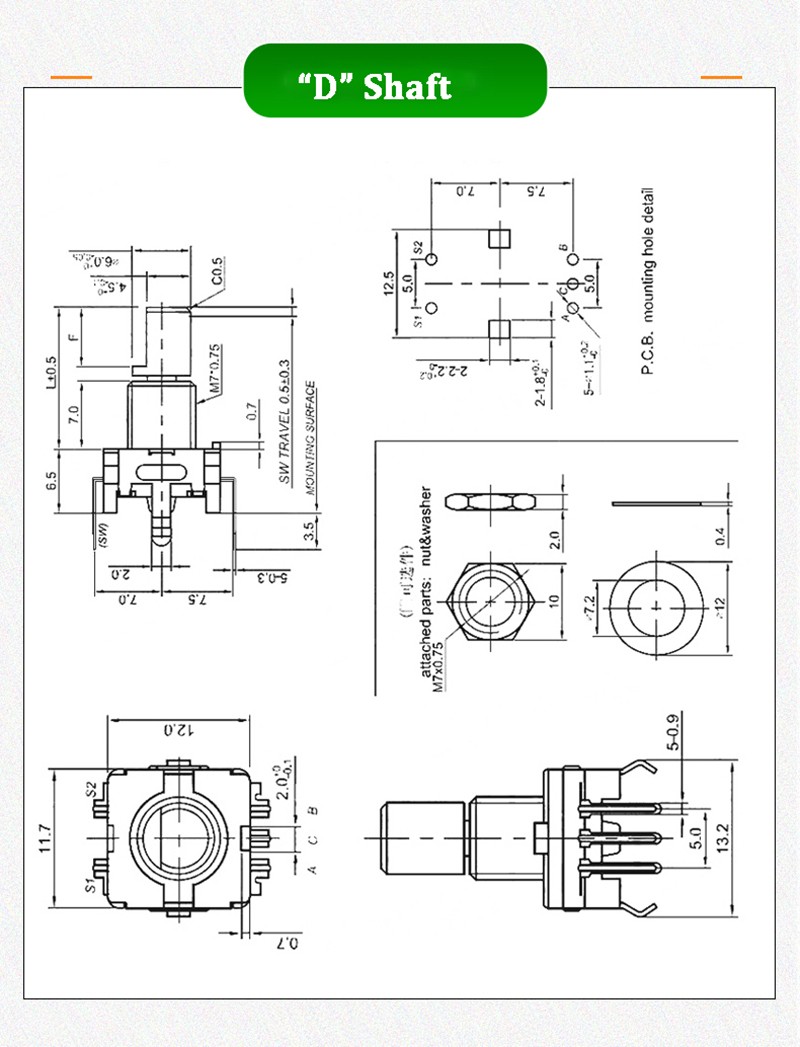

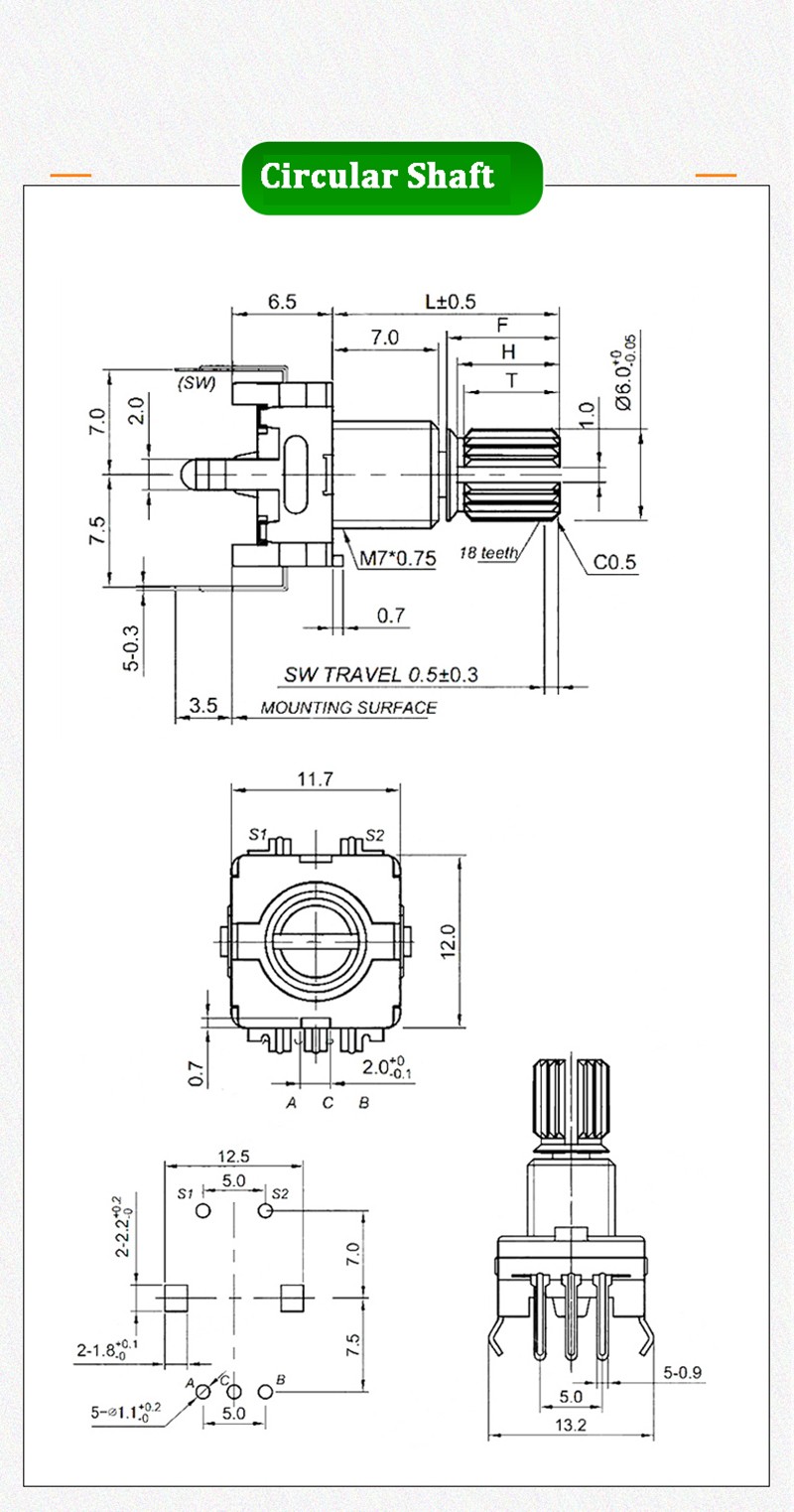

Shaft type: Circular Shaft / "D" Shaft
Maximum rated current and voltage: 10MA 5VDC
Features:
- The switch buttons are sensitive, and the quality is strictly controlled, making it easy to install and use.
- Realize fast speed regulation, combined with PWM technology to achieve results.
- Long operating life, not easily damaged, relatively durable.
Package Including:
According to your choice.
