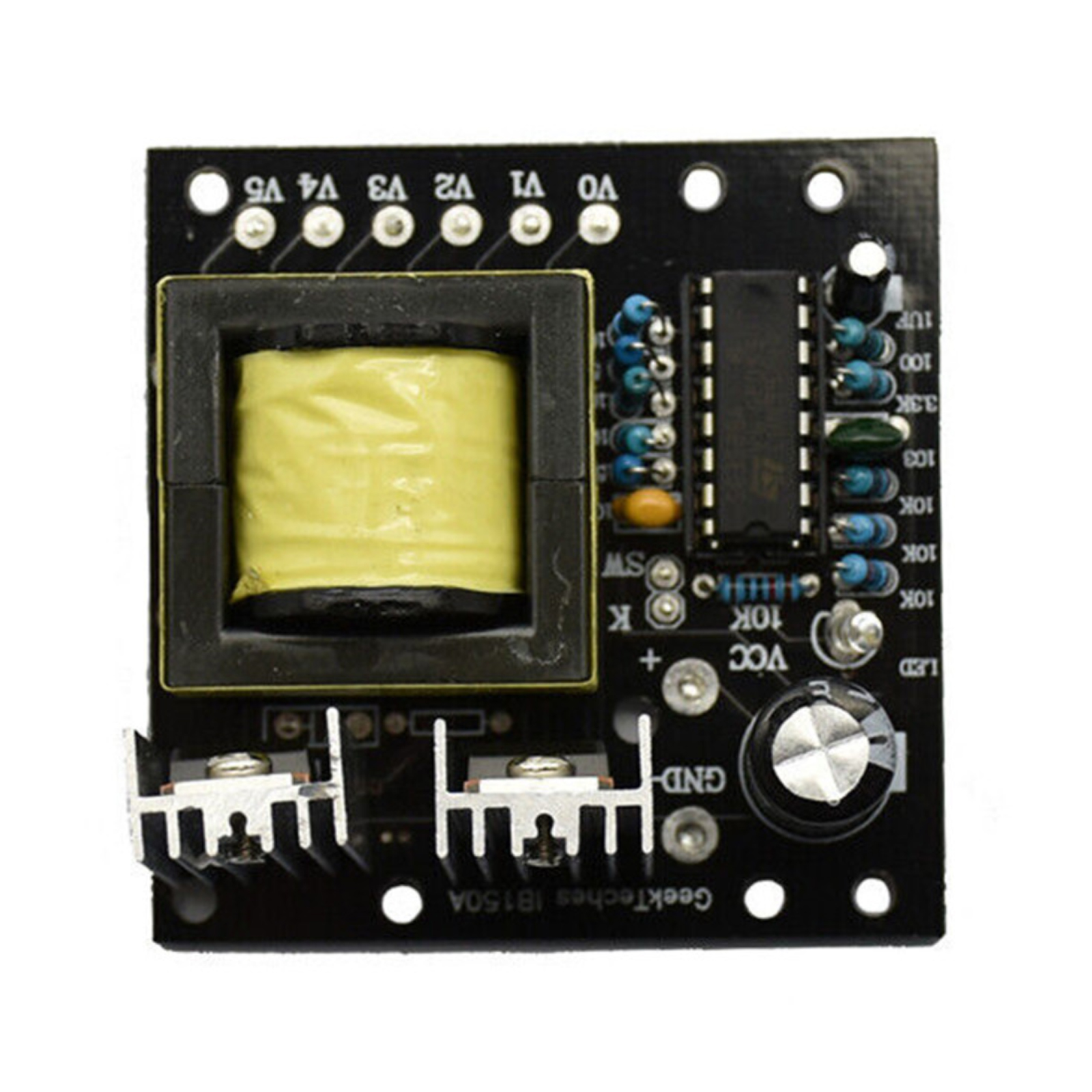

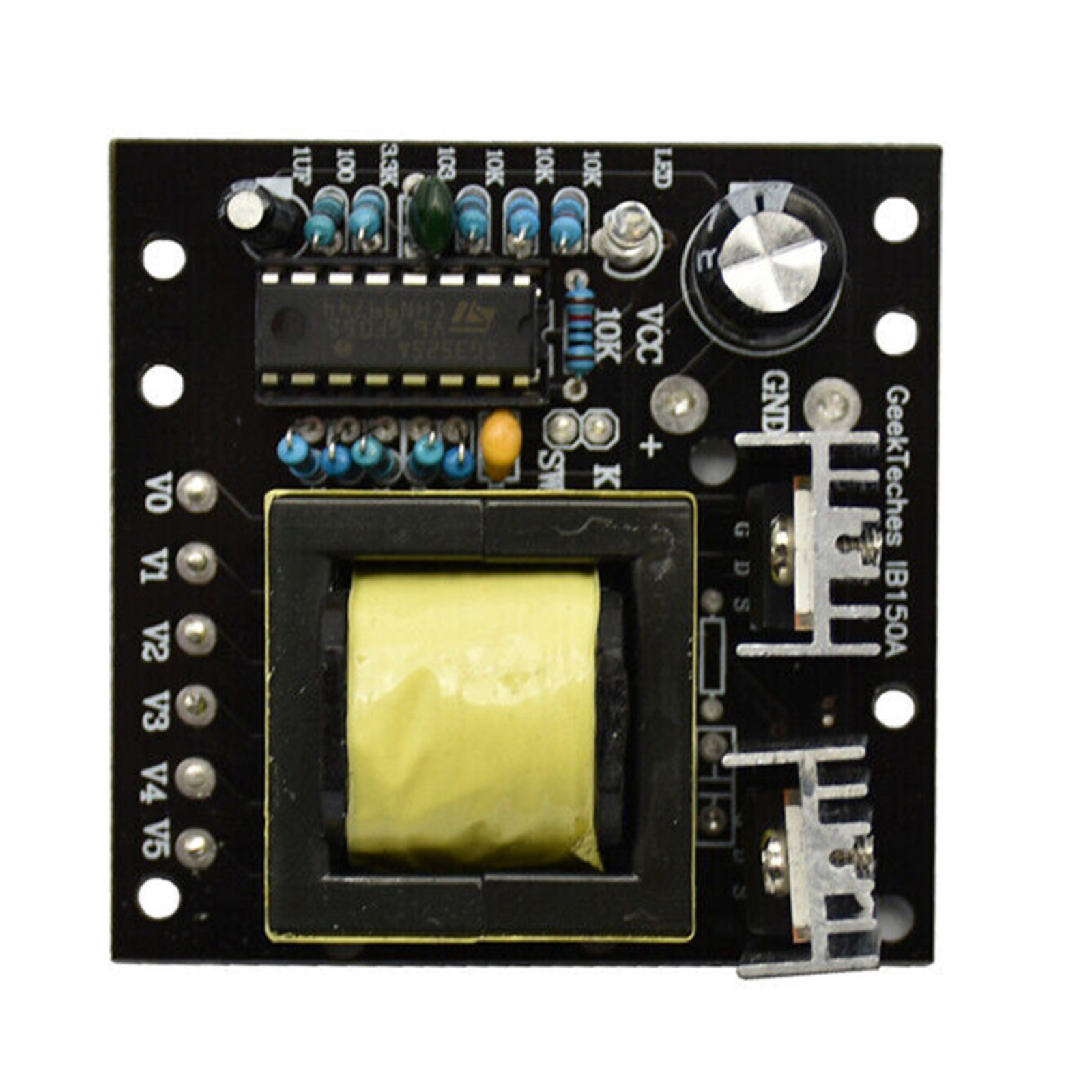

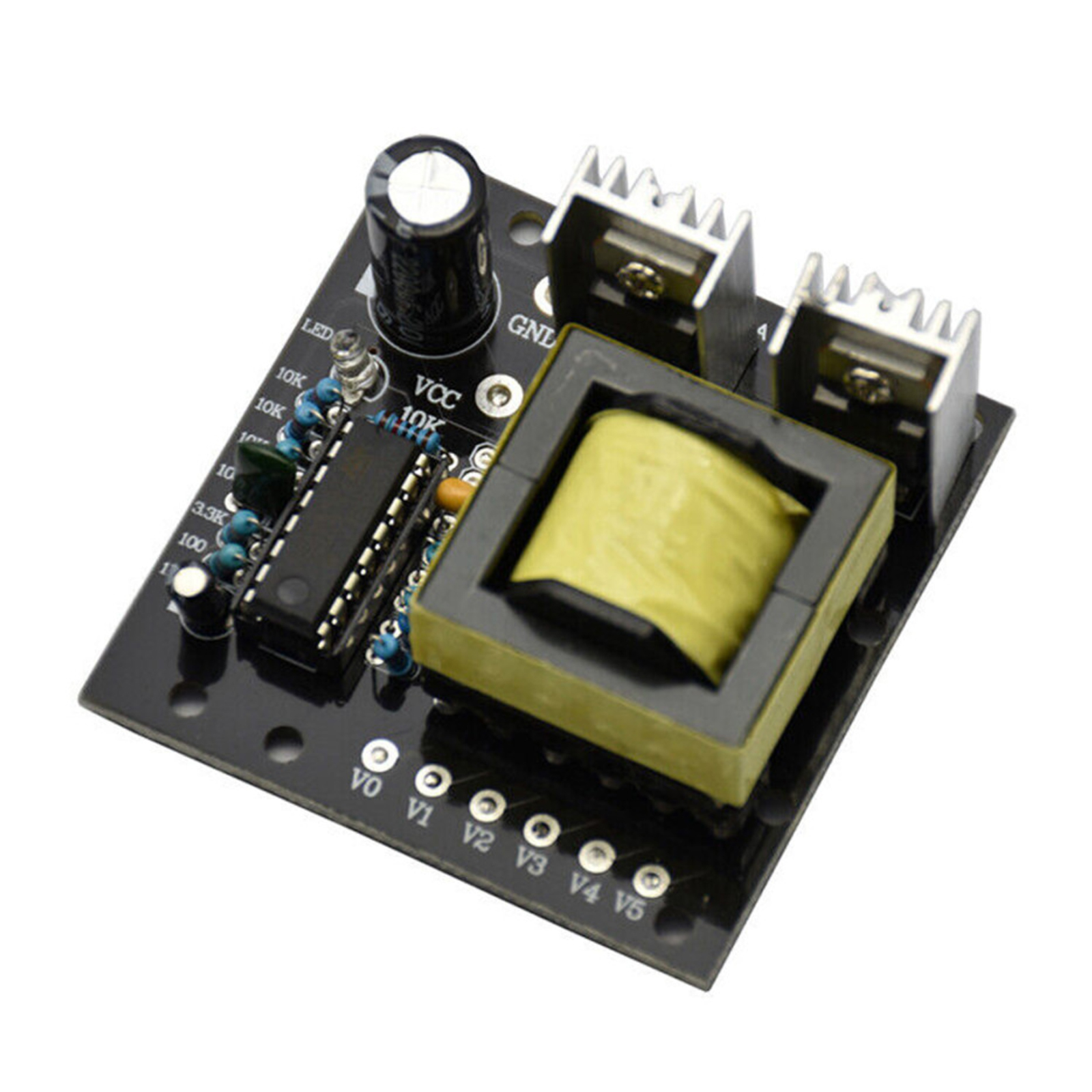

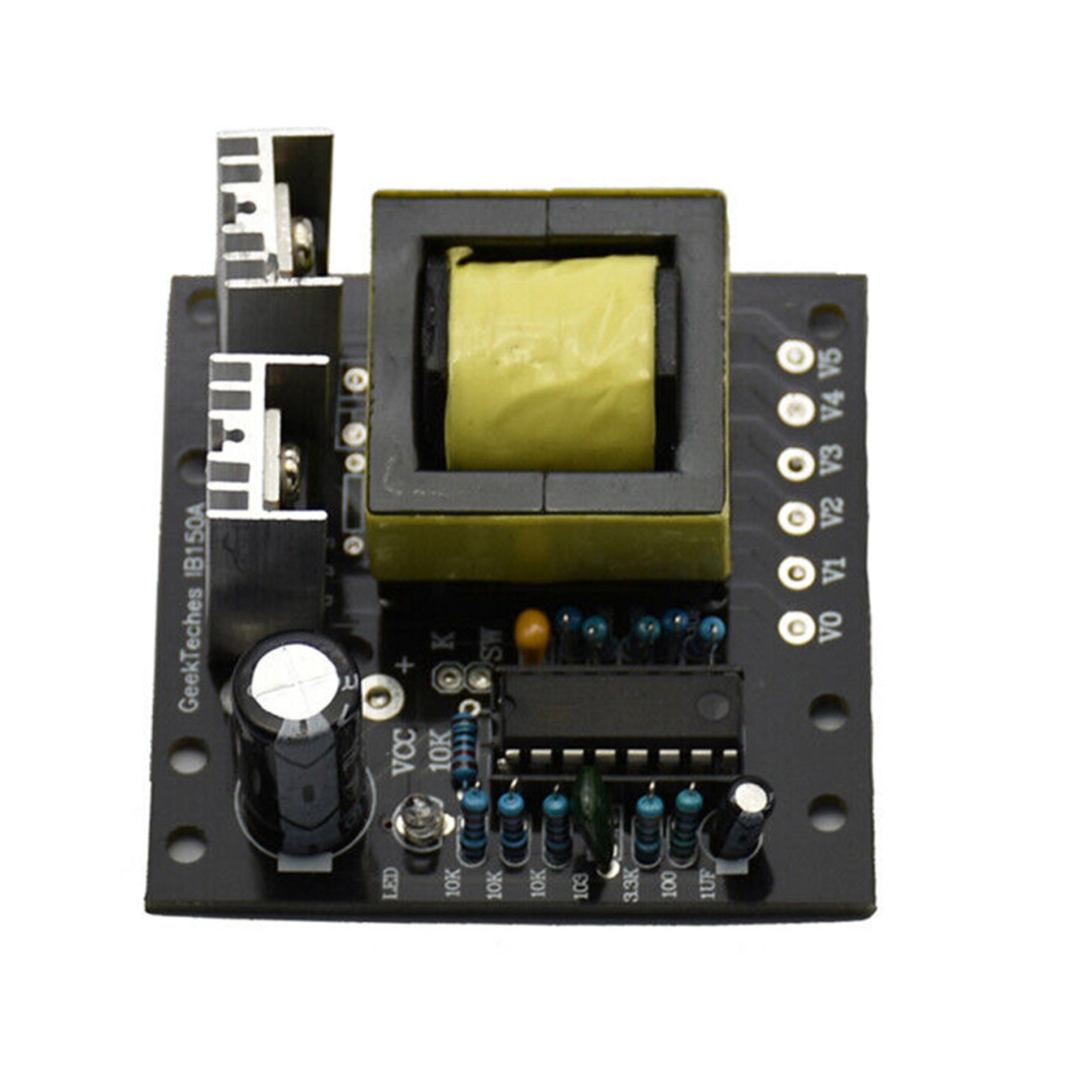

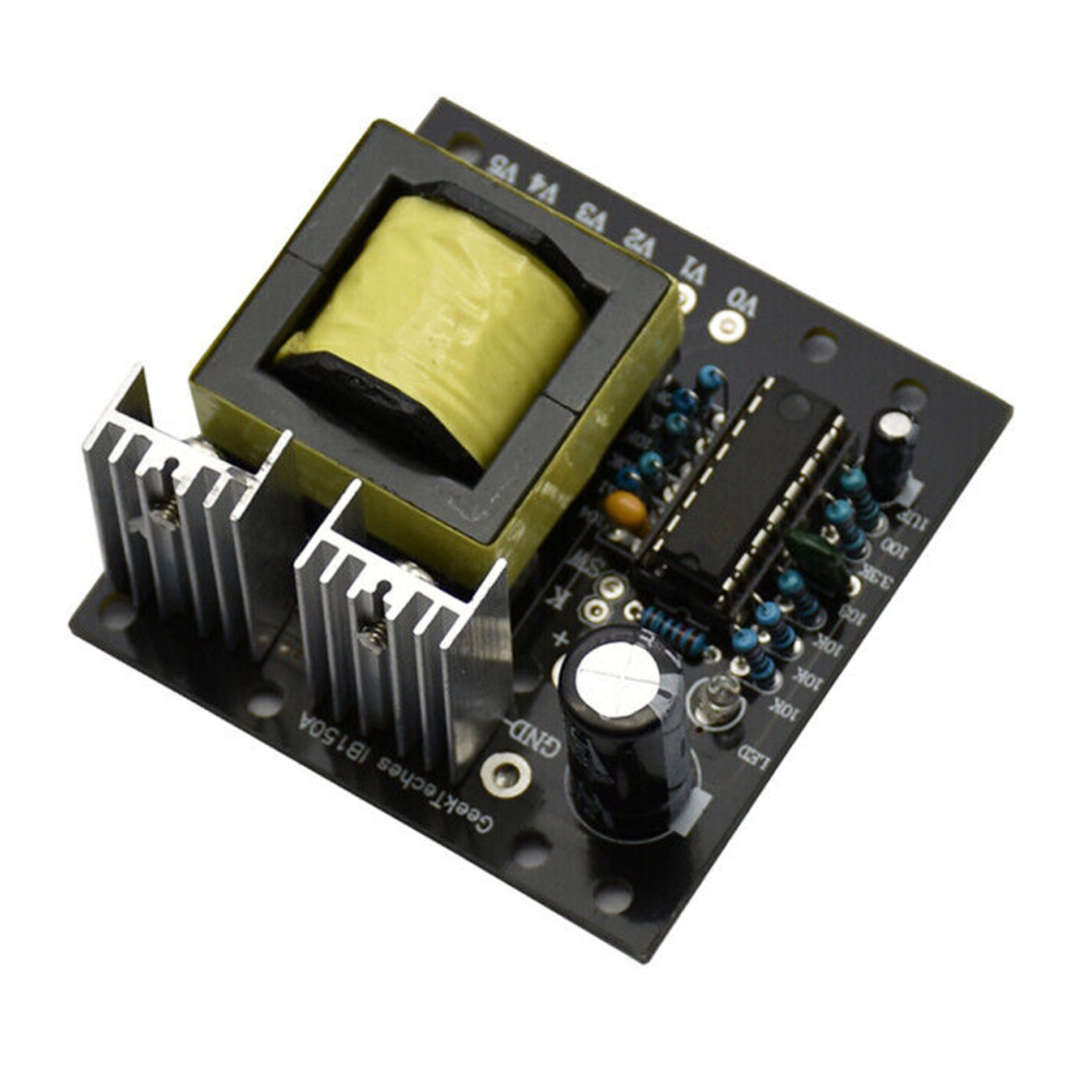

DC 12V Square Wave Power Converter 150W Inverter PWM Boost PCB Board Transformer
Product Description
Features: Protection: no protection PCB board using grade plate. Color: As shown Material: PCB board + capacitor + metal Mainly used for: electronic DIY before the inverter stage.
Specifications: Power: 50-150W Input: DC12V Quiescent Current: 0.05A around Output waveform: frequency square wave Output frequency: 20KHz around
Notes: The board features a high frequency square wave AC output. Take a small load (LED lights, phone charger, DVD set-top box, etc.) connected to the output voltage of the recommendations, such as a low gear: 172V or 200V. Load large work long hours (greater than or equal to 100W) is recommended to increase the heat sink. Power can not be reversed. The other power supply and Power cord should be large enough current. Do not overload, Do not short circuit output. Frequency output load voltage multimeter measurements will show higher (is not correct,not actual voltage). The default output voltage wiring as follows: V0--V2=110V V0--V3=175V V0--V4=200V V0--V5=220V V5--V4=20V V5--V3=45V V5--V2=110V V4--V3=28V V4--V2=90V V3--V2=62V
Package Include: 1 x 150W Inverter Boost Circuit Board
