DESCRIPTION

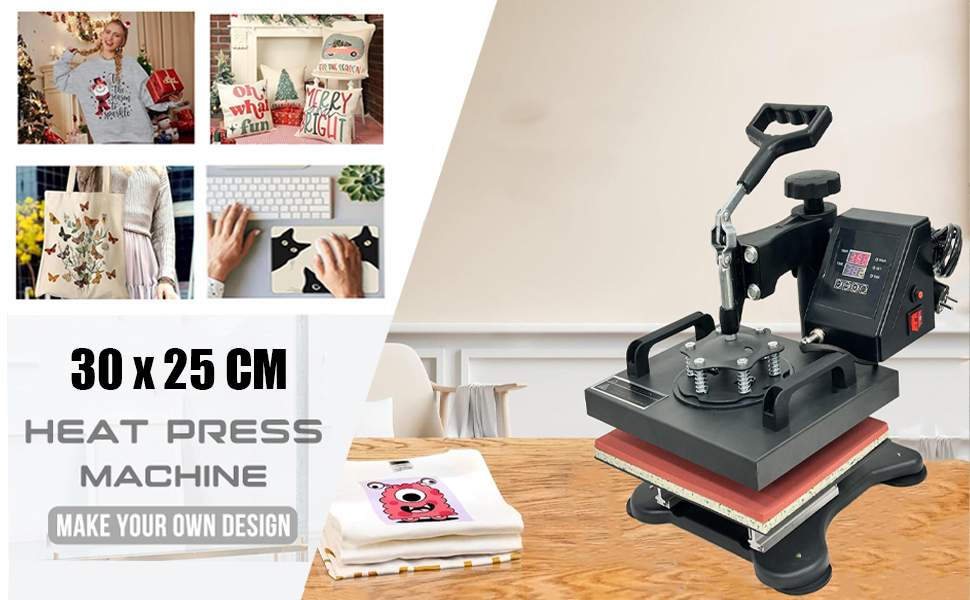

This swivel heat press machine can transfer photos, words to cotton, fiber, metal, ceramic, glass, etc. and is suitable for making gifts, advertising, etc. It can apply transfers, letters, numbers and images to T-shirts, garments, bags, mouse pads, puzzles, ceramic tiles, plates and other flat objects. The HP230-B features a built-in 25x30cm Teflon-coated heating plate with a full range of heating coils to ensure an even finish across the entire surface. Its unique swivel feature allows you to rotate the top heating plate 360 degrees. By moving the heating element aside and reducing the likelihood of accidental contact with the heat distribution area, you can work more freely with your garments and transfers on the base plate. Unlike traditional clamshell heat press machines, the HP230-B heat transfer applies direct pressure from top to bottom, ensuring even contact with the underlying surface. The digital timer control is adjustable up to 999 seconds. The HP230-B also has a digital temperature display with a range of 0 - 250℃ (0-480 °F). The manual open and close handle is easy to use and can be adjusted with the push button on the back of the machine. Its industrial strength and durability allows for long-term use. The machine is CE certified and comes with 2 years free warranty.

Certifications:
CE certification

Pre-sale: Our team will offer you professional advice. If you have any question, we will answer in time.
After sale: If you do not receive the item or the received item is damaged due to transportation, we will resend the item or replace your losses in time.

features

1.Versatile operation - Large element 12"X10" (30X25cm) allows transfers onto many flat surfaced items, such as fabric, metal, wood, ceramic & glass. Create your own custom t-shirts, mouse pads, tote-bags, license plates, and many other unique & fun items.

2.Swing-away design - This design is an improvement over clamshell designs, as pressure is directed straight down and is therefore more evenly applied; this improves the quality of the finished transfers. Full 360-degree rotation of swing arm; allows the heating element to be moved safely aside, reducing the chances of accidental contact.

3.Digital LCD timer control - Preset desired time and an audible alarm will sound when time is complete; helps avoid over exposure.

4.Full-range pressure-adjustment knob - Easy to access, top-mounted control.   This allows the pressure to be adjusted according to the thickness of the material you're transferring to.

5.Coated handle - Comfortable rubber grip for everyday-use and long production runs.

6.Teflon-coated element - Unlike other machines with bare-metal heating elements, the element on this machine is teflon coated. The surface is non-stick, preventing scorching of transfers, and does not require a separate silicone/teflon sheet.

7.Elevated lower platen - Lower platform with integrated hi-temp silicone pad is elevated with dual supports; these allow room for t-shirts to be easily placed into and removed from the machine.

8.Rigid steel frame - Machine is heavy-duty, commercial-grade, super stable and built to last.

SPECIFICATIONS

Certification	FDA
Voltage	220V
Power	1000W
Heating Plat Size	12" X 10" / 30cm X 25cm
Time Range	0 - 999 Sec
Temperature range	32-480°F( 0-250°C )
Press Style	Swing-arm
Material	Metal

applications

packing list

1 x Heat Press Machine
1x Power Cord
4x M5 Screws
4 x Suction Cups
1 x Screwdriver
1 x User Manual
