Michigan based company with a global presence. We ship worldwide to thousands of satisfied customers. Offering Same-Day Shipping & pickup for metro Detroit area land surveyors, civil engineers, architects, excavating & construction companies at our local store in Allen Park, MI. Our equipment is backed by exceptional customer service and support, along with a full warranty.

Offering New & Refurbished Total Stations, GPS / GNSS Base & Rovers, Radios, Antennas, Data Collectors, Grade & Pipe Lasers, Digital Levels, Magnetic Locators, Grade Control Systems, AgGPS Systems, Field Supplies, Accessories, Hand Tools & Safety Equipment!

Included Items Item Description Shipping Info Payment Info

* Topcon GR-5 GPS Base Receiver w/ Options... [ID- X4581]
         - 410-470 Mhz UHF Radio
         - Factory Serviced
* Topcon GR-5 GPS Rover Receiver w/ Options... [ID- X4582]
         - 410-470 Mhz UHF Radio
         - Factory Serviced

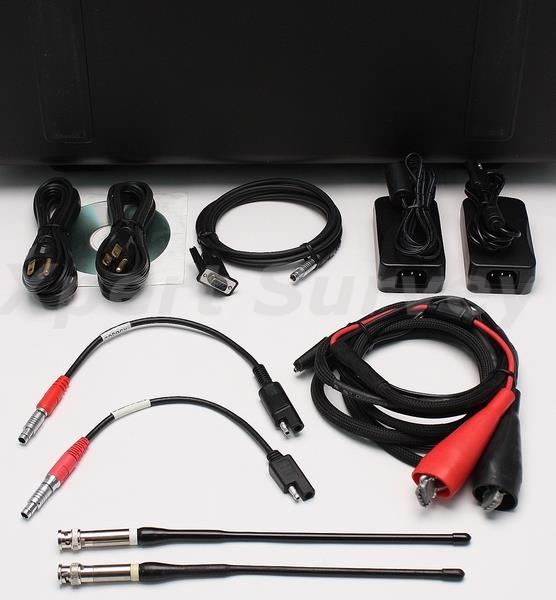

* (2) Antenna
* (4) Battery Pack
* (2) AC Adapter/Charger
* (2) Power Cord
* RS232 Serial PC Interface Cable
* Carrying Case [G]


Condition: Refurbished


Warranty: 1 Year Warranty

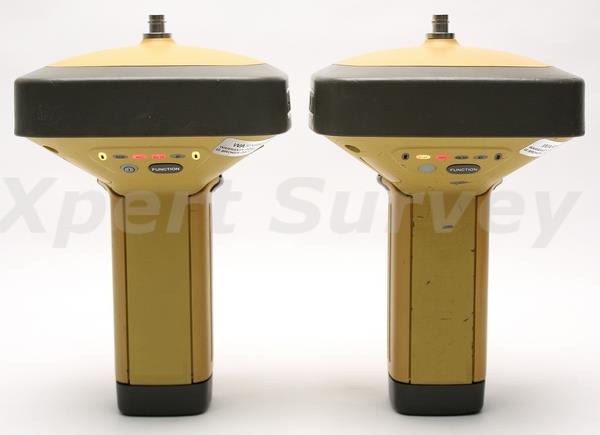

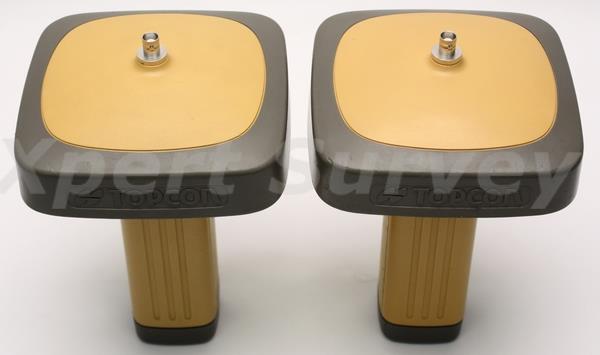

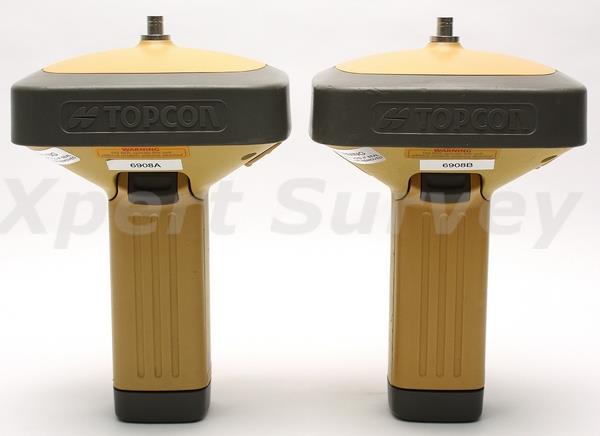

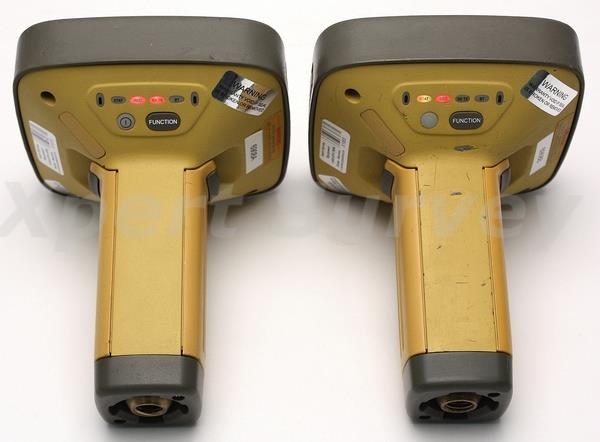

Topcon GR-5 GPS UHF 410-470 MHz RTK Base & Rover Set





Topcon GR-5 Advanced GPS Receiver

The GR-5 with Vanguard Technology™

  • 226-Channel Vanguard Technology™ with Universal Tracking Channels
  • Fence Antenna™ technology for signal optimization
  • Multiple communication options for job site versatility
  • 32 GB SDHC storage support
  • Dual hot-swappable batteries

Full sky, all-in-view satellite tracking
The GR-5 features the multi-constellation 226-channel Vanguard GNSS chip with Universal Tracking Channel Technology. This patented technology uses flexible and dynamic tracking methods to automatically select and track any available satellite signal enabling Topcon’s users to receive the maximum number of signals and measurements at any given time.

The GR-5 is not only capable of receiving signals from the fully operational GPS and GLONASS constellations, but also has the ability to support all planned signals from developing systems such as Galileo, Beidou (BDS) and QZSS. With current and developing satellite constellations, Universal Tracking Channel Technology optimizes GNSS signal tracking to guarantee maximum satellite geometry and availability.

Topcon’s patented Fence Antenna design brings superior signal reception and advanced multipath rejection in difficult environments. This technology provides a more robust and cleaner signal tracking which means unparalleled results.

With Vanguard Technology, Universal Tracking Channel and the Fence Antenna, the GR-5 is designed to deliver ultimate field performance even in challenging environments while maintaining unmatched accuracy, speed of initialization and fix reliability for RTK solutions.

In addition to advanced technologies, the mechanical design of the GR-5 makes it incredibly reliable, ergonomic, and durable. Guaranteed rugged, the GR-5 is the best GNSS receiver available in the market.

Premium GNSS technology in rugged form
Not only does the new Topcon Fence Antenna outperform other RTK receivers with enhanced sensitivity, but also provides multipath rejection characteristics that gives the GR-5 a level of tracking performance in difficult environments beyond any other GNSS receiver.

Specifications:

GNSS
GPS L1, L1C*, L2, L2C, L5*
GLONASS L1, L2
Galileo* E1, E5a, E5b, AltBOC
BeiDou* B1, B2
SBAS L1 C/A WAAS/MSAS/ EGNOS
QZSS L1 C/A, L1C*, L2C
Number of Channels 226-Channel Vanguard Technology™ with Universal Tracking Channels
Antenna Type Integrated Fence Antenna™ 1 with Ground Plane
Accuracy (RMS)*
RTK H: 5 mm + 0.5 ppm
V: 10 mm + 0.8 ppm
Static H: 3.0 mm + 0.1 ppm
V: 3.5 mm + 0.4 ppm
Communication
Optional Radio Type Integrated UHF/FH915
Base Radio Output 1.0 W, user selectable
Optional Cellular Integrated HSPA/CDMA
I/O Communications Class 2 Bluetooth® USB and Serial
Data and Memory
Memory Memory Removable SD/SDHC
Data Update/ Output Rate 1 Hz – 50 Hz Selectable
Real Time Data Output TPS, RTCM 2.x, 3.x, CMR, CMR+
ASCII Output NMEA 0183 version 2.x and 3.0
Environmental
Enclosure Dust and water ingress protected magnesium I-Beam housing
Operating Temp -30ºC to 70°C† †
Shock Rating 2 m pole drop to concrete IEC 60068-2-29, IEC 60068-2-27
Vibration Rating Compliance with MIL-STD 810F - 514.5 - Cat.24
