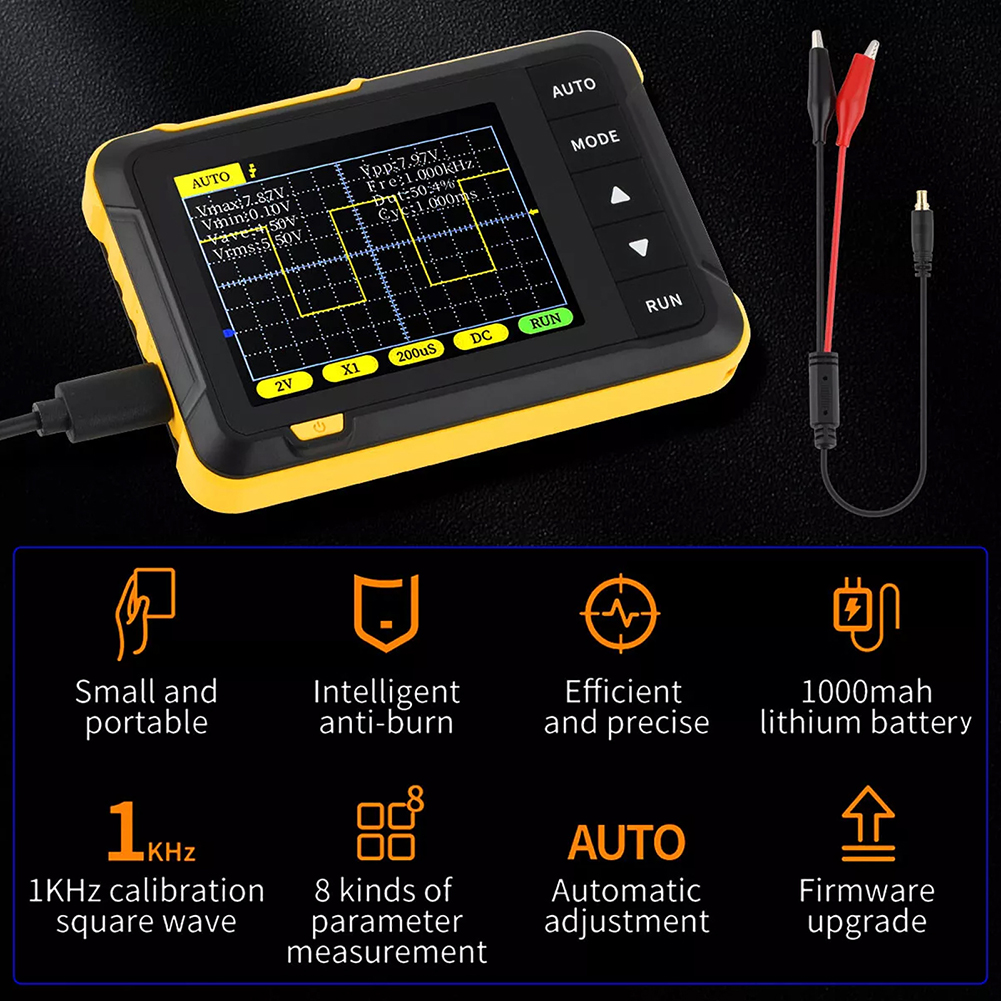

Features：

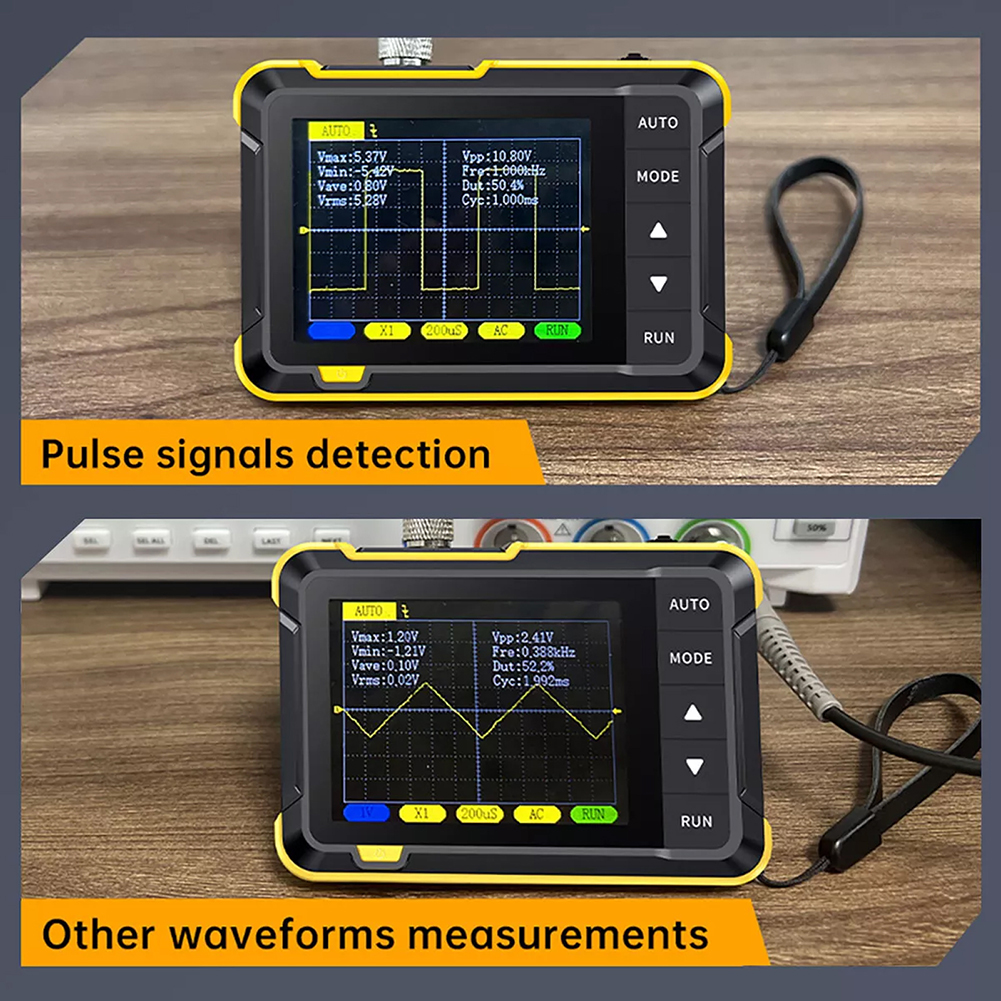

- High-Performance Oscilloscope: Enjoy real-time sampling at 2.5MS/s and a bandwidth of 200kHz, perfect for capturing detailed waveforms and signals.- Versatile Triggering Functions: Featuring a full range of triggering options—single, normal, and automatic—this oscilloscope is ideal for analyzing both periodic and non-periodic signals with ease.

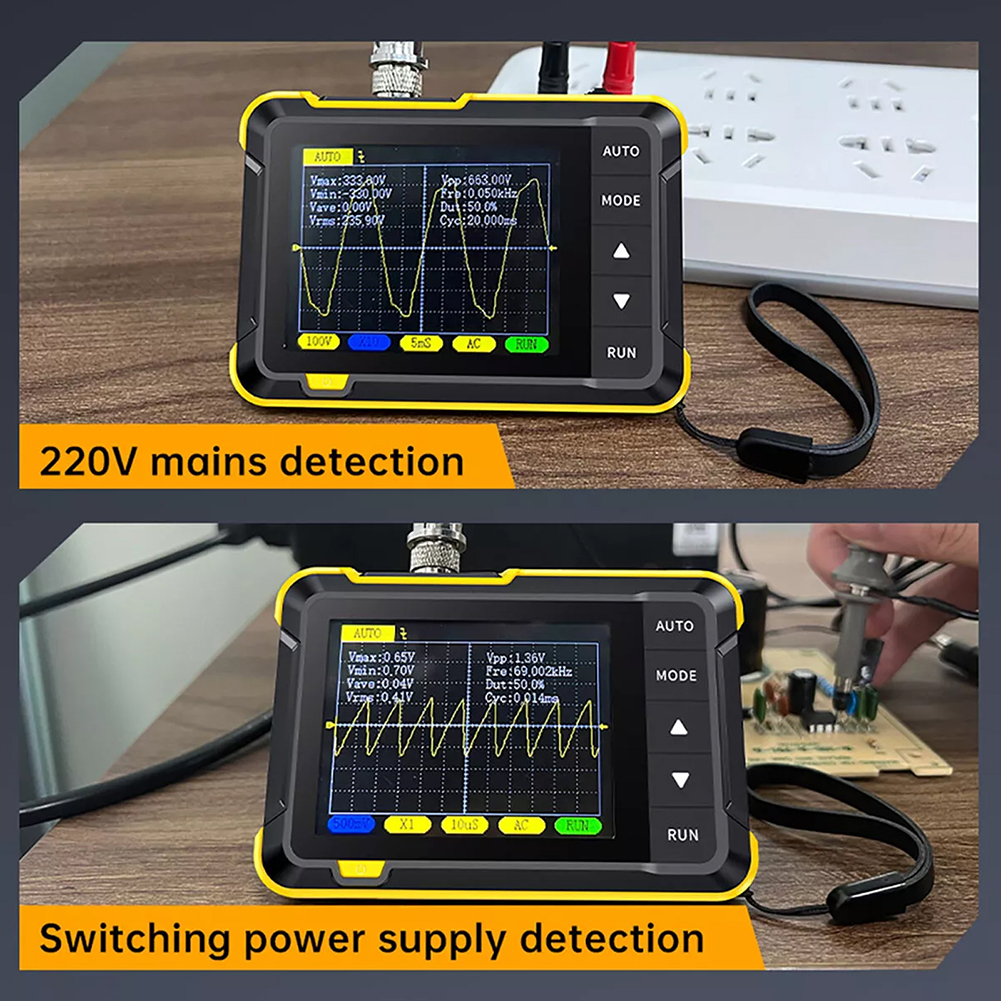

- Wide Voltage Measurement Range: Capable of measuring voltage signals up to ±400V, making it suitable for various applications, from industrial to laboratory settings.
- User-Friendly Calibration: Equipped with a 1KHz calibration square wave for easy probe calibration, along with a one-key AUTO function that simplifies waveform display without complex adjustments.

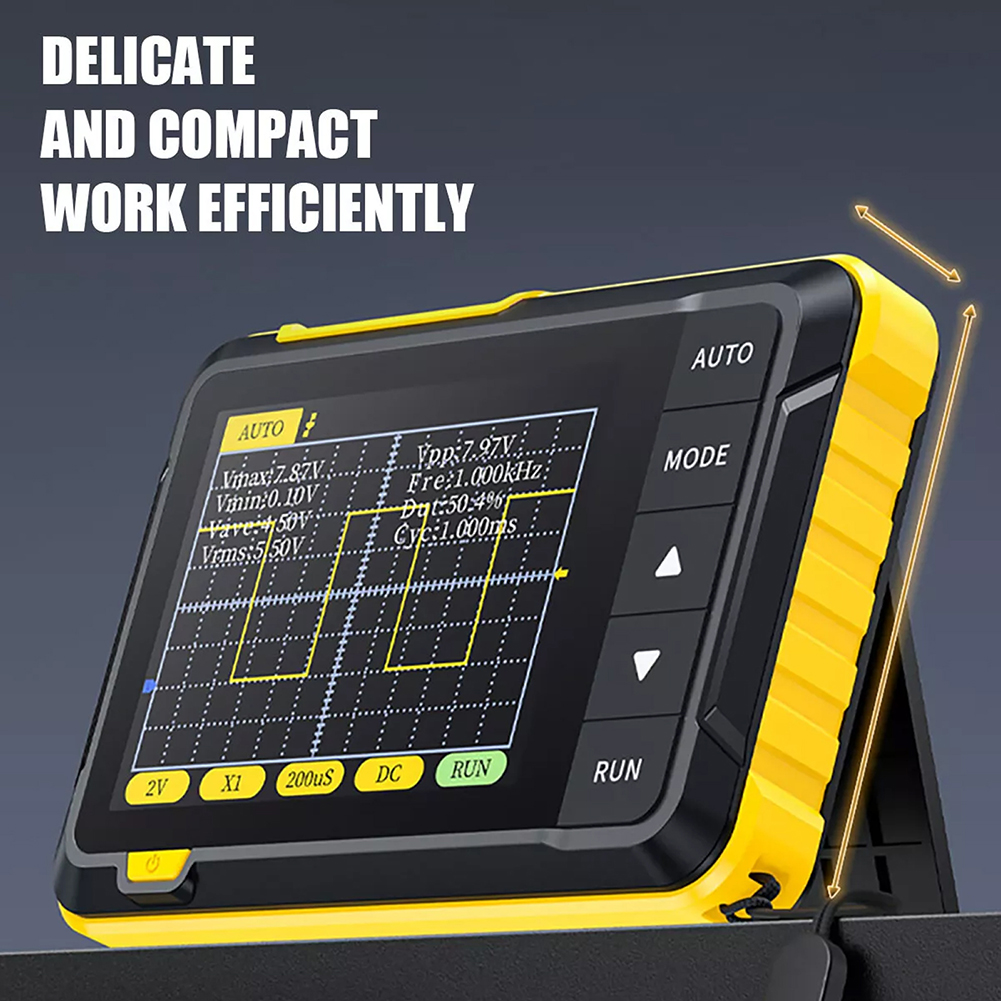

- Portable and Lightweight Design: With its compact and lightweight body, this oscilloscope is designed for easy transport, ensuring you can carry it with you to any job or occasion!
Specification：
Model: DSO152
Sampling rate: 2.5MS/s
Bandwidth: 200K
Vertical sensitivity: 10mV/Div-20V/Div (by 1-2-5 way progression)
Time base range: 10μs/Div-50s/Div(in 1-2-5 way progression)
Voltage range: X1:±40V(Vpp:80V), X10:±400V(Vpp:800V)
Trigger mode: automatic/regular/single
Coupling mode: AC/DC
Display: 2.8 inch/PPI:320*240
USB Charging:5V/1A
Interface: Type-C
Li-ion battery capacity: 1000mAh
Calibration Square Wave:Frequency:1K;Duty Cycle:50%

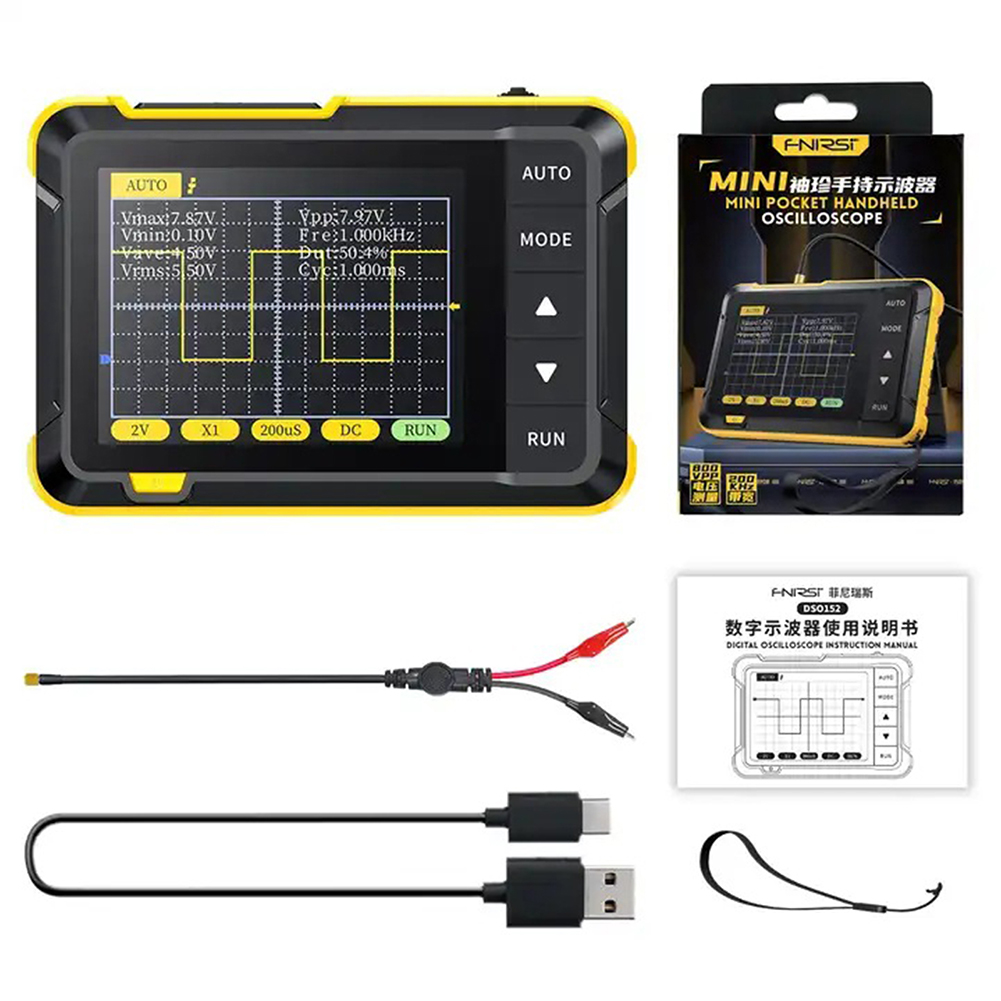

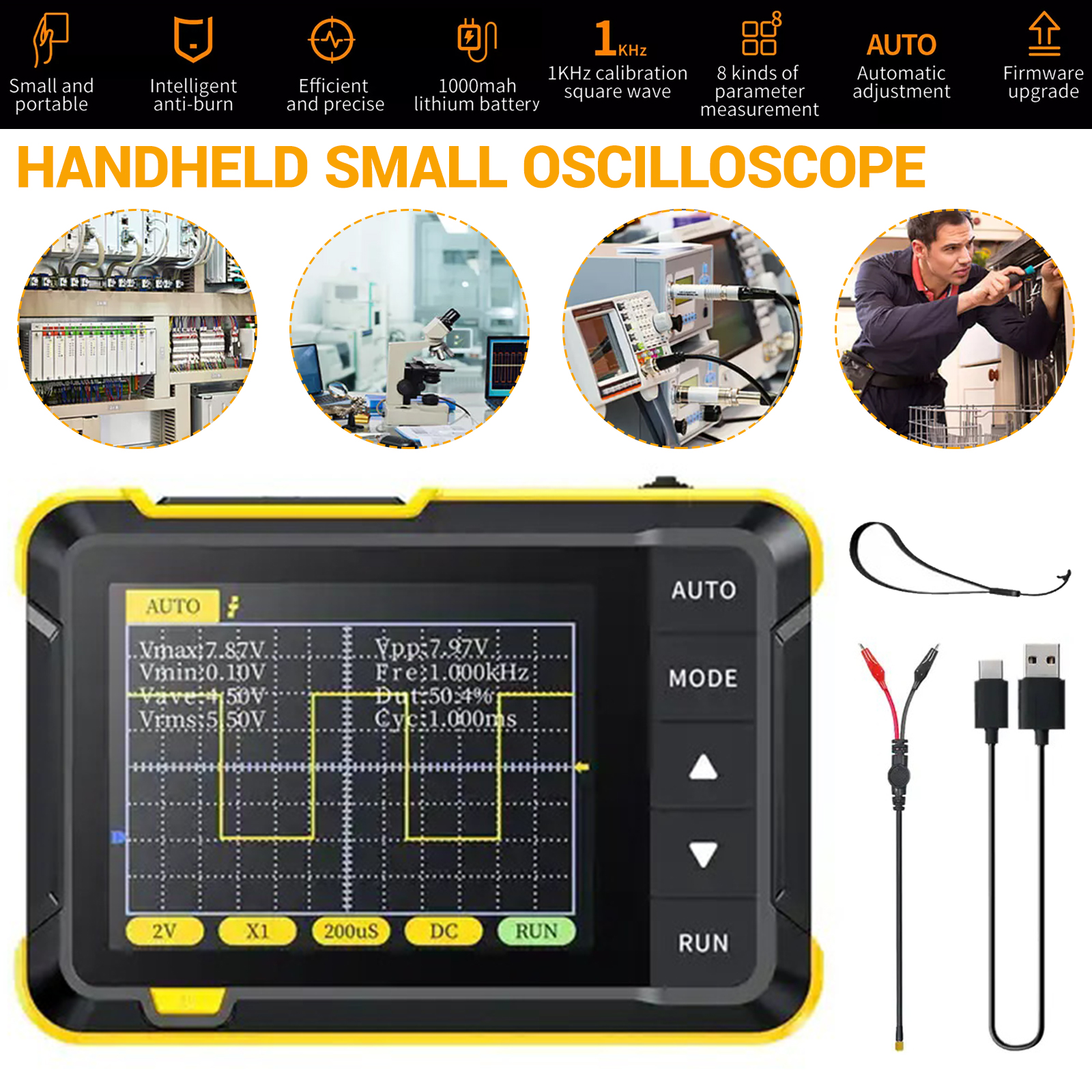

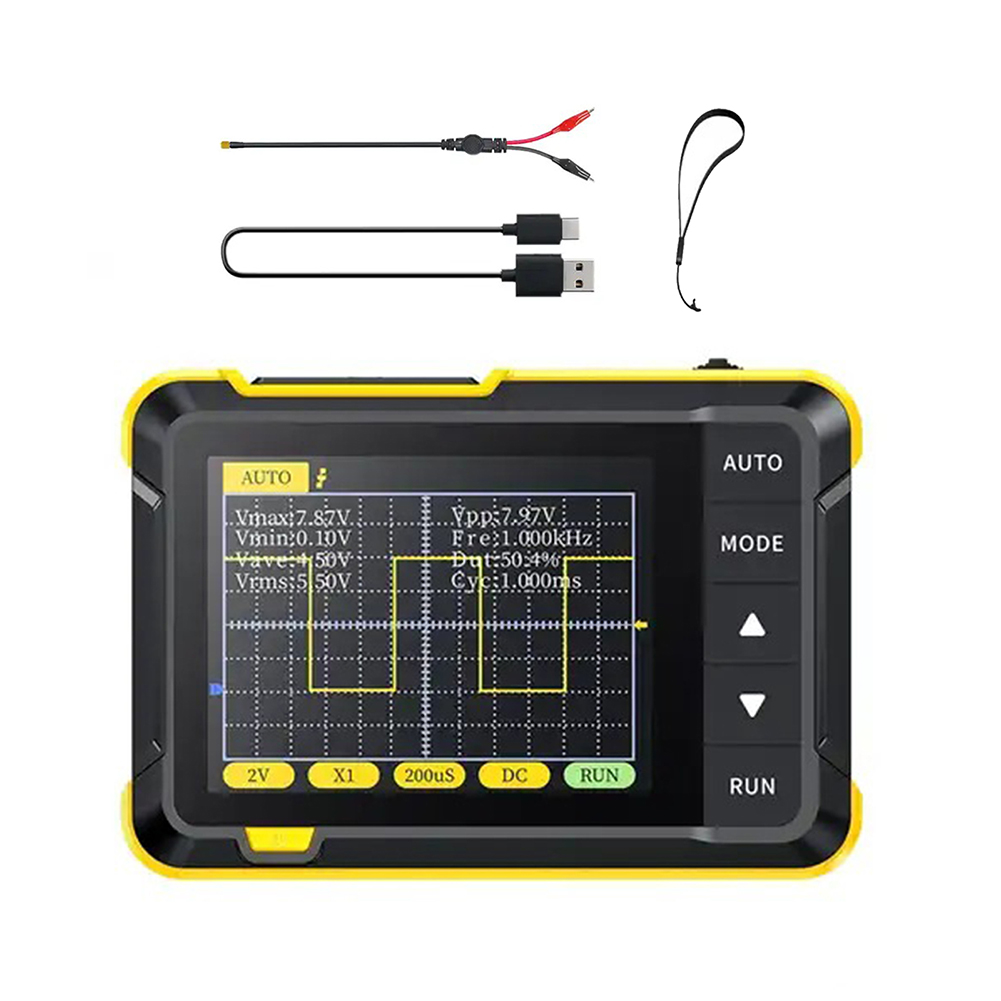

Package Includes：
1 x 152 Host
1 x Instruction Manual
1 x Normal Probe
1 x Type-C cable
