SMC MGPM32TN-75Z Compact Guided Cylinder 32mm Bore 75mm Stroke Double Acting
- In Stock: 2
- Brand: SMC
- Condition: Used
- Notes: New Item. Surplus Inventory. 30 Day Warranty Included!
- Model: MGPM32TN-75Z
- Type: Pneumatic Cylinder
- Shelf: K-60
- Part Number: MGPM32TN-75Z
- Manufacturer: SMC
- Bore Diameter: 32 mm
- MPN: MGPM32TN-75Z

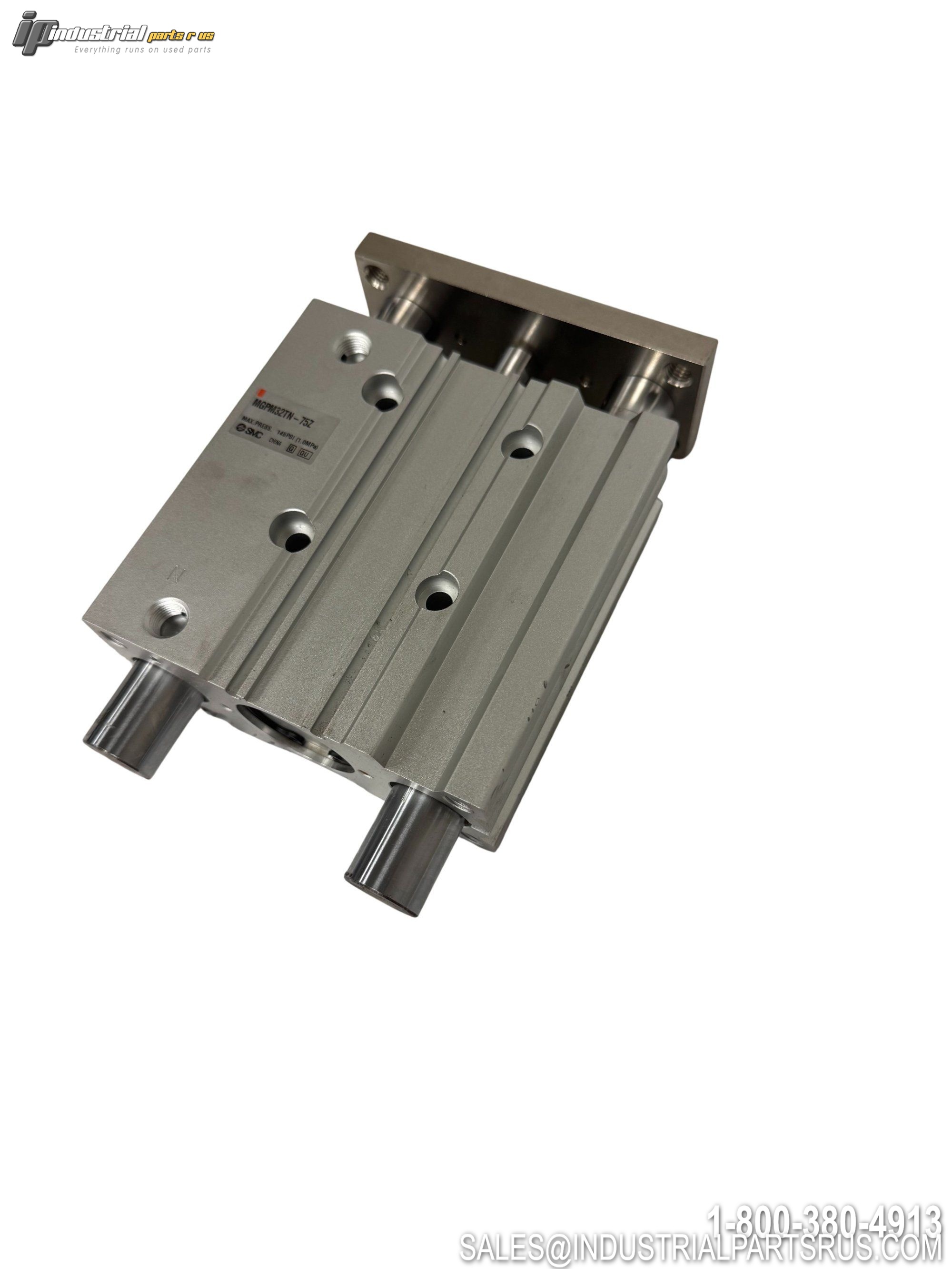

- Media 1 Description: Smc Mgpm32tn-75z Pneumatic Cylinder - Photo 1

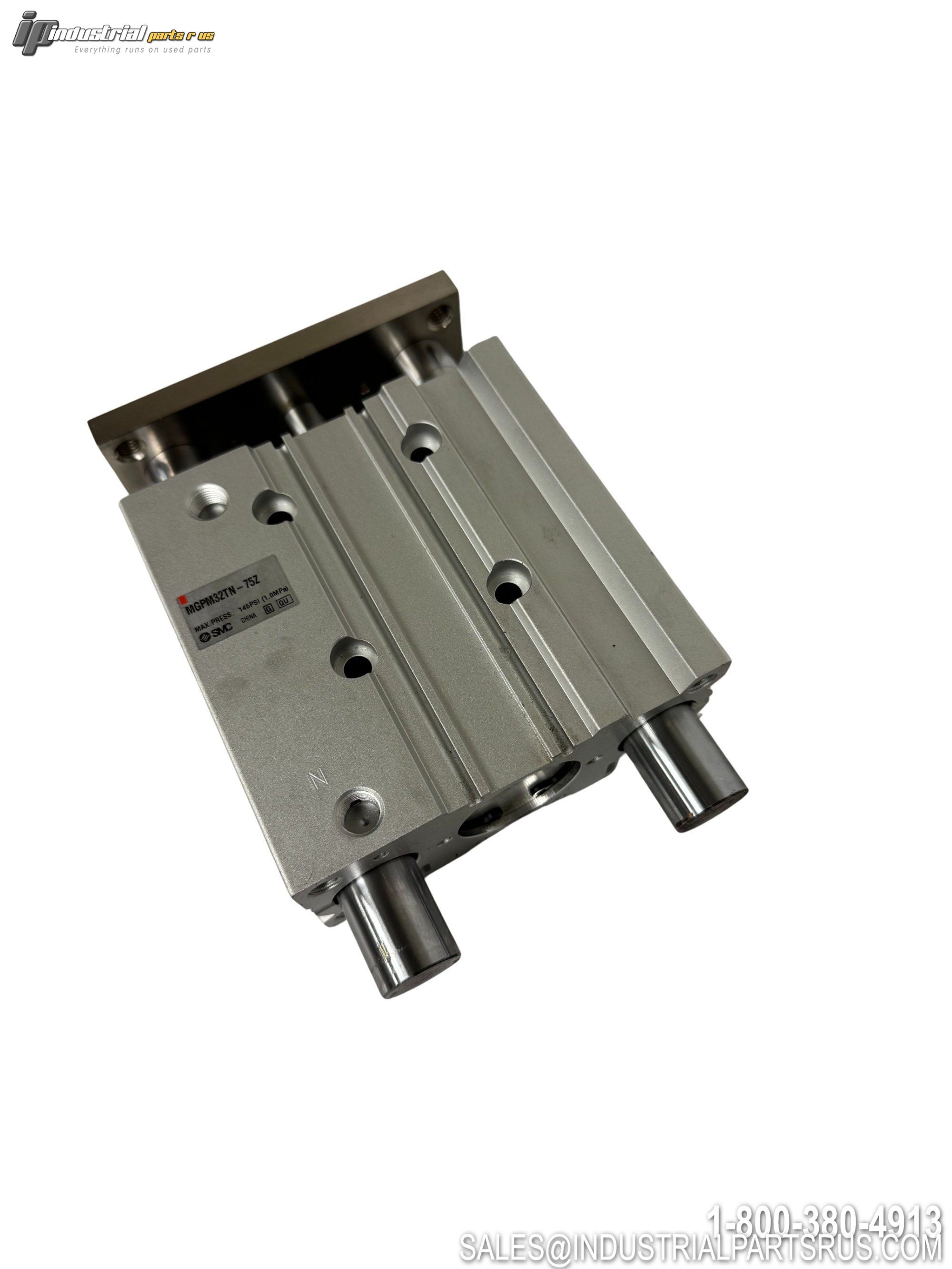

- Media 2 Description: Smc Mgpm32tn-75z Pneumatic Cylinder Image 2

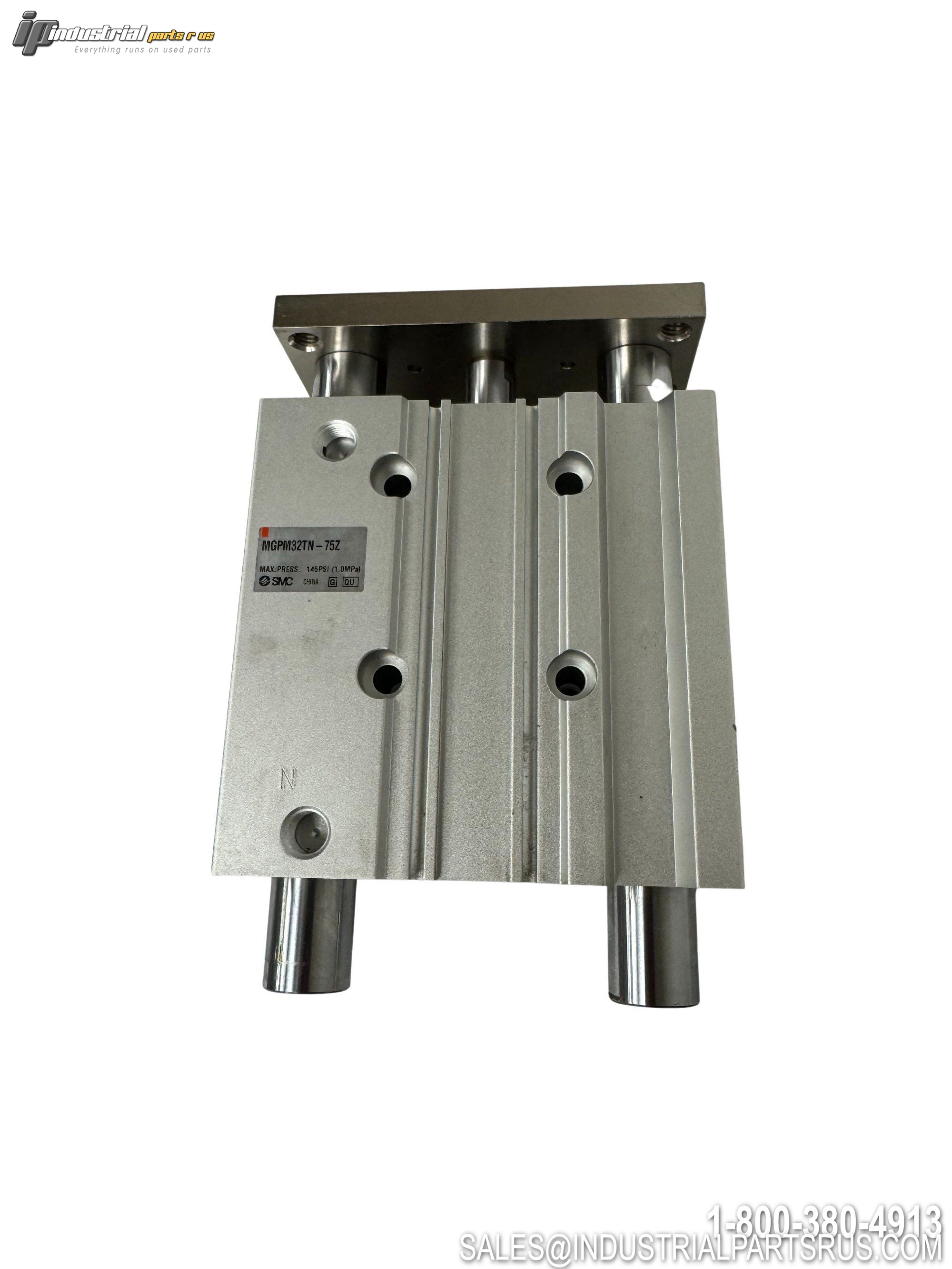

- Media 3 Description: Smc Mgpm32tn-75z Pneumatic Cylinder View 3

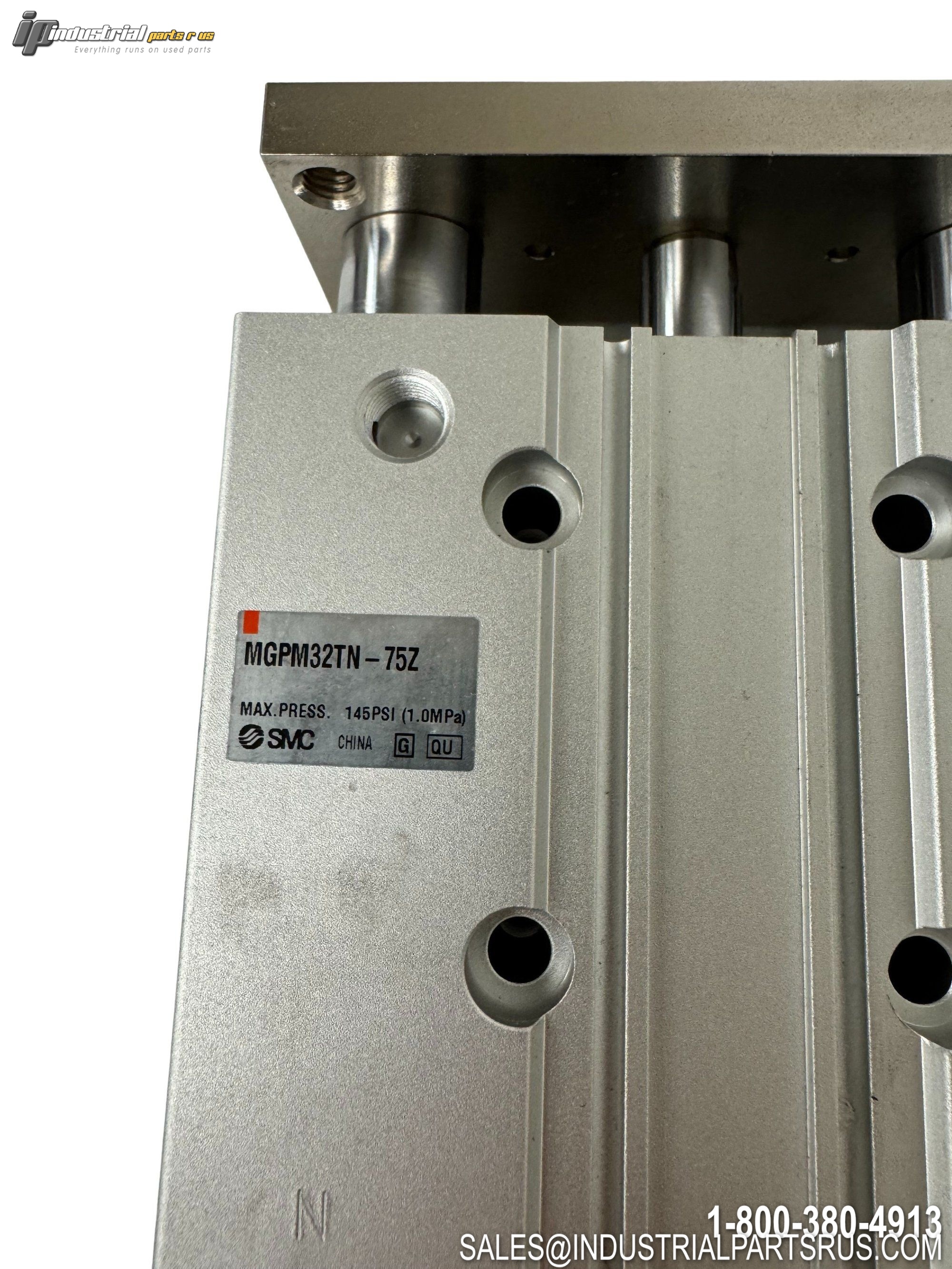

- Media 4 Description: Smc Mgpm32tn-75z Pneumatic Cylinder - Photo 4
- Stroke Length: 75 mm
- Suitable Media: Compressed Air
- Cylinder Action: Double Acting
- Maximum Pressure: 1.0 MPa (145 psi)
- Rated Pressure: 0.1 MPa (14.5 psi)
- Cylinder Type: Compact Guided Cylinder
- Country of Origin: Japan
The SMC MGPM32TN-75Z is a compact guided pneumatic cylinder from SMC's MGP series, featuring a 32mm bore size with 75mm stroke length and slide bearing design. This cylinder features a shortened guide rod that saves space by reducing the guide rod length by a maximum 22mm, reducing the machining required to create space between the bottom of the cylinder body and the equipment. Round type and magnetic field resistant auto switches can be mounted directly without spacers.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | MGPM32TN-75Z |
| Product Series | MGP-Z |
| Cylinder Type | Compact Guided Cylinder |
| Bearing Type | Slide Bearing |
| Bore Size | 32mm |
| Stroke Length | 75mm |
| Port Thread Type | NPT |
| Port Size | 1/8" NPT |
| Cylinder Action | Double Acting |
| Operating Pressure Max | 1.0 MPa (145 psi) |
| Operating Pressure Min | 0.1 MPa (14.5 psi) |
| Proof Pressure | 1.5 MPa (218 psi) |
| Piston Speed | 50-500 mm/s |
| Seal Material | NBR |
| Weight | 3.49 kg |
