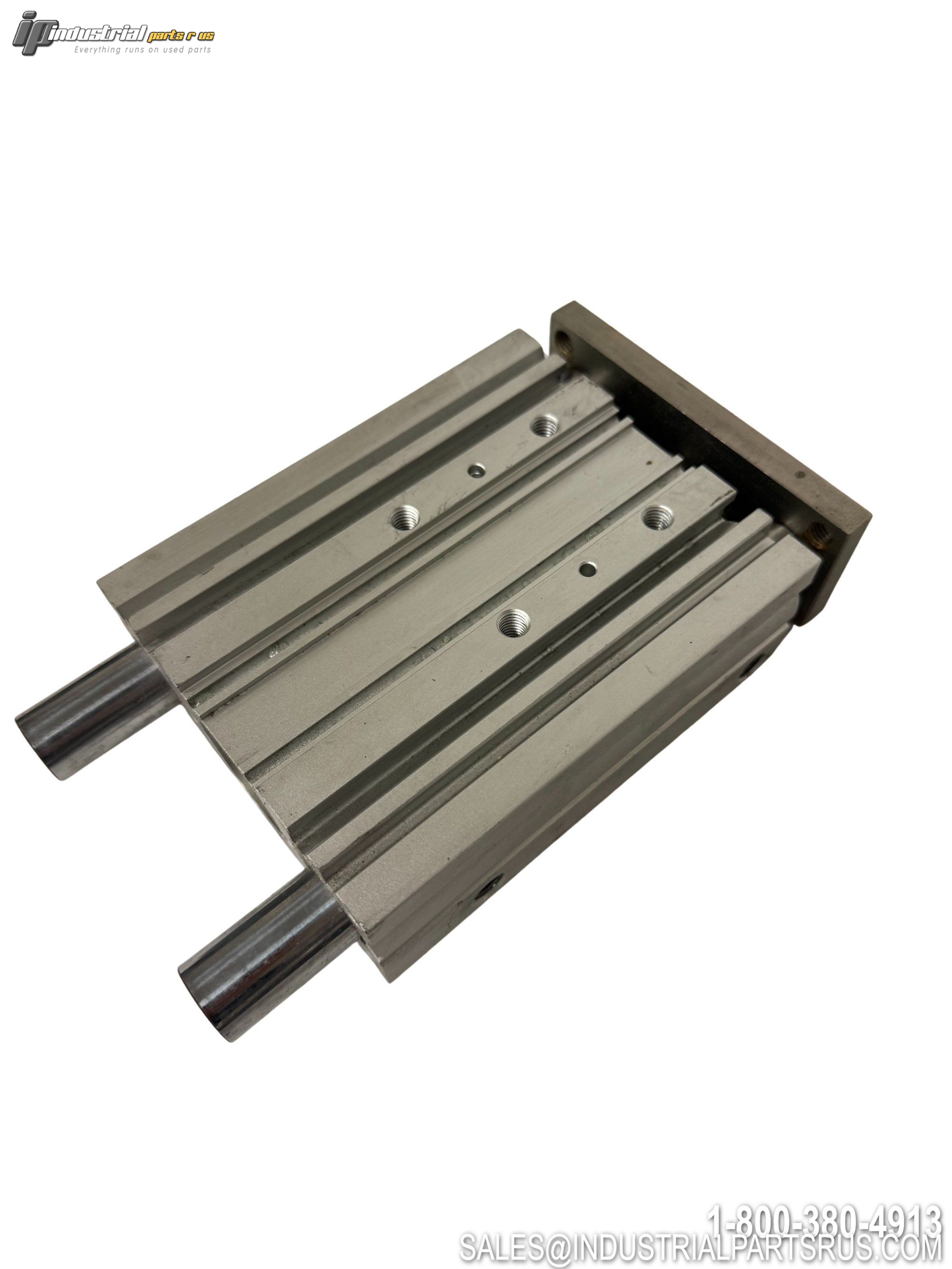

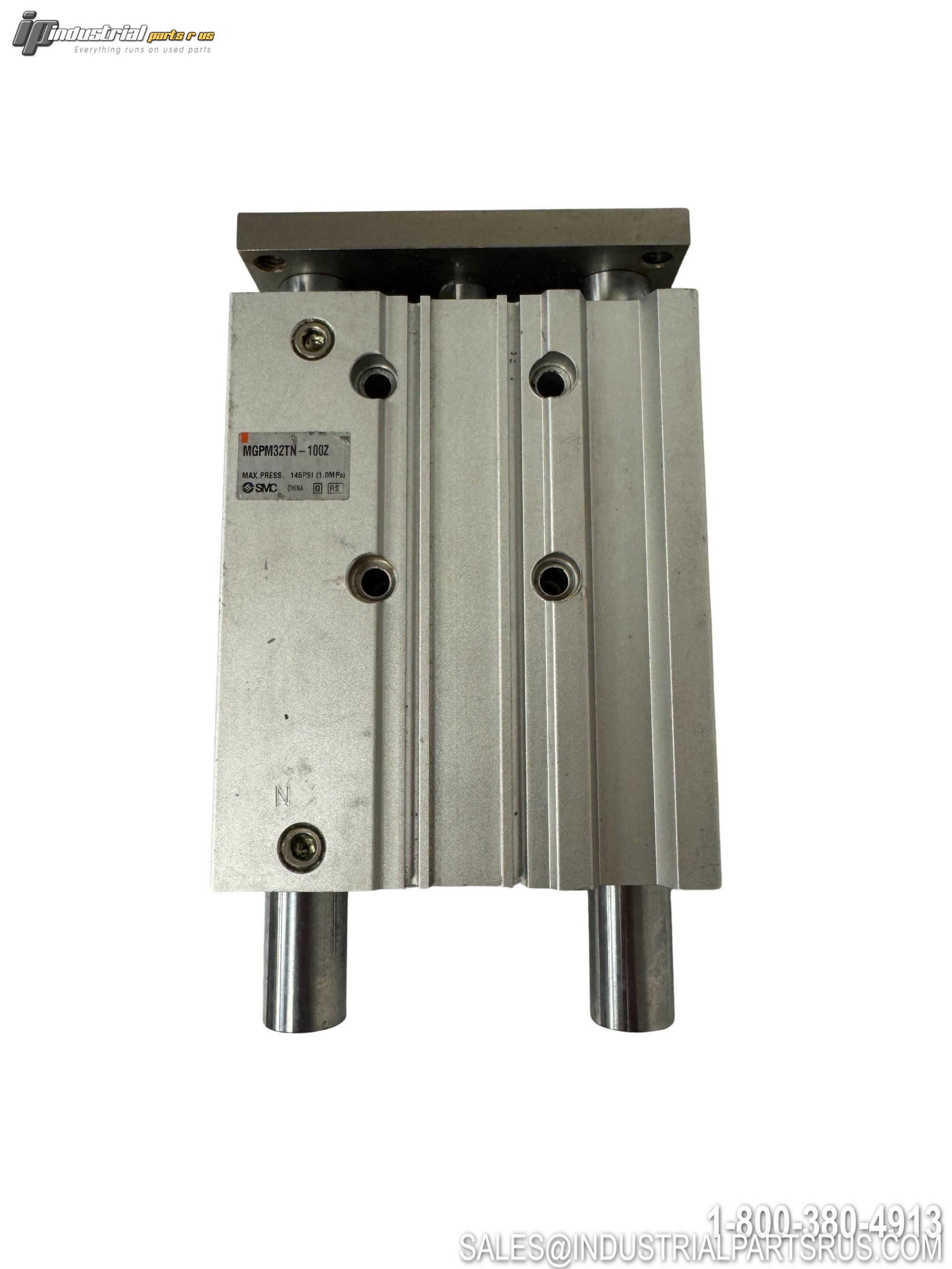

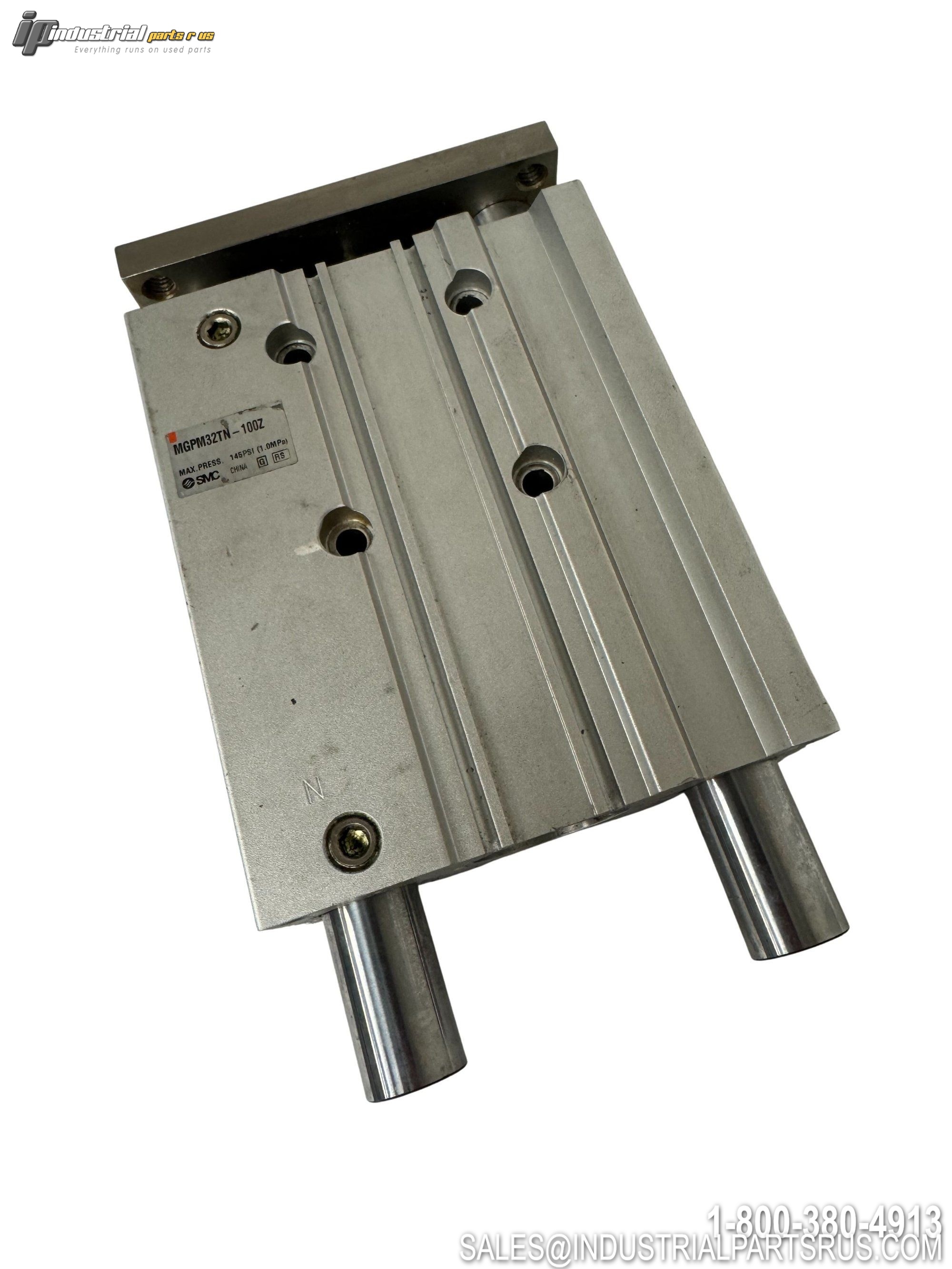

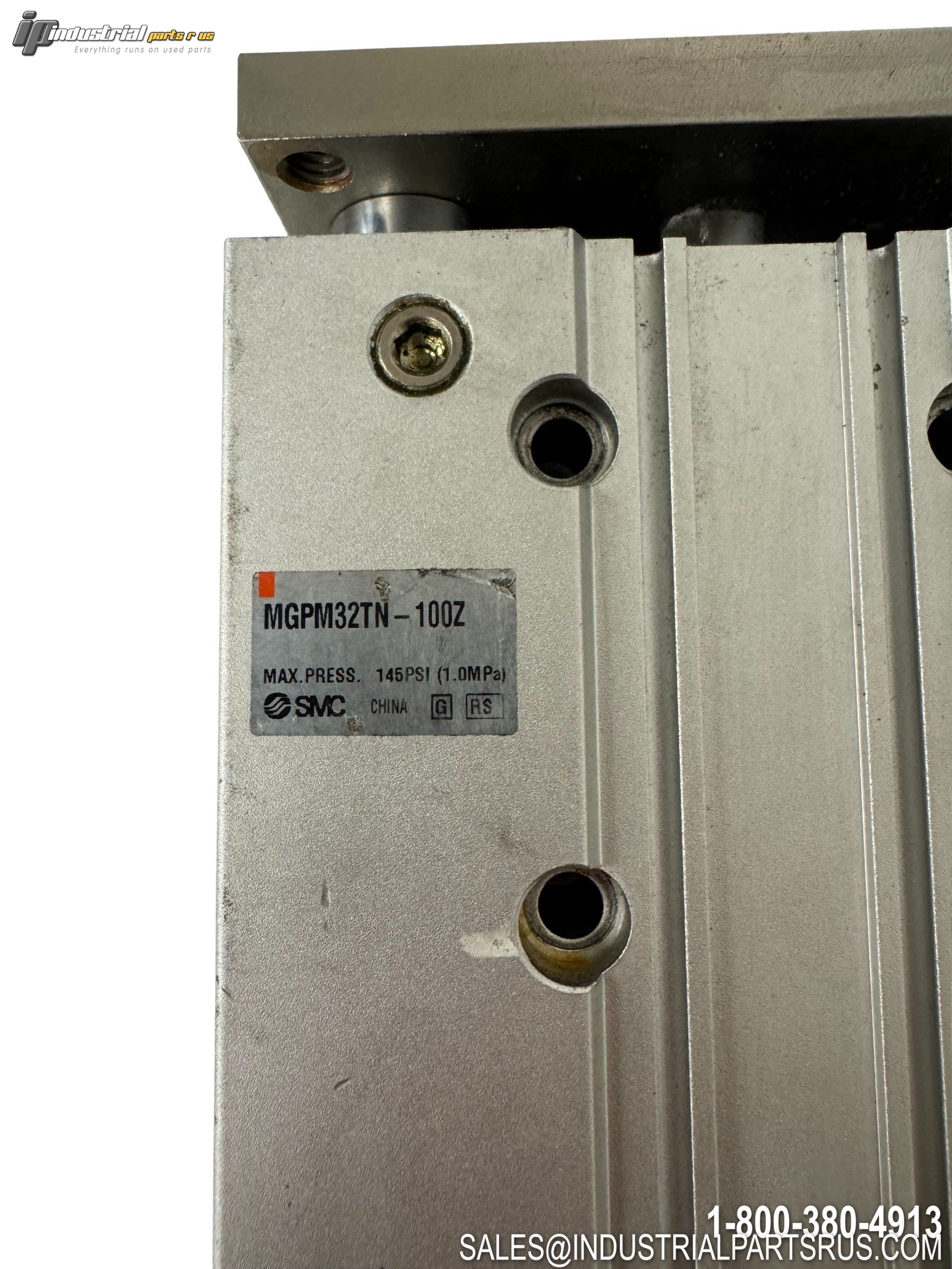

SMC MGPM32TN-100Z Compact Guided Cylinder 32mm Bore 100mm Stroke NPT 1/8"
- In Stock: 1
- Brand: SMC
- Condition: Used
- Notes: Previously used item in very good condition. Minimal signs of wear. Tested and fully functional. We warranty all items for 30 days.
- Model: MGPM32TN-100Z
- Type: Pneumatic Cylinder
- Shelf: K-62
- Part Number: MGPM32TN-100Z
- Manufacturer: SMC
- Bore Diameter: 32 mm
- MPN: MGPM32TN-100Z
- Media 1 Description: Smc Mgpm32tn-100z Pneumatic Cylinder - Photo 1
- Media 2 Description: Smc Mgpm32tn-100z Pneumatic Cylinder Image 2
- Media 3 Description: Smc Mgpm32tn-100z Pneumatic Cylinder View 3
- Media 4 Description: Smc Mgpm32tn-100z Pneumatic Cylinder - Photo 4
- Stroke Length: 100 mm
- Suitable Media: Compressed Air
- Cylinder Action: Double Acting
- Maximum Pressure: 1.0 MPa (145 PSI)
- Rated Pressure: 1.5 MPa (218 PSI)
- Cylinder Type: Compact Guided Cylinder
- Country of Origin: Japan
The SMC MGPM32TN-100Z is a compact guided pneumatic cylinder from the MGP series featuring a 32mm bore and 100mm stroke length. This double-acting cylinder incorporates slide bearing technology for lateral stability and includes built-in magnets for switch mounting applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | MGPM32TN-100Z |
| Series | MGP |
| Cylinder Type | Compact Guided Cylinder |
| Action | Double Acting |
| Bore Diameter | 32mm |
| Stroke Length | 100mm |
| Bearing Type | Slide Bearing |
| Port Thread Type | NPT 1/8" |
| Maximum Operating Pressure | 1.0 MPa (145 PSI) |
| Proof Pressure | 1.5 MPa (218 PSI) |
| Minimum Operating Pressure | 0.1 MPa (14.5 PSI) |
| Piston Speed | 50-500 mm/s |
| Seal Material | NBR |
| Operating Temperature | -10°C to +60°C |
| Built-in Magnet | Yes |
| Cushioning | Rubber Bumpers (both ends) |
| Fluid | Compressed Air |
| Non-rotating Accuracy | ±0.06° |
