Reciprocating Linear Actuator Motor 24V 5.9inch
6" 120RPM Controller DIY US Plug

Product Description

Description：

【Specification】: Stroke: 30~150mm/1.2~6inch (Adjustable); Max Torque: 10kg/22lbs, No load Speed:12-120RPM(Variable); Rated Voltage: DC24V. Under the same 24V voltage, the closer to the axis, the greater the pushing force. The maximum pushing force is 11kg/22lbs. The pushing force will be reduced by about half every 1 centimeter of movement outside the axis.

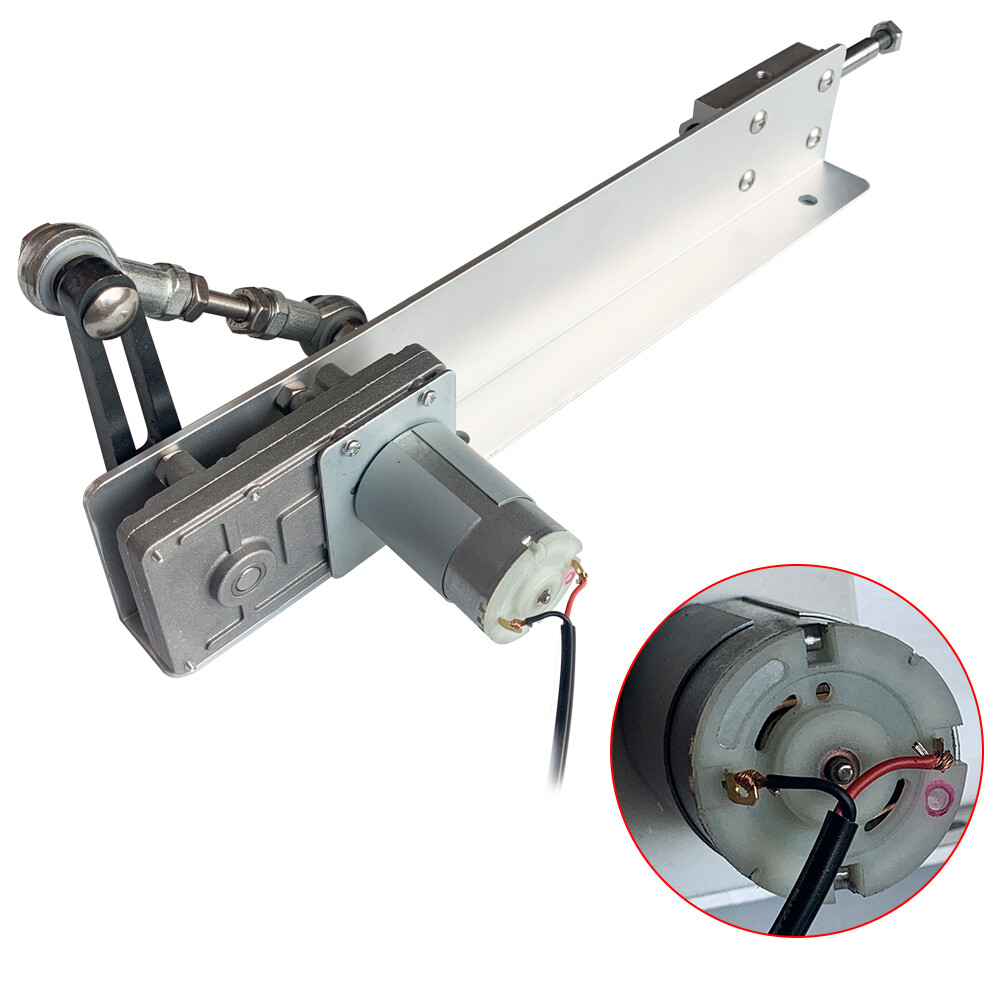

【Aluminum Alloy Material】: The surface has been polished 27 times, the aluminum body efficiently dissipated the DC motor heat, it can make the motor stays cool to the touch even under load.
【TORQUE】: When the Rocker Arm is Closest to the Axis AND voltage is 24V, the maximum pushing force can reach 11kg/22lbs. However, with the decrease of voltage and the Rocker Arm is Far Away from Axis, the Torque will be smaller.

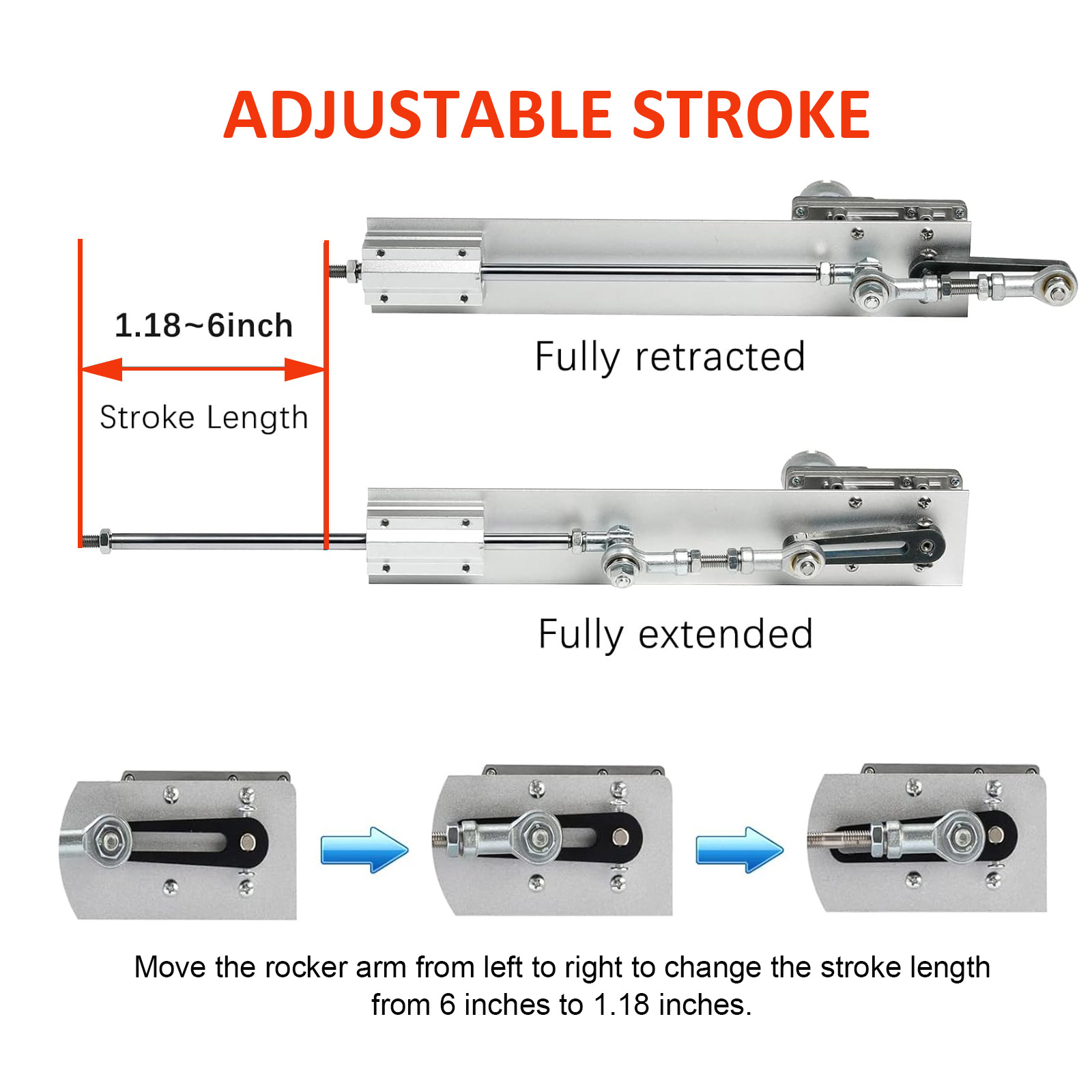

【Stroke Adjustable】: The stroke can be adjusted by changing the position of the screw on the slide rail. The stroke of this product can be adjusted according to the needs of users.

【Metal Gear Reduction Box】: All metal gear, you could use gear grease in the gear reduction box. In this way, the friction will be reduced and the machine will work more smoothly.


Details：

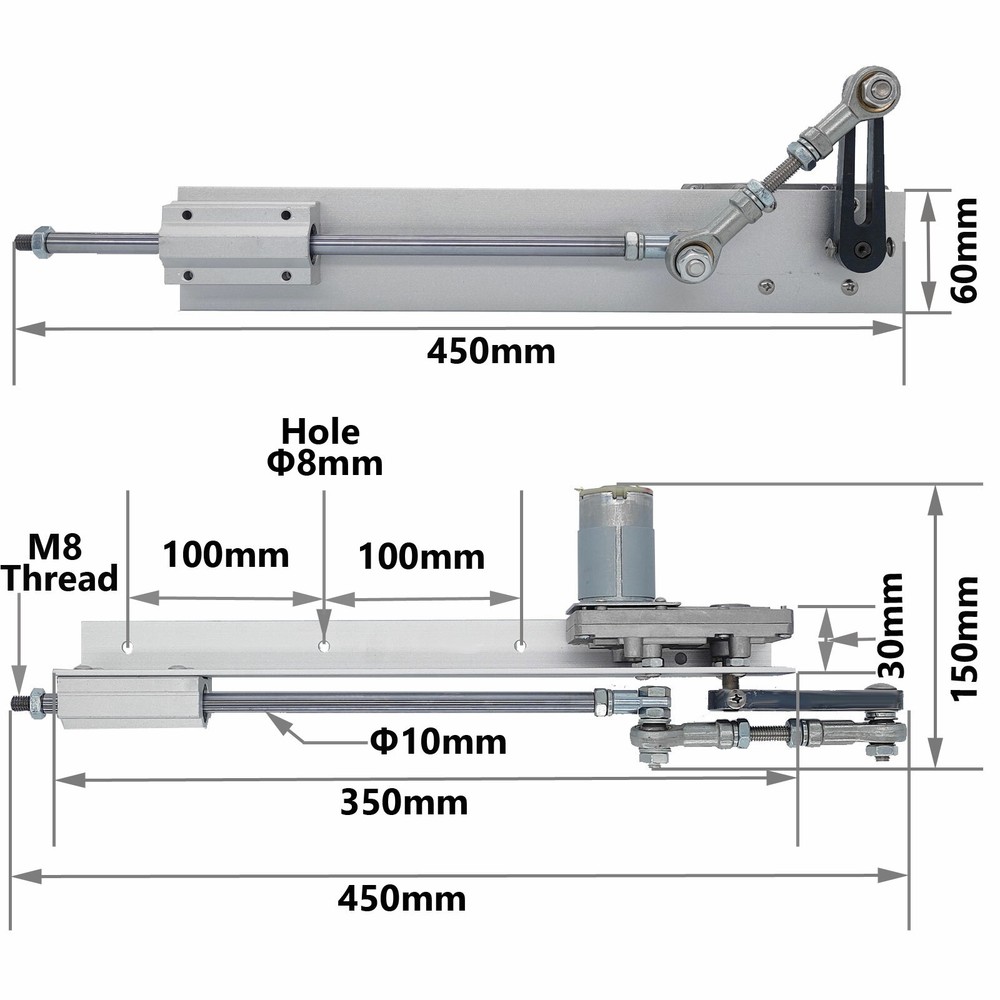

  • Three 8mm diameter holes With End Connector, more stable than 6mm diameter holes.

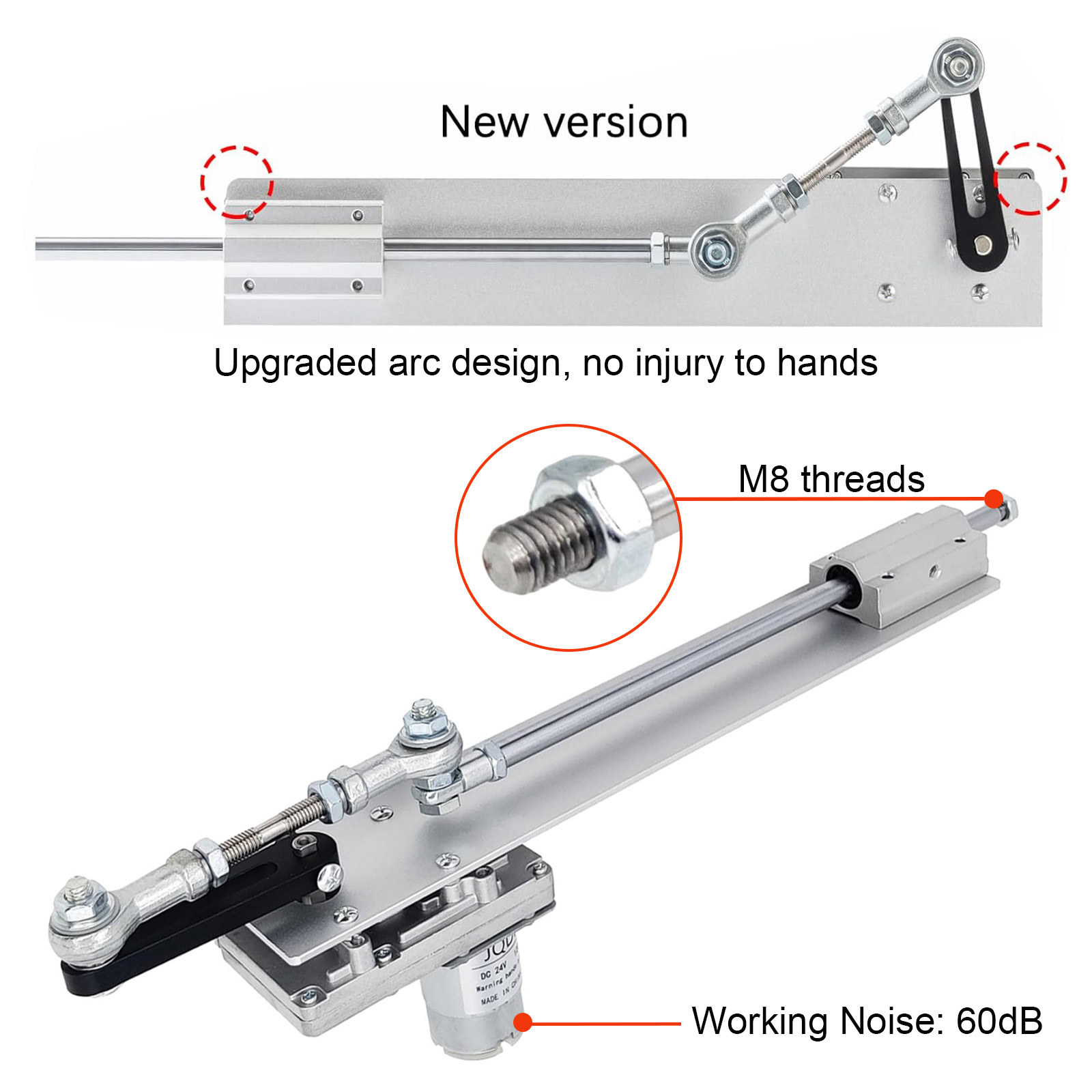

  • The end connector is used for DIY. The thread type on the top of the motor is M8 Diameter

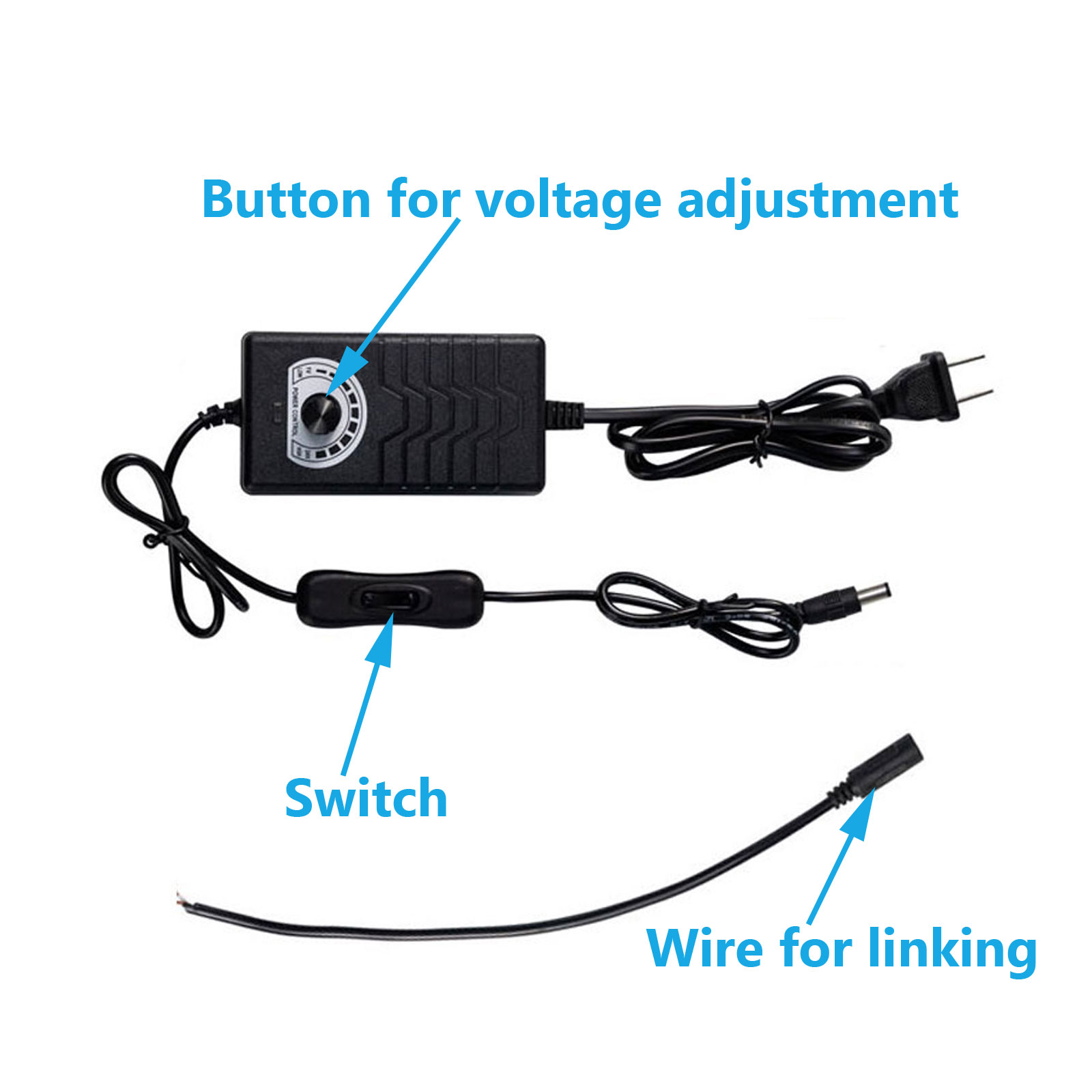

  • The AC to DC Adjustable power supply can realize the speed control of the reciprocating linear motion. You can choose a suitable speed you need.

Installation Steps:


1. Install the rocker arm
Install the rocker arm and adjust the stroke.
2. Choose a proper mounting surface
Select a flat, stable surface that can bear the motor's weight and with stand the vibration generated during operation.  Make sure to leave enough space for the rocker arm to swing freely this prevents the arm from colliding with the mounting surface during operation.
3. Secure the motor firmly
Use bolts to fasten the motor to the mounting surface through the 3 predrilled holes on the motor plate.  Ensure all connections are tight to avoid shaking or displacement during use.
4. Complete the final setup
Connect the motor to the speed controller properly.

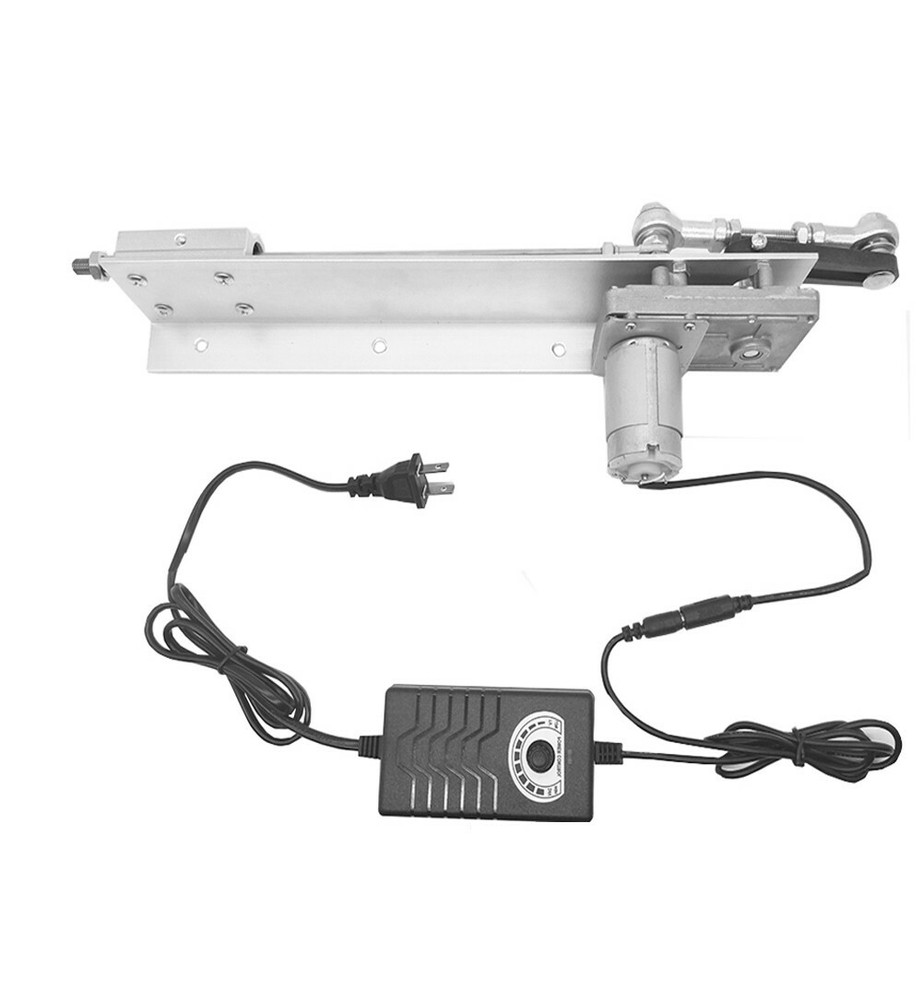

Package include:
  1. Linear Motor 1PC
  2. Power supply with speed control 1PC
  3. End connector 1PC
