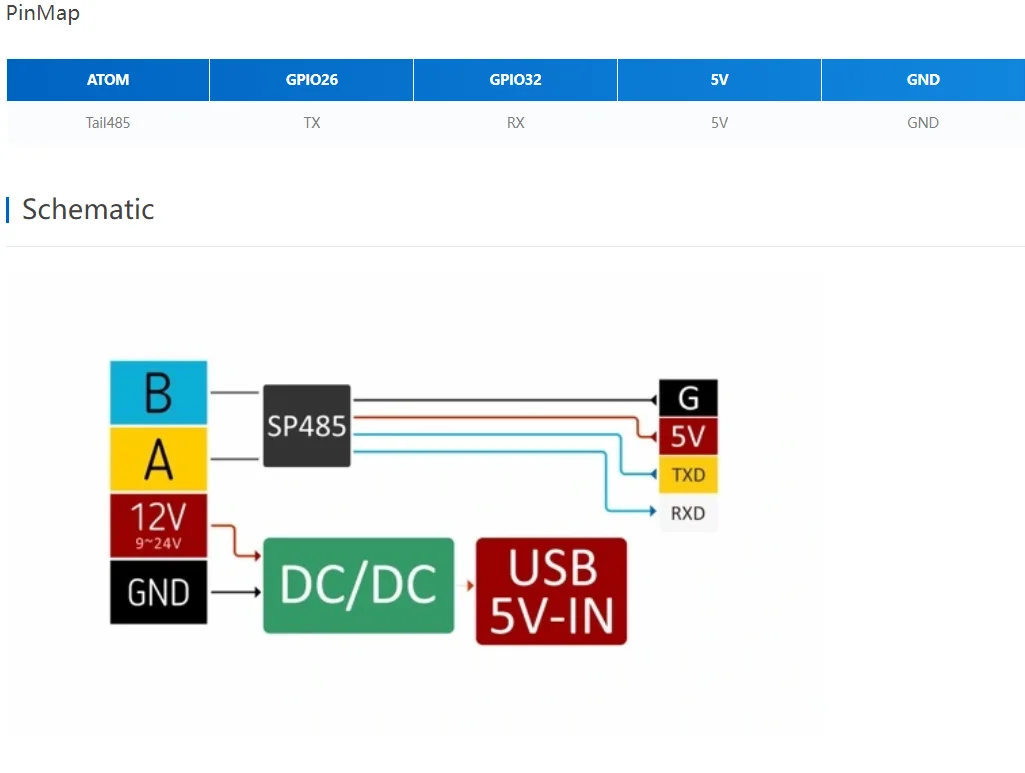

Tail485 is a RS485 converter designed for ATOM, which is used for converting RS485 signals to TTL. RS485 is a standard defining the electrical characteristics of drivers and receivers for use in serial communications systems, widely used in the industrial field. It facilitates long distance communication in electrically noisy environments. Multi point systems are supported. When the project equipment needs to communicate and control through RS485, it is a good choice to use Tail485 for interface type switching. A DC / DC voltage regulator chip is integrated in the tail485 module, which can directly convert the 12V voltage of RS485 to 5V to supply power for USB typeC interface, avoiding the inconvenience of a separate power supply.

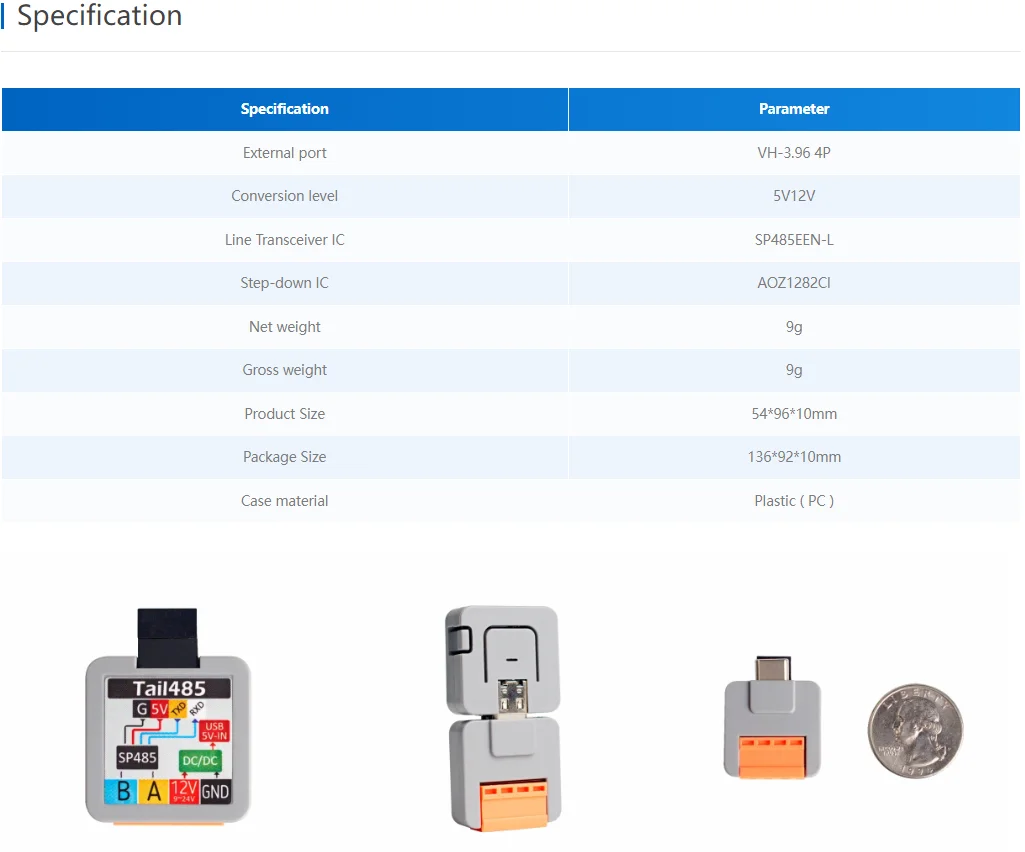

Product Features

Adapted for ATOM Matrix/ATOM Lite form factor
Built in DC / DC
SP485EEN-L

Include

1x Tail485
1x 3.96-4P terminals
1x tags

Application

RS485 Multi point communication
