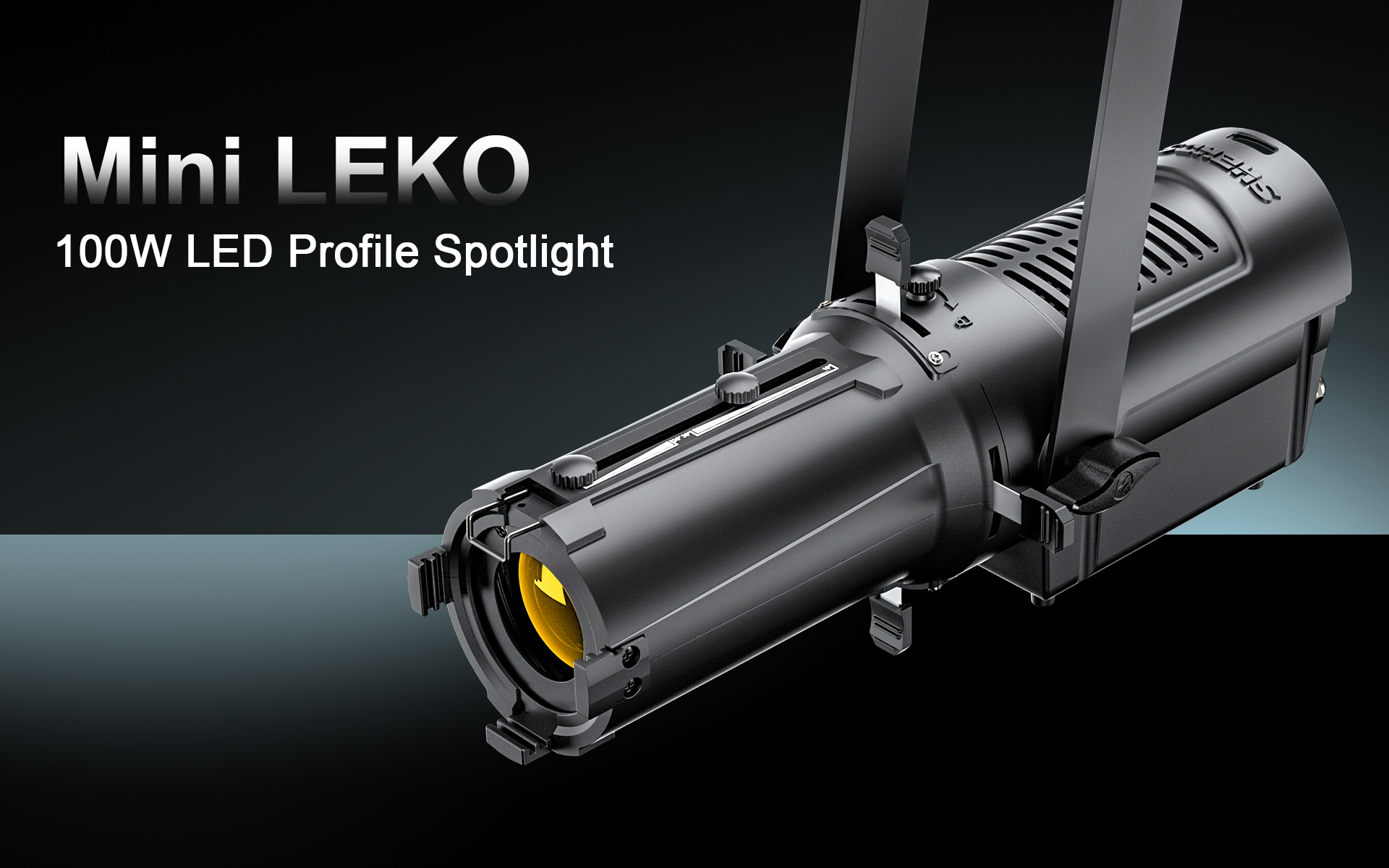

Mini LEKO 100W LED Profile Spotlight
Precision beam shaping in a compact, ultra-quiet professional profile light
Trusted by Real Creators
See how influencers put SHEHDS spotlights to the test , real scenes, real performance.

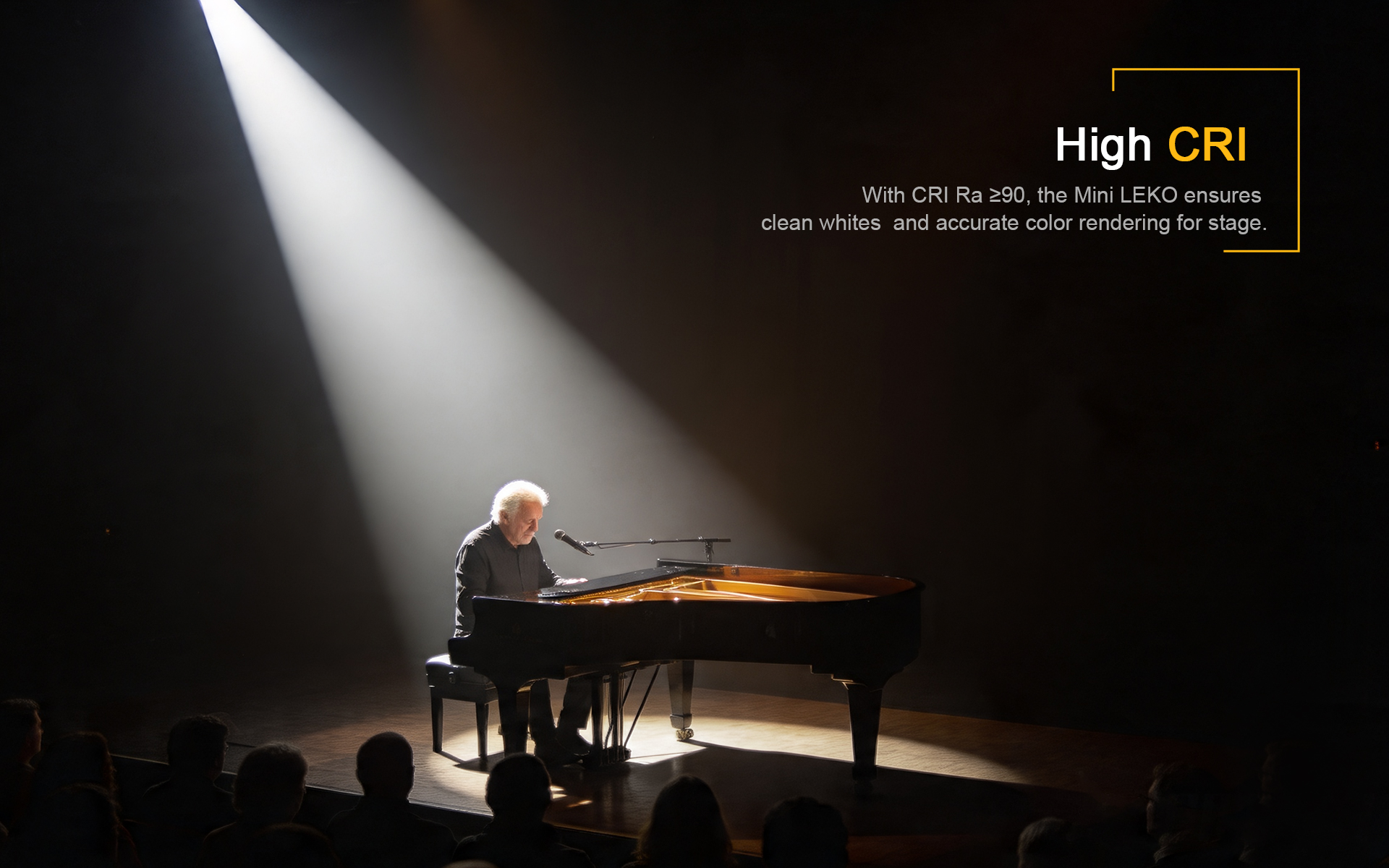

High CRI
with CRI Ra ≥90, the Mini LEKO ensures clean whites
and accurate color rendering for stage.
Consistent Output Across Distances
Delivering stable illuminance from short to mid-range throws, the Mini LEKO maintains uniform brightness and beam quality at various distances.

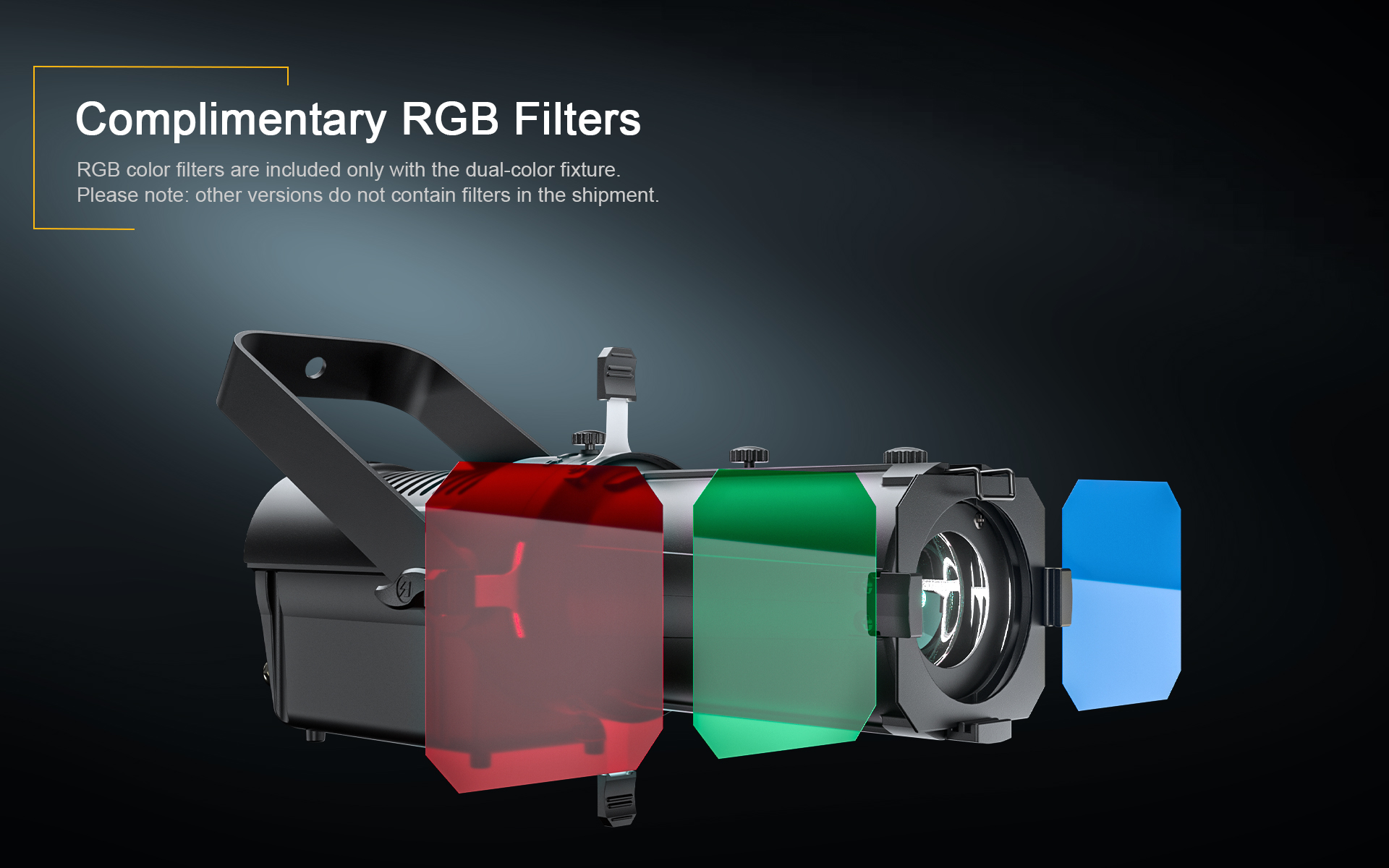

Complimentary RGB Filters
RGB color filters are included only with the dual-color fixture.
Please note: other versions do not contain filters in the shipment.
RGB Filter Effect
Red · Green · Blue Light Separation in Action

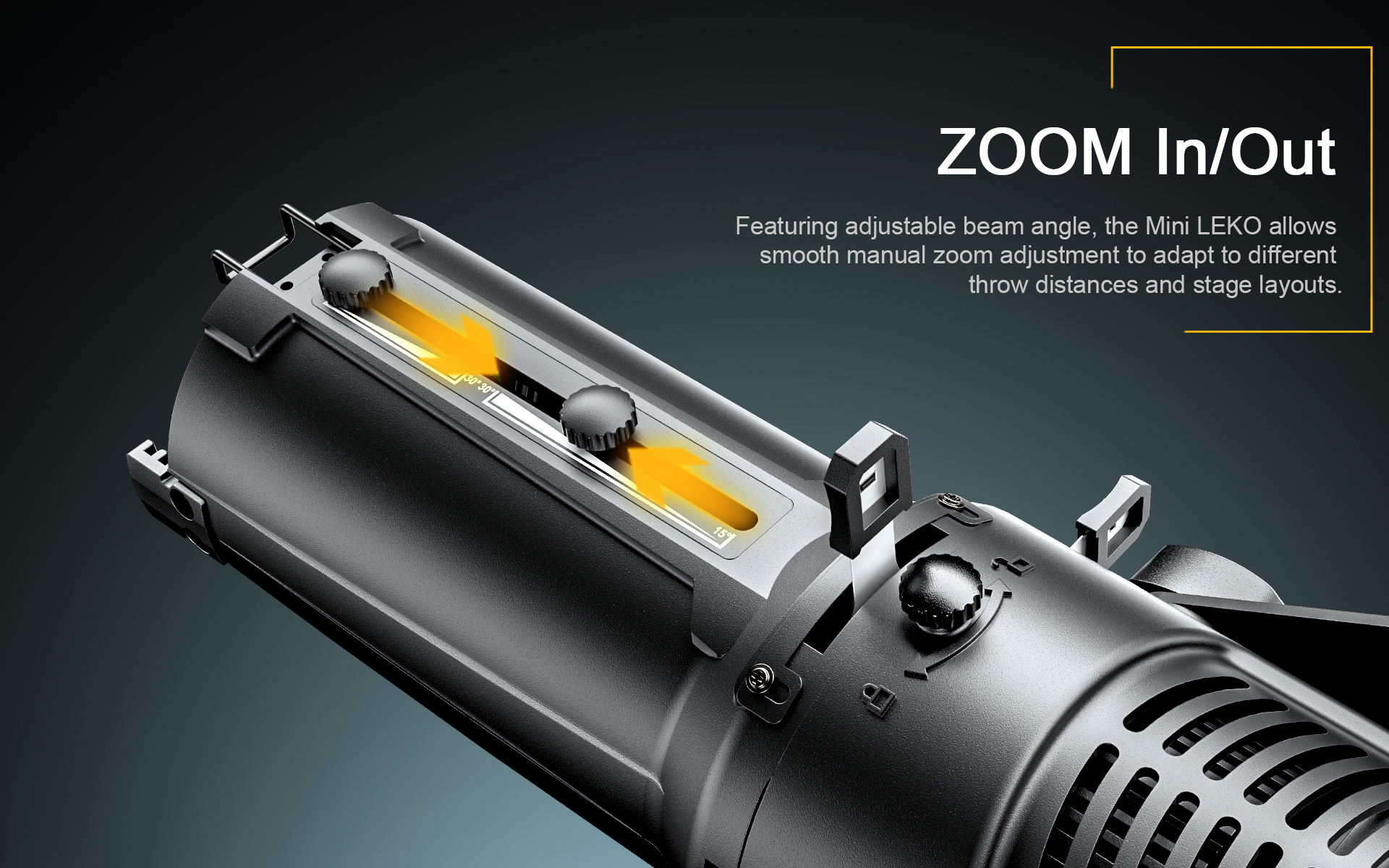

ZOOM In/Out
Featuring adjustable beam angle, the Mini LEKO allows smooth manual zoom adjustment to adapt to different throw distances and stage layouts.
Precise Beam Angles
Every beam( 17°–40°) exactly where it belongs.
Framing function
With shutter blades, you can control the shape of light easily. Super idea when you need to light up art galleries, museums, Aquarium, shops etc.
Color Temp
It offers an adjustable color temperature range from warm 2700K to cool 7000K,
providing versatile lighting for different atmospheres and scenes.

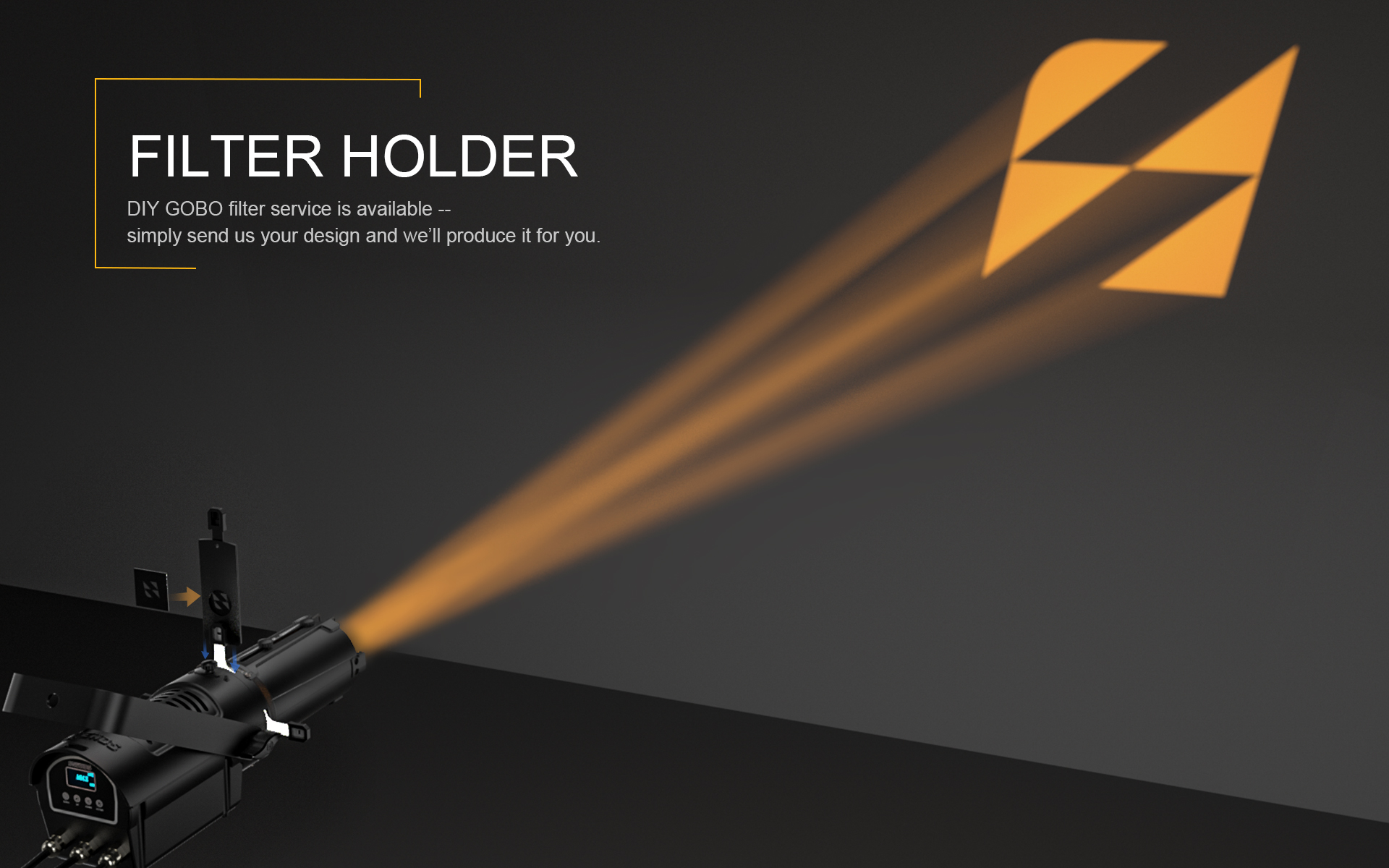

Filter Holder
DIY GOBO filter service is available --
simply send us your design and we’ll produce it for you.
Performing arts
Broadcast lighting
Exhibition
Corporate
small stage setups
Technical Specifications
|
Light source parameters |
|
|
LED Light Source: |
LED 100W Cool&Warm White 2in1 |
|
Strobe: |
Flash rate 0-25HZ |
|
CRI: |
W/90 C/90 |
|
Color Temperature： |
W/7000K C/2700K |
|
Illuminance/min |
1m:27500lx 3m:2660lx 5m:1234lx |
|
Illuminance/max |
1m:17950lx 3m:1960lx 5m:1005lx |
|
Zoom angle: |
17-40° |
|
Dimmer: |
0-100% Linear dimmer |
|
Security System |
|
|
Degree Of Protection |
IP20 |
|
Operating Temperature |
-20℃~40℃ |
|
Interface And Control System |
|
|
Control Interface |
DMX In/Out |
|
DMX Channel |
2/6CH |
|
Noise (LED Full on): |
33dB@1m |
|
Noise (moving head): |
45dB@1m |
|
Signaling Protocol |
DMX512 |
|
Cooling System |
|
|
Cooling Method |
Air cooling |
|
Power Consumption |
|
|
Working Power |
100W |
|
Power Supply: |
150W AC100V ~ 240V / 50 ~ 60Hz |
|
Physical Parameters |
|
|
Material: |
Aluminum alloy casing |
|
Product Size |
396x148x143 mm |
|
Product Weight |
2.45 kg |
|
Package Size: |
420x180x180 mm |
|
Package Weight |
3.0 kg |

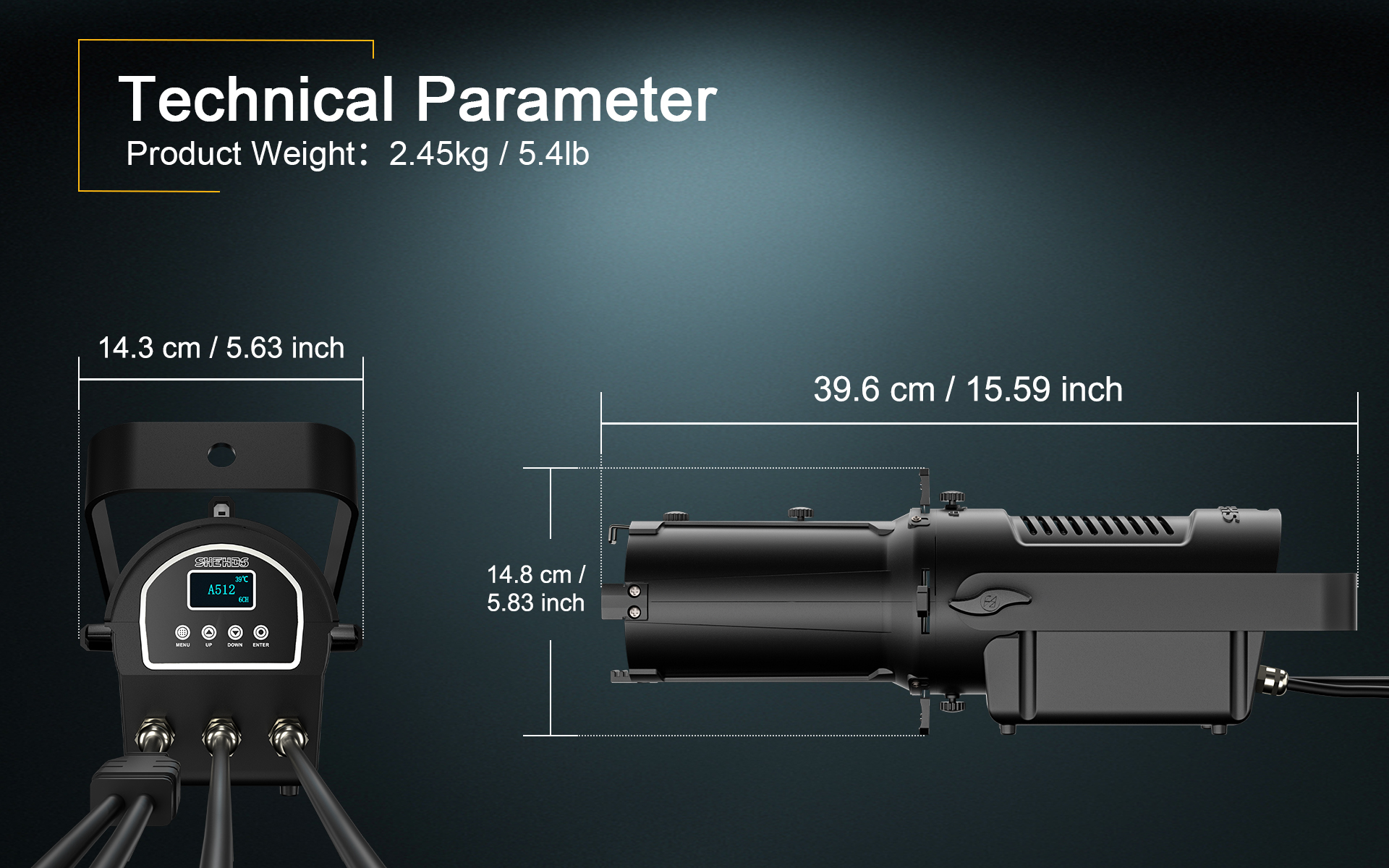

Technical Parameter
Product Weight：2.45kg / 5.4lb

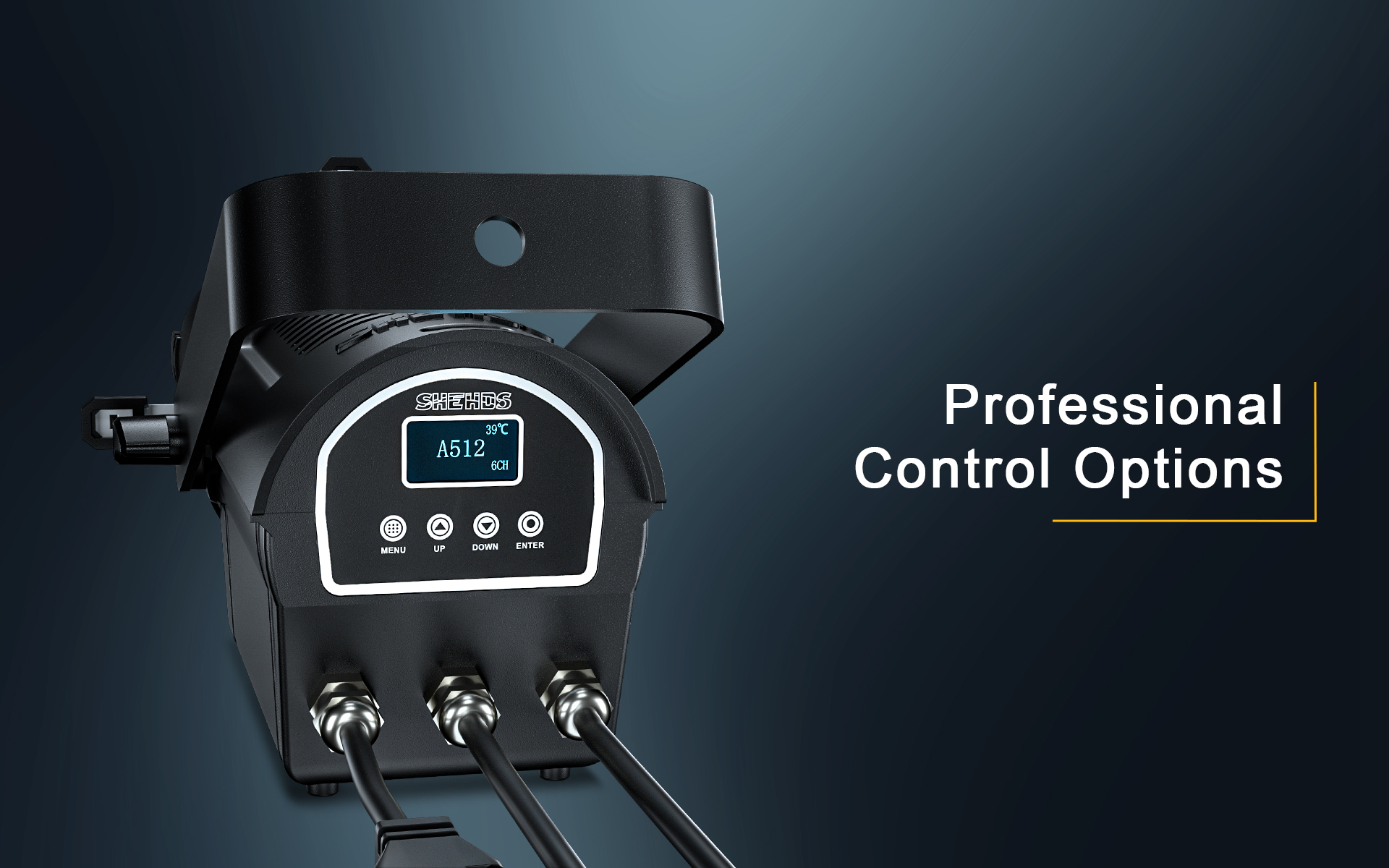

Professional Control Options

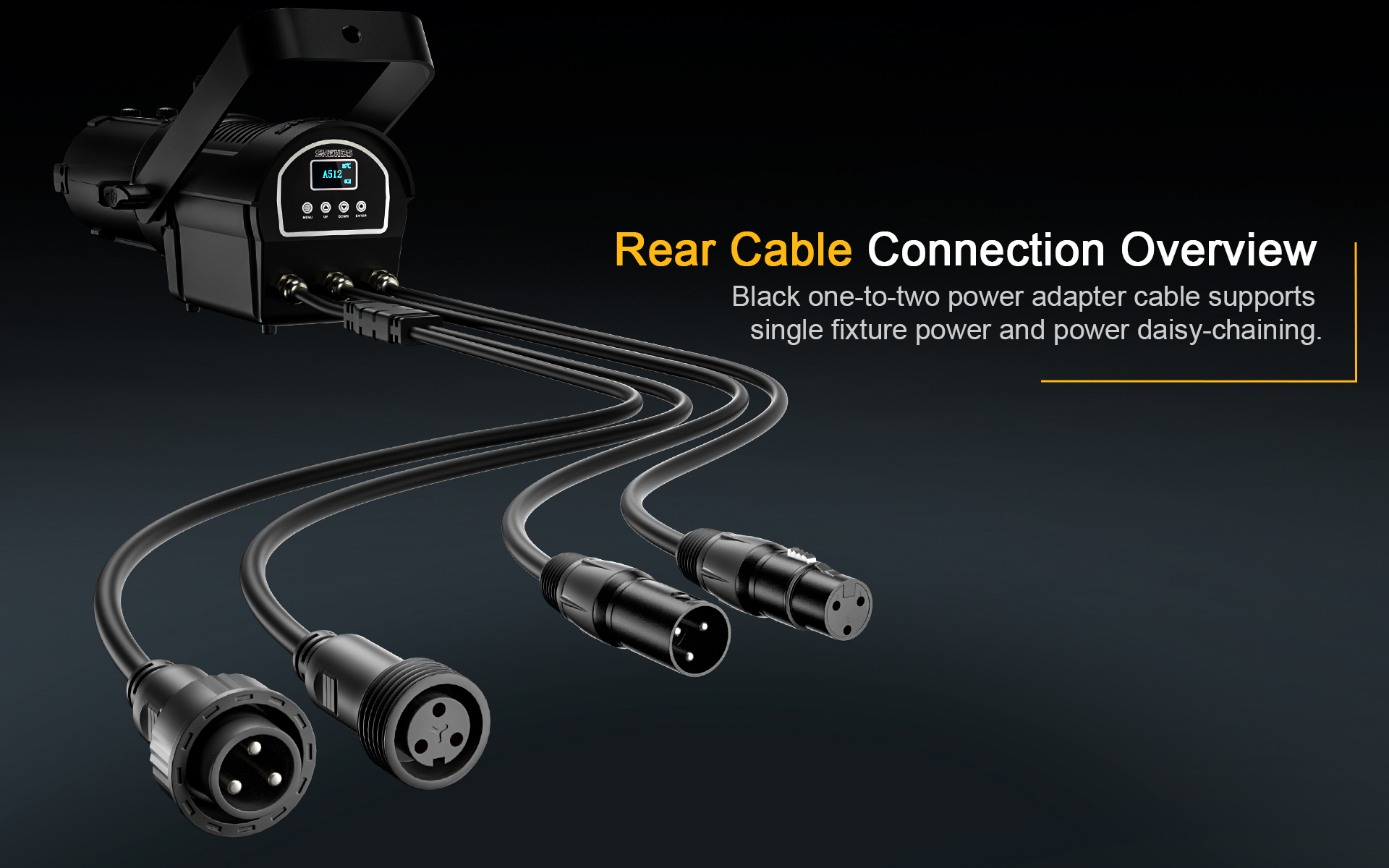

Rear Cable Connection Overview
Black one-to-two power adapter cable supports single fixture power and power daisy-chaining.

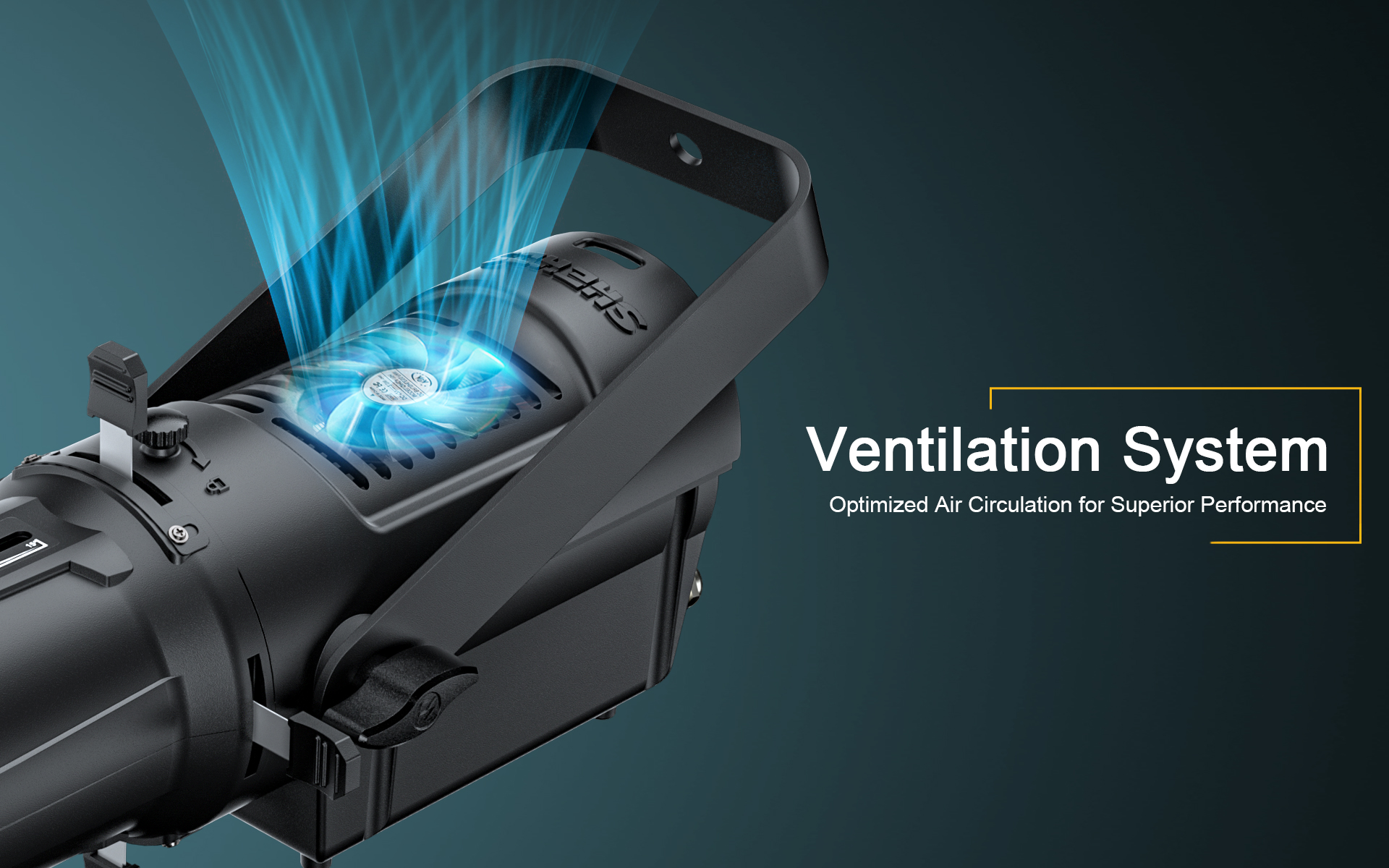

Ventilation System
Optimized Air Circulation for Superior Performance

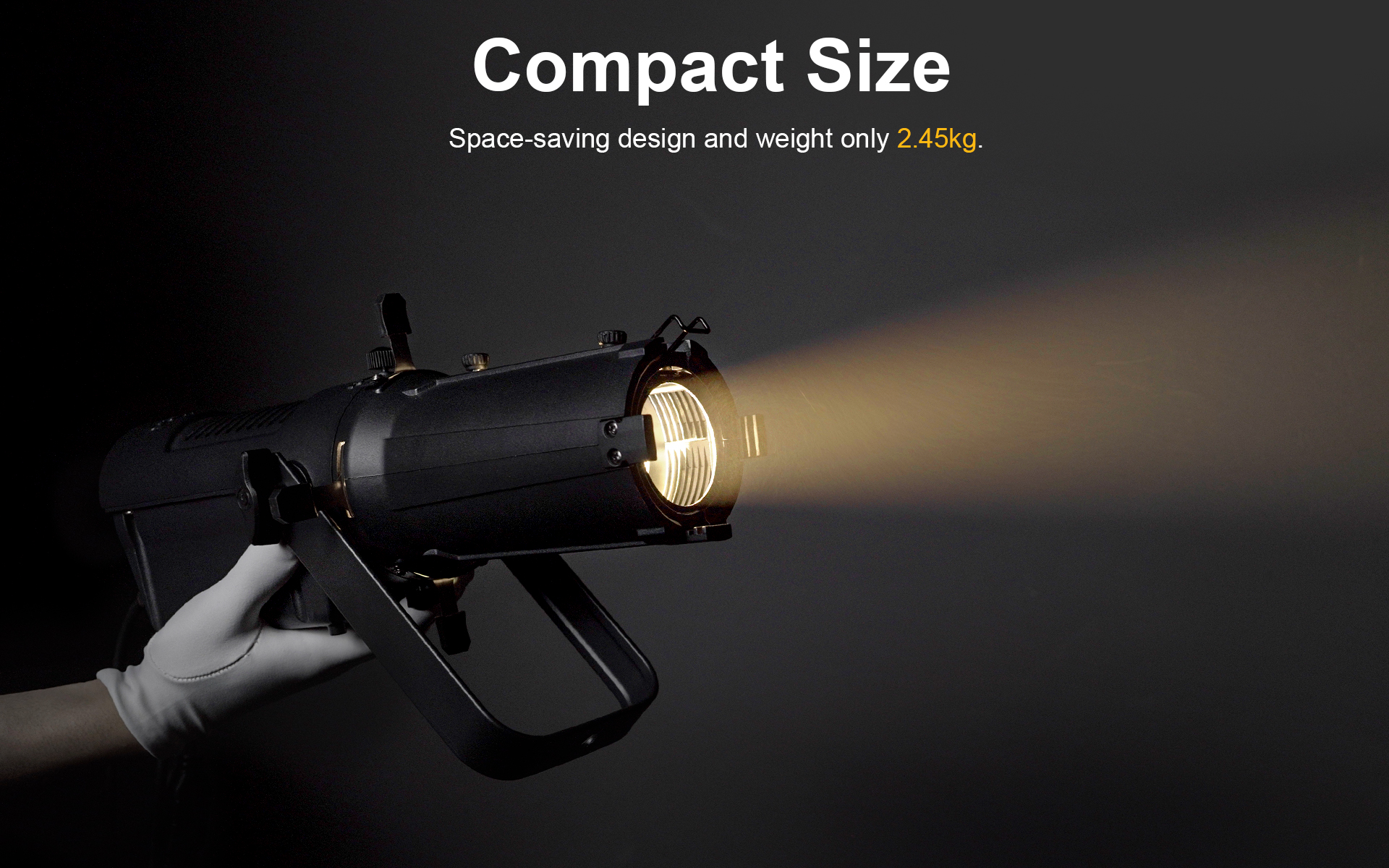

Compact Size. Pro Control.
Space-saving design and weight only 2.45kg.

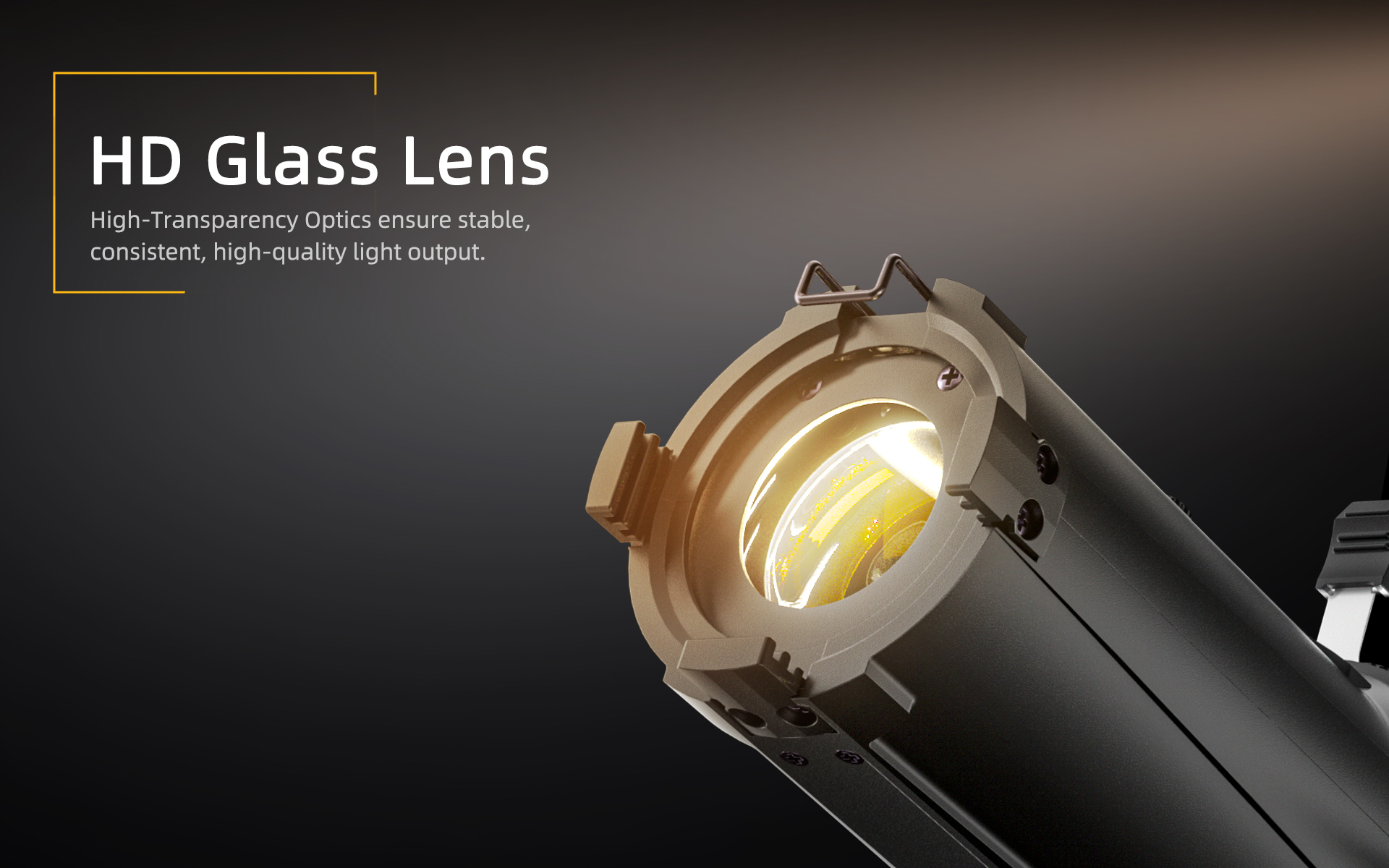

Optical Lens, Clean Output
High-Transparency Optics ensure stable, consistent, high-quality light output.

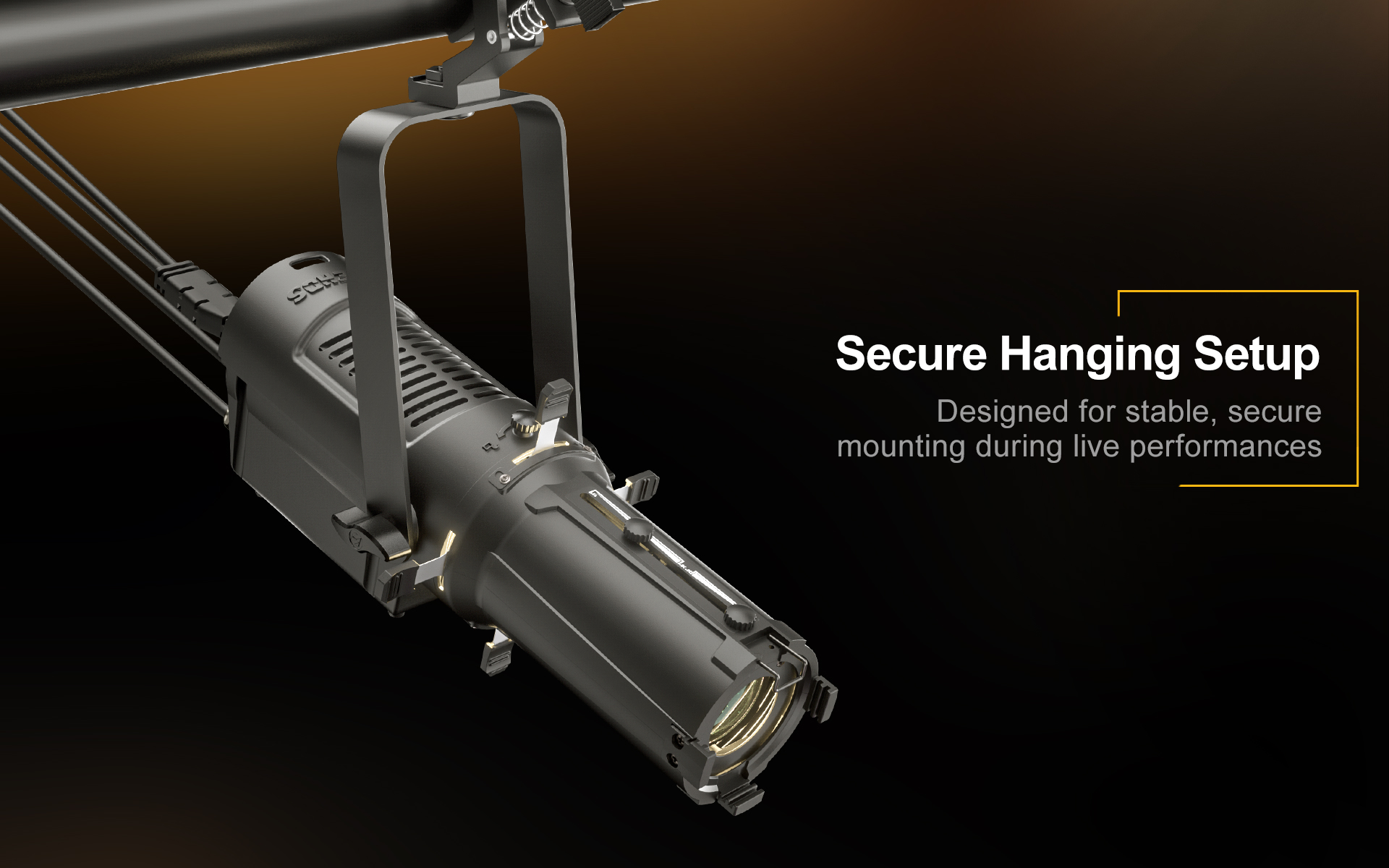

Secure Hanging Setup
Designed for stable, secure mounting during live performances.

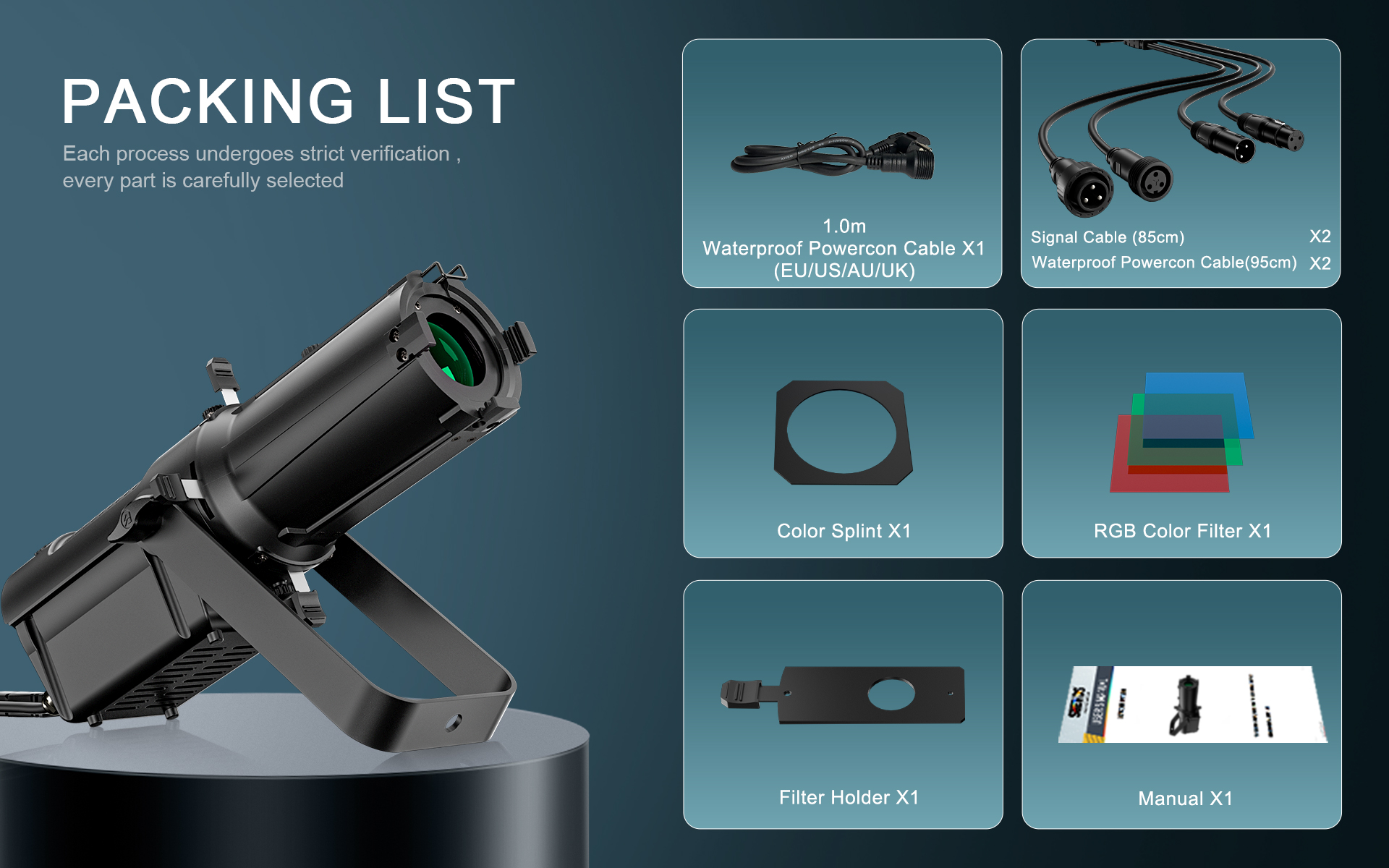

Packing List
Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition.
Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail.
Only those products that have gone through layers of checking can confidently leave our factory and arrive in your hands,
bringing you an excellent using experience.

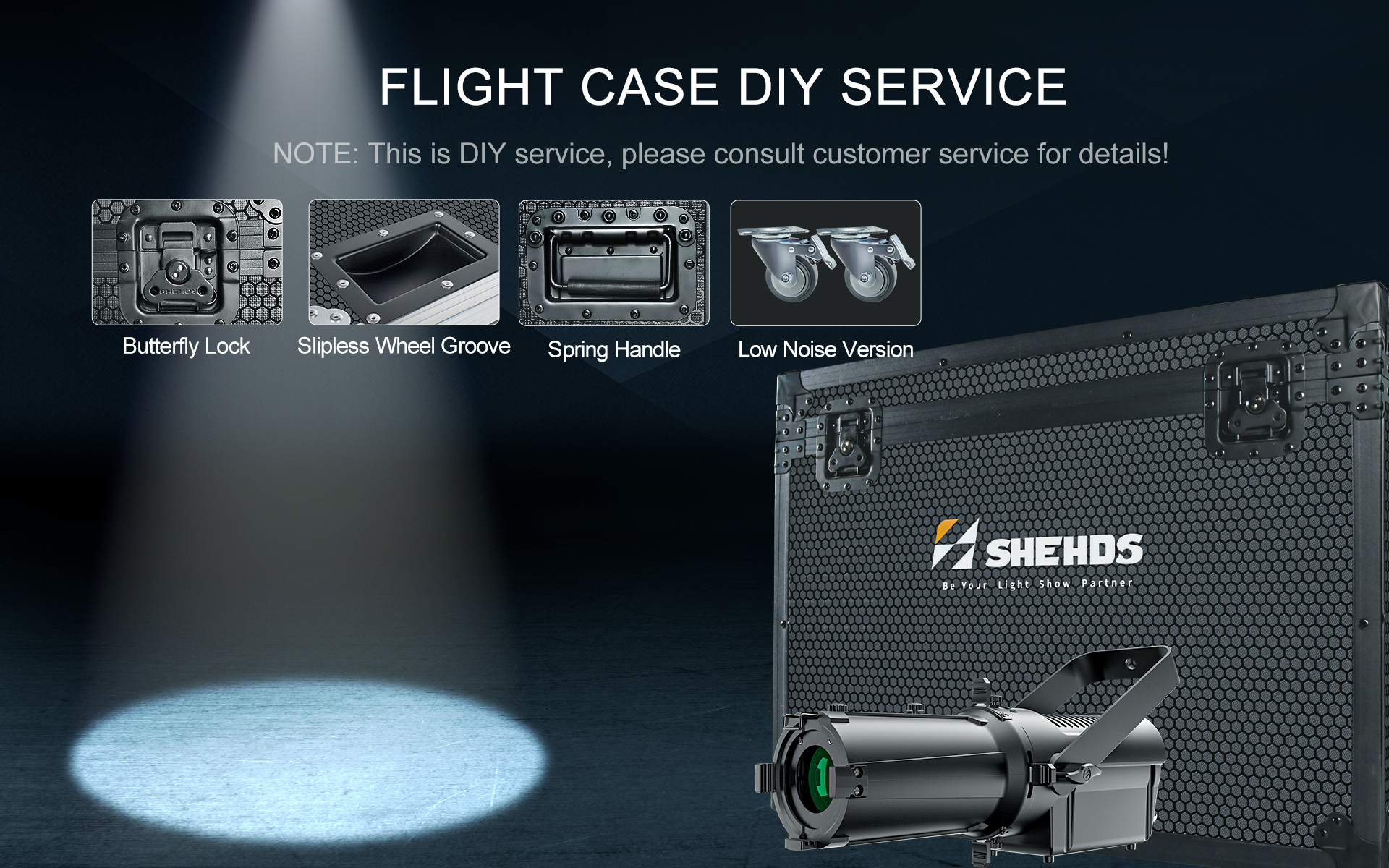

Flight Case DIY Service
It equipped with silent 360 degree wheels + brake locks.
We offer customized road cases that perfectly meet your needs. Whether precision equipment, fragile items, or valuable goods, our road case not only ensures safety protection,
but also adapts flexibly to various specifications and shapes. Each case is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products.
From concept to delivery, we work closely with you to ensure that every detail meets your expectations.
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
Our products comply with international safety standards and environmental requirements.
They have multiple voltage options to meet different voltage around the world.
In addition, we also provide comprehensive after-sales service and technical support to ensure that any problems you encounter during use can be promptly and effectively resolved.
