Solar Panel Kit 300W 360W 450W 600W Monocrystalline Home Shed Off Grid Camping

PRODUCT DESCRIPTION

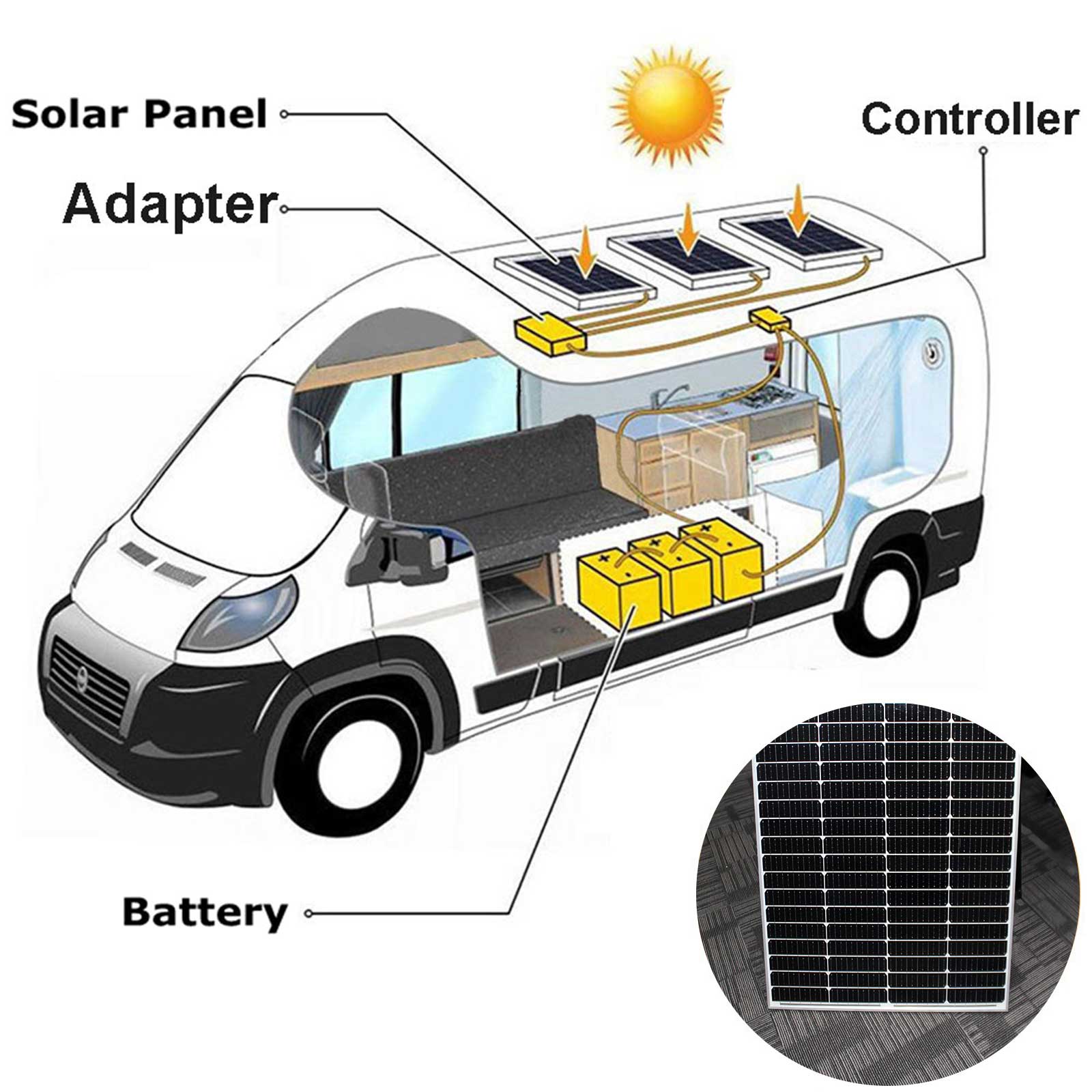

12 Volt Monocrystalline Solar Panel Kit is the perfect option for any off-grid application. Ideal for RVs, motorhomes, cabins, marine areas, home backup power, and more. The panels feature lightweight aluminum frames and shatter-resistant glass, making them perfect for outdoor applications.

Features:

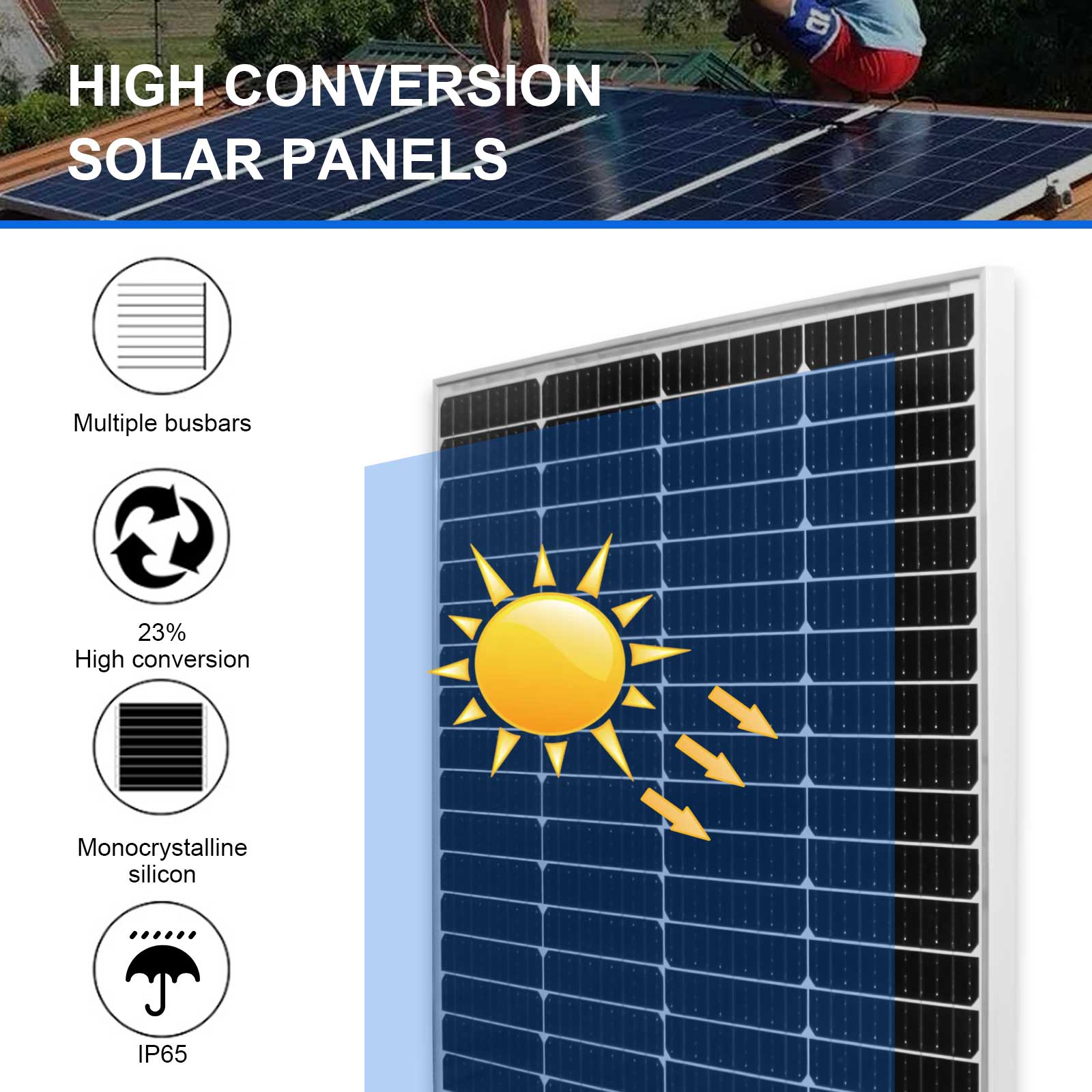

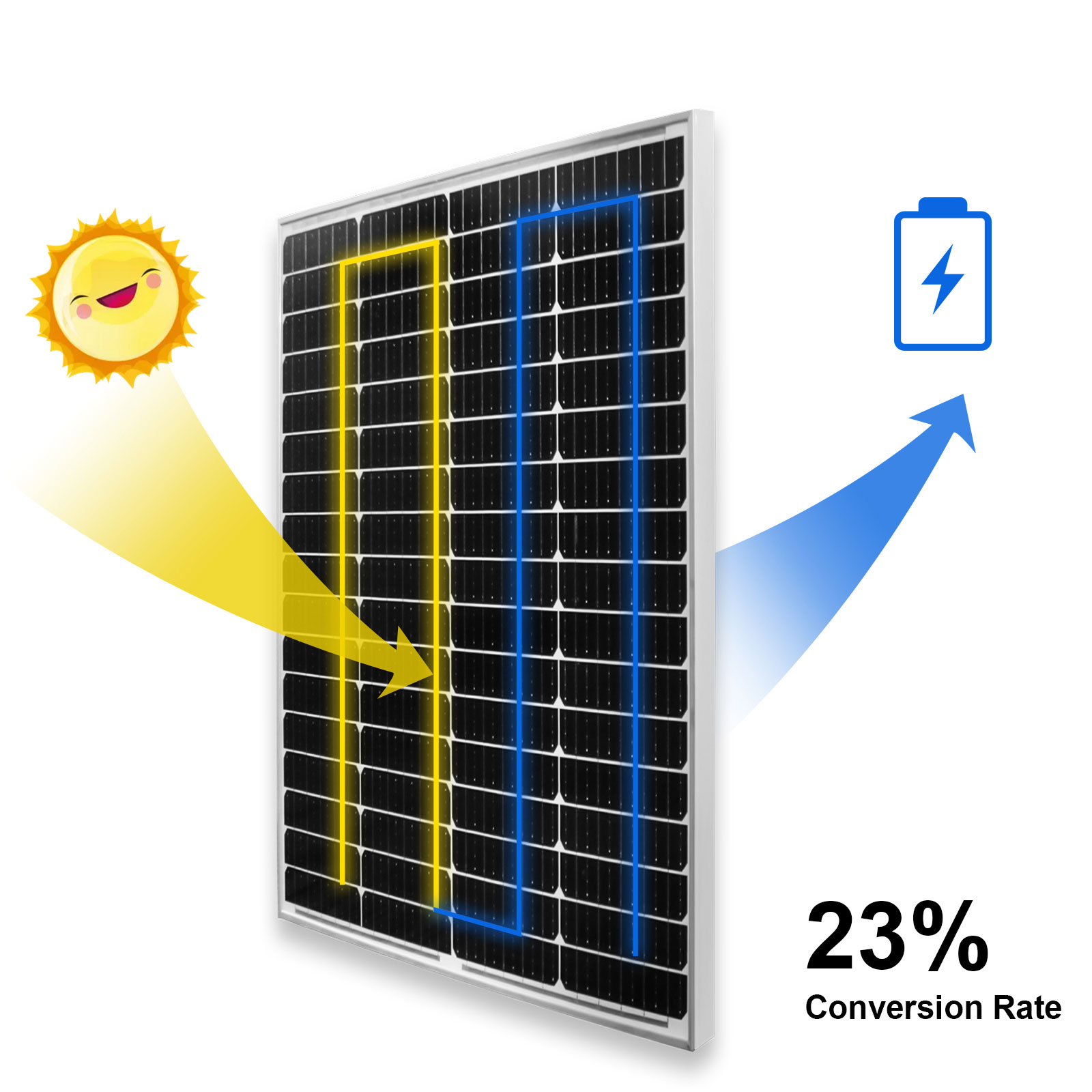

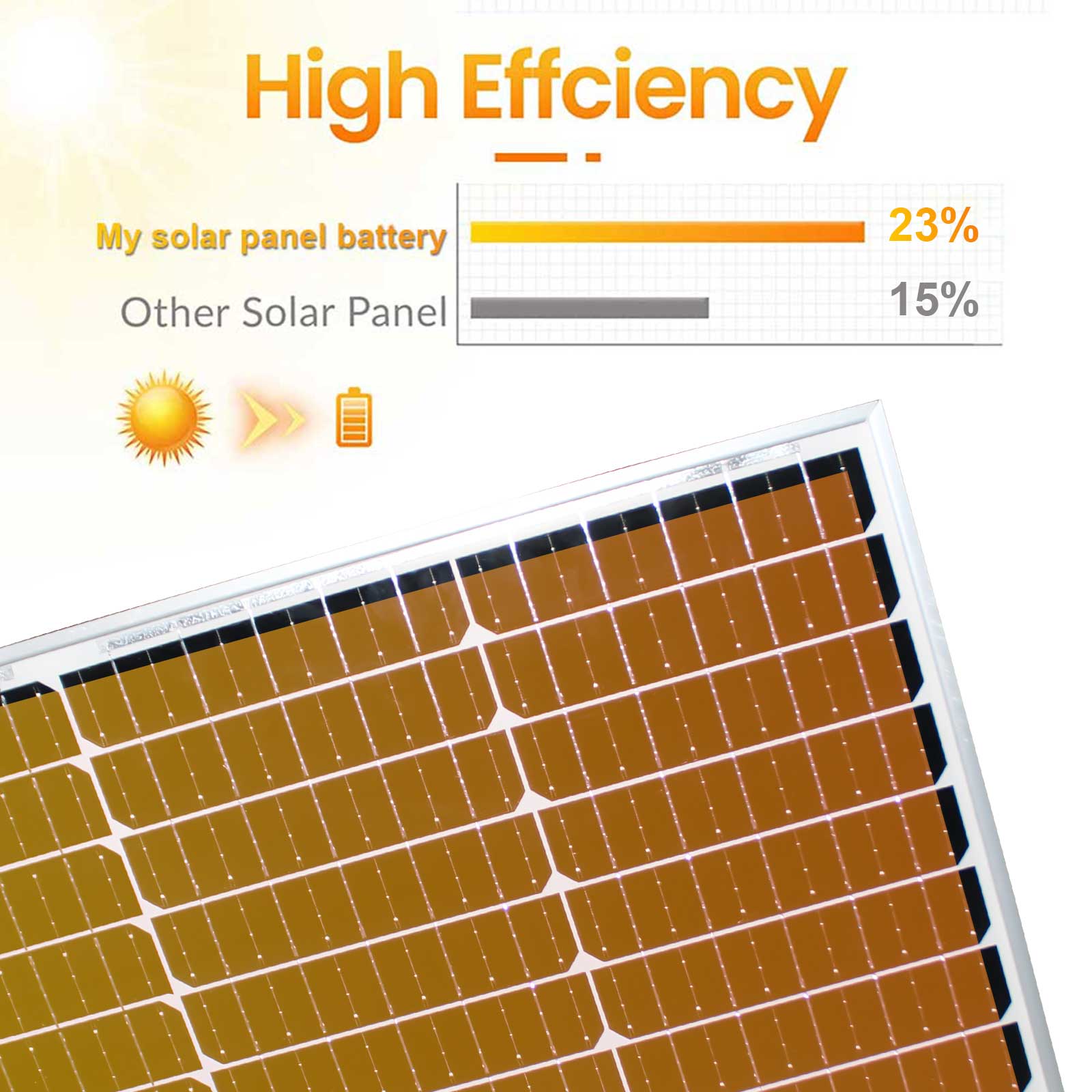

【High Conversion Efficiency】

Over 90% transferable power output in 10-year, 80% transferable power output in 20-year.

Under 4 hours full sunshine:

100W solar panel generating 0.4KWH per day

120W solar panel generating 0.48KWH per day

150W solar panel generating 0.6KWH per day
200W solar panel generating 0.8KWH per day
300W solar panel generating 1.2KWH per day
360W solar panel generating 1.44KWH per day
450W solar panel generating 1.8KWH per day
600W solar panel generating 2.4KWH per day

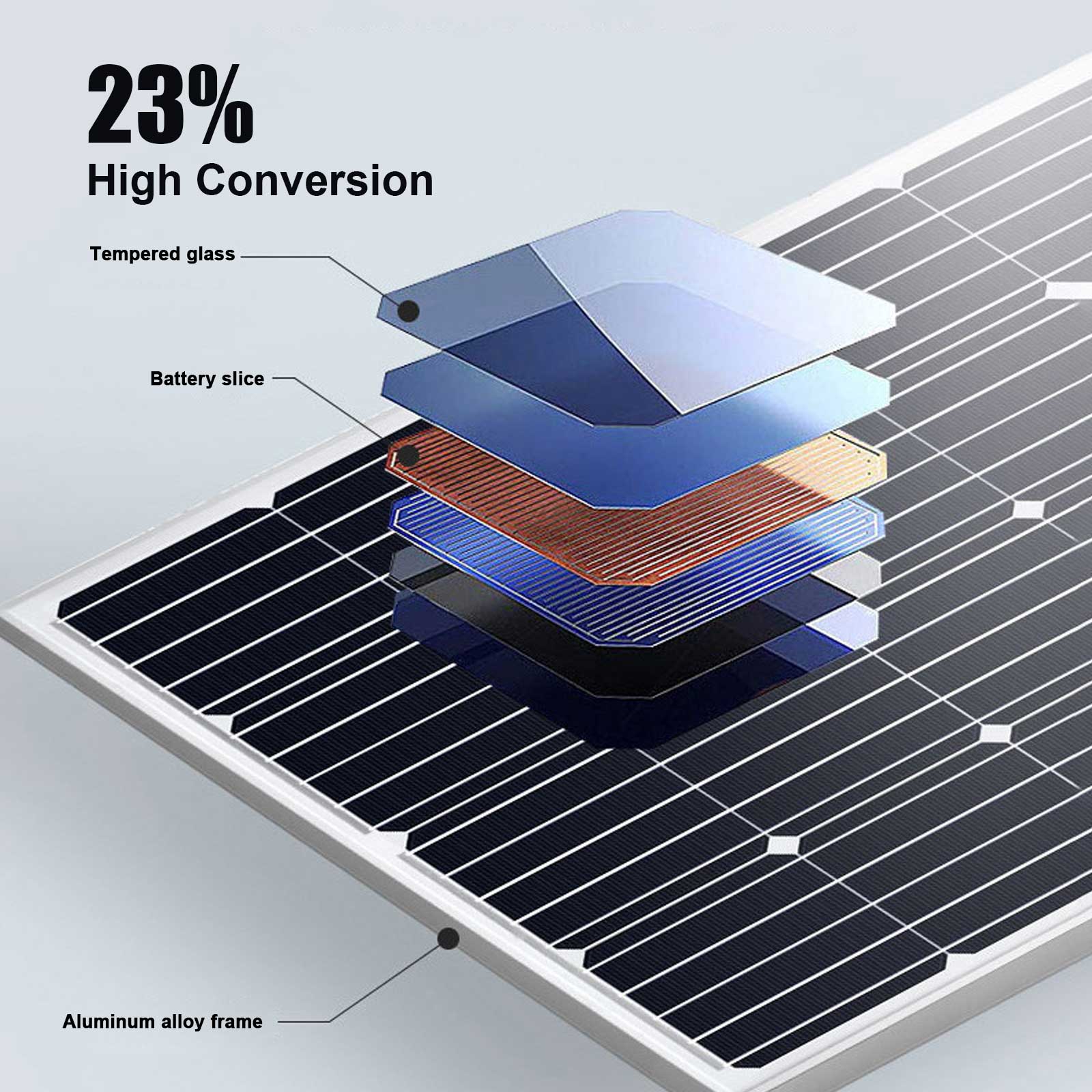

【Upgraded Design】PFCTART monocrystalline solar panel upgraded the latest half-cut cell technology, which makes the solar panels obtain better and more stable performance. Compared to regular solar panel, half-cut cell technology can reduce power loss, lower solar panel temperature and reduce the impact of shading on performance.

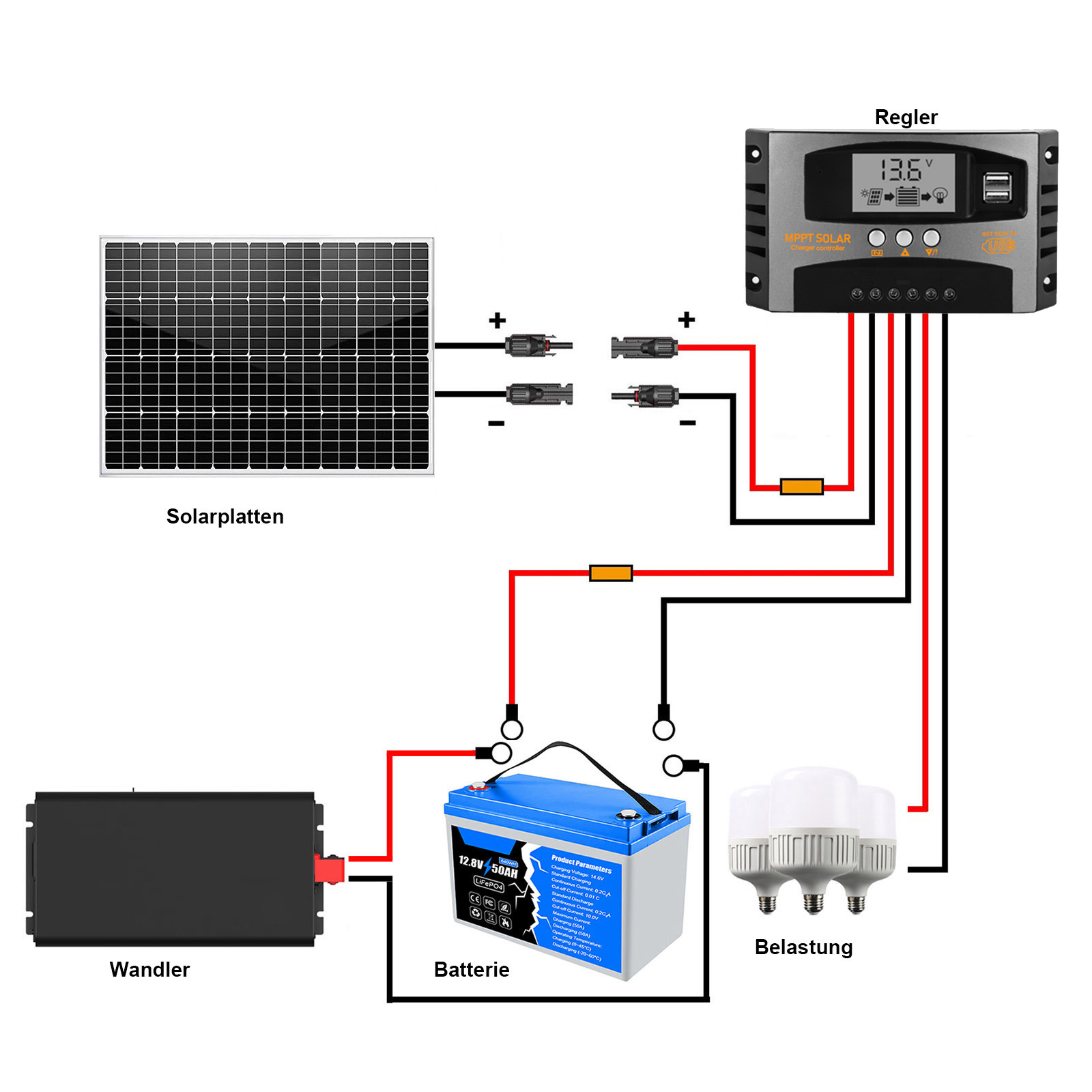

【Easy to install】It comes with pre-drilled mounting holes, solar connector leads, and a junction box. Allowing you to install, connect it to a controller, or expand with panels without breaking a sweat. The panels are made of premium Grade A+ monocrystalline solar cells that are more efficient than conventional polycrystalline solar cells.

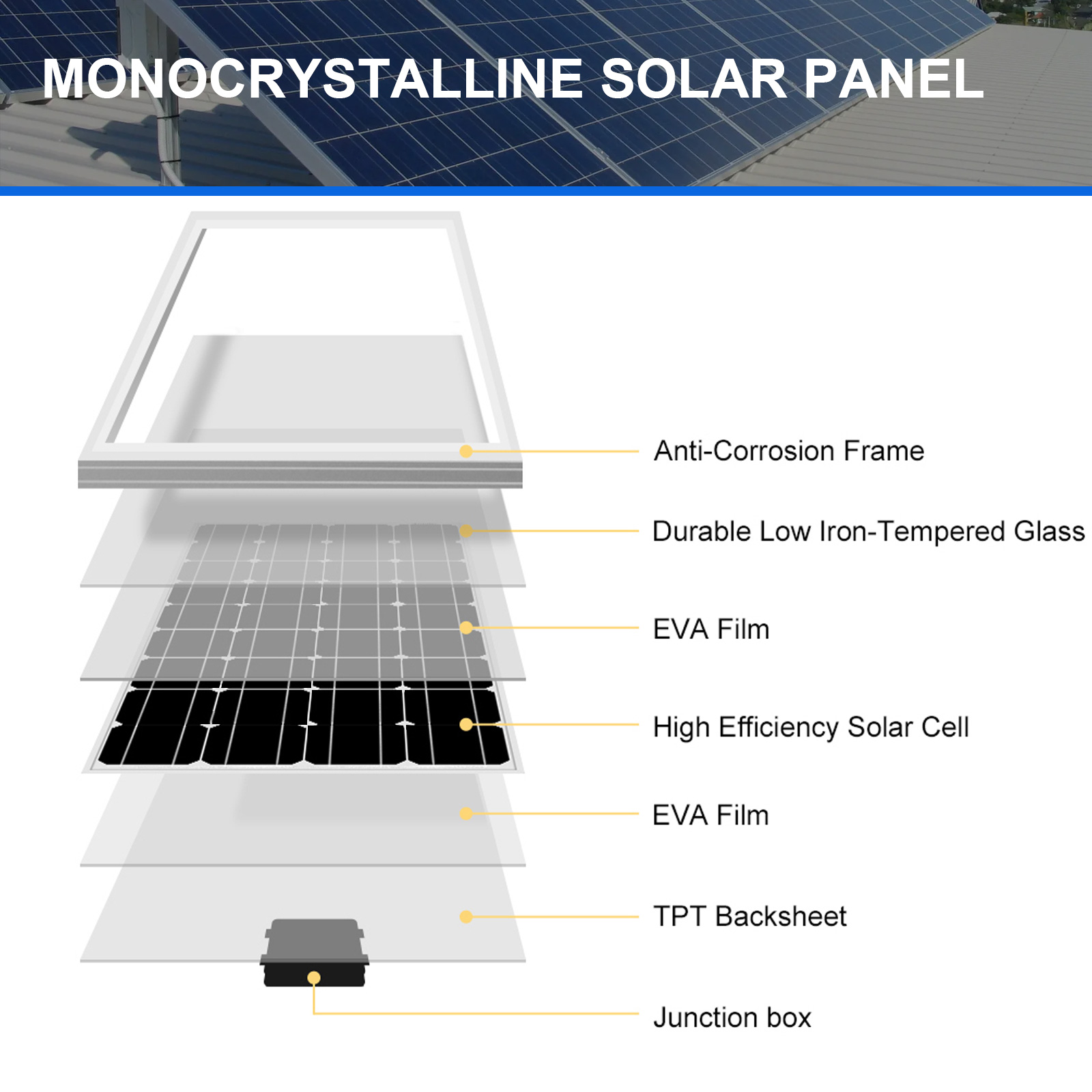

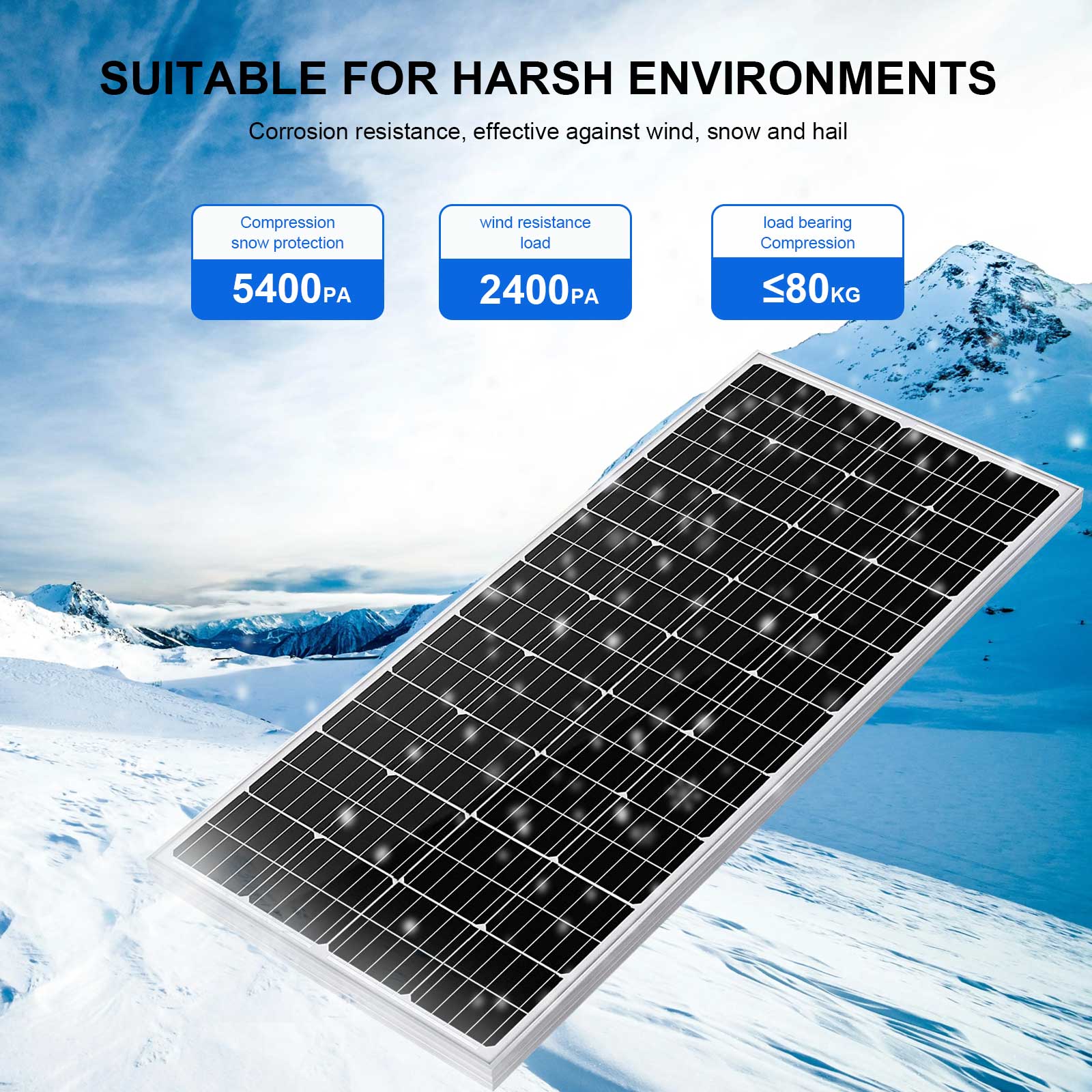

【High Quality】The panel is covered with a special glass to protect against the bad environmental conditions. Good quality frame, withstands high winds (2400Pa) and snow loads (5400Pa).

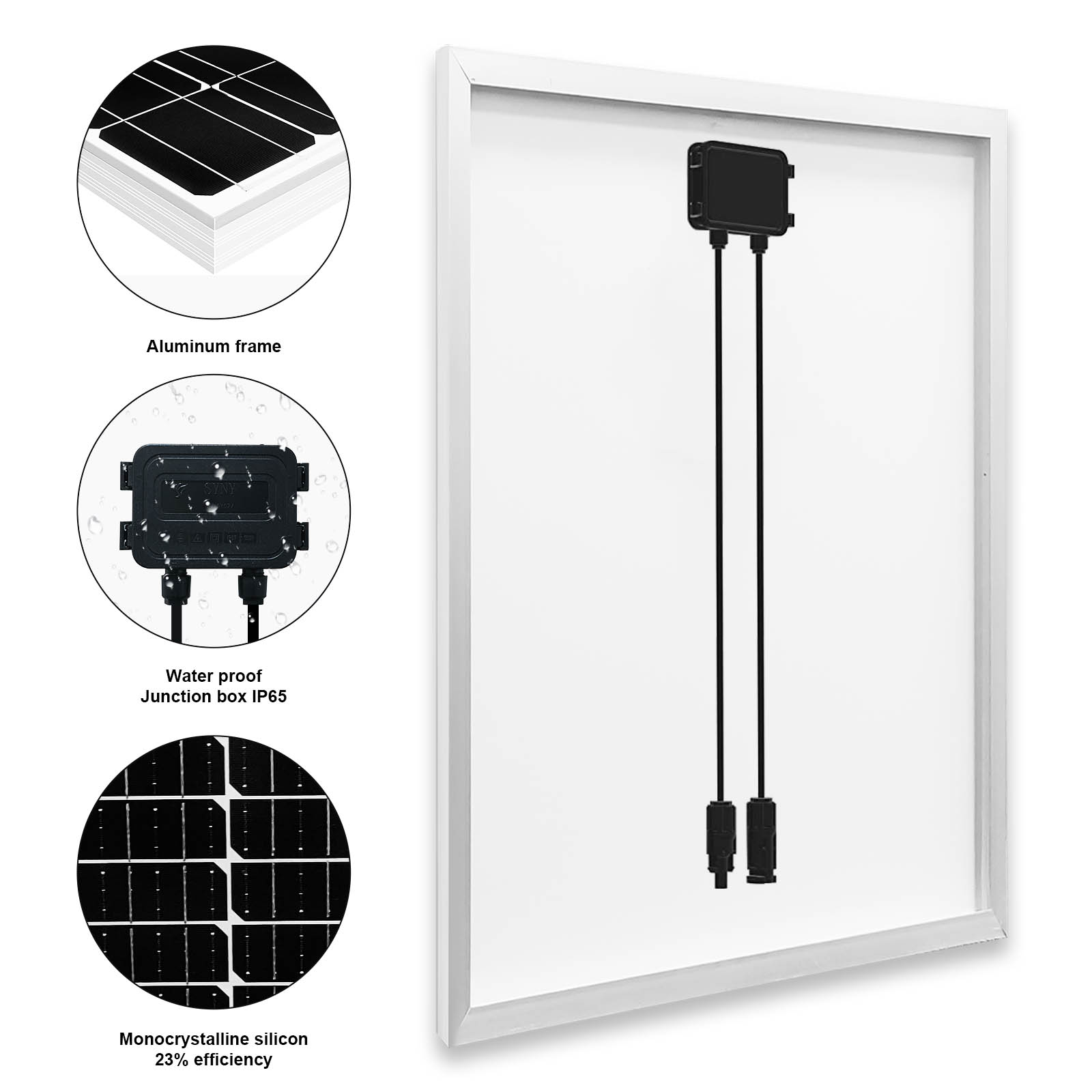

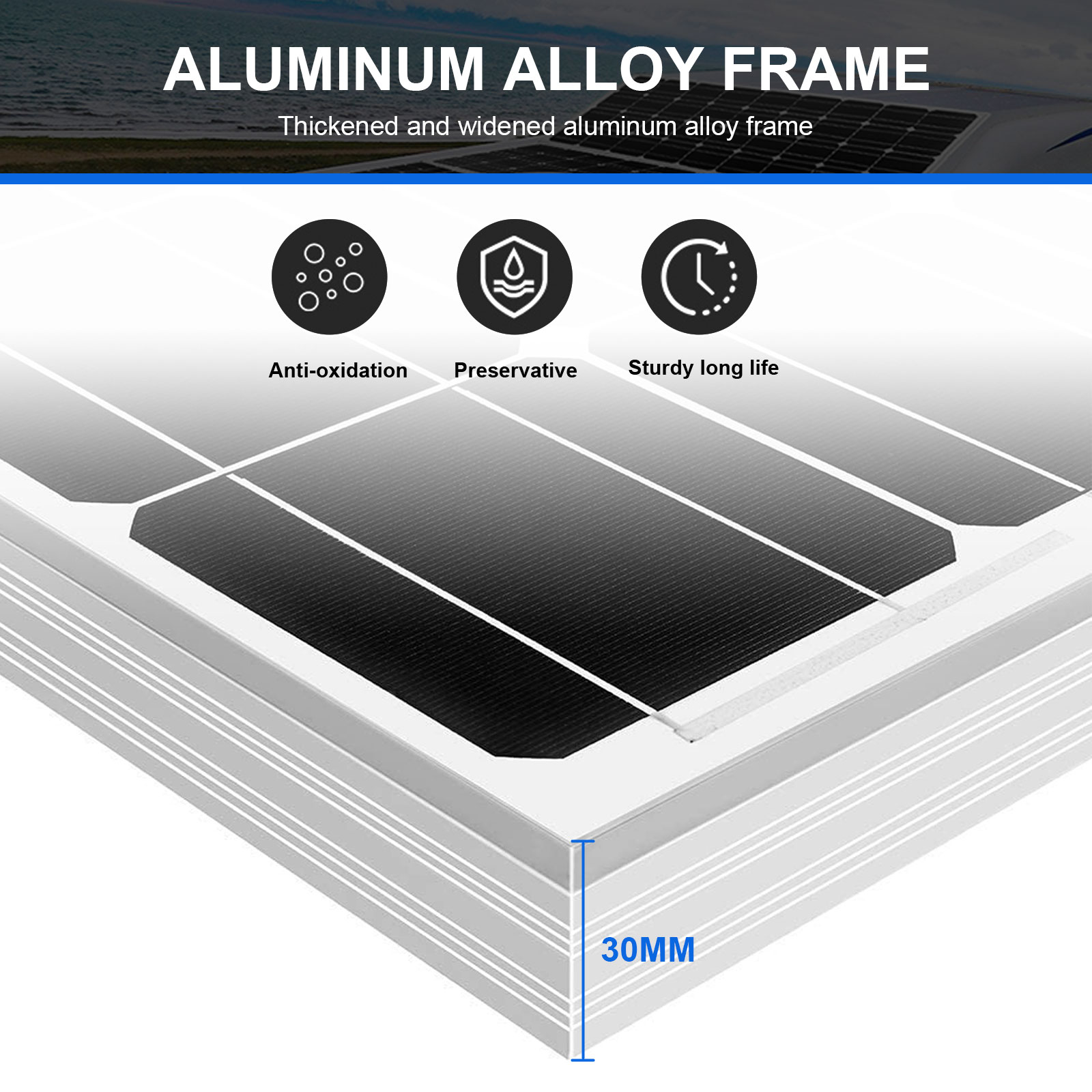

【Built to Last】Corrosion-resistant aluminum frame of this solar panel  provides extended outdoor use that ensures the panel can last for decades. The IP65-rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.

Specification:
100W Solar Panel

High Efficient Monocrystalline

Maximum Power: 100W

Open Circuit Voltage (Voc): 21.6V

Maximum/Peak Voltage(Vmp): 18V

Short Circuit Current (Isc): 6.2A

Working Current (Iop): 5.55A

Output Tolerance: ±3%

Charge Voltage: 12V

Frame: Aluminum alloy frame

Temperature Range：-40℃ to +80℃(-104℉ to +176°F)

J-Box IP Rating: IP65

Product size：76 × 58 × 3 CM( 29.92 × 22.83 × 1.18 Inch )

Product weight：4.8 kg(10.58 lbs)

120W Solar Panel

High Efficient Monocrystalline

Maximum Power: 120W

Open Circuit Voltage (Voc): 21.6V

Maximum/Peak Voltage(Vmp): 18V

Short Circuit Current (Isc): 7.2A

Working Current (Iop): 6.66A

Output Tolerance: ±3%

Charge Voltage: 12V

Frame: Aluminum alloy frame

Temperature Range： -40℃ to +80℃(-40°F to +176°F)

J-Box IP Rating: IP65

Product size：760 × 730 × 30 mm (29.92 × 28.74 × 1.18 in)

Product weight：5.9 kg (13 lbs )

150W Solar Panel
High Efficient Monocrystalline
Maximum Power: 150W
Open Circuit Voltage (Voc): 21.6V
Maximum/Peak Voltage(Vmp): 18V
Short Circuit Current (Isc): 10.05A
Working Current (Iop): 8.33A
Output Tolerance: ±3%
Charge Voltage: 12V
Frame: Aluminum alloy frame
Temperature Range： -40℃ to +80℃(-104℉ to +176°F)
J-Box IP Rating: IP65
Product size：88.5 × 76 × 3 CM ( 34.84 × 29.92 × 1.18 Inch )
Product weight：7.5 kg (16.53 lbs )

200W Solar Panel

High Efficient Monocrystalline

Maximum Power: 200W

Open Circuit Voltage (Voc): 21.6V

Maximum/Peak Voltage(Vmp): 18V

Short Circuit Current (Isc): 12.2A

Working Current (Iop): 11.11A

Output Tolerance: ±3%

Charge Voltage: 12V

Frame: Aluminum alloy frame

Temperature Range：-40℃ to +80℃(-40°F to +176°F)

J-Box IP Rating: IP65

Product size：1170×760×30 mm

Product weight：8.7 kg

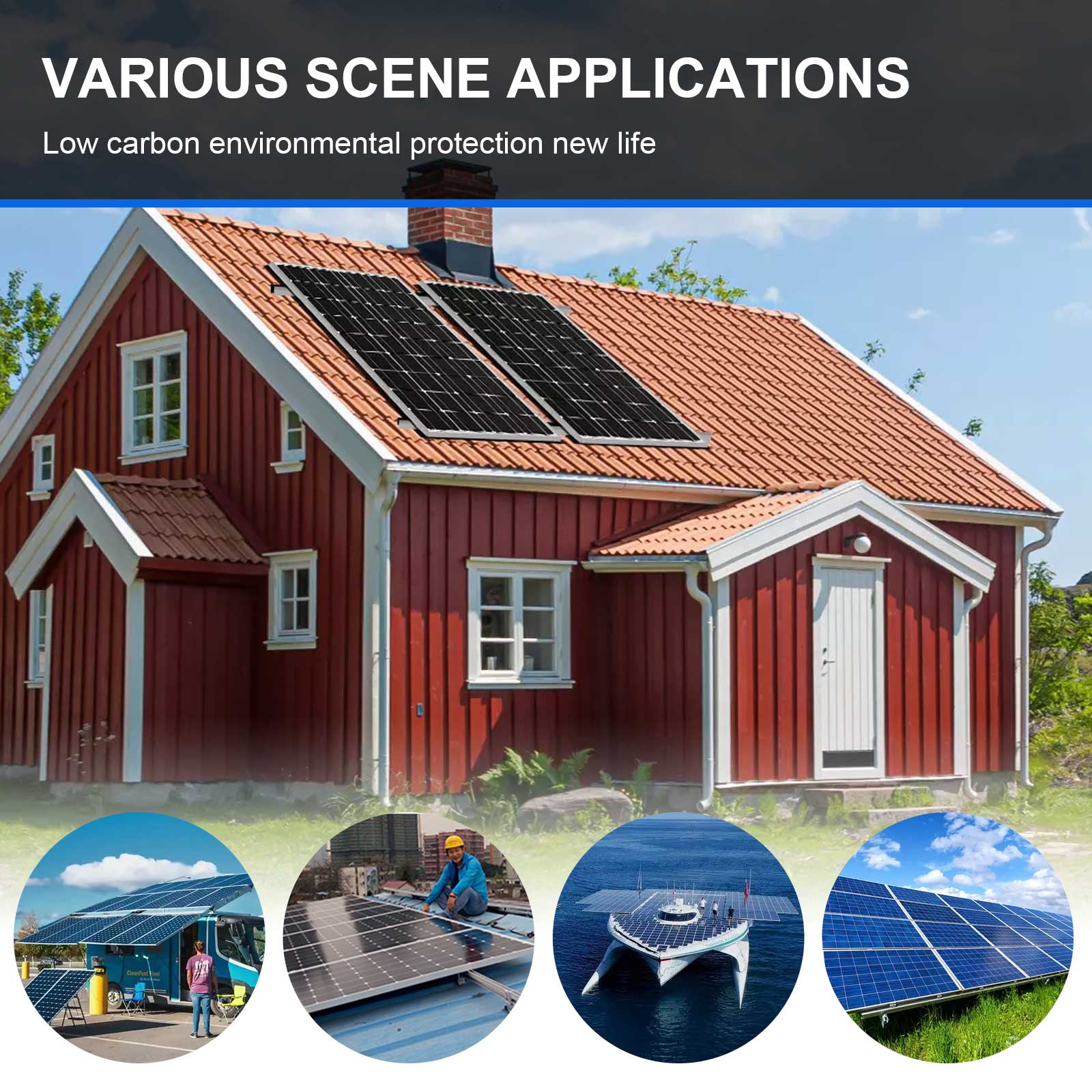

How Many Solar Panels Do You Need To Buy?

1-4 Solar Panels For Boat power generation

1-6 Solar Panels For RV Power Generation

1-30 Solar Panels For House power generation

More Welcome to consult !

Packages Includes:(Depend on your choice)

Option 1:
1 PCS 100W Solar Panel
100W Mono Solar Panel×1

Option 2:
1 PCS 120W Solar Panel
120W Mono Solar Panel×1

Option 3:
1 PCS 150W Solar Panel
150W Mono Solar Panel×1

Option 4:
1 PCS 200W Solar Panel
200W Mono Solar Panel×1

Option 5:

300W Solar Panel Kit（3×100W）

100W Mono Solar Panel×3

40A Solar Controller×1

3M Red Black Solar Cable×1 Pair
1 Pair Y-3 Branch Connectors

Option 6:

360W Solar Panel Kit( 3×120W )

120W Mono Solar Panel×3

40A Solar Controller×1

3M Red Black Solar Cable×1 Pair
1 Pair Y-3 Branch Connectors

Option 7:

450W Solar Panel Kit( 3×150W )

150W Mono Solar Panel×3

40A Solar Controller×1

3M Red Black Solar Cable×1 Pair
1 Pair Y-3 Branch Connectors

Option 8:

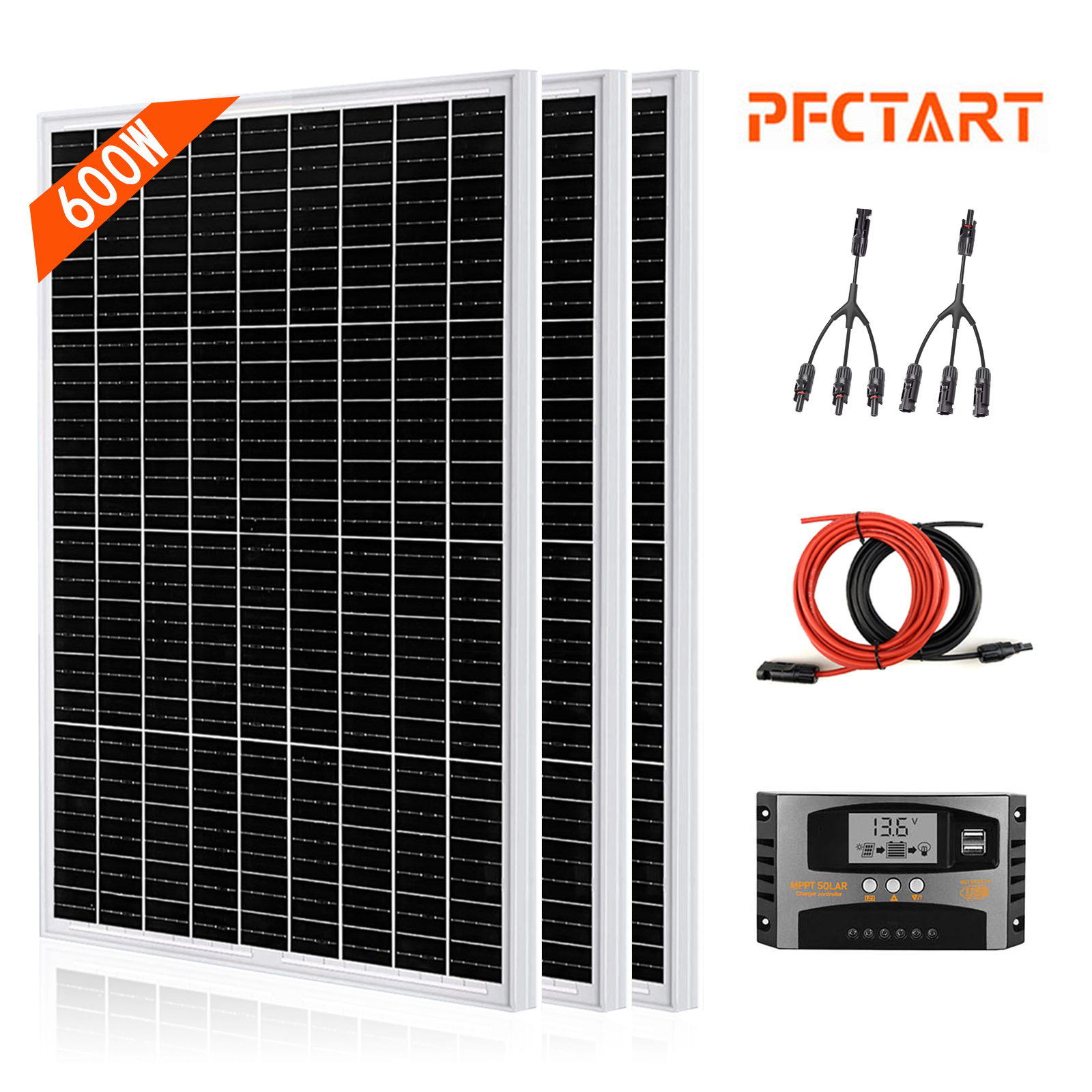

600W Solar Panel Kit( 3×200W )

200W Mono Solar Panel×3

40A Solar Controller×1

3M Red Black Solar Cable×1 Pair
1 Pair Y-3 Branch Connectors
