Welcome to our store!!! asi_industry_us hope you are happy with your purchase. Thank you for choosing us, have a great day!
All products support easy return & lifetime warranty!!!Orders paid before 9:30am support same-day shipping. (Notes: Pls make sure the post code&city is right, so that we can send your order in time) Good Feedback is very important to us. Any questions, please feel free to contact us.We will try our best to solve your problem.
Pls check the item pictures and size to get the suitable items.
-------------------------------------------------------------------------------------------------------------------------------------------------------
Package Include:

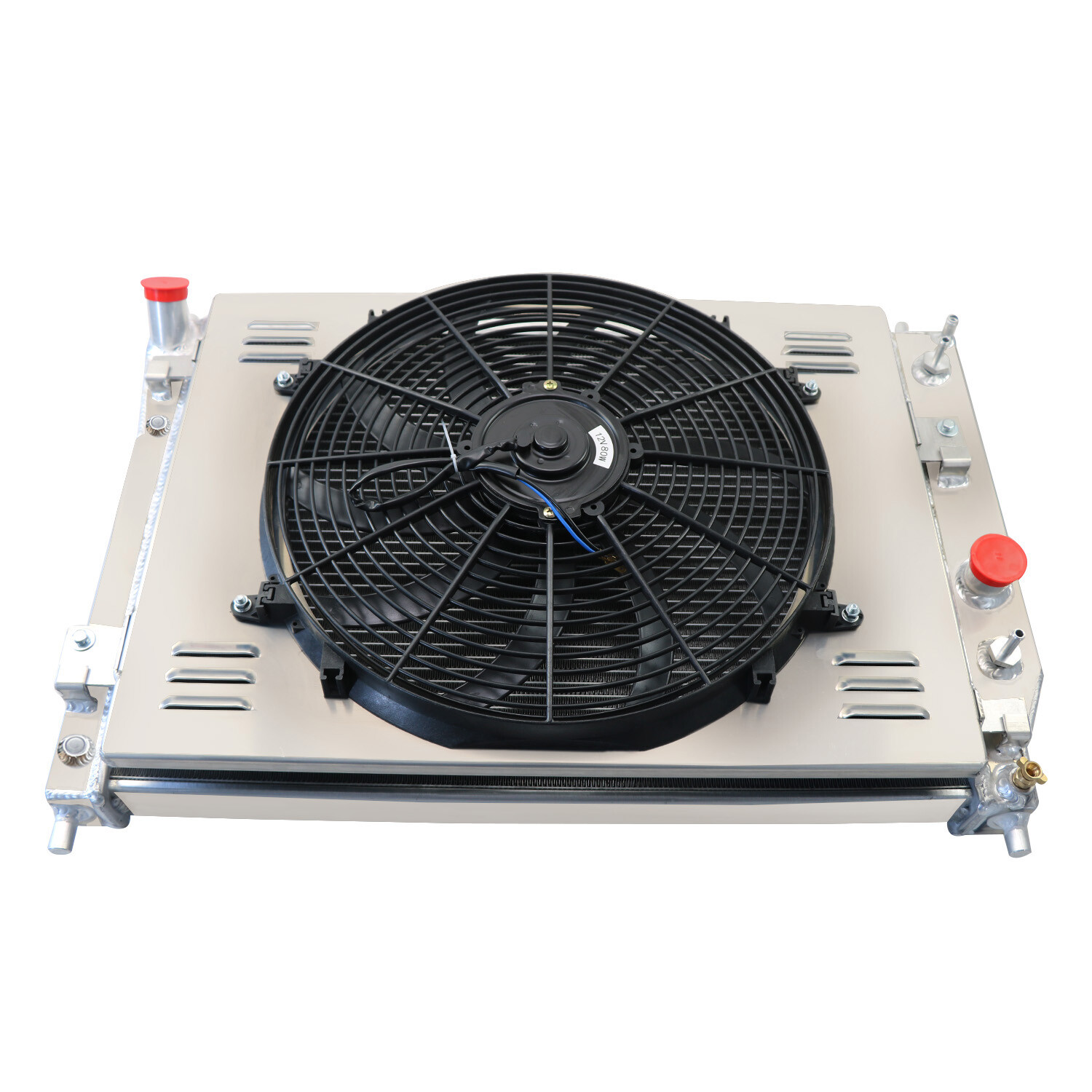

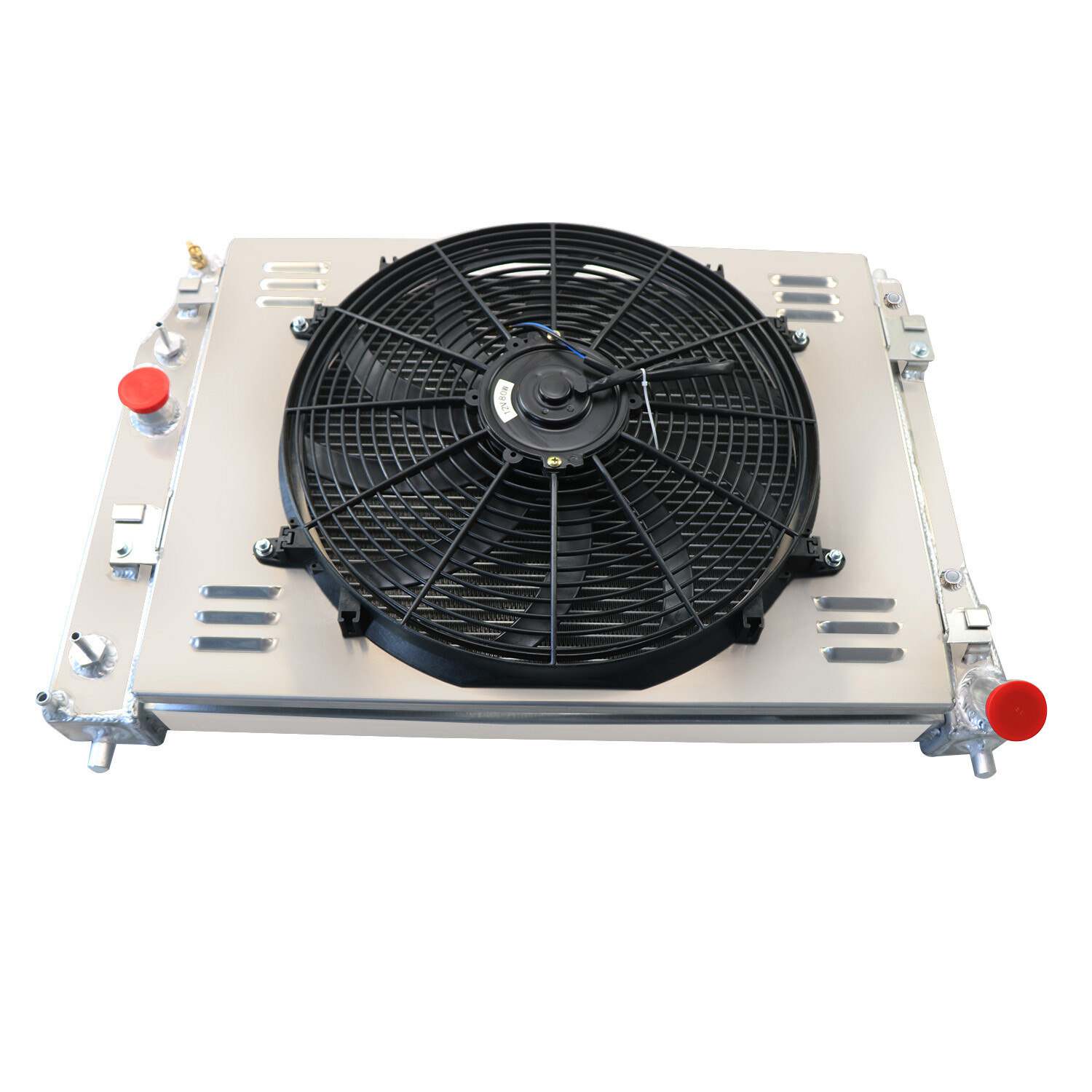

- 1 X 4-Row AA5052 Aluminum Radiator
- 1 X AA5052 Aluminum Shroud
- 1 X 16" Fans (Includes mounting kits)
- 1 X Thermostat Relay Kit
Radiator Size:
- Condition:New
- High Performance Racing Spec.
- 4-Row of tubes Core Racing Design
- Petcock Drain:OEM style brass petcock drain
- Core Dimensions: 17.25'' x 23.425''
- Overall Dimensions: 20.275'' x 28.94''
- Inlet/Outlet Dimensions: 1.3''/1.3''
- Automatic Transmission Cooler: φ26*292*5/8-18UNF(Z)
- Engine Oil Cooler: φ26*292*5/8-18UNF(Z)
- Petcock Drain:OEM style brass petcock drain
Vehicle Fitment
- 2005-2007 Chevrolet Corvette V8 6.0
- 2008-2013 Chevrolet Corvette V8 6.2
- 2006-2013 Chevrolet Corvette V8 7.0
- 2003-2004 Chevrolet SSR V8 5.3
- 2005-2006 Chevrolet SSR V8 6.0
- 2008-2009 Saab 9-7x V8 6.0
AA5052 Aluminum Shroud and Fans:
- The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
- Our electric fan has a 120w power motor, which is more powerful and efficient than other inferior fans selling on market. Most fans on Ebay has a motor power of 80w, which cannot provide enough cooling for the engine. Moreover, they are usually assembled by the straight blades, it is cheaper and poor-quality and easy to get broken.
- 1. 120W electric motor to provide strong power and high rotation speed
- 2. S Blade pull push design, to make air flow more efficient and bring more cooling Effect
- 3. Lightweight and thin volume design, not only to save more engine bay space and also looks very well.
- 4. Provide extra temperature relay switch.
16" Fan
- Voltage: DC 12 Volts
- Maximum Fan CFM: 2150 cfm
- Wattage: 120 Wattage
- Thickness (in): 2.95"
- Number of Blades: 10 S-Type blades
- Maximum Fan RPM: 2,250 rpm
- Amp Draw: 10 amps
Thermostat Kit:
- Universal fit for any automotive vehicle and electric fan.
- Activates by grounding electric fans at preset temperature.
- 180'F turn-on temperature, 165'F turn-off temperature.
- Probe typically threads into radiator, water outlet or manifold.
- RED + connect directly to battery.
- WHITE wire to ignition switch power source.
- BLACK goes to thermos switch.
- BLUE wire goes to the Fans.
The advantages of our radiator：
- Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
- Brazed core technology to guarantee optimum performance and dependability
- All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
- Billet Aluminum CNC machined fill neck rugged and durable
- OEM style brass petcock drain much better than other plastic one on eBay
- Carefully crafted to exceptional OE standards for precise fit.
- All New Radiators - 100% leak tested.
- The tanks are 100% welded by TIG.
We are an eBay seller specializing in the sale of auto parts, mainly selling various Rows of Radiators(2,3,4,5), Intercoolers, pipe Kits, Wheel Spacers, oil cans ect.We Sell auto parts for various models, such as BMW, Mercedes-Benz, Nissan, Mitsubishi, Jeep, etc. If you don't know if our products are suitable for your model, you can contact us. In China we have our own production line with more than 20 years of mature production.
(Notes:) If you also want to buy a fan or thermostats kits or some other items,please contact with us,we can give you some discount.Also we have warranty for lifetime(if something is wrong since you buy for one year,we accept free resent,more than one years you just need to pay for the postage).Any questions,please feel free to contact us.
