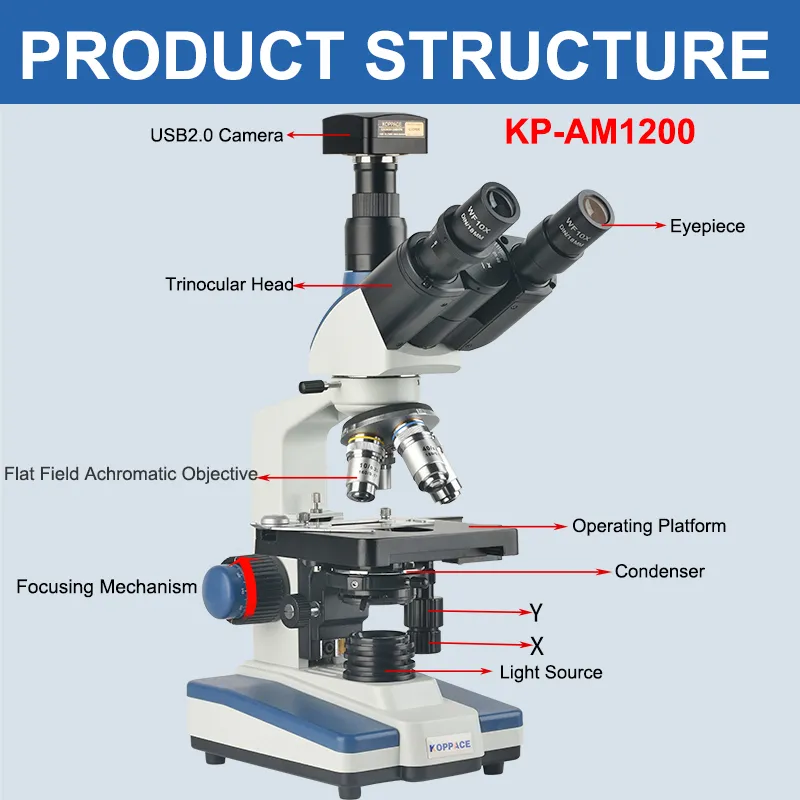

| Model | KP-AM1200 |

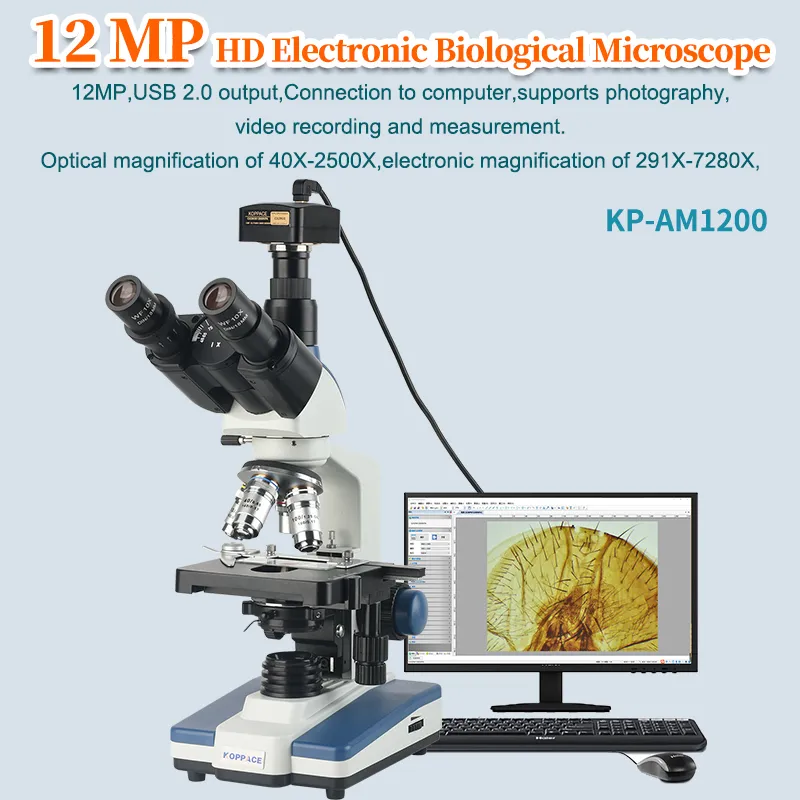

| Optical Magnification | 40X-2500X |
| Electronic Amplification | 291X-7280X |
| Observation Tube | Hinge Trinocular,30 Degrees Inclined,360 Degrees Rotate Interpupillary Distance Adjustment Range 48mm-75mm |
| Eyepiece | Wide-angle Eyepiece WF10X/DIN18mm,WF25X/8mm |
| Objective Lens | Flat Field Achromatic Objective 4/0.1 WD 36.5mm 10/0.25 WD 0.76mm 40/0.65 WD 0.53mm 100/1.25 WD 0.13mm (Oil Mirror) |
| Converter | Four Holes Conversion |

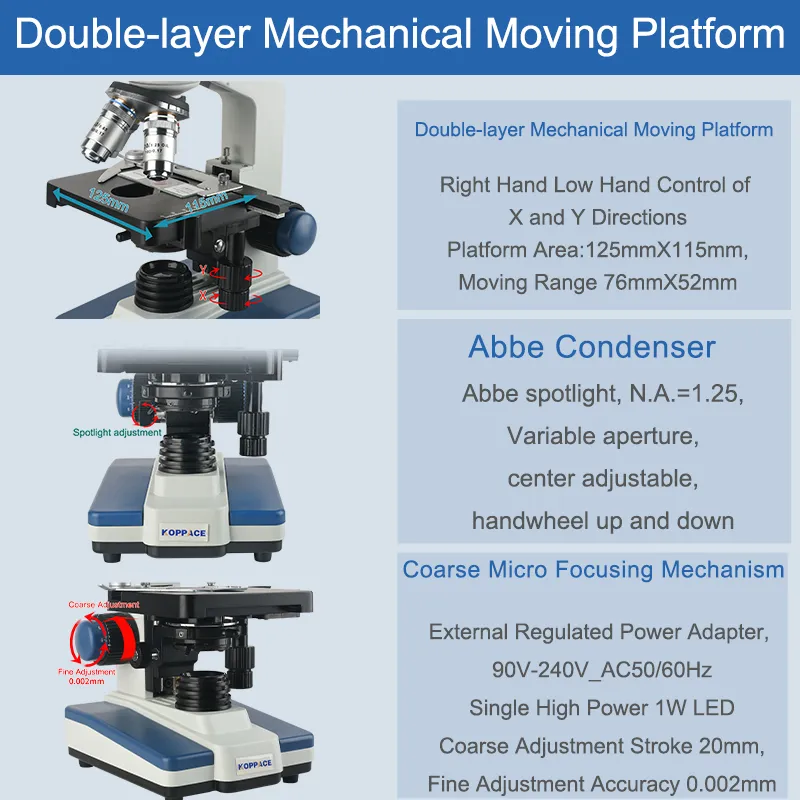

| Operating Platform | Right Hand Low Hand Control of X and Y Directions Platform Area:125mmX115mm,Moving Range 76mmX52mm |
| Coarse Micro Focusing Mechanism | Coarse Adjustment Stroke 20mm,Fine Adjustment Accuracy 0.002mm |
| Condenser | Abbe Condenser,N.A.=1.25,With Variable Aperture |
| Light Source | LED Cold Light Source 1W |
| Power | External Regulated Power Adapter,85V-240V_AC50/60Hz |
| Trinocular Interface | 1X Trinocular Interface (Can be Connected to 25mm Camera and 23.2 Electronic Eyepiece) |

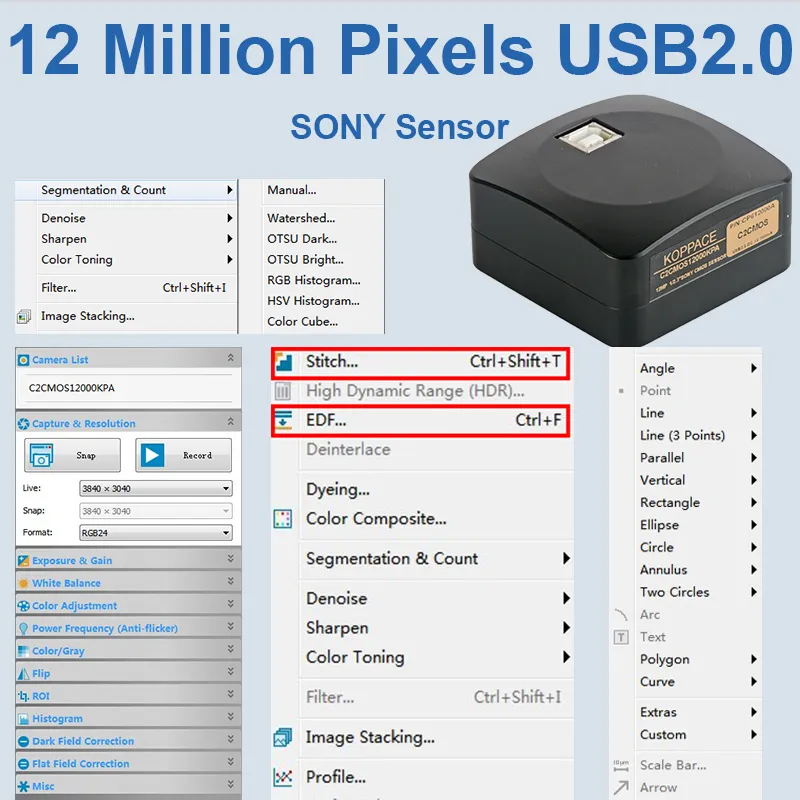

| Pixel | 12 Million Pixels |
| Output Method | USB2.0 |
| Sensor | 12M/Sony/IMX577(C) |
| Sensor Size | 1/2.3“ (5.95x4.71) |
| Resolution Frame Rate | 20@3840x3040,20@1920x1520,20@960x760 |
| Pixel Size | 1.55μmx1.55μm |
| Exposure Time | 0.1ms~2000ms |
| Exposure | Auto/Manual |
| White Balance | Lock White Balance,Area White Balance,Gray Level |
| Image Adjustment | Hue,Saturation,Brightness,Contrast,Sharpness,Permeability,DPC |
| Operating System | Microsoft Windows/Vista/7/8/10/11(32 & 64 bit)OS X (Mac OS X), Linux |
| File Save | Can Set File Name,Save Pictures With Time Format,Save Path Selection |

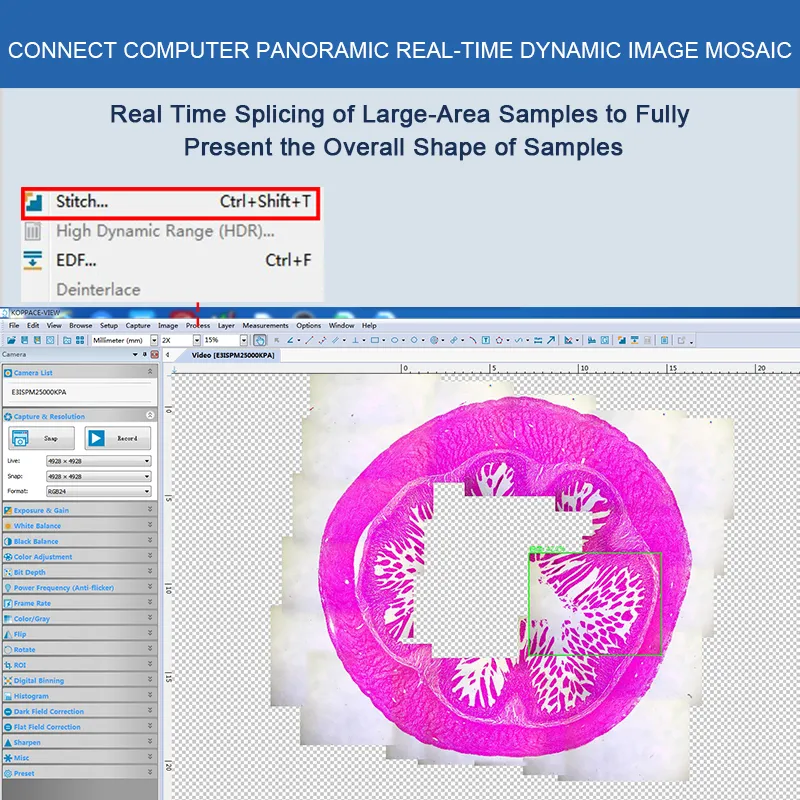

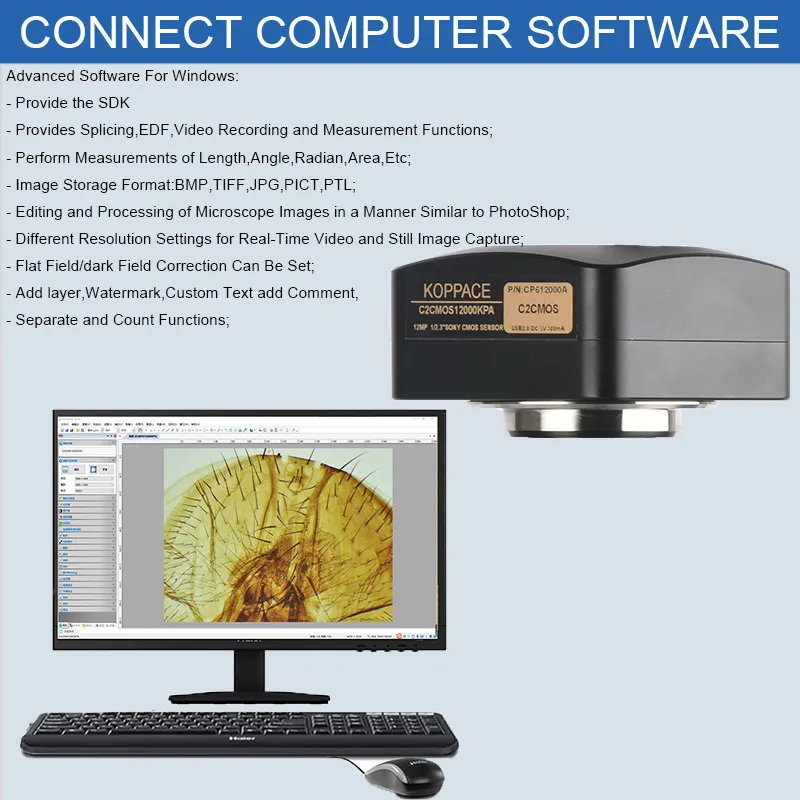

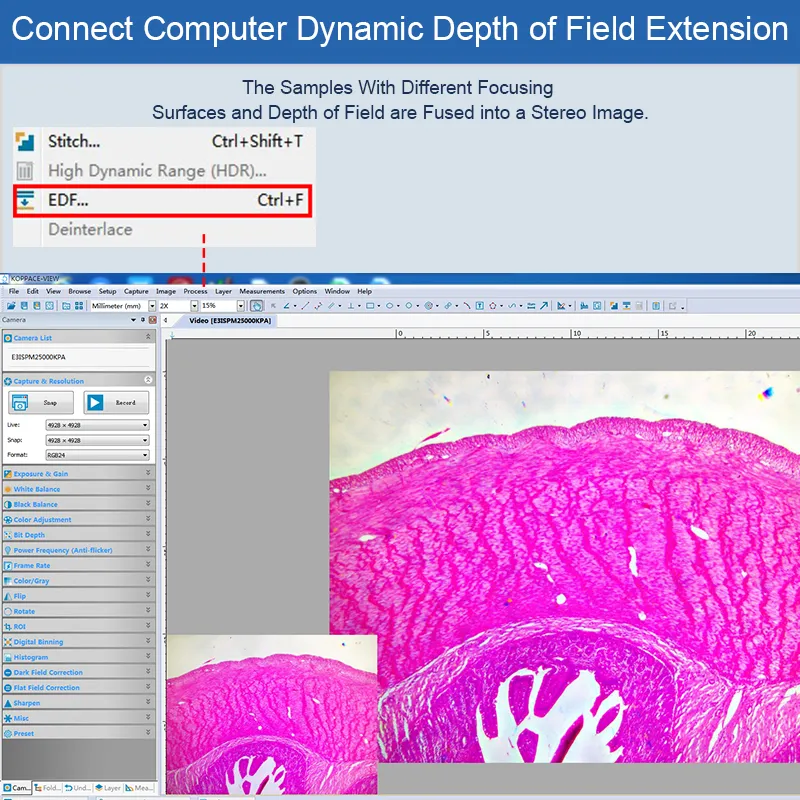

| Camera Function | Advanced Software For Windows: - Provide the SDK - Provides Splicing,EDF,Video Recording and Measurement Functions; - Perform Measurements of Length,Angle,Radian,Area,Etc; |

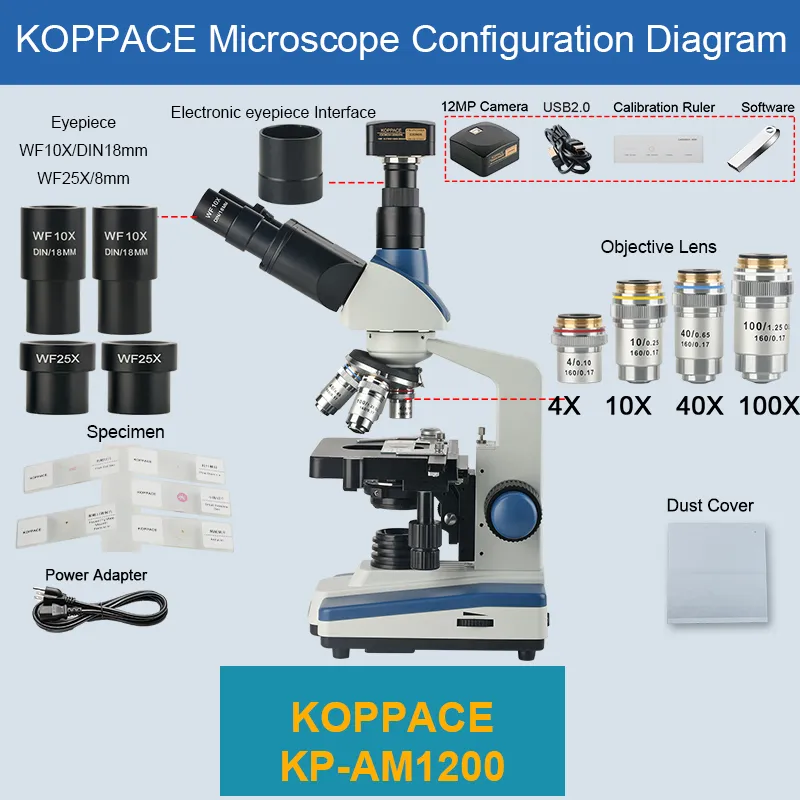

| Packing List | 1、Eyepiece WF10X/DIN18mm *2 2、Eyepiece WF25X *2 3、Objective Lens 4X *1 4、Objective Lens 10X *1 5、Objective Lens 40X *1 6、Objective Lens 100X *1 7、Trinocular Microscope Body *1 8、Electronic Eyepiece Interface *1 9、Power Adapter *1 10、5 Pieces Specimen *1 11、Dust Cover *1 12、12MP USB2.0 Camera *1 13、USB2.0 Line *1 14、Software *1 |
| Note: | 1、100X (oil mirror),Because We Can Not Deliver liquid Products With Express Delivery,We Will Remove Immersion Oil. 2、This Product Does Not Contain Computer; 3、This Product is Through the USB Interface Connected to the Computer for Use,We Provide Free Professional Image Software; |
******************************************************************************************************************************************************
