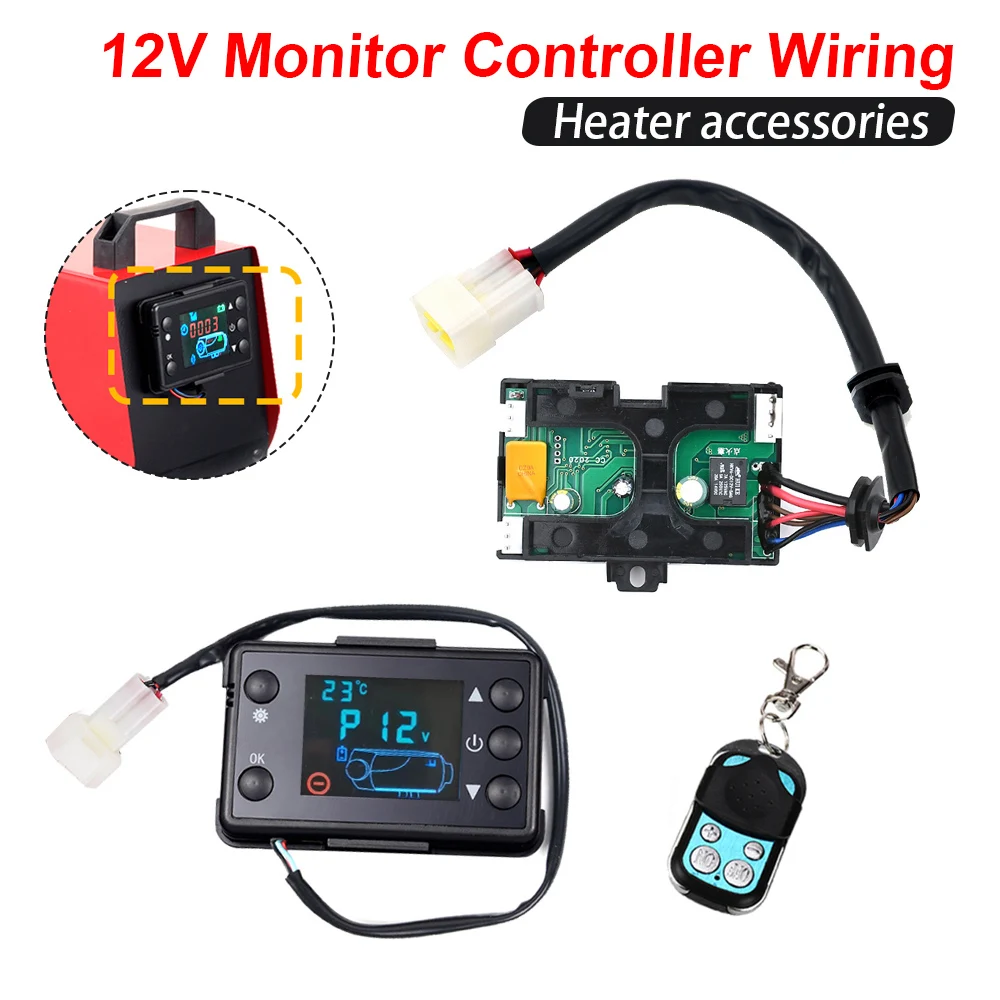

12V air diesel heater LCD display switch control, controller board main board, remote control, connecting harness

Important Note:

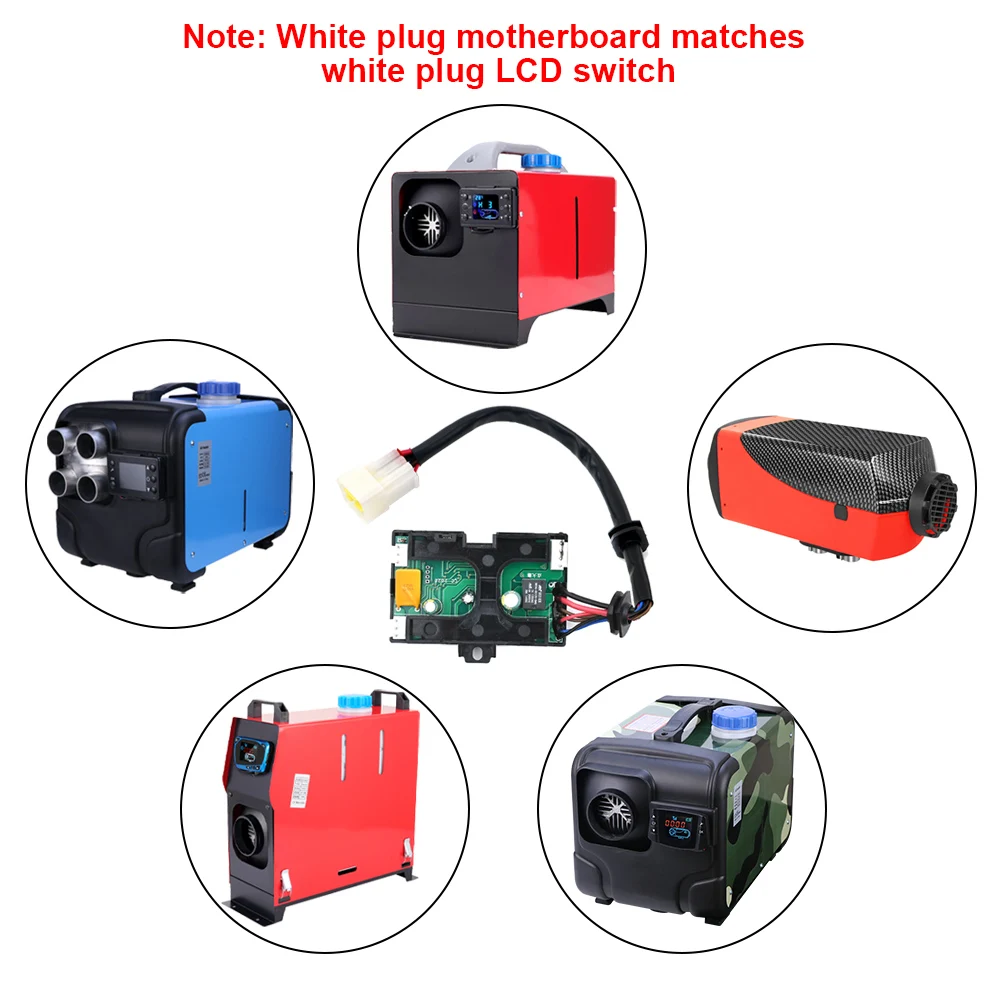

If your original motherboard and controller look the same as ours, all white plugs. then you can buy a motherboard or a controller to replace your broken one. If your original motherboard and controller are different from ours, you need to buy motherboard and controller together to replace your broken ones. Or it will not fit for your heater.

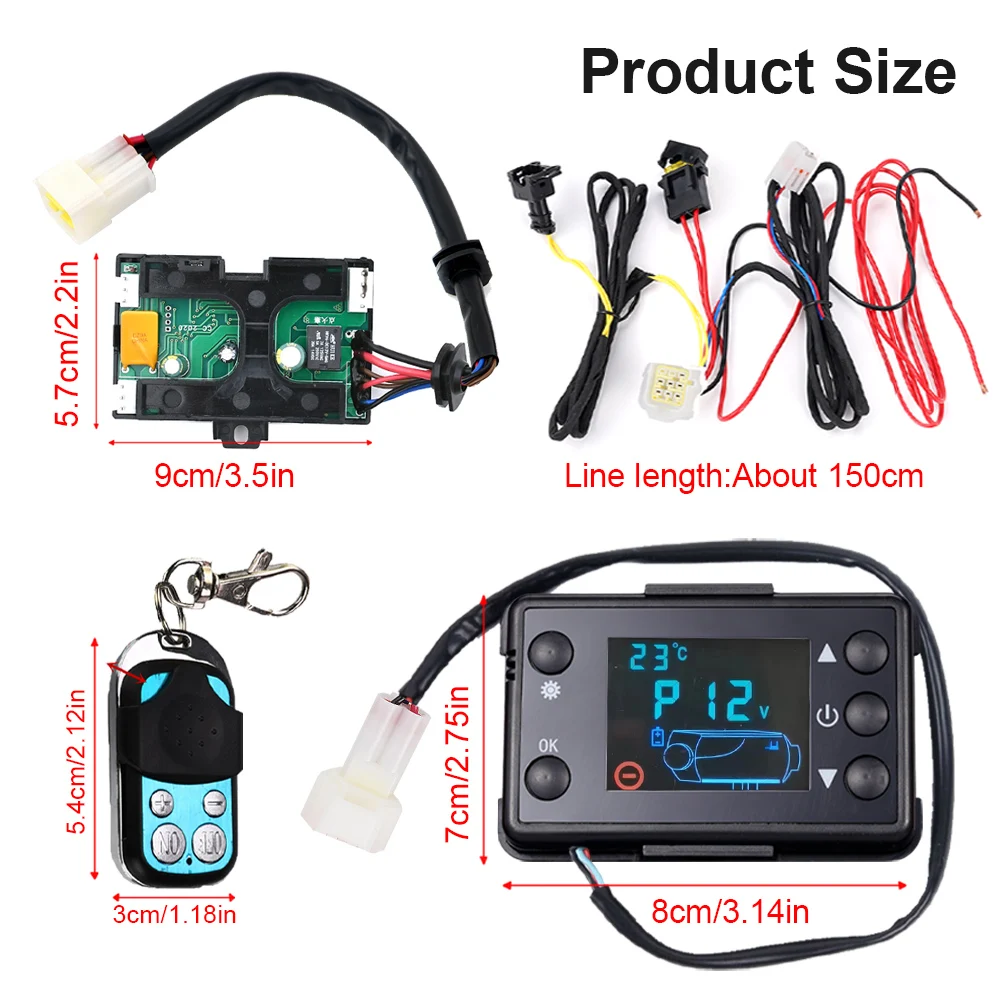

Specification:

Color: white and black

Remote distance: about 30m

Voltage: 12V

LCD Connector pin: 3 Pins

Remote Control: 4 Button

LCD Switch：5 Button

Fitment:

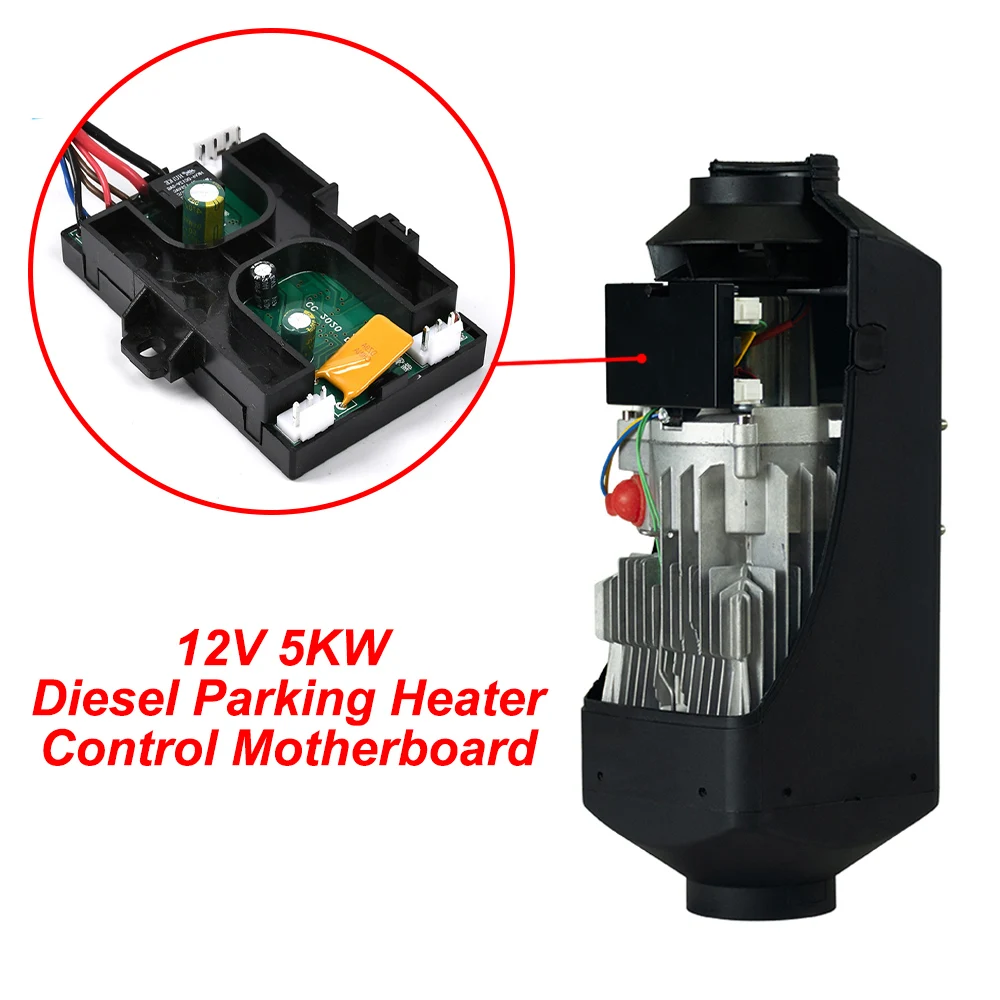

For 5KW Air Diesel Parking Heater

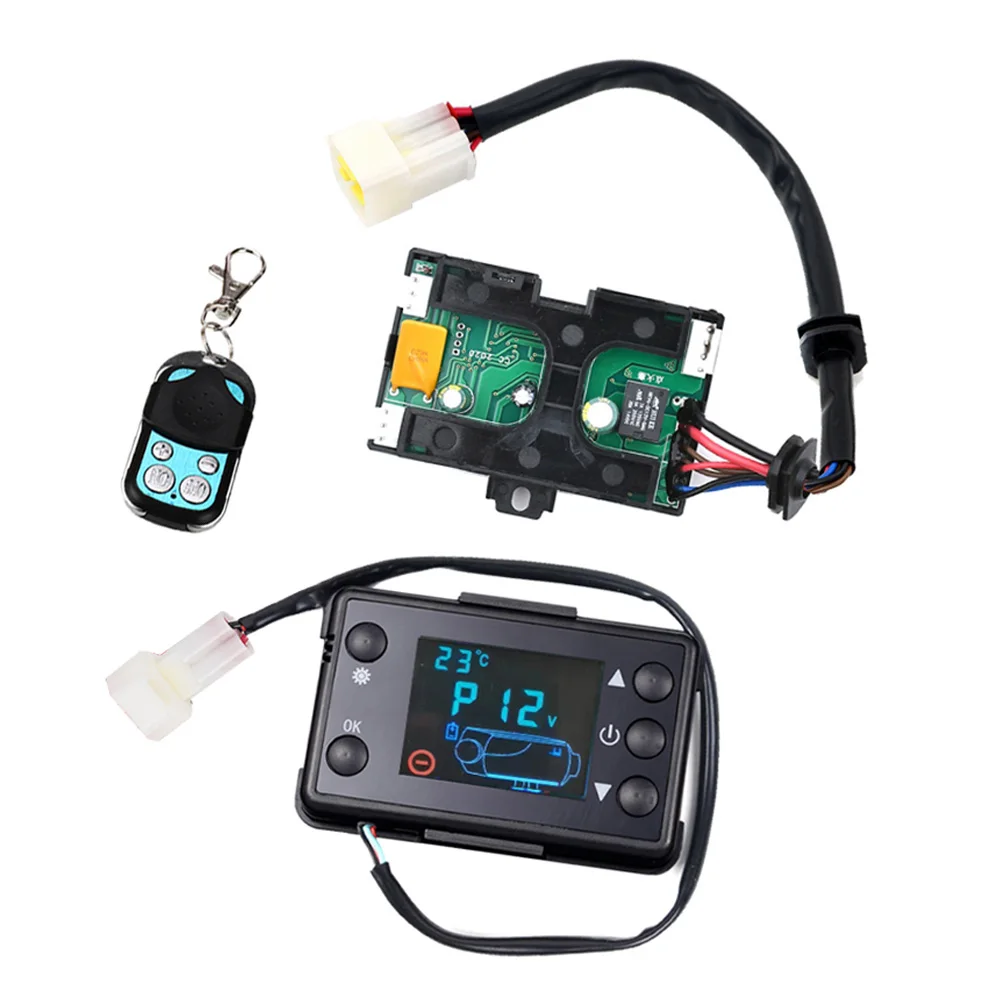

Package Included:

1xRemote

Or 1x Mother Board

Or 1x LCD Switch

Or 1x Wire Harness

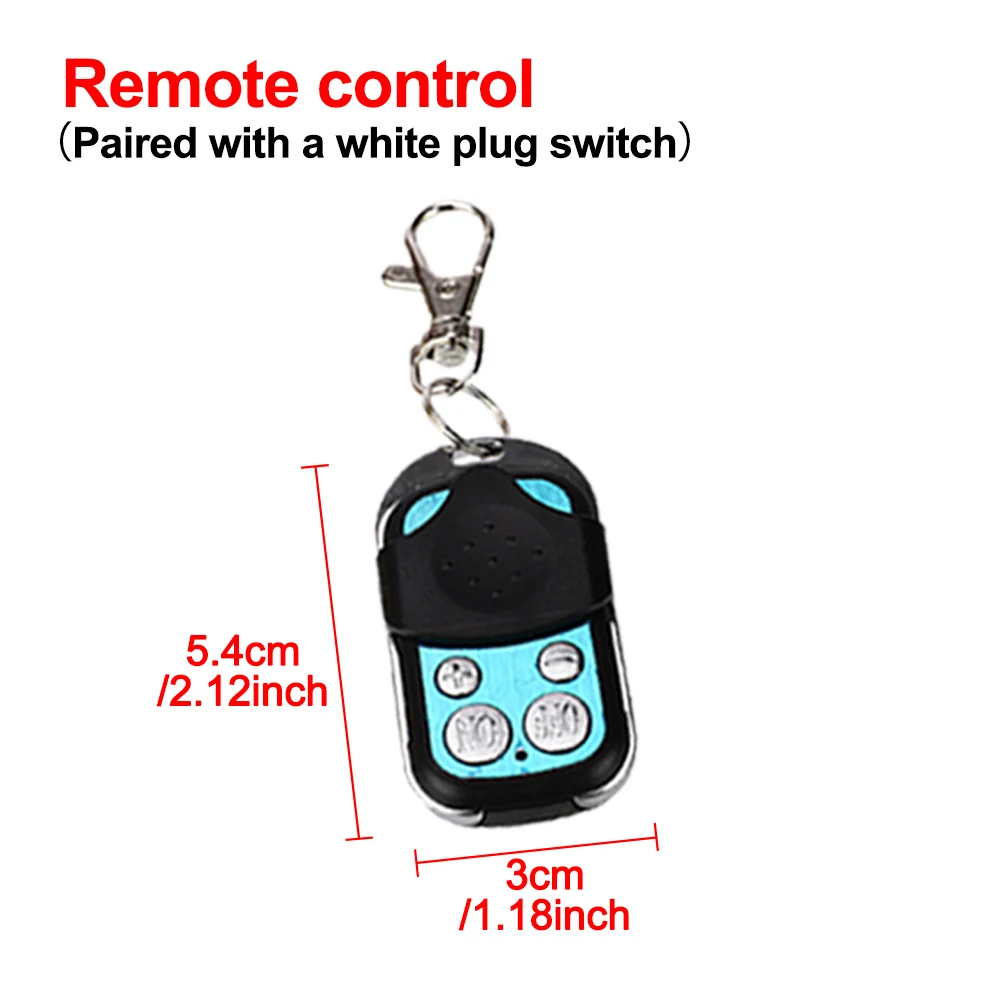

remote control code-matching operation

In shutdown state,simultaneous long press “on/off”button and“right”button for two seconds,enter remote control code as follows: “OC 1”

1）Press “left” button or“right” button to adjust the third digit value for remote control coding,the numerical range is 1-5,corresponding five remote controls.

2）Choose the Code of Remote Controller，arbitrarily press a key of the remote control,Machine Coding Successfully and Exit Coding State.

3）Short press “set” button to exit remote control code.*Remote Control Requirements:433mhz,24-bit code.

Note:

1. There is a transparent plastic protective film on the screen that can be removed before using.
