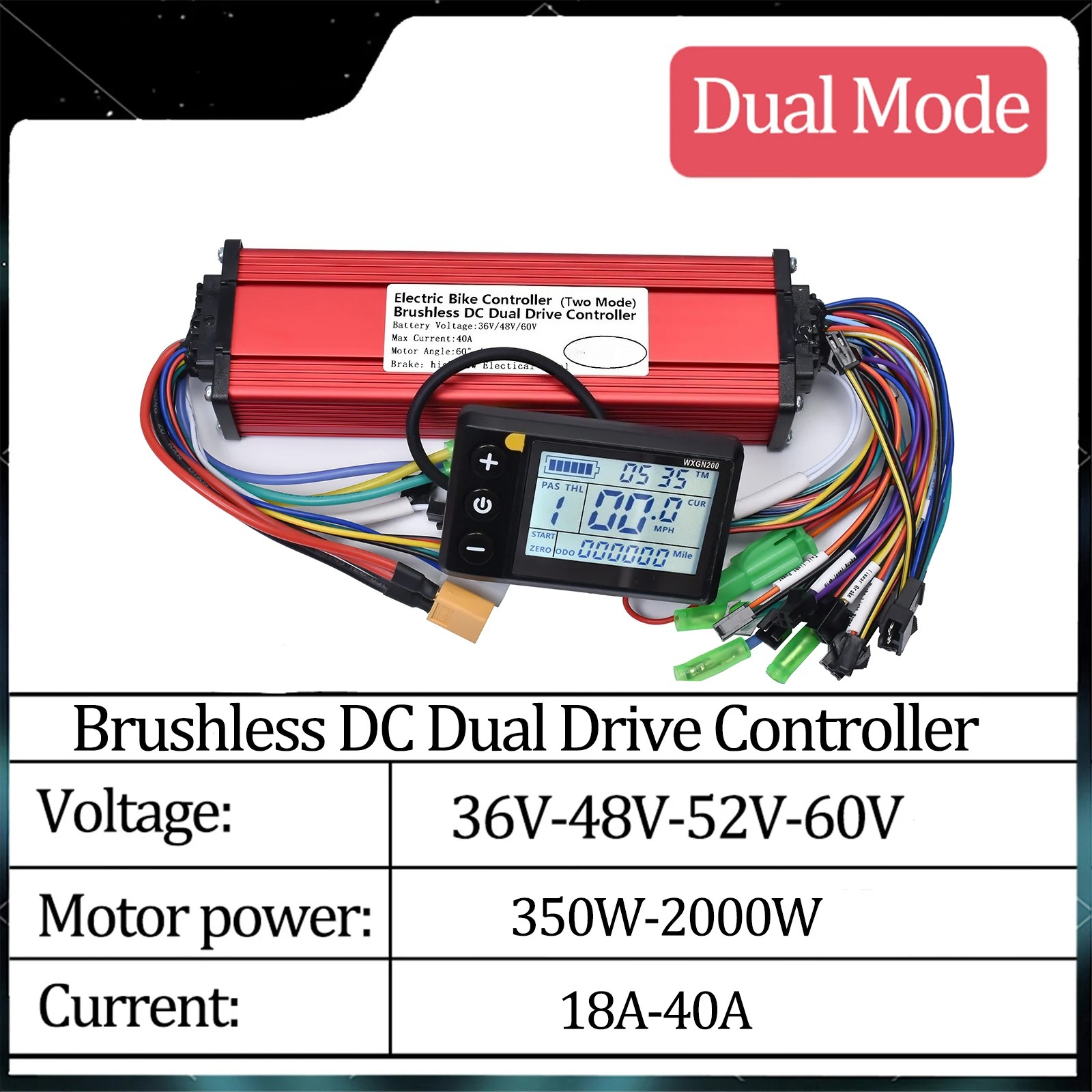

【Product parameters】

• Color:Red

• Condition: 100% brand newItem

• type: Square Wave Motor Controller

• Material: Aluminium alloy

• Voltage: 36V-48V-60V

• Weight: .584g

• Power: 350W-2000W

• Current limit:18A-40A

Tips

• This color is the color under strong light/sunlight, it will change during the light period, if you mind, you don't need to buy it. Thank you so much.

【About current and power】

1. The single drive current is rated at 18A, and the maximum current is 20A. The dual drive current is rated at 36A, and the maximum current is 40A.

2. About power. The power can be divided into calculated power and rated power, and you can refer to the controller current for selection.

3. The single drive rated power is 350W-500W, the calculated power is 1000w, the dual drive rated power is 500W

-1000w, and the dual drive power is 2000w.

【Line Description】

1. Motor phase line

2. LCD

3. Low-level brake

4. PAS

5. Throttle

6. Reverse

7. Hall sensor

8. Linear brake

9. Brake light

10. High-level brake

11. Tail light

12. Smart learning line
