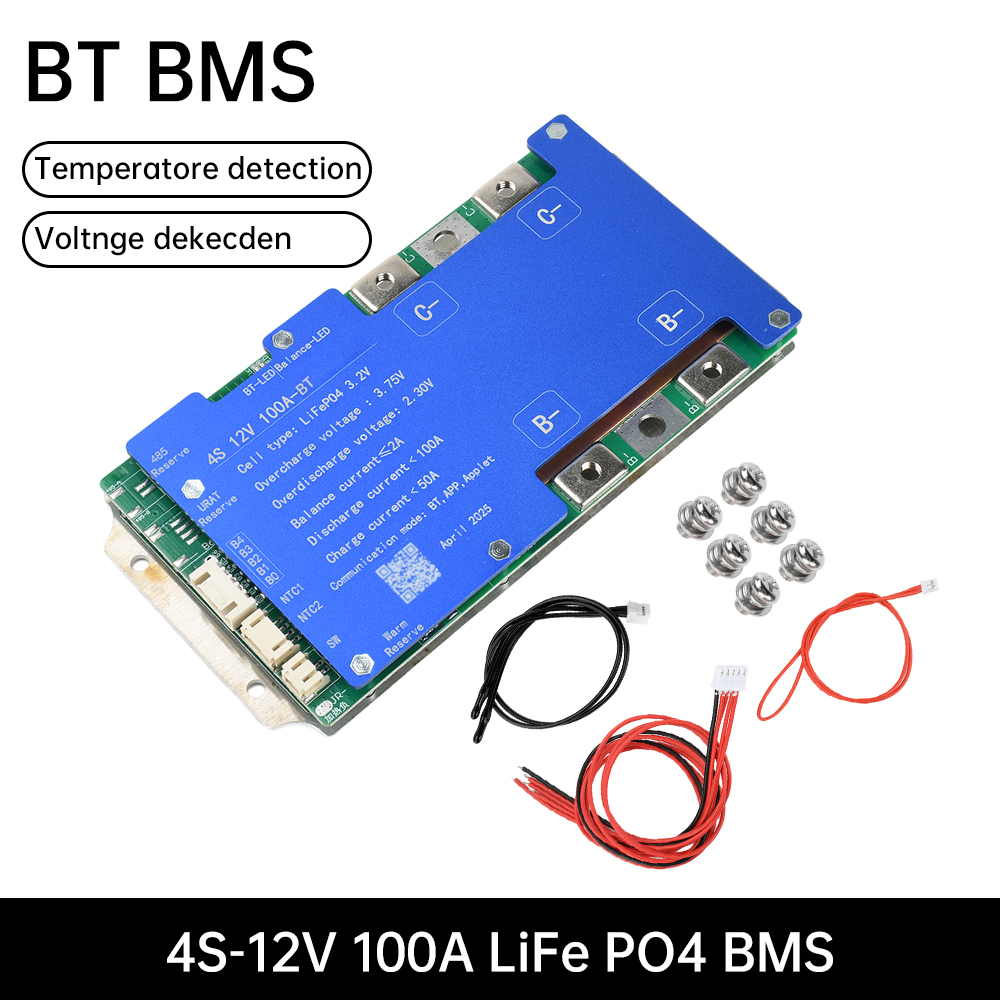

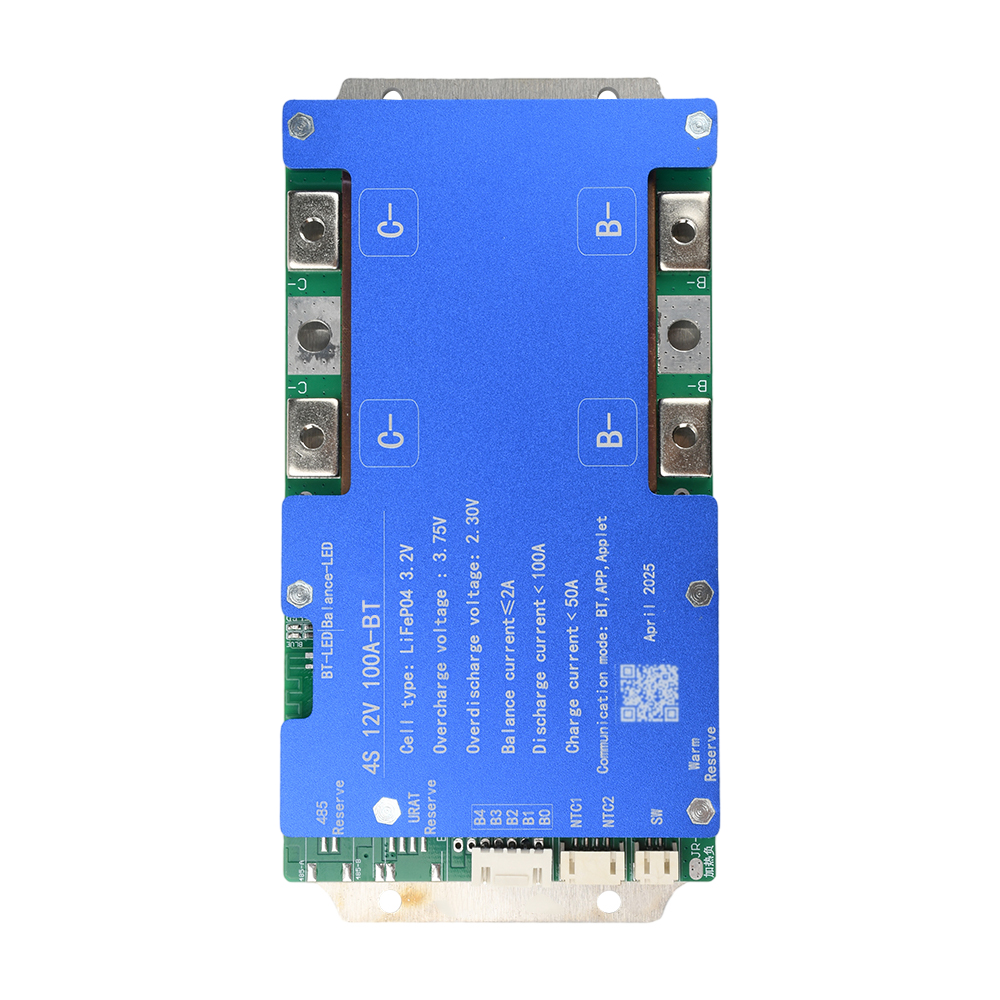

4S 8S 100A 200A Smart Bluetooth BMS APP LiFePO4 Battery Balance Protection Board

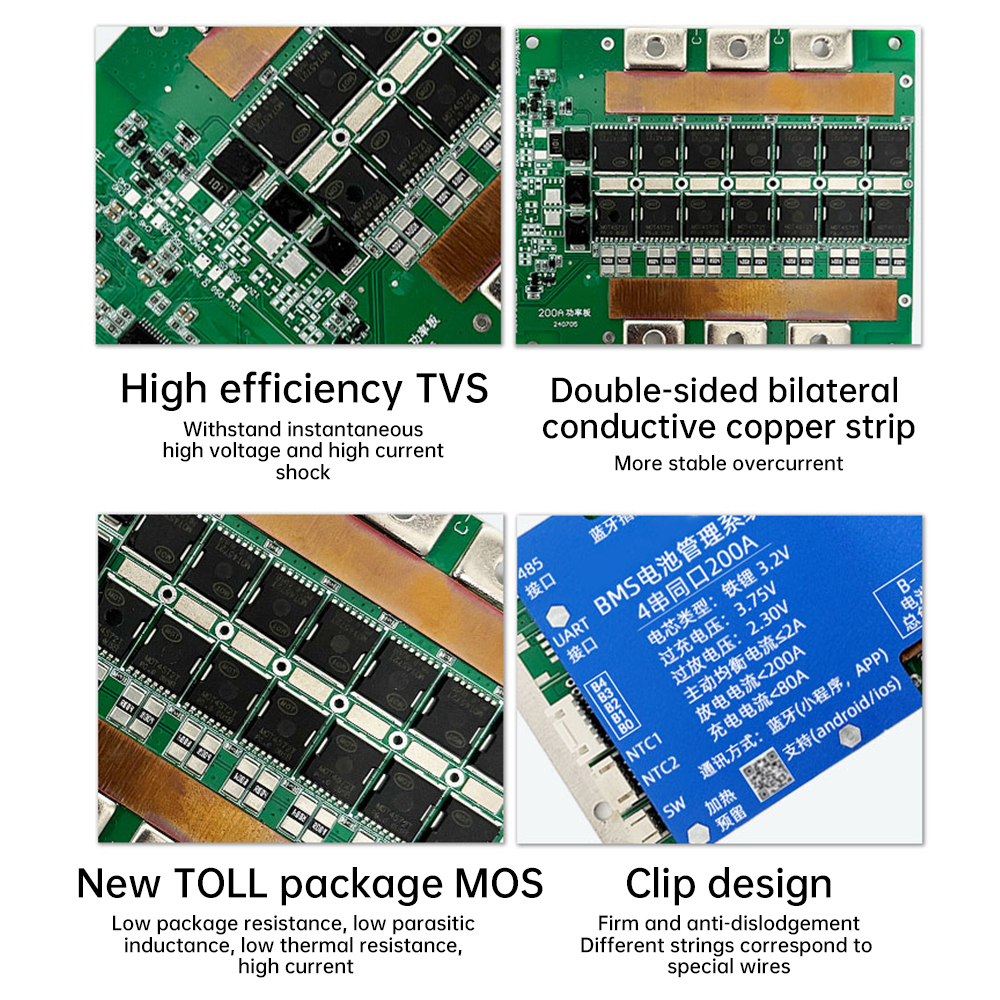

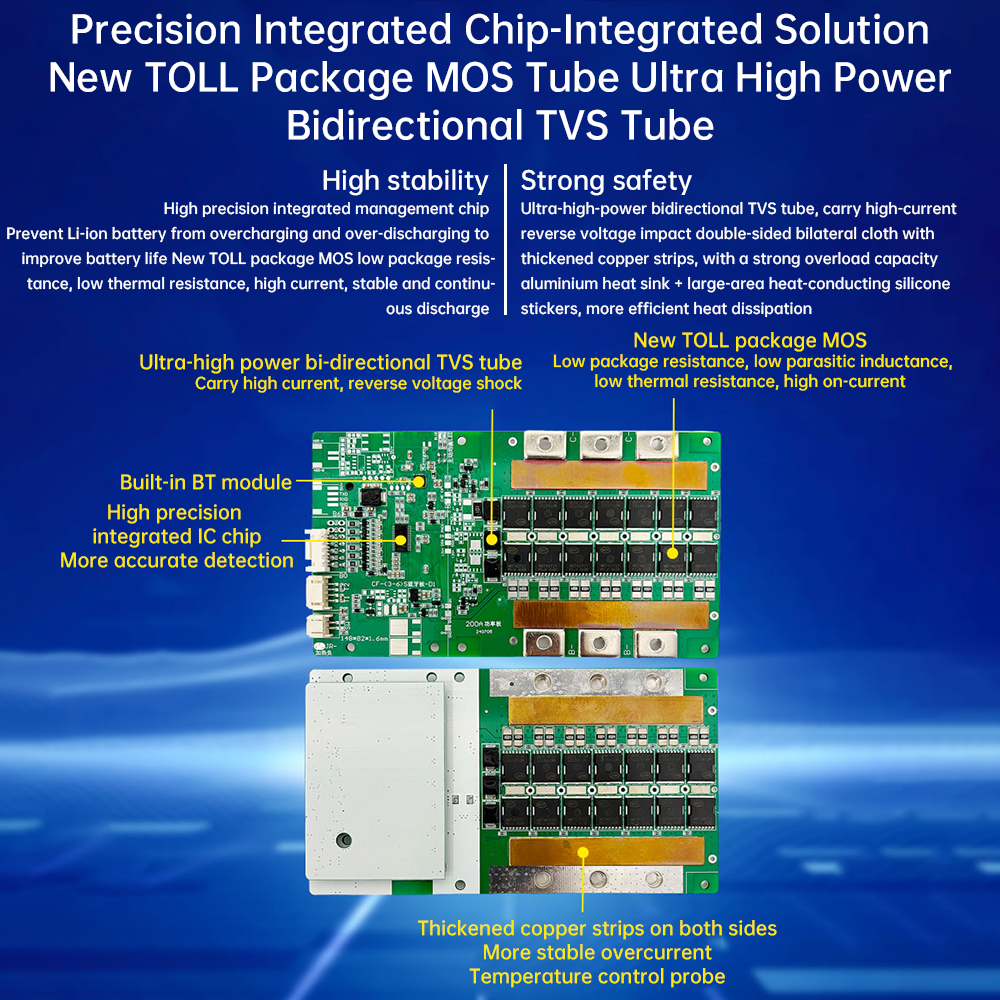

1. New TOLL package MOS with low packaging resistance, low thermal resistance, high current, stable and continuous discharge
2. High precision integrated management chip prevents overcharging and overdischarging of lithium batteries, improving battery life
3. Ultra high power bidirectional TVS tube, capable of withstanding high current reverse voltage impact, and thick copper strip with strong overload capacity
4. The lithium battery pack comes with a balancing function, which can balance the pressure difference and extend the service life of the battery cells

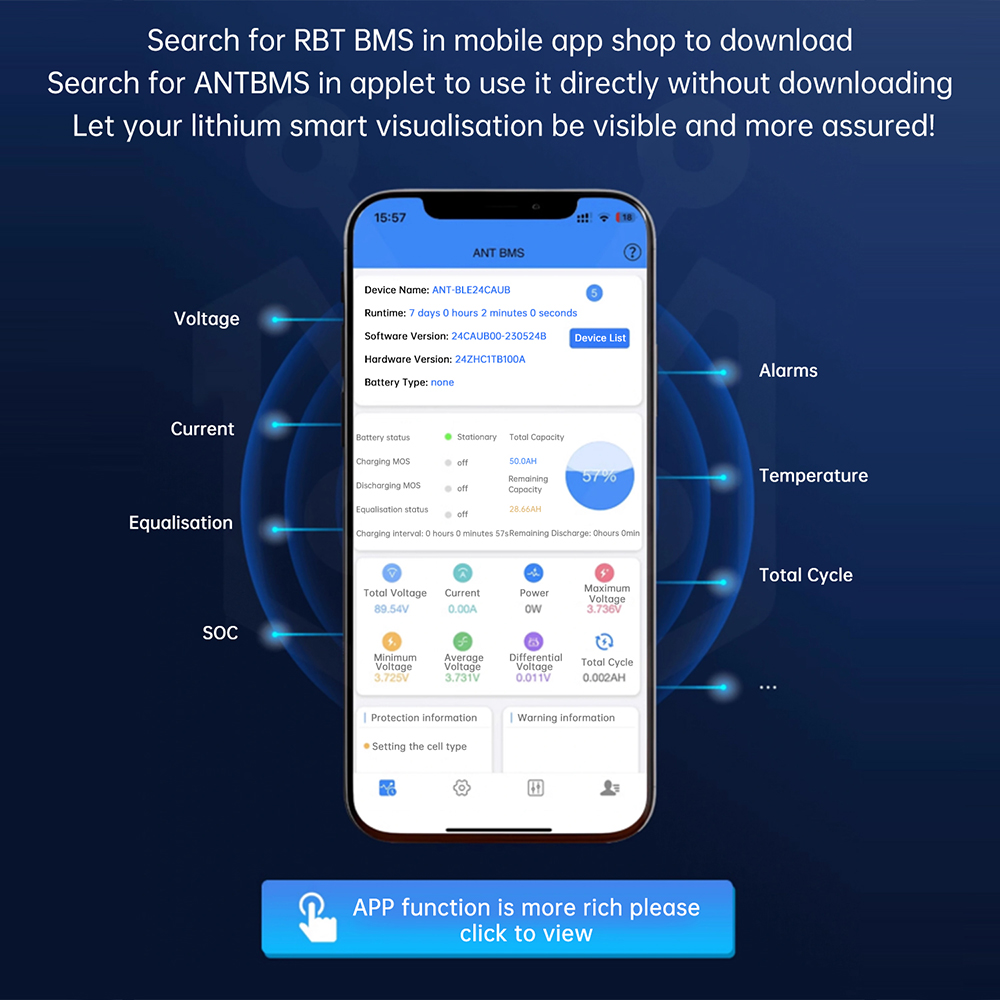

5. APP intelligent monitoring, visualization of battery pack information, parameters can be adjusted as needed in the APP

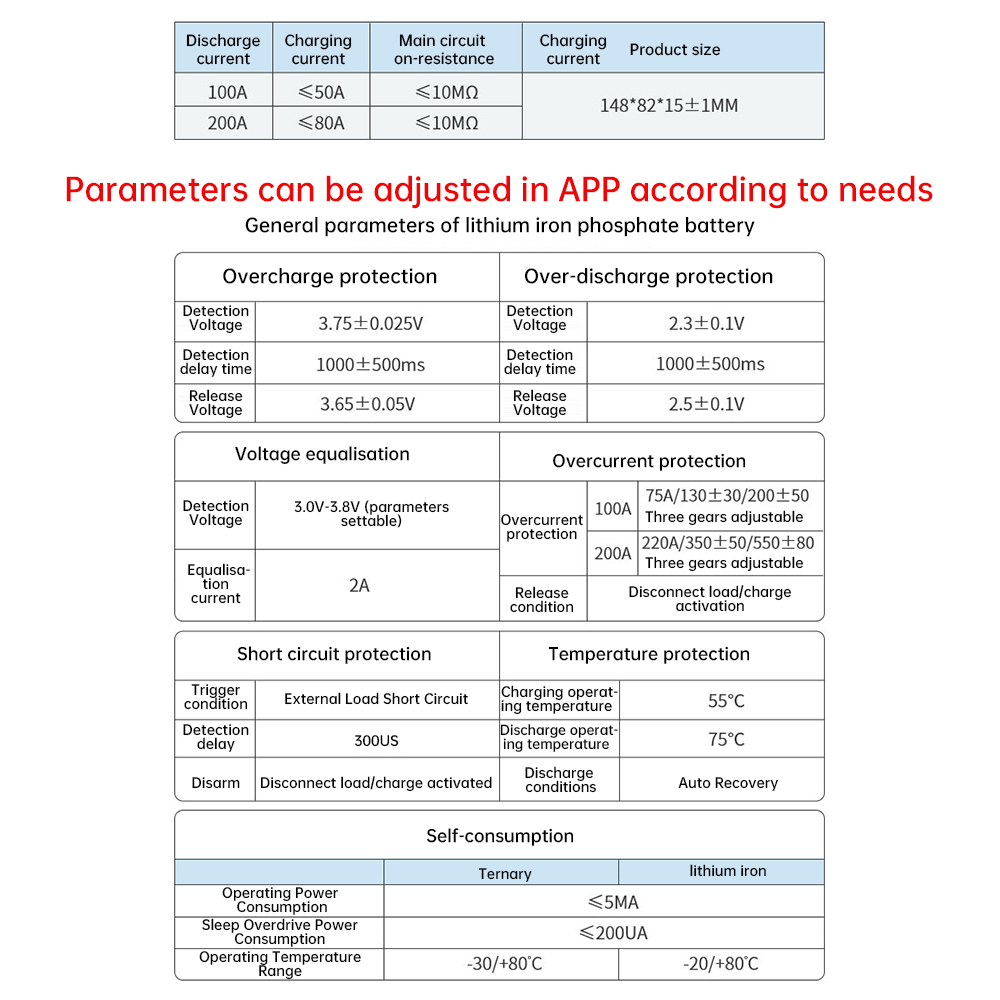

Product specifications: 4S 100A/4S 200A/8S 100A/8S 200A (optional)
Overcharge protection:
Detection voltage: 3.75 ± 0.025V
Detection delay: 1000 ± 500ms
Release voltage: 3.65 ± 0.05V
Detection voltage: 2.3 ± 0.1V
Detection delay: 1000 ± 500ms
Release voltage: 2.5 ± 0.1V
Detection voltage: 3.0V-3.8V (parameters can be set)
Balanced current: 2A
100A: 75A/130 ± 30/200 ± 50 Three speed adjustable
200A: 220A/350 ± 50/550 ± 80 Three speed adjustable
Release condition: Disconnect load/charge activation
Trigger condition: Short circuit of external load
Detection delay: 300US
Release condition: Disconnect load/charge activation
Charging working temperature: 55 ° C
Discharge working temperature: 75 ° C
Release condition: Automatic recovery

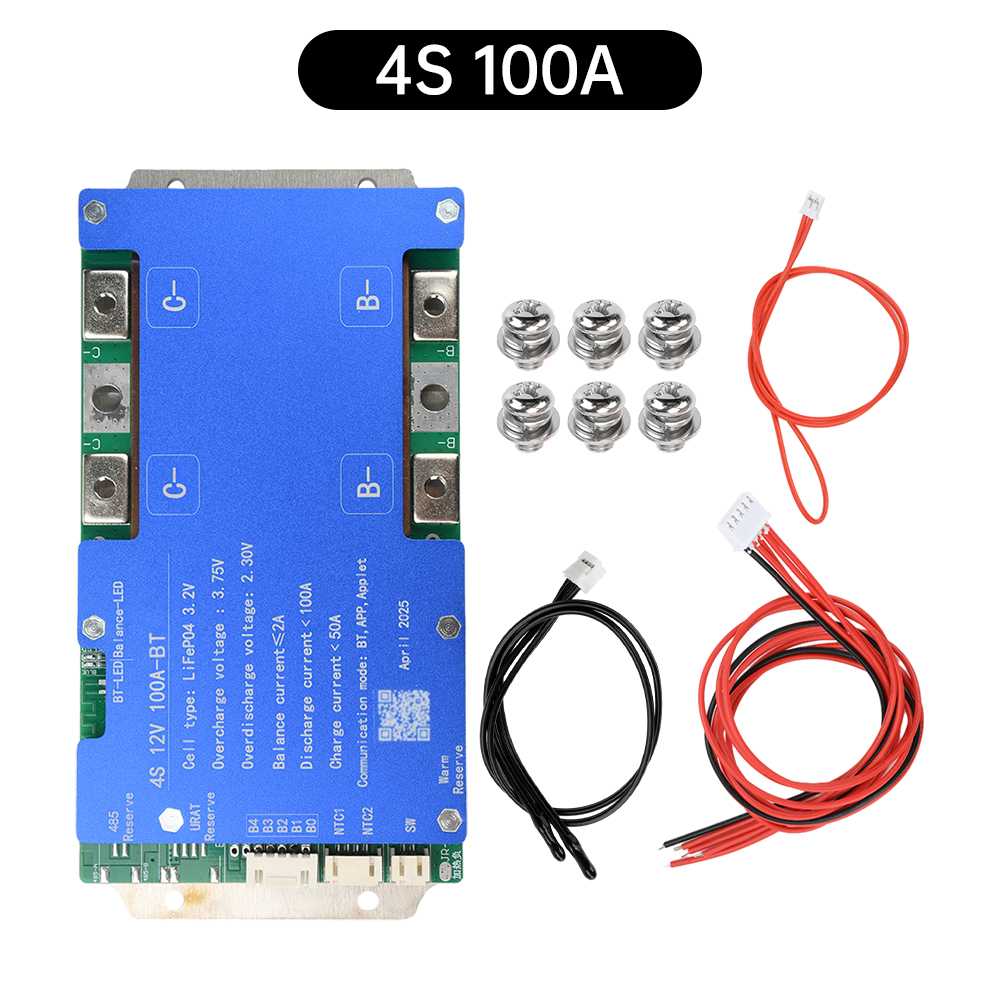

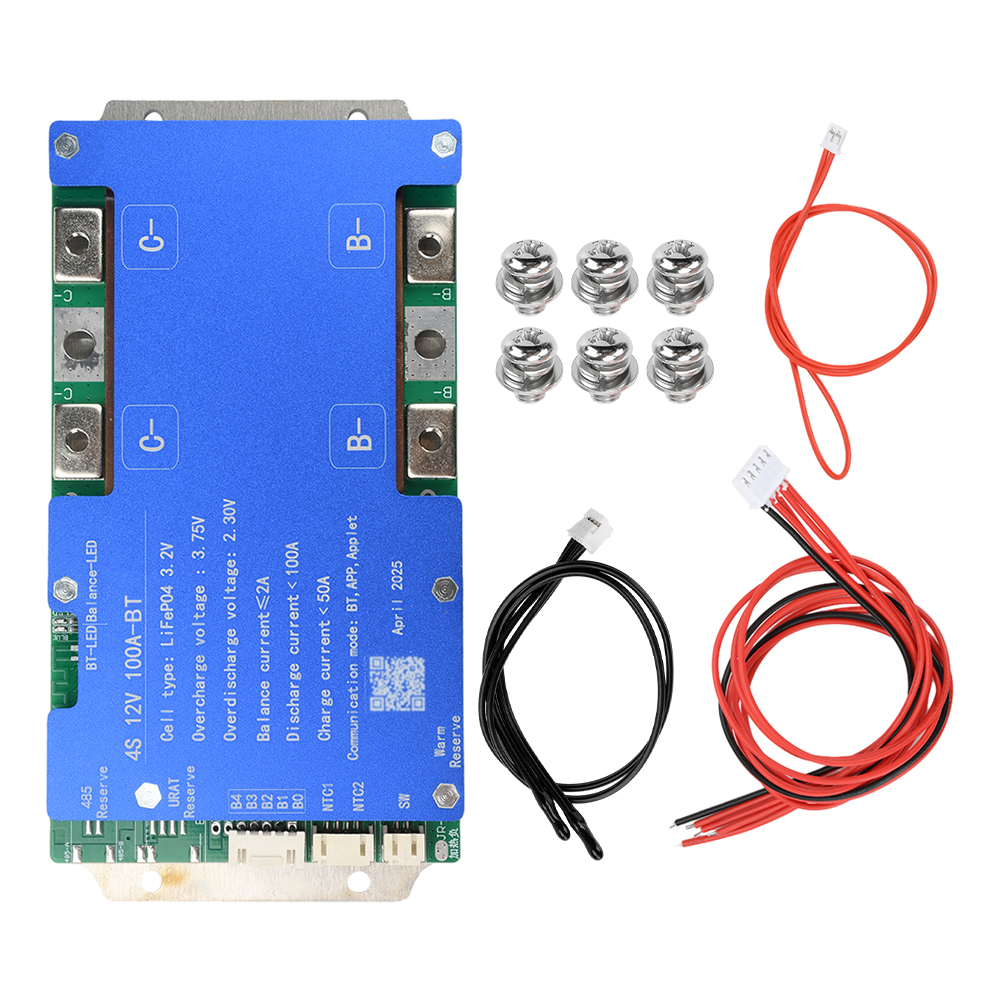

Protective board * 1 (optional style)
SW weak current switch wire * 1
NTC temperature control cable * 1
Cable harness * 1
