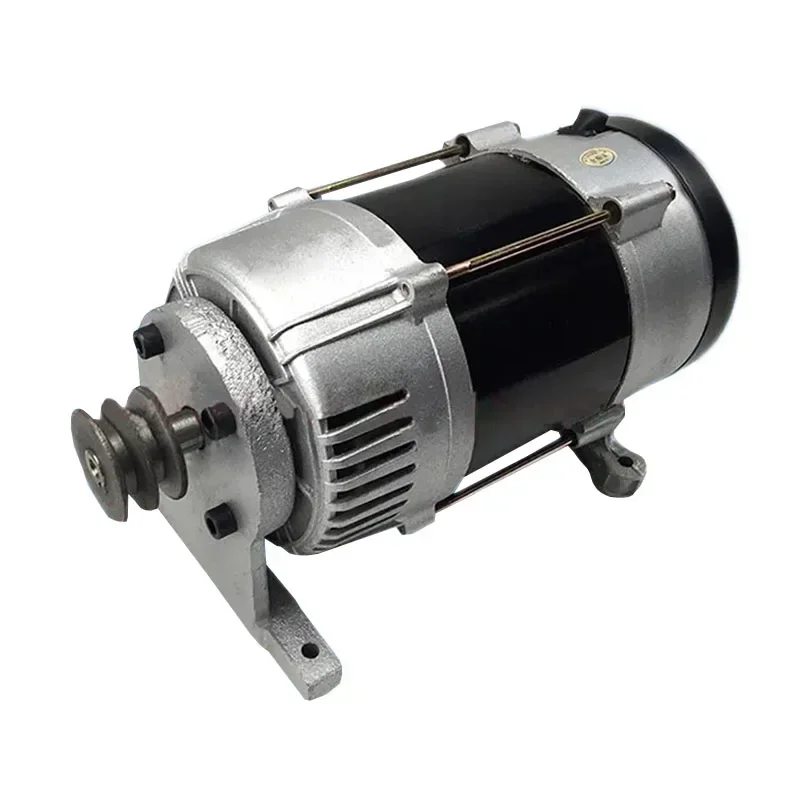

Small Diesel All-Copper Pulley Generator 3/5/6/8/10 kW Single-Phase/Three-Phase 220/380V Gasoline

Small Generator Specifications Table

2 kW Model

Power (kW): 2 kW

Rated Speed: 3000 rpm

Pulley Type: A-groove (Single-groove)

Voltage (V): 230 V

Current (A): 8.69 A

Weight (kg): 18–21.5 kg

Dimensions (mm): Approx. 370 × 220 × 210

2.5 kW Model

Power (kW): 2.5 kW

Rated Speed: 3000 rpm

Pulley Type: A-groove (single groove)

Voltage (V): 230V

Current (A): 10.8A

Weight (kg): 18–21.5 kg

Dimensions (mm): Approx. 370 × 220 × 210

3 kW Model

Power (kW): 3 kW

Rated Speed: 3000 rpm

Pulley Type: A-groove (Single-groove)

Voltage (V): 230V

Current (A): 13.0A

Weight (kg): 18–21.5 kg

Dimensions (mm): Approx. 370 × 220 × 210

5 kW Model

Power (kW): 5 kW

Rated Speed: 3000 rpm

Pulley Type: B-groove (double groove)

Voltage (V): 231V

Current (A): 21.7A

Weight (kg): 32–40 kg

Dimensions (mm): Approx. 470 × 230 × 230

6KW Model

Power (kW): 6 kW

Rated Speed: 3000 rpm

Pulley Type: B-groove (double groove)

Voltage (V): 231 V

Current (A): 26 A

Weight (kg): 32–40 kg

Dimensions (mm): Approx. 470 × 230 × 230

7 kW Model

Power (kW): 7 kW

Rated Speed: 3000 rpm

Pulley Type: B-groove (double groove)

Voltage (V): 232 V

Current (A): 30.4 A

Weight (kg): 32–40 kg

Dimensions (mm): Approx. 470 × 230 × 230

8KW Model

Power (kW): 8 kW

Rated Speed: 3000 rpm

Pulley Type: B-groove (double groove)

Voltage (V): 232 V

Current (A): 34.7 A

Weight (kg): 32–40 kg

Dimensions (mm): Approx. 470 × 230 × 230

10 kW Model

Power (kW): 10 kW

Rated Speed: 3000 rpm

Pulley Type: B-groove (double groove)

Voltage (V): 232 V

Current (A): 39.1 A

Weight (kg): 32–40 kg

Dimensions (mm): Approx. 470 × 230 × 230

Notes

Note: These are specifications for our small generator; actual power output is also significantly influenced by the engine.
