Wiseco Piston 0.50mm Over 65.50mm 12:1 #4289M06550 fits Honda ATC200/TRX200

Product Details

  • Dedicated forging
  • Light weight and superior strength
  • Dome design
  • Improved flame travel
  • Chrome plated piston pin
  • Reduced friction/scuff resistant
  • Horizontal slot pin oiling
  • Pressure seal groove
  • Maximum ring seal
  • Skirt coated Armor Glide
  • Dedicated rings
  • Maximum compression and oil control
  • Race-Ready dome finish
  • Smooth edges for improved combustion flow

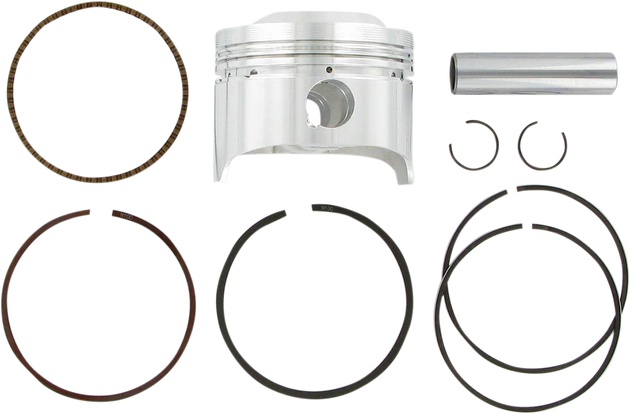

  • All Wiseco piston kits include 1 piston, 1 ring set, 1 wristpin and 2 circlips. Unless otherwise noted, top-end bearings, gaskets, and sleeves are not included.
  • Wiseco piston kits are sold by application and bore size. To ensure you receive the correct piston kit for your application, you must know the standard bore size to make sure you are ordering either the standard or correct amount of oversize that you need. If you have any questions, please email us.
Wiseco Part#: 4289M06550
Product Type: Single Pistons

Specifications:

Bore - Standard: 65.00mm
Bore - Oversize: 0.50mm
Displacement: 194cc
Bore - Actual: 65.50mm
Note: RACE USE ONLY
Stroke: 57.80mm
Compression Ratio - Actual: 12:1

Item Contents:

2579XC - 65.50 MM RING SET
CW15 - ROUND WIRE PIN LOCKS 15MM (PAIR)
S522 - PIN-15MM X 2.2047"-UNCHROMED

Fit Guide

Model
Piston
Compression Ratio
12:1
Country of Origin
USA
Number of Pistons Included
1 Piston
Size Over Standard
0.5 mm Larger than Stock

Product Fitment

This item fits the following applications:

Honda ATC200 1981-1983
Honda ATC200E Big Red 1982-1983
Honda ATC200ES Big Red 1984-1985
Honda ATC200M 1984-1985
Honda ATC200S 1981-1986
Honda ATC200X 1983-1985
Honda TRX200 FourTrax 200 2x4 1981-1985
