CMEAP

Maxspeedingrods 2.5" Leveling Kit w/ Shocks For Ram 2500 3500 4WD 2014-2024








Fitment:



  • For Ram 2500 4WD 2014-2024
  • For Ram 3500 4WD 2013-2024

Feature:

  • High-pressure nitrogen charged twin-tube shock absorber with high durability.
  • Rubber bushings for better absorption.
  • 50mm Shock Body
  • 35KN Tensile Strength.
  • Precision Welding.
  • Power coated surface：provides superior corrosion resistance.
  • Increase ground clearance to level the front with the rear of the vehicle
  • Note:
  • Does NOT fit Power Wagon models.
  • Does not fit dually models
  • Does not fit rear leaf spring suspension

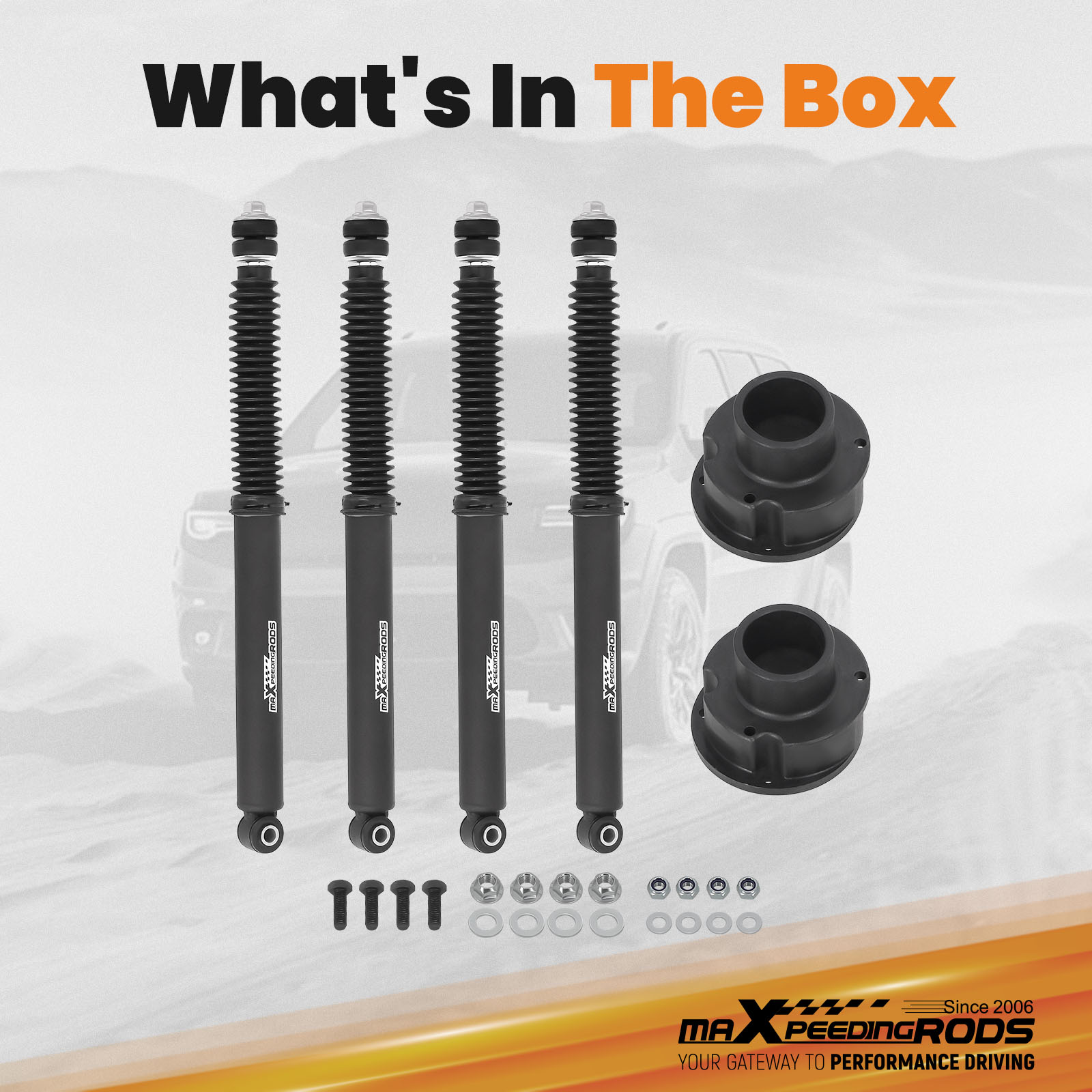

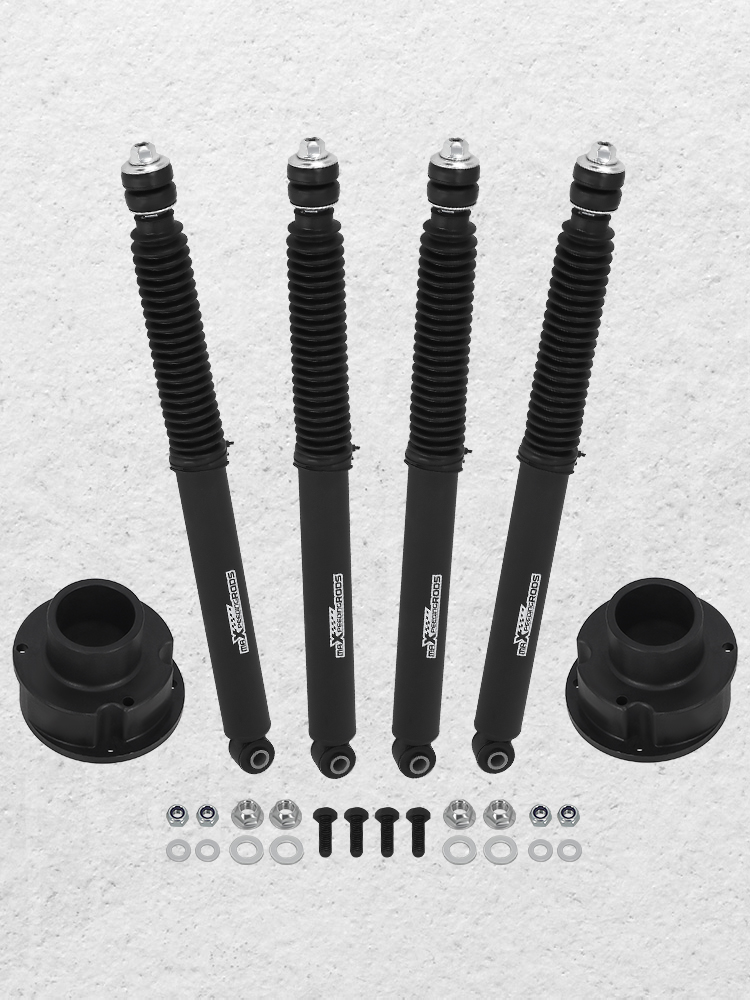

Package Includes:


  • 2x Front shocks
  • 2x Front coil spacers
  • 2x Rear shocks
  • Package dimensions: 64*31*19 cm
  • Weight: 16.149 kg

Specification


Type Leveling kit
Lift Height Front 2.5"
Material High Tensile Strength Carbon Steel
Finish Powder Coated
Diameter of Piston Rod Front & Rear 20mm/0.78"
Piston Diameter Front & Rear 32mm/1.26"
Outer Cylinder Diameter Front & Rear 50mm/1.96"
Travel Range Front & Rear 235mm/9.25"
Extended Length Front & Rear 675mm/26.57"
Collapsed Length Front & Rear 440mm/17.32"
Nitrogen Charged Yes
Bushing Material Rubber
Dust Cover Equipped Yes
2.5" Leveling Kit For Ram 2500 3500 4WD 2014-2024 High-pressure nitrogen charged twin-tube shock absorber with high durability. Rubber bushings for better absorption. 50mm Shock Body 35KN Tensile Strength. Precision Welding. Power coated surface：provides superior corrosion resistance. Increase ground clearance to level the front with the rear of the vehicle


Other items you might also like

  • AWD Pair Rear Struts w/ Coil Springs Assy for 2008-2013 Toyota Highlander 372490 AWD Pair Rear Struts w/ Coil Springs Assy for 2008-2013 Toyota Highlander 372490
  • MaXpeedingrods Rear Upper Control Arms Forward Lateral Links for 11-19 Ford Flex MaXpeedingrods Rear Upper Control Arms Forward Lateral Links for 11-19 Ford Flex

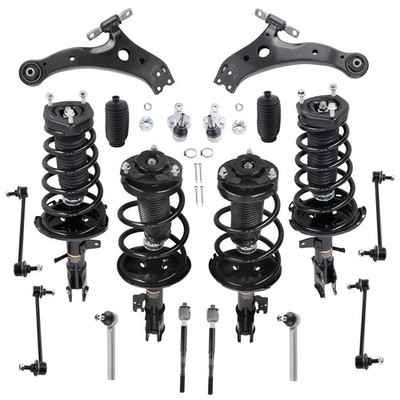

  • 2/4/14/16/18x Front Rear Struts Control Arms Kit For Toyota Highlander 2004-2007 2/4/14/16/18x Front Rear Struts Control Arms Kit For Toyota Highlander 2004-2007
