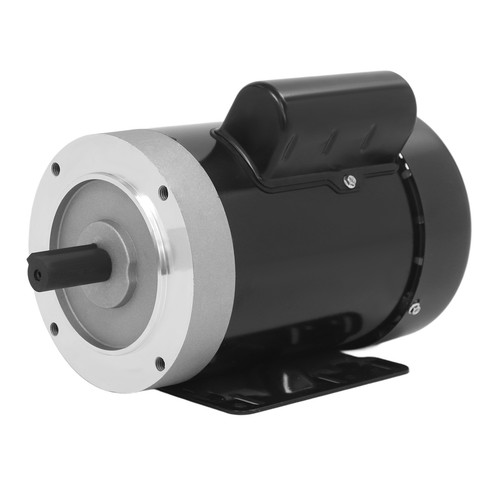

1/2HP Motor Industrial & Agricultural Single Phase Electric Motor 1725RPM 60Hz

Application

It is widely used in industrial and agricultural production, transportation, commercial household appliances, and other fields. It is suitable for use on agricultural machinery and other related equipment.





Specifications

Color: Black

Material: Steel Plate, Copper Wire

Style: Modern

Phase: Single Phase

Horsepower: 1/2HP

Voltage: 115/230V

Current: 8.8/4.4A

Rated Speed: 1725RPM

Synchronous Speed: 1800RPM

HZ: 60Hz

Encl: TEFC

Rotation: CW/CCW

IP: 54

Ins.Cl.: F

Frame: 56C

DutyCycle: Continuous/S1

Ambient: 40 ℃/ 104℉

Altitude: 1005.84M/3300FT

Shaft Diameter: 1.6cm/5/8"

Shaft Length: 4.8cm/1.88"

Gross Weight: 12kg/26.46lbs

Net Weight: 11.4kg/25.13lbs

Product Size: 31*22*20cm/12.4*8.6*7.95in

Package Size: 41*29.5*28.5cm/16.14*11.61*11.22in





Package Included

1* Single-phase Motor

1* English Wiring Manual





Notes

  • Before using the motor, please check the rated horsepower, rated voltage, and rated current to ensure that it is used in the correct environment.
  • Before using the motor, make sure the wiring is correct, the motor is running without a load, and check if the motor is running normally.
  • Under the premise of not exceeding the load, the current of the circuit breaker should be greater than three times the rated current of the motor before it can be started normally.
  • Please carefully read the instruction manual and product label before use, and pay particular attention to the safety precautions therein.
  • This product does not include a frequency converter. It is not recommended that electricians be unprofessional. Please purchase a suitable motor for use.
  • Please allow the slight color difference caused by the shooting light and a 1-3cm error due to manual measurement, and make sure you do not mind before you order.
