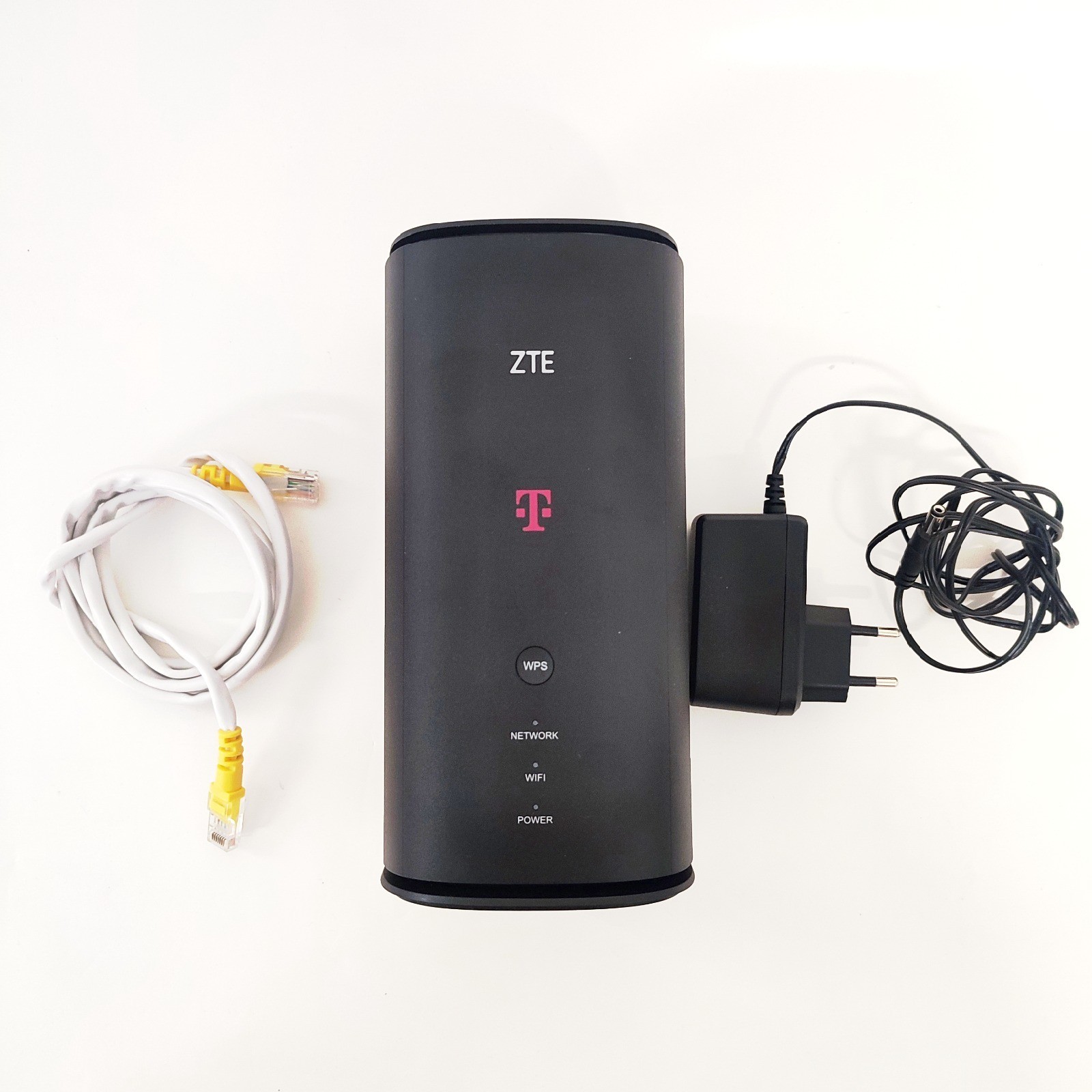

ZTE MC888 Pro 5G Router – Specifications

The ZTE MC888 Pro is a high-performance 5G home router (CPE) designed to provide broadband internet via a SIM card for homes or small offices. It supports 5G and 4G networks and distributes internet through Wi-Fi 6 and Ethernet connections.

Key Specifications

Cellular Network

• 5G: NR Sub-6 (NSA / SA modes)

• 4G LTE: Category 19

• Max 5G speed: up to 3.8 Gbps download / 250 Mbps upload

• Max 4G speed: up to 1.6 Gbps download / 200 Mbps upload

• Supported 5G bands: n1 / n3 / n7 / n8 / n20 / n28 / n38 / n40 / n75 / n77 / n78

• Supported 4G bands: B1 / B3 / B7 / B8 / B20 / B28 / B32 / B38 / B40 / B42 / B43

Wi-Fi

• Wi-Fi standard: Wi-Fi 6 (802.11ax)

• Frequency bands: 2.4 GHz and 5 GHz (dual-band)

• Maximum Wi-Fi speed: up to 5400 Mbps (AX5400)

• Technologies:

  • 2×2 MU-MIMO

  • OFDMA

  • 160 MHz channel bandwidth

  • 4K-QAM

• Maximum connected devices: up to 128 devices

Hardware

• Chipset: Qualcomm Snapdragon X62 (SDX62) + WCN6856

• Antennas: internal high-gain antennas (up to ~10 dBi)

• SIM: Nano-SIM

• 3GPP standard: Release 16

Ports & Interfaces

• 2 × Gigabit Ethernet (LAN/WAN)

• 1 × RJ11 phone port (VoIP/VoLTE) – depending on version

• DC power input

• NFC support for quick Mesh pairing

Additional Features

• Wi-Fi Mesh support

• Bridge mode

• Firewall and network management

• Remote management functions

• Energy-saving (eco) mode

Physical Characteristics

• Dimensions: approx. 182 × 124 × 70 mm

• Operating temperature: −20 °C to +55 °C

• Power supply: 12V / 3A adapter
