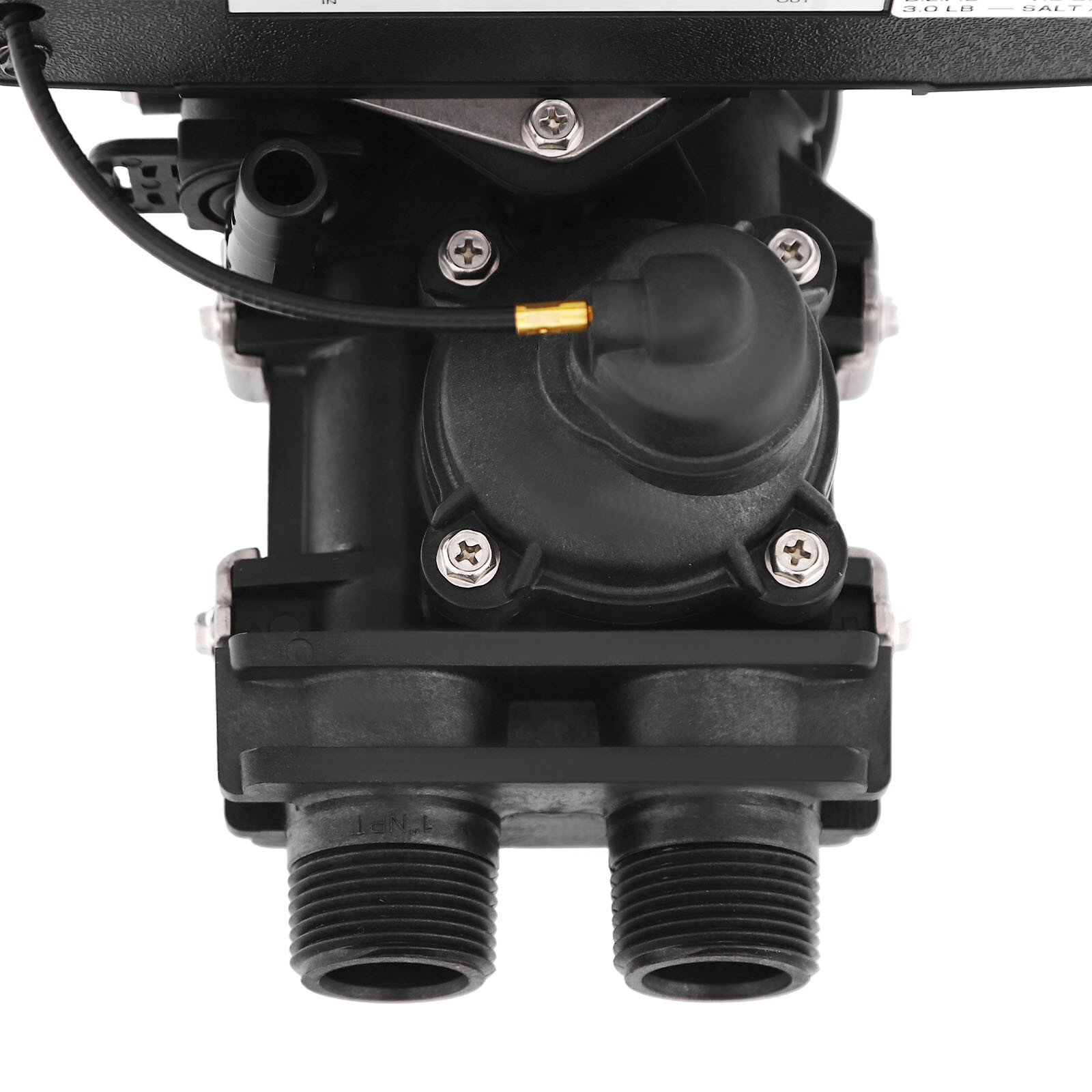

Water Softener Control Valve Water Softner Head 5600SM Flow Timer Control Valve

Water Softener Control Valve, Timer Control Valve, Whole House Water Softener Control Valve



Key Features

Great Durability: It is made of high-quality engineering ABS with good hardness, corrosion resistance, impact resistance, and long service life.



High Efficiency: This digital control valve for water softener can soften the water hardness from 0.8 to 0.03mg·N/L, which works efficiently. So using it to control the water purification system at home is very suitable.



Adjustable Design: You can set the water softening time and hardness as required to ensure optimum water softening while reducing salt and water consumption.



Convenient to Use: It adopts an intelligent control system. You only need to adjust the three knobs on the control panel to operate it, which is very convenient and simple.



Automatic Operation: It can automatically start the regeneration process according to the flow rate or time setting. You only need to add salt to the salt tank regularly, the rest of the work is done automatically by the water softener, saving time and effort.



Easy to Carry & Store: It weighs only 4.41lbs, so it is easy for you to pick up. And its small size(7.7*4.9*10.1inch) means it takes up very little space for installation.



Complete Accessories: This package comes with the screws and other accessories needed for installation, so you don't need to buy additional accessories.



Guaranteed Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.



Details

Long Power Cord: The 6.56ft long power cord can bring you more locations to use, and more convenient to use.



Inlet and Outlet: The surfaces of the two interfaces are designed with rotating threads, making it convenient for you to connect water pipes.



Application

It is suitable for factories, hotels, schools, families, etc., and it is used to soften and purify water to provide healthy water for your daily life.





Specifications

Model: 5600SM Flow Type

Material: ABS

Operation Mode: Automatic

Installation Method: Top Mounted

Plug Type: US Standard

Power: 3W

Voltage: 110V

Rated Flow Rate: 2T/4409lbs/H

Tank Pressure: 0.6 Mpa

Water Production: 3000kg/6614lbs

Working Pressure: 0.1-0.6Mpa

Working Temperature: 0-40℃/ 32-104℉

Raw Water Hardness: 0.8mg·N/L

Output Water Hardness: 0.03mg·N/L

Resin Tank: ≤ 76.2cm/30in

Resin Loading: 240L/6.34Gal/Bag

Power Cord Length: About 2m/6.56ft

Inlet/Outlet Pipe Diameter: 2.54cm/1 inch

Drain Port Diameter: 1.27cm/1/2 inch

Suitable Tank: 20.32-35.56cm/8-14 inch

Product Size: 19.6*12.5*25.8cm/7.7*4.9*10.1inch

Package Size: 27.5*25*26cm/10.83*9.84*10.24inch

Net Weight: 2kg/4.41lbs

Gross Weight: 2.8kg/6.17lbs





Package Included

1* Digital Control Valve for Water Softener

1* Power Cord

All Accessories for Installation
