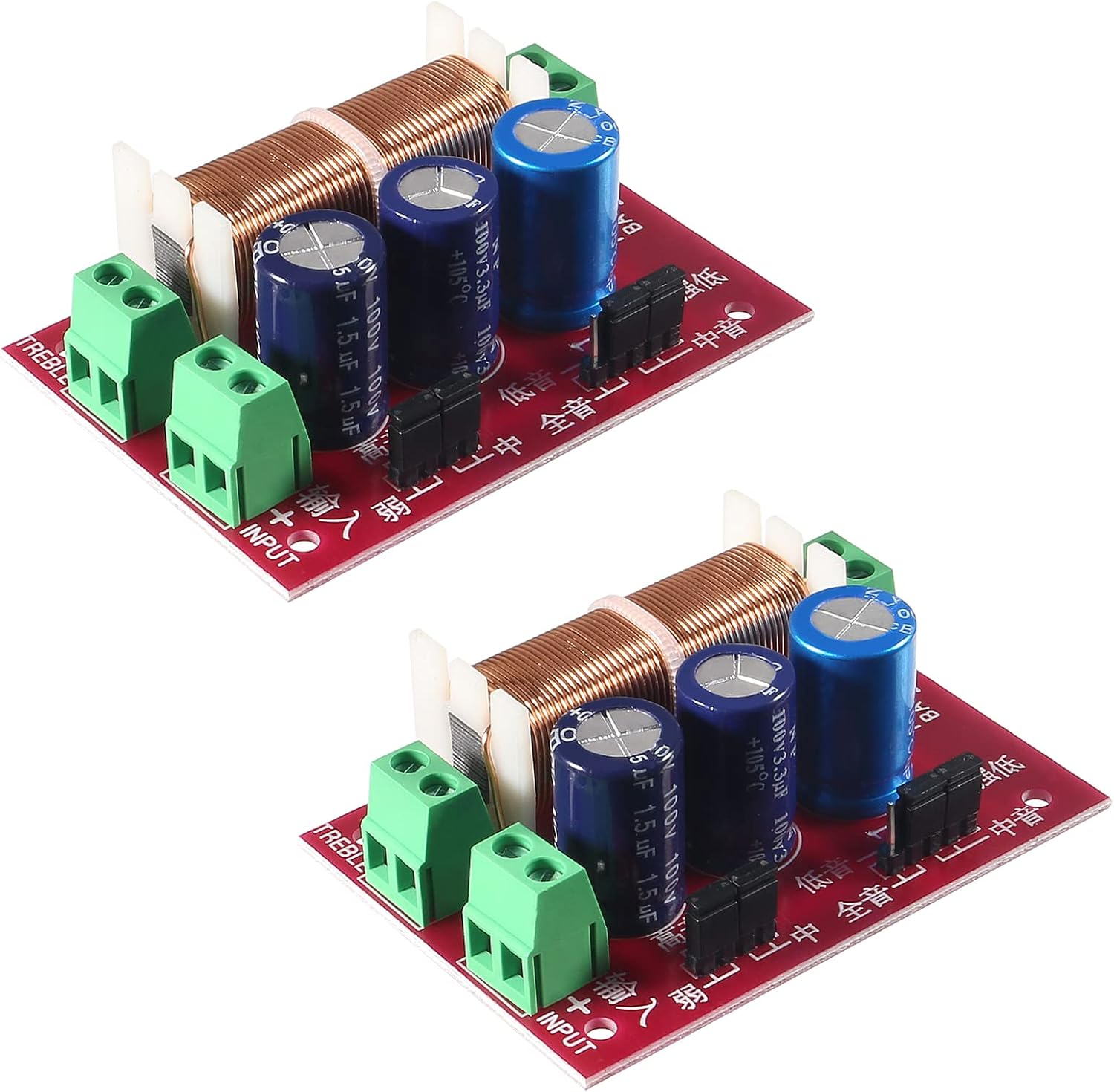

2Pcs 400W Adjustable Speaker Crossover 2 Way Treble/Bass 2 Unit Audio Frequency Divider Distributor Filters Updated Version
Description
| Item model number | Coliao-400W Speaker-01 |
| Number of Items | 2 |
| Power Source | Corded Electric |
| Control Method | Touch |
| Warranty Type | Limited |
| Speaker Size | 1 Inches |
| Brand | Coliao |
| Material | Copper |
| Model Name | Speaker-01 |
| Audio Driver Type | Dynamic Driver |
| Recommended Uses For Product | Improving sound distribution and quality in various audio systems |
| Number Of Circuits | 1 |
| Specific Uses For Product | Improving sound distribution and quality in various audio systems |
| Included Components | 2 400W Speaker Crossover Frequency Divider Filters |
| Customer Package Type | FFP |
| Subwoofer Connectivity Technology | Wired |
| Set Name | Pair |
| Speaker Maximum Output Power | 400 Watts |
| Water Resistance Level | Not Water Resistant |
| Item Weight | 5.3 ounces |
| Connectivity Technology | Speaker |
| Impedance | 16 Ohms |
| Special Feature | Bass Boost |
| Mounting Type | Tabletop Mount |
| Color | 2pcs |
| Surround Sound Channel Configuration | 2.0 |
| Compatible Devices | Smartphone, Tablet, MP3 Player, Desktop, Television, Projector, Laptop |
| Speaker Type | Satellite |
| Is Waterproof | FALSE |
| Shape | rectangular |
| Audio Output Mode | Stereo |
| Manufacturer | Coliao |
| Product Dimensions | 2.76"D x 1.97"W x 0.98"H |
- 400W Ajustable Multi Speaker Treble / Bass 2 Unit Audio Frequency Divider 2 Way Crossover Filters
- Large capacity, reasonable design, beautiful appearance, quality achieve full self control
- Inductance adopts anaerobic copper winding , and pure copper wire
- The crossover soprano + available bass binary frequency sound box, can also be used in 2.1 the high small satellite box and automotive loudspeakers
- Implementing overall debugging, using very convenient, and listening to the sound effects can implement debugging control according to their own interests
Product description
2pcs 400W Adjustable Multi Speaker YLY-2088 Treble/Bass 2 Unit Audio Frequency Divider 2 Way Crossover Filters
400W Adjustable Multi Speaker
- Suitable for speaker power: 400w or lower.
- Suitable for speaker impedance: 4 to 16 Ohm.
- Inductance adopts anaerobic copper winding , and pure copper wire.
- Large capacity, reasonable design, beautiful appearance, quality of the sound can control according to their own interests.
400W Speaker Frequency Divider With 4 Jumpers Onboard
- Jumper A, B for bass.
- Jumper C, D for treble.
How to Use the Splitter Board:
First connect as per our diagram above (Treble, Low, Input), connect to speaker, seal air gap, we can begin to hear music while optimize. Normally we use jumper A and let B idle. For jumper C and D: we need to hear the actual effect of treble. A general formula is: A+D=better Bass; A+C=clear Treble and Bass; A+CD=clear Treble and Bass (the overall effect inclined towards Treble); AB+CD=more mediant frequency. When Bass effect is unnecessarily high, we can remove cap A. Please optimize until you think the sound is best, and then fix the board with your speaker unit.
Details About Jumpers:
Jumper A, B are used to control audio effect of bass range. A for lower limit while B for upper limit of the bass audio range. For some speakers, when Bass is turned up too much, the speaker will show distortion. When that happens: we remove the jumper cap of jumper A to limit super low Bass to bring distortion lower. When we remove the cap of jumper B, Bass is increased while cap of Jumper B is on, Bass is decreased. Jumper C and D are used to control Treble range. When cap of both jumper C and D are on, the sound of treble is loudest. When only cap C is on, the treble sound is lower. When only cap D is on, further lower. When both caps of C and D are removed, there is no treble sound. (Generally speaking, with the four jumpers, you'd sooner or later find your best sound effect. Anyway, all effects still depend on your actual test.)
Package Contents:
- 2pcs YLY-2088 400W Adjustable Multi Speaker 2 Way Crossover Filters Audio Frequency Divider
