Pls check the item pictures and size to get the suitable items.
-------------------------------------------------------------------------------------------------------------------------------------------------------
Package included：

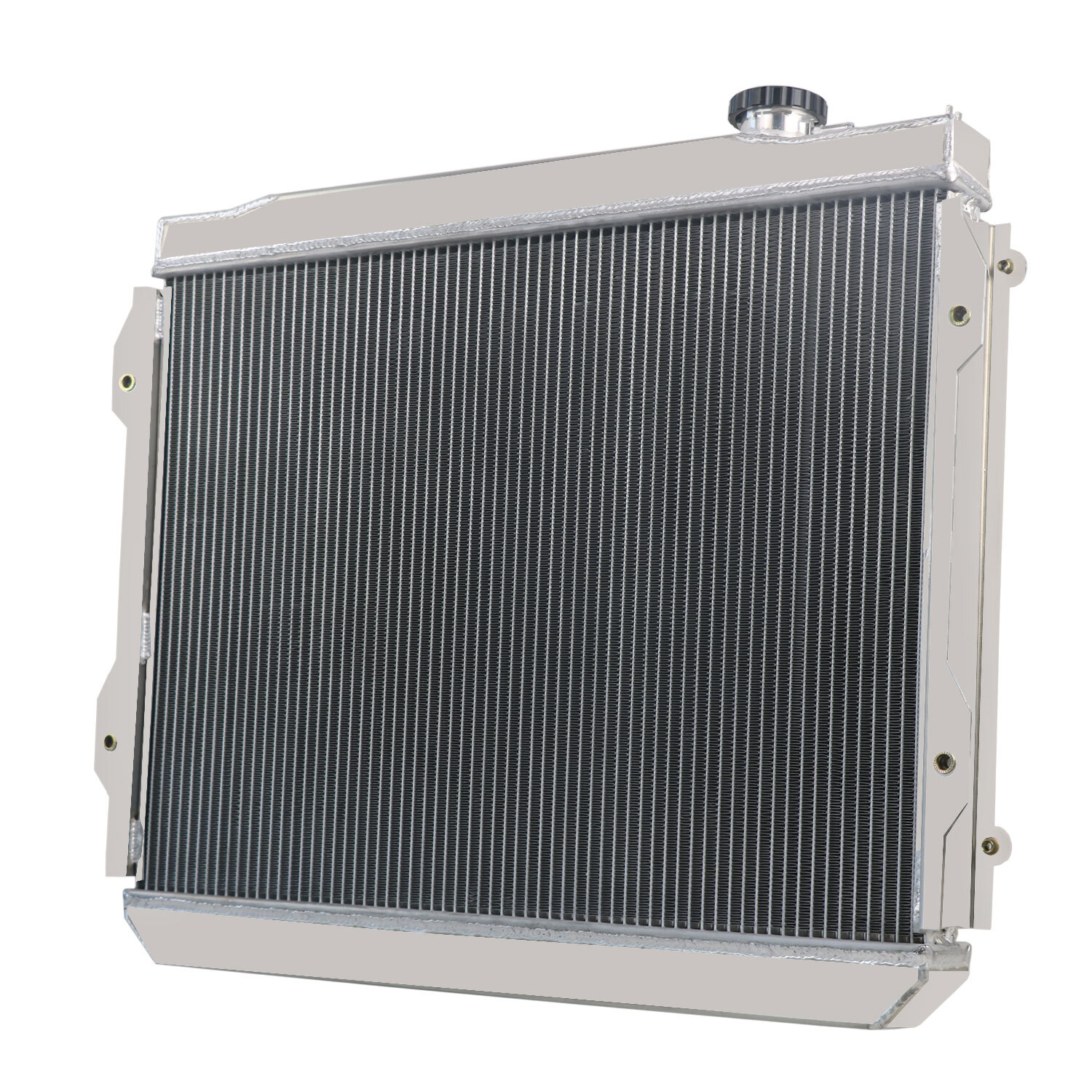

1 X 1-ROW AA5052 Aluminum Radiator+1.3BAR CNC CAP
1 X AA5052 Aluminum Shroud
1X 16" 120W Fan
1 X Thermostat Temperature Switch Relay Kit
VEHICLE Fitment：
For 1995-2004 Toyota Tacoma 2.7L
For 1995-2004 Toyota Tacoma 2.4L
For 1995-2004 Toyota Tacoma 3.4L
Note: Fits 2.4L L4, 2.7L L4 or a 3.4L V6 engine.
PLS Measure RADIATOR SIZE ONLY FOR 18 5/8" H Core Height.
SPECIFICATIONS：
High Performance Racing Spec.
1-Row of tubes Core Racing Design
Core Material: AA5052 Aluminum

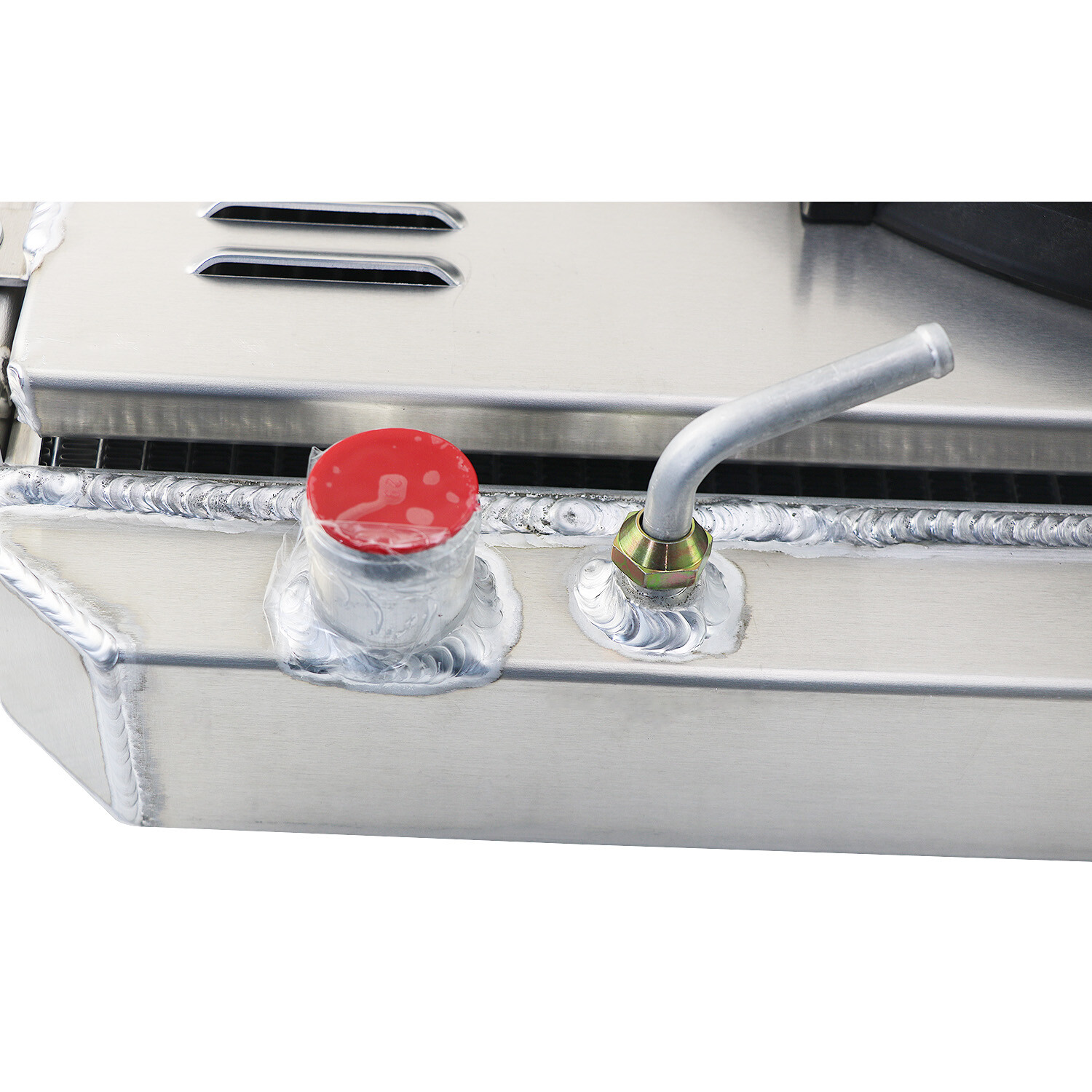

Includes CNC machined filler neck and cap
Overall Height: 23 1/2"
Overall Width: 28 1/8"
Core Height: 18 5/8"
Core Width: 25 1/8"
Inlet Diameter: 1 3/8 " On Passenger Side
Outlet Diameter: 1 3/8 " On Driver Side
Transmission Oil Cooler Fitting Type: M14-1.5
OEM Style Brass Petcock Drain
Fan Specification:
Diameter : 16'' (Blade to Blade)
Number of Blades: 10 pcs
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2,250 rpm
Max. Amp Draw: 15amp
Voltage: DC 12V
Wattage: 120W
Thermostat Temperature Relay Switch Sensor Kit：
165~185 degree electric fan thermostat relay switch kit, It is a 3/8" pipe thread.
The kits is set up to turn your electric fan on at 185 degrees and shut off at 165 degrees and will work with any 12 volt system.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Reasons for choose our AA5052 Aluminum Radiator：
1.Our Radiator is made of AA5052 aircraft aluminum,5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).
2.Higher density core: cooling rows are spaced 3/8" apart,giving you 25% more rows within the core than other aluminum radiators sold on eBay.
3.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators.AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full AA5052 Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.

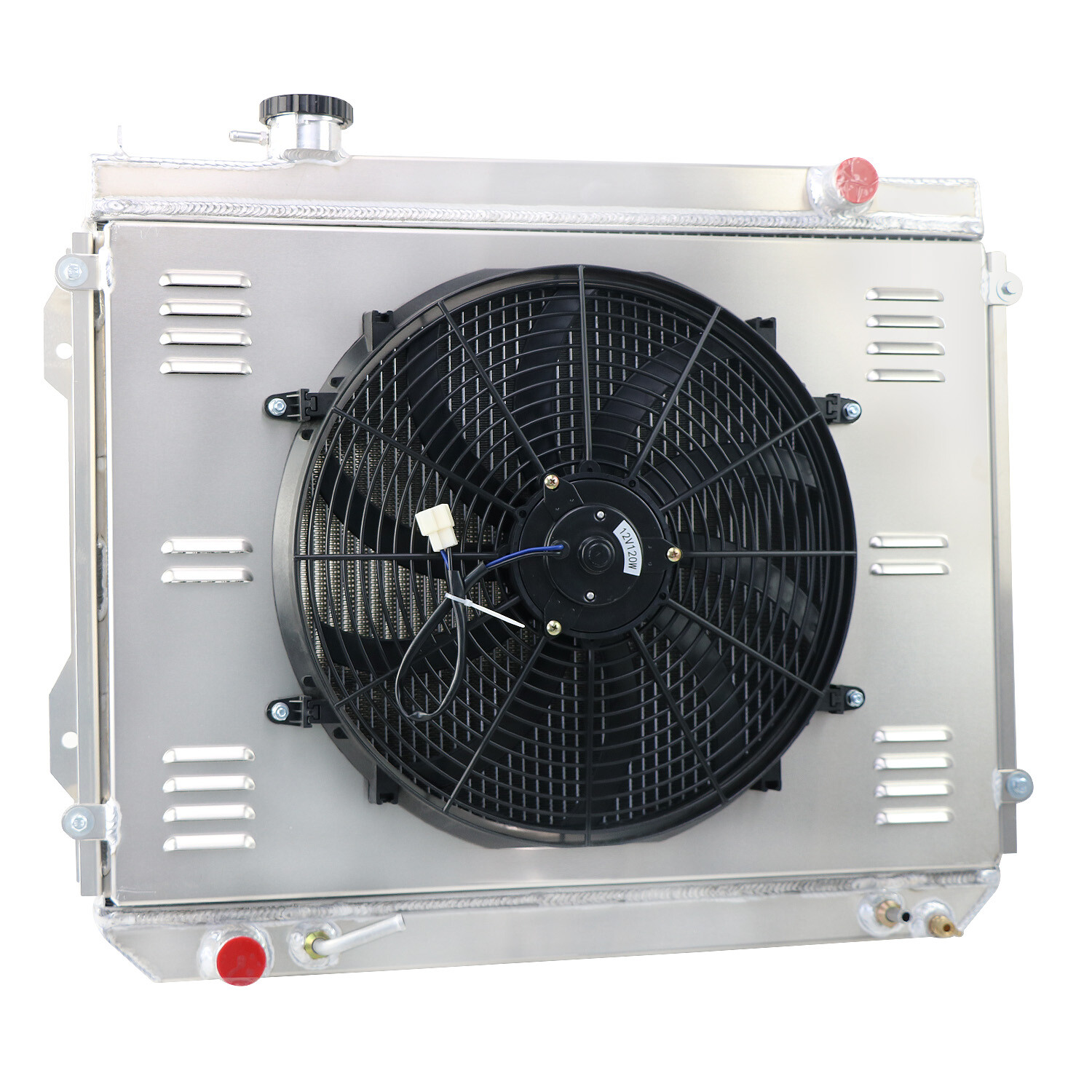

AA5052 Aluminum Shroud+Fan：
Our custom-made AA5052 aluminum fan shrouds are manufactured to fit our ALLOYWORKS and ASI PERFORMANCE radiators. These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1. Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect.
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
--------------------------------------------------------------------------------------------------------------------------------------------------------
