3" Front & 5" Rear Drop Lowering Kit + SHOCKS For Ford Ranger 2WD 1998-2015



Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

"Stops grit at the gate — no more ruined seals or gritty grinding."

Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

"Stops grit at the gate — no more ruined seals or gritty grinding."

maXpeedingrods G1 Shock
Specification

Type: lowering kit/ drop kit

Lowering height: 3" front, 5" rear

Material: High Tensile Strength Carbon Steel

Finish: Powder coated

Nitrogen charged：yes

Dust cover equipped: yes

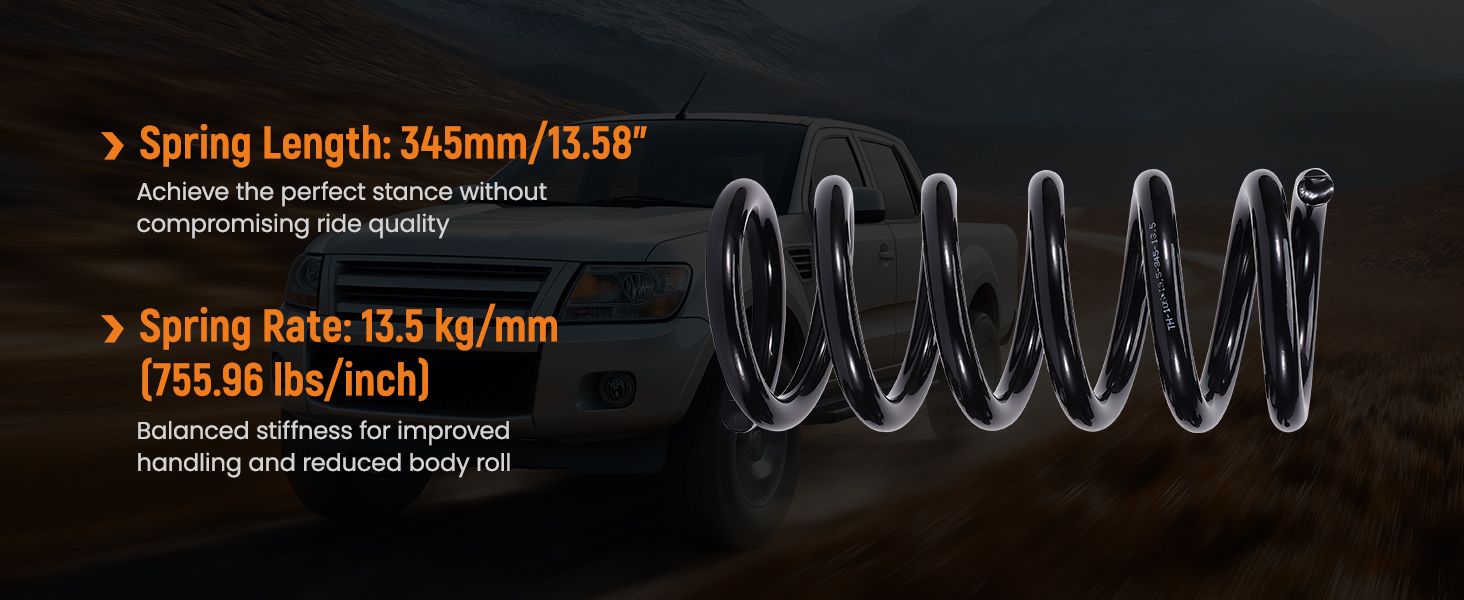

Spring length: 345mm/13.58"

Spring rate: 13.5kg/mm (755.96 lb/inch)

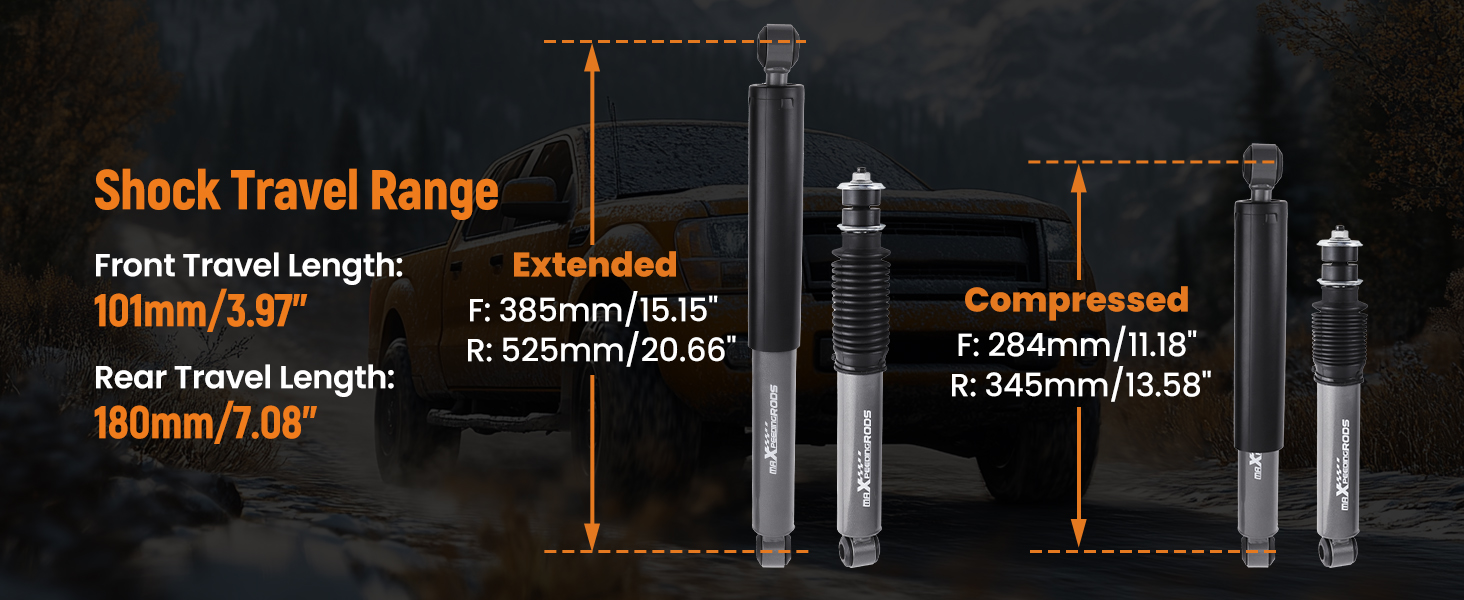

Travel: F: 101mm / 3.97" R:  180mm / 7.08"

Extended length: F: 385mm/ 15.15"  R: 525mm / 20.66"

Collapsed length:F: 284mm / 11.18"  R: 345mm/13.58"

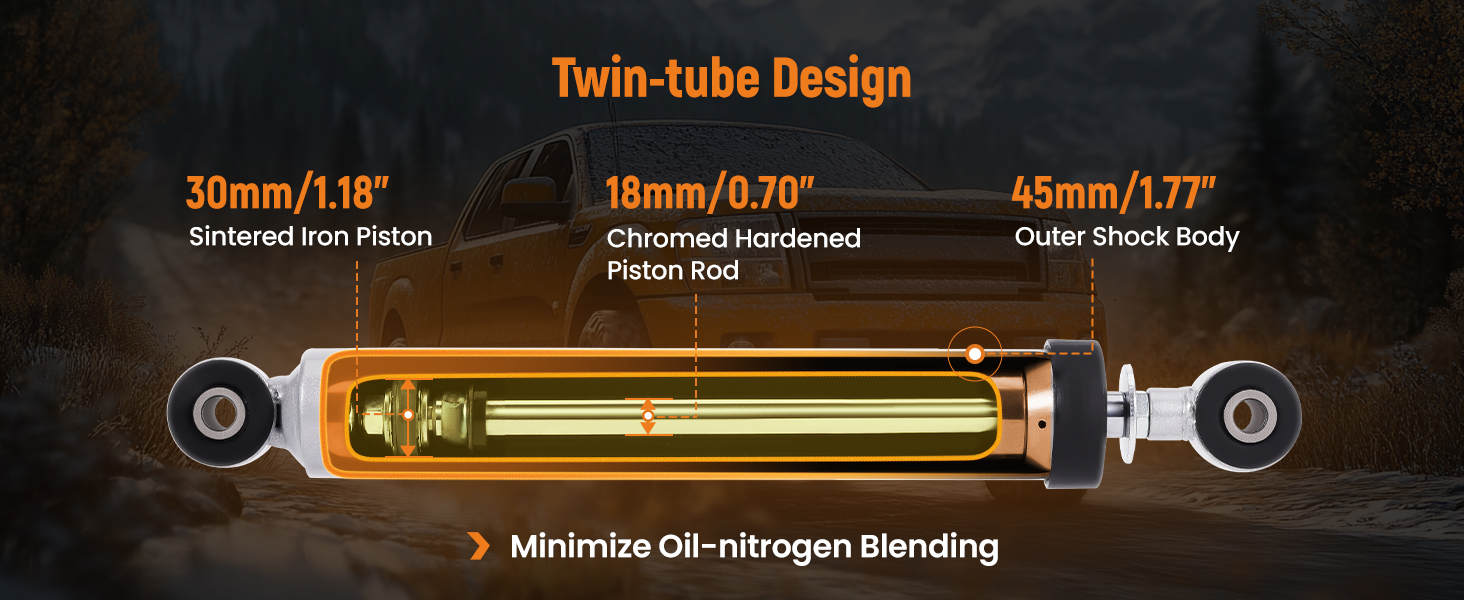

Shock Structure
  • Diameter of piston rod: 12.5mm/0.49"
  • Piston diameter: 30mm/1.18"
  • Outer cylinder diameter: 45mm/1.77"
Application

For Ford Ranger (2WD ONLY) 1998 - 2015
Note：You must have SPR Code "D" for the proper Coils to Fit
SPR Code can be found on your vehicle's driver side door jam "B" Pillar

G1 Shock

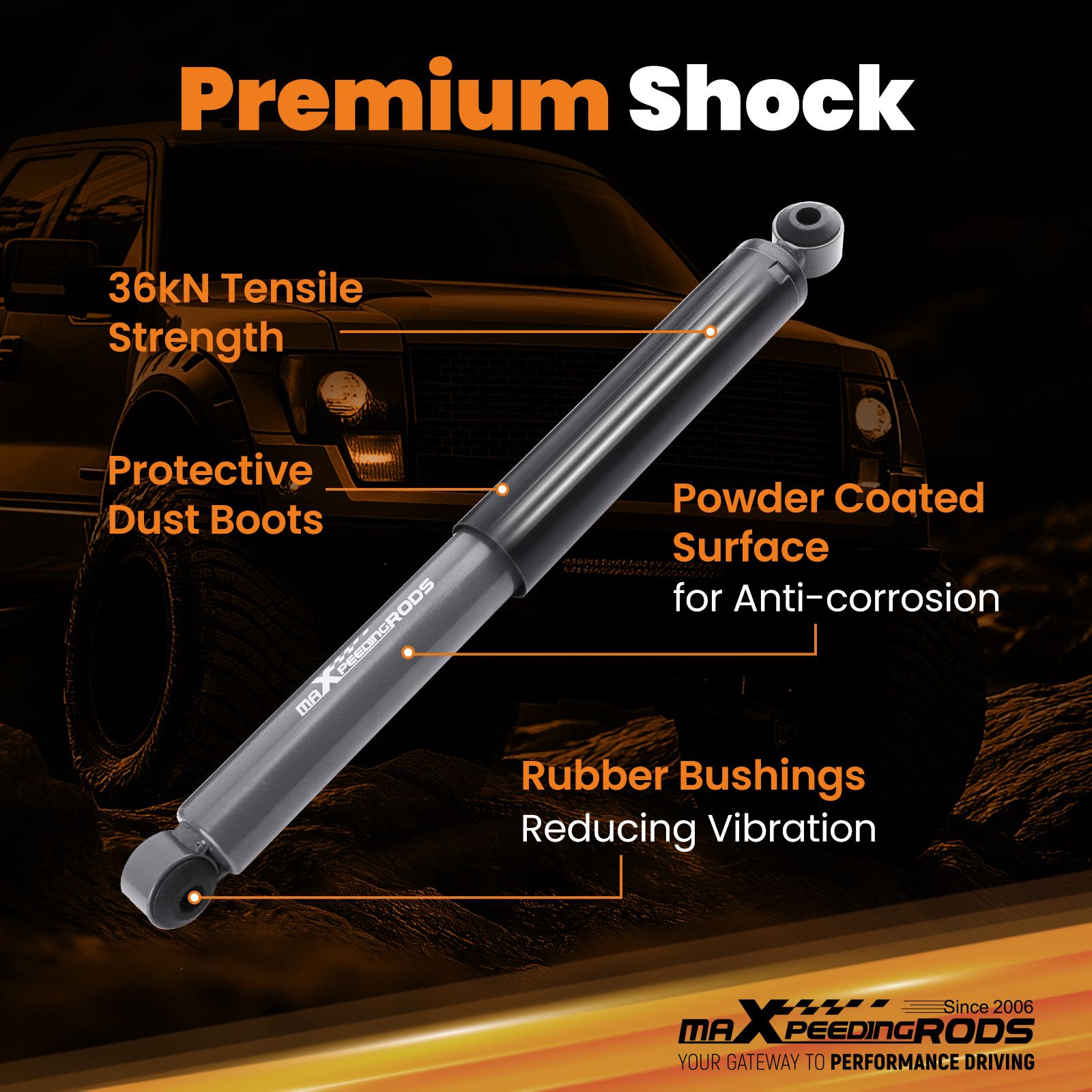

Feature

High-pressure nitrogen charged twin-tube shock absorber with high durability.

12.5mm Chromed Hardened Piston Rod.

30mm Diameter Sintered Iron Piston.

36KN Tensile Strength.

Precision Welding.

Easy bolt-on installation

Power coated surface：provides superior corrosion resistance.

High Tensile Strength Carbon Steel for optimal durability and fitment.

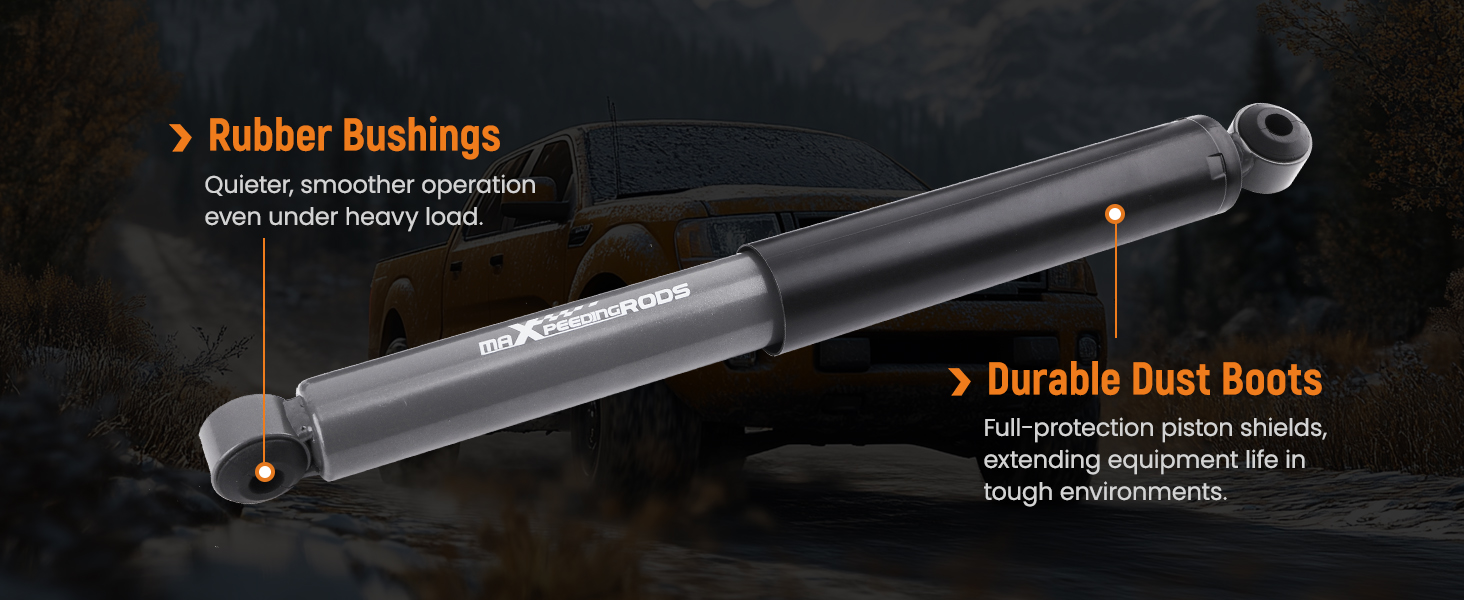

Dust cover included prevent the shaft rod and oil seal from damaging.

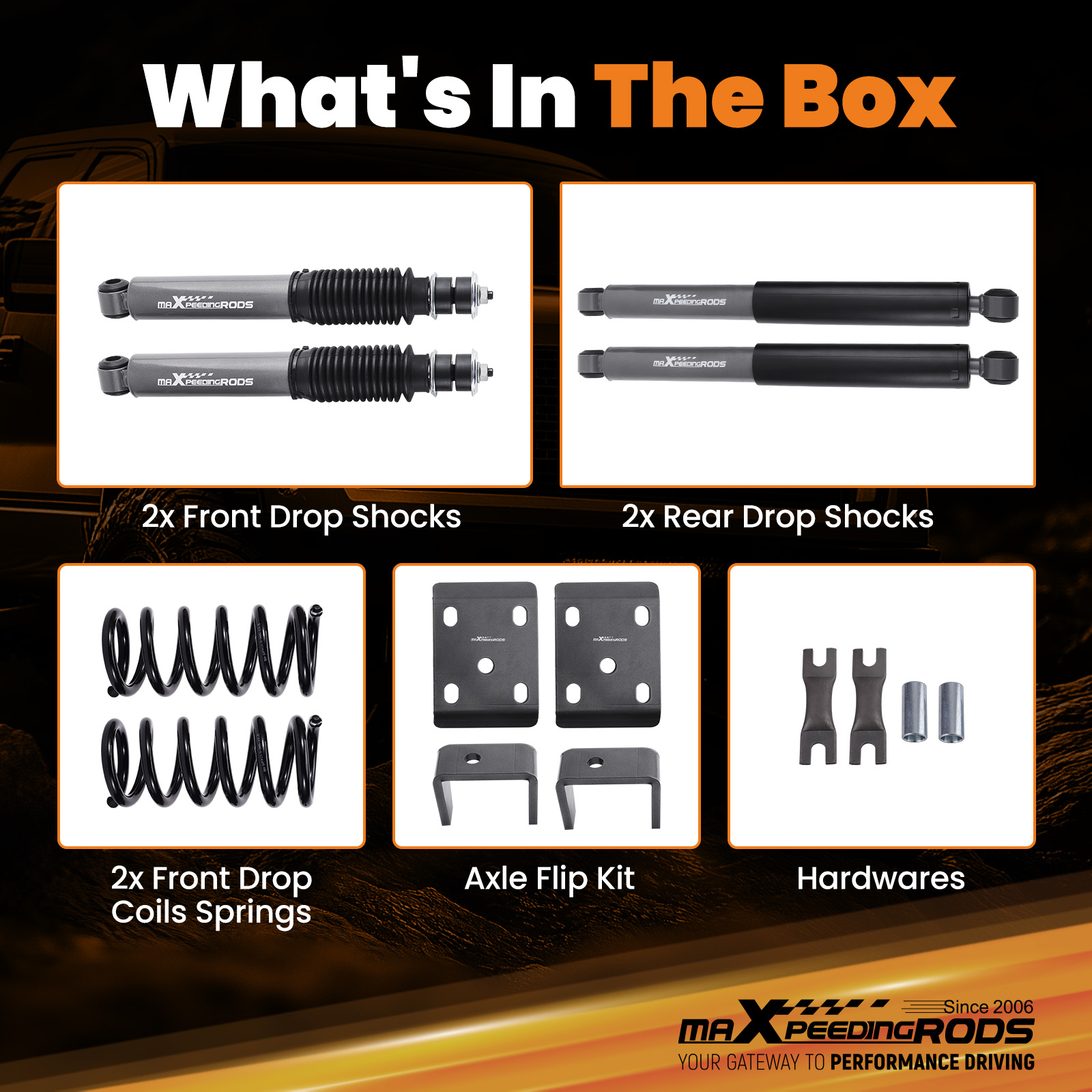

Package included

Package included

  • 2x 2"-3" Front drop coils
  • 2x Front drop shocks
  • 2x Rear drop shocks

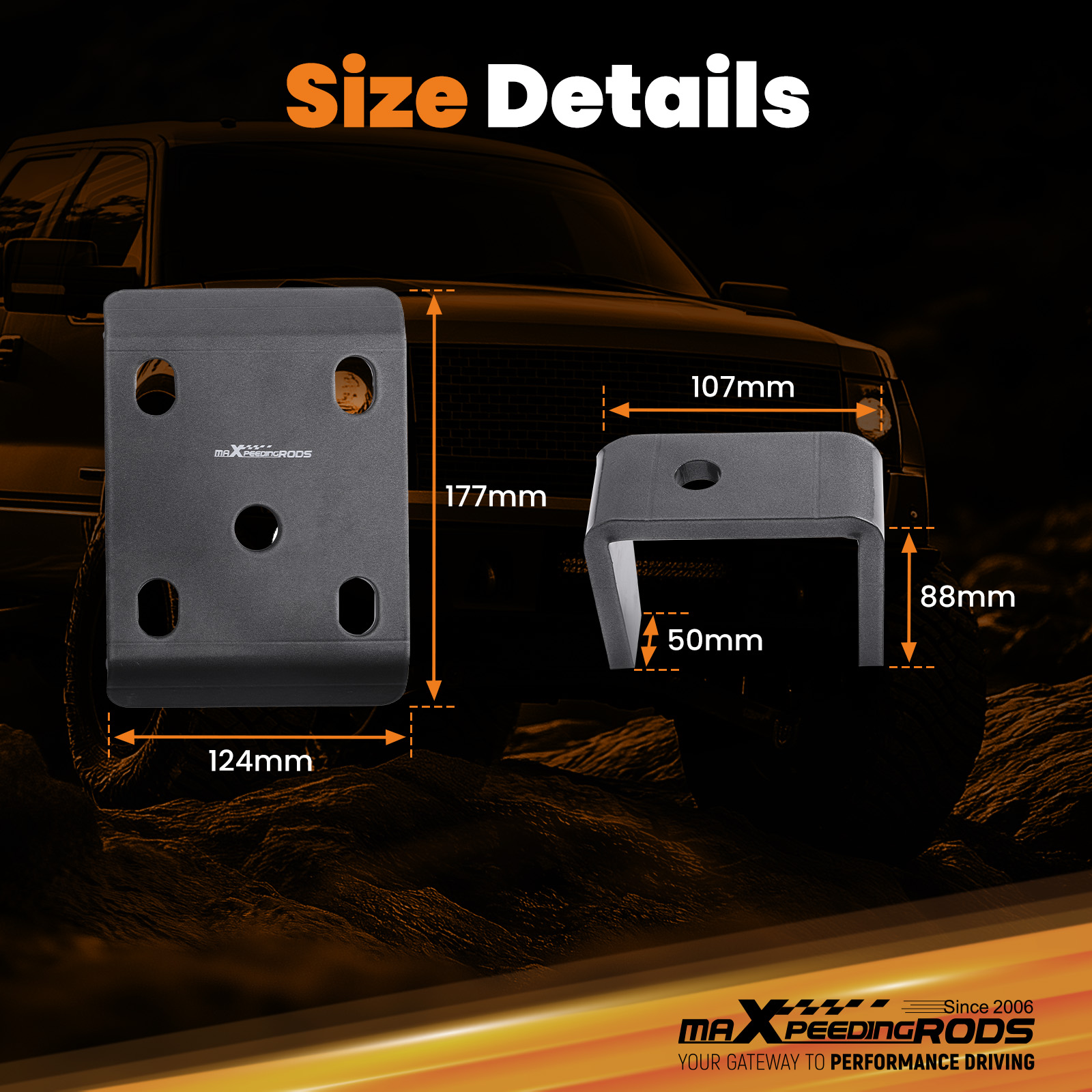

  • 1x 5" Axle flip kit (axle saddle 10mm plate thickness, U-bolts retaining plate thickness 6mm)
