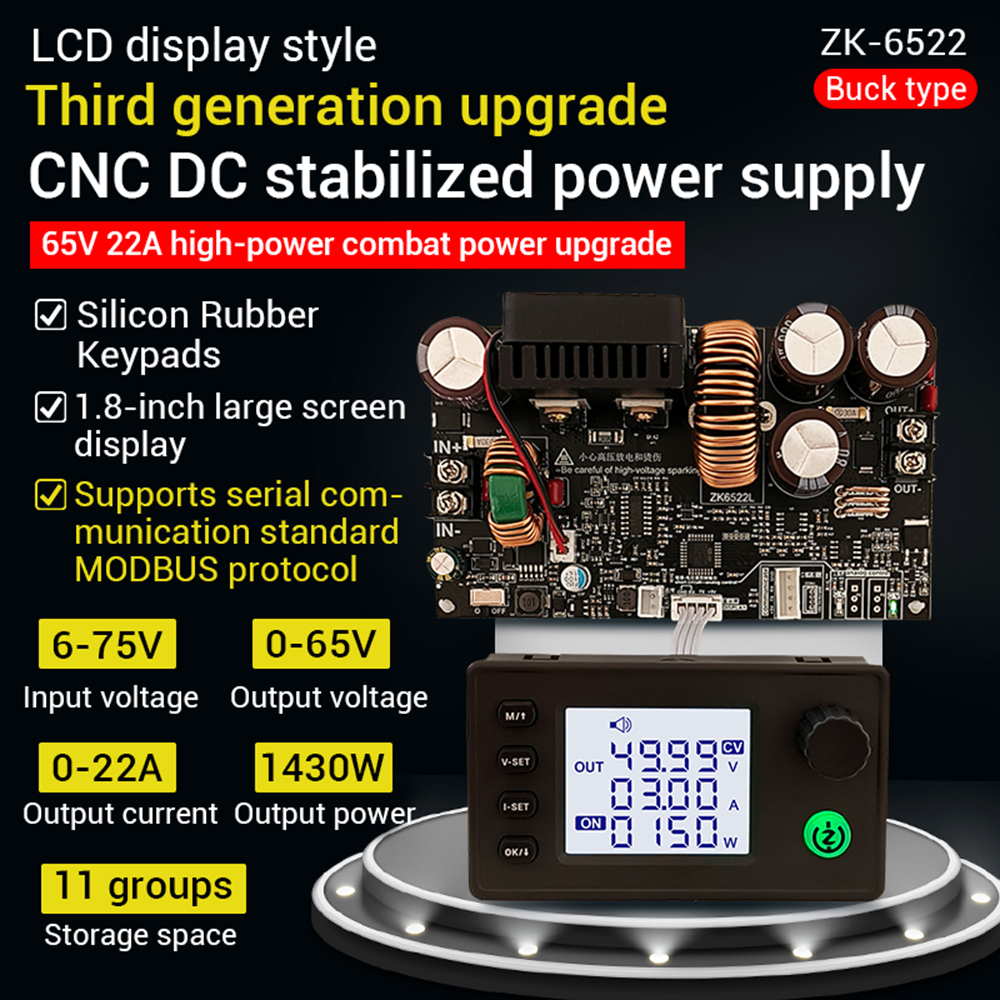

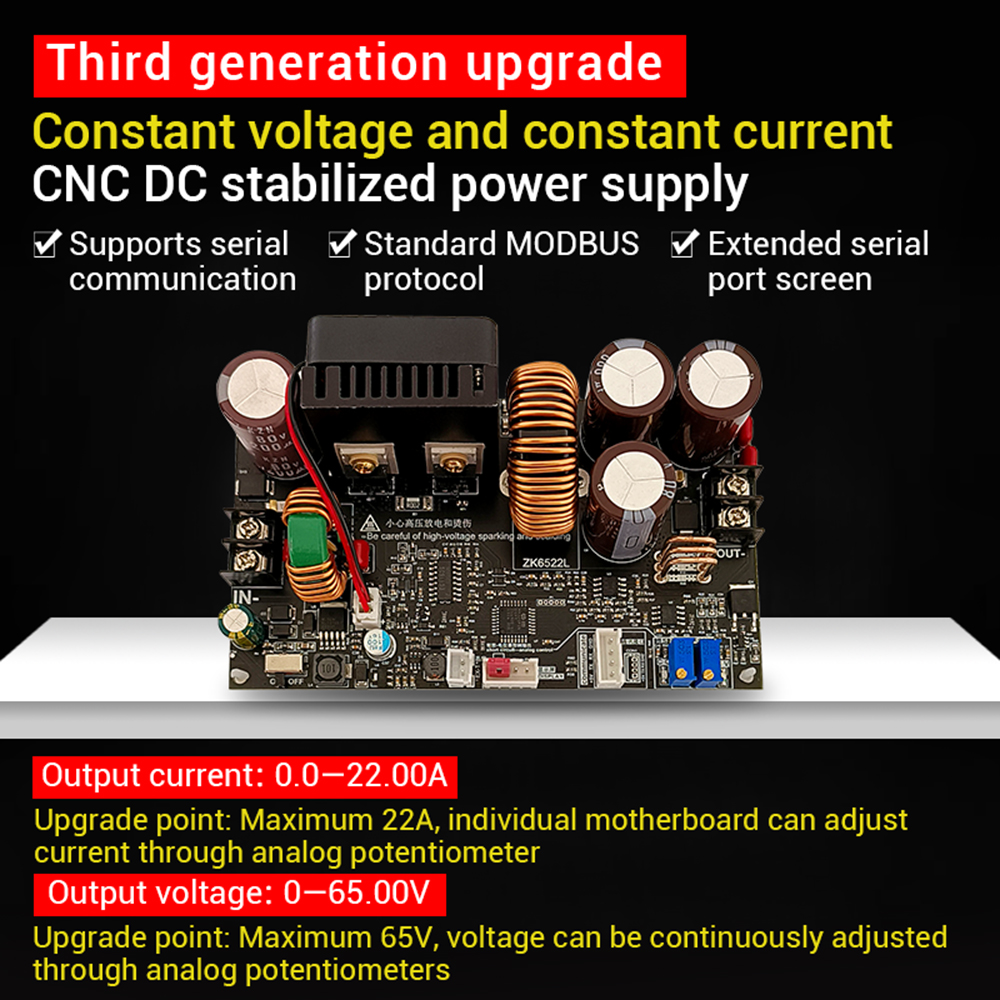

ZK-6522 CNC Buck DC Stabilized Power Supply Module Voltage Regulator 22A/1400W
1. LCD display board gold plating process to prevent oxidation and poor contact, and to prevent incomplete display after prolonged use
2. Independent silicone button to set voltage or current, one click to enter and one click to exit, fast and concise, rejecting tedious tasks

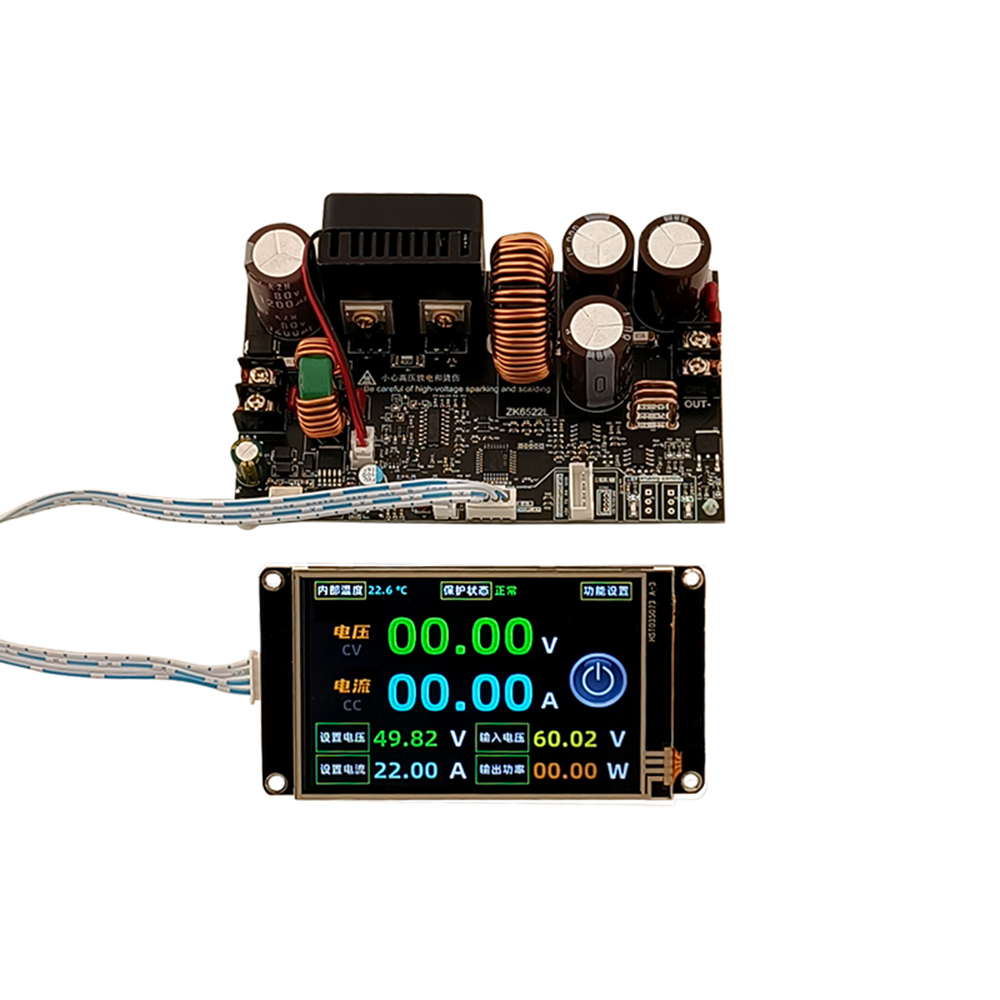

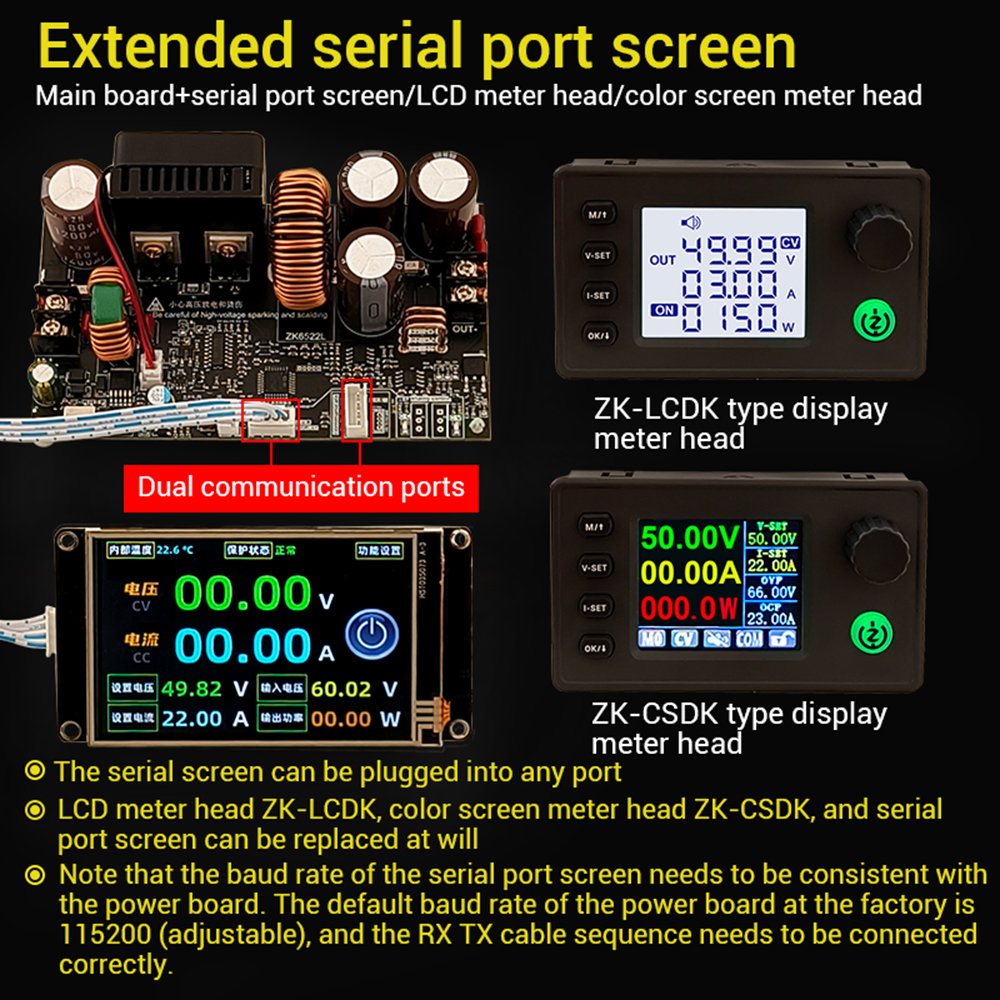

3. There are various ways to play with the monitor, which can be equipped with our LCD meter head, color screen meter head, or equipped with a serial port screen

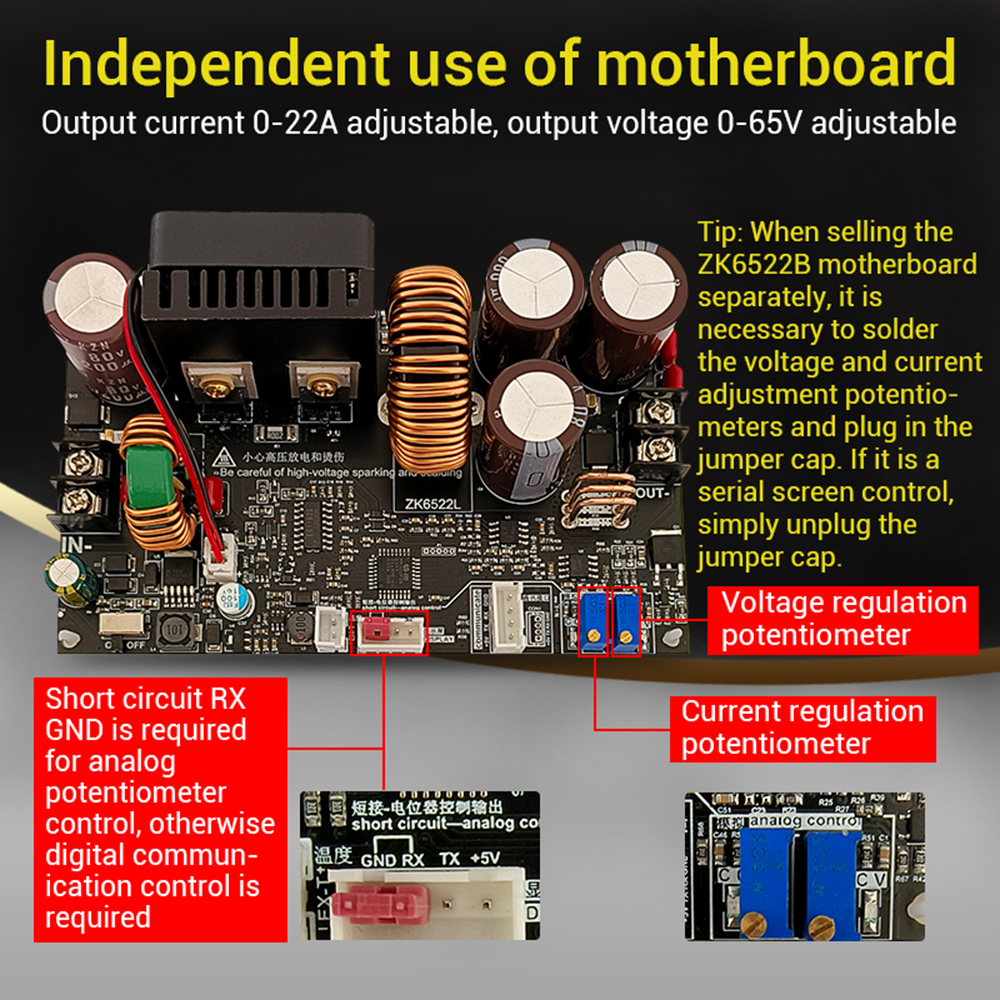

4. Flexible use of individual motherboards, supporting stepless current and voltage regulation
5. The silicone button material is soft, comfortable to touch, and has an excellent hand feel. Compared to mechanical buttons, they can withstand long-term use and frequent pressing without wear or failure, making them more durable and have a longer service life
Input voltage: 6.0-75.00V
Output current: 0-22A
Output power: 0-1430W
Output voltage: 0.0-65.00V
Output voltage accuracy: ± 0.3%+3 words (adjustable)
Output current accuracy: ± 0.5%+3 words (adjustable)
Current resolution: 0.01A
Voltage resolution: 0.01V
Data group storage: 11 groups
Screen size: 1.8-inch upgraded large screen, 36 * 29mm, visible range
Cooling fan on condition: temperature>45 ° C, current>2A, or power>30W
Silicone buttons: 5
Buzzer: Yes
Input undervoltage protection (LUP): 5.5-64V adjustable, factory default value of 5.5V
Output overvoltage protection (OUT): 1-66V adjustable, factory default value 66V
Output overcurrent protection (OCP): 0.01-23A adjustable, factory default value 23A
Output Overpower Protection (OPP): 1-1450W adjustable, factory default value 1450W
Over temperature protection (OTP): adjustable from 30 to 99 ℃, factory default value of 60 ℃
Over time protection (OHP): 1 minute -99 hours and 59 minutes, factory default off
Overcapacity protection (OAH): 0.001-9999Ah, factory default off
Overpower protection (OPH): 0.001-4000KWh, factory default off
1. It is not allowed to input AC power, let alone connect to 220V mains power
2. The maximum allowable input voltage is 75V, and overvoltage input or reverse polarity connection is not allowed
3. The output cannot fully guarantee anti backflow. When connecting the battery, it is necessary to ensure that the output voltage of the power module is always higher than the battery voltage, or to connect a diode in series with the output positive pole for one-way conduction to prevent battery voltage backflow from burning out the power supply
4. When connecting the output terminal to the battery, be careful not to reverse the positive and negative poles
5. The product is a voltage reduction module, with a maximum output voltage=input voltage * 0.95-1V

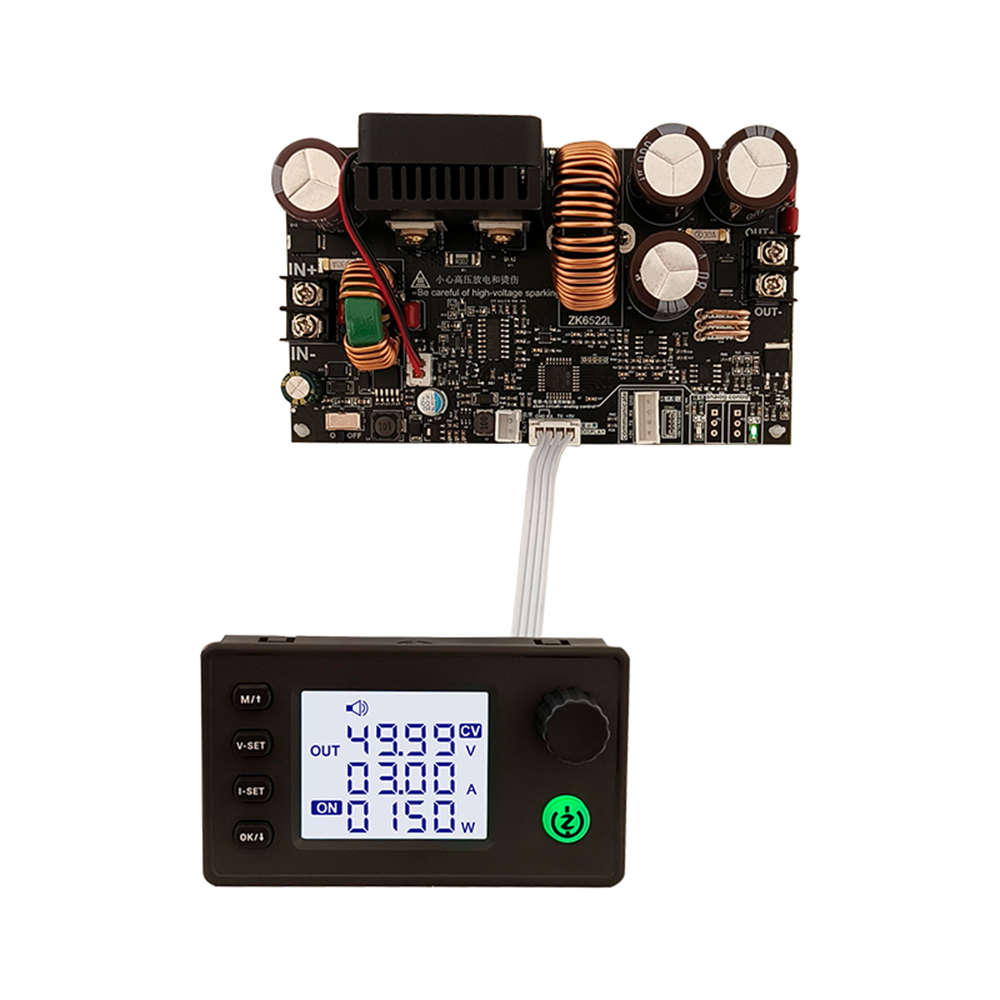

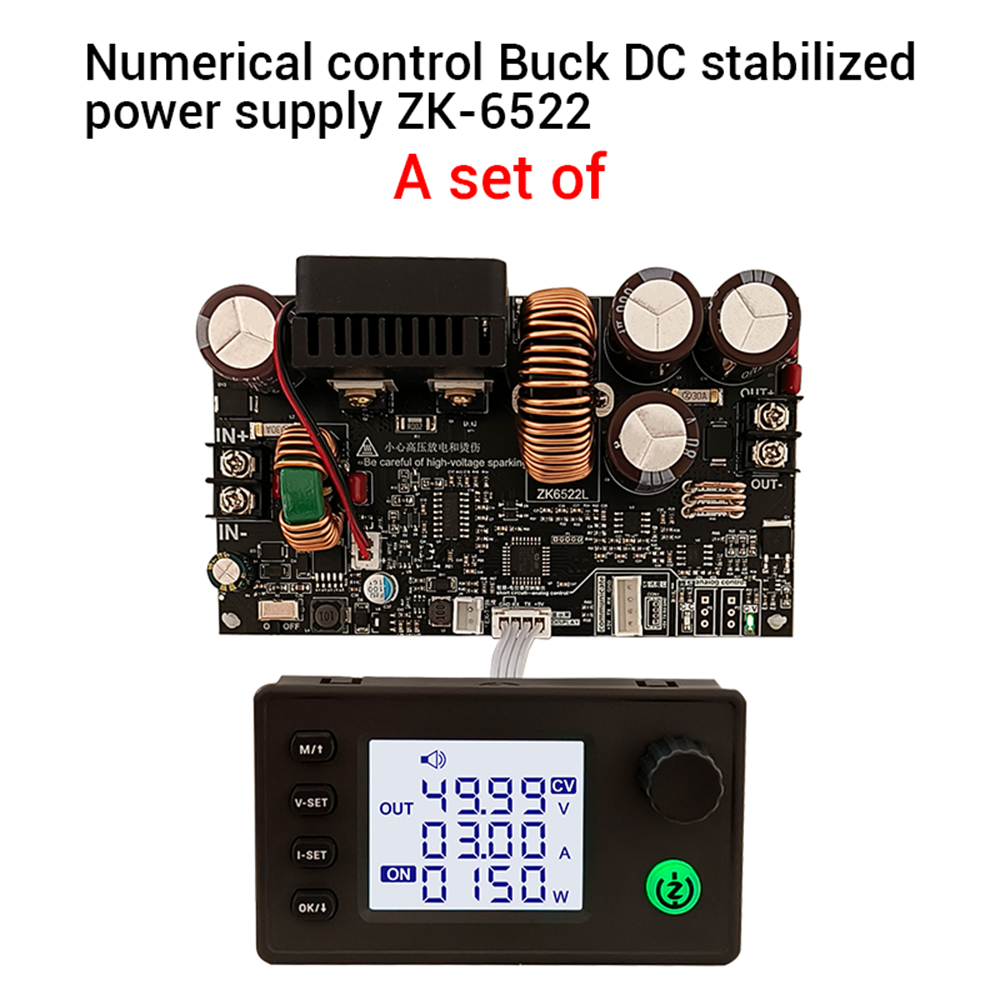

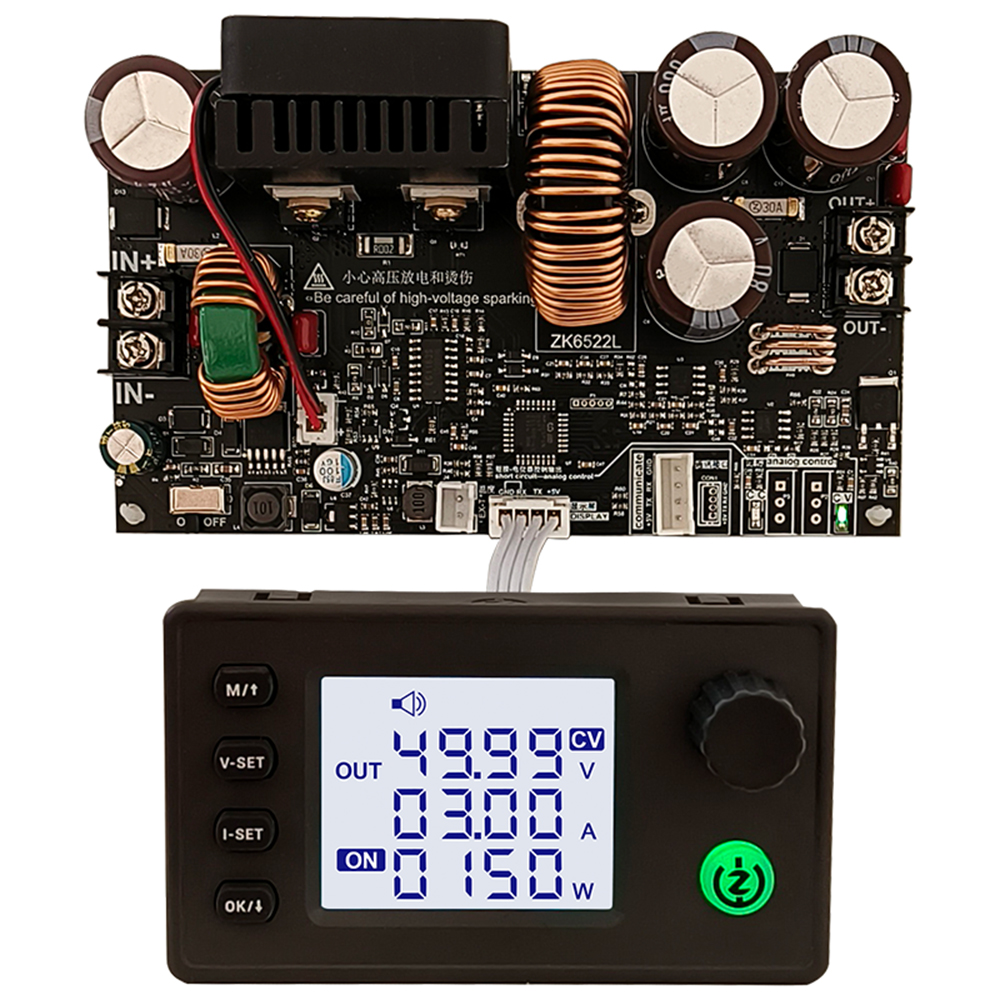

Package A: Voltage Reduction Module * 1+LCD Meter Head * 1+Connection Cable * 1

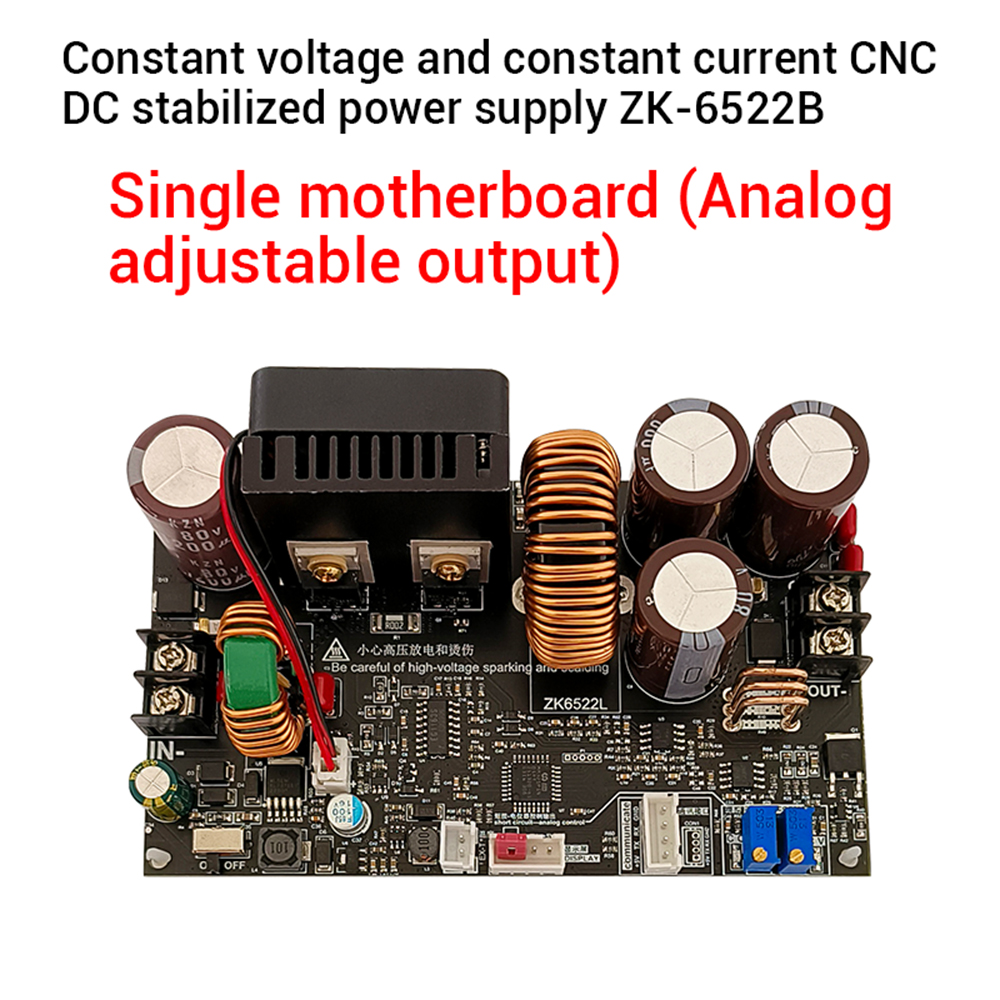

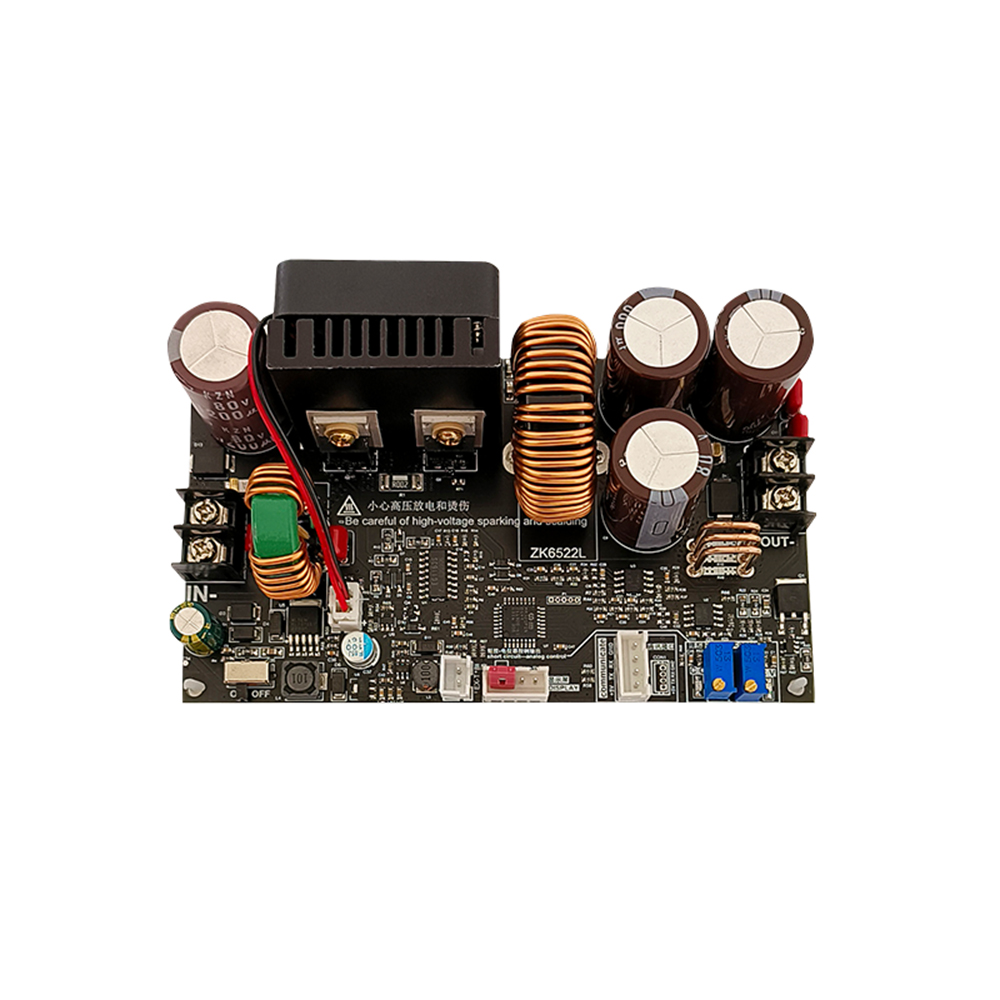

Package B: Voltage Reduction Module * 1
(Shipping does not include communication modules)
