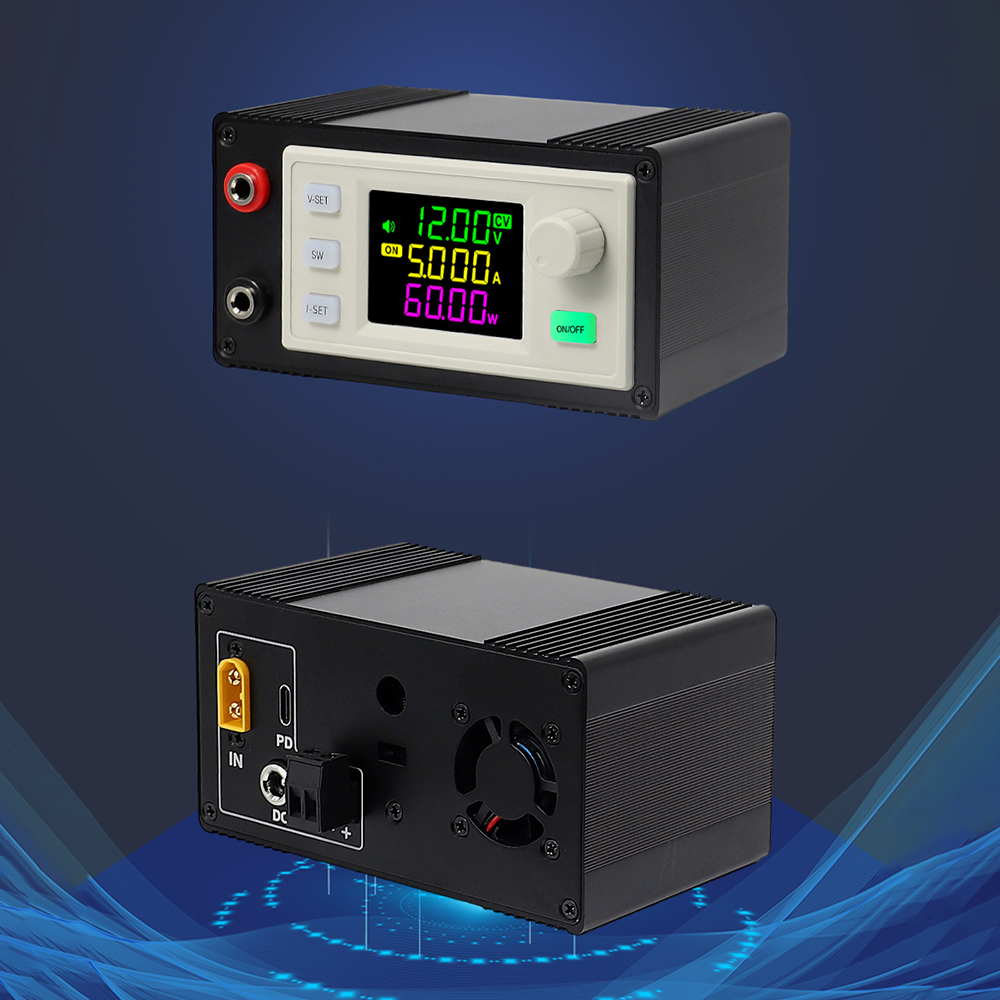

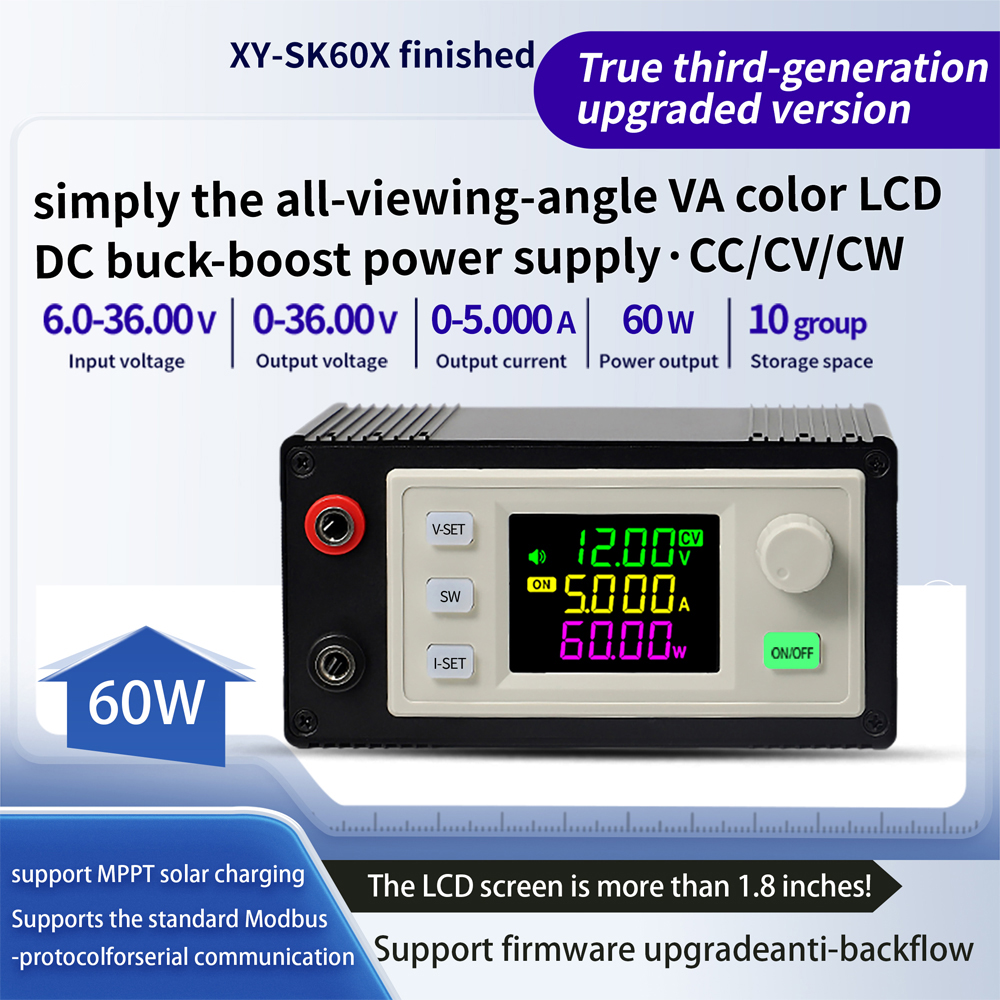

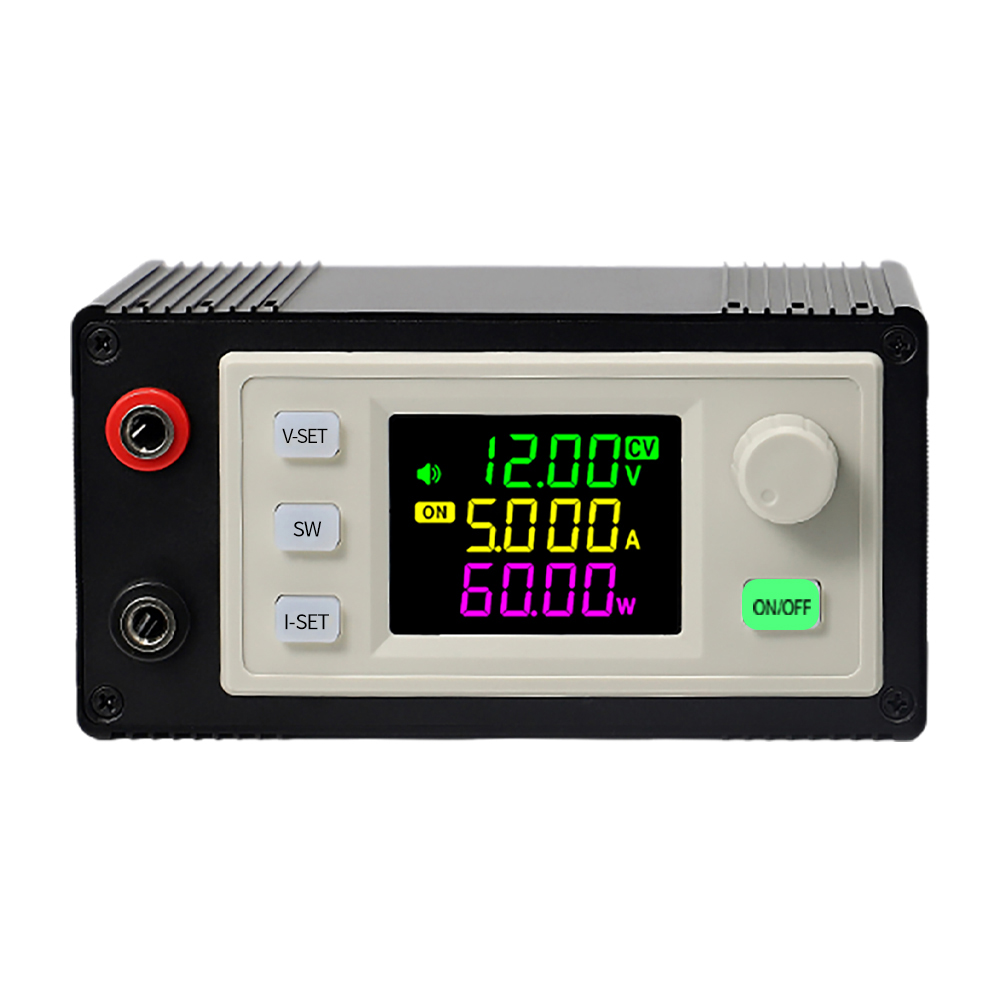

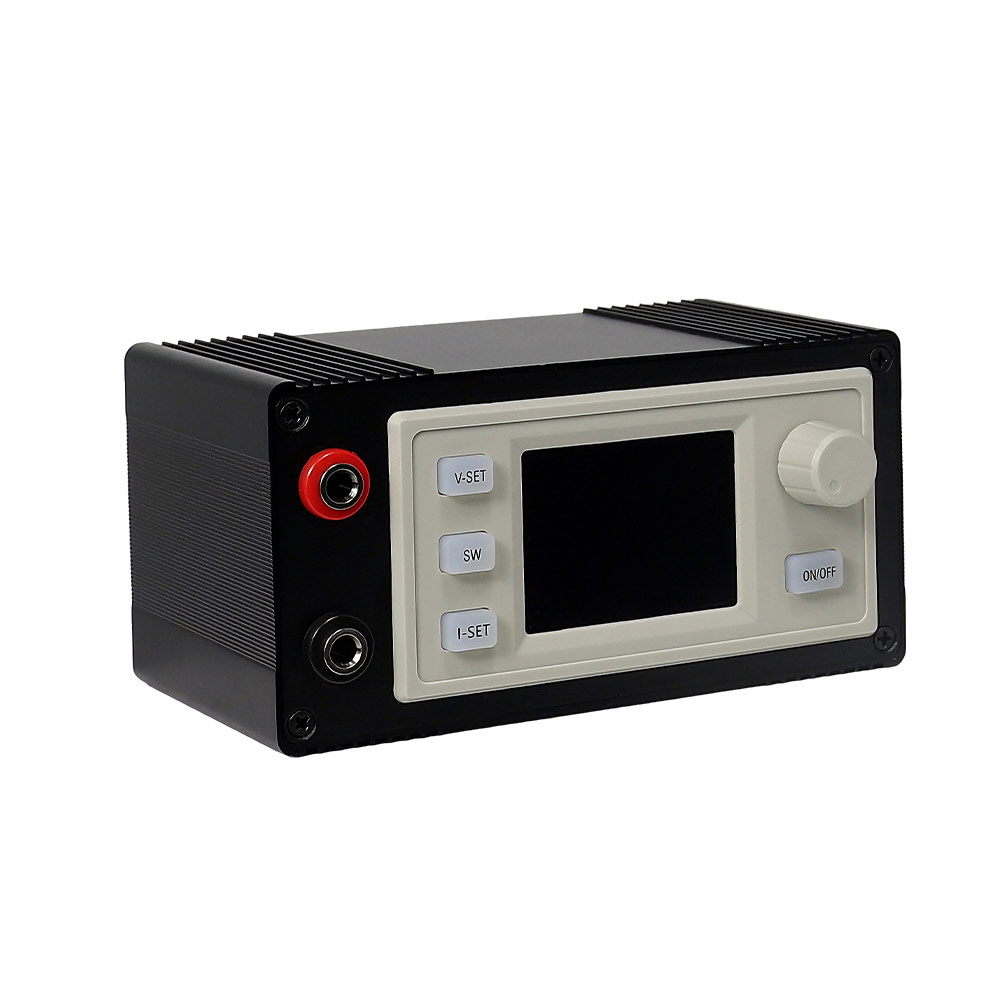

SK60X /SK120X CNC Buck-Boost DC Adjustable Voltage Regulator Power Supply Module
1. The X series products use silicone buttons, which have a comfortable feel, and each button is equipped with a cool indicator light
2. The layout of the LCD screen is reasonable, with large and full fonts. The professional power LCD screen has all the functions you want
3. The display panel adopts a gold-plated design, which is resistant to oxidation, has better conductivity, and is more durable! Adopting an integrated injection molded shell, the flame-retardant material is safer! Double layer buckle design ensures a more secure fixation of the double-layer circuit board
4. The product supports serial communication standard Modbus protocol, firmware upgrade, MPPT solar charging, and comprehensive functions
5. The product adopts high-precision external clock crystal oscillator to ensure the accuracy of time, more precise capacity/energy statistics, powerful 48 pin MCU controller, and faster 64M frequency operation speed
6. The product has a wide range of applications, including anti backflow function that can charge various rechargeable batteries, MPPT function that supports MPPT solar charging, external temperature probe that supports over temperature protection, and more

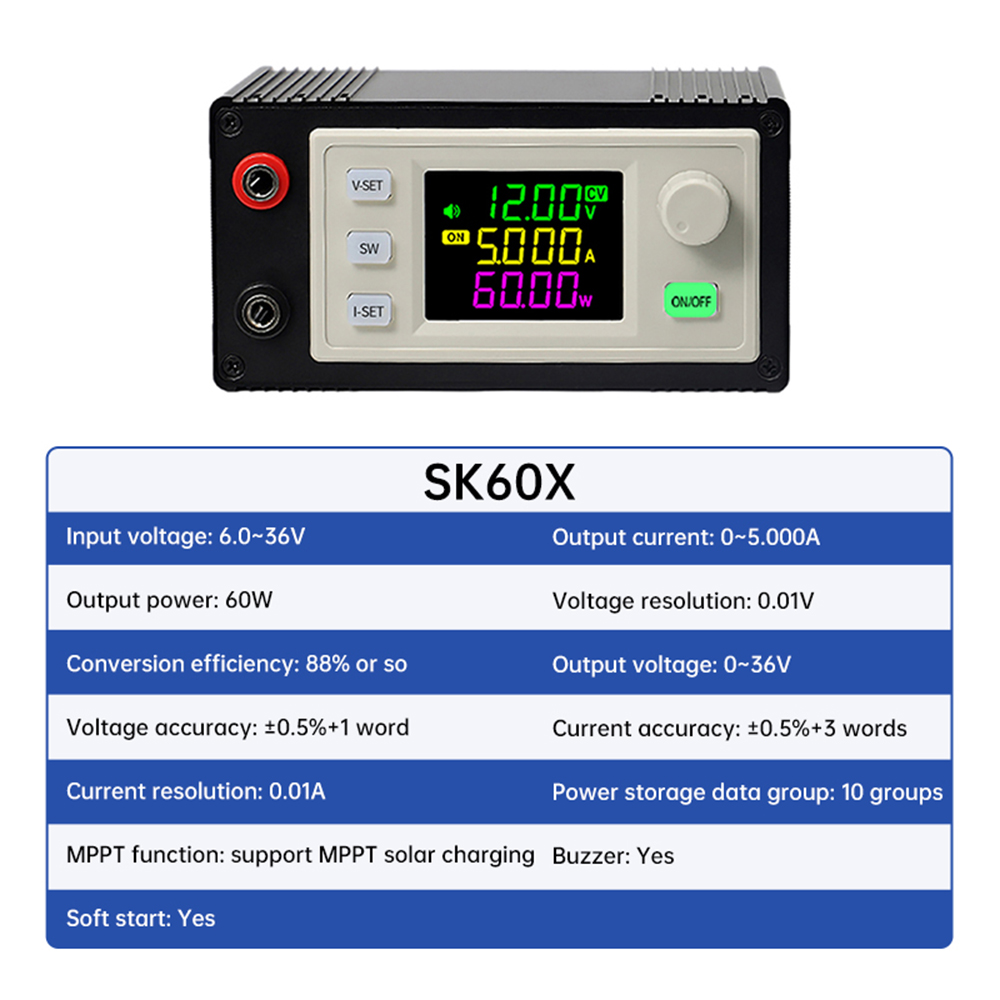

Input voltage: 6.0~36V
Output current: 0~5.000A
Output power: 60W
Voltage resolution: 0.01V
Conversion efficiency: around 88%
Output voltage: 0~36V
Voltage accuracy: ± 0.5%+1 word
Current accuracy: ± 0.5%+3 words
Current resolution: 0.01A
Storage data group: 10 groups
MPPT function: Supports MPPT solar charging
Buzzer: Yes
Soft Start: Yes

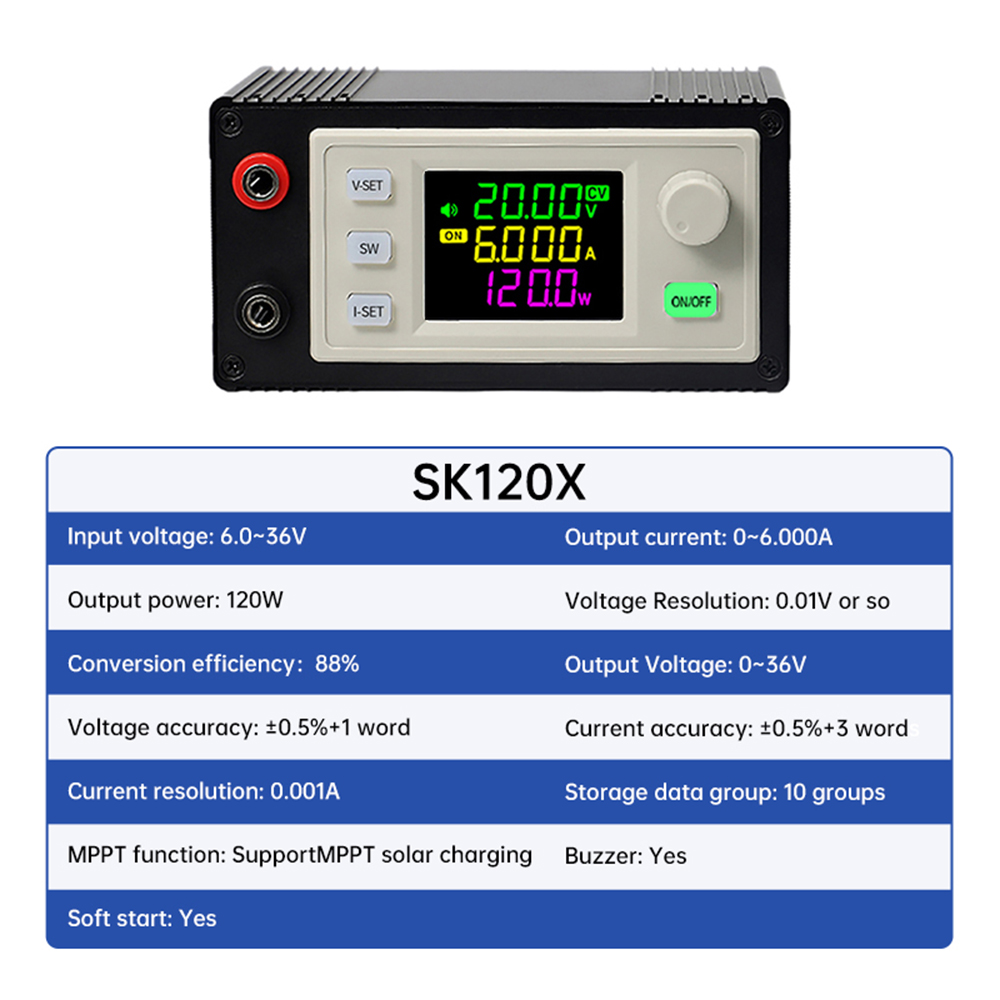

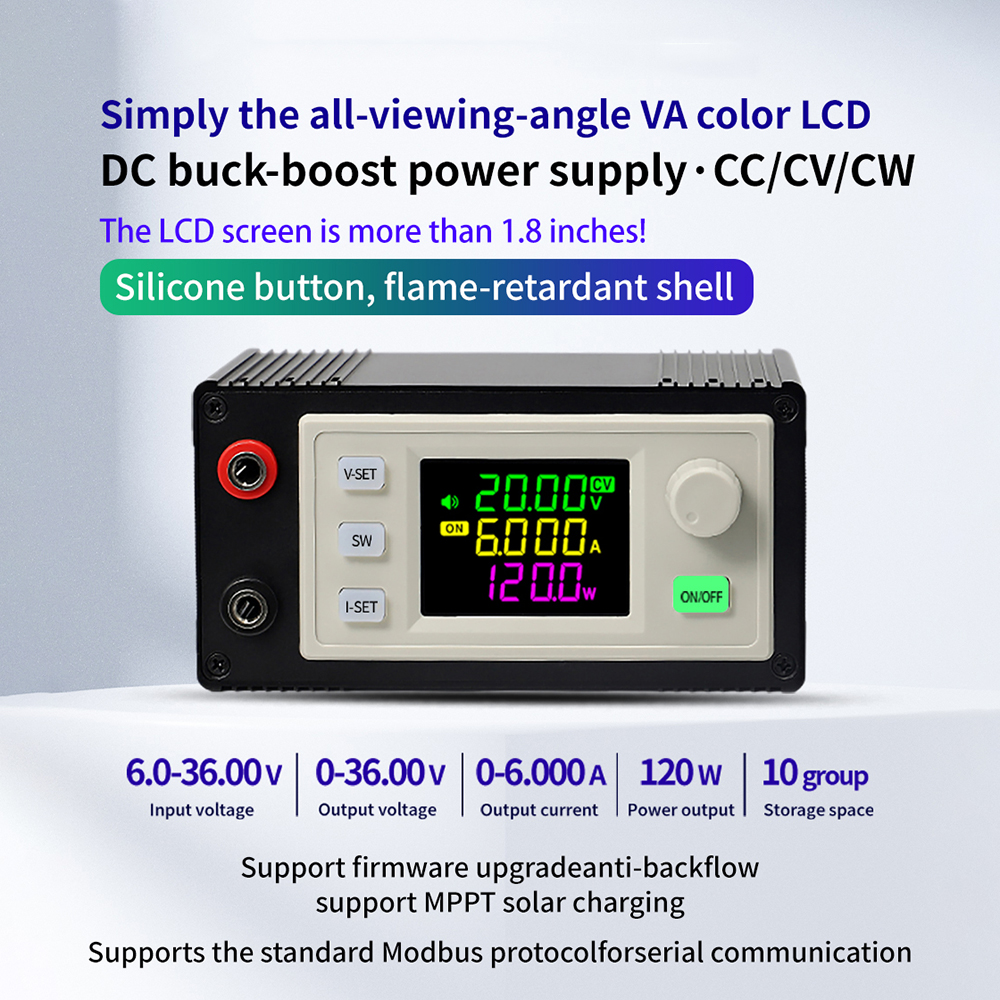

Input voltage: 6.0~36V
Output current: 0~6.000A
Output power: 120W
Voltage resolution: 0.01V
Conversion efficiency: around 88%
Output voltage: 0~36V
Voltage accuracy: ± 0.5%+1 word
Current accuracy: ± 0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
MPPT function: Supports MPPT solar charging
Buzzer: Yes
Soft Start: Yes
Input anti reverse connection: Yes
Output anti backflow: Yes
Input undervoltage protection: adjustable from 5.5-36V, default 5.5V
Output overvoltage protection: adjustable from 0-38V, default 38V
Output overcurrent protection:
SK60:0-5.2A adjustable, default 5.2A
SK120:0-6.2A adjustable, default 6.2A
Output over power protection:
SK120:0-150W adjustable, default 125W
Over temperature protection: adjustable from 0-110 ℃, default 95 ° C
Timeout protection: adjustable from 0 to 100H, default off
Overcapacity protection: adjustable from 0 to 9999AH, default off
Super energy protection: adjustable from 0 to 4200KWH, default off

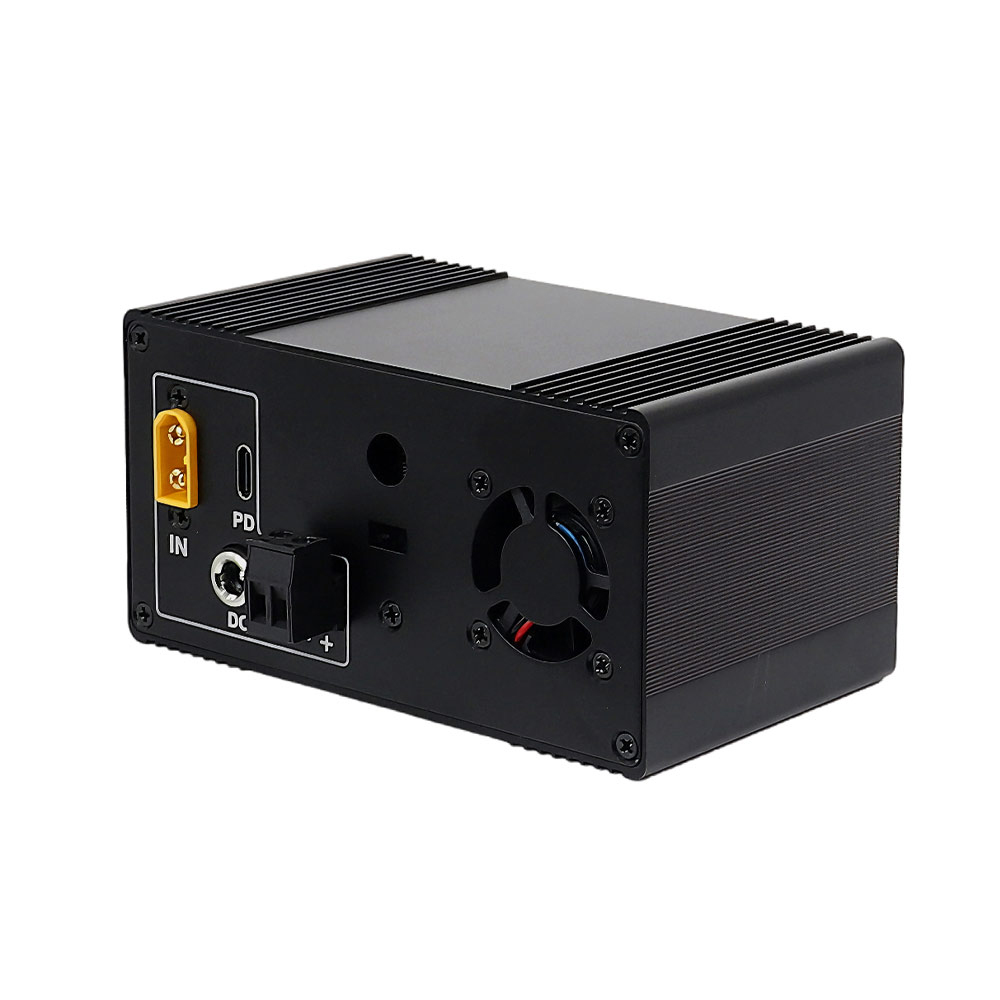

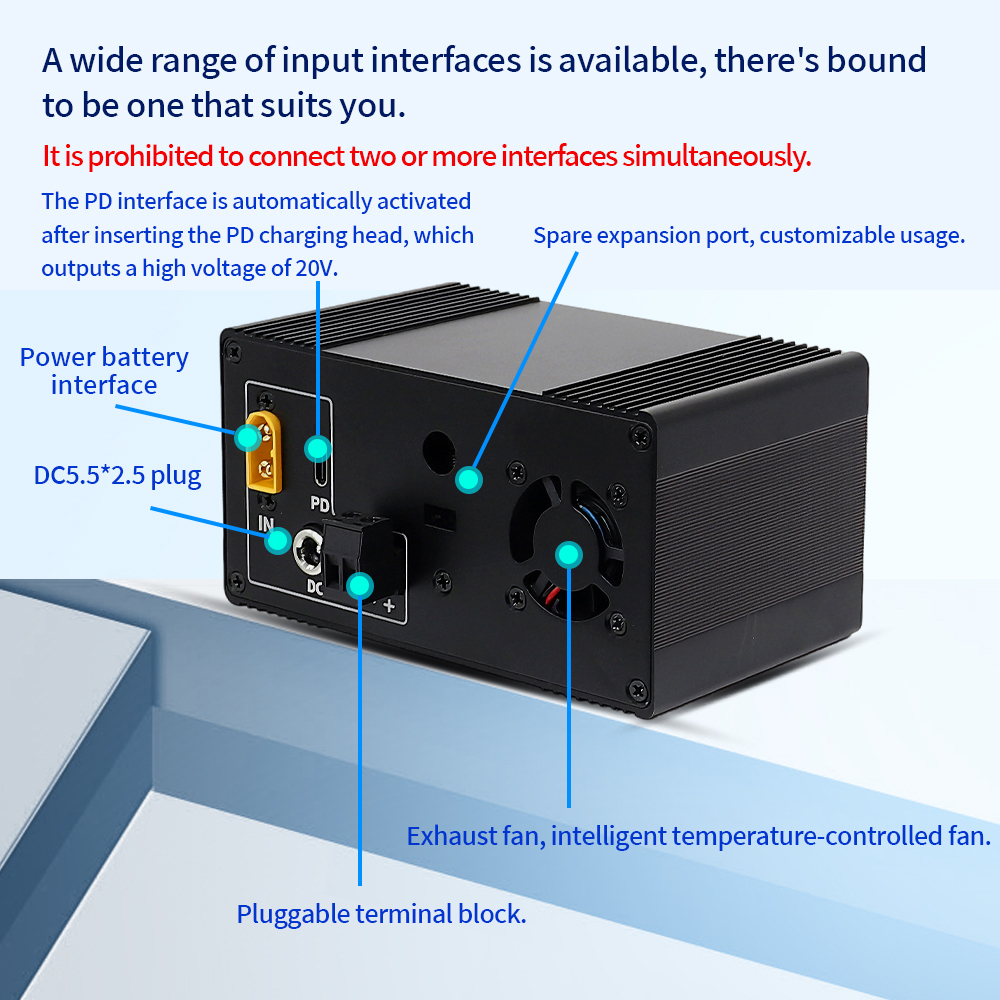

Equipped with an interface shell boost module * 1 (optional style)
