Advantages:
1. 20 Years AC Evapor ators and Condensors Manufacture
2.Offer one stop services of car; bus and truck Air Conditioning and Refrigerator
3.Welcome OEM orders
4.Flexible MOQ and excellent cost performance

5.360 QA system, having advanced testing machine

6.Trained and experienced sales team to solve pre-sales or after-sales problem for customers

SCROLLCOMPRESSOR SPECIFICATION:
Cooling capacity: 10000 BTU max
Rated Voltage:12 Volt
Application:A:utomotive air-condition
Refrigerant: R134a （Not included in the package）
Compressor cooling:Inhalation refrigerant cooling
Displacement: 12ml/re
Refrigerator oil: EMKARATE RL68H/100ml

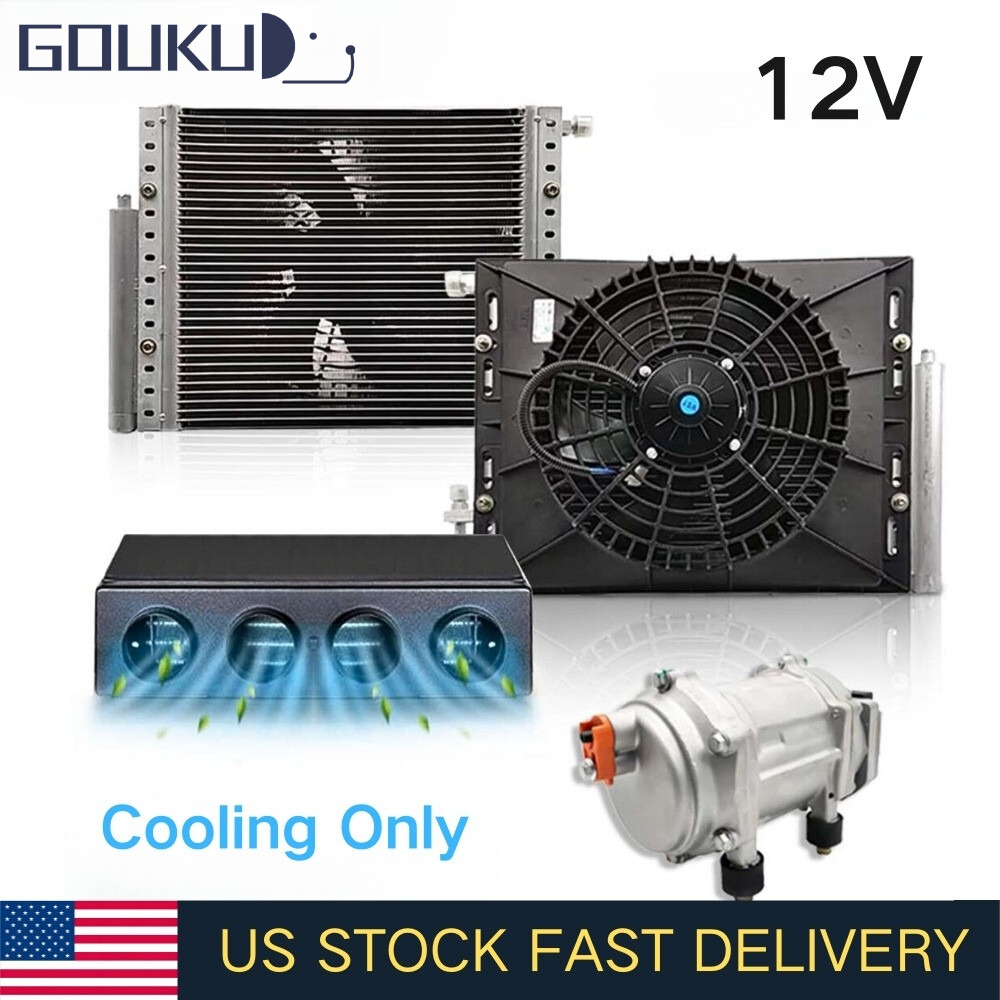

Package List:
1*Condenser*Fan*Dryer Bottle
1*Outlet
1*Integrated Electric Compressor
1.Wiring Harness
1*Fittings Kit

Note:
1.The total leakage of the compressor is not greater than 5g/year.
2.The noise is not greater than 74dB in rated speed.
3.Insulation resistance must be greater than 20MΩ .
4.The tolerance of None remarked dimensions may be accordance with GB1804-m.
5.The performance of all unmentioned are in accordance with GB/T 22068-2018.
