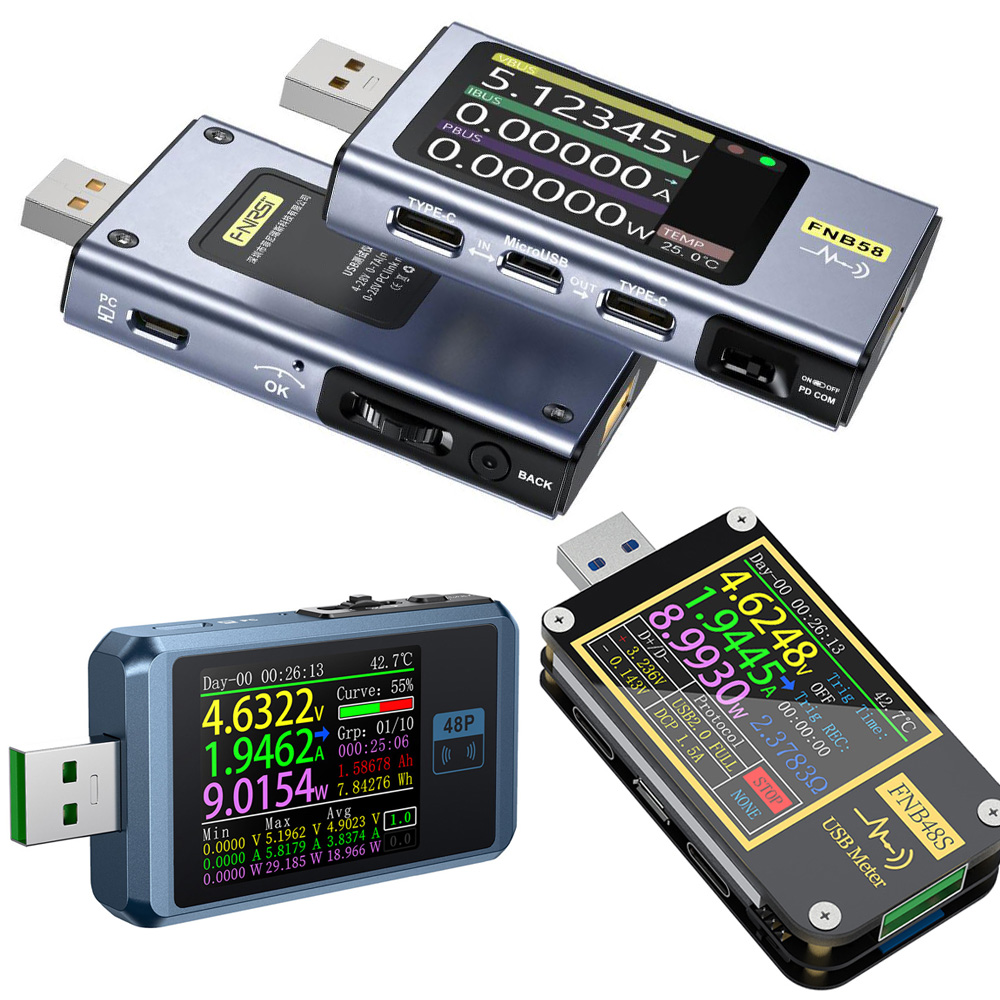

FNIRSI FNB58 FNB48P Digital USB Voltage Current Power Meter Voltmeter Ammeter

Details

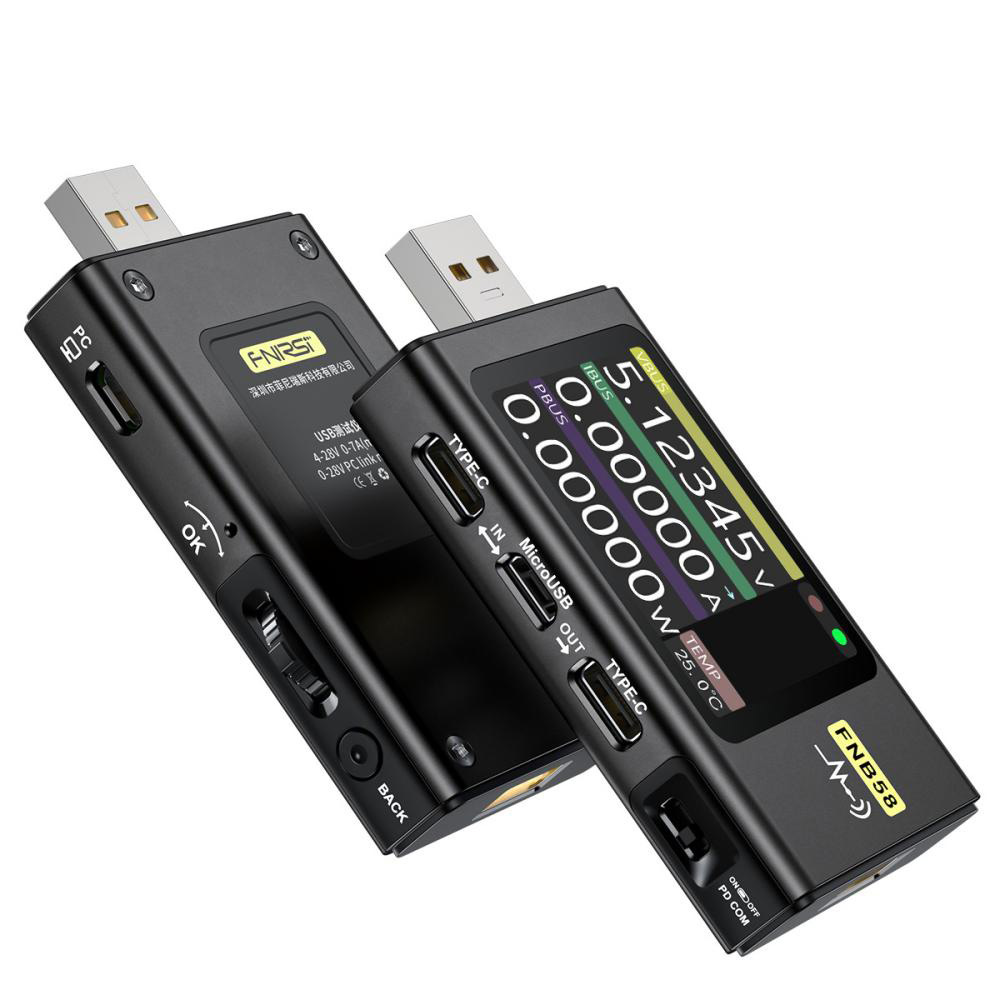

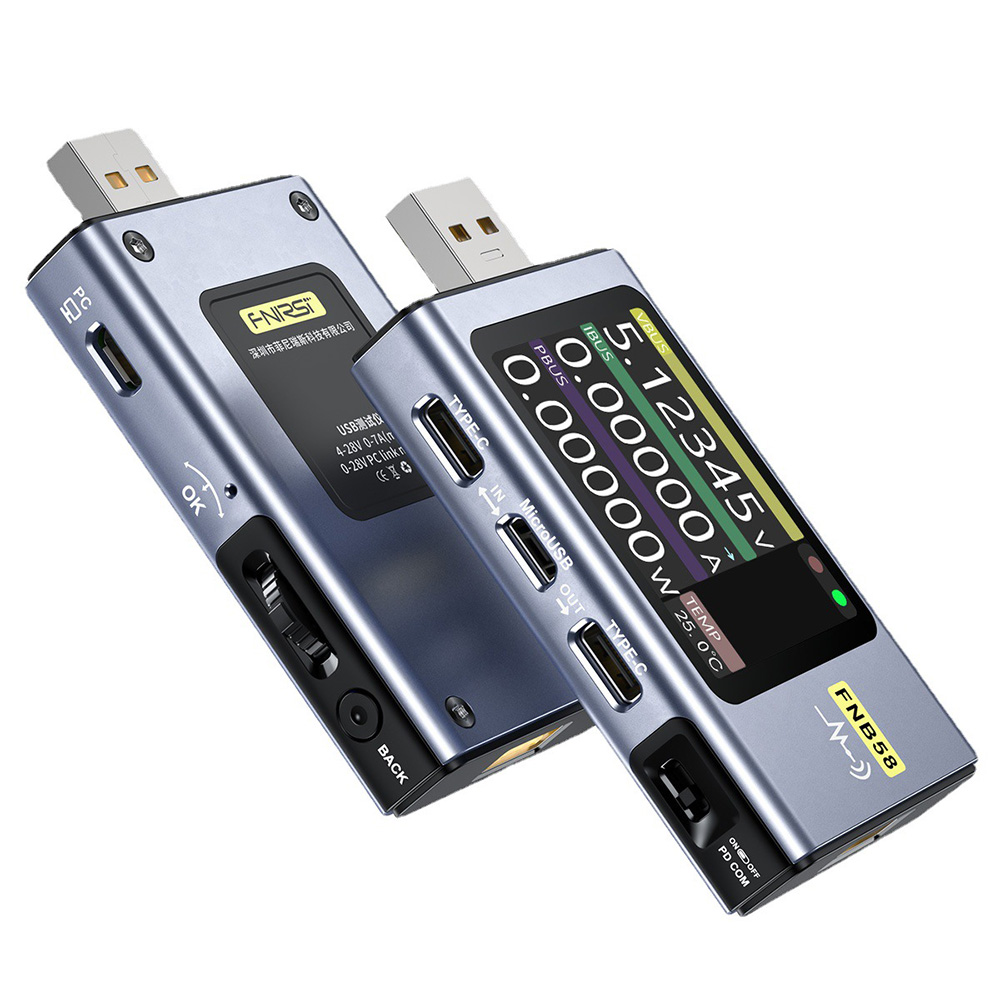

FNB58

Product Features:

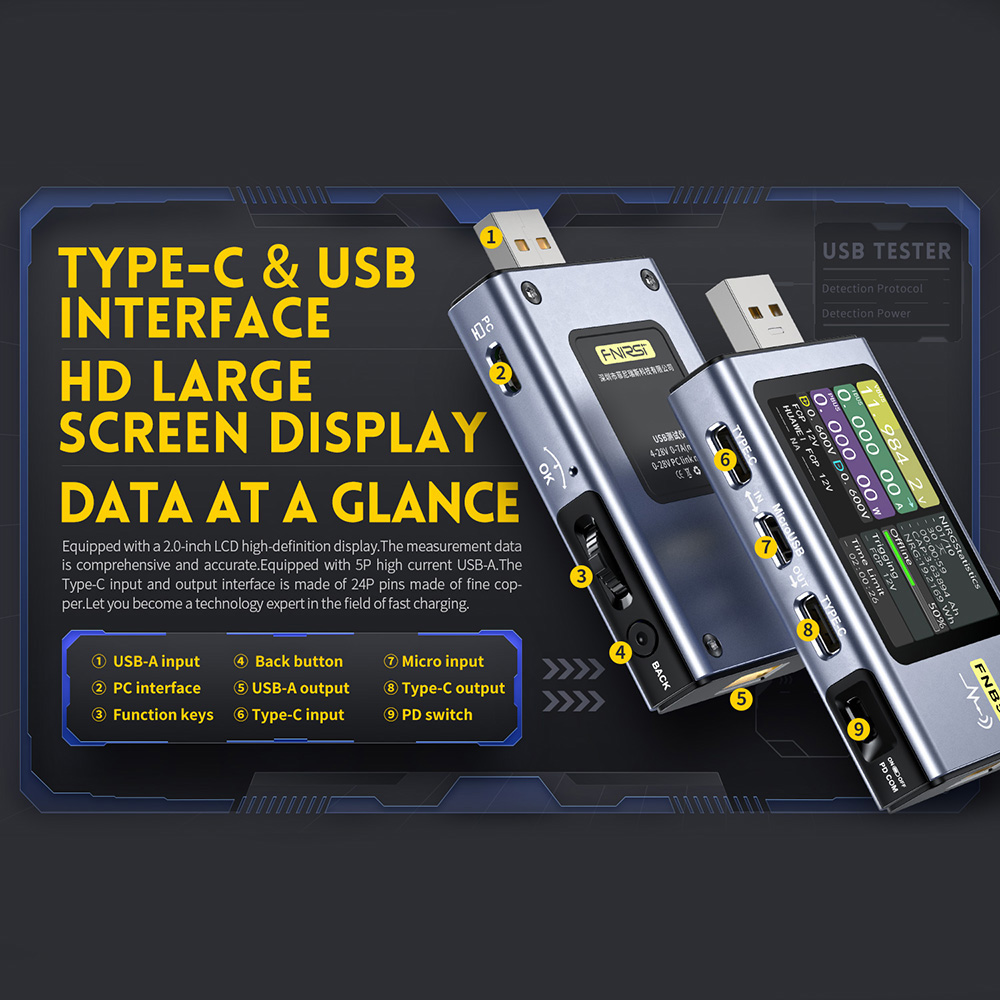

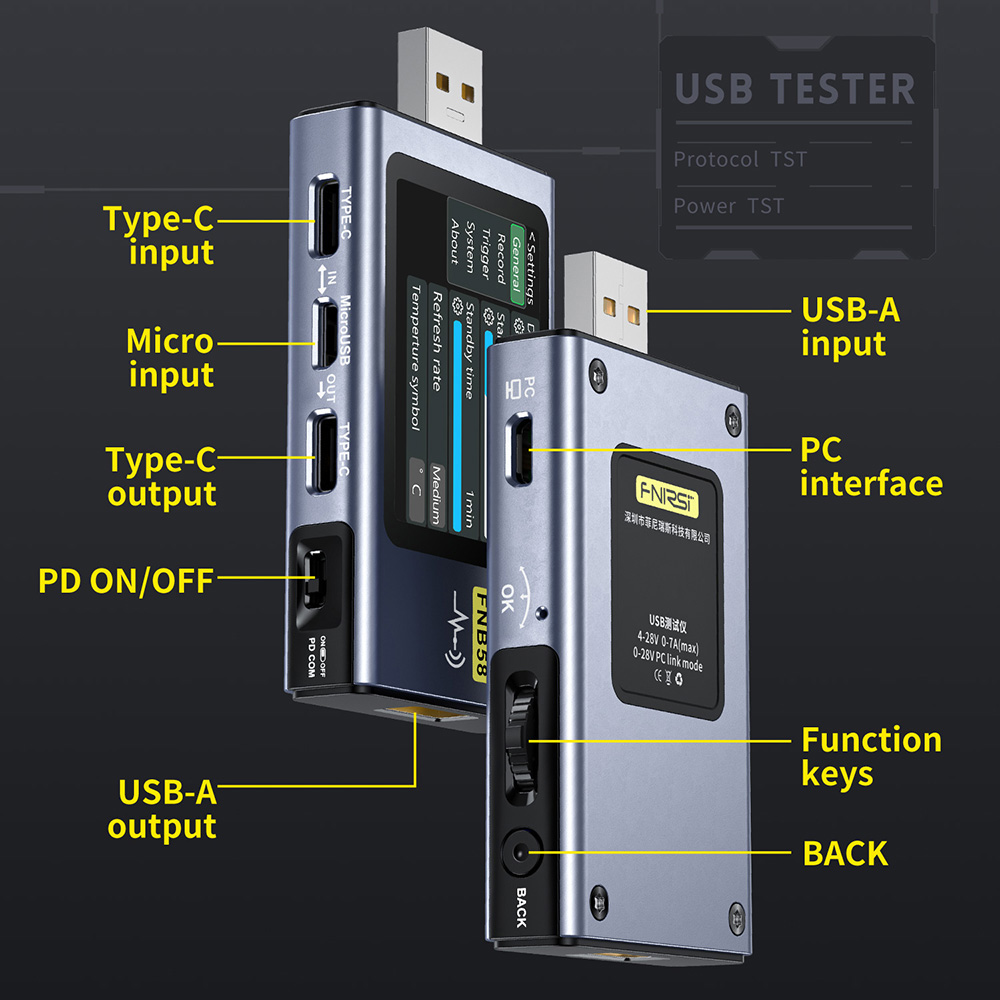

1. Full interface compatible with large display, data at the bottom, equipped with 2.0-inch LCD high-definition display, measurement data clearly visible; with 5P high-current USB-A, 24P full-pin Type-C input and output interface, charging detection, a step faster.
2. strong compatibility, 0.00001 low resolution, real-time monitoring of the subtle changes in voltage, current and power during charging.

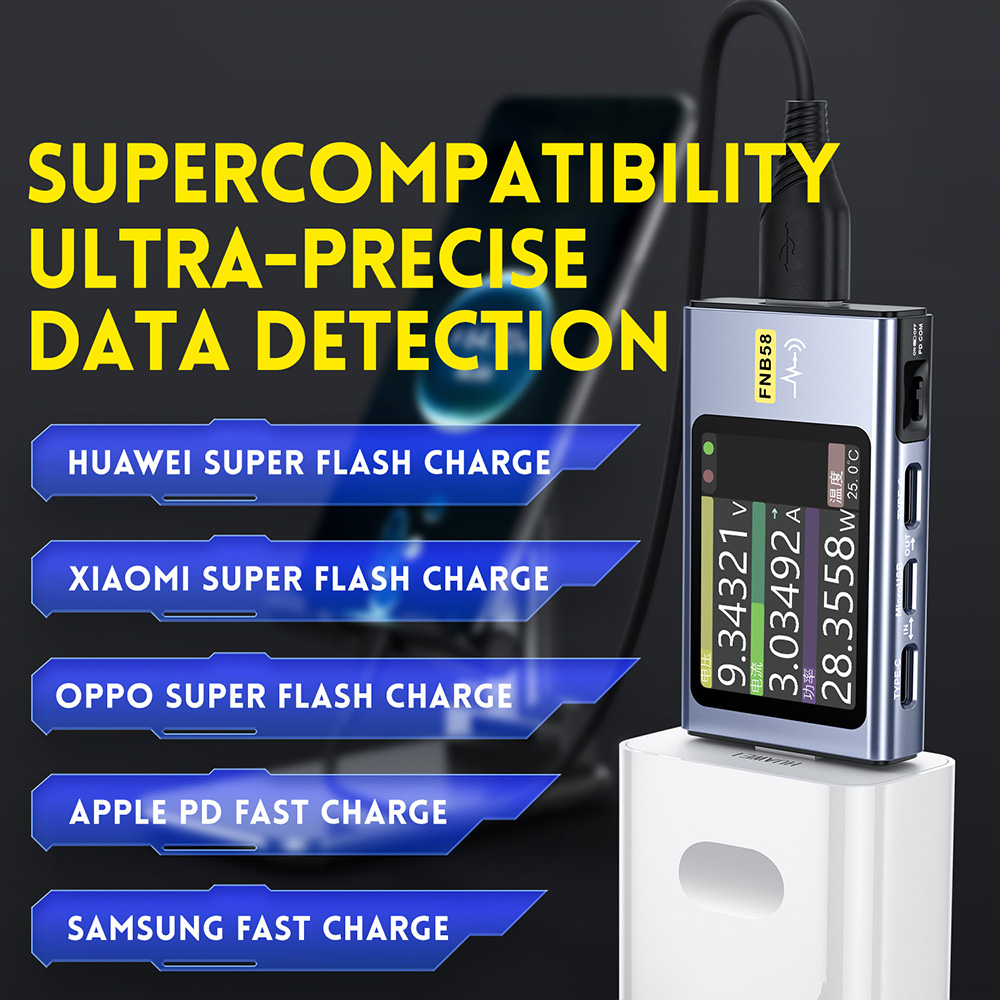

3. Support automatic protocol detection protocol decoy, PD2.0, 3.0, PPS, QC2.0, 3.0, QC4, FCP, SCP, AFC, PE, DASH VOOC, SuperVOOC ......
4. human-computer interaction, cell phone like intelligent operation, simple display interface; independent function menu; humanized operation.
5. 10 groups of energy records, battery capacity calculation in one step, support 10 groups of charge and discharge energy data records; built-in battery capacity calculation formula, through the recorded data can quickly calculate the battery capacity.
6. Bluetooth APP and upper computer, driver-free installation, synchronized data, efficient and convenient; Bluetooth APP over-voltage and over-current alarm. (Only with Bluetooth version)

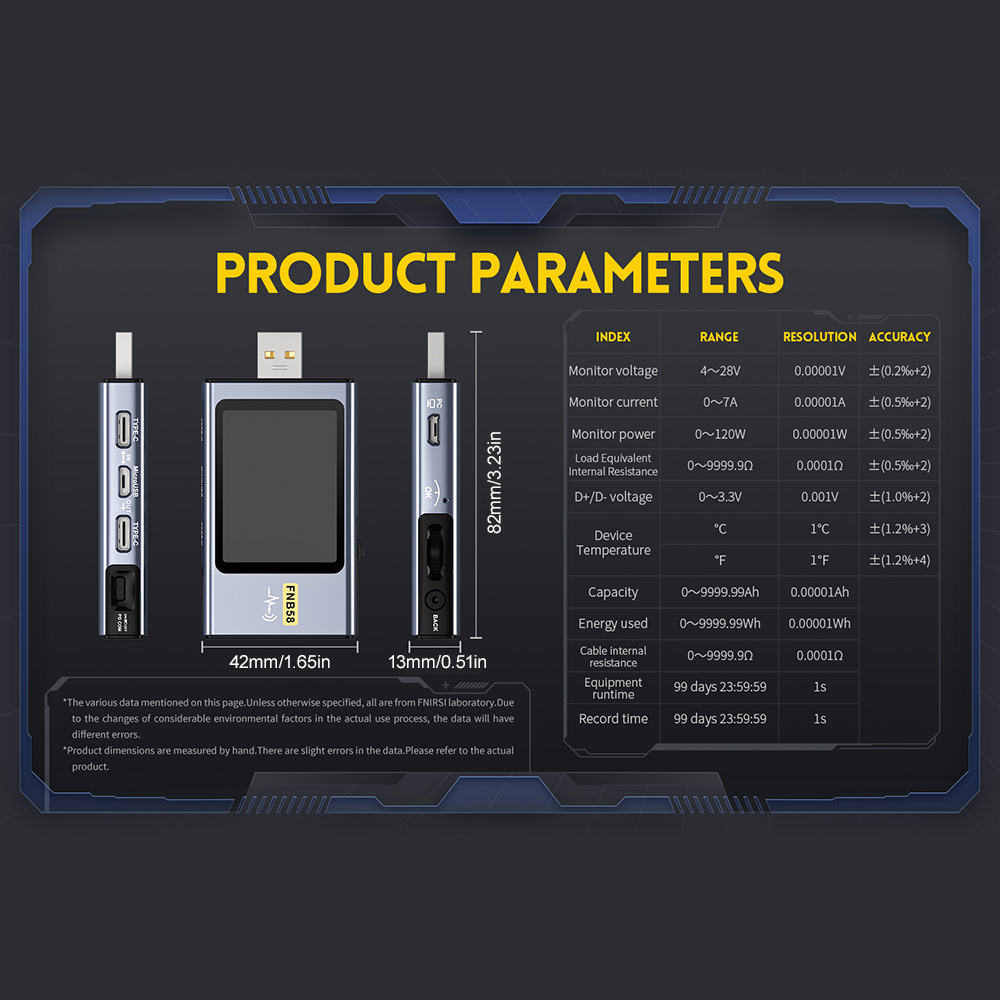

Product parameters:
2 styles: without Bluetooth version, with Bluetooth version
Monitoring voltage: 4~28V resolution 0.00001V ±(0.2%o+2)
Monitoring Current: 0~7V Resolution 0.00001A ±(0.5%o+2)
Monitoring Power: 0~120W Resolution 0.00001W ±(0.5%o+2)
Load Equivalent Internal Resistance: 0~9999.9Ω Resolution 0.0001Ω ±(0.5%o+2)
D+/D- Voltage: 0~3.3V Resolution 0.001V ±(1.0%+2)
Device Temperature: ℃ , °F
Capacity: 0~9999.99Ah
Power consumption: 0~9999.99Wh
Cable internal resistance: 0~9999.9Ω
Equipment running time: 99 days 23 hours 59 minutes 59 seconds
Recording time: 99 days 23 hours 59 minutes 59 seconds

Product list:
FNB 58 Tester X1

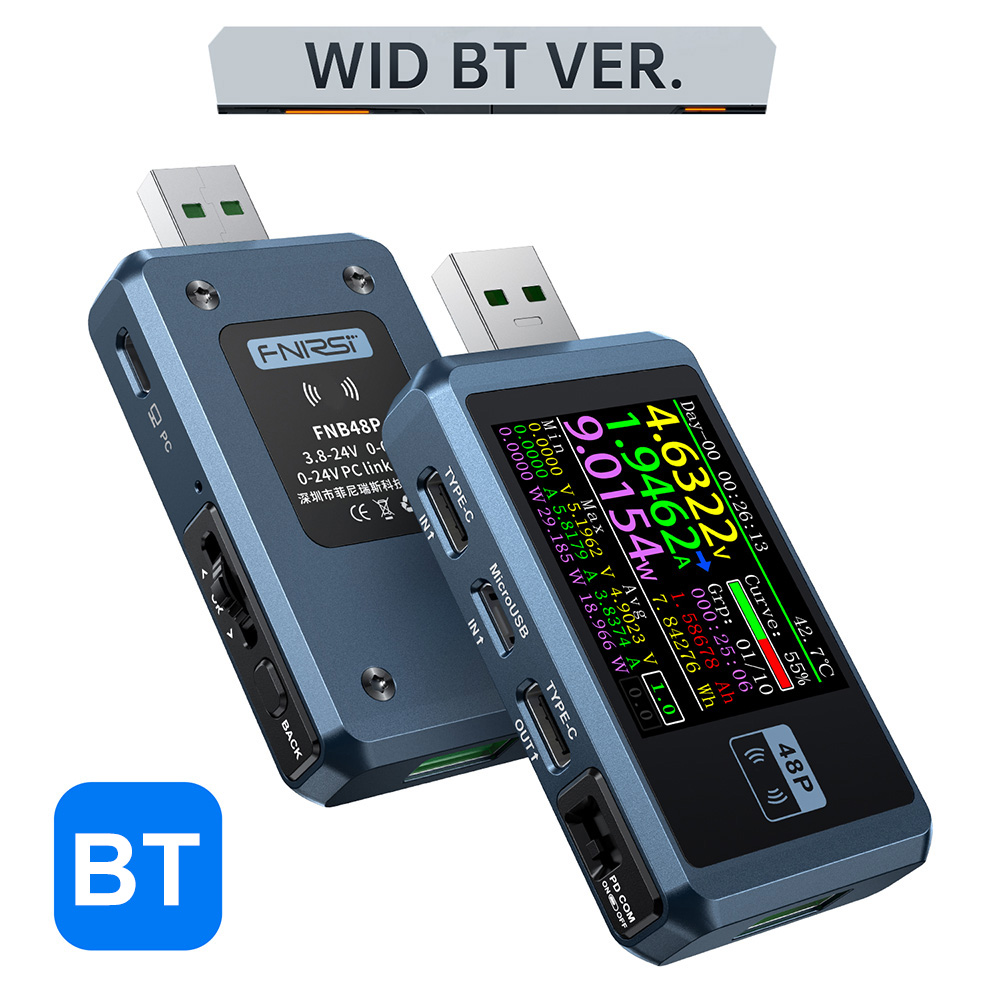

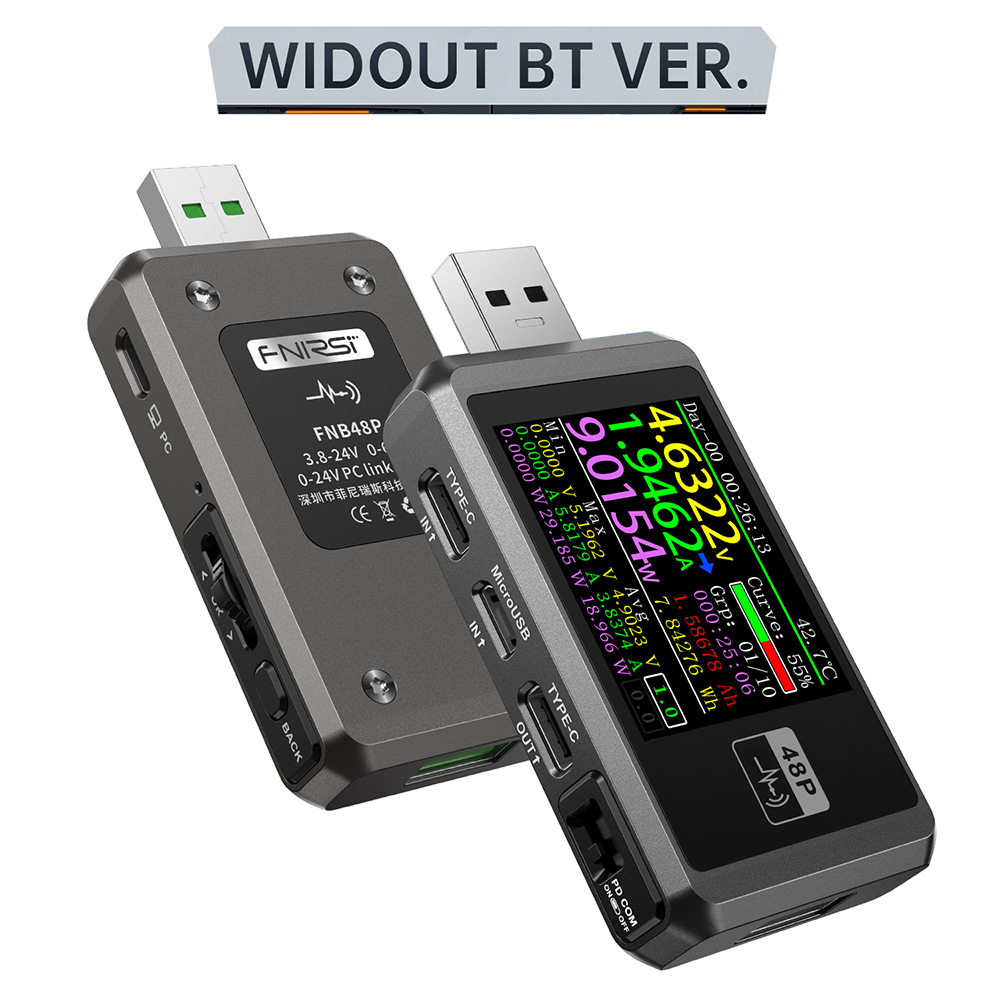

FNB48P

Product features:
1.6.5A large current, maximum resolution 0.00001, real-time monitoring of subtle changes in voltage, current and power during charging
2.6 Digits display high precision, supporting multiple fast charging protocols
3. CNC metal shell design, light and delicate touch, with 1.77-inch high-definition display screen, multiple displays on one screen, and clear data at a glance
4. The mainstream fast charging protocol can detect deception
5. Equipped with gravity sensing function, 360-degree rollover is comprehensive and supports closing/opening
6.10 Group data intelligent recording
7. Multi-USB port compatibility

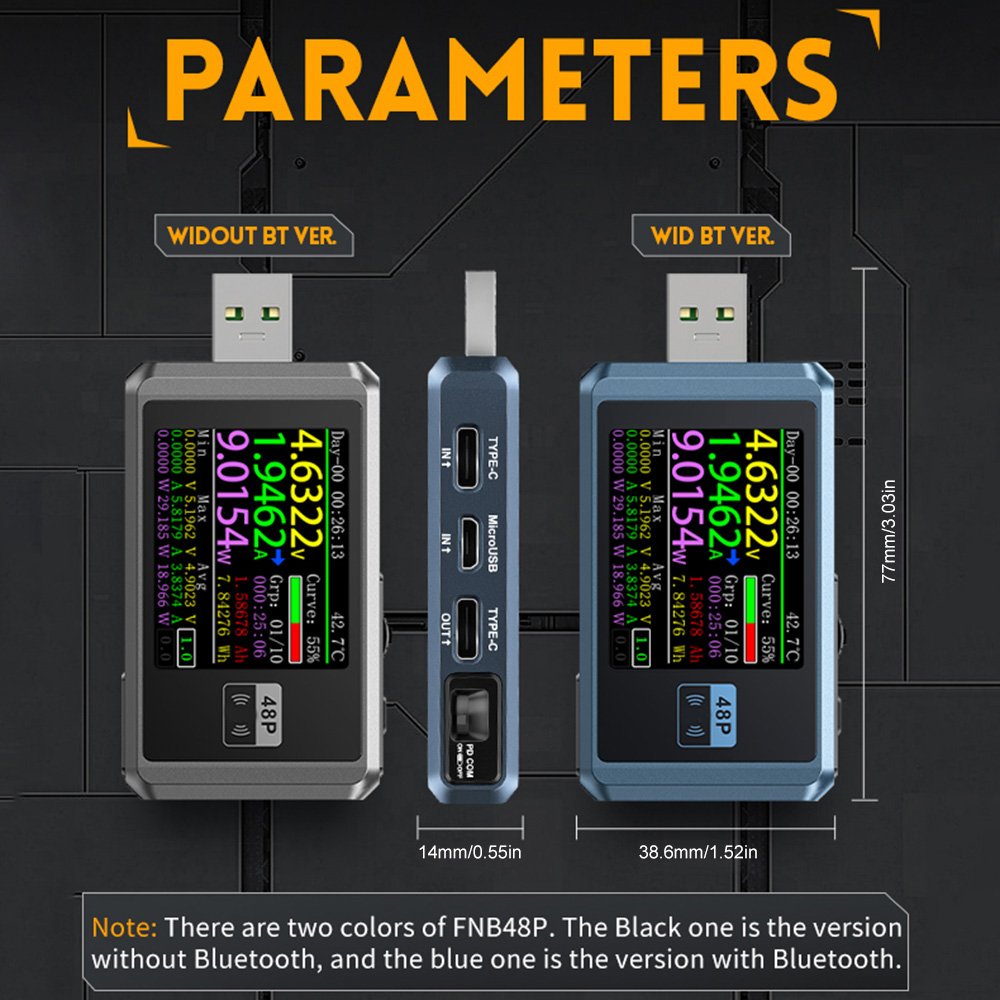

Product parameters:
Monitoring voltage: 4~24V, resolution: 0.00001V, accuracy: ± (0.2%+2)
Monitoring current: 0~6.5A, resolution: 0.00001A, accuracy: ± (0.5%+2)
Monitoring power: 0~156W, resolution: 0.00001W, accuracy: ± (0.5%+2)
Load equivalent internal resistance: 0~9999.9 Ω, resolution: 0.0001 Ω, accuracy: ± (0.5%+2)
D+/D-voltage: 0~3.3V, resolution: 0.001 V, accuracy: ± (1.0%+2)
Equipment temperature: ℃, resolution: 1 ℃, accuracy: ± (1.2%+3), ℉, resolution: 1 ℉, accuracy: ± (1.2%+4)
Capacity: 0~9999.99Ah, resolution: 0.00001Ah
Power consumption: 0~9999.99Wh, resolution: 0.00001Wh
Cable internal resistance: 0~9999.9 Ω, resolution: 0.0001 Ω
Running time: 99 days, 23 hours, 59 minutes, 59 seconds, resolution: 1 second
Recording time: 999 hours, 59 minutes, 59 seconds, resolution: 1 second


Package list:
FNB48P USB charging tester * 1
