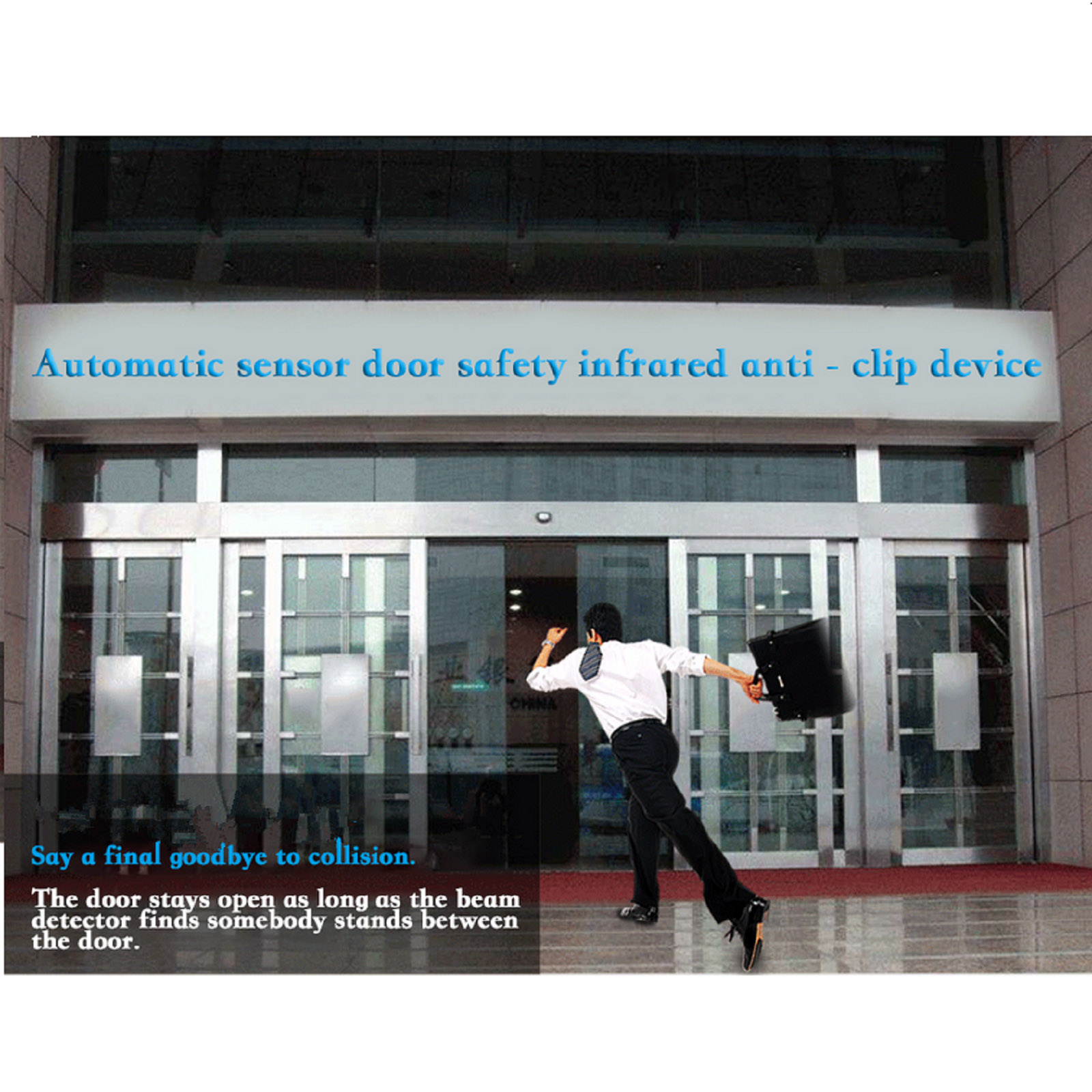

Automatic Sliding Door Safety Beam Sensor, Beam Sensors For Autodoor,Automatic Sensor Door Safety Infrared Anti-Clip Device

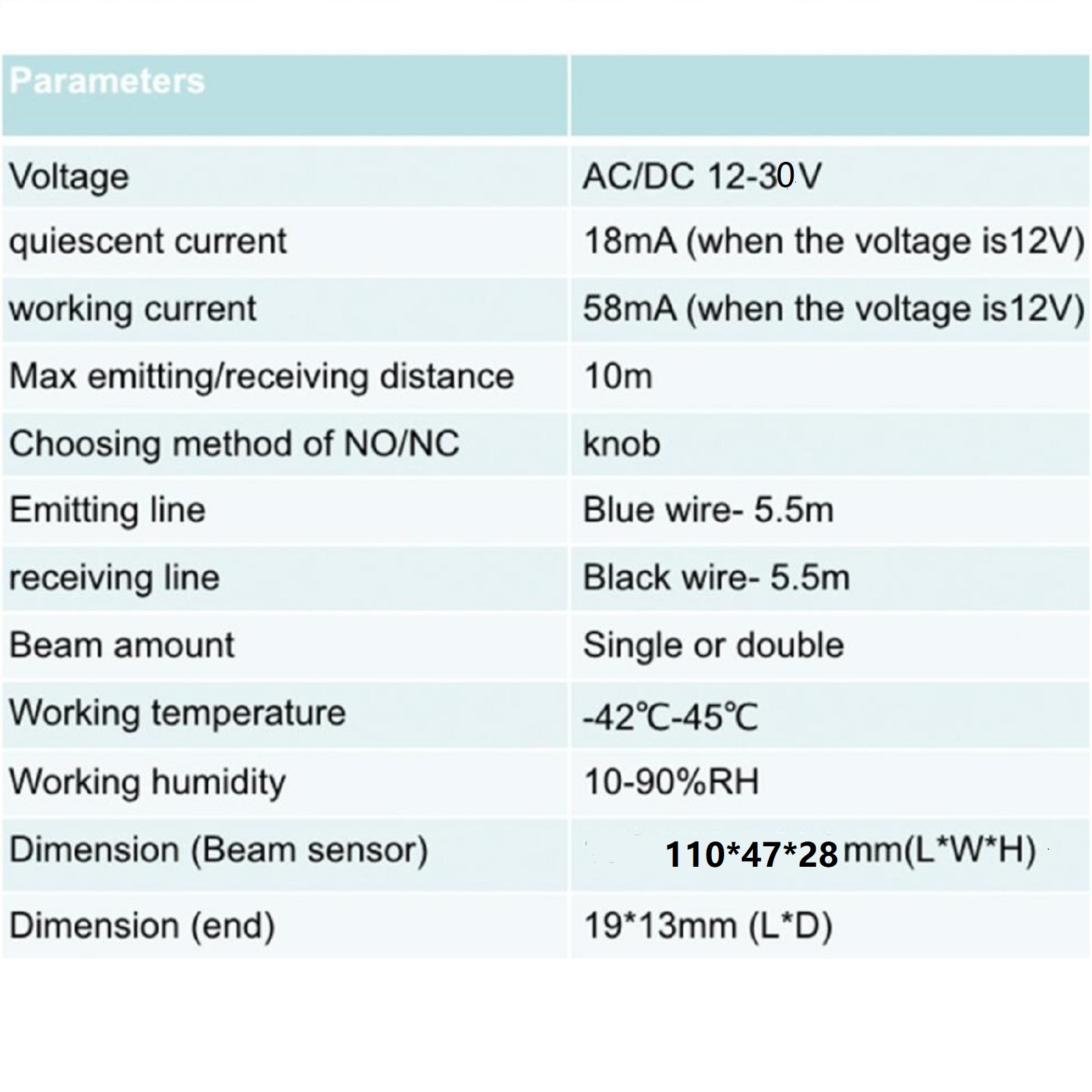

Specifications:
Voltage: AC/DC 12-30V
quiescent current: 18mA (when the voltage is 12V)
working current: 58mA (when the voltage is12V)
Max emitting/receiving distance: 10m
Choosing method of NO/NC: knob
Emitting line: Blue wire- 5.5m
receiving line: Black wire- 5.5m
Beam amount: Single or double
Working temperature: -42°C-45°C
Working humidity: 10-90%RH

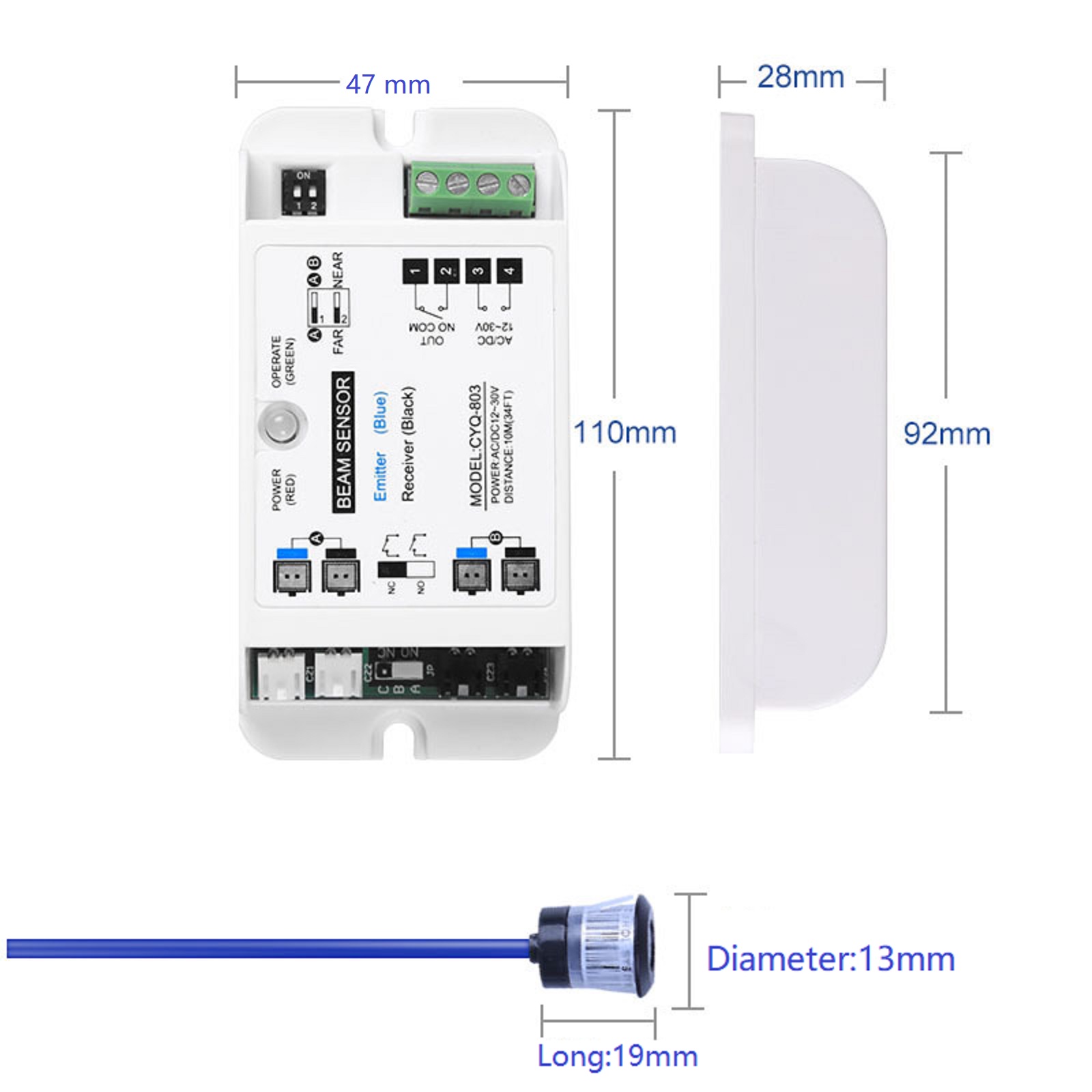

Dimension (Beam sensor): 110*47*28mm(L*W*H)
Dimension (end): 19*13mm (L*D)

Features:

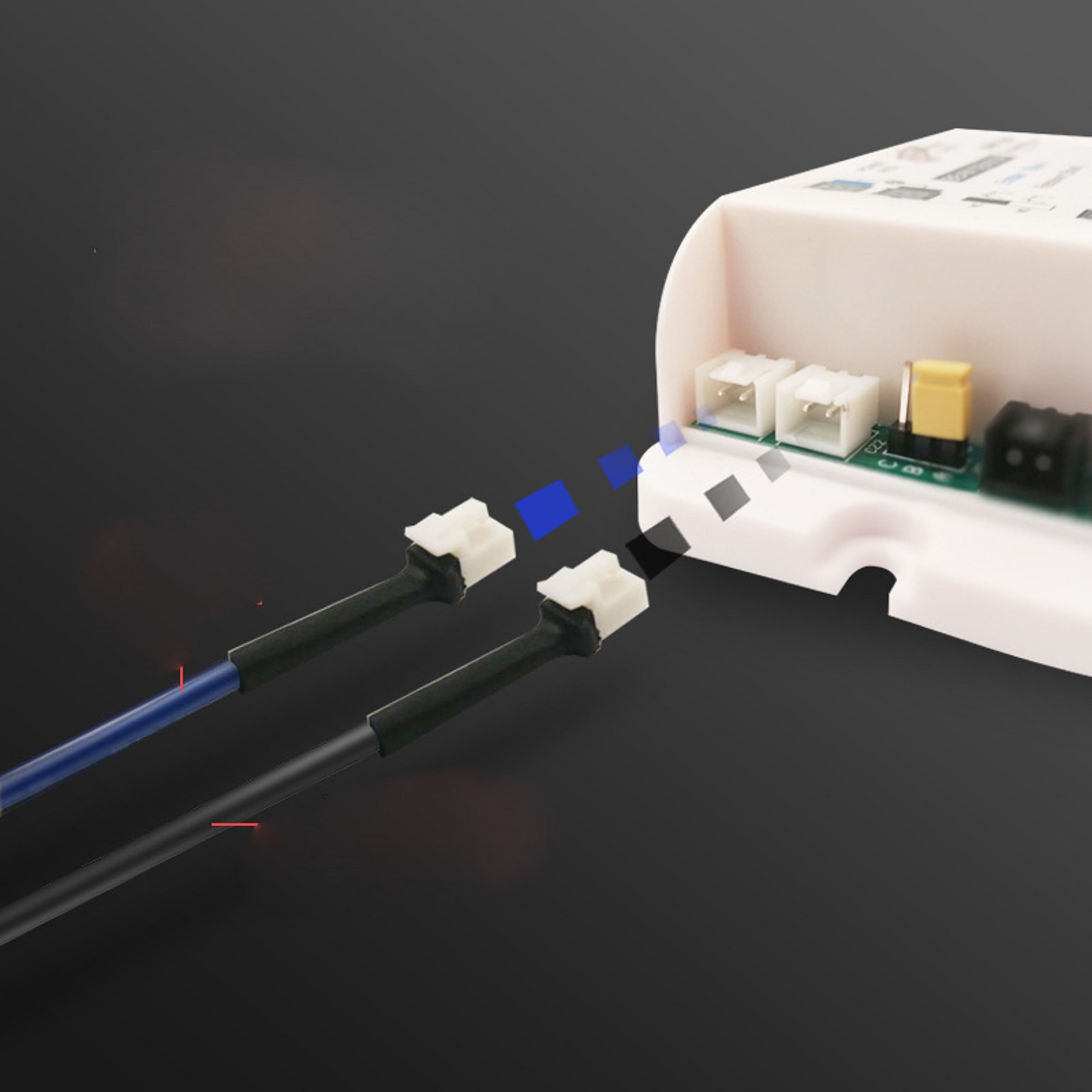

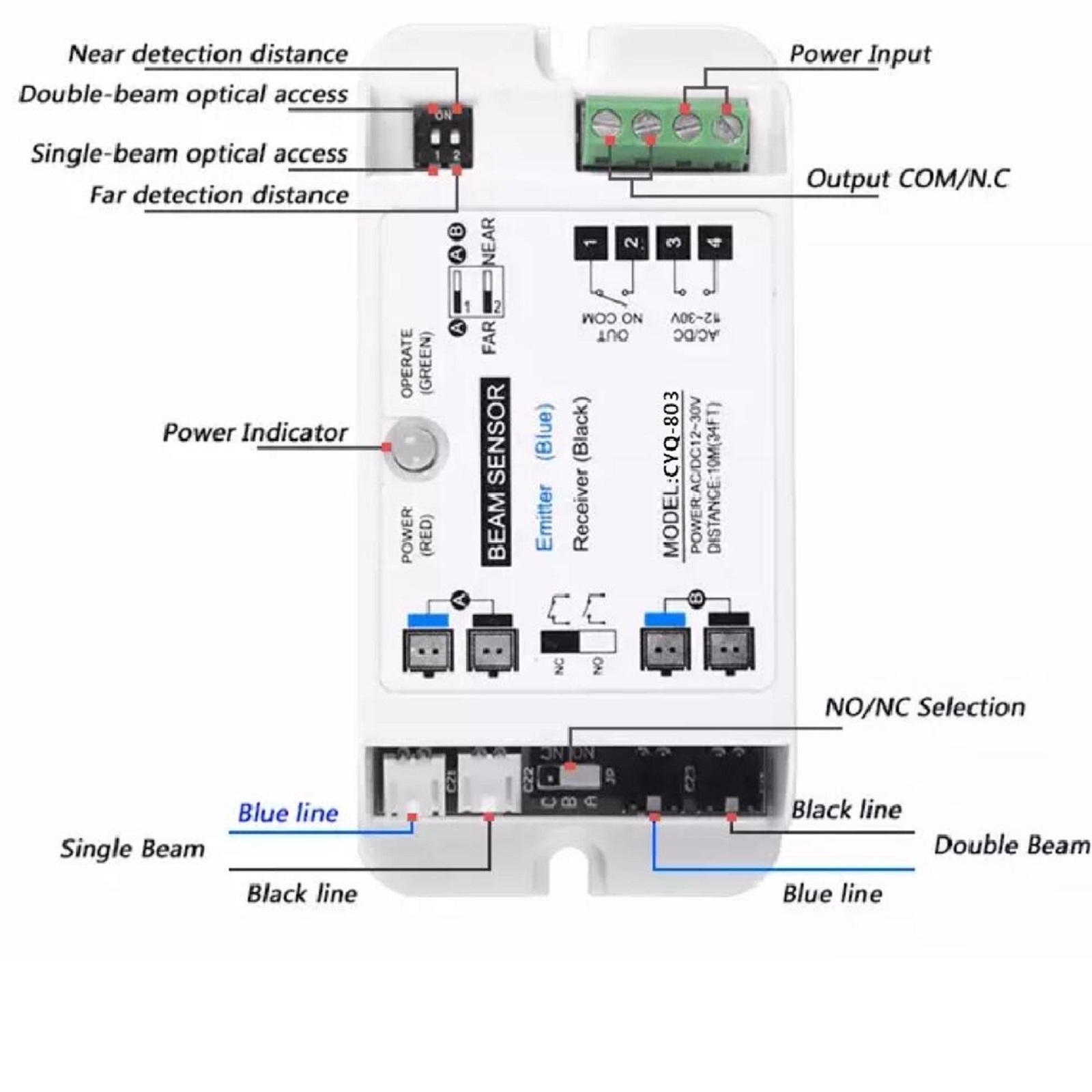

1. Adopt plug in socket. Easy and convenient wiring method. Connect wire by matching color.
2. t is controlled by micro computer which is highly integrated and stable.
3. Wide range of voltage: AC/DC 12~30V.
4. It has long transmitting distance, low power consumption.

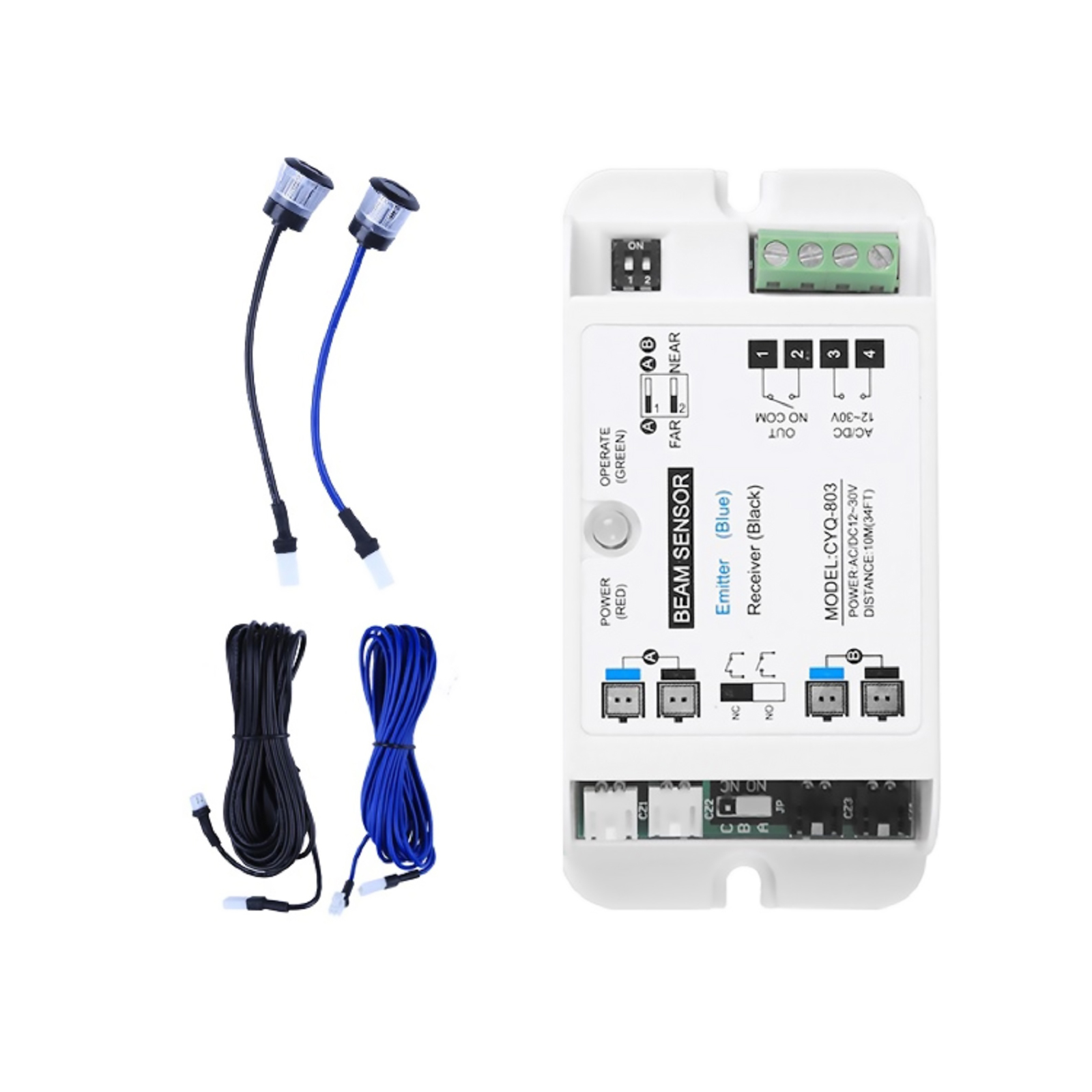

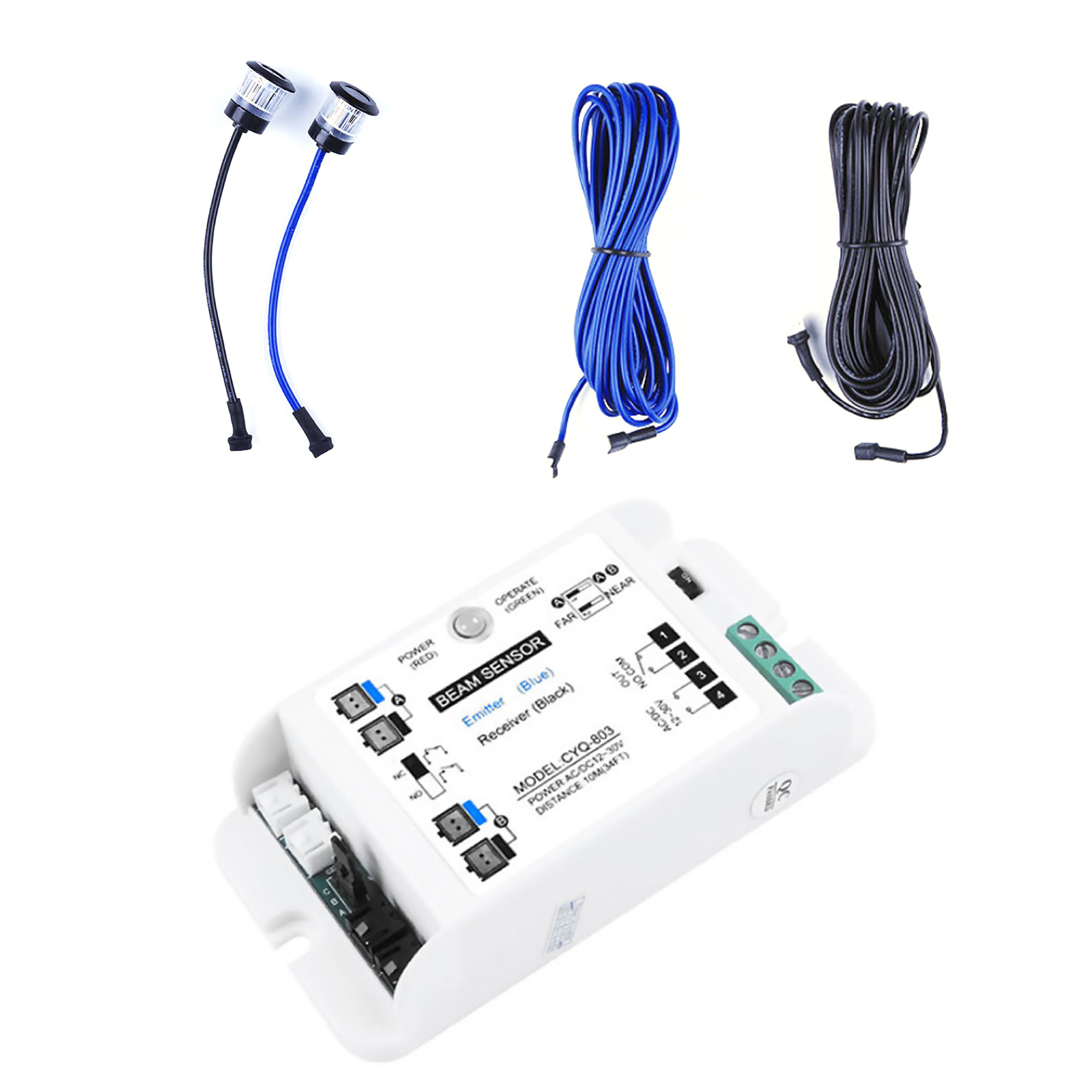

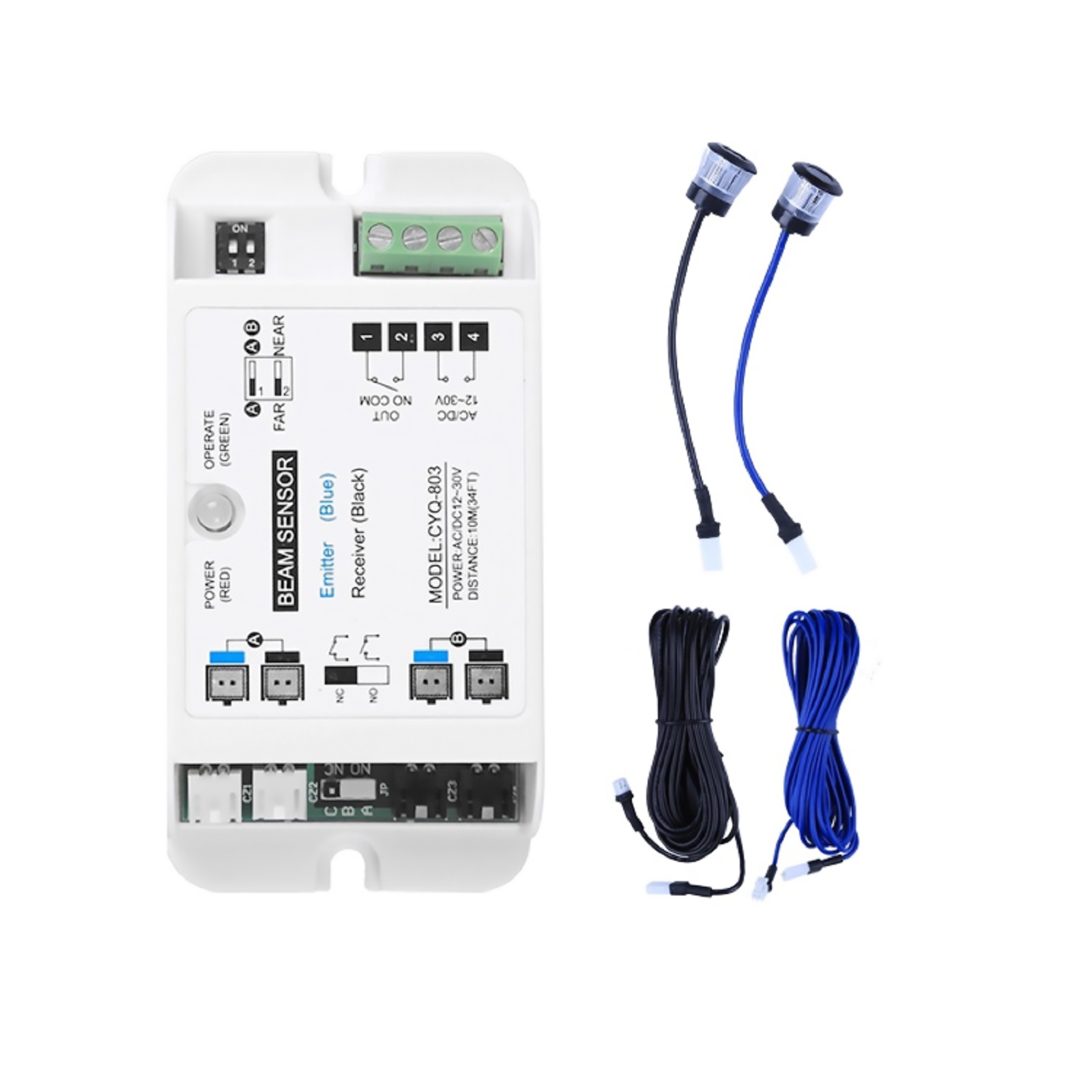

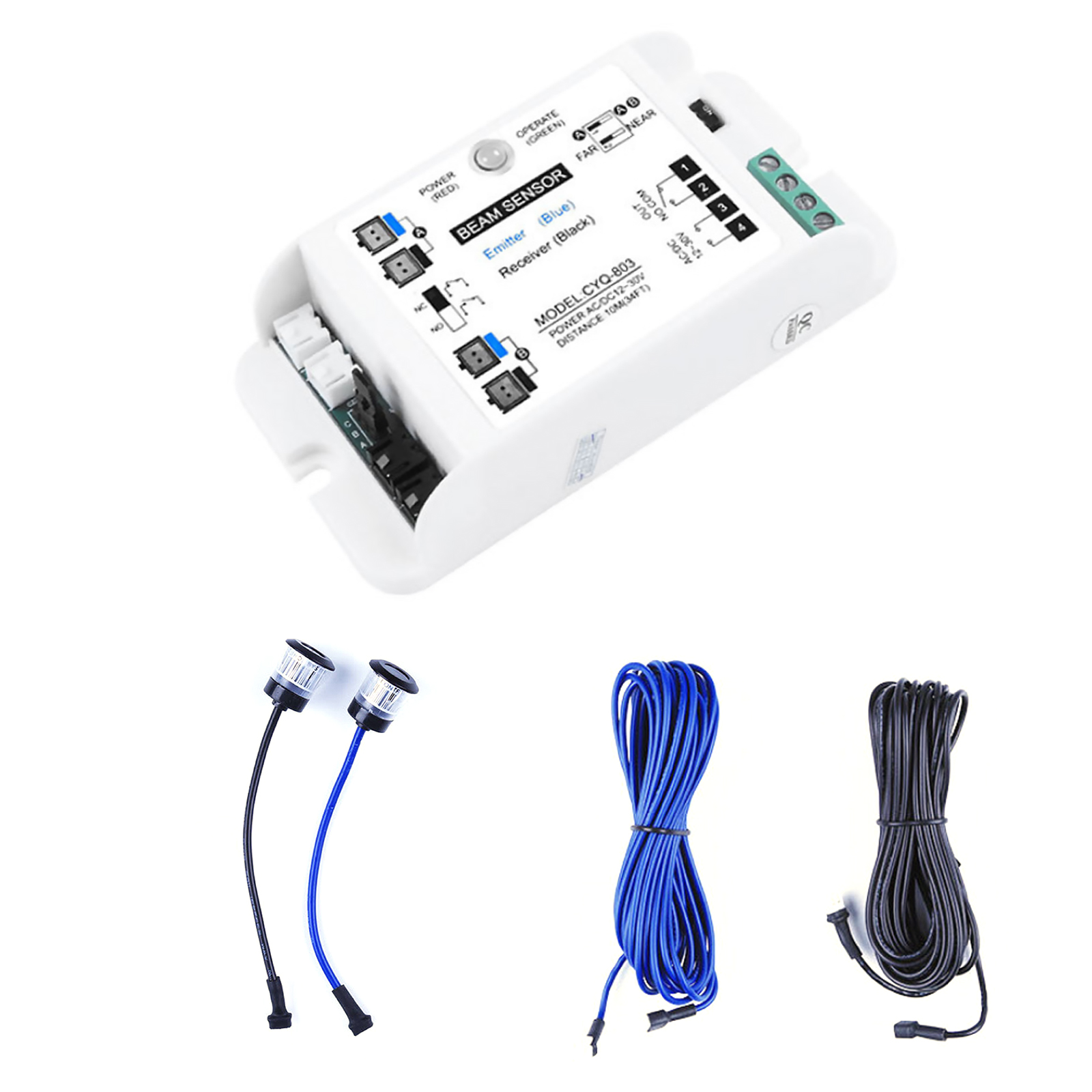

Package includes:

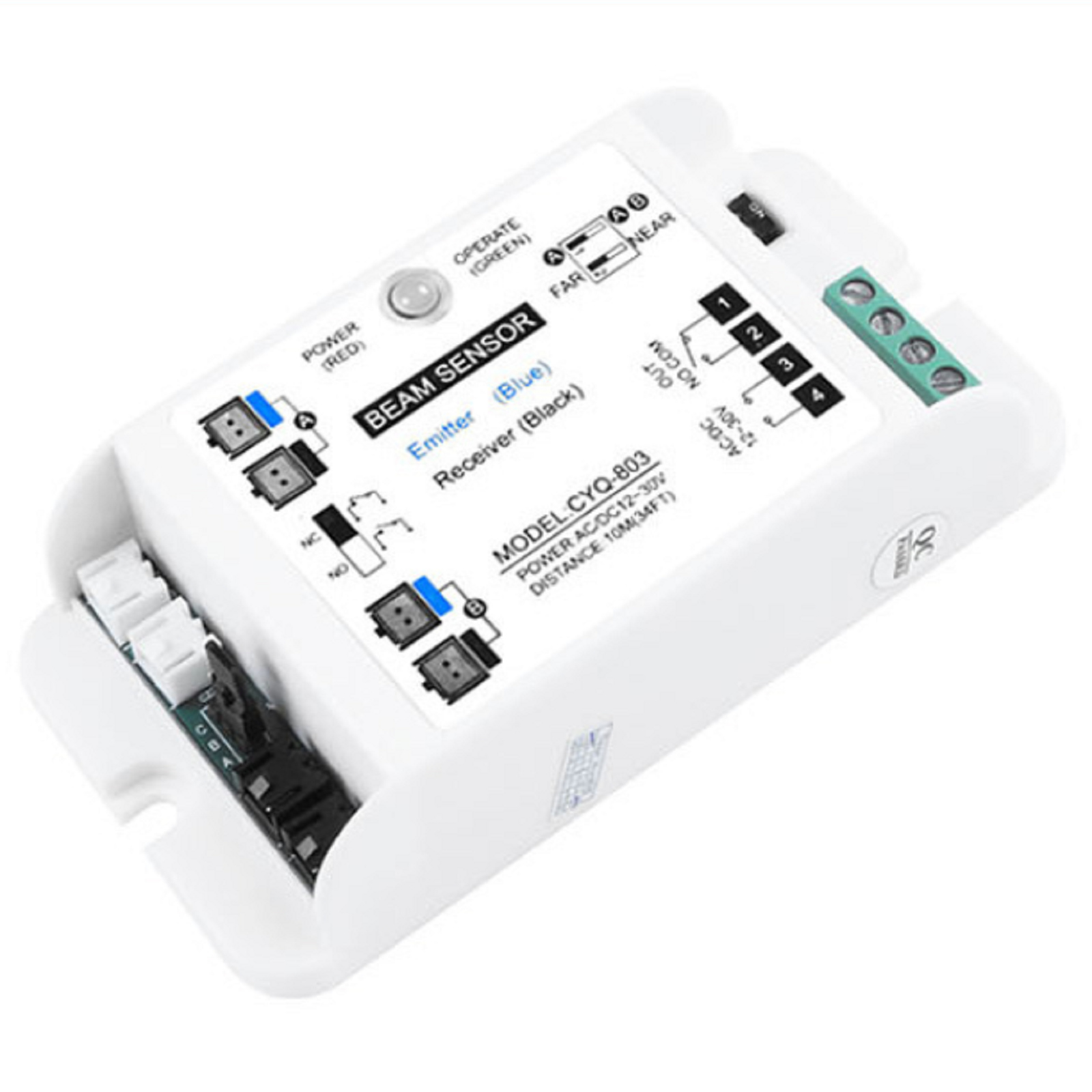

1x Beam Sensor

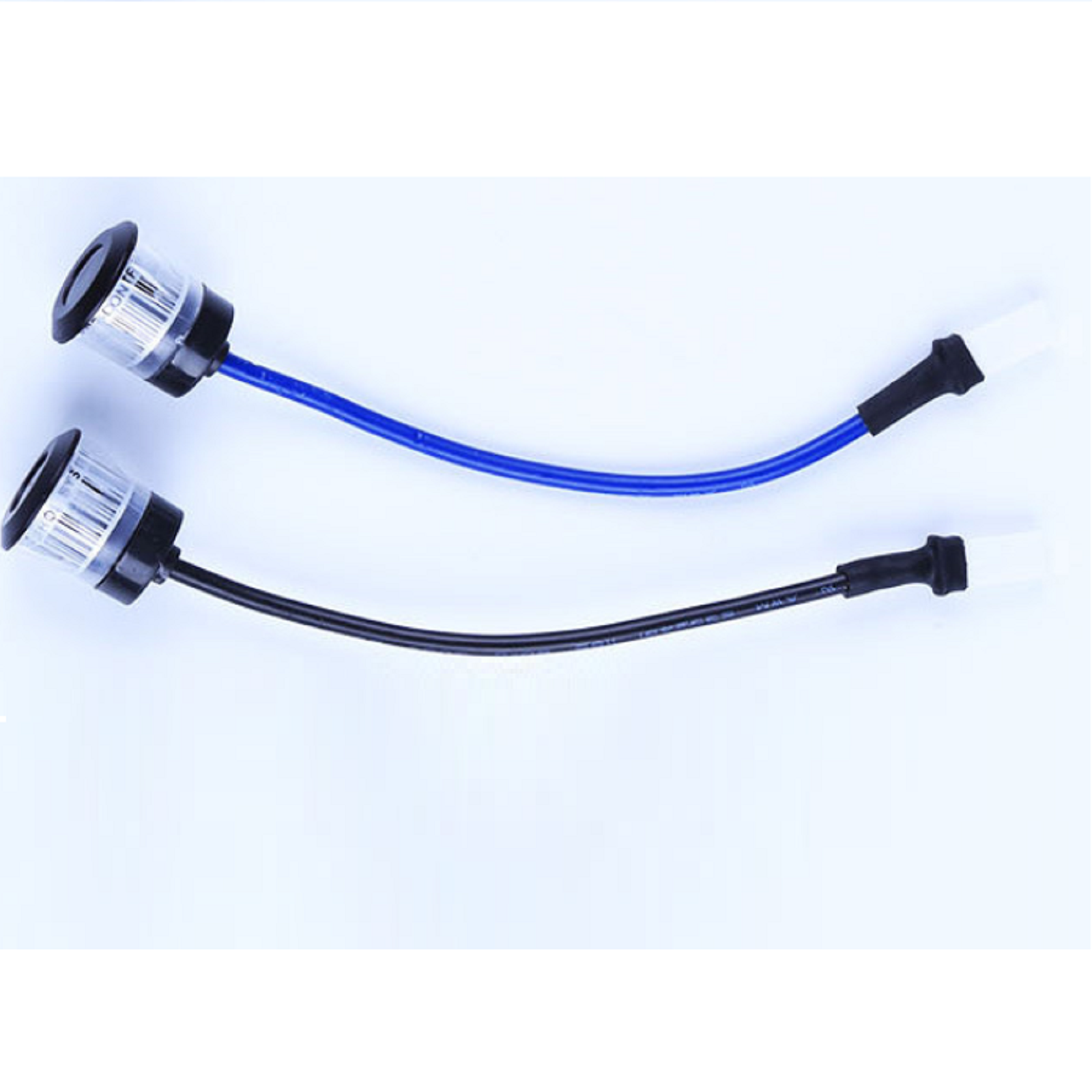

1x Emitting end (blue wire)
1x Receiving end( black wire)

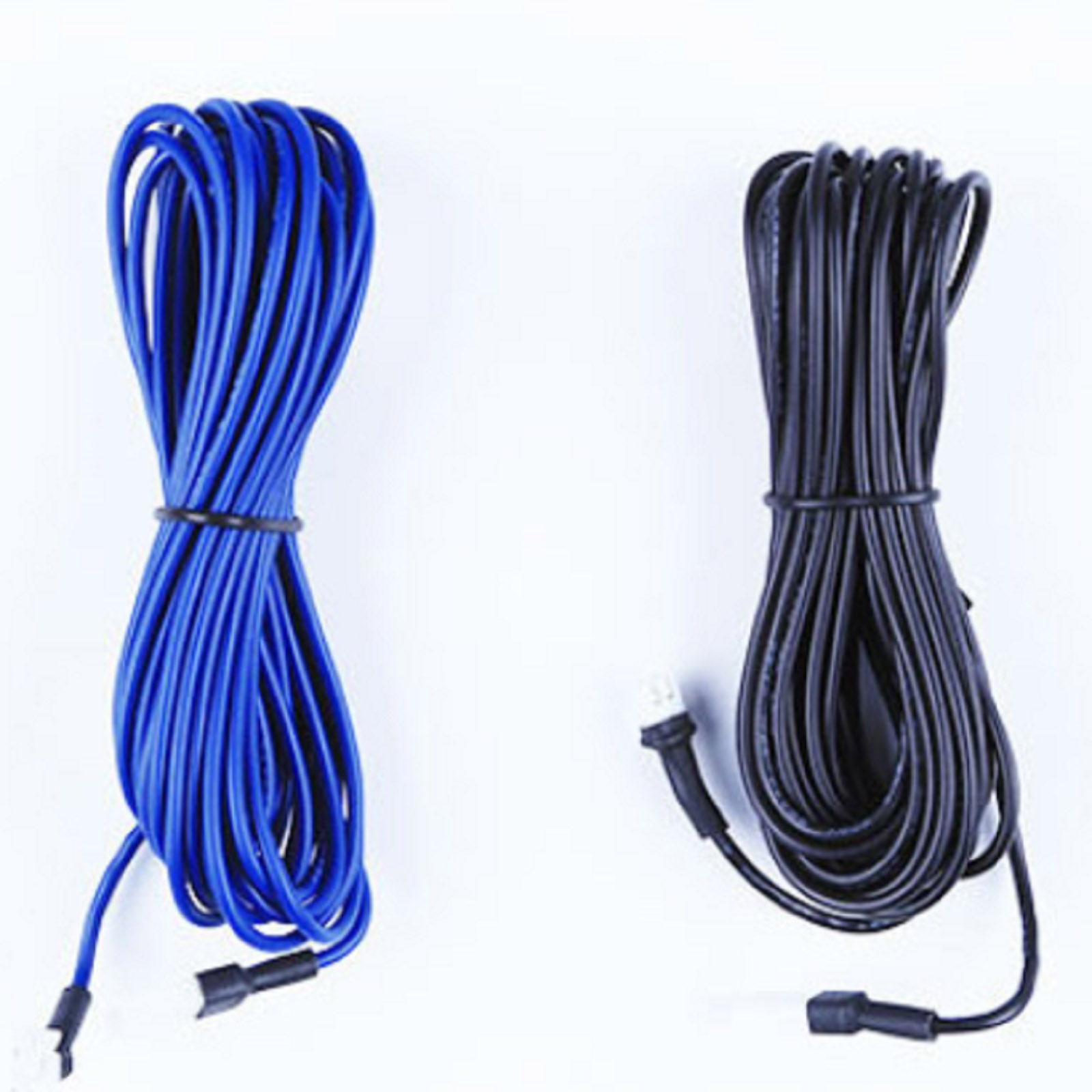

2x Wire(Black and Blue)
