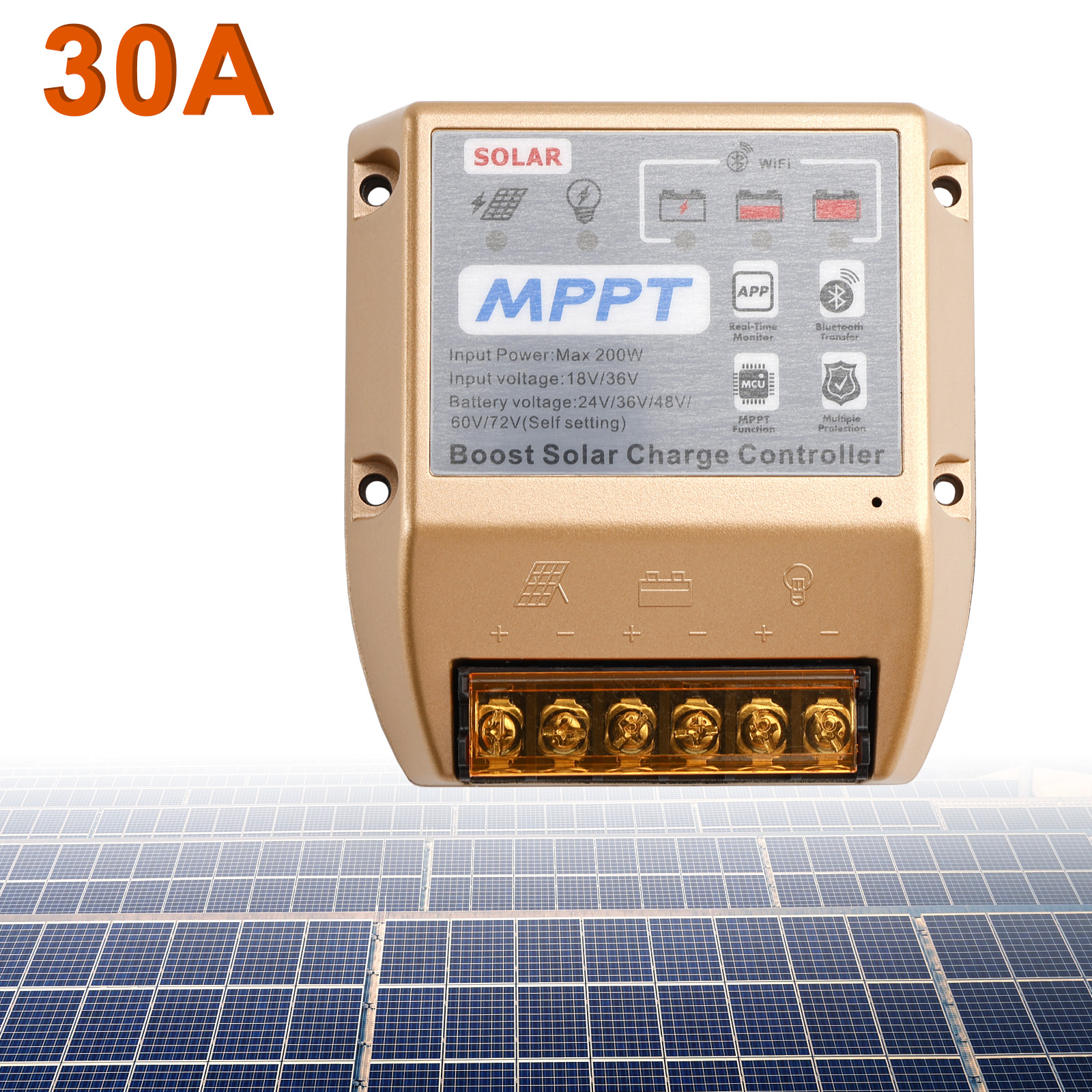

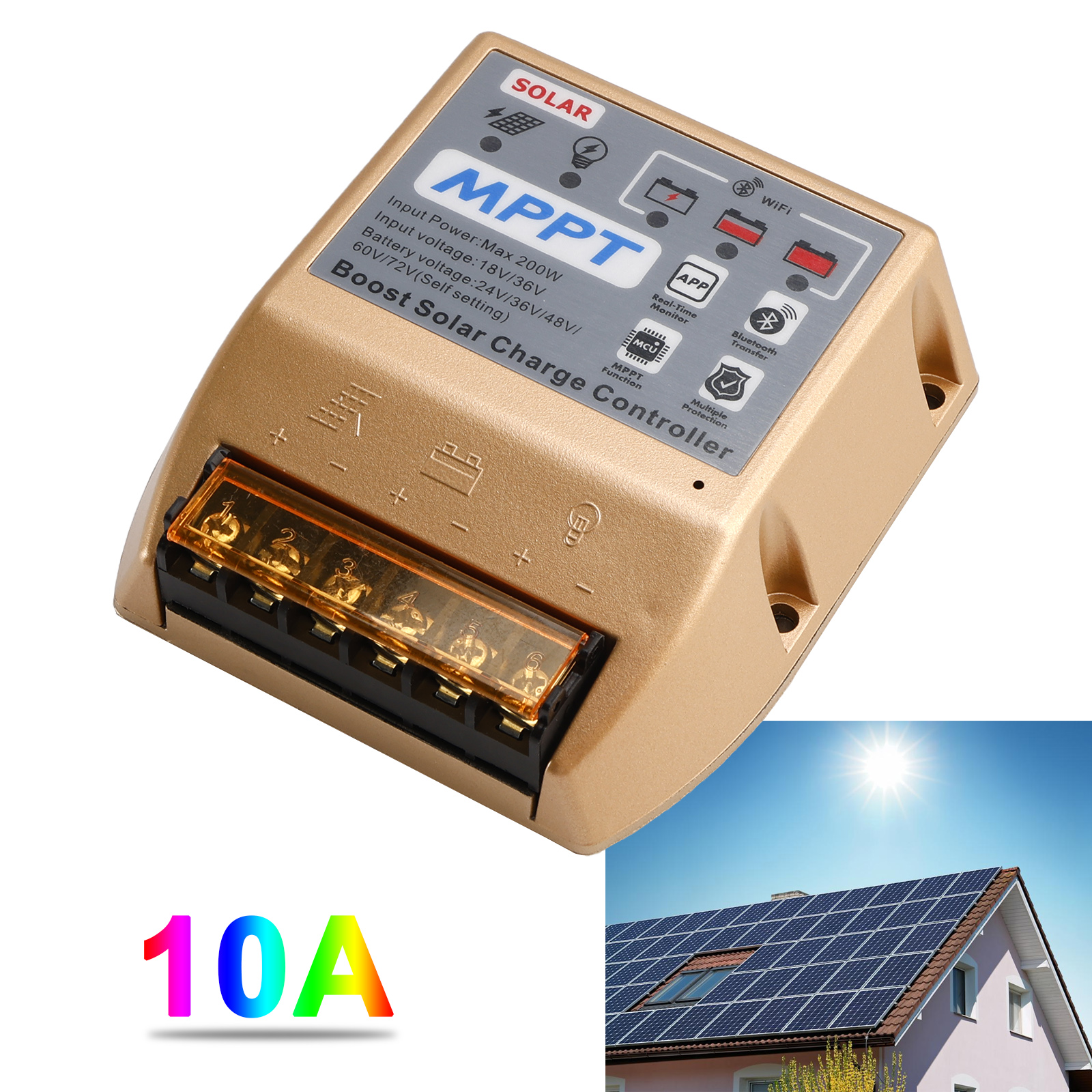

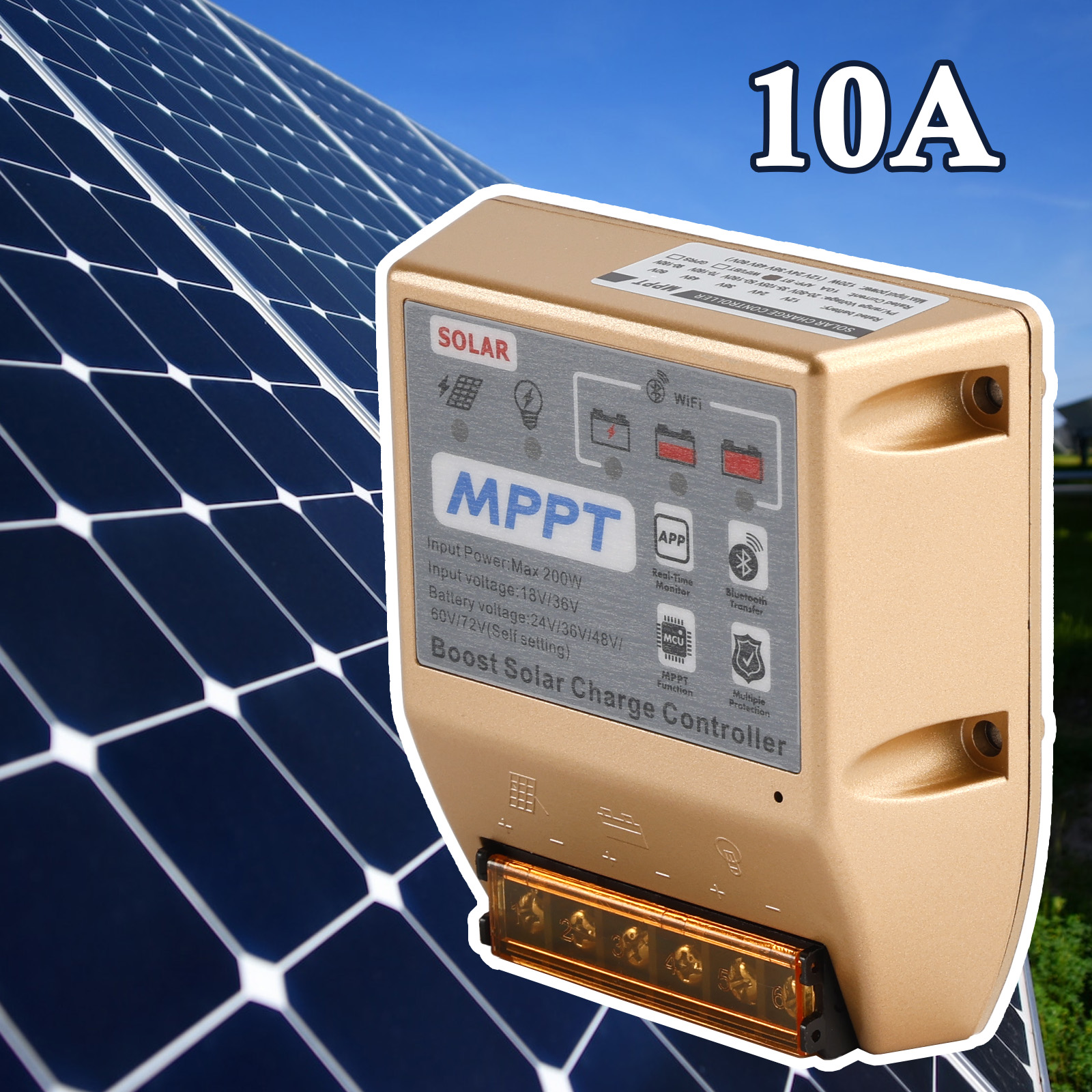

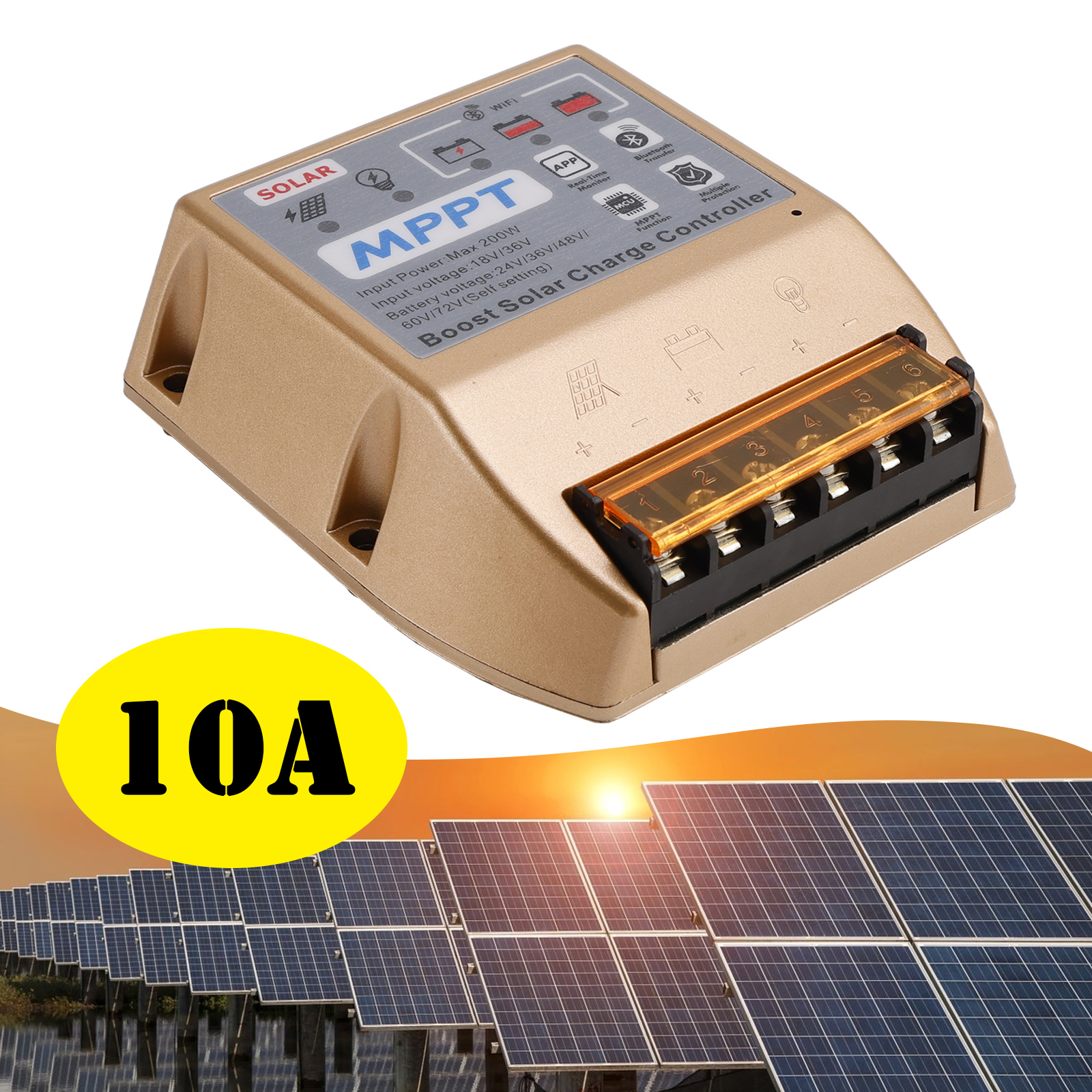

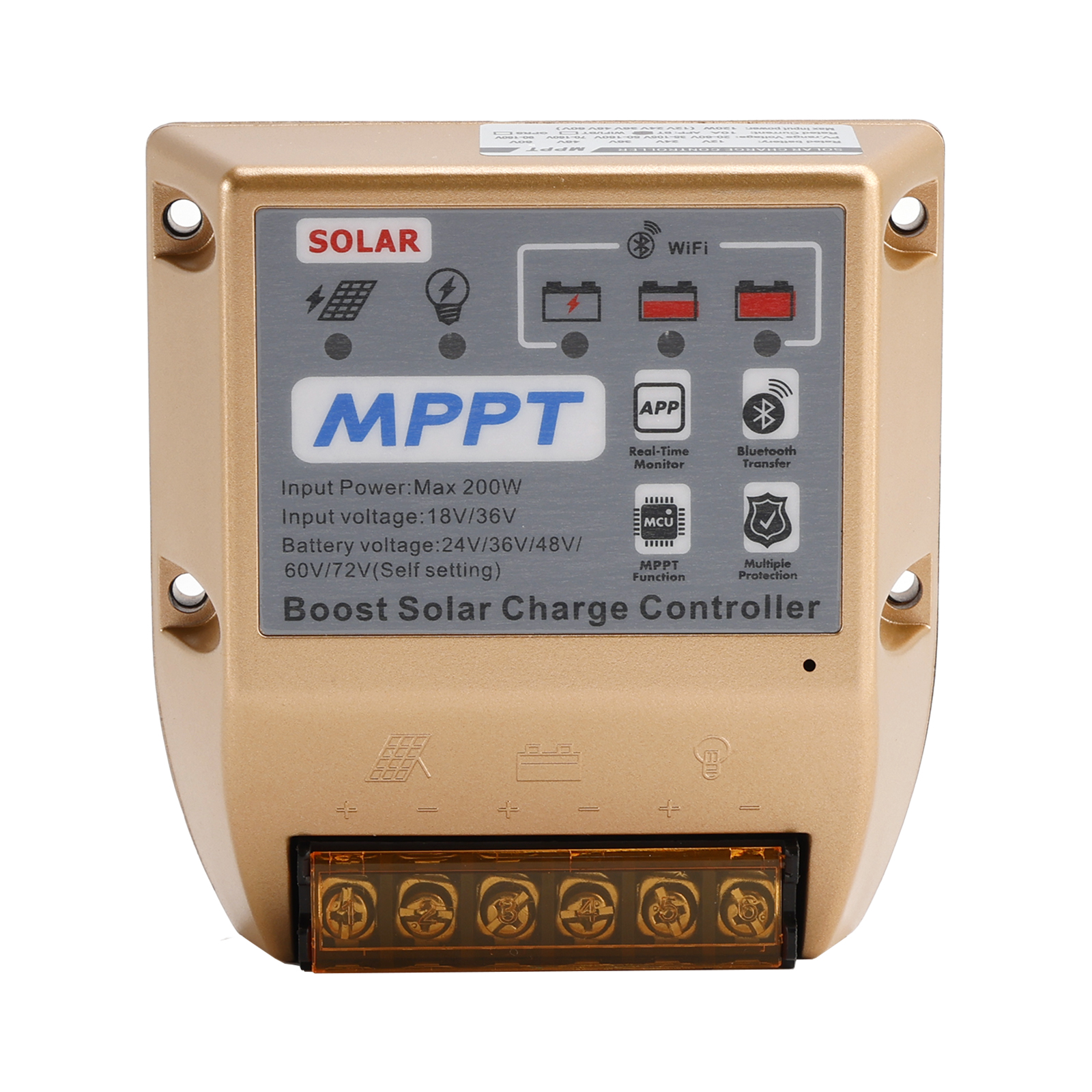

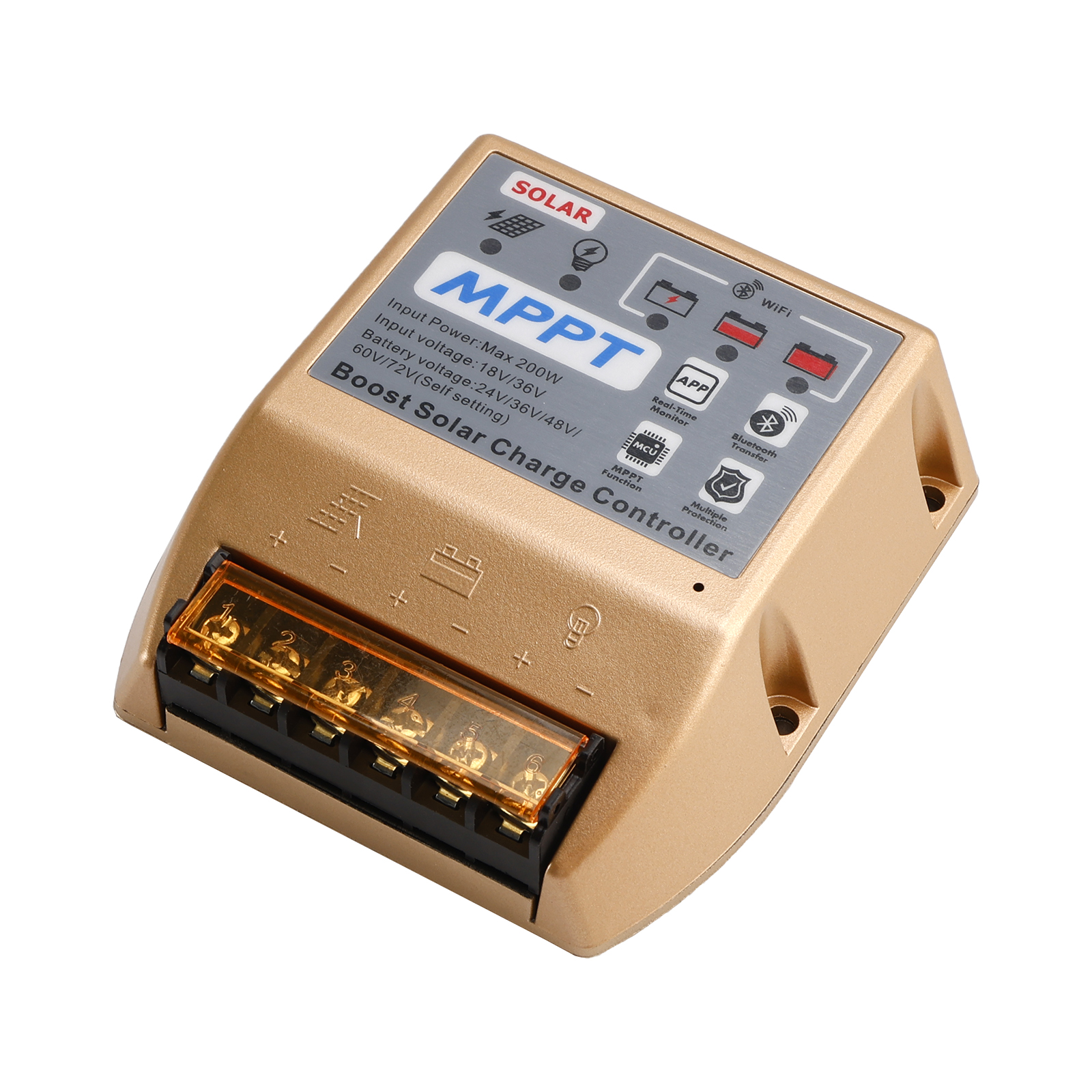

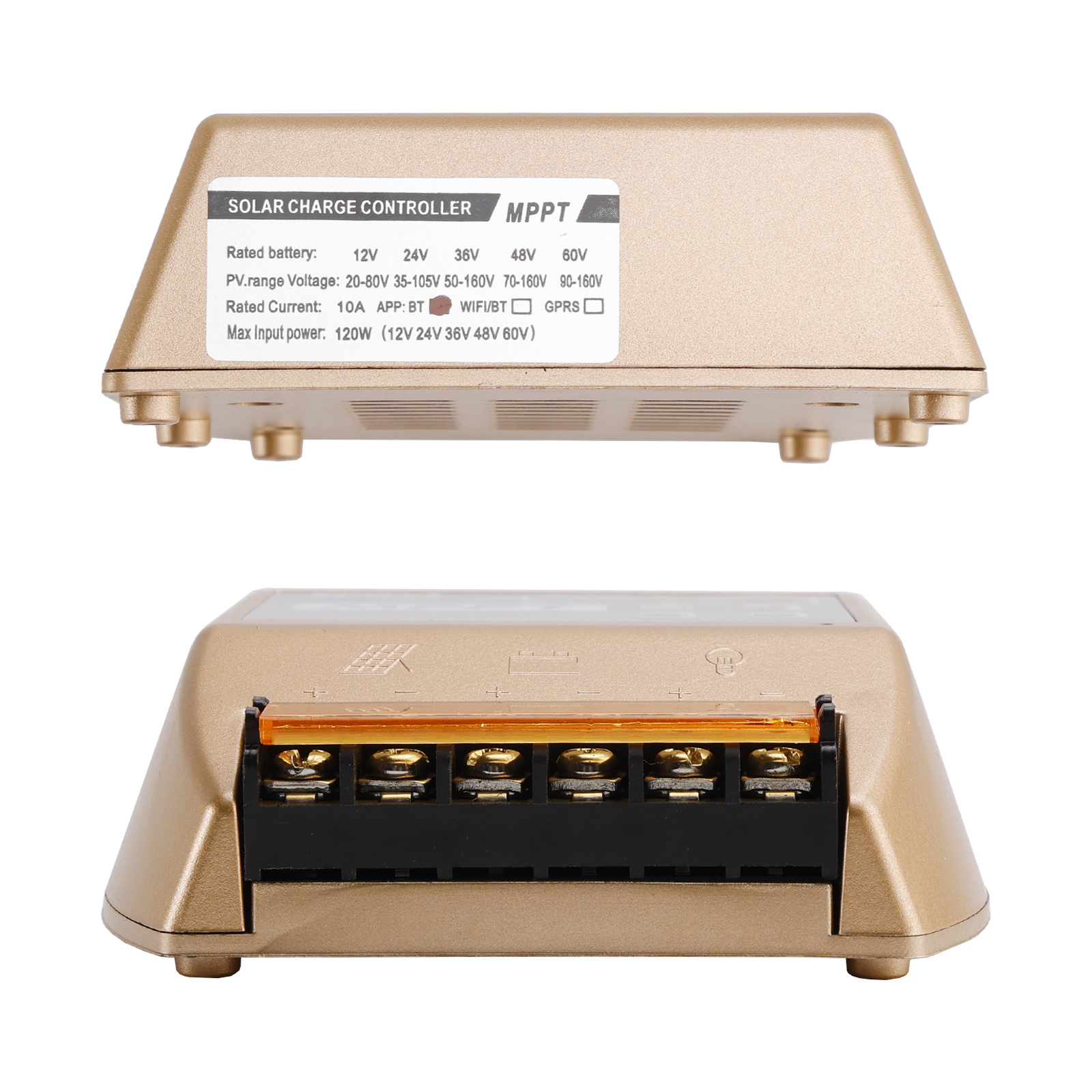

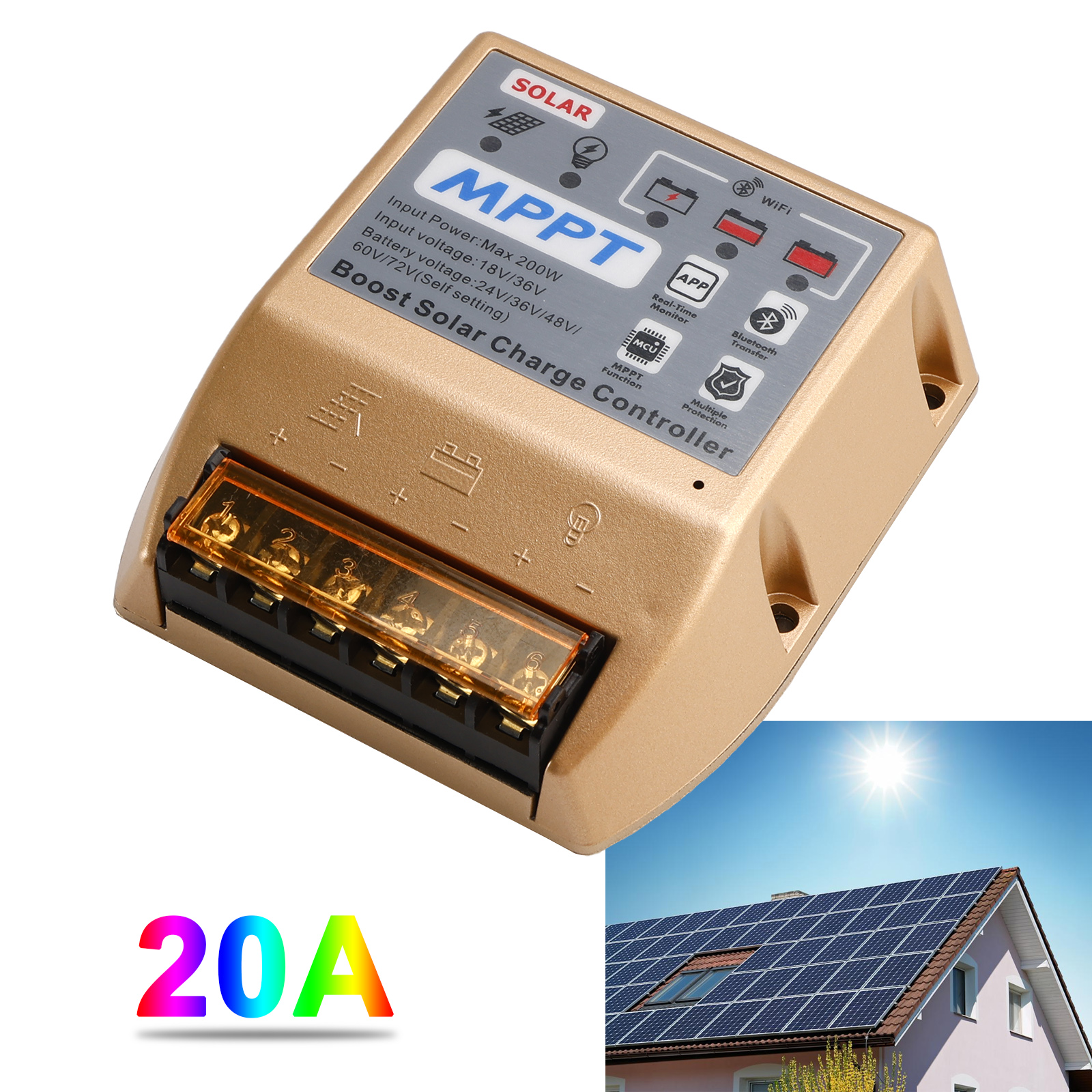

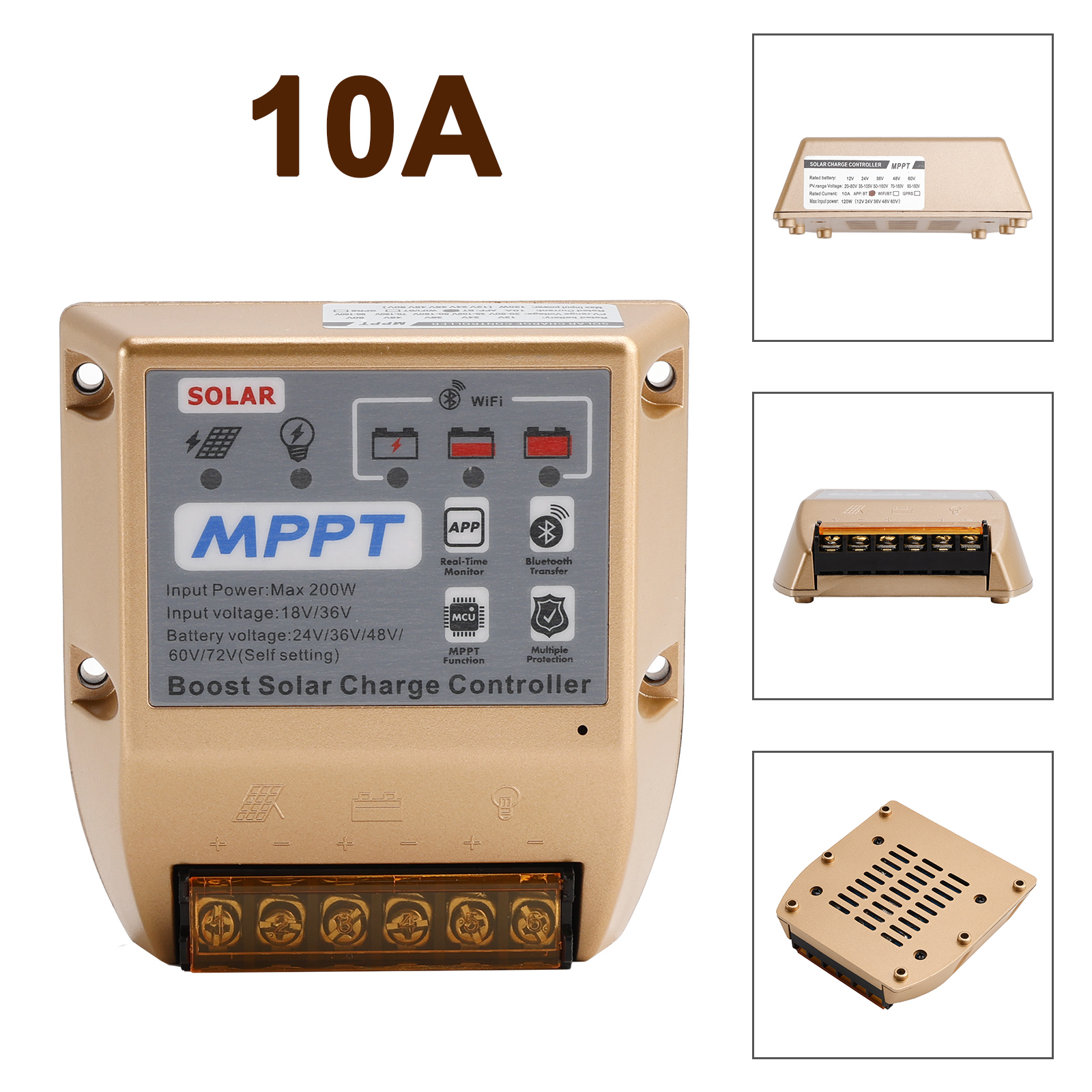

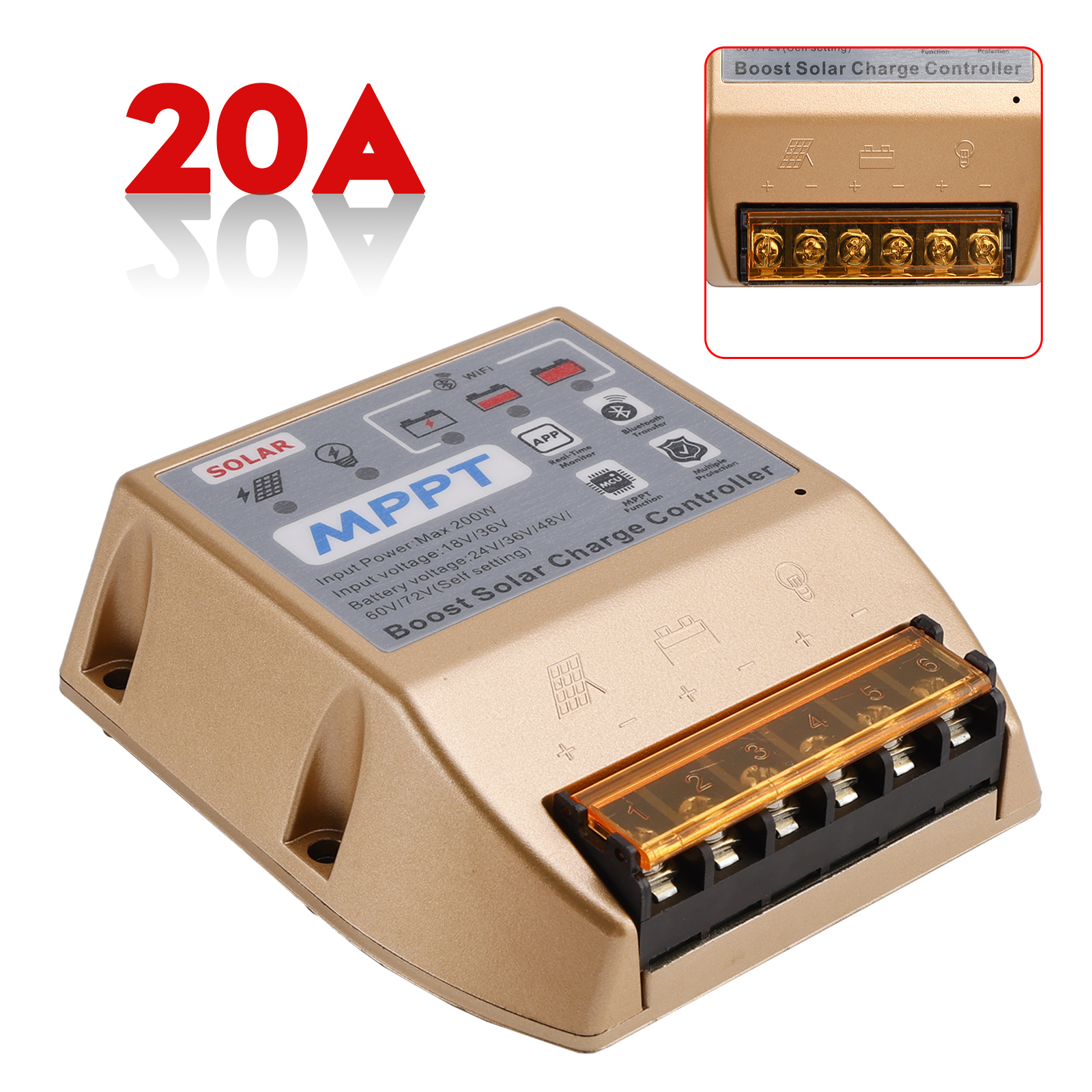

10A/20A/30A Boost MPPT Solar Controller 24V36V48V 60V72V Solar Electric Vehicle Charging Mobile APP

Safety Instructions:
1. This controller can charge 24V/36V/48V/60V/72V batteries. For first-time installation and use, please set the lock battery voltage through the mobile APP. For example, if the battery is 48V, select the lock to charge the 48V battery. When the battery is out of power, it can automatically Copy the saved parameters and activate the solar panel to charge the 48V battery.
2. Install the controller as close to the battery as possible to avoid voltage drops caused by too long wires and affecting normal voltage judgment.
3. This controller is only suitable for use with various lead-acid batteries (including open, sealed, gel, etc.) solid batteries and lithium batteries.
4. This controller can only use photovoltaic panels as the charging source. Do not use DC or other power sources as the charging source. Please strictly follow the input 18V to charge 24V, 36V batteries, input 36V to charge 48V, 60V, 72V.
5. This controller will generate heat when it is running. Please be careful to install the controller in a flat and well-ventilated place away from rain and light.

Features:
1. Boost MPPT solar controller, input 18V to charge 24V, 36V batteries, input 36V to charge 48V, 60V, 72V batteries, widely used in battery cars, RVs, outdoor battery packs and other low-power portable power supplies to recharge. Please lock the battery voltage through the mobile APP settings for first time use.
2.Intelligent and advanced server management system, mobile phone settings control, Bluetooth, GPRS and WIFI mobile APP to display and manage working status. GPRS and WIFI support interconnection management between mobile phones and computers.
The Chinese and English interfaces are universally applicable, connected to the network for global monitoring, and industrial-grade chip machine hardware data is saved for 100 years.
3. Charging conversion efficiency of 99%, complete 4-stage MPPT charging management, and unique trickle charging can fully charge the battery with maximum efficiency and extend battery life.
4. This machine has over-current, over-temperature protection, short-circuit protection, and reverse connection protection, all of which are self-restoring and will not damage the controller.
5. Imported high-power devices ensure high performance and ultra-low heat generation.

Specifications:
Type: MPPT Controller
Color: Gold

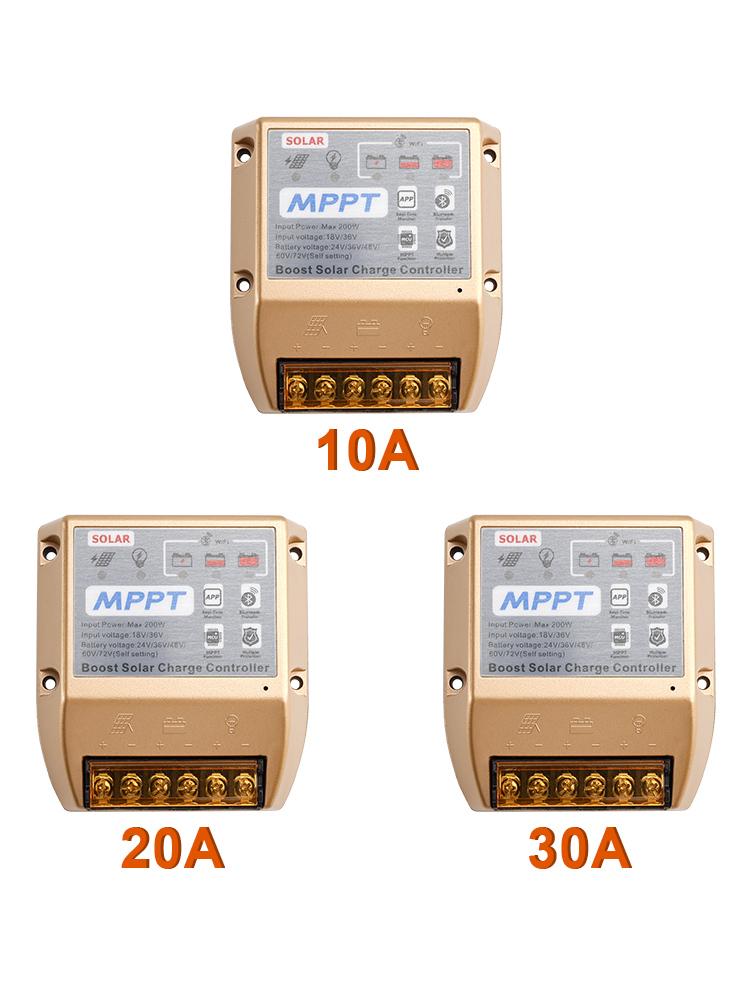

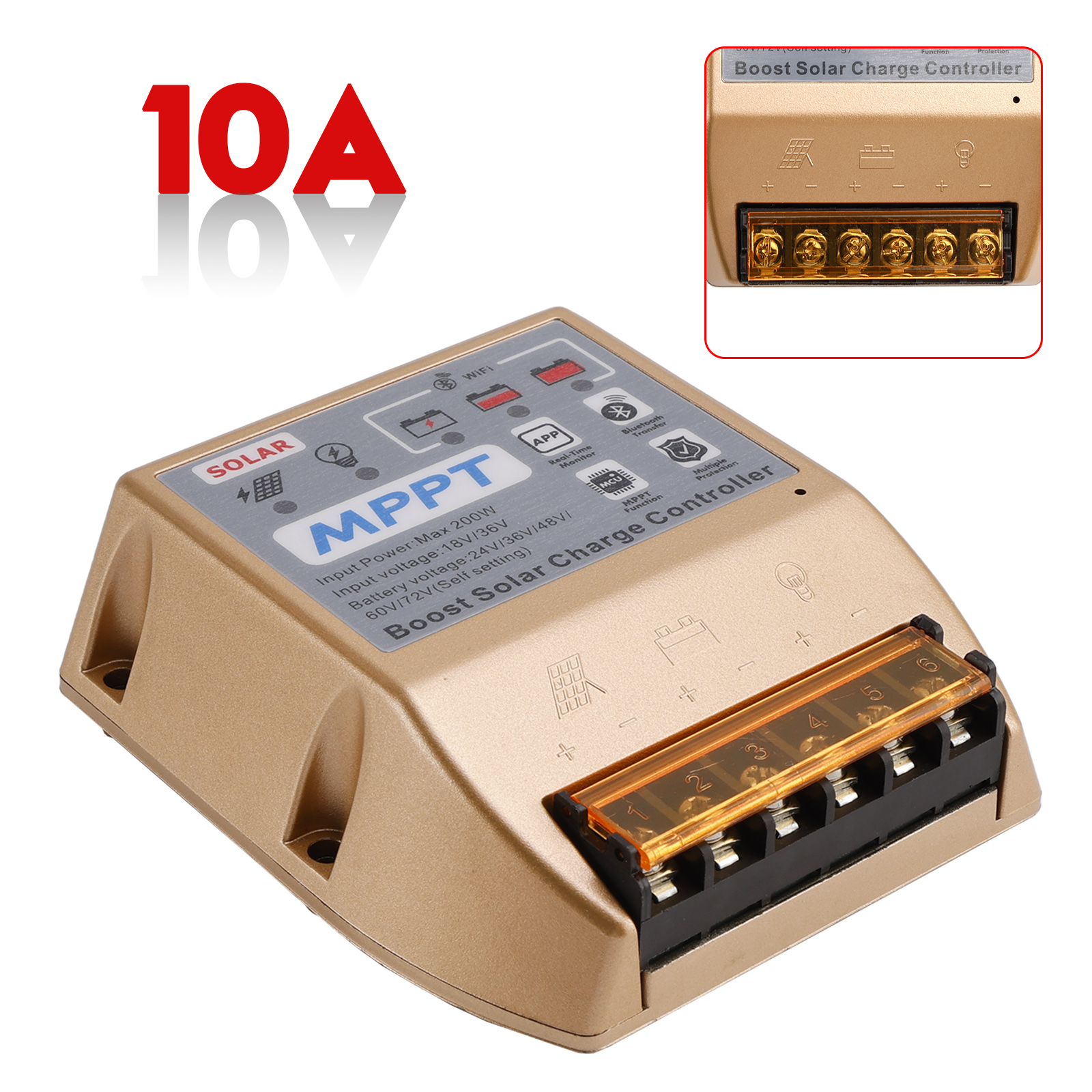

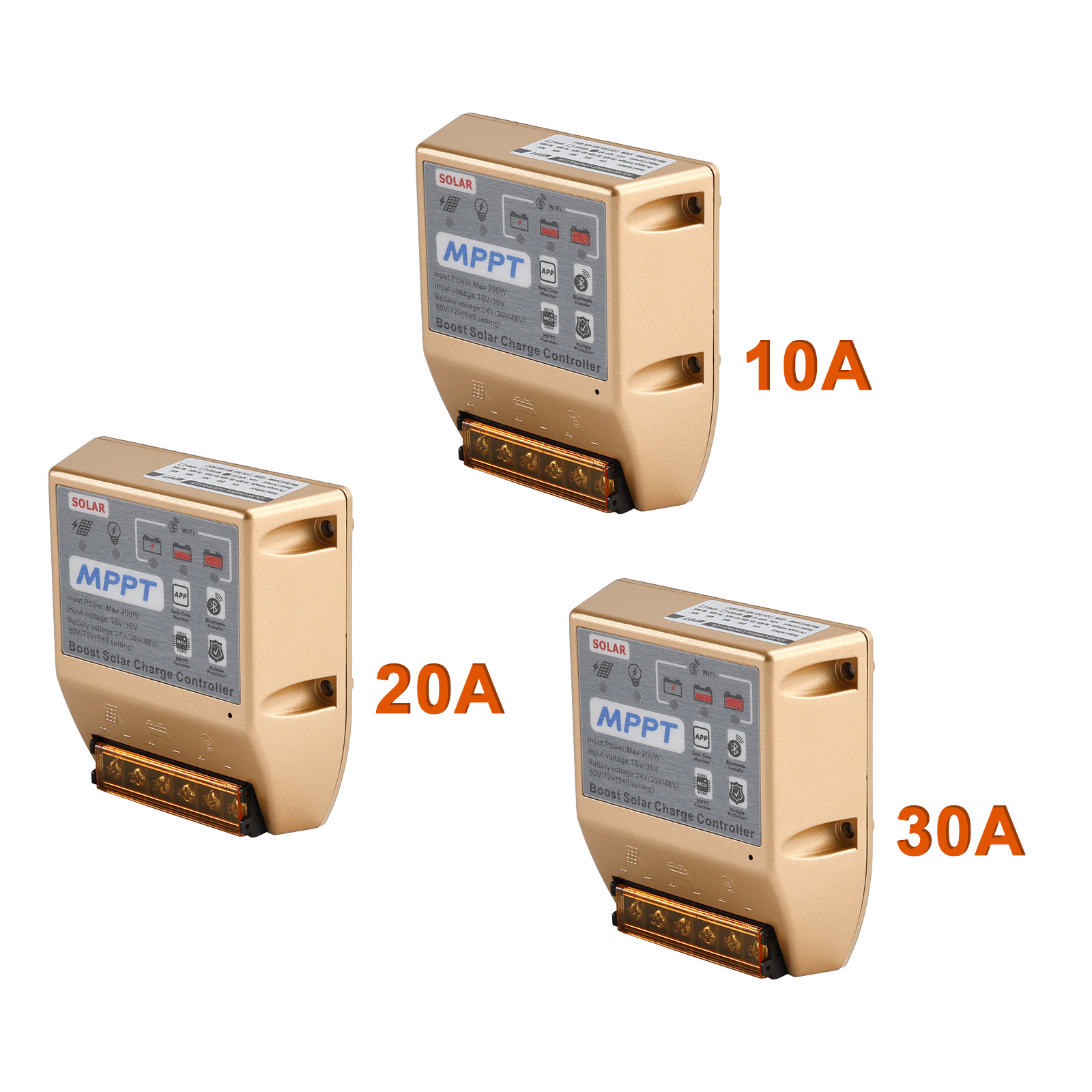

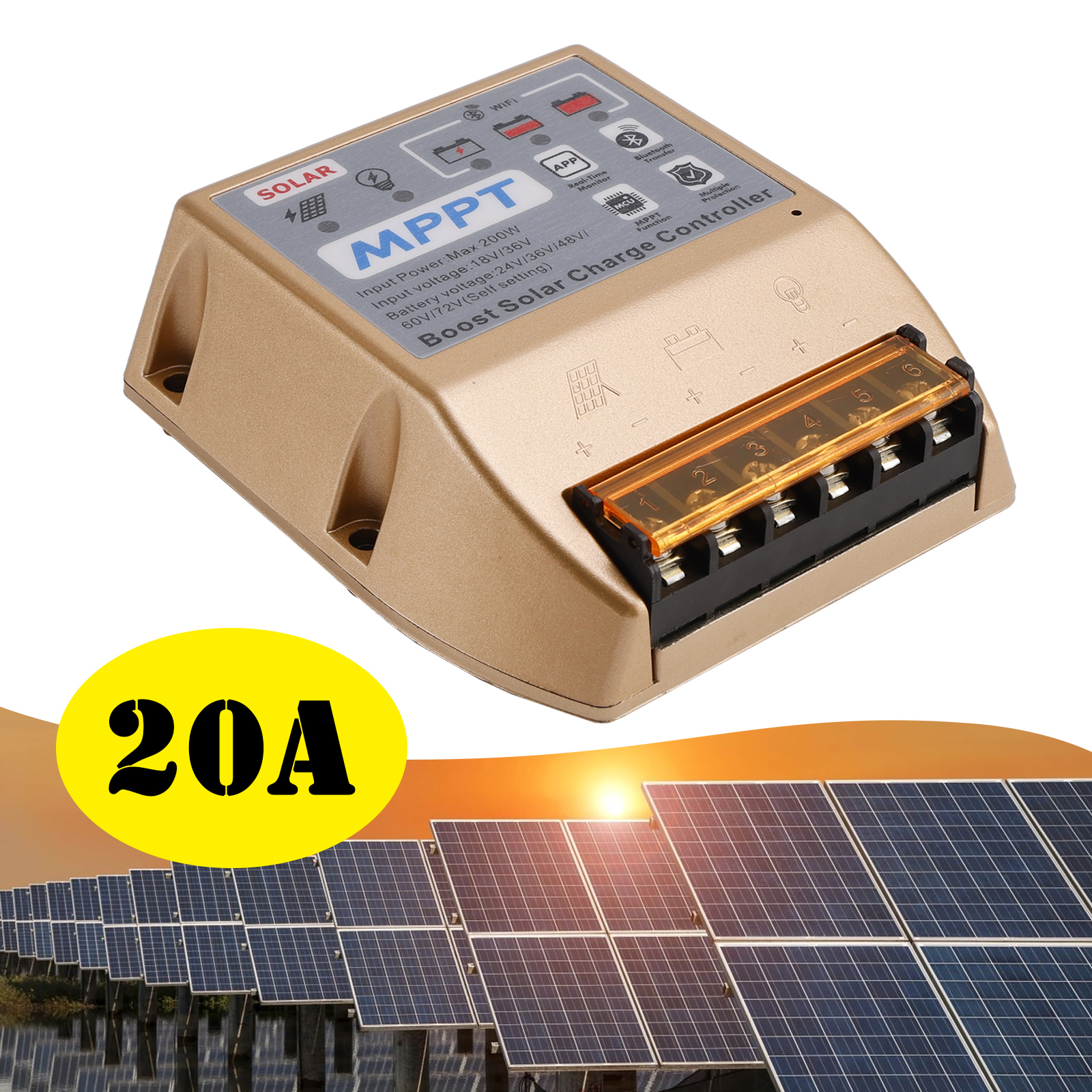

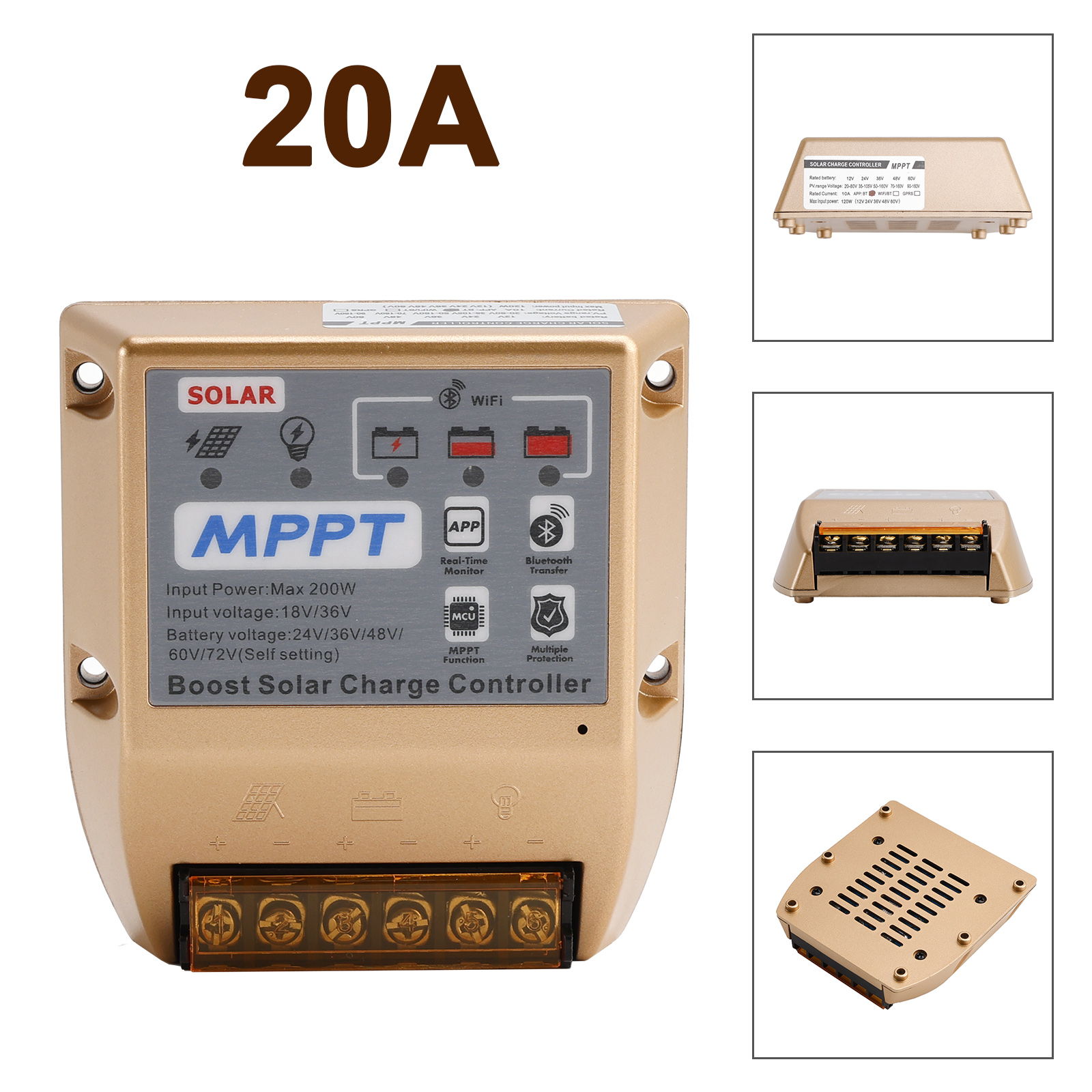

Maximum solar current: 10A/20A/30A
Maximum solar power: 100W/300W/500W
Solar energy input voltage: 12V~50V
Battery type: 24V/36V/48V/60V/72V/custom battery voltage (default 24V)
Battery overcharge protection voltage: 28.4V (24V system)/43.2V (36V system)/57.6V (48V system)/72V (60V system)/86.4V (72V system)/custom battery voltage
MPPT tracking efficiency: Boost maximum power point MPPT tracking >99%
Operating Temperature: -25-+70℃
No load loss: <15mA
Siez/Weight: 103×96×35mm/135g

Package included:
1x MPPT Solar Controller

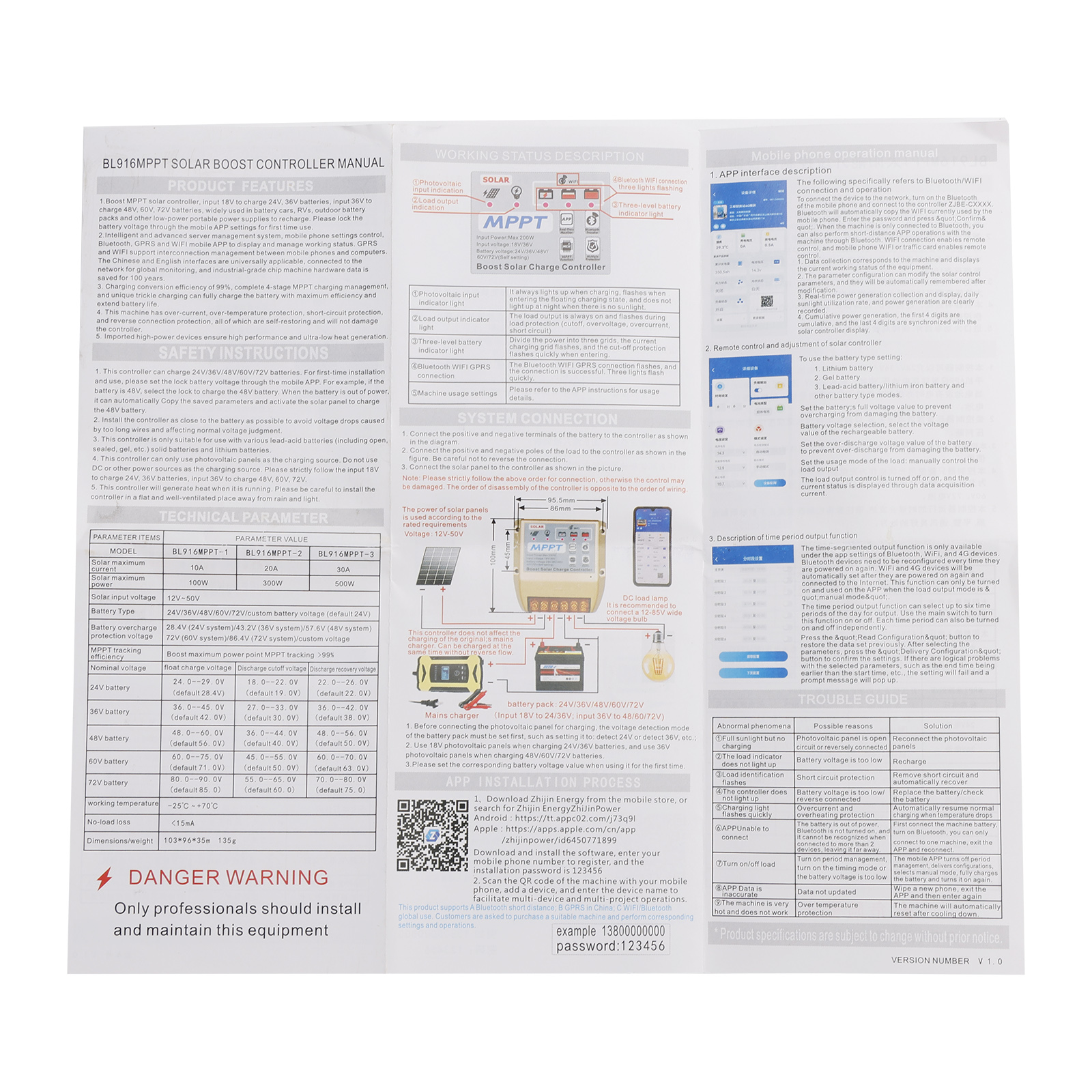

1 x User Manual
