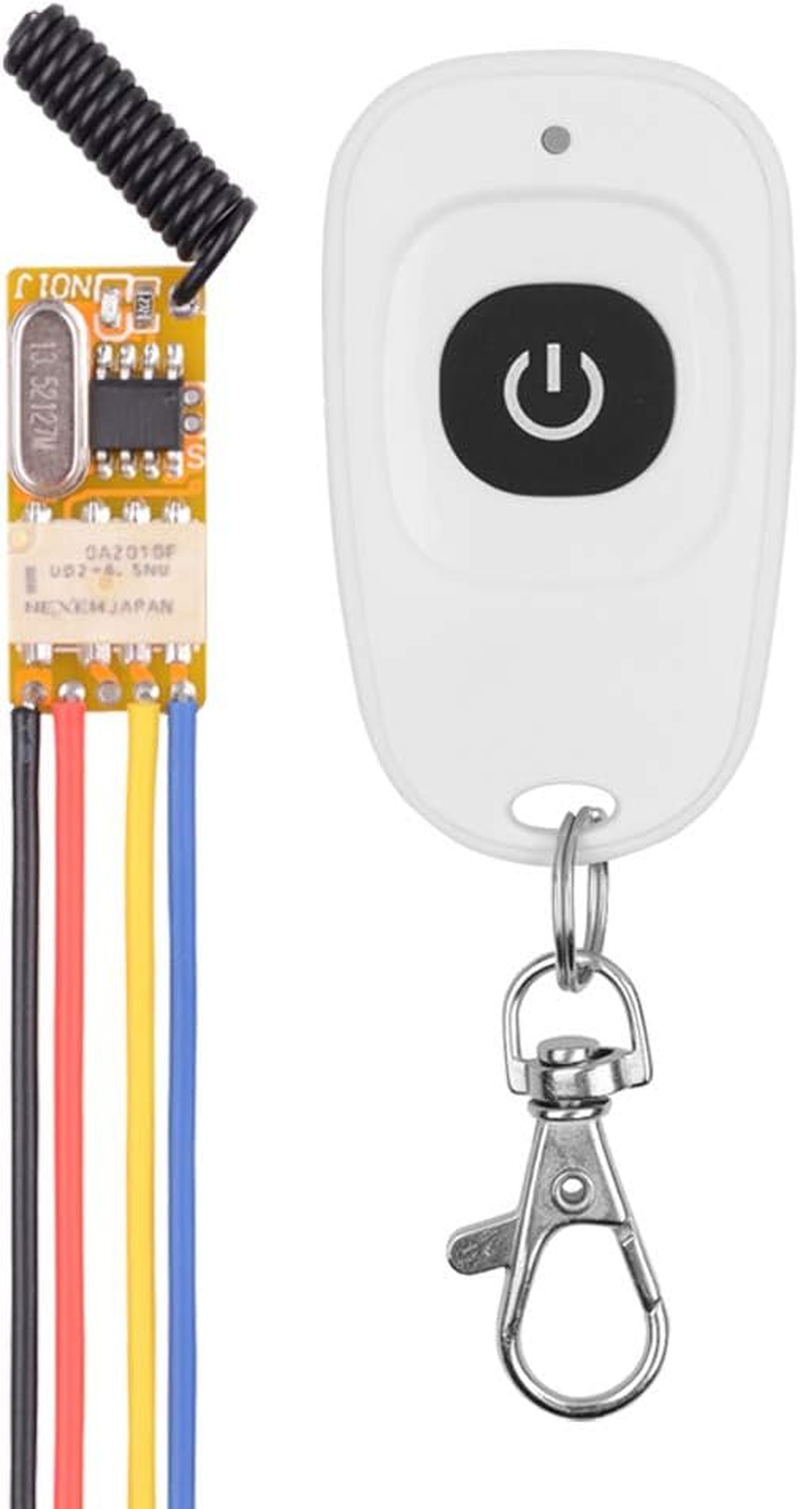

DC 3.7V - 12V 5V Mini Size Relay Remote Control Switch, 433Mhz Wireless RF Momentary Switch with Delay Function, Transmitter and Receiver for Wireless Control
Description
| Batteries Required? | Yes |
| Battery Cell Type | Alkaline |
| Item Weight | 1.13 ounces |
| Batteries Included? | Yes |
| Measurement System | Imperial, Metric |
| Package Dimensions | 5.28 x 2.99 x 0.47 inches |
| Manufacturer | ZABLL |
- it is a small size and easy installation. high sensitivity, with flexible control ，five working model for choose,It adopts non-directional wireless encoding technology, allowing independent control without mutual interference.
- easy to use : We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it.
- the RF remote control adopts RF technology, stable signal. Signal of the wireless RF switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 50 meters with no obstacle.
- it is mainly used in swtich lamps, relays, remote controller, circuit boards,trumpet, power switch,home wireless control and security industry and battery powered on/off for small devices, etc. and other fields.
Please note: This product is intended for adults aged 18 and older only.
This product is an ultra-small mini remote switch. This is a safe widely used and flexible remote relay.
Receiver parameters :
Model number: NO1J
frequency: 433Mhz
Working Voltage: DC3.5V-DC12V
Wide Range Working Voltage DC3.7V 4.5V 5V 6V 9V 12V
Max Load: 1A (have better Load less than 700ma)
Quiescent Current: 5ma
Relay Working Current: 30ma
Size: 25*11*8mm
Working Mode: Momentary. Toggle .Latched ,Delay time 10S adjustable.you can change working model by yourself.
(Notice: we send Momentary mode default .
Encoding Type: Learning point to add extra transmitter
Normally Open Port (NO) Common Port (COM) Normally Close Port (NC) Input DC3.5V-DC12V Output 0V Switching Value
Momentary---Press and hold relay On; Release relay Off.(one channel switch need one button remote)
Toggle----Press relay On; Press same button again relay Off .(one channel switch need one button remote)
Latched----Press relay On; Press other button relay Off . ( one channel switch need 2 buttons remote )
Delay time : Press remote control button, the corresponding relay actuates and keeps working until the time out.
Learning method：Input 12V for the Receiver , Connect the Learning Dot, The receiver Led indicator ON. Press remote button A 1 time, Led indicator flash for 1 times , Then Press remote button B 1 time , Led indicator flash for 1 times again , it mean learning successfully
Clearing Code:
Connect the Learning Dot and hold on . Until the receiver Led indicator flash for 6 times, it mean Clearing code successfully
Remote control parameters:
frequency: 433Mhz
Working current: ≤12mA
Transmission Distance: 10-50 Meters
Package Include:
1 x Receiver(without cover)
1x Transmitter
