Main Features:

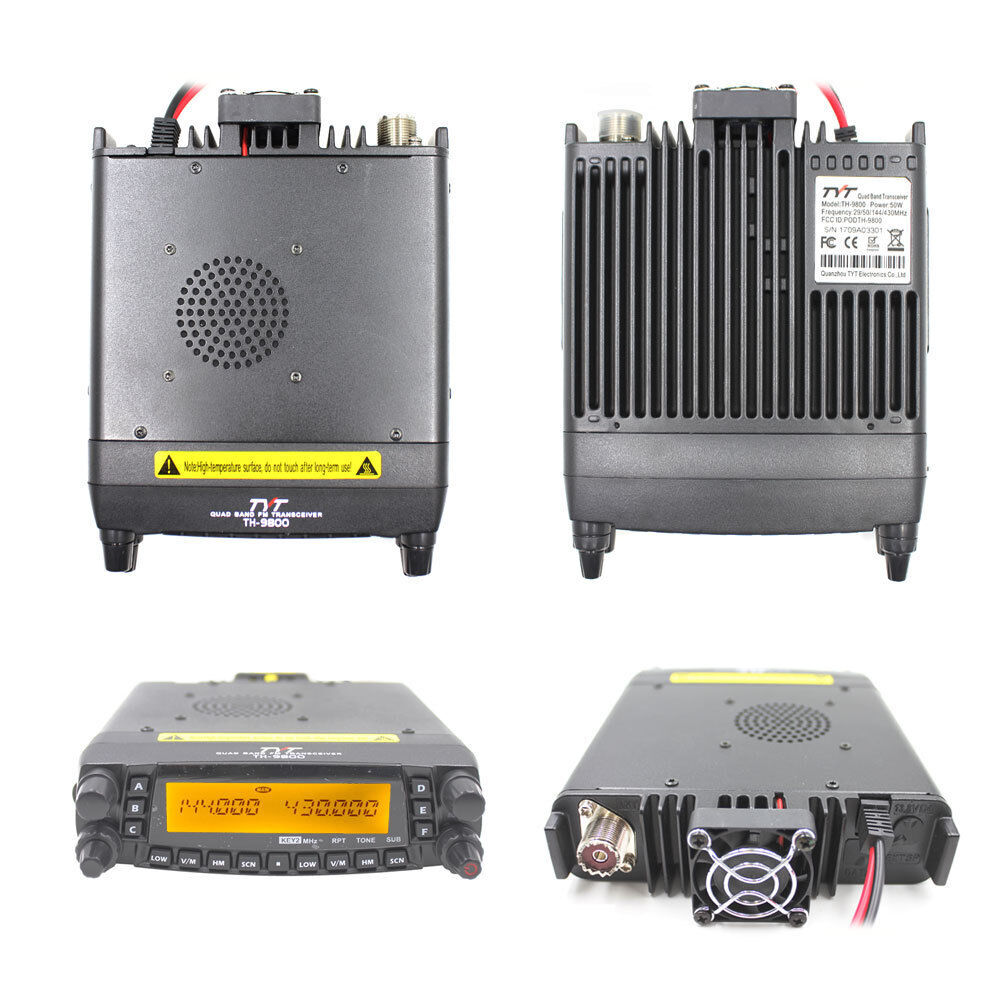

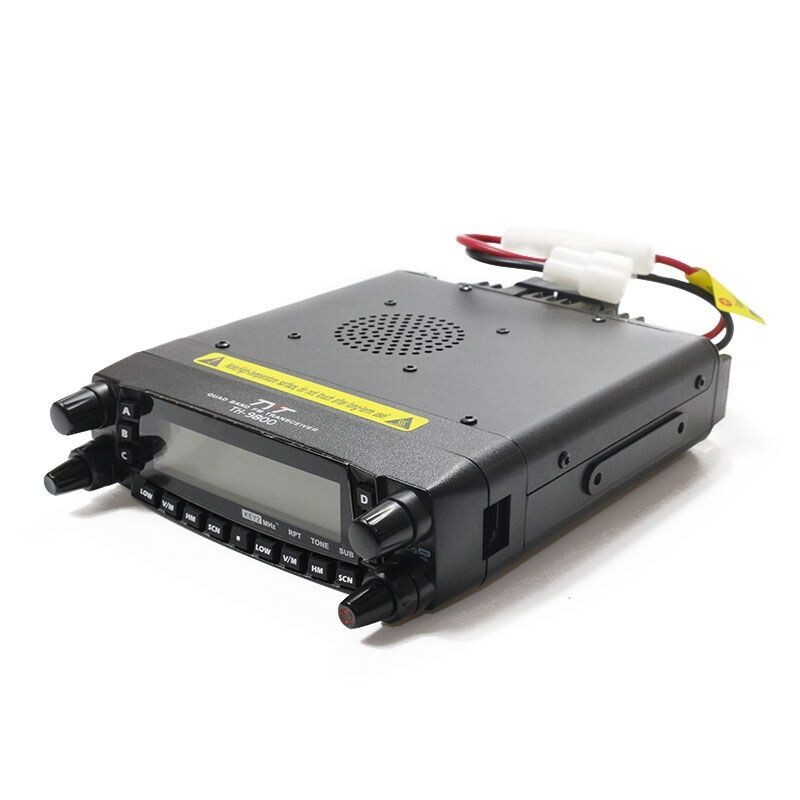

-- The Latest Plus Version of TYT TH-9800, 50W/40W Full Quad Band Dual Display FM Amateur Mobile Radio/Transceiver, A MUST HAVE For all HAMs, FUN & GREAT VALUE as BASE STATION.
-- Frequency: TX 26-33(10M)/47-54(6M)/136-174(2M)/400-480MHz(70CM), RX: 26-33/47-54/108-180/320-512/750-950MHz (P.S. AM mode selectable on VHF receive frequencies for Air Band reception), Output Power VHF: 50/20/10/5W UHF: 35/20/10/5W.

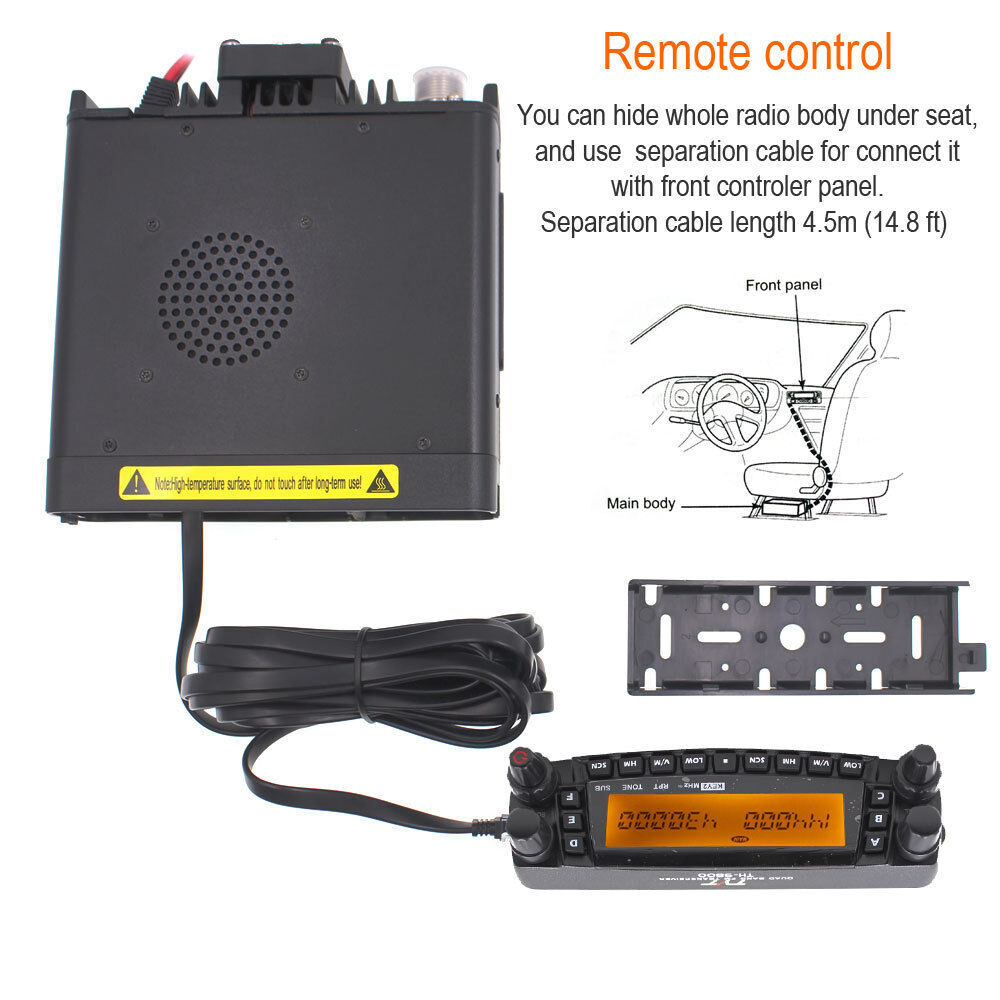

-- Features: V/V, U/U, V/U Simultaneous Receive, V+U Cross-Band Repeater, Full Dual Display and Receive, High/Mid1/Mid2/Low Power Setting, Wide/Mid/Narrow Bandwidth Selectable, CTCSS/DCS, DTMF, 2 Tone & 5 Tone, Voice Compander & Scrambler, Remote Detachable Faceplate, 809 Alphanumeric Memory Channels, SQL, Scan, TOT, Full Direct Entry Keypad Mic.
|
Frequency Range |
26-33MHz (RX/TX) (AM band RX) |
|
47-54MHz (RX/TX) (AM band RX) |
|
|
136-174MHz (RX/TX) |
|
|
400-480MHz (RX/TX) |
|
|
108-136 (AM band RX only) |
|
|
320-399.000 (RX only) |
|
|
750-950 (RX only) |
|
|
Channel Capacity |
809 channels |
|
Channel Spacing |
5/10/12.5/15/20/25/50KHz |
|
Modes of Emission |
F3, F2, F1 |
|
Antenna Impendence |
50 Ohms, unbalanced(Antenna Duplexer bulit-in) |
|
Frequency Stability |
±5 PPM@-140°F~+140°F(-10℃-+60℃) |
|
Operating Voltage |
-4°F~+A140°F(-10℃-+60℃) |
|
Operating Temperature Range |
13.8VDC (±15%). Negative ground |
|
Current Cunsumption(Approx) |
RX: 0.5A (Squelched) |
|
TX:8.0A (50/430MHz), 8.5A(29/144MHz) |
|
|
Case Size(WXHXD) |
140x41.5x168mm (w/0 knobs & connectors) |
|
Weight(Approx) |
2.2lb(1Kg) |
|
Transmitter |
|
|
Output Power |
50/20/10/5W(29/50/144MHz) |
|
Modulation Type |
Variable Reactance |
|
Maximum Deviation |
Better than -60dB(29MHz:Better than -50dB) |
|
Modulation Distortion |
Less than 3% |
|
Microphone Impedance |
2kΩ |
|
DATA jack Impedance |
10KΩ |
|
Receiver |
|
|
Circuit Type |
Double-conversion super-heterodyne |
|
Intermediate Frequency |
45.05MHz/450KHz(left band) |
|
47.25MHz/450KHz(right band) |
|
|
Sensitivity(for 12dB SINAD) |
Better than 0.2μV |
|
Squelch Sensitivity |
Better than 0.16μV |
|
Selectivity(-6dB/-60dB) |
12KHz/30KHz |
|
Maximum AF Output |
2W @ 8Ω for 5% THD |
|
AF Output Impedance |
4-16Ω |

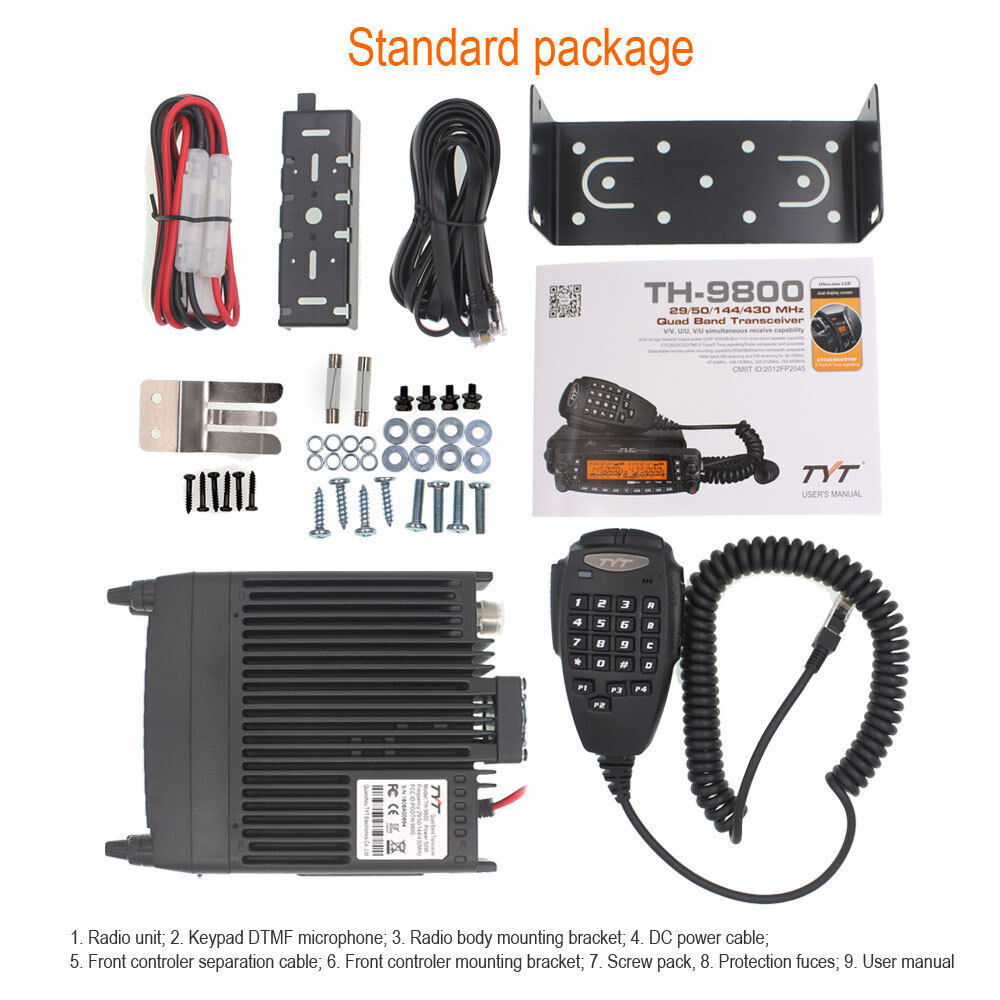

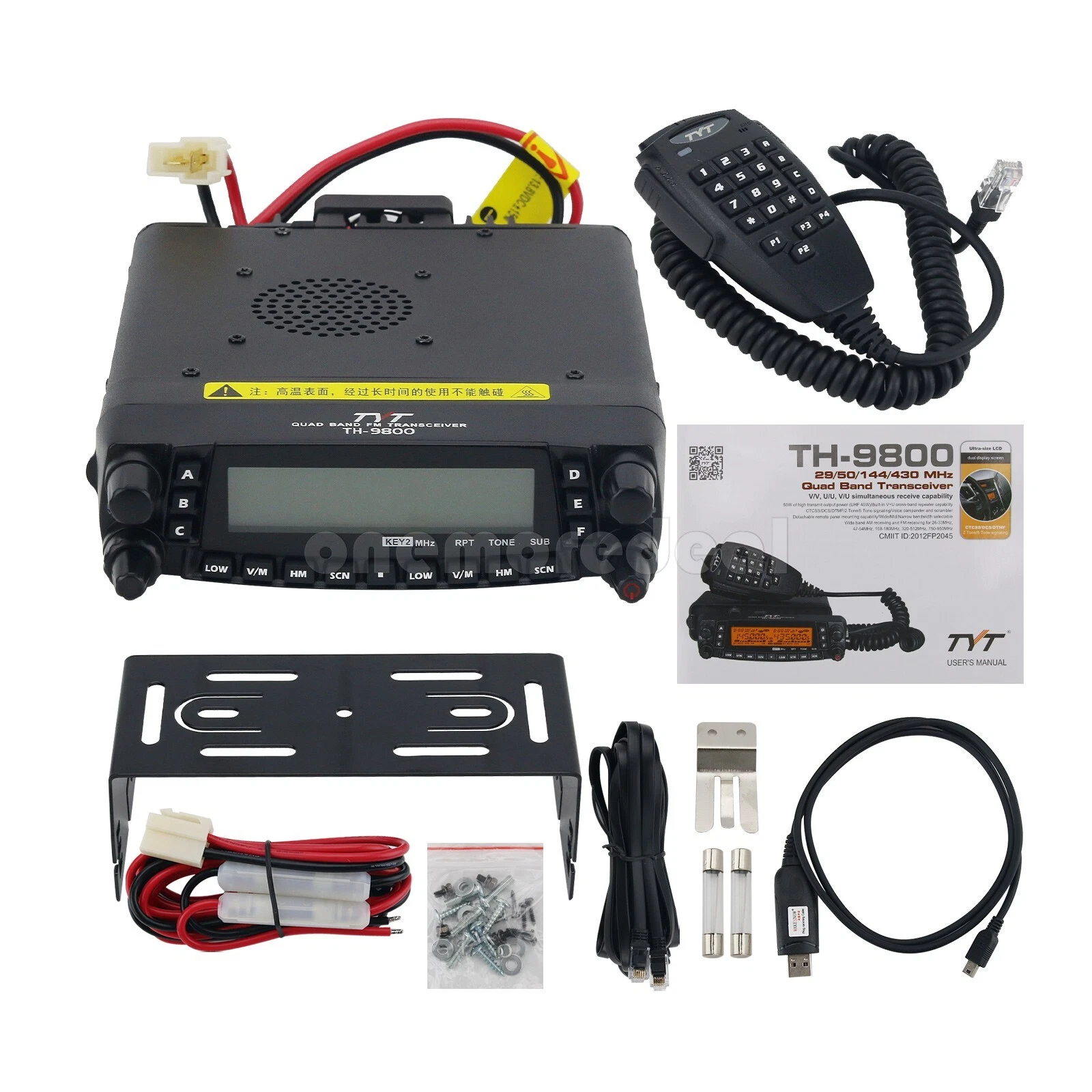

Package Included:
1x TYT TH-9800 Plus Mobile Transceiver

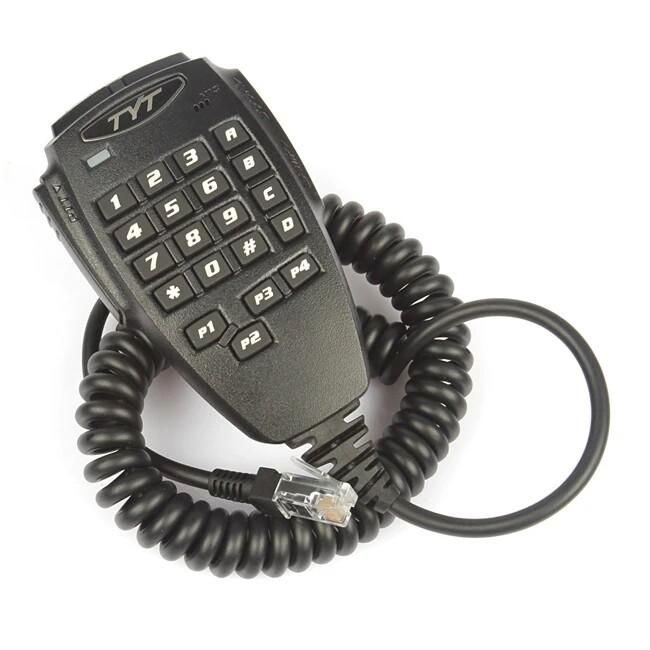

1x Handheld Microphone
1x Power Cable
1x Screws and Accessories
1x User Manual

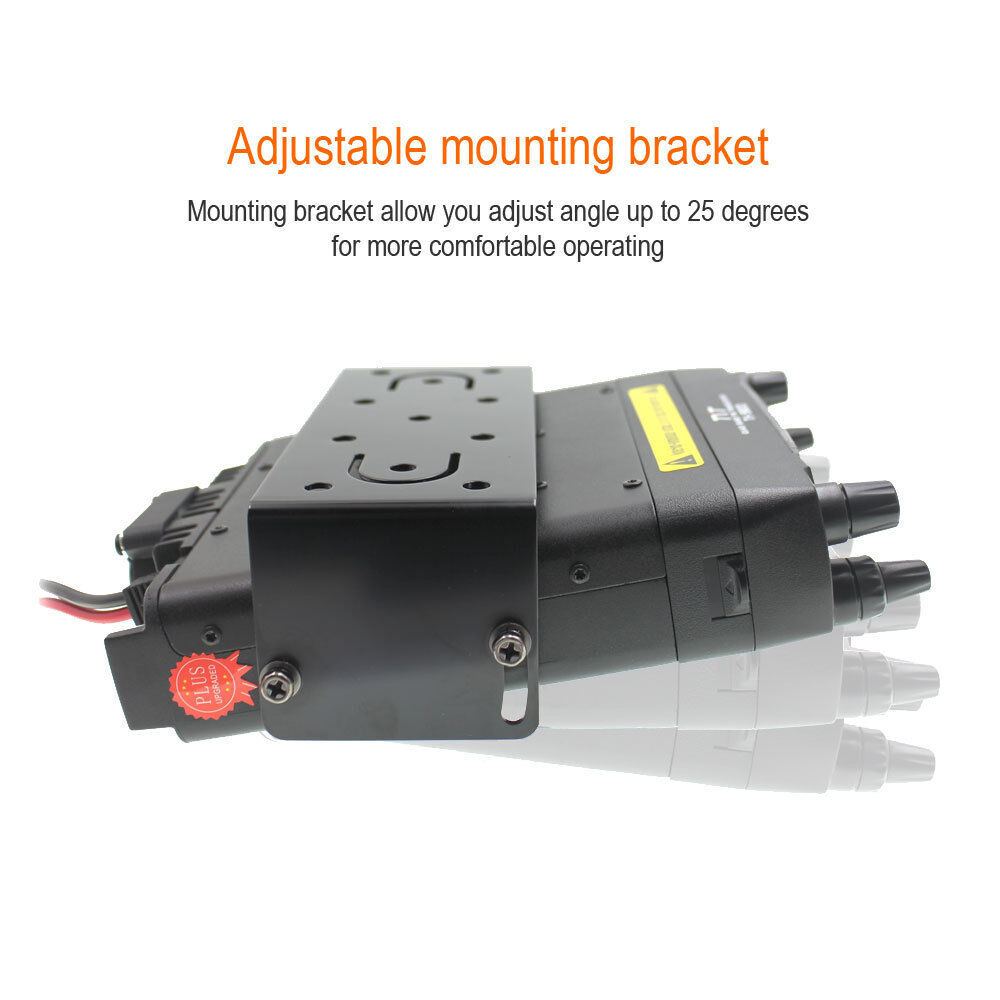

1x Fixed Bracket

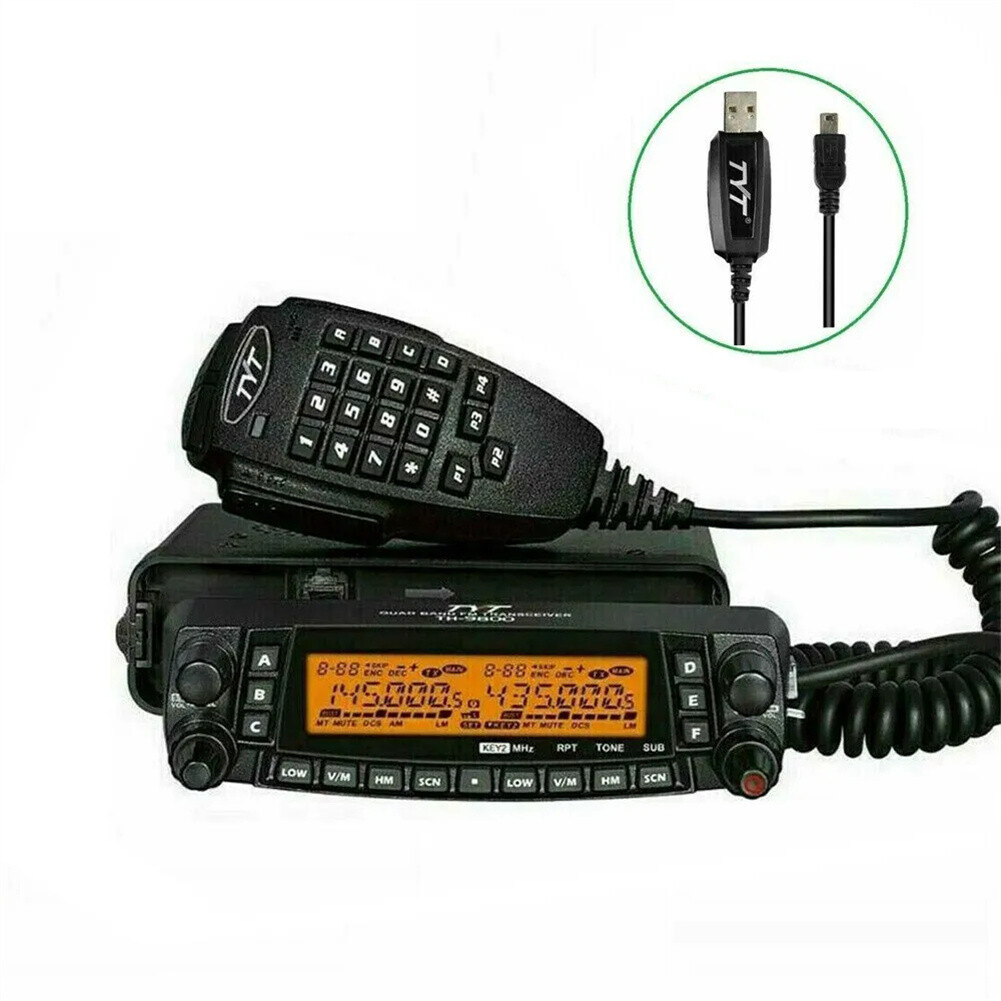

1x Programming Cable
