Features:
1. VHF/UHF Two Way Radio Transceiver
2. 100% brand new and high quality material, durable in use.
3. Lightweight and compact design, provide you clear and loud sound.
4. Adopting precise and sophisticated electronic components, it is stable in performance and reliable in receiving signal even in remote mountainous regions or dense forest.
5. Built-in 3000mAh Li-polymer Battery, it can keep working for quite a long time.
6. With simple and elegant design, it can be used on many occasions, such as airports, manufacturing plants, concerts, shopping mall etc.
Specifications:
| General | |||
| Dimension | 140x65x45mm (Without Antenna) | ||
| Weight | 360g (Include Battery) | ||
| Operating Voltage | 7.4V DC | ||
| Operating Temperature | -20℃~+40℃ | ||
| Antenna Impedance | 50Ω | ||
| Transmitter | |||
| Analog | Digital | ||
| Frequency Range | 400-470MHz （136-174Mhz） | 400-470MHz （136-174Mhz） | |
| Channel Capacity | 16 | 16 | |
| Output Power | 10W(High)5W(Low) | 10W(High)5W(Low) | |
| Frequency Stability | ±1ppm | ±1ppm | |
| FM Modulation | 12.5KHz(11K0F3E) 25KHz(16K0F3) | ||
| 4FSK Digital Modulation | 12.5KHz(DATA) 12.5KHz(DATA+VOICE) |
7K60FXD 7K60FXE |
|
| Adjacent Channel Power | ≤-60db | ≤-60db | |
| Digital Vocoder Type | AMBE+2TM | ||
| Digital Agreenment | ETSI-TS102 361-1,-2,-3 | ||
| Audio Response | +1, -3db | +1, -3db | |
| Audio Distortion | ≤5% | ≤5% | |
| Stray Radiation | -36dbm | -36dbm | |
| Receiver | |||
| Analog | Digital | ||
| Receiving Sensitivity | 0.25uV 12dbSINAD | 0.25uV BER3% | |
| Adjacent Channel Selectivity | ≤60db | ≤60db | |
| Audio Response | +1, -3db | +1, -3db | |
| Audio Distortion | ≤5% | ≤5% | |
| Audio Output Power | 1W | 1W | |
| Intermodulation | ≤-60db | ≤-60db | |

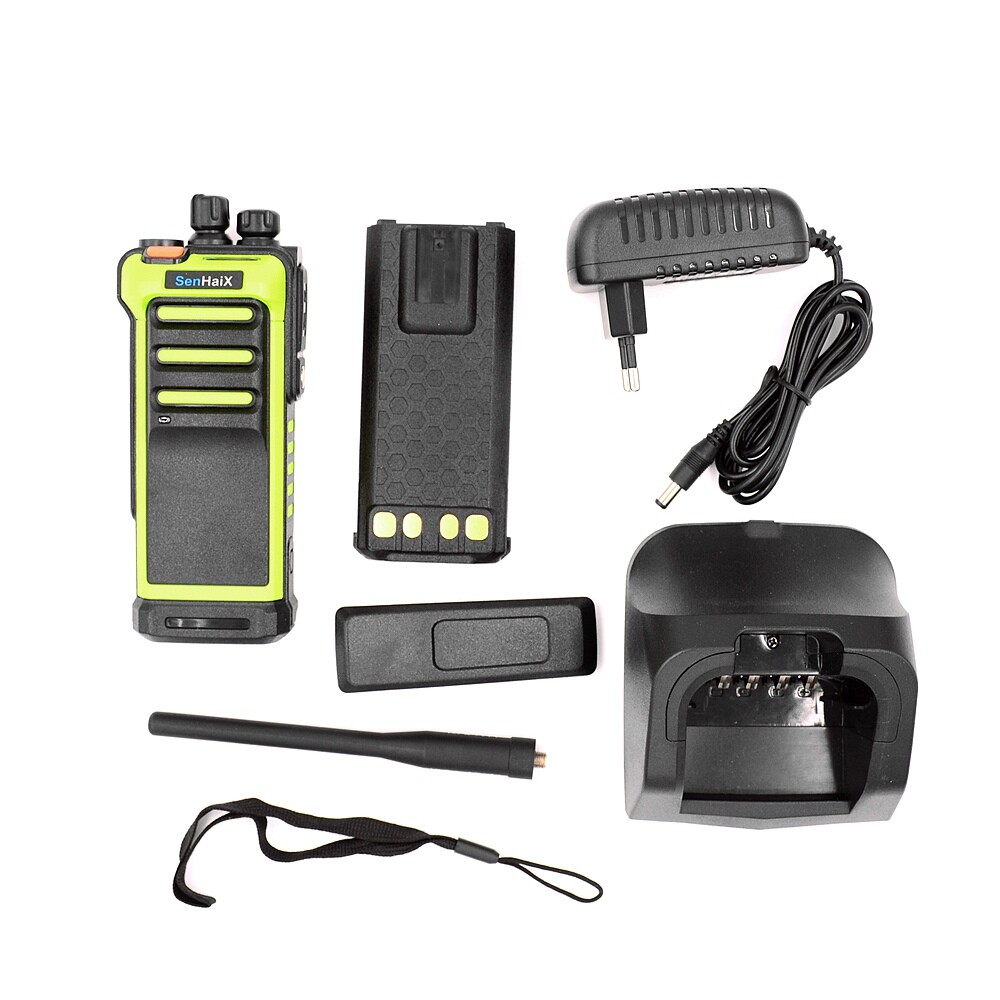

Package Listing:
1 X Senhaix GT10 radio (VHF OR UHF TO CHOOSE)
1 X 8.4V 3000mAh Li-polymer Battery
1 X Antenna
1 X Belt Clip
1 X Charger Docking
1 X 100-240V AC Power
1 X Hand Strap
1 X User's Manual
This radio has 2 versions, VHF and UHF. please choose the one you need.
