Attention:

1. Please turn off the network, please turn off the antivirus software or firewall before installing.

2. Recommended PC system: Windows 7 Pro (32/64bit) system, Internet Explorer IE8 IE9 or above, NET. Framework 3.5. XP or Win7 Home system is not supported!!!
3. Does not support BT, communicate via USB



Specifications:

1. Supported languages:
---2014D:
German, Finnish, Italian, Dutch, Turkish, Spanish, French, Swedish, Portuguese, Russian, English (UK), English (US)

2. Supported cars:
2014D: 1999-2014

3. Working parts:
It can do control modules, SRS, general safety, brakes, airbags, engines as well as service and maintenance.

4. Dice main board display:





Function:

1. Administration - General information, design and functionality
2. Standard components, service materials and consumables. General information (among others, control modules, SRS, general safety) and
3. Service and maintenance
4. Engine, installation and equipment
5. Electrical system
6. Power transmission
Step 7 Brake
8. Suspension and steering
9. Springs, shock absorbers and wheels
10. Body and interior - among other things, diagnostics, design and function, repair and spare parts information
11. Other - special vehicles, such as ambulances, police cars. Components that deviate from the standard.

Description:

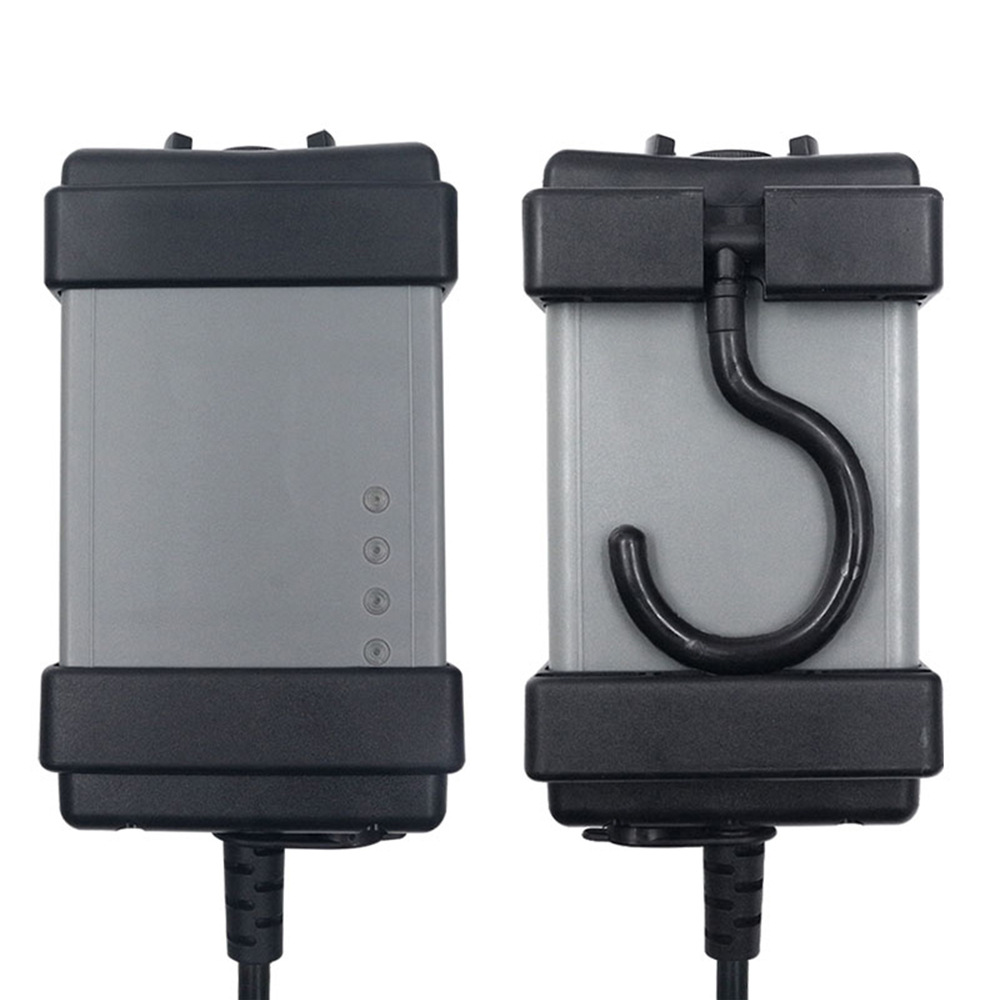

1. DICE - Diagnostic Communication Device, is a tool used with all-in-one machines to communicate with vehicles. We do not sell the STUPID DICE revised from J2534 because it does not support full features and updates. The messenger can perform diagnostics and troubleshooting on vehicles.

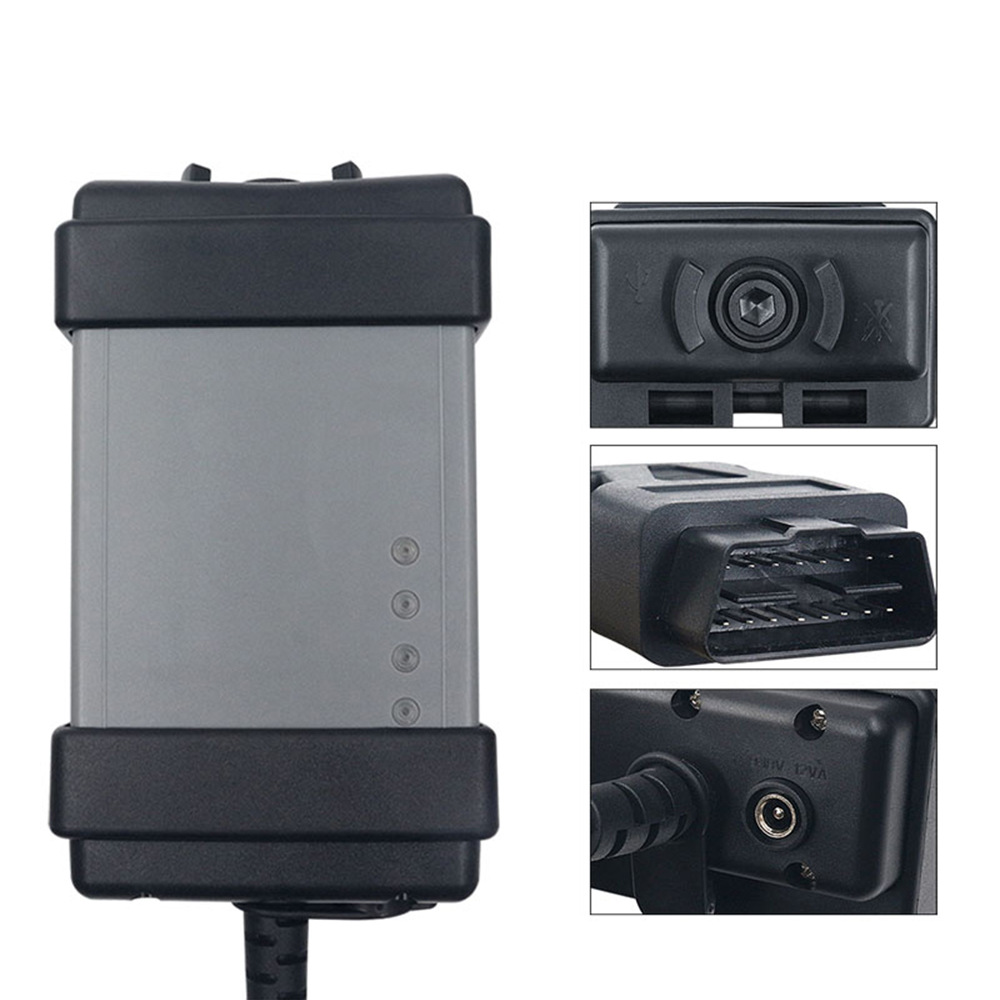

2. DICE has an integrated CARB cable that is connected to the vehicle's diagnostic socket. When connected to the vehicle, the DiCE will be powered on as long as the battery is fully charged.
3. DICE has a folding hook designed to suspend the device from one handle of the vehicle.
4. At one end of the device, there is a DC input that can be connected to a battery cable or adapter (12V). This adapter is used for DICE upgrades and troubleshooting.
5. At the other end of the device, there is a removable cover that can be removed by turning the screws on the cover.

DICE requirements for computers:
1. Must be a Windows 7 Professional operating system
2. Requires Internet Explorer 9 or above
3. Effective computer memory (RAM) requires more than 3GRAM
4. C://30GB space is required
5. Must be installed in C://
6, must be NTFS format.

Useful FAQs:
Q: If "communication tool" shows "X"
A: Just run the file EnableIEHostingx86.reg for 32-bit systems or EnableIEHostingx64.reg for 64-bit systems. These files can be found in the folder INSTALL- > Utils. Just run these files as an administrator and everything is fine now!
Q: There is a "safe normal but not normal" error during installation. How to solve the problem?
A: You need to install Windows 7 on a 32-bit computer.

Q: Does Dice have coding and programming capabilities? Can the dashboard language be changed?
A: No, it's a full scanner for old and new cars, but you can't program or change the language.

Q: I'm using 2014D and Dice, and I'm curious which module can I change the "Speed Auto Lock" function in?
A: You need to be able to read/write DIM and ICM flash at the same time. You have two options. Either reload at your local dealer or someone with an automatic interface. You can also buy some interfaces that can read/write DIM but not ICM.
Q: When in use, there is a problem with communication with all modules in the car. The ECU, TCU and other modules are not in the network, but I have connections with climate control, CEM and front door, etc. On the network screen I have ECU and TCU red and no communication with text.
A: We know that Dice is J 2534-2 compatible, and Avdi is only J 2534-1 compatible, which makes it impossible to communicate with all modules. I am using Dice clones, and my clones are 1:1 full chips, the same as genuine ones. I started with the 2008 version and have now upgraded to the 2014d version one by one.
