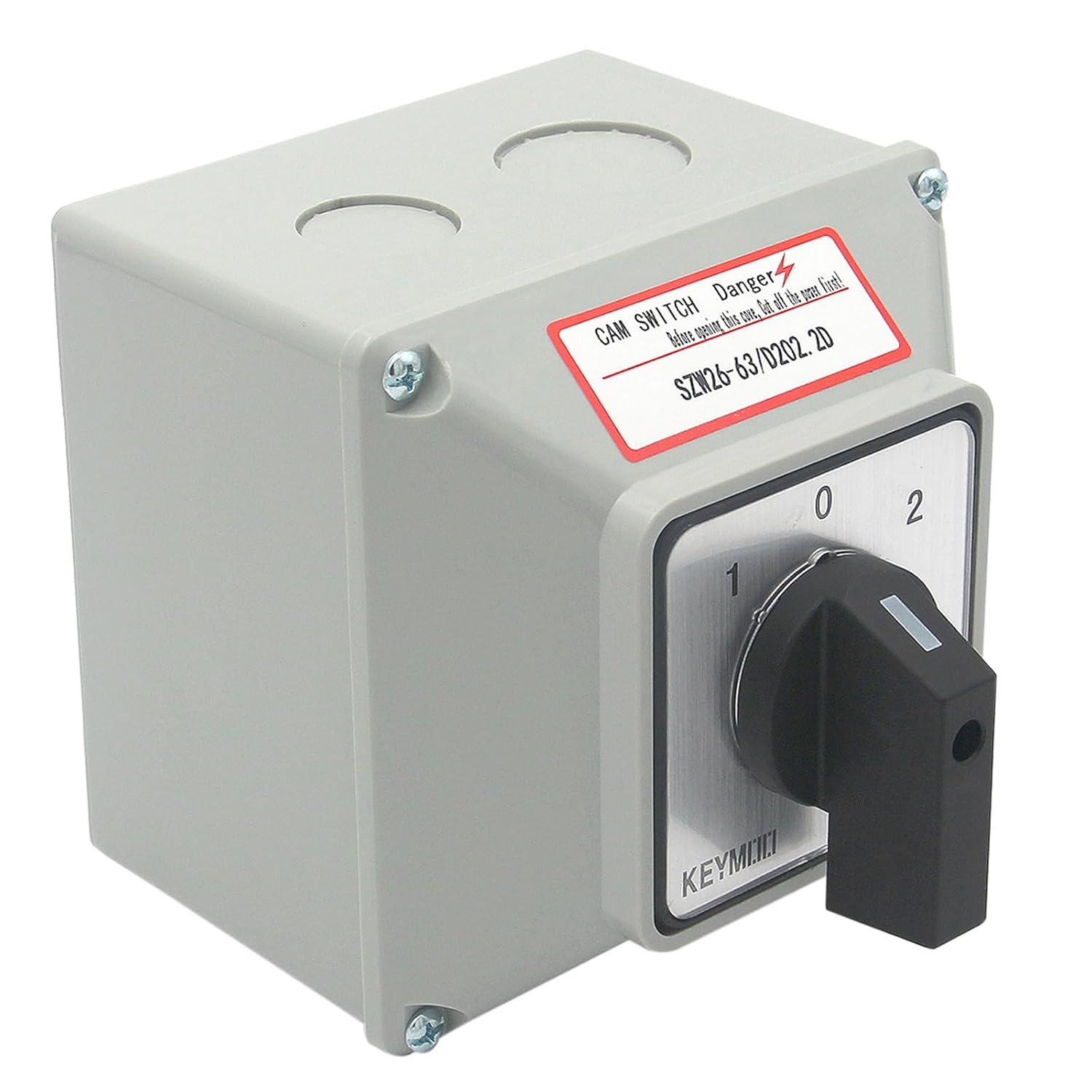

63A Rotary Changeover Switch with Master Switch Exterior Box, 660V 3 Position 2 Phase 8 Terminals Universal Selector Switch SZW26-63/D202.2D IP65
Description
| Current Rating | 63 Amps |
| Number of Items | 1 |
| Item Dimensions | 4.3 x 4.3 x 5.3 inches |
| Material Type | Plastic |
| Terminal | Screw |
| Operating Voltage | 660 Volts |
| Specification Met | CE |
| Number of Positions | 3 |
| Unit Count | 1.0 Count |
| Connectivity Protocol | X-10 |
| Material | Plastic |
| Circuit Type | 3-way |
| Item dimensions L x W x H | 4.3 x 4.3 x 5.3 inches |
| Connector Type | Screws |
| Model | SZW26-63/D202.2D |
| Mounting Type | Panel Mount |
| Operation Mode | ON-NONE-ON |
| Actuator Type | Rotary |
| Contact Type | 2no/2nc |
| Contact Material | Silver |
| Switch Type | Rotary |
- 【Parameter】Ui: 660V, Ith: 63A
- 【3 Positions】1-0-2 = ON-OFF-ON, 2 Poles, 8 Terminals
- 【Size】4.3 In. x 4.3 In. x 5.2 In. (LxWxH) 【Weight】1.7 lbs 【Wire Capacity】Max. AWG 8
- 【Material】Flame Retardant PC Housing,Excellent Copper Parts with Silver Alloy Point
- 【What You Get】Cam Switch with Box,Mounting Accessories , MANUAL
Product description
63A 2 POLES PRODUCT PARAMETERS
- Parameter Ui 660V, Ith: 63A
- Action Type Manual, Latching Type
- 3 Positions 1-0-2 = ON-OFF-ON, 2 Poles, 8 Terminals
- Wire Capacity Max. 8 AWG by standard wire（not solid）
- Total Size 4.3 In. x 4.3 In.x 5.2 In. (LxWxH)
- Material Flame Retardant PC Housing
- Protection Grade IP65
OPTIONAL SPECIAL WIRING
- When switching between 2 input sources for a single output as Change-over switch, Please create a set of jumpers for output to serve as a common Terminal by manual .
- When switching between one input sources for 2 output as Change-over switch, Please create a set of jumpers for input to serve as a common Terminal by manual .
- Automatic Control
- Machine Tool
- Solar Panel System
- Generator
- Inverter, RV and Etc.
