Features:

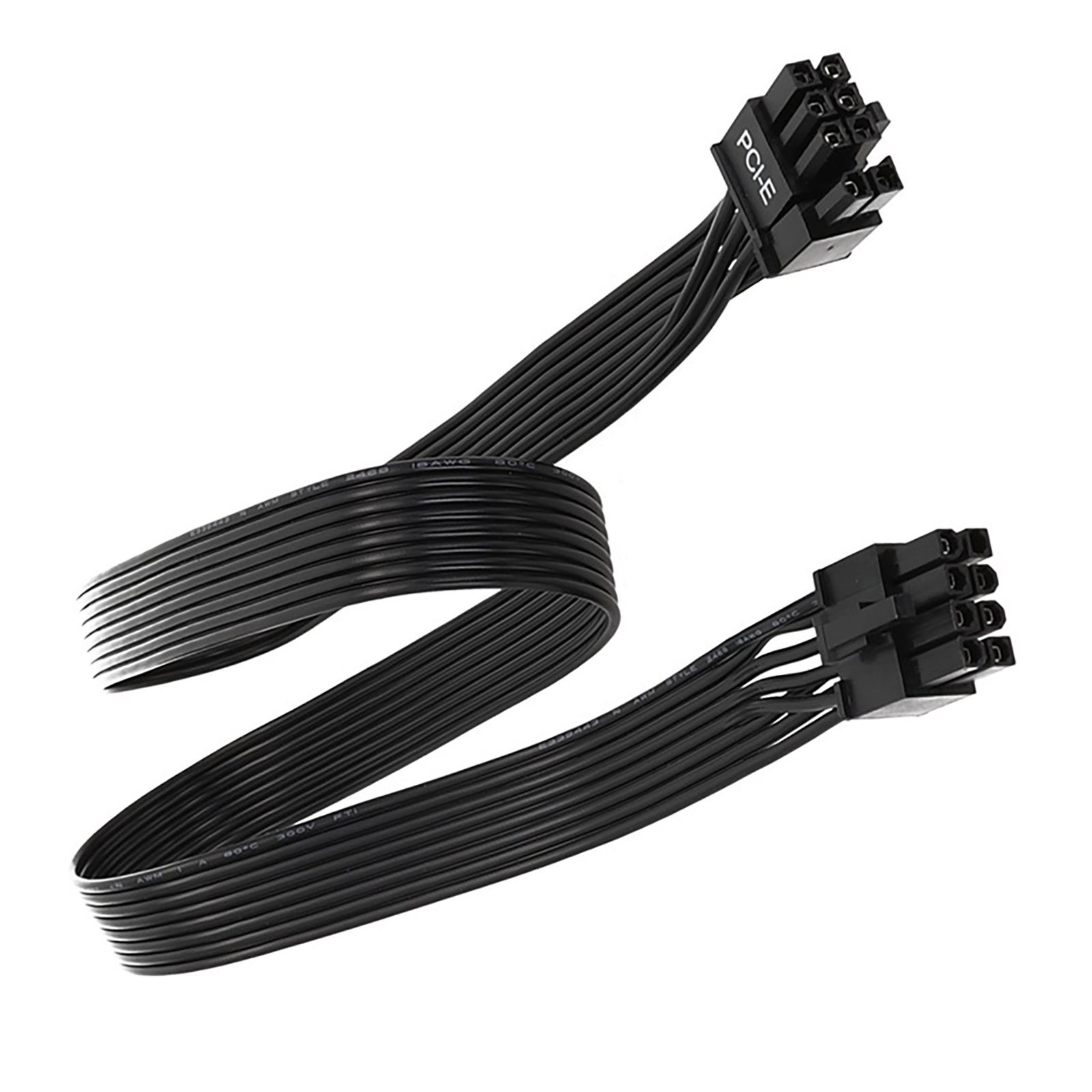

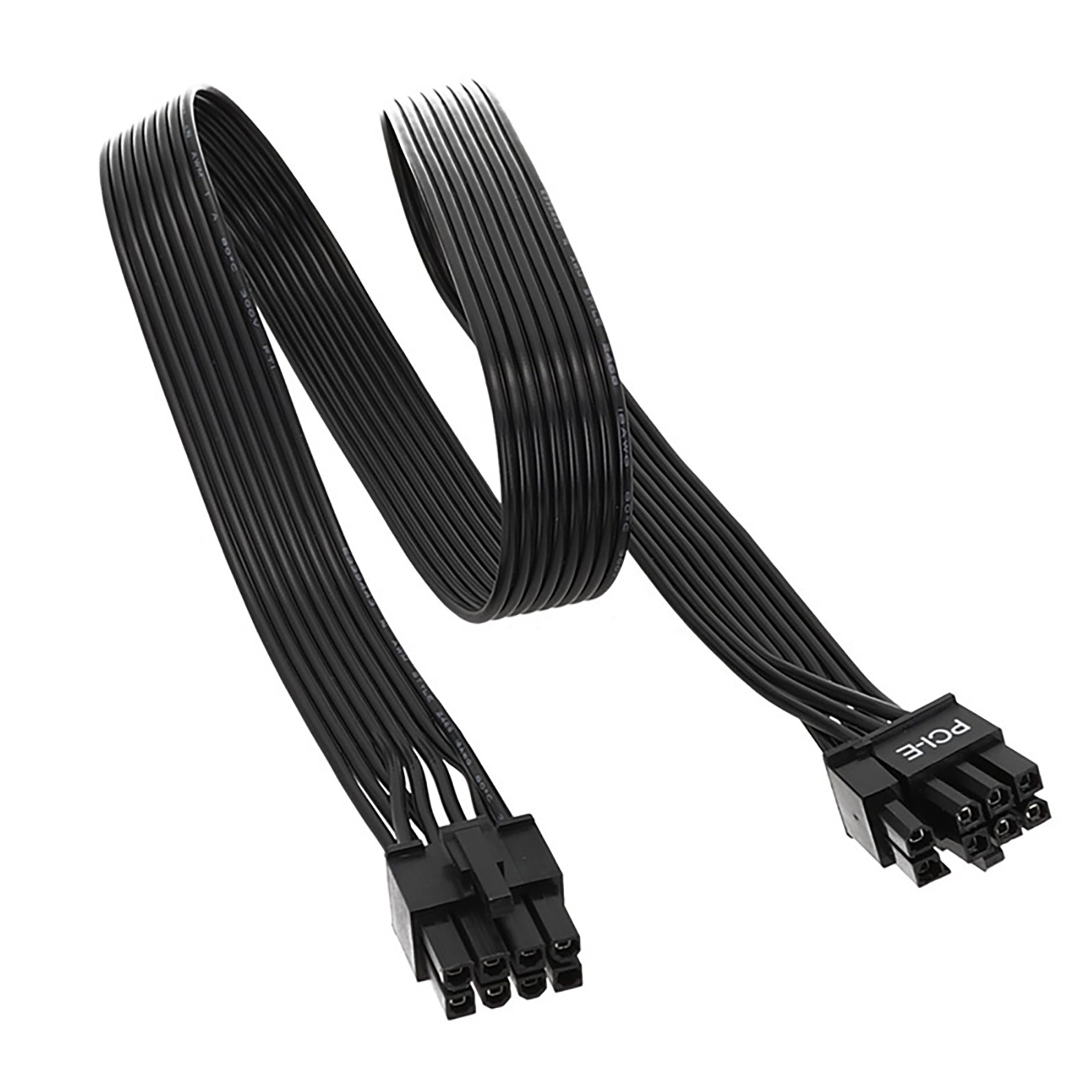

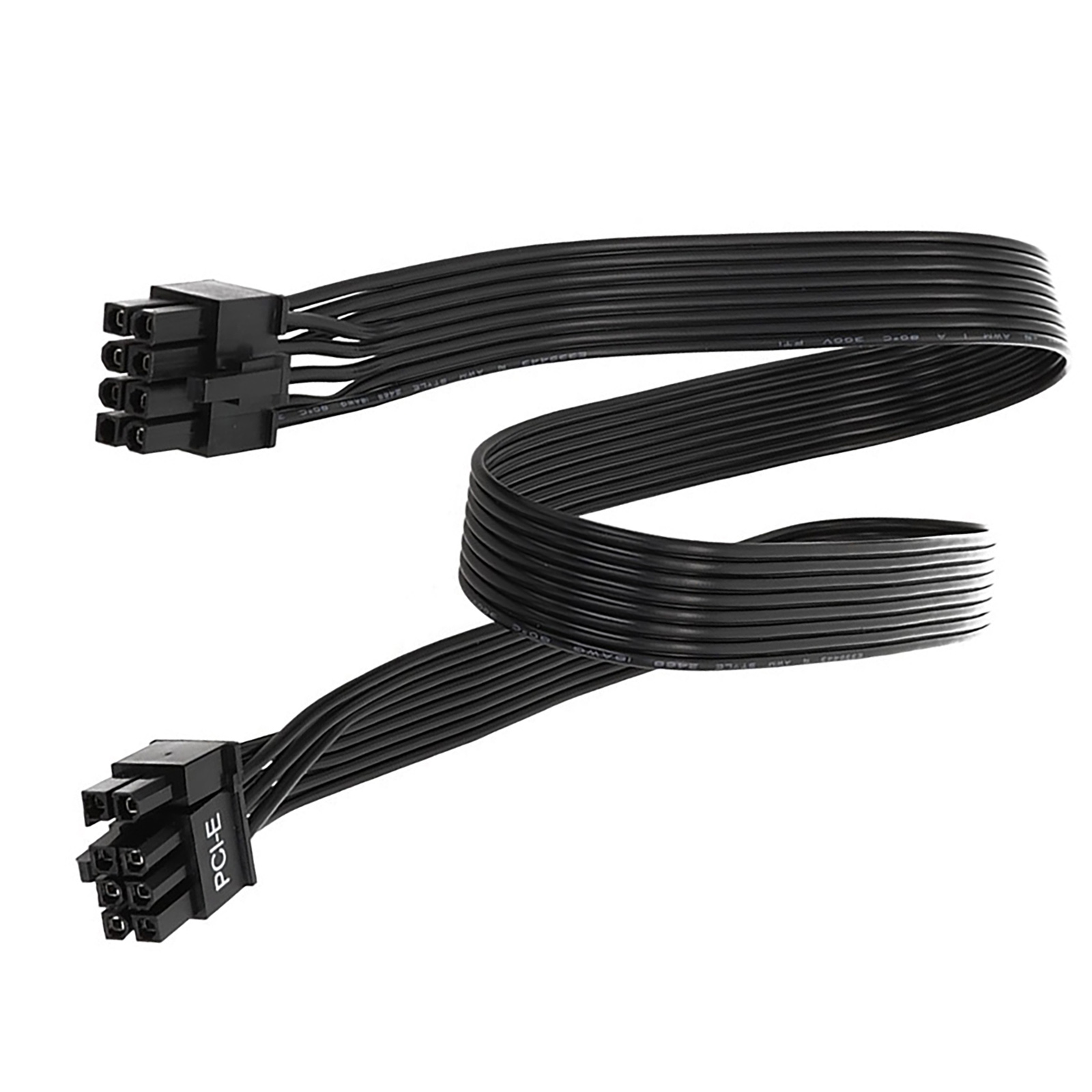

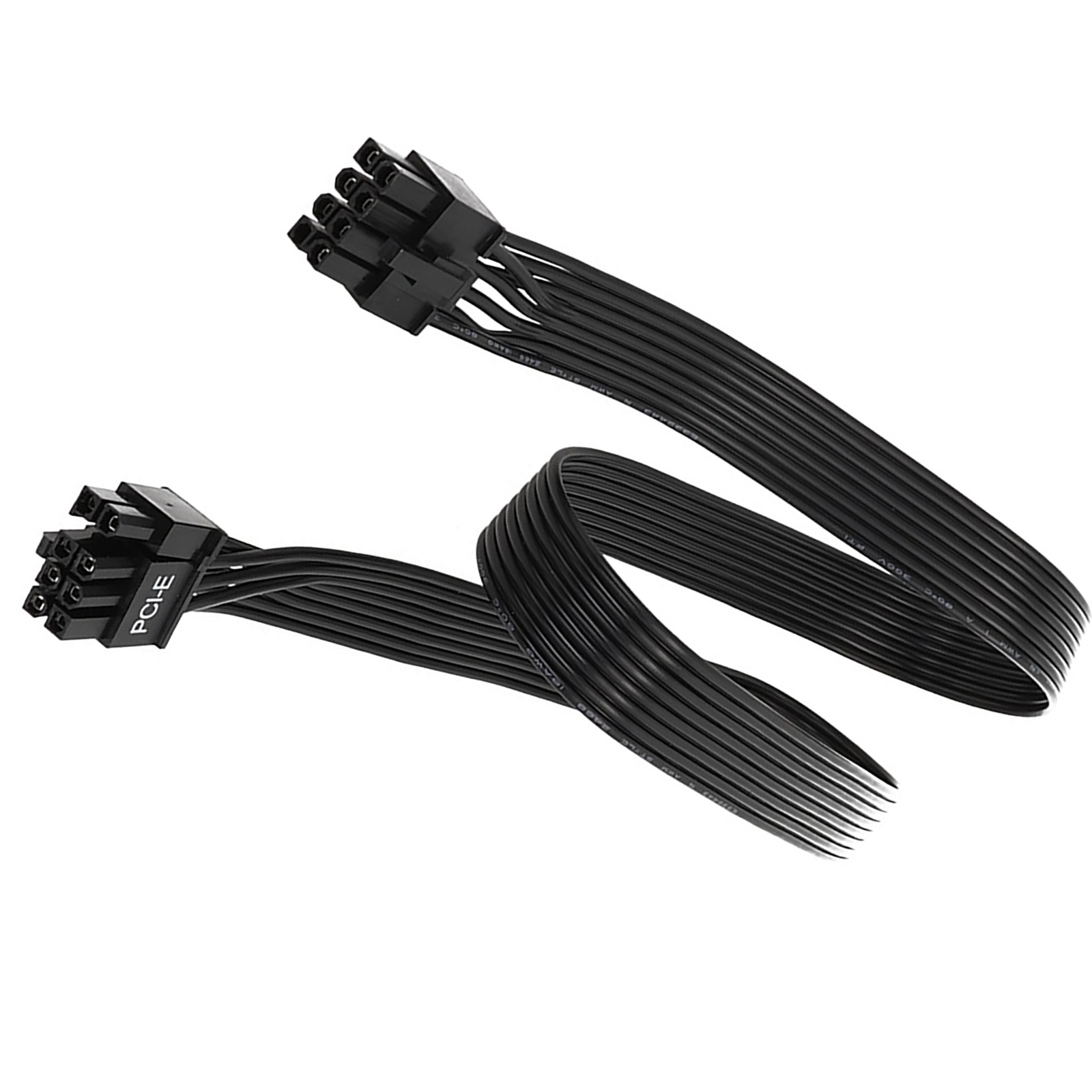

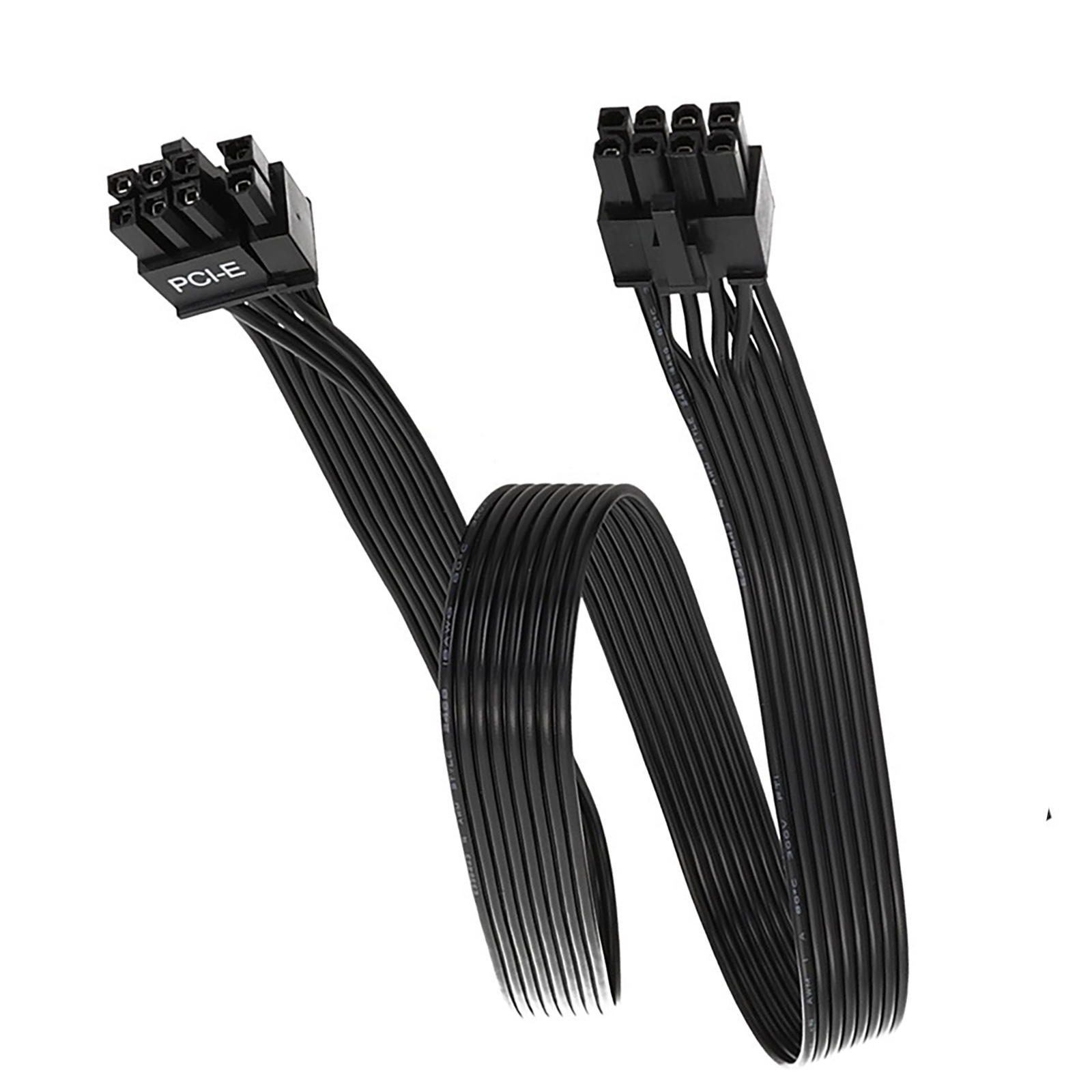

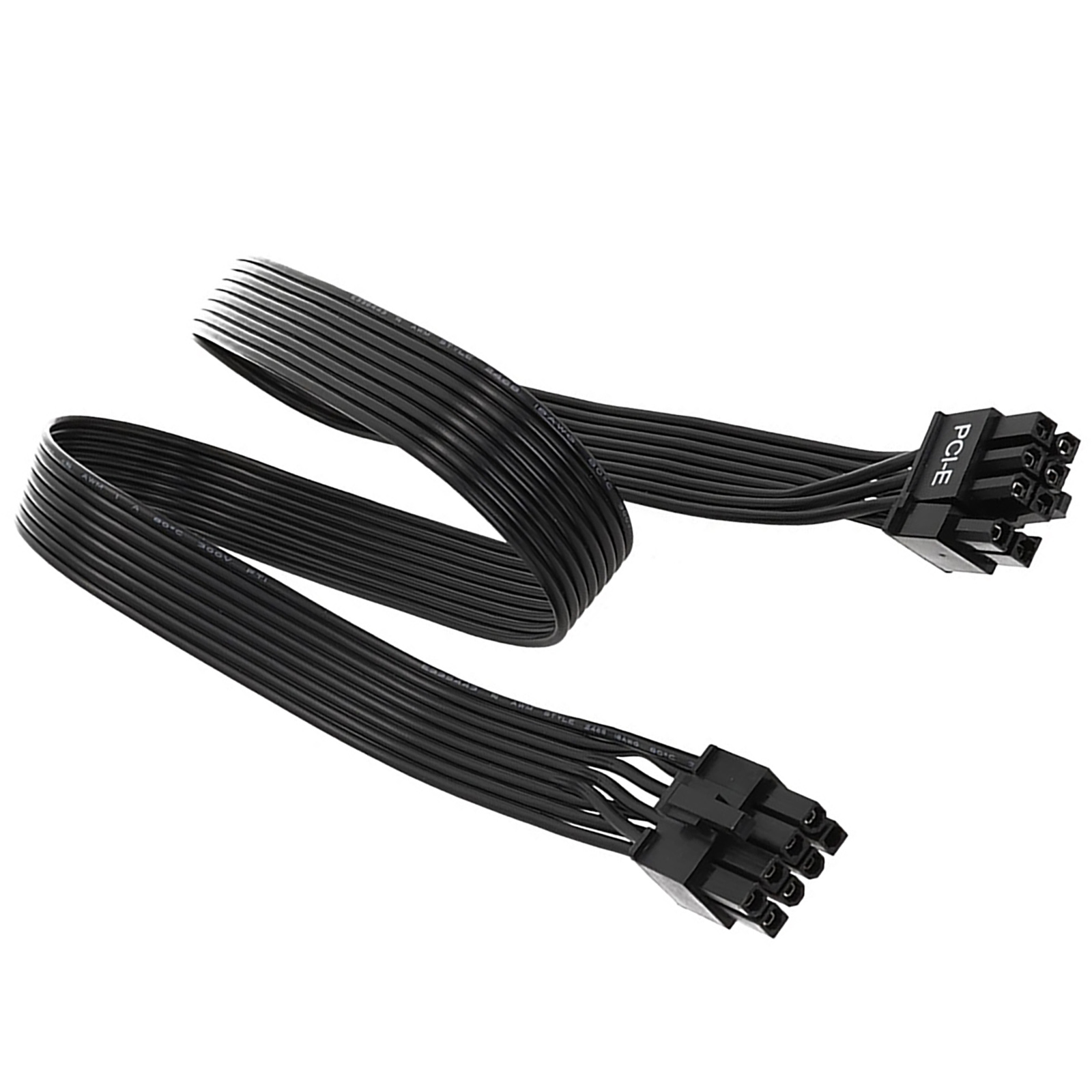

Connects the 8 Pin PSU directly to the 8 Pin interface of the power supply module, and converts it into a magic 8 Pin (6+2) PCI Express interface to supply power to the graphics card's 8 Pin or 6 Pin port.

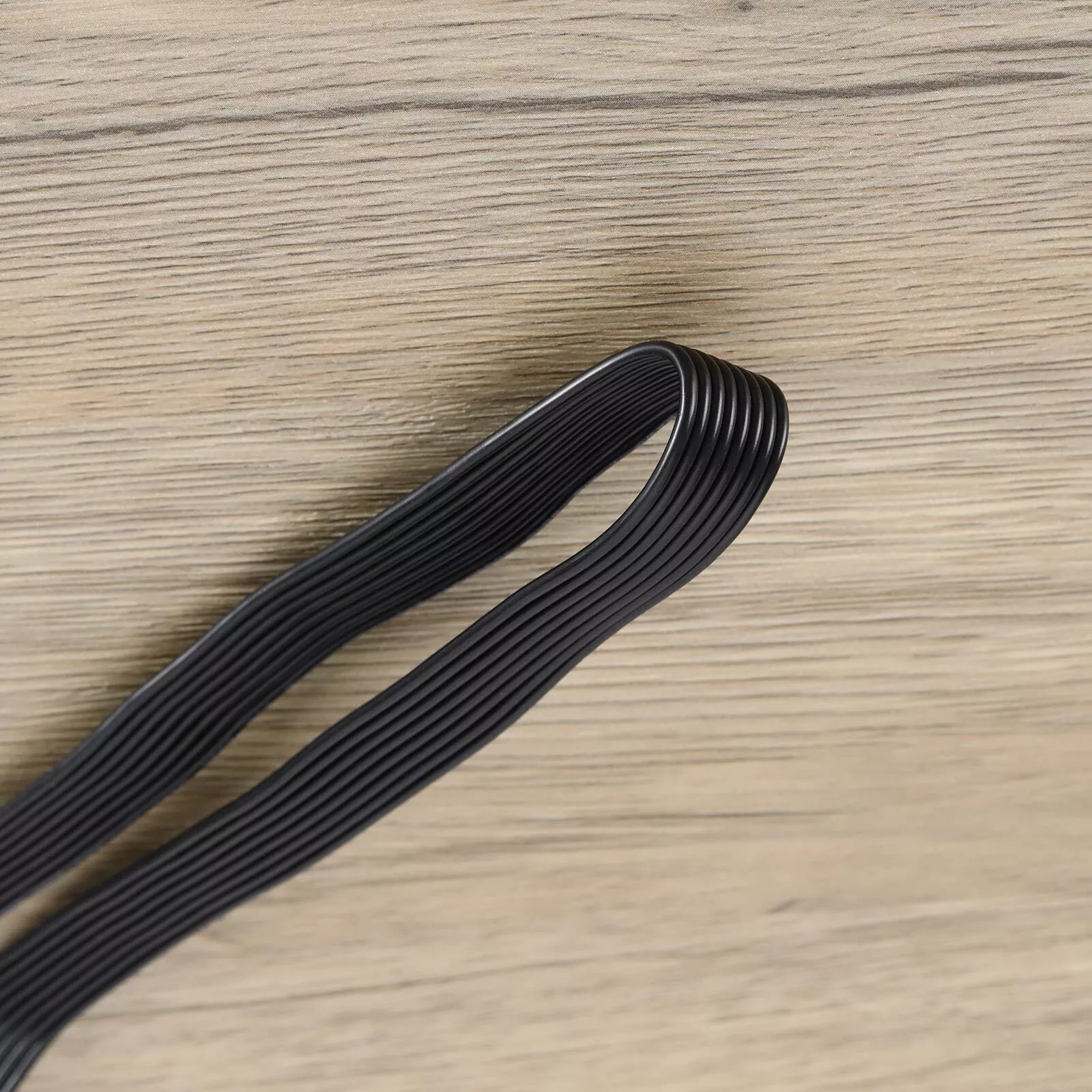

UL1007 18AWG tin-plated copper core, with high-current terminals, current up to 10A, full length 65cm (25'').
For Corsair modular power supplies: For AX1600i (Titanium), for AXi, for AX (Titanium and Platinum), for HXi, for HX (Platinum and Gold), for RMi, for RMX, for RM, for SF, for CS-M, for CX-M, for TX-M.
For Thermaltake modular power supplies: For RGB GOLD, for RGB PLATINUM, for ARGB GOLD, for Toughpower TF1/GF1/PF1/GF3/SFX.
For Aresgame modular power supplies: For AGK750, for AGK850, for AGT1000, for AGS750, for AGS850.
Not for Corsair PSU models such as the AX1200 or the AX Gold series, as well as the HX Bronze series and the HX White series. Not compatible with modular power supplies from other brands!

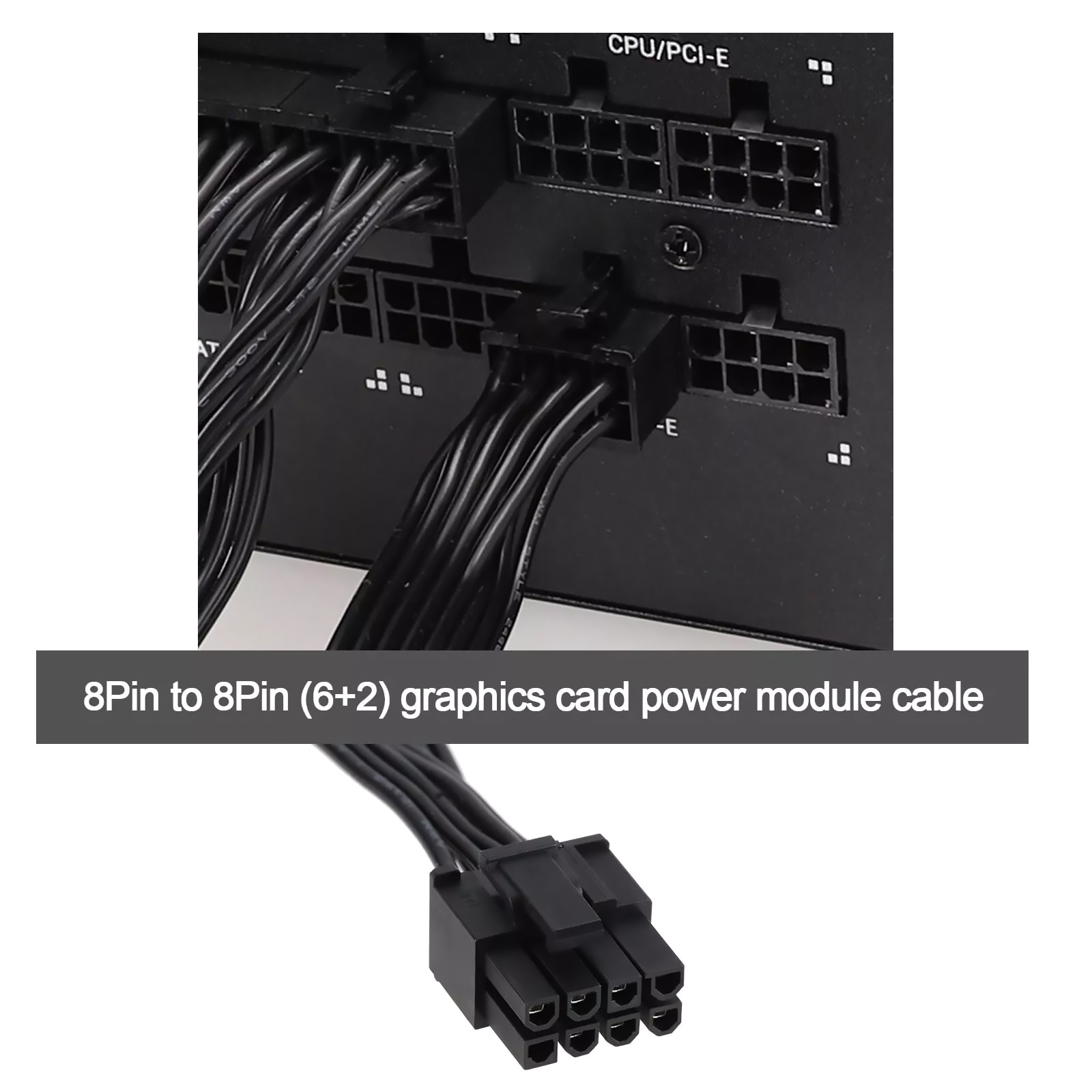

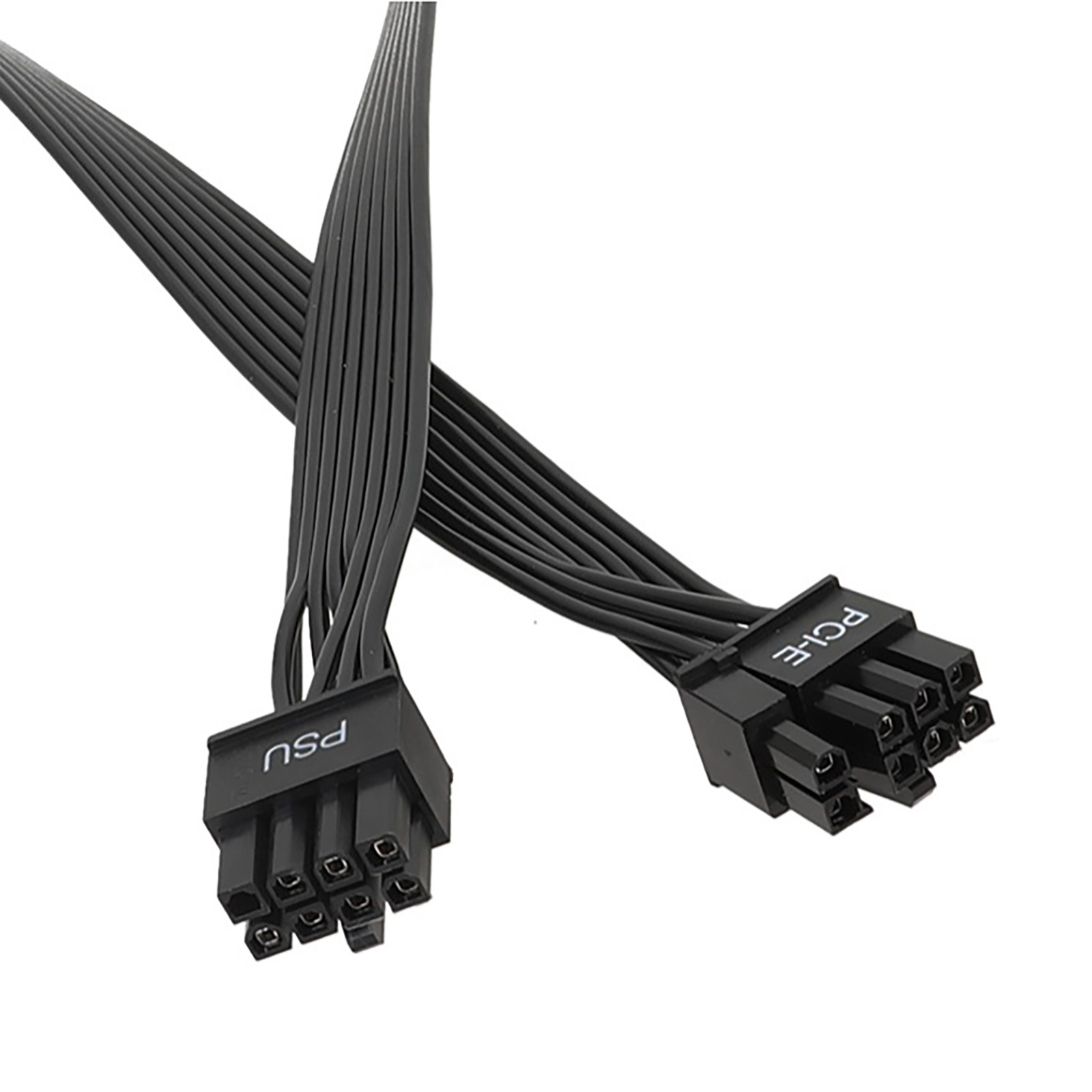

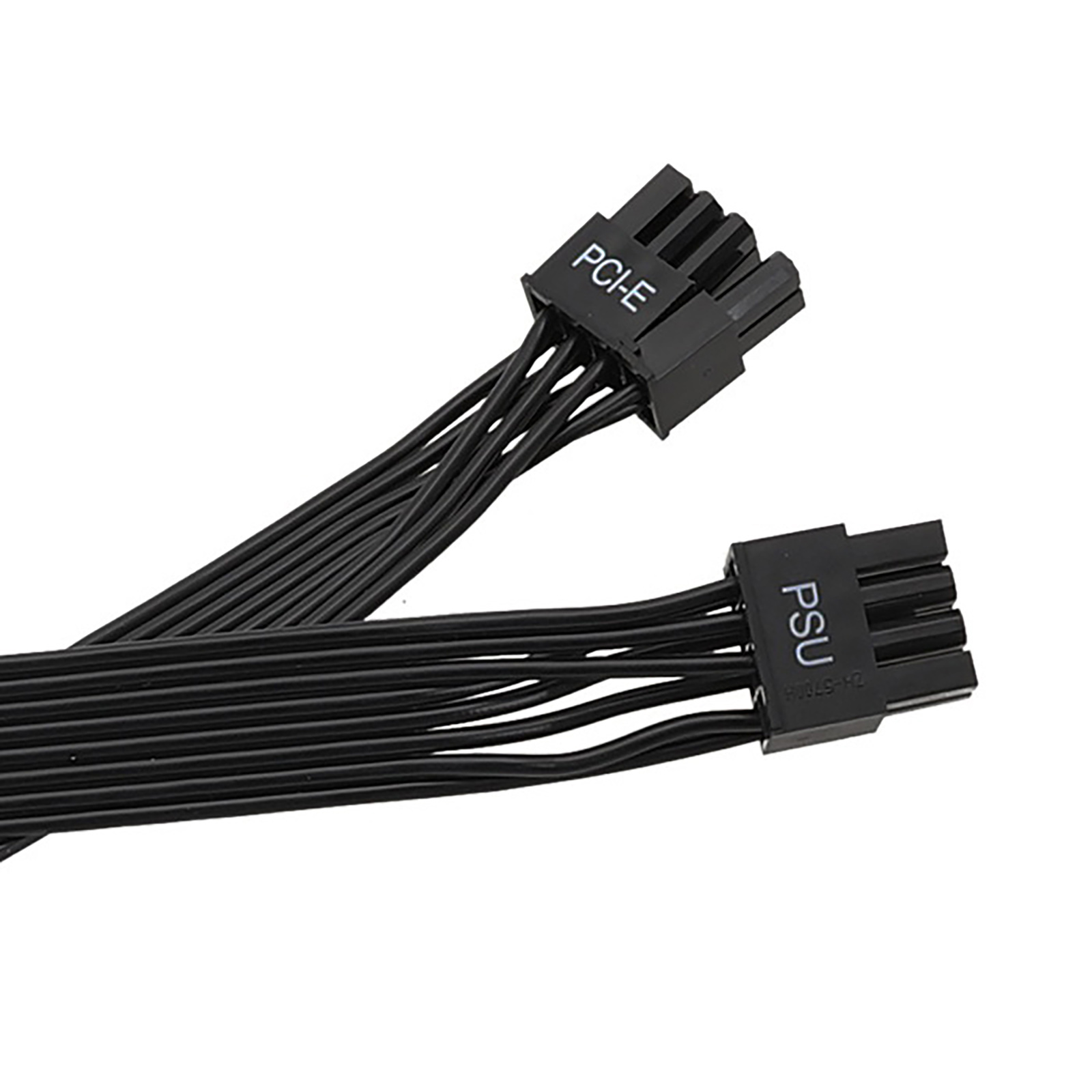

Please insert the PSU single male connector into the modular power supply; please insert the 6+2-pin PCI Express into the GPU (graphics card).
The difference between for Corsair Type-3 and Type-4 specifications lies in the MB module cables. Type-3 MB module cables adopt a 14+10 Pin design, while Type-4 MB module cables adopt a 18+10 Pin design. The EPS (CPU) cables and PCIE (GPU) cables of Type-3 and Type-4 are the same.

Specifications:
Conductor material: Tinned copper
Color: Black

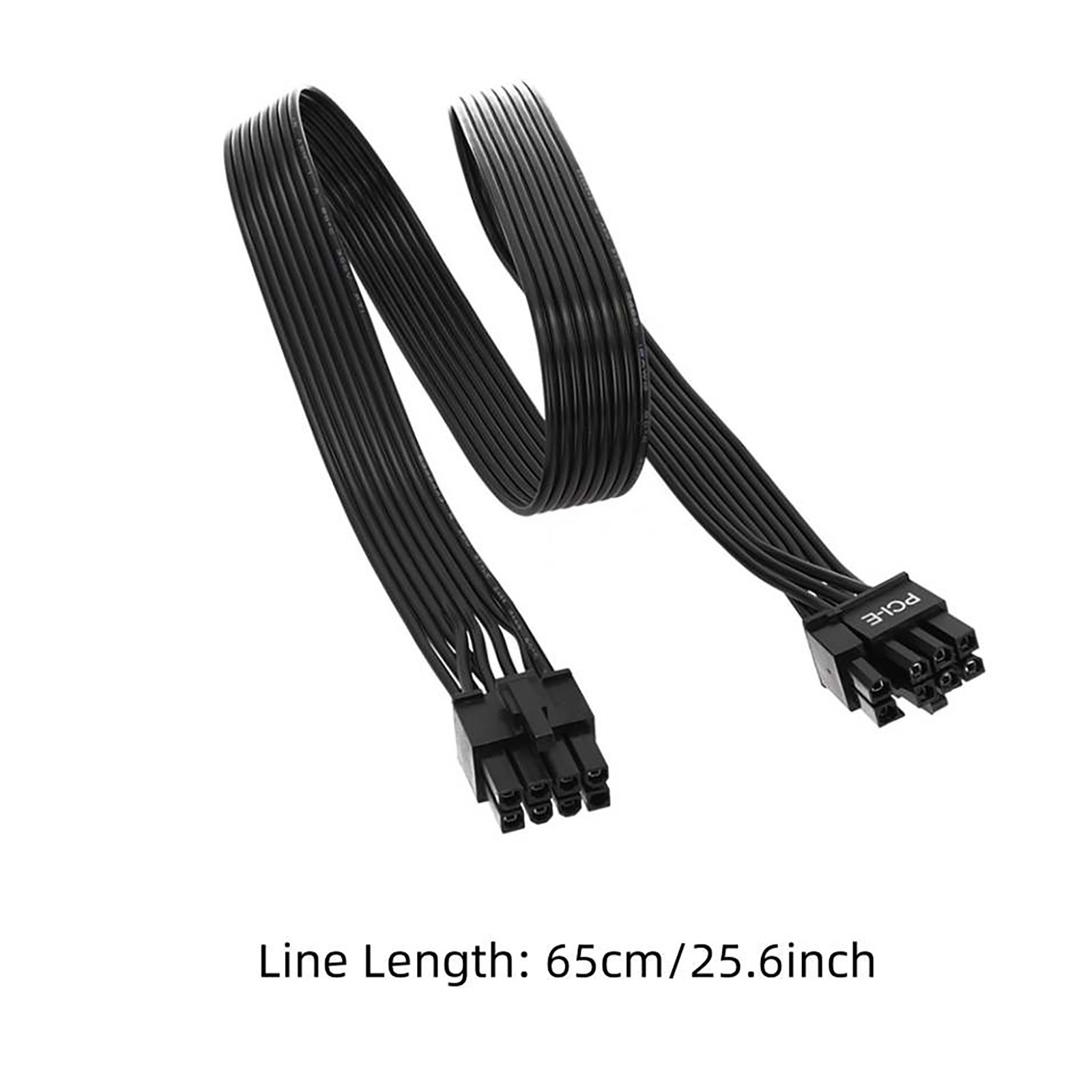

Line length: 65cm

Package Included:
1x Module Cable
